Abstract
The present disclosure relates to detecting devices, and particularly to a detecting device for an organic light emitting display. The organic light emitting display detection device is simple to operate and convenient for adjusting the position of a detection instrument. An organic light emitting display inspection apparatus, comprising: a housing; the mounting rack is mounted on one side of the upper part in the machine shell; two first sliding sleeves are arranged and are arranged on two sides of the mounting frame in a sliding manner; the first mounting block is mounted between the two first sliding sleeves; two first guide rods are arranged and are arranged on two sides of the bottom of the first mounting block; the fixing frame is arranged between the two first guide rods in a sliding manner; and the clamping mechanism is arranged on the fixing frame and is used for fixing the detection instrument. The staff puts detecting instrument between two splint, and under the effect of first spring, splint move in opposite directions and press from both sides detecting instrument tightly, and electric putter's extension end makes and places the board and drive organic light emitting display and move to the detecting instrument below left and detect.
Description
Technical Field
The present disclosure relates to detecting devices, and particularly to a detecting device for an organic light emitting display.
Background
Organic light emitting displays are so called because they are composed of a very thin coating of organic material and a glass substrate, and the organic material emits light when a current flows therethrough. After the organic light emitting display is manufactured, it needs to be detected to ensure that the indicators of the display, such as brightness uniformity, color range and contrast, are qualified.
At present, traditional organic light emitting display check out test set generally is the equipment of large-scale integral type, when detecting, needs the staff to open the check out test set apron, then puts into check out test set with organic light emitting display in, closes the apron again, and the starting equipment detects, and operation process is comparatively loaded down with trivial details, and the altitude mixture control of detecting instrument gets up comparatively trouble, the organic light emitting display of the different models of adaptation that can not be fine.
Therefore, it is desirable to provide an organic light emitting display device detecting apparatus that is simple to operate and facilitates adjusting the position of the detecting instrument to solve the above problems.
Disclosure of Invention
In order to overcome the defects that the traditional detection equipment is complicated to operate and the height of a detection instrument is troublesome to adjust, the invention has the technical problems that: the organic light emitting display detection device is simple to operate and convenient for adjusting the position of a detection instrument.
The technical scheme is as follows: an organic light emitting display inspection apparatus, comprising: a housing; the mounting rack is mounted on one side of the upper part in the machine shell; two first sliding sleeves are arranged and are arranged on two sides of the mounting frame in a sliding manner; the first mounting block is mounted between the two first sliding sleeves; two first guide rods are arranged and are arranged on two sides of the bottom of the first mounting block; the fixing frame is arranged between the two first guide rods in a sliding manner; the clamping mechanism is arranged on the fixing frame and used for fixing the detection instrument; the placing mechanism is arranged at the lower part of the machine shell.
In a preferred embodiment of the present invention, the clamping mechanism comprises: the disc is arranged at the bottom of the fixed frame; at least two second sliding sleeves are arranged on the two sides of the disc; two first springs are arranged and are arranged between the two second sliding sleeves; splint, splint are two, all install between two second sliding sleeves.
In a preferred embodiment of the present invention, the placement mechanism comprises: the electric push rod is arranged on one side of the bottom in the shell; the placing plate is arranged at the lower part of the shell in a sliding manner and is connected with the extending end of the electric push rod; the pressure sensor is arranged on the top of the placing plate; and the press switch is arranged on the mounting frame and matched with the first mounting block.
In a preferred embodiment of the present invention, the present invention further comprises a driving mechanism, wherein the driving mechanism comprises: the photoelectric sensor is arranged on one side of the lower part in the shell, which is far away from the placing plate; the servo motor is arranged on one side of the upper part in the shell; the oscillating plate is arranged on an output shaft of the servo motor; the first sliding block is arranged on the first installation block and movably connected with the swinging plate.
In a preferred embodiment of the present invention, the present invention further comprises a fixing mechanism, wherein the fixing mechanism comprises: at least two second guide rods are arranged on the placing plate; at least two second sliding blocks are arranged and are arranged on the second guide rod in a sliding manner; two second springs are arranged and are arranged between the second sliding block and the second guide rod; and at least two fixed blocks are arranged and are arranged at the top of the second sliding block.
In a preferred embodiment of the present invention, the cleaning device further comprises a cleaning mechanism, wherein the cleaning mechanism comprises: the rolling brush is rotatably arranged on the shell and is provided with a one-way bearing; the ratchet wheel is arranged on one side of the rolling brush; the second mounting block is mounted on one side of the placing plate; two first sliding rods are arranged and are arranged at the top of the second mounting block in a sliding manner; two third springs are arranged and are arranged between the first sliding rod and the second mounting block; the ratchet bar is arranged between the tops of the two first sliding rods and matched with the ratchet wheel.
In a preferred embodiment of the present invention, the present invention further comprises an adjusting mechanism, wherein the adjusting mechanism comprises: the shaft sleeve is rotatably arranged at the top of the shell; the second sliding rod is slidably arranged in the shaft sleeve; the fourth spring is arranged between the second sliding rod and the shaft sleeve; the mounting plate is mounted on one side of the bottom of the first mounting block; the screw is rotatably arranged on the mounting plate and is connected with the disc through threads; the square block is installed at the top of the screw rod and matched with the second sliding rod.
In a preferred embodiment of the present invention, the method further comprises: the circuit comprises a circuit box, wherein the circuit box is arranged on one side of a shell, a switching power supply, a control module and a power supply module are arranged in the circuit box, the switching power supply supplies power to the whole device, the output end of the switching power supply is electrically connected with the power supply module, the power supply module is connected with a power supply main switch through a circuit, the control module is electrically connected with the power supply module, and the control module is connected with a DS1302 clock circuit and a 24C02 circuit; the pressure sensor, the press switch and the photoelectric sensor are electrically connected with the control module, and the electric push rod and the servo motor are connected with the control module through peripheral circuits.
Has the advantages that: 1. the staff puts the detecting instrument between two splint, and under the effect of first spring, the splint removes in opposite directions and presss from both sides the detecting instrument tightly.
2. The extension end of the electric push rod extends to enable the placing plate to drive the organic light-emitting display to move leftwards to the position below the detection instrument for detection.
3. The output shaft of the servo motor rotates to drive the swinging plate to rotate, so that the detection movement is left and right to detect different positions of the organic light-emitting display.
4. The staff puts the organic light emitting display between four fixed blocks, and under the effect that the second spring resets, the fixed block moves in opposite directions and fixes the organic light emitting display, avoids the in-process organic light emitting display who removes to drop.
Drawings
Fig. 1 is a schematic perspective view of the present invention.
FIG. 2 is a schematic view of a first partial body structure according to the present invention.
FIG. 3 is a schematic view of a second partial body structure according to the present invention.
Fig. 4 is a schematic view of a first partially assembled body of the clamping mechanism of the present invention.
Fig. 5 is a schematic view of a second partial body structure of the clamping mechanism of the present invention.
Fig. 6 is a schematic perspective view of the clamping mechanism of the present invention.
Fig. 7 is a partial perspective view of the placement mechanism of the present invention.
Fig. 8 is a schematic perspective view of the placement mechanism of the present invention.
Fig. 9 is a schematic perspective view of the driving mechanism of the present invention.
Fig. 10 is a partial perspective view of the driving mechanism of the present invention.
Fig. 11 is a schematic perspective view of the fixing mechanism of the present invention.
Fig. 12 is a schematic perspective view of the cleaning mechanism of the present invention.
Fig. 13 is an enlarged perspective view of part a of the present invention.
Fig. 14 is a schematic perspective view of a portion of the cleaning mechanism of the present invention.
Fig. 15 is a schematic view of a first partial body structure of the adjustment mechanism of the present invention.
Fig. 16 is a schematic view of a second partial body structure of the adjustment mechanism of the present invention.
Fig. 17 is a circuit block diagram of the present invention.
Fig. 18 is a schematic circuit diagram of the present invention.
Wherein the figures include the following reference numerals: 1-a machine shell, 2-a circuit box, 3-a mounting frame, 4-a first sliding sleeve, 5-a first mounting block, 6-a first guide rod, 7-a fixing frame, 8-a clamping mechanism, 81-a disc, 82-a second sliding sleeve, 83-a first spring, 84-a clamping plate, 9-a placing mechanism, 91-an electric push rod, 92-a placing plate, 93-a pressure sensor, 94-a press switch, 10-a driving mechanism, 101-a photoelectric sensor, 102-a servo motor, 103-a swinging plate, 104-a first sliding block, 11-a fixing mechanism, 111-a second guide rod, 112-a second sliding block, 113-a second spring, 114-a fixing block, 12-a cleaning mechanism, 121-a rolling brush, 122-a ratchet, 123-a second mounting block, 124-a first slide bar, 125-a third spring, 126-a ratchet bar, 13-an adjusting mechanism, 131-a shaft sleeve, 132-a second slide bar, 133-a fourth spring, 134-a mounting plate, 135-a screw and 136-a square block.
Detailed Description
The invention is described in further detail below with reference to the drawings and the detailed description, but the invention is not limited to the scope of protection and application.
Example 1
The utility model provides an organic light emitting display detection device, as shown in fig. 1-8, including casing 1, mounting bracket 3, first sliding sleeve 4, first installation piece 5, first guide arm 6, mount 7, clamping mechanism 8 and placement mechanism 9, upper portion left side is equipped with mounting bracket 3 in the casing 1, the equal slidingtype in both sides is equipped with first sliding sleeve 4 around the mounting bracket 3, be connected with first installation piece 5 between two first sliding sleeves 4 around, both sides all are equipped with first guide arm 6 around 5 first installation pieces bottom, the slidingtype is equipped with mount 7 between two first guide arms 6 around, be equipped with clamping mechanism 8 on the mount 7, casing 1 lower part is equipped with placement mechanism 9.
When the device is used, a worker presses a power supply main switch to electrify the equipment, then the worker places an organic light emitting display to be detected on the placing mechanism 9, the detecting instrument is fixed on the clamping mechanism 8, then the worker drives the organic light emitting display to move leftwards to the lower part of the detecting instrument through the placing mechanism 9 to detect, the worker pushes the first sliding sleeve 4 to slide leftwards and rightwards on the mounting frame 3 while detecting, the first sliding sleeve 4 slides leftwards and rightwards through the first mounting block 5 to drive the first guide rod 6 to move leftwards and rightwards, the first guide rod 6 moves leftwards and rightwards through the fixing frame 7 to drive the clamping mechanism 8 to move leftwards and rightwards, and then the detecting instrument is driven to move leftwards and rightwards to detect different positions of the organic light emitting display, meanwhile, the worker can also push the fixing frame 7 to slide upwards and downwards to drive the detecting instrument to move upwards and downwards to a proper height through the clamping mechanism 8, therefore, the device is suitable for organic light emitting displays of different models, and after the device is used, a worker presses the power supply main switch again to power off the device.
As shown in fig. 2, 4, 5, 6 and 16, the clamping mechanism 8 includes a circular disc 81, a second sliding sleeve 82, a first spring 83 and a clamping plate 84, the circular disc 81 is disposed at the bottom of the fixing frame 7, the second sliding sleeves 82 are symmetrically disposed on the front and rear sides of the circular disc 81 in a left-right sliding manner, the first spring 83 is wound between the front and rear second sliding sleeves 82 on the same side, and the clamping plate 84 is connected between the two adjacent second sliding sleeves 82.
When using the device, the staff promotes splint 84 and moves to open dorsad, splint 84 moves to drive second sliding sleeve 82 and slides dorsad, deformation takes place for first spring 83, then the staff puts detecting instrument between two splint 84, put the back, the staff loosens splint 84, at this moment, under the effect that first spring 83 resets, second sliding sleeve 82 drives splint 84 and moves clamp detecting instrument tightly mutually, so, can fix detecting instrument, conveniently detect.
As shown in fig. 1, 2, 7, 8, 11 and 12, the placing mechanism 9 includes an electric push rod 91, a placing plate 92, a pressure sensor 93 and a push switch 94, the electric push rod 91 is disposed on the right side of the bottom in the casing 1, the placing plate 92 is slidably disposed on the lower portion of the casing 1, the placing plate 92 is connected to the extending end of the electric push rod 91, the pressure sensor 93 is disposed on the top of the placing plate 92, the push switch 94 is disposed on the left side of the mounting block 3, and the push switch 94 is engaged with the first mounting block 5.
When the device is used, a worker places the organic light emitting display on the placing plate 92, when the worker releases his hands, the gravity sensed by the pressure sensor 93 exceeds a preset value, the pressure sensor 93 sends a signal, the control module receives the signal and controls the extension end of the electric push rod 91 to extend for three seconds, the extension end of the electric push rod 91 extends to drive the placing plate 92 to move leftwards, the placing plate 92 moves leftwards to drive the organic light emitting display to move leftwards for detection, when the detection is carried out, the first sliding sleeve 4 drives the first mounting block 5 to move rightwards and then moves leftwards for resetting to realize the back and forth completion of the detection, when the first mounting block 5 moves leftwards to be in contact with the press switch 94, the press switch 94 sends a signal, the control module receives the signal and controls the extension end of the electric push rod 91 to shorten for three seconds for resetting, so that the placing plate 92 drives the organic light emitting display to move rightwards for resetting, then the staff replaces the organic light emitting display who detects, conveniently detects next time, so, can transmit organic light emitting display to detecting instrument below and detect.
Example 2
In addition to embodiment 1, as shown in fig. 1, 9 and 10, the present invention further includes a driving mechanism 10, the driving mechanism 10 includes a photoelectric sensor 101, a servo motor 102, a swing plate 103 and a first slider 104, the photoelectric sensor 101 is disposed on the left side of the lower portion in the casing 1, the servo motor 102 is disposed on the left side of the upper portion in the casing 1, the swing plate 103 is disposed on an output shaft of the servo motor 102, the first slider 104 is disposed on the front side of the first mounting block 5, and the first slider 104 is movably connected to the swing plate 103.
When the device is used, the placing plate 92 moves leftwards to drive the organic light emitting display to move leftwards, when the photoelectric sensor 101 senses that the placing plate 92 moves leftwards, the photoelectric sensor 101 sends a signal, the control module receives the signal and controls the output shaft of the servo motor 102 to rotate for 50 degrees and then rotate for 50 degrees to reset, the output shaft of the servo motor 102 rotates to drive the swinging plate 103 to swing rightwards, then the first sliding block 104 drives the first mounting block 5 to move rightwards, when the output shaft of the servo motor 102 rotates reversely, the swinging plate 103 rotates leftwards along with the output shaft of the servo motor 102, then the first sliding block 104 drives the first mounting block 5 to move leftwards to reset, the first mounting block 5 moves leftwards to move leftwards and rightwards to enable the detection instrument to move leftwards and rightwards to perform detection, and rightwards can automatically enable the detection instrument to move leftwards and rightwards to perform detection after the organic light emitting display reaches the lower part of the detection instrument.
On the basis of embodiment 1, as shown in fig. 1, fig. 2 and fig. 11, the device further includes a fixing mechanism 11, the fixing mechanism 11 includes a second guide rod 111, a second slider 112, a second spring 113 and a fixing block 114, the second guide rods 111 are symmetrically arranged on the front and rear sides of the placing plate 92, the second slider 112 is slidably arranged on the second guide rods 111, the second spring 113 is wound between the second slider 112 and the second guide rods 111, and the fixing block 114 is arranged on the top of the second slider 112.
When the device is used, a worker pushes the fixing block 114 to move back to back, the fixing block 114 moves back to drive the second slider 112 to slide back to back on the second guide rod 111, the second spring 113 deforms, then the worker places the organic light-emitting display between the four fixing blocks 114, after the fixing is placed, the worker loosens the fixing block 114, under the reset effect of the second spring 113, the second slider 112 drives the fixing block 114 to move opposite to fix the organic light-emitting display, therefore, the organic light-emitting display can be fixed, and the organic light-emitting display is prevented from falling in the moving process.

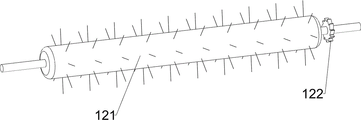

Based on embodiment 1, as shown in fig. 1, fig. 2, fig. 12, fig. 13 and fig. 14, the cleaning device 12 further includes a cleaning mechanism 12, the cleaning mechanism 12 includes a rolling brush 121, a ratchet 122, a second mounting block 123, a first sliding rod 124, a third spring 125 and a ratchet 126, the rolling brush 121 is rotatably disposed in the middle of the housing 1, the rolling brush 121 has a one-way bearing, the ratchet 122 is disposed on the rear side of the rolling brush 121, the second mounting block 123 is disposed on the rear side of the placing plate 92, the first sliding rod 124 is slidably disposed on both left and right sides of the top of the second mounting block 123, the third spring 125 is wound between the first sliding rod 124 and the second mounting block 123, the ratchet 126 is disposed between the top of the left and right first sliding rods 124, and the ratchet 126 is engaged with the ratchet 122.
When the device is used, the placing plate 92 moves leftwards to enable the ratchet bar 126 to move leftwards, the ratchet bar 126 moves leftwards to be meshed with the ratchet wheel 122, so that the ratchet wheel 122 rotates, the ratchet wheel 122 rotates to drive the rolling brush 121 to rotate to clean dust and impurities of the organic light emitting display, the detection result is prevented from being influenced, when the placing plate 92 moves rightwards to enable the ratchet bar 126 to move rightwards, the ratchet bar 126 is in contact with the ratchet wheel 122, the ratchet wheel 122 cannot rotate under the action of the one-way bearing, the ratchet bar 126 is extruded to move downwards, the ratchet bar 126 moves downwards to drive the first sliding bar 124 to slide downwards on the second mounting block 123, the third spring 125 deforms, after the placing plate 92 stops moving rightwards, the first sliding bar 124 drives the ratchet bar 126 to move upwards to be meshed with the ratchet wheel 122 again under the action of the resetting of the third spring 125, and thus, the dust and impurities avoided by the organic light emitting display can be cleaned, and the detection result is prevented from being influenced.
On the basis of embodiment 1, as shown in fig. 1, fig. 2, fig. 15 and fig. 16, the adjusting device 13 further includes an adjusting mechanism 13, the adjusting mechanism 13 includes a shaft sleeve 131, a second sliding rod 132, a fourth spring 133, an installation plate 134, a screw 135 and a square block 136, the shaft sleeve 131 is rotatably disposed on the left side of the top of the housing 1, the second sliding rod 132 is slidably disposed in the shaft sleeve 131, the fourth spring 133 is wound between the second sliding rod 132 and the shaft sleeve 131, the installation plate 134 is disposed on the left side of the bottom of the first installation block 5, the screw 135 is rotatably disposed on the left side of the installation plate 134, the screw 135 is in threaded connection with the circular disk 81, the square block 136 is disposed on the top of the screw 135, and the square block 136 is engaged with the second sliding rod 132.
When using the device, the staff promotes second slide bar 132 and slides the card down in axle sleeve 131 on square piece 136, fourth spring 133 takes place deformation, then the staff rotates second slide bar 132, second slide bar 132 rotates and drives screw rod 135 through square piece 136 and rotate, screw rod 135 rotates and makes disc 81 reciprocate, disc 81 reciprocates and makes detecting instrument reciprocate to suitable position, detecting instrument position control accomplishes the back, the staff loosens second slide bar 132, under the effect that fourth spring 133 resets, second slide bar 132 upwards slides thereupon and breaks away from with square piece 136, avoid influencing about the detecting instrument and remove, so, can make things convenient for the staff to adjust the height of detecting instrument more.
On the basis of embodiment 1, as shown in fig. 1, 17 and 18, the power supply device further includes a circuit box 2, the circuit box 2 is arranged at the left part of the front side of the casing 1, a switching power supply, a control module and a power supply module are arranged in the circuit box 2, the switching power supply supplies power to the whole device, the output end of the switching power supply is electrically connected with the power supply module, the power supply module is connected with a power supply main switch through a circuit, the control module is electrically connected with the power supply module, and the control module is connected with a DS1302 clock circuit and a 24C02 circuit; the pressure sensor 93, the press switch 94 and the photoelectric sensor 101 are electrically connected with the control module, and the electric push rod 91 and the servo motor 102 are connected with the control module through peripheral circuits.
The foregoing is only a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, various modifications and decorations can be made without departing from the principle of the present invention, and these modifications and decorations should also be regarded as the protection scope of the present invention.
Claims (8)
1. An organic light emitting display detection device is characterized by comprising: a housing (1); the mounting rack (3) is mounted on one side of the inner upper part of the machine shell (1); two first sliding sleeves (4) are arranged, and are arranged on two sides of the mounting frame (3) in a sliding manner; the first mounting block (5) is mounted between the two first sliding sleeves (4); two first guide rods (6) are arranged and are respectively arranged on two sides of the bottom of the first mounting block (5); the fixing frame (7) is arranged between the two first guide rods (6) in a sliding manner; the clamping mechanism (8) is arranged on the fixed frame (7), and the clamping mechanism (8) is used for fixing the detection instrument; the placing mechanism (9) is arranged at the lower part of the machine shell (1).
2. The detecting device for an organic light emitting display according to claim 1, wherein the clamping mechanism (8) comprises: the disc (81) is arranged at the bottom of the fixed frame (7); at least two second sliding sleeves (82) are arranged, and are respectively arranged on two sides of the disc (81); two first springs (83), wherein the two first springs (83) are respectively arranged between the two second sliding sleeves (82); the number of the clamping plates (84) is two, and the two clamping plates (84) are arranged between the two second sliding sleeves (82).
3. The detecting device for an organic light emitting display according to claim 2, wherein the placing mechanism (9) comprises: the electric push rod (91) is arranged on one side of the bottom in the machine shell (1); the placing plate (92) is arranged at the lower part of the machine shell (1) in a sliding way, and the placing plate (92) is connected with the extending end of the electric push rod (91); a pressure sensor (93) mounted on top of the placement plate (92); and the press switch (94) is installed on the installation frame (3), and the press switch (94) is matched with the first installation block (5).
4. A testing apparatus for an organic light emitting display according to claim 3, further comprising a driving mechanism (10), the driving mechanism (10) comprising: the photoelectric sensor (101) is arranged on one side of the inner lower part of the machine shell (1) far away from the placing plate (92); a servo motor (102) installed at one side of the upper part in the casing (1); a swing plate (103) mounted on an output shaft of the servo motor (102); and the first sliding block (104) is arranged on the first mounting block (5), and the first sliding block (104) is movably connected with the swinging plate (103).
5. The detecting device for an organic light emitting display according to claim 4, further comprising a fixing mechanism (11), wherein the fixing mechanism (11) comprises: at least two second guide rods (111) are arranged on the placing plate (92); at least two second sliding blocks (112) are arranged on the second guide rod (111) in a sliding manner; two second springs (113), wherein the two second springs (113) are respectively arranged between the second sliding block (112) and the second guide rod (111); and at least two fixed blocks (114) are arranged and are mounted at the top of the second sliding block (112).
6. The detecting device for an organic light emitting display according to claim 5, further comprising a cleaning mechanism (12), wherein the cleaning mechanism (12) comprises: the rolling brush (121) is rotatably arranged on the machine shell (1), and the rolling brush (121) is provided with a one-way bearing; a ratchet wheel (122) mounted on one side of the rolling brush (121); a second mounting block (123) mounted on one side of the placing plate (92); two first sliding rods (124), wherein the two first sliding rods (124) are arranged at the top of the second mounting block (123) in a sliding manner; two third springs (125) are arranged, and are mounted between the first sliding rod (124) and the second mounting block (123); a ratchet bar (126) installed between the tops of the two first sliding bars (124), wherein the ratchet bar (126) is matched with the ratchet wheel (122).
7. The detecting device for an organic light emitting display according to claim 6, further comprising an adjusting mechanism (13), wherein the adjusting mechanism (13) comprises: the shaft sleeve (131) is rotatably arranged at the top of the shell (1); a second slide bar (132) slidably mounted within the sleeve (131); a fourth spring (133) installed between the second slide bar (132) and the bushing (131); the mounting plate (134) is mounted on one side of the bottom of the first mounting block (5); the screw rod (135) is rotatably arranged on the mounting plate (134), and the screw rod (135) is connected with the disc (81) through threads; and the square block (136) is arranged at the top of the screw rod (135), and the square block (136) is matched with the second sliding rod (132).
8. The detecting device of claim 7, further comprising: the circuit box comprises a circuit box (2), wherein the circuit box (2) is arranged on one side of a shell (1), a switching power supply, a control module and a power supply module are arranged in the circuit box (2), the switching power supply supplies power to the whole device, the output end of the switching power supply is electrically connected with the power supply module, the power supply module is connected with a power supply main switch through a circuit, the control module is electrically connected with the power supply module, and the control module is connected with a DS1302 clock circuit and a 24C02 circuit; the pressure sensor (93), the press switch (94) and the photoelectric sensor (101) are electrically connected with the control module, and the electric push rod (91) and the servo motor (102) are connected with the control module through peripheral circuits.
