Abstract

The present disclosure relates to the technical field of packaging boxes, and in particular, to a packaging box. The packing box includes an outer shell and an inner lining; the outer shell includes a floor box and a top cover, and the top cover is buckled on the floor box; the inner liner includes a bottom support, a bottle support and a top arranged in sequence from bottom to top cover; the bottom bracket is installed in the floor box, the bottom bracket is provided with a first through groove, the bottle bracket is arranged on the bottom bracket, the bottle bracket is provided with a mounting groove, the The installation groove is placed in the first through groove, the bottle body is placed in the installation groove, the top cover is buckled on the bottle holder, and the peripheral side of the top cover is provided with a first flanging structure, so between the first flanging structure and the gap between the bottom bracket and the floor box. In the packaging box, the bottom support, the bottle support and the top cover are stacked in sequence from bottom to top, so that the bottom support can provide protection effects such as buffering and support for the bottle body in the bottle support, and the bottle body can be placed in the bottle support through the installation groove. The internal fixation effect is better.

Description

box

technical field

The present disclosure relates to the technical field of packaging boxes, and in particular, to a packaging box.

Background technique

Wine is a liquid commodity beverage that has existed since ancient times. Today, on the shelves of shopping malls, the first thing that catches people's eyes is often the outer packaging of wine, that is, the packaging box. Box packaging plays a very important role in the sales of wine, especially its role in attracting consumers, increasing the added value of products, satisfying consumers' spiritual needs, and consolidating brand and corporate image, which are more and more recognized by people.

At present, the commonly used wine bottles in the market are glass bottles, ceramic bottles and other materials, which are fragile. At the same time, more and more Tiandi box-type packaging boxes are used in the wine packaging industry. Tiandi box-type packaging has an elegant and delicate appearance. When this type of packaging box is used to place a set product consisting of multiple wine bottles or wine utensils, the weight of the packaging box is often very heavy, which has better requirements for the supporting strength, protection effect and anti-collision of the packaging box. . The lining of this kind of box-type packaging box is mostly made of EVA, pearl cotton or plastic (blister molding) and other materials, which have high cost and long production cycle; if the lining of the packaging box is made of common paper materials, In order to meet the requirements of its supporting strength and protection, the structure of the inner lining will be very complicated, which will affect the appearance of the product; and will bring greater difficulties and burdens to mass production.

SUMMARY OF THE INVENTION

In order to solve the above technical problems, the present disclosure provides a packaging box.

The present disclosure provides a packaging box, including an outer shell and an inner liner;

The shell includes a floor box and a sky cover, and the sky cover is buckled on the floor box;

The inner lining includes a bottom support, a bottle support and a top cover sequentially arranged from bottom to top; the bottom support is installed in the floor box, the bottom support is provided with a first through groove, and the bottle support is arranged in the floor box. On the bottom support, the bottle support is provided with an installation groove, the installation groove is placed in the first through groove, the bottle body is placed in the installation groove, and the top cover is buckled on the bottle support The top cover is provided with a first flanging structure on the peripheral side, the first flanging structure and the gap between the bottom bracket and the floor box, and the top cover is provided with the installation slot. The matching second through groove.

Optionally, the bottom bracket is provided with a first vertical plate, one side of the first vertical plate is connected to the bottom bracket, and the other side is supported on the floor box.

Optionally, the first vertical plate is disposed at the edge of the first through groove, and the first vertical plate and the bottom bracket are integrally formed.

Optionally, a side of the first vertical plate facing the floor box is provided with a first horizontal plate vertically arranged with the first vertical plate, and the distance between the first through groove and the floor box is equal to the distance between the first vertical plate and the floor box. the height of the first vertical plate.

Optionally, the peripheral side of the bottom bracket is provided with a second flanging structure, and the height of the second flanging structure is the same as the height of the first vertical plate.

Optionally, both the floor box and the sky cover include a transverse plate and a plurality of side plates arranged perpendicularly to the transverse plate, and the plurality of side plates are connected end to end and surround the peripheral side of the transverse plate, and the two side plates are connected end to end. The adjacent side plates are connected by a concave-convex structure.

Optionally, the outside of the floor box and the canopy are wrapped with wrapping paper, the wrapping paper is arranged on the outside of the horizontal plate and the side plate by folding and wrapping, and the wrapping paper is folded. The inner side of the crease is provided with a V-shaped groove along the crease.

Optionally, the bottom bracket and the top cover are made of common corrugated paper materials, and their wall thickness is about 1-1.5mm. Through reasonable structural settings, the support effect is good and the bottle body can be effectively protected and buffered. .

Optionally, the bottom bracket and the top cover are also provided with a cup groove for fixing the cup body, and the cup groove is provided with a convex shape matching the shape of the cup mouth and/or the cup bottom of the cup body. up the structure.

Optionally, it also includes a reinforcing card, the reinforcing card is provided with a through groove having the same shape as the cup groove, the reinforcing card is fixed on the bottom bracket, and the reinforcing card is a hard material.

Optionally, the bottom of the installation groove is provided with a raised portion, and the bottle holder is bonded to the floor box through the raised portion.

Compared with the prior art, the technical solutions provided by the embodiments of the present disclosure have the following advantages:

In the packaging box provided by the present disclosure, the bottom support, the bottle support and the top cover are stacked in sequence from bottom to top, so that the bottom support can provide protection effects such as buffering and support for the bottle body in the bottle support, and the bottle body can be protected by the installation groove. The fixing effect in the bottle holder is better. It should be understood that the shape of the installation groove is matched with the bottle body. It is more neat and beautiful, and improves the viewing value of the entire packaging box. At the same time, through the setting of the first flanging structure, the bottom support and the bottle support can also be locked to prevent the bottle support from moving on the plane where the bottom support is located. .

Description of drawings

The accompanying drawings, which are incorporated in and constitute a part of this specification, illustrate embodiments consistent with the disclosure and together with the description serve to explain the principles of the disclosure.

In order to more clearly illustrate the embodiments of the present disclosure or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. In other words, on the premise of no creative labor, other drawings can also be obtained from these drawings.

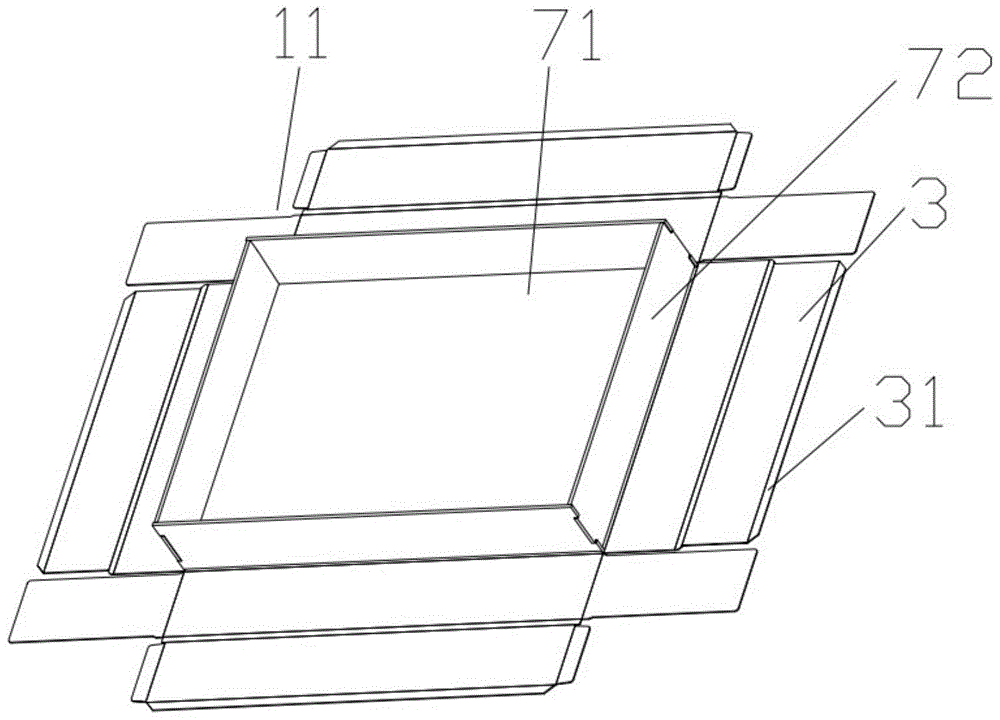

1 is a schematic structural diagram of a ground box in a packaging box according to an embodiment of the disclosure;

2 is a schematic structural diagram of a canopy in a packaging box according to an embodiment of the disclosure;

Fig. 3 is the partial enlarged view of A place in Fig. 2;

4 is a schematic structural diagram of a bottom bracket in a packaging box according to an embodiment of the disclosure;

5 is a schematic structural diagram of a bottle holder in a packaging box according to an embodiment of the disclosure;

6 is a schematic structural diagram of a top cover in a packaging box according to an embodiment of the disclosure;

FIG. 7 is a schematic structural diagram of a reinforcing card in a packaging box according to an embodiment of the disclosure.

Among them, 11, floor box; 12, sky cover; 21, bottom support; 211, first through groove; 212, first vertical plate; 213, first horizontal plate; 214, second flanging structure; 22, bottle support ; 221, installation groove; 222, raised part; 23, top cover; 231, first flanging structure; 232, second through groove; 3, wrapping paper; 31, edge sealing; 32, rounded corner structure; 4, Concave-convex structure; 51, cup groove; 52, convex structure; 53, cup mouth plate; 6, reinforcing card; 71, horizontal plate; 72, side plate.

Detailed ways

In order to more clearly understand the above objects, features and advantages of the present disclosure, the solutions of the present disclosure will be further described below. It should be noted that the embodiments of the present disclosure and the features in the embodiments may be combined with each other under the condition of no conflict.

Many specific details are set forth in the following description to facilitate a full understanding of the present disclosure, but the present disclosure can also be implemented in other ways different from those described herein; obviously, the embodiments in the specification are only a part of the embodiments of the present disclosure, and Not all examples.

Wine is a liquid commodity beverage that has existed since ancient times. Today, on the shelves of shopping malls, the first thing that catches people's eyes is often the outer packaging of wine, that is, the packaging box. Box packaging plays a very important role in the sales of wine, especially its role in attracting consumers, increasing the added value of products, satisfying consumers' spiritual needs, and consolidating brand and corporate image, which are more and more recognized by people.

At present, the commonly used wine bottles in the market are glass bottles, ceramic bottles and other materials, which are fragile. At the same time, more and more Tiandi box-type packaging boxes are used in the wine packaging industry. Tiandi box-type packaging has an elegant and delicate appearance. When this type of packaging box is used to place a set product consisting of multiple wine bottles or wine utensils, the weight of the packaging box is often very heavy, which has better requirements for the supporting strength, protection effect and anti-collision of the packaging box. . The lining of this kind of box-type packaging box is mostly made of EVA, pearl cotton or plastic (blister molding) and other materials, which have high cost and long production cycle; if the lining of the packaging box is made of common paper materials, In order to meet the requirements of its supporting strength and protection, the structure of the inner lining will be very complicated, which will affect the appearance of the product; and will bring greater difficulties and burdens to mass production.

Based on this, the present embodiment provides a packaging box. The bottom support, the bottle support and the top cover are stacked in sequence from bottom to top, so that the bottom support can provide protection effects such as buffering and support for the bottle body in the bottle support. The installation groove makes the fixing effect of the bottle body in the bottle holder better. It should be understood that the shape of the installation groove matches the bottle body; Due to the cover of the top cover, the internal structure looks neater and more beautiful, which improves the viewing value of the entire packaging box. At the same time, through the setting of the first flanging structure, the bottom holder and the bottle holder can also be locked to prevent the bottle holder from being placed on the bottom holder. move on the plane. It will be described in detail below through specific embodiments:

Referring to FIGS. 1 to 6 , a packaging box provided in this embodiment includes an outer shell and an inner lining; the outer shell includes a floor box 11 and a sky cover 12 , and the sky cover 12 is buckled on the floor box 11 ; The bottom support 21, the bottle support 22 and the top cover 23 are arranged in sequence from the top; the bottom support 21 is installed in the floor box 11, the bottom support 21 is provided with a first through groove 211, the bottle support 22 is arranged on the bottom support 21, the bottle support 22 is provided with an installation groove 221, the installation groove 221 is placed in the first through groove 211, the bottle body is placed in the installation groove 221, the top cover 23 is buckled on the bottle holder 22, and the peripheral side of the top cover 23 is provided with a first flip Between the side structure 231 , the first flanging structure 231 and the gap between the bottom bracket 21 and the ground box 11 , the top cover 23 is provided with a second through groove 232 which is matched with the installation groove 221 .

Among them, by stacking the bottom bracket 21, the bottle bracket 22 and the top cover 23 in sequence from bottom to top, the bottom bracket 21 can provide protection effects such as buffering and support for the bottle body in the bottle bracket 22, and the bottle can also be installed through the installation groove 221. The fixing effect of the body in the bottle holder 22 is better. It should be understood that the shape of the installation groove 221 is matched with the bottle body; Due to the shielding of the top cover 23, the entire internal structure makes the internal structure of the entire package more neat and beautiful, has a strong sense of design, and provides effective guidance for users; The bottom support 21 and the bottle support 22 are locked to prevent the bottle support 22 from moving on the plane where the bottom support 21 is located.

Optionally, the bottom bracket 21 and the top cover 23 are made of common corrugated cardboard materials, and their wall thickness is about 1-1.5 mm. Through reasonable structural settings, the supporting effect is good and the bottle body can be effectively protected and buffered.

4 to 6 , both the bottom bracket 21 and the top cover 23 can be unfolded to form a layer of corrugated cardboard, which is simple to form, low cost, easy to store, and can effectively improve turnover efficiency.

In some embodiments, the bottom bracket 21 is provided with a first vertical plate 212 , one side of the first vertical plate 212 is connected to the bottom bracket 21 , and the other side is supported on the floor box 11 . With the arrangement of the first vertical plate 212 , the support strength of the bottom bracket 21 can be higher and the support effect is better, and it can be ensured that the bottle body will not easily collide with the outer casing when the packaging box is bumped or bumped.

In a further embodiment, the first vertical plate 212 is disposed at the edge of the first through groove 211, and the first vertical plate 212 and the bottom bracket 21 are integrally formed, which can facilitate production and processing and reduce costs. The contour is arranged, which can make the support strength around the bottle body higher, and the protection effect on the bottle body is better.

4, the side of the first vertical plate 212 facing the ground box 11 is provided with a first horizontal plate 213 perpendicular to the first vertical plate 212, and the distance between the first through groove 211 and the ground box 11 is equal to the first horizontal plate 213. The height of the vertical plate 212, through the arrangement of the first horizontal plate 213, can make the supporting effect of the first vertical plate 212 better, and it is not easy to shift, and the first vertical plate 212 and the floor box 11 can be increased through the first horizontal plate 213. It should be noted that the first horizontal plate 213 and the first vertical plate 212 are integrally formed, that is, the first horizontal plate 213 is formed by bending a part of the first vertical plate 212 .

In some embodiments, the peripheral side of the bottom bracket 21 is provided with a second flanging structure 214 , and the height of the second flanging structure 214 is the same as the height of the first vertical plate 212 ; this arrangement can further improve the supporting stability of the bottom bracket 21 It is also convenient for it to cooperate with the first flanging structure 231 on the top cover 23 .

Continuing to refer to FIGS. 1 to 3 , both the ground box 11 and the sky cover 12 include a transverse plate 71 and a plurality of side plates 72 arranged perpendicular to the transverse plate 71 , and the plurality of side plates 72 are connected end to end around the circumference of the transverse plate 71 . side, two adjacent side plates 72 are connected by the concave-convex structure 4; the side plates 72 connected by the concave-convex structure 4 are easier to maintain their relatively vertical angle, and the strength of the connection is higher, and it is not easy to collapse and deform, making it It is not easy to be deformed during transportation; in some embodiments, the number of side panels 72 is four, and the ground box 11 and the sky cover 12 are all square structures.

In some embodiments, the horizontal plate 71 and the side plate 72 are made of BE pit paper, which can not only ensure the structural strength of the sky cover 12 and the floor box 11, but also can be compared with the method of using gray plates to ensure the strength in the prior art The overall thickness is reduced, making the packaging box lighter and more delicate; at the same time, it can save consumables and reduce costs.

It should be noted that, after the ground box 11 and the sky cover 12 are closed, the connection between the ground box 11 and the sky cover 12 is connected by easy peeling stickers.

In some embodiments, the outer sides of the ground box 11 and the canopy 12 are wrapped with wrapping paper 3 , and the wrapping paper 3 is arranged on the outside of the horizontal plate 71 and on the side plates 72 by folding and wrapping. The inner side is provided with a V-shaped groove along the crease; by opening the V-shaped groove, it is easier to form a right-angled edge when the wrapping paper 3 is folded, so that the edges and corners of the entire packaging box are more distinct and neat, and the appearance of the packaging box is guaranteed. Aesthetics.

4 to 6, the bottom bracket 21 and the top cover 23 are also provided with a cup groove 51 for fixing the cup body, and the cup groove 51 is provided with a shape matching with the cup mouth and/or the cup bottom of the cup body. The protruding structure 52; through the setting of the cup groove 51, the packaging box can hold both the bottle body and the cup, and more kinds of articles can be held, so that the practicability and applicability of the whole packaging box are stronger and more in line with the The needs of consumers; the arrangement of the protruding structures 52 can prevent the cup from falling off the cup groove 51, and has a certain fixing effect on the cup.

Continuing to refer to FIG. 6 , the raised structure 52 of the top cover 23 is also provided with a cup mouth plate 53 extending toward the side of the floor box 11 ; , which can make the removal of the cup body more convenient; it should be noted that the cup mouth plate 53 and the raised structure 52 are integrally formed.

In some embodiments, the cup slot 51 is provided with a second vertical plate and a second horizontal plate, the second vertical plate protrudes toward the ground box 11 and abuts on the ground box 11 through the second horizontal plate, and the second vertical plate The vertical plate and the second horizontal plate are correspondingly formed integrally with the bottom bracket 21 or the top cover 23. The second vertical plate and the second horizontal plate are similar to the first vertical plate 212 and the first horizontal plate 213, and play a role in lifting the cup. The stability of the cup in the groove 51 can better protect the cup.

5 and 7, the packaging box also includes a reinforcing card 6, the reinforcing card 6 is provided with a through groove with the same shape as the cup groove 51, the reinforcing card 6 is fixed on the bottom bracket 21, and the reinforcing card 6 is Hard material; through the setting of the reinforcing card 6, the packaging box can have a better fixing effect on the cup when holding the cup, and further improve the stability of the cup. When there are two sets of bottle holders 22, the reinforcing card 6 can be used to connect Two sets of bottle holders 22 connect the three into a whole, which further improves the stabilization effect of the bottle body and the cup in the packaging box.

5, the bottom of the installation groove 221 is provided with a raised portion 222, and the bottle holder 22 is bonded to the floor box 11 through the raised portion 222. It should be noted that the middle of the raised portion 222 is a hollow structure; The arrangement of the raised portion 222 can directly fix the bottle holder 22 on the floor box 11, so that the stability of the entire lining in the packaging box is stronger, and at the same time, the raised portion 222 can be used to provide buffering and protection for the bottle body. .

Continuing to refer to FIGS. 1 to 3 , the wrapping paper 3 further includes a sealing edge 31 and a rounded corner structure 32 , and two mounting papers are also arranged in the packing box, and the two mounting papers cover the horizontal plane of the ground box 11 and the top cover 12 respectively. On the inner surface of the board 71, the edge sealing 31 is arranged at the edge of the peripheral side of the wrapping paper 3. After the wrapping paper 3 is folded, the sealing edge 31 is inserted into the gap between the mounting paper and the ground box 11 or the sky cover 12, The arrangement of the edge sealing 31 can make the ground box 11 and the sky cover 12 not leave sticky marks after being covered by the wrapping paper 3, so as to ensure the appearance, and can also increase the sticking area of the wrapping paper 3, so as to ensure the sticking effect; the rounded corner structure 32 is arranged at the top corner of the right-angled side of the wrapping paper 3, and through the setting of the rounded corner structure 32, the wrapping paper 3 can be folded, especially the sticking gap at the corner can be covered by the rounded corner structure 32 to further ensure the appearance, And because the gaps are covered, the probability of degumming and breaking at the corners can be reduced; at the same time, patterns can be printed on the mounted paper for advertising and bottle opening methods, which is convenient for consumers to understand and use the product.

The specific implementation manner and implementation principle are the same as the above-mentioned embodiments, and can bring about the same or similar technical effects, which will not be repeated here.

It should be noted that, in this document, relational terms such as "first" and "second" etc. are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply these There is no such actual relationship or sequence between entities or operations. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass non-exclusive inclusion such that a process, method, article or device comprising a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus. Without further limitation, an element qualified by the phrase "comprising a..." does not preclude the presence of additional identical elements in a process, method, article or apparatus that includes the element.

The above descriptions are only specific embodiments of the present disclosure, so that those skilled in the art can understand or implement the present disclosure. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the generic principles defined herein may be implemented in other embodiments without departing from the spirit or scope of the present disclosure. Therefore, the present disclosure is not intended to be limited to the embodiments described herein, but is to be accorded the widest scope consistent with the principles and novel features disclosed herein.

Claims (10)

1. A package comprising an outer shell and an inner liner;

the shell comprises a ground box (11) and a top cover (12), and the top cover (12) is buckled on the ground box (11);

the lining comprises a bottom support (21), a bottle support (22) and a top cover (23) which are arranged from bottom to top in sequence; mounting (21) is installed in ground box (11), be equipped with first logical groove (211) on mounting (21), bottle support (22) set up on mounting (21), mounting groove (221) have been seted up on bottle support (22), mounting groove (221) are arranged in first logical groove (211), place the bottle in mounting groove (221), top cap (23) are detained and are put on bottle support (22), the week side of top cap (23) is equipped with first flanging structure (231), first flanging structure (231) with mounting (21) with between the gap of ground box (11), seted up on top cap (23) with the matched with second of mounting groove (221) leads to groove (232).

2. The packet according to claim 1, characterized in that the bottom support (21) is provided with a first vertical plate (212), one side of the first vertical plate (212) is connected to the bottom support (21) and the other side is supported on the ground box (11).

3. A packet as claimed in claim 2, wherein said first upright (212) is arranged at the edge of said first through slot (211), said first upright (212) being integral with said bottom support (21).

4. The packing box according to claim 2, characterized in that a first horizontal plate (213) perpendicular to the first vertical plate (212) is arranged on one side of the first vertical plate (212) facing the ground box (11), and the distance between the first through groove (211) and the ground box (11) is equal to the height of the first vertical plate (212).

5. The packaging box according to claim 2, wherein a second flanging structure (214) is arranged on the peripheral side of the bottom support (21), and the height of the second flanging structure (214) is the same as that of the first vertical plate (212).

6. A package as claimed in claim 1, wherein the bottom box (11) and the top lid (12) each comprise a transverse panel (71) and a plurality of side panels (72) arranged perpendicularly to the transverse panel (71), the plurality of side panels (72) being connected end to end around the periphery of the transverse panel (71), two adjacent side panels (72) being connected by a relief structure (4).

7. The packing box of claim 6, characterized in that the outer sides of the floor box (11) and the top cover (12) are wrapped with packing paper (3), the packing paper (3) is arranged on the outer side of the transverse plate (71) and the side plate (72) through folding and wrapping, and a V-shaped groove is formed on the inner side of the crease of the packing paper (3) along the crease.

8. The packaging box according to claim 1, wherein the bottom support (21) and the top cover (22) are further provided with a cup groove (51) for fixing a cup body, and the cup groove (51) is provided with a convex structure (52) matched with the cup mouth and/or the cup bottom of the cup body in shape.

9. The packaging box according to claim 8, further comprising a reinforcing clip (6), wherein the reinforcing clip (6) is provided with a through groove having the same shape as the cup groove (51), the reinforcing clip (6) is fixed on the bottom support (21), and the reinforcing clip (6) is made of hard material.

10. A packing box according to claim 1, wherein a boss (222) is provided at the bottom of the mounting groove (221), and the bottle holder (22) is adhered to the ground box (11) through the boss (222).
