Abstract
本申请涉及一种调焦点胶一体机及摄像模组的调焦点胶的方法。调焦点胶一体机，包括调焦模块、点胶模块和曝光模块，还包括：物料仓；物料拖拽模块，包括物料拖拽装置和运输导轨，运输导轨用于支撑物料盘，物料拖拽装置在物料仓和运输导轨之间移动物料盘；夹具模块，包括夹具导轨和沿夹具导轨可移动的夹具，用于将摄像模组移动至调焦模块、点胶模块和曝光模块中的至少一个，夹具导轨平行于运输导轨延伸；上下料模块，包括支架和吸嘴单元，支架包括垂直于运输导轨延伸的导向部，吸嘴单元沿导向部可移动，用于在运输导轨和夹具之间移动摄像模组。本申请的调焦点胶一体机，摄像模组运行轨迹简单，提高生产效率。
The present application relates to a method for adjusting the focus glue for an all-in-one machine with focus adjustment glue and a camera module. Focusing point glue all-in-one machine, including focusing module, dispensing module and exposure module, also includes: material bin; material dragging module, including material dragging device and transport rail, transport rail is used to support material tray, material drag The device moves the material tray between the material bin and the transport rail; the fixture module includes a fixture rail and a fixture movable along the fixture rail, and is used to move the camera module to at least one of the focusing module, the glue dispensing module and the exposure module , the fixture rail extends parallel to the transport rail; the loading and unloading module includes a bracket and a suction nozzle unit, the bracket includes a guide extending perpendicular to the transport rail, and the suction nozzle unit can move along the guide for moving between the transport rail and the fixture camera module. In the all-in-one machine for adjusting the focus and glue of the present application, the running track of the camera module is simple, and the production efficiency is improved.
Description
Technical Field
The application relates to the field of camera module preparation, in particular to a focusing and glue dispensing integrated machine and a focusing and glue dispensing method of a camera module.
Background
Camera modules are important components of many electronic devices. With the prosperous development of mobile phones, the corresponding camera module industry must be advanced with time to match the mobile phone industry which is rapidly developed.
The camera module industry is used as an industry which takes part assembly as a main production mode, the production process is complex, the production magnitude is large, modules of the existing module factory are continuously circulated in a large number of different processes, and then a large number of workers are equipped for each process. In the existing camera module industry, due to historical reasons, a module factory production line has more than one site with only one function, and the site is provided with detection equipment with corresponding functions. The setting that a website and a website split cut apart, the equipment quantity of demand is big, and the module is because need experience production step by step, continuous circulation between different equipment (website), and the circulation time has occupied the plenty of time in the production process, and the circulation process is complicated, the circulation path length has hindered production efficiency's promotion. In the circulation process, different production environments need to be passed through continuously, and the risk of environmental pollution production modules in the circulation process exists.
Disclosure of Invention
Based on this, the application provides a focusing and dispensing all-in-one machine and a method of focusing and dispensing of camera module, will focus and dispense and set up in same equipment, avoid the influence to camera module in the transportation, improve production efficiency.
An embodiment of the application provides a focusing and dispensing all-in-one machine, including focusing module, some glue modules and exposure module, still include: a frame including a mounting platform; the material bin is arranged on the rack and used for placing a material tray for containing the camera module; the material dragging module is arranged on the mounting platform and comprises a material dragging device and a conveying guide rail, the conveying guide rail is used for supporting the material tray, and the material dragging device moves the material tray between the material bin and the conveying guide rail; the clamp module is arranged on the mounting platform, comprises a clamp guide rail and a clamp which can move along the clamp guide rail, and is used for moving the camera module to at least one of the focusing module, the dispensing module and the exposure module, and the clamp guide rail extends parallel to the transportation guide rail; and the feeding and discharging module is arranged on the mounting platform and comprises a support and a suction nozzle unit, the support comprises a guide part perpendicular to the extension of the transportation guide rail, and the suction nozzle unit is movable along the guide part and used for moving the camera module between the transportation guide rail and the clamp.
According to some embodiments of the application, the focusing and dispensing all-in-one machine further comprises a material bin drive, and the material bin drive drives the material bin to lift.
According to some embodiments of the application, the transport rail comprises: the two parallel supporting rails are arranged on the mounting platform; and the rollers are respectively arranged on the inner walls of the two support rails.
According to some embodiments of the application, the material drag device comprises: the dragging guide rail is arranged on the mounting platform and is positioned between the two support rails; the dragging mechanism comprises a clamping end used for clamping the material disc; and the dragging drive drives the dragging mechanism to move along the dragging guide rail.
According to some embodiments of the application, the clamp comprises: a substrate; one end of the upper cover body is hinged with the substrate through a rotating shaft, and a lens hole corresponding to a lens of the camera module is formed in the upper cover body; and the clamp is driven to be hinged with the upper cover body through a connecting rod, so that the upper cover body can be driven to rotate around the rotating shaft.
According to some embodiments of the present application, a vacuum adsorption unit is disposed on the substrate for vacuum adsorption of the camera module.
According to some embodiments of the present application, the clamp module comprises a plurality of the clamps, the plurality of clamps being movable along the same clamp rail.
According to some embodiments of the application, the number of the jig modules is plural.
According to some embodiments of the application, the number of the material bins is two, and the two material bins are respectively arranged on two sides of the plurality of clamp modules; the number of the material dragging modules is two, and the two material dragging modules are respectively arranged on two sides of the plurality of clamp modules.
According to some embodiments of the present application, the support of the loading and unloading module further comprises a support portion, and the guide portion is disposed on the support portion; the suction nozzle unit comprises a suction nozzle drive, a suction nozzle and a first camera, the suction nozzle drive can be followed the guide part moves, the suction nozzle is connected with the first camera, the suction nozzle drive drives the suction nozzle to lift, and the first camera is used for collecting position information of a camera module on the material tray.
According to some embodiments of the present application, the suction nozzle drive drives the suction nozzle to be rotatable along a vertical axis; the feeding and discharging module further comprises a second camera, and the second camera is used for collecting angle information of the camera module adsorbed by the suction nozzle.
According to some embodiments of the application, the focusing module is far away from the feeding and discharging module, the focusing module comprises: the focusing guide rail is arranged on the mounting platform; the focusing unit comprises a distance-increasing lens and a focusing clamping device positioned below the distance-increasing lens, and the focusing clamping device is used for focusing the camera module through gear driving; and the focusing lifting mechanism is movable along the focusing guide rail and drives the focusing unit to lift.
According to some embodiments of the present application, the dispensing module is located between the focusing module and the feeding and discharging module, and the dispensing module includes: the dispensing guide rail is arranged on the mounting platform; the glue dispenser is used for dispensing glue to the camera module; the glue dispensing lifting mechanism is arranged along the movable glue dispensing guide rail and drives the glue dispenser to lift.
According to some embodiments of the application, focusing and dispensing all-in-one machine further comprises a dirty dead pixel detection module, the dirty dead pixel detection module is arranged on the mounting platform and located between the focusing module and the dispensing module, and the dirty dead pixel detection module is used for carrying out dirty dead pixel detection on the camera module.
According to some embodiments of the present application, the exposure module is disposed on a support of the loading and unloading module.
An embodiment of the present application provides a method for focusing and dispensing a camera module, including: the material dragging device moves a material disc loaded with the camera module from the material bin to the conveying guide rail; a suction nozzle unit of the feeding and discharging module moves a camera module on a transportation guide rail to a clamp module, and the moving direction of the suction nozzle unit is perpendicular to the extending direction of the transportation guide rail; the clamp of the clamp module clamps the camera module and moves the camera module to the focusing module, and the moving direction of the clamp is parallel to the extending direction of the transportation guide rail; the focusing module focuses on a camera module, the camera module shoots a target, if an image acquired by the camera module reaches a preset standard, the camera module is a qualified camera module for focusing, otherwise, the camera module is an unqualified camera module; the clamp module moves the qualified focusing camera shooting module to a glue dispensing module for glue dispensing; the clamp module moves the camera shooting module after dispensing to the exposure module for glue solidification, and a qualified camera shooting module is obtained.
According to some embodiments of the application, the fixture module moves the qualified focusing camera module to a dispensing module for dispensing, including: the clamp module moves the qualified focusing camera shooting module to a dirty point detection module; the dirty point detection module is used for carrying out dirty point detection on the focusing qualified camera module, if the focusing qualified camera module is qualified, the camera module is qualified for dirty point detection, and otherwise, the camera module is unqualified; the clamp module moves the qualified camera module for detecting the dirty points to the dispensing module for dispensing.
According to some embodiments of the application, under the condition that the clamp module clamps a plurality of camera modules, if part of the camera modules are unqualified, the confirmed unqualified camera modules do not participate in the subsequent process; and if the plurality of camera modules are determined to be unqualified, the clamp module clamps the plurality of unqualified camera modules without subsequent processes, and returns to the initial position of the clamp module.
The utility model provides an all-in-one is glued to focusing point, the moving direction perpendicular to transportation guide rail of suction nozzle unit, the direction of the removal of anchor clamps is on a parallel with transportation guide rail, and the transportation orbit of the module of making a video recording is simple, has shortened the transit time of the module of making a video recording, and the variation probability of the module of making a video recording on the way of the transportation reduces greatly to increase substantially production efficiency and yield.
Drawings
In order to more clearly illustrate the technical solutions in the embodiments of the present application, the drawings needed to be used in the description of the embodiments are briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present application, and it is obvious for those skilled in the art to obtain other drawings based on these drawings without exceeding the protection scope of the present application.

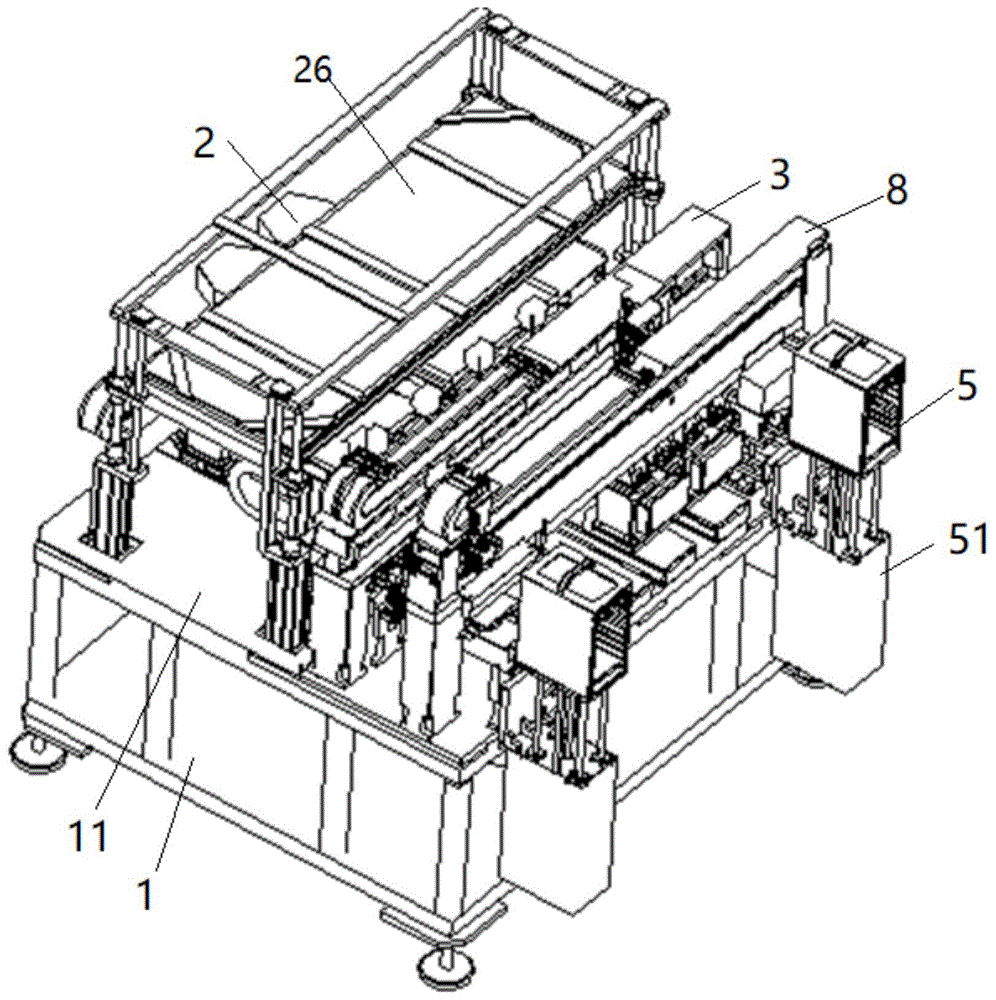

FIG. 1 is a schematic view of a focusing and dispensing integrated machine according to an embodiment of the present disclosure;
FIG. 2 is a schematic view of a working flow of a focusing and dispensing integrated machine according to an embodiment of the present application;
FIG. 3 is a schematic view of a material bin according to an embodiment of the present disclosure;
FIG. 4 is a first schematic diagram of a material dragging module according to an embodiment of the present application;
FIG. 5 is a schematic view of a clamp module according to an embodiment of the present application;
FIG. 6 is a schematic view of a loading/unloading module according to an embodiment of the present disclosure;
FIG. 7 is a schematic diagram of a moving track of the camera module according to the embodiment of the present application;
FIG. 8 is a second schematic diagram of a material drag module in accordance with an embodiment of the present disclosure;
FIG. 9 is a schematic view of a material pulling device according to an embodiment of the present disclosure;
FIG. 10 is a schematic view of a drag mechanism according to an embodiment of the present application;
FIG. 11 is a first schematic view of a clamp according to an embodiment of the present disclosure;
FIG. 12 is a second schematic view of a clamp according to an embodiment of the present application;
FIG. 13 is a third schematic view of a clamp according to an embodiment of the present application;
FIG. 14 is a schematic view of a focusing module according to an embodiment of the present disclosure;
FIG. 15 is an enlarged view of a focusing module according to an embodiment of the present application;
FIG. 16 is a bottom view of a focusing module according to an embodiment of the present application;
FIG. 17 is a gear diagram of a focusing module according to an embodiment of the present application;
FIG. 18 is a bottom view of a focus mount of an embodiment of the present application;
FIG. 19 is a first schematic view of a dispensing module according to an embodiment of the present disclosure;
fig. 20 is a second schematic view of a dispensing module according to an embodiment of the present disclosure;
FIG. 21 is a schematic view of an exposure module according to an embodiment of the present application.
Detailed Description
The technical solutions in the embodiments of the present application will be clearly and completely described below with reference to the drawings in the embodiments of the present application, and it is obvious that the described embodiments are some, but not all, embodiments of the present application. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present application.
As shown in fig. 1 and 2, an embodiment of the present application provides a focusing and dispensing all-in-one machine, which is used for focusing and dispensing a camera module. Focusing point all-in-one includes: the device comprises a frame 1, a focusing module 2, a dispensing module 3, an exposure module 4, a material bin 5, a material dragging module 6, a clamp module 7 and a feeding and discharging module 8. The frame 1 plays a supporting role in other parts of the focus glue adjusting all-in-one machine. The material drags module 6 to drag the module of making a video recording out by in the material storehouse 5, and go up unloading module 8 and carry anchor clamps module 7 with the module of making a video recording, and anchor clamps module 7 drives the module of making a video recording and loops through focusing module 2, point and glue module 3, exposure module 4 and form qualified module of making a video recording.
The frame 1 is located the bottom of focusing point all-in-one for support other parts. The frame 1 includes a mounting platform 11, and the mounting platform 11 is a plane in this embodiment and is used as a reference for mounting other components. Optionally, the mounting platform 11 may also be a frame structure, which may meet the requirements as a mounting standard.
The focusing module 2 is used for focusing the camera module. The glue dispensing module 3 is used for dispensing the camera shooting module group completing focusing. The exposure module 4 is used for illuminating the camera module after dispensing, so that glue curing is accelerated.
As shown in fig. 3, the material bin 5 is a hollow cuboid for placing a material tray. The material bin 5 is arranged on the rack 1 and is positioned on the outer side of the rack 1. Place the module of making a video recording on the material dish, the module of making a video recording in the material storehouse 5 can be for waiting to process the module of making a video recording, also can be for accomplishing the module of making a video recording of processing. In this embodiment, the two ends of the material bin 5 are communicated, so that the material tray can be conveniently taken and placed. A plurality of layers of bulges are arranged in the material bin 5, so that a plurality of material discs are placed in the material bin 5 in a layered mode, and the bulges play a supporting role for the material discs. Optionally, a limiting mechanism is arranged in the material non-taking direction of the material bin 5 to prevent the material tray from falling.
According to an optional technical solution of the present application, a material bin driver 51 is arranged below the material bin 5. The material bin driver 51 is used for driving the material bin 5 to move up and down so as to cooperatively realize the taking and placing of the multilayer material tray. The material bin drive 51 may select a rotary lifter, a sliding lifter, a gear and rack, a pulley, etc., which is not limited in this application.
As shown in fig. 4, the material dragging module 6 is disposed on the mounting platform 11. The material dragging module 6 comprises a material dragging device 61 and a transport rail 62. The transport rail 62 extends in the X direction, and one end of the transport rail 62 is located at the opening of the material bin 5. The transport rails 62 support the tray. The material dragging device 61 can move the material tray in the material bin 5 to the conveying guide rail 62 and drag the animal material tray to move along the conveying guide rail 62. The material dragging device 61 can also move the material tray on the conveying guide rail 62 into the material bin 5.
As shown in fig. 5, the jig module 7 is disposed on the mounting platform 11. The jig module 7 includes: a jig guide 71, a jig 72, and a jig moving drive 73. The clamp rail 71 is arranged on the mounting platform 11, the clamp rail 11 extending parallel to the transport rail 62, i.e. the clamp rail 11 extends in the X-direction. The clamp 72 is disposed on the clamp rail 71 by a clamp moving driver 73, and the clamp moving driver 73 drives the clamp 72 to move along the clamp rail 71. The clamp movement drive 73 may be an alternative to an existing power mechanism, such as a linear motor. The clamp 72 is used for clamping the camera module.
The focusing module 2, the dispensing module 3 and the exposure module 4 are all arranged above the clamp module 7. The focusing and glue dispensing integrated machine comprises a plurality of processes of focusing, glue dispensing and exposure curing, and the clamp module 7 clamps the camera module to complete each process in sequence to obtain a qualified camera module. If the camera module is determined to be defective in a certain process, the subsequent process is not performed, and the jig module 7 moves the defective camera module to the start position of the jig 72. If, after focusing module 2 focuses on, the module of making a video recording is unqualified the module of making a video recording, then this module of making a video recording no longer carries out subsequent process.
As shown in fig. 6, the loading and unloading module 8 is disposed on the mounting platform 11. The loading and unloading module 8 includes a bracket 81 and a suction nozzle unit 82. The holder 8 includes a guide portion 811, the guide portion 811 being provided above the transport rail 62 and the jig module 7, the guide portion 811 extending in a direction (Y direction) perpendicular to the transport rail. The suction nozzle unit 82 is disposed on the guide portion 811 and movable along the guide portion 811. The suction nozzle unit 82 is used for sucking the camera module and moving the camera module between the transport rail 62 and the jig 72.
As shown in fig. 2 and 7, the arrows in the drawings represent the moving direction of the camera module. The camera module is pulled to the transportation guide rail by the material dragging device from the material bin and is positioned below the suction nozzle unit; the suction nozzle unit sucks the camera module on the material disc and moves to the upper part of the target fixture along the guide part; the suction nozzle unit places the camera module in the clamp; the clamp clamps the camera module to move to the focusing module along the clamp guide rail, and the camera module is focused; the camera module completing focusing is driven by the clamp to move to the dispensing module for dispensing; the camera module completing the dispensing is driven by the clamp to move to the exposure module for glue curing; the solidified camera module is sucked by the suction nozzle unit and then moves into a material tray on the conveying guide rail; after the camera module in the material disc completes processing, the material disc is dragged to the material bin through the material dragging device.
The moving direction perpendicular to transportation guide rail of suction nozzle unit, the direction of the removal of anchor clamps is on a parallel with transportation guide rail, and the transportation orbit of the module of making a video recording is simple, has shortened the transportation time of the module of making a video recording, and the variation probability of the module of making a video recording on the way of the transportation reduces greatly to increase substantially production efficiency and yield. After the focusing of the camera module is finished, the focusing position cannot be changed, the turnover and secondary feeding and discharging in the focusing and dispensing process are avoided, the camera module is kept in the same clamp module in the focusing and dispensing process, the secondary feeding and discharging are not needed, and the influence of external factors in the process of conveying the camera module to the dispensing position after the focusing is finished and the damage in the conveying process are avoided.
As shown in fig. 8, the transportation rail 62 may alternatively include two support rails 621 disposed in parallel and rollers 622 disposed on inner walls of the two support rails 621. Both support rails 621 are disposed on the mounting platform 11. The rollers 622 are respectively and sequentially arranged on the inner walls of the two support rails 621 along the horizontal direction, and the rollers 622 can support the material tray, so that the material tray can be moved conveniently.
As shown in fig. 9 and 10, optionally, the material dragging device 61 comprises: a drag rail 611, a drag mechanism 612, and a drag drive 613. The trailing rail 611 is disposed on the mounting platform 11 between two support rails 611, the trailing rail 611 being disposed parallel to the support rails 611. The dragging mechanism 612 includes a clamping end 6121 for clamping the material tray, and the clamping end 6121 is driven by the clamping end driver 6122 to be opened and closed. The bottom of the dragging mechanism 612 is provided with a dragging slider 6123, and the dragging mechanism 612 is slidably arranged on the dragging guide rail 611 through the dragging slider 6123. The drag drive 613 moves the drag mechanism 612 along the drag rail 611. In this embodiment, the dragging drive 613 is a motor, and is connected to the dragging mechanism 612 through a belt 614, and the dragging drive 613 is a motor that can drive the dragging mechanism 612 to reciprocate along the dragging guide rail 611. The contact part of the clamping end 6121 and the material tray can be provided with anti-slip, such as rubber, silica gel, lines and the like.
When the material dragging module 6 works, the dragging drive 613 drives the dragging mechanism 612 to move to the opening of the material bin along the dragging guide rail 611, the clamping end 6121 is opened, the dragging mechanism 612 moves a certain distance to the material bin 5, and the clamping end 612 is closed, so that the outer edge of the material tray is clamped, and then the material tray is dragged outwards, and the dragging function is realized. The material dragging device 61 drags the material tray to move to a target position on the conveying guide rail 62, and the to-be-processed camera module of the material tray is waited for carrying out subsequent processing. The camera module which finishes processing returns to the material tray on the conveying guide rail 62, and the material dragging device 61 drags the material tray on the conveying guide rail 62 to return to the material bin. The material bin is lifted or lowered, and the next material tray in the material bin 5 is processed by matching with the material dragging module 6, and the process is repeated.
As shown in fig. 11 and 12, the jig 72 includes a substrate 721, an upper cover 722, and a jig driver 723. One end of the upper cover 722 is hinged to the substrate 721 through the shaft 725, so that the upper cover 722 can rotate, thereby reducing friction and reducing the bad opening and closing phenomenon. The upper cover 722 is provided with a hole for allowing the lens to pass therethrough. The link 724 passes through the base plate 721, one end of the link 724 is hinged to the upper cover 721 through a first link shaft 726, and the other end is connected to a driving rod of the clamp driver 723 through a second link shaft 727. The clamp driver 723 drives the upper cover 722 to rotate. The clamp driver 723 in this embodiment may be an air cylinder, or may be another power mechanism. The upper cover 722 is rotated away from the top surface of the substrate 721, the clamp 72 is opened, and the camera module can be placed in the clamp 72 or taken out by the clamp 72. The upper cover 722 rotates in a direction approaching the top surface of the substrate 721, and the clamp 72 is closed to hold the image pickup module. The clamp 72 is driven by the clamp moving drive 73 to reciprocate along the clamp guide rail 71, so as to clamp the camera module to complete each process.
As shown in fig. 13, according to an alternative embodiment of the present application, a vacuum adsorption unit 74 is disposed on a substrate 721. The top surface of base plate 721 sets up the recess that is used for placing the module of making a video recording, and the shape of recess matches with the shape of the module of making a video recording. The vacuum suction unit 74 communicates with the groove. After the camera module is placed into the groove, the camera module is enabled to be more smooth through the negative pressure adsorption of the vacuum adsorption unit 74. In addition, whether the camera module is arranged in the groove can be judged through the pressure value change of the vacuum adsorption unit 74. It is determined by the pressure value change of the vacuum suction unit 74 that the camera module is placed in the groove, and the upper cover 722 of the clamp 72 is closed after a preset time interval.
According to an alternative embodiment of the present invention, a gripper module 7 comprises a plurality of grippers 72. The plurality of grippers 72 are in a simultaneous movement relationship and are moved along the same gripper rail 71 by the same gripper moving driver 73. In this embodiment, a gripper module 7 includes two grippers 72. The jig module 7 is provided with a plurality of jigs 72, and the apparatus volume and the apparatus cost can be reduced.
Since the plurality of clamps 72 of the same clamp module 7 are in a same-motion relationship, one clamp module 7 simultaneously clamps the plurality of camera modules to move. If some camera modules are unqualified in the plurality of camera modules clamped by the clamp module 7, the camera modules which are determined to be unqualified do not participate in the subsequent process, and the rest camera modules continue to complete the subsequent process to obtain the qualified camera modules. If the plurality of camera modules clamped by the clamp module 7 are all determined to be unqualified, the clamp module 7 clamps the plurality of camera modules, subsequent processes are not carried out, and the camera modules directly return to the initial positions.
For example, the clamp module 7 clamps A, B two camera modules, the process is N processes, m is less than or equal to N, that is, if the camera module a detects a failure in the process m, the camera module a in the subsequent N-m processes does not participate, the camera module B continues the subsequent N-m processes, and the clamp module 7 does not return to the initial position until the camera module B detects a failure or all the detection/processing processes are completed.
Alternatively, when there are a plurality of camera modules in the jig module 7, it is designed according to the production efficiency calculation that the jig module 7 is returned to the start position when how many of the plurality of camera modules are detected as being defective.
According to an alternative solution of the present application, the number of gripper modules 7 is multiple. The plurality of jig modules 7 are arranged in parallel, and the plurality of jig guide rails extend in the X direction. Each clamp module 7 may include a plurality of clamps 72, thereby greatly improving the working efficiency of the focusing and dispensing apparatus of the present application. The focusing dispensing apparatus of the present embodiment includes four clamp modules 7.
As shown in fig. 6, optionally, the bracket 81 of the loading and unloading module further includes two supporting portions 812. The guide portion 811 is disposed on the support portion 812, the bottom surface of the support portion 812 is connected to the mounting platform 11, and the support portion 812 supports the guide portion 811 such that the guide portion 811 extends from above the transport rail 62 to above the jig module 7.
The nozzle unit 82 includes a nozzle driver 821, a nozzle 822, and a first camera 823. The nozzle drive 821 is movable along the guide 811. The suction nozzle 822 and the first camera 823 are provided on the suction nozzle driver 821. The suction nozzle drive 821 drives the suction nozzle 822 to ascend and descend.
The suction nozzle 822 is used for sucking the camera module. The nozzle driver 821 drives the nozzle 822 to move along the guide 811, thereby realizing the Y-direction movement. The suction nozzle 821 drives the suction nozzle 822 to ascend and descend to realize the movement in the vertical direction, so that the suction and the placement of the camera module are realized. Optionally, the suction nozzle 822 of this embodiment adsorbs the connecting band of the camera module, and through the mode of adsorbing the connecting band, the problem of the lens surface scratch caused by the picking and placing mode of adsorbing the lens surface in the conventional design is avoided, and the production yield is improved.
According to an alternative embodiment of the present application, the suction nozzle drive 821 drives the suction nozzle 822 to rotate along a vertical axis. The suction nozzle 822 can rotate along the vertical axis, so that the adsorbed camera module synchronously rotates to adjust the angle of the camera module, and the camera module can be conveniently placed in the clamp 72. The second camera 83 is used for collecting angle information of the camera module adsorbed by the suction nozzle. After being sucked by the suction nozzle 822, the image pickup module first needs to pass through the second camera 83 when moving to the jig module 7 in the Y-axis direction. The second camera 83 shoots the module of being adsorbed of making a video recording from bottom to top, shoots the biggest outline and the discernment of the module of making a video recording, according to the angle information of biggest outline, drive suction nozzle 822 rotates for the module of making a video recording has adjusted the best state of placing promptly before reacing anchor clamps 72, avoids position offset and leads to the module of making a video recording to put into appear contact failure after anchor clamps 72, not put levelly and smoothly, put into scheduling problem completely not, has improved production efficiency and has improved the yield simultaneously.
Optionally, the first camera 823 is used to identify whether a camera module is placed in the jig 72. When the vacuum adsorption unit 74 on the clamp 72 does not sense the camera module, a second determination mode is started, i.e. whether the camera module is in the clamp 72 is identified according to the image of the first camera 823, so as to determine the next opening and closing state of the clamp.
Optionally, the gripper module 7 further comprises a photodetector 75. The photo detector 75 is disposed on one side of the clamp 72, and the photo detector 75 can give different feedback to the photo detector when the detecting light meets an obstacle or does not meet the obstacle, according to the principle of photo-electric sensing, that is, the photo detector 75 emits a parallel detecting light. The photodetector 75 is used to detect whether the suction nozzle 822 is away from above the jig 72. If the photodetector 75 confirms that there is no interference above the clamp 72, the clamp 72 is closed.
In an optional scheme, the number of the material bin 5 and the material dragging module 6 is two, and one material bin 5 corresponds to one material dragging module 6 and is respectively arranged on two sides of the plurality of clamp modules 7. The two support portions 812 of the feeding and discharging module are respectively disposed at the outer sides of the two transportation guide rails 62, so that the suction nozzle 822 can suck the camera module from the material tray on the two transportation guide rails 62. Specifically, the suction nozzle 822 can be used for sucking the camera module from the transportation guide rail 62, and the control module can calculate the suction nozzle to select the nearby camera module.
As shown in fig. 14, the focusing module 2 is located away from the loading and unloading module 8. The focus module 2 includes a focus guide rail 21, a focus drive 22, a focus elevating mechanism 23, and a focus unit 24. The focusing guide rail 21 is arranged on the mounting platform 11 through a supporting piece, and the focusing guide rail 21 is positioned above the clamp module 7 and extends along the Y direction. The focusing unit 24 is connected with the focusing lifting mechanism 23, the focusing driving mechanism 22 drives the focusing lifting mechanism 23 to move along the focusing guide rail 21, and the focusing unit 24 moves on the focusing guide rail 21 along with the focusing lifting mechanism 23. The focus drive 22 may be an existing power mechanism. Alternatively, a plurality of focus units 24 are provided on the focus guide rail 21.
As shown in fig. 15 and 16, the focus elevating mechanism 23 drives the focus unit 24 to ascend and descend. The focusing lifting mechanism 23 can be an existing electric or pneumatic lifting mechanism, and the lifting requirement of the focusing unit 24 can be met. The focusing unit 24 includes a distance-increasing mirror 241 and a focusing clamp 242. The focus clamping device 242 is connected to the focus elevating mechanism 23, and the focus clamping device 242 is disposed directly below the distance mirror 241. The focusing clamping device 242 is used for clamping the lens of the camera module to focus the lens. In this embodiment, the focus clamp 242 drives the gear via the gear 25, and the gear 25 may be disposed on a bottom surface of the focus clamp 242. The power source of the gear 25 can be selected from a motor, the gear 25 drives the focusing clamping device 242 to rotate, and the focusing clamping device 242 drives the clamped lens to rotate around the optical axis of the lens, so that focusing is realized.
The apparatus of the present embodiment provides a target 26 above the focusing module 2. The clamp module 7 moves the camera module to the lower part of the focusing module 2, the focusing lifting mechanism 23 drives the focusing unit 24 to descend, the focusing clamping device 242 clamps the lens, the gear 25 works to drive the lens clamped by the focusing clamping device 242 to rotate around the optical axis of the lens by a preset angle, and the camera module shoots the target plate through the distance-increasing lens 241 from bottom to top. Image information that the module of making a video recording was shot sends to check out test set, if the image information that the module of making a video recording was shot reaches the preset standard, then for the qualified module of making a video recording of focusing, otherwise for unqualified module of making a video recording. Optionally, the focusing module 2 of this embodiment focuses the image capturing module according to the SFR standard.
As shown in fig. 17, the gear 25 optionally includes a first gear 251, a second gear 252, and a third gear 253. The first gear 251 is connected to a driving motor of the gear, the second gear 252 is located between the first gear 251 and the third gear 253 and is meshed with the first gear 251 and the third gear 253, and the third gear 253 drives the focus clamping device 242 to rotate. The number of teeth of the first gear 251 is smaller than or equal to that of the second gear 252, the diameter of the first gear 251 is smaller than or equal to that of the second gear 252, the number of teeth of the second gear 252 is smaller than that of the third gear 253, and the diameter of the second gear 252 is smaller than that of the third gear 253. The sizes of the first gear 251, the second gear 252 and the third gear 253 are gradually increased, smooth and fine transmission is realized, the adjustment precision is high, and the performance is stable.
As shown in fig. 18, according to an alternative embodiment of the present application, a through hole 2421 is provided at the center of the focus clamping device 242, and the center line of the through hole 2421 is collinear with the optical axis of the distance increasing mirror 241. A plurality of telescopic clamping jaws 2422 are uniformly distributed along the circumferential direction of the through hole 2421 to form a shape similar to a petal. During focusing, the clamping jaw 2422 clamps the lens and drives the lens to rotate. The mechanism for driving the clamping jaw 2422 to stretch can select an existing mechanical structure. When the clamping jaw 2422 is not focused, the focusing clamping device 242 is in an open state, and when focusing is performed, the focusing clamping device 242 descends, the clamping jaw 2422 stretches out to clamp the lens, and the focusing clamping device 242 drives the lens to rotate, so that focusing is realized.
As shown in fig. 19, the dispensing module 3 is located between the focusing module 2 and the loading and unloading module 8. The dispensing module 3 includes a dispensing guide rail 31, a dispensing driving device 32, a dispensing lifting mechanism 33, and a dispensing machine 34. The dispensing guide rail 31 is supported by the supporting column 35 and disposed on the mounting platform 11, and the dispensing guide rail 31 is located above the fixture module 7 and extends along the Y direction. The dispensing driving device 32 drives the dispensing lifting mechanism 33 to move along the dispensing guide rail 31. The dispenser 34 is connected to the dispensing lifting mechanism 33, and the dispenser 34 moves along the dispensing guide rail 31 along with the dispensing lifting mechanism 33, so that the dispenser 34 dispenses the camera modules on different fixtures 72. The dispensing lifting mechanism 33 drives the dispenser 34 to lift, the dispenser 34 descends to dispense the camera module, and the dispenser 34 rises after dispensing is finished. The dispenser 34 may select an existing dispensing device.
As shown in fig. 20, optionally, the dispensing module 3 further includes a dispensing camera 36. The dispensing camera 36 is disposed on the dispensing guide rail 31 at a side opposite to the dispensing machine 34. The dispensing driver 32 drives the dispensing camera 36 to move along the dispensing guide rail 31. The glue camera is used for shooting image information of the camera module to be subjected to glue dispensing so as to determine the glue dispensing position.
As shown in fig. 21, the exposure module 4 is disposed on a support 81 of the loading and unloading module. In this embodiment, the exposure module 4 is connected to the guide portion 811 on the side opposite to the nozzle unit 82. The exposure module 4 illuminates the camera module after dispensing for glue curing. The exposure module 4 may select an existing exposure mechanism, such as a high-energy exposure lamp. The exposure module 4 can also be arranged at other positions, and the requirement of glue curing of the camera module after glue dispensing can be met.
In an optional scheme, the focusing and dispensing all-in-one machine further comprises a dirty point detection module, the dirty point detection module is arranged on the mounting platform and located between the focusing module 2 and the dispensing module 3, and the dirty point detection module is used for performing dirty point detection on the camera module. And the camera module group for detecting the qualified dirty points carries out dispensing.
Optionally, the focusing and dispensing all-in-one machine further comprises a plurality of detection mechanisms, such as glue detection, pattern opening detection and the like, so as to detect the performance and quality of the camera module, and the camera module which does not meet the requirement is not subjected to subsequent processing.
Optionally, set up the NG charging tray in one side of transportation guide rail 62 for hold unqualified module of making a video recording, the NG charging tray accessible manual change after full.
The embodiment of the application provides a method for performing focusing and dispensing of a camera module by using the focusing and dispensing all-in-one machine, which comprises the following steps:
the material dragging device moves a material disc loaded with the camera module from the material bin to the conveying guide rail;
the camera module on the transportation guide rail is moved to the clamp module by the suction nozzle unit of the feeding and discharging module, and the moving direction of the suction nozzle unit is vertical to the extending direction of the transportation guide rail;
the clamp of the clamp module clamps the camera module and moves the camera module to the focusing module, and the moving direction of the clamp is parallel to the extending direction of the transportation guide rail;
the focusing module focuses on the camera module, the camera module shoots a target, if the image acquired by the camera module reaches a preset standard, the camera module is a qualified camera module for focusing, otherwise, the camera module is an unqualified camera module;
the clamp module moves the camera shooting module with qualified focusing to the glue dispensing module for glue dispensing;
the clamp module moves the camera module after dispensing to the exposure module for glue solidification to obtain a qualified camera module;
the suction nozzle unit moves the qualified camera module in the clamp to a material tray on the conveying track, and moves the unqualified camera module in the clamp to an NG tray;
the material dragging device moves a brushing plate bearing the qualified camera shooting module to the material bin.
According to an optional technical scheme of this application, the anchor clamps module removes the qualified module of making a video recording of focusing to the module of gluing and carries out the point and include: the clamp module moves the camera shooting module with qualified focusing to the dirty point detection module; the dirty point detection module carries out dirty point detection on the camera module with qualified focusing, if the camera module is qualified, the camera module with qualified dirty point detection is the camera module with qualified focusing, otherwise the camera module with unqualified focusing is the camera module; the clamp module moves the qualified camera module for detecting the dirty points to the dispensing module for dispensing.
Optionally, under the condition that the fixture module clamps the plurality of camera modules, if part of the camera modules are unqualified, the confirmed unqualified camera modules do not participate in the subsequent process, and the rest camera modules continue to complete the subsequent process. And if the plurality of camera modules clamped by the clamp module are all determined to be unqualified, the clamp module clamps the plurality of unqualified camera modules without subsequent processes, and returns to the initial position of the clamp module.
The utility model provides an all-in-one is glued to focusing point, the focusing of the module of making a video recording and point are glued and are accomplished in an equipment, and equipment degree of automation is high, need not extra repeated unloading of going up, and the process time that significantly reduces the environment of difference simultaneously and week and influence the module quality of making a video recording. The module orbit of making a video recording is the straight line of mutually perpendicular for its operation is steady rapidly relatively. Focusing is controlled in a gear driving mode, focusing precision and yield are improved, meanwhile, lubricating agents can be arranged between gears, gear abrasion is reduced, and durability of equipment is improved.
The foregoing detailed description of the embodiments of the present application has been presented to illustrate the principles and implementations of the present application, and the description of the embodiments is only intended to facilitate the understanding of the methods and their core concepts of the present application. Meanwhile, a person skilled in the art should, according to the idea of the present application, change or modify the embodiments and applications of the present application based on the scope of the present application. In view of the above, the description should not be taken as limiting the application.
Claims (18)
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202010975133.6A CN114268708B (en) | 2020-09-16 | 2020-09-16 | Focus-adjusting glue all-in-one machine and focus-adjusting glue method of camera module |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202010975133.6A CN114268708B (en) | 2020-09-16 | 2020-09-16 | Focus-adjusting glue all-in-one machine and focus-adjusting glue method of camera module |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN114268708A true CN114268708A (en) | 2022-04-01 |
| CN114268708B CN114268708B (en) | 2024-11-01 |
Family
ID=80824362
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202010975133.6A Active CN114268708B (en) | 2020-09-16 | 2020-09-16 | Focus-adjusting glue all-in-one machine and focus-adjusting glue method of camera module |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN114268708B (en) |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN114895520A (en) * | 2022-05-23 | 2022-08-12 | 深圳市新四季信息技术有限公司 | Lens focusing device and focusing method |
Citations (8)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN201488866U (en) * | 2009-08-19 | 2010-05-26 | 东莞东聚电子电讯制品有限公司 | Integrated multifunctional lens detector |
| CN204031358U (en) * | 2014-05-23 | 2014-12-17 | 富港电子(昆山)有限公司 | Quickcam image focusing point glue test machine |
| CN206074972U (en) * | 2016-08-29 | 2017-04-05 | 群光电子(苏州)有限公司 | Photographing module automatic focusing machine |
| CN107493468A (en) * | 2017-07-21 | 2017-12-19 | 珠海市广浩捷精密机械有限公司 | A kind of full-automatic focusing machine of station of camera one drag two four |
| CN107755998A (en) * | 2017-11-23 | 2018-03-06 | 广东弘景光电科技股份有限公司 | Applied to the clamping manipulator on camera module automatic focusing assembly equipment |
| CN208399784U (en) * | 2018-06-29 | 2019-01-18 | 东莞市海轮电子科技有限公司 | Lens module focusing dispenser |
| CN111036504A (en) * | 2019-12-16 | 2020-04-21 | 惠州市旭宝光电科技有限公司 | Equipment for focusing, focus measuring and glue dispensing of camera |
| CN114071000A (en) * | 2020-07-31 | 2022-02-18 | 宁波舜宇光电信息有限公司 | Focusing and dispensing equipment and method for camera module |
-
2020
- 2020-09-16 CN CN202010975133.6A patent/CN114268708B/en active Active
Patent Citations (8)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN201488866U (en) * | 2009-08-19 | 2010-05-26 | 东莞东聚电子电讯制品有限公司 | Integrated multifunctional lens detector |
| CN204031358U (en) * | 2014-05-23 | 2014-12-17 | 富港电子(昆山)有限公司 | Quickcam image focusing point glue test machine |
| CN206074972U (en) * | 2016-08-29 | 2017-04-05 | 群光电子(苏州)有限公司 | Photographing module automatic focusing machine |
| CN107493468A (en) * | 2017-07-21 | 2017-12-19 | 珠海市广浩捷精密机械有限公司 | A kind of full-automatic focusing machine of station of camera one drag two four |
| CN107755998A (en) * | 2017-11-23 | 2018-03-06 | 广东弘景光电科技股份有限公司 | Applied to the clamping manipulator on camera module automatic focusing assembly equipment |
| CN208399784U (en) * | 2018-06-29 | 2019-01-18 | 东莞市海轮电子科技有限公司 | Lens module focusing dispenser |
| CN111036504A (en) * | 2019-12-16 | 2020-04-21 | 惠州市旭宝光电科技有限公司 | Equipment for focusing, focus measuring and glue dispensing of camera |
| CN114071000A (en) * | 2020-07-31 | 2022-02-18 | 宁波舜宇光电信息有限公司 | Focusing and dispensing equipment and method for camera module |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN114895520A (en) * | 2022-05-23 | 2022-08-12 | 深圳市新四季信息技术有限公司 | Lens focusing device and focusing method |
Also Published As
| Publication number | Publication date |
|---|---|
| CN114268708B (en) | 2024-11-01 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN101858728B (en) | Measuring equipment and measuring methods | |
| CN112850145B (en) | Curved surface screen crack check out test set | |
| CN110646724B (en) | Feeding conveying device of semiconductor chip sorting testing device and working method thereof | |
| CN111504390B (en) | A kind of battery comprehensive testing equipment | |
| CN115973549B (en) | A smart wearable testing pipeline | |
| CN116330799B (en) | Steel sheet and transparent bearing film laminating equipment | |
| CN116027565A (en) | Lens automatic AA assembly equipment | |
| CN212844296U (en) | Defect detection system of optical filter | |
| CN110035283B (en) | Full-automatic TOF camera test equipment | |
| KR101814246B1 (en) | In-line handler and testing method using the same | |
| CN117082737A (en) | Green ceramic chip processing assembly line and green ceramic chip processing method | |
| CN114268708A (en) | Focusing and dispensing integrated machine and focusing and dispensing method of camera module | |
| CN215844315U (en) | Sorting equipment capable of automatically feeding and discharging | |
| CN215542830U (en) | Flexible screen double-sided 3D detection equipment | |
| CN114071000B (en) | Focus-adjusting glue equipment and method for camera module | |
| CN119159315B (en) | Thin metal sheet positioning mechanism, welding device, welding equipment and welding method | |
| CN116079369B (en) | Camera module assembly equipment and assembly method thereof | |
| CN217190994U (en) | Film-pasted glass sheet detection marking equipment | |
| CN117104872B (en) | A high-speed, high-precision plate-stirring machine with precise force control | |
| CN218251594U (en) | Optical filter detector | |
| CN113414122B (en) | Flexible screen double-sided 3D inspection equipment | |
| CN113471120B (en) | Feeding device and feeding process for UVLED processing | |
| JP2005017386A (en) | Flat work inspection and correction equipment | |
| CN116750485A (en) | Lens feeding device, detection system and method | |
| CN213914592U (en) | Dispensing assembly system |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| GR01 | Patent grant | ||
| GR01 | Patent grant |
