本发明涉及移动电源技术领域，且公开了一种带有夹紧结构及可提高供充电效率的移动电源，解决了同时携带移动电源和手机支架较为不便，占用空间较大，不便于实际使用的问题，其包括移动电源本体，所述移动电源本体的两侧均设有摆动板，移动电源本体的两侧均固定连接有固定轴，固定轴贯穿摆动板，固定轴上设有与摆动板相配合的固定组件，摆动板的一侧开设有第一凹槽，第一凹槽内设有第一活动板，第一活动板的一端延伸至第一凹槽的外部，第一活动板上开设有若干定位槽，摆动板上设有与定位槽相配合的定位组件，第一活动板的一端设有夹持组件；对手机进行充电的同时，便于对手机进行固定，方便观看手机。
The invention relates to the technical field of mobile power supplies, and discloses a mobile power supply with a clamping structure and improved charging efficiency, which solves the inconvenience of carrying a mobile power supply and a mobile phone bracket at the same time, occupies a large space, and is inconvenient for practical use. The problem is that it includes a mobile power supply body, both sides of the mobile power supply body are provided with swing plates, both sides of the mobile power supply body are fixedly connected with a fixed shaft, the fixed shaft penetrates through the swing plate, and the fixed shaft is provided with the swing plate. The matching fixing assembly has a first groove on one side of the swinging plate, a first movable plate is arranged in the first groove, one end of the first movable plate extends to the outside of the first groove, and the first movable plate is provided with a first groove. There are several positioning grooves, the swing plate is provided with positioning components matched with the positioning grooves, and one end of the first movable plate is provided with a clamping component; while charging the mobile phone, it is convenient to fix the mobile phone and to view the mobile phone.
Description
Technical Field
The invention belongs to the technical field of mobile power supplies, and particularly relates to a mobile power supply with a clamping structure and capable of improving charging efficiency.
Background
The charger, also known as a mobile power supply, is a portable charger integrating power supply and charging functions, and can charge or standby power for digital devices such as mobile phones, cameras or tablet computers at any time and any place.
The portable power source is at the in-process that uses, when needing to watch the cell-phone, still need cooperate and use cell phone stand, and it is fixed to carry out the centre gripping to the cell-phone, conveniently watches the use, and it is comparatively inconvenient to carry portable power source and cell phone stand simultaneously, and occupation space is great, the in-service use of not being convenient for.
Disclosure of Invention
In view of the above situation, in order to overcome the defects of the prior art, the invention provides a mobile power supply with a clamping structure and capable of improving the charging efficiency, and effectively solves the problems that the carrying of the mobile power supply and the mobile phone support is inconvenient, the occupied space is large, and the practical use is inconvenient in the background art.
In order to achieve the purpose, the invention provides the following technical scheme: a mobile power supply with a clamping structure and capable of improving charging efficiency comprises a mobile power supply body, wherein swing plates are arranged on two sides of the mobile power supply body, fixed shafts are fixedly connected to two sides of the mobile power supply body and penetrate through the swing plates, fixing assemblies matched with the swing plates are arranged on the fixed shafts, a first groove is formed in one side of each swing plate, a first movable plate is arranged in the first groove, one end of the first movable plate extends to the outside of the first groove, a plurality of positioning grooves are formed in the first movable plate, positioning assemblies matched with the positioning grooves are arranged on the swing plates, and a clamping assembly is arranged at one end of the first movable plate;
the clamping assembly comprises a fixing seat arranged at one end of the first movable plate, one side of the fixing seat is fixedly connected with one side of the first movable plate, a fixing block is arranged at one side of the fixing seat, a threaded column is fixedly connected to one side of the fixing block and penetrates through the fixing seat, a nut is sleeved at one end of the threaded column, a first clamping plate is fixedly connected to the fixing block, a second clamping plate is arranged at one side of the fixing block, and the second clamping plate and the fixing block are connected through a stretching assembly.
Preferably, fixed subassembly is including setting up in the gear of fixed axle one side, and the gear is located the swing board and keeps away from one side of portable power source body, and the outside cover of gear is equipped with the gear ring, one side of gear ring and one side fixed connection of swing board, and first rectangular hole has been seted up to one side of fixed axle, is equipped with first movable block in the first rectangular hole, one side of first movable block and one side fixed connection of gear, and the opposite side of first movable block is connected through first extension spring with one side of portable power source body.
Preferably, two first sliding grooves are formed in the inner wall of the first rectangular hole, sliding blocks are arranged in the first sliding grooves, and one side of each sliding block is fixedly connected with one side of each first movable block.
Preferably, the gear is meshed with the gear ring, and one side of the gear, which is far away from the first movable block, is fixedly connected with a first pull ring.
Preferably, the positioning assembly comprises a second rectangular hole formed in the inner wall of the top of the first groove, a second movable plate is arranged on one side of the swinging plate, a positioning plate is fixedly connected to the second movable plate, one side of the second movable plate is connected with one side of the swinging plate through a second extension spring, a slot is formed in one side of the positioning plate, and a slot-matched locking unit connection is formed in the swinging plate.
Preferably, the locking unit comprises a fixing plate arranged on the swinging plate, the fixing plate is fixedly connected with the swinging plate, a supporting plate is arranged on one side of the fixing plate, an insertion rod is fixedly connected with one side of the supporting plate and penetrates through the fixing plate, a third extension spring is sleeved outside the insertion rod and located between the fixing plate and the supporting plate, and two ends of the third extension spring are fixedly connected with the fixing plate and the supporting plate respectively.
Preferably, one end of the positioning plate penetrates through the second rectangular hole, one end of the positioning plate is located in one of the corresponding positioning grooves, one end of the inserted link is in contact with one side of the positioning plate, and the second movable plate is fixedly connected with a second pull ring.
Preferably, the stretching assembly comprises a second groove arranged on one side of the fixed block, a second movable block is arranged in the second groove, one side of the second movable block is fixedly connected with one side of the second clamping plate, and the other side of the second movable block is connected with the inner wall of one side of the second groove through a fourth stretching spring.
Preferably, two second sliding grooves are formed in the inner wall of the second groove, sliding strips are arranged in the second sliding grooves, and the sliding strips are fixedly connected with the second movable block.
Preferably, the anti-slip mat is fixedly connected to one side, close to the first clamping plate and the second clamping plate, of the fixing seat, the nut is located on one side, away from the fixing block, of the fixing seat, and one side of the nut is in contact with one side of the fixing seat.
Compared with the prior art, the invention has the beneficial effects that:
(1) during operation, through the design of the oscillating plate, the fixed shaft and the fixed assembly, the driving gear moves away from the fixed shaft to enable the gear to be separated from the gear ring, the meshing relation between the gear and the gear ring is removed, the first stretching spring is in a stretching state, the oscillating plate and the gear ring can rotate relative to the fixed shaft, the inclination angle of the oscillating plate and the first movable plate is adjusted, after the adjustment is finished, the gear is loosened, the first stretching spring drives the first movable block and the gear to move, the gear is inserted into the gear ring again, the position of the oscillating plate is limited through the meshing of the gear and the first movable plate, the oscillating plate keeps the inclination angle at the moment, through the matching of the first sliding groove and the sliding block, the first movable block is prevented from being separated from the first rectangular hole, and through the design of the first pull ring, the driving gear is convenient to move;
(2) through the design of the swinging plate, the first movable plate, the first groove, the positioning groove, the second rectangular hole, the positioning plate, the second movable plate and the second extension spring, the second movable plate is driven to move, so that one end of the positioning plate is separated from the positioning groove, the limitation on the position of the first movable plate is removed, the second extension spring is in a stretching state, the first movable plate can slide relative to the first groove, the distance between the fixed seat and the swinging plate is further adjusted, after the adjustment is finished, the second movable plate is loosened, the second extension spring drives the second movable plate to move, one end of the positioning plate is inserted into the corresponding positioning groove again, and the first movable plate can be fixed relative to the swinging plate;
(3) through the design of the positioning plate, the slot and the locking unit, when one end of the positioning plate is separated from the positioning slot, the slot moves to one end of the inserted rod, the third extension spring is in a stretching state at the moment, and then the third extension spring drives the supporting disk and the inserted rod to move, so that one end of the inserted rod is inserted into the slot, and further the second movable plate does not need to be pulled all the time, the actual operation is convenient, and the second movable plate is driven to move conveniently through the arranged second pull ring;
(4) through the design of the fixed seat, the fixed block, the threaded column, the nut, the first clamping plate, the second clamping plate and the stretching assembly, the fixed block is driven to rotate relative to the fixed seat, the inclination angles of the first clamping plate and the second clamping plate are adjusted, after the adjustment is finished, the nut is driven to rotate, the nut and the fixed block are enabled to clamp the fixed seat, the fixed block is further enabled to be fixed relative to the fixed seat, the first clamping plate and the second clamping plate are enabled to keep the inclination angles at the moment, the second clamping plate is driven to move away from the first clamping plate, the second movable block is enabled to move, the fourth stretching spring is in a stretching state, the mobile phone is placed between the first clamping plate and the second clamping plate, the fourth stretching spring is in a stretching state, the first clamping plate and the second clamping plate clamp the mobile phone through the elasticity of the fourth stretching spring, and when the mobile phone is charged, be convenient for fix the cell-phone, conveniently watch the cell-phone, through the cooperation of second spout and draw runner, avoid the second movable block roll-off in following the second recess.
Drawings
The accompanying drawings, which are included to provide a further understanding of the invention and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention and together with the description serve to explain the principles of the invention and not to limit the invention.
In the drawings:

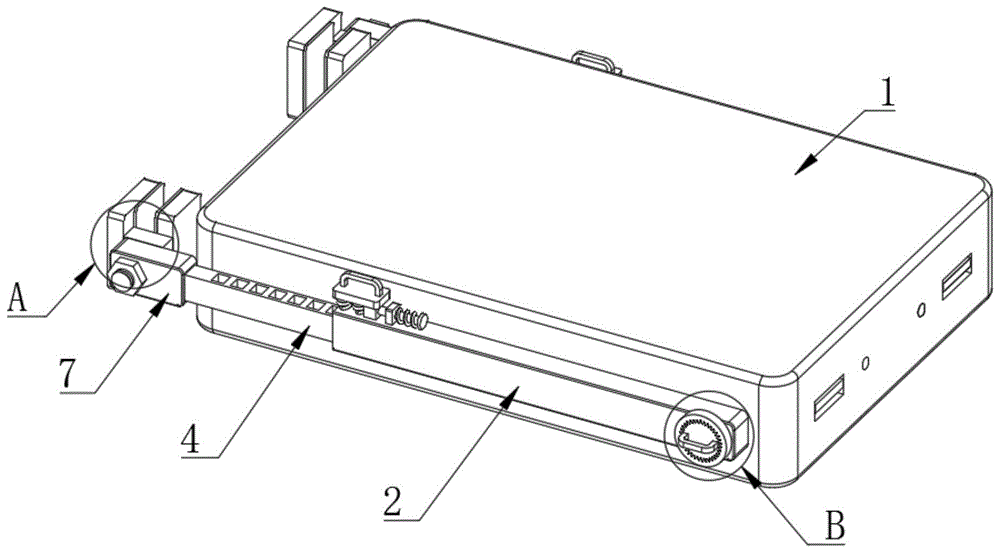

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a second schematic view of the overall structure of the present invention;
FIG. 3 is a schematic view of a portion of the enlarged structure at A in FIG. 1;
FIG. 4 is a schematic view of a portion of the enlarged structure at B in FIG. 1
FIG. 5 is a schematic structural view of a swing plate of the present invention;
FIG. 6 is a schematic structural view of a positioning assembly of the present invention;
FIG. 7 is a schematic structural view of a stretching assembly of the present invention;
FIG. 8 is a schematic structural view of a fixing assembly of the present invention;
in the figure: 1. a mobile power supply body; 2. a swing plate; 3. a fixed shaft; 4. a first movable plate; 5. a first groove; 6. positioning a groove; 7. a fixed seat; 8. a fixed block; 9. a threaded post; 10. a nut; 11. a first clamping plate; 12. a second clamping plate; 13. a gear; 14. a gear ring; 15. a first rectangular hole; 16. a first movable block; 17. a first extension spring; 18. a first chute; 19. a slider; 20. a first pull ring; 21. a second rectangular hole; 22. positioning a plate; 23. a second movable plate; 24. a second extension spring; 25. a slot; 26. a fixing plate; 27. a support disc; 28. inserting a rod; 29. a third extension spring; 30. a second tab; 31. a second groove; 32. a second movable block; 33. a fourth tension spring; 34. a second chute; 35. a slide bar; 36. a non-slip mat.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments; all other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In a first embodiment, as shown in fig. 1 to 8, the portable power supply comprises a portable power supply body 1, wherein swing plates 2 are respectively disposed on two sides of the portable power supply body 1, fixed shafts 3 are fixedly connected to two sides of the portable power supply body 1, the fixed shafts 3 penetrate through the swing plates 2, fixing assemblies matched with the swing plates 2 are disposed on the fixed shafts 3, a first groove 5 is formed in one side of each swing plate 2, a first movable plate 4 is disposed in the first groove 5, one end of each first movable plate 4 extends to the outside of the corresponding first groove 5, a plurality of positioning grooves 6 are formed in each first movable plate 4, positioning assemblies matched with the positioning grooves 6 are disposed on the swing plates 2, and a clamping assembly is disposed at one end of each first movable plate 4;
the clamping component comprises a fixed seat 7 arranged at one end of the first movable plate 4, one side of the fixed seat 7 is fixedly connected with one side of the first movable plate 4, one side of the fixed seat 7 is provided with a fixed block 8, one side of the fixed block 8 is fixedly connected with a threaded column 9, the threaded column 9 penetrates through the fixed seat 7, one end of the threaded column 9 is sleeved with a nut 10, the fixed block 8 is fixedly connected with a first clamping plate 11, one side of the fixed block 8 is provided with a second clamping plate 12, and the second clamping plate 12 and the fixed block 8 are connected through a stretching component.
In the second embodiment, on the basis of the first embodiment, from the figure 1, fig. 4 and 8 show that the fixing assembly includes a gear 13 disposed on one side of the fixing shaft 3, the gear 13 is located on one side of the oscillating plate 2 away from the mobile power supply body 1, a gear ring 14 is sleeved outside the gear 13, one side of the gear ring 14 is fixedly connected with one side of the oscillating plate 2, one side of the fixing shaft 3 is provided with a first rectangular hole 15, a first movable block 16 is disposed in the first rectangular hole 15, one side of the first movable block 16 is fixedly connected with one side of the gear 13, the other side of the first movable block 16 is connected with one side of the mobile power supply body 1 through a first tension spring 17, two first sliding grooves 18 are disposed on the inner wall of the first rectangular hole 15, a sliding block 19 is disposed in the first sliding groove 18, one side of the sliding block 19 is fixedly connected with one side of the first movable block 16, the gear 13 is engaged with the gear ring 14, and one side of the gear 13 away from the first movable block 16 is fixedly connected with a first pull ring 20;
the driving gear 13 moves away from the fixed shaft 3, so that the gear 13 is separated from the gear ring 14, the meshing relationship between the gear 13 and the gear ring 14 is removed, the first extension spring 17 is in an extension state, the oscillating plate 2 and the gear ring 14 can rotate relative to the fixed shaft 3, the inclination angles of the oscillating plate 2 and the first movable plate 4 are adjusted, after the adjustment is completed, the gear 13 is loosened, the first extension spring 17 drives the first movable block 16 and the gear 13 to move, the gear 13 is inserted into the gear ring 14 again, the position of the oscillating plate 2 is limited through the meshing between the gear 13 and the first movable plate 4, so that the oscillating plate 2 keeps the inclination angle at the moment, through the matching between the first sliding groove 18 and the sliding block 19, the first movable block 16 is prevented from being separated from the first rectangular hole 15, and through the design of the first pull ring 20, the driving gear 13 is convenient to move.
Third embodiment, on the basis of the first embodiment, as shown in fig. 5 and 6, the positioning assembly includes a second rectangular hole 21 formed in the inner wall of the top of the first groove 5, a second movable plate 23 is disposed on one side of the swing plate 2, a positioning plate 22 is fixedly connected to the second movable plate 23, one side of the second movable plate 23 is connected to one side of the swing plate 2 through a second extension spring 24, a slot 25 is formed in one side of the positioning plate 22, a locking unit matched with the slot 25 is disposed on the swing plate 2 and connected to the slot 25, the locking unit includes a fixed plate 26 disposed on the swing plate 2, the fixed plate 26 is fixedly connected to the swing plate 2, a supporting plate 27 is disposed on one side of the fixed plate 26, an insertion rod 28 is fixedly connected to one side of the supporting plate 27, the insertion rod 28 penetrates through the fixed plate 26, a third extension spring 29 is sleeved outside the insertion rod 28, and the third extension spring 29 is located between the fixed plate 26 and the supporting plate 27, two ends of the third extension spring 29 are fixedly connected with the fixed plate 26 and the supporting plate 27, respectively, one end of the positioning plate 22 penetrates through the second rectangular hole 21, one end of the positioning plate 22 is located in one of the corresponding positioning slots 6, one end of the inserted link 28 is in contact with one side of the positioning plate 22, and the second movable plate 23 is fixedly connected with a second pull ring 30;
the second movable plate 23 is driven to move, so that one end of the positioning plate 22 is separated from the positioning slot 6, the position of the first movable plate 4 is not limited, the second extension spring 24 is in a stretching state, the first movable plate 4 can slide relative to the first groove 5, the distance between the fixed seat 7 and the swing plate 2 is further adjusted, after the adjustment is finished, the second movable plate 23 is loosened, the second extension spring 24 drives the second movable plate 23 to move, one end of the positioning plate 22 is inserted into the corresponding positioning slot 6 again, the first movable plate 4 is fixed relative to the swing plate 2, when one end of the positioning plate 22 is separated from the positioning slot 6, the slot 25 moves to one end of the insertion rod 28, the third extension spring 29 is in a stretching state, the third extension spring 29 drives the support plate 27 and the insertion rod 28 to move, one end of the insertion rod 28 is inserted into the slot 25, and the second movable plate 23 does not need to be pulled all the time, the practical operation is facilitated, and the second movable plate 23 is driven to move conveniently through the second pull ring 30.
Fourth embodiment, on the basis of the first embodiment, as shown in fig. 1, 3 and 7, the stretching assembly includes a second groove 31 formed in one side of the fixed block 8, a second movable block 32 is disposed in the second groove 31, one side of the second movable block 32 is fixedly connected to one side of the second clamping plate 12, the other side of the second movable block 32 is connected to an inner wall of one side of the second groove 31 through a fourth stretching spring 33, two second sliding grooves 34 are formed in an inner wall of the second groove 31, a sliding strip 35 is disposed in the second sliding groove 34, the sliding strip 35 is fixedly connected to the second movable block 32, anti-slip pads 36 are fixedly connected to both sides of the first clamping plate 11 and the second clamping plate 12 close to each other, the nut 10 is located on one side of the fixed block 7 away from the fixed block 8, and one side of the nut 10 contacts one side of the fixed block 7;
the fixed block 8 is driven to rotate relative to the fixed seat 7, the inclination angles of the first clamping plate 11 and the second clamping plate 12 are adjusted, after the adjustment is finished, the nut 10 is driven to rotate, so that the nut 10 and the fixed block 8 clamp the fixed seat 7, thereby fixing the fixing block 8 relative to the fixing seat 7, so that the first clamping plate 11 and the second clamping plate 12 keep the inclination angle at the moment, and further drives the second clamping plate 12 to move away from the first clamping plate 11, so that the second movable block 32 moves, the fourth tension spring 33 is in a tension state, the mobile phone is placed between the first clamping plate 11 and the second clamping plate 12, and at the moment, the fourth tension spring 33 is in a tension state, the first holding plate 11 and the second holding plate 12 hold the mobile phone by the elastic force of the fourth extension spring 33, the second movable block 32 is prevented from sliding out of the second groove 31 by the cooperation of the second sliding groove 34 and the sliding strip 35.
The working principle is as follows: in operation, the driving gear 13 moves away from the fixed shaft 3, so that the gear 13 is separated from the gear ring 14, the meshing relationship between the gear 13 and the gear ring 14 is released, the first extension spring 17 is in an extension state, the oscillating plate 2 and the gear ring 14 can rotate relative to the fixed shaft 3, the inclination angles of the oscillating plate 2 and the first movable plate 4 are adjusted, after the adjustment is completed, the gear 13 is released, the first extension spring 17 drives the first movable block 16 and the gear 13 to move, so that the gear 13 is inserted into the gear ring 14 again, the position of the oscillating plate 2 is limited through the meshing between the gear 13 and the first movable plate 4, the oscillating plate 2 keeps the inclination angle at the moment, the first movable block 16 is prevented from being separated from the first rectangular hole 15 through the matching between the first sliding chute 18 and the sliding block 19, the driving gear 13 is convenient to move through the design of the first pull ring 20, and the second movable plate 23 is driven to move, one end of the positioning plate 22 is separated from the positioning slot 6, the position of the first movable plate 4 is not limited, the second extension spring 24 is in an extended state, the first movable plate 4 can slide relative to the first groove 5, the distance between the fixed seat 7 and the swing plate 2 is further adjusted, after the adjustment is finished, the second movable plate 23 is released, the second extension spring 24 drives the second movable plate 23 to move, one end of the positioning plate 22 is inserted into the corresponding positioning slot 6 again, the first movable plate 4 is fixed relative to the swing plate 2, when one end of the positioning plate 22 is separated from the positioning slot 6, the slot 25 moves to one end of the insertion rod 28, at the moment, the third extension spring 29 is in an extended state, the third extension spring 29 drives the supporting plate 27 and the insertion rod 28 to move, one end of the insertion rod 28 is inserted into the slot 25, and the second movable plate 23 does not need to be pulled all the time, the actual operation is convenient, the second movable plate 23 is driven to move through the second pull ring 30, the fixed block 8 is driven to rotate relative to the fixed block 7, the inclination angles of the first clamping plate 11 and the second clamping plate 12 are adjusted, after the adjustment is finished, the nut 10 is driven to rotate, the nut 10 and the fixed block 8 clamp the fixed block 7, the fixed block 8 is further fixed relative to the fixed block 7, the first clamping plate 11 and the second clamping plate 12 are enabled to keep the inclination angles at the moment, the second clamping plate 12 is driven to move away from the first clamping plate 11, the second movable block 32 is enabled to move, the fourth extension spring 33 is in a stretching state, the mobile phone is placed between the first clamping plate 11 and the second clamping plate 12, and the fourth extension spring 33 is in the stretching state at the moment, and the first clamping plate 11 and the second clamping plate 12 clamp the mobile phone through the elasticity of the fourth extension spring 33, the second movable block 32 is prevented from sliding out of the second groove 31 by the cooperation of the second sliding groove 34 and the sliding strip 35.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
