Abstract
本发明公开了一种便携式层间幕墙打点定位装置，包括底座，所述底座上表面垂直转动安装有调节拖撑，所述调节拖撑表面开设有螺纹，所述调节拖撑上螺纹套接有滑块，所述滑块的一面固定安装有方管支架，所述调节拖撑顶端固定安装有定位托盘，所述方管支架远离所述滑块的一端开设有安装槽，所述方管支架上表面垂直开设有两个与所述安装槽相连通的通口，两个所述通口内分别垂直设有第一安装板和第二安装板，所述第一安装板表面开设有螺纹孔，所述螺纹孔内螺纹安装有咬合可调端，所述第二安装板靠近所述第一安装板的一面固定安装有两个咬合固定端。本发明提供一种可重复利用打点定位装置，实现定位装置重复利用，提高安装效率，降低施工成本。
The invention discloses a portable interlayer curtain wall dotting and positioning device, which comprises a base, an adjustment drag brace is installed on the upper surface of the base for vertical rotation, a thread is provided on the surface of the adjustment drag brace, and a thread is sleeved on the adjustment drag brace. A slider, a square tube bracket is fixedly installed on one side of the slider, a positioning tray is fixedly installed at the top of the adjusting drag support, and an installation slot is opened at one end of the square tube bracket away from the slider, and the square tube bracket is The upper surface is vertically provided with two through openings that communicate with the installation groove, a first installation plate and a second installation plate are respectively vertically arranged in the two through openings, and the surface of the first installation plate is provided with threaded holes, The inner thread of the threaded hole is provided with an adjustable snap end, and a side of the second mounting plate close to the first mounting plate is fixedly mounted with two snap fixed ends. The invention provides a reusable dotting positioning device, which realizes the repeated utilization of the positioning device, improves the installation efficiency and reduces the construction cost.
Description
Technical Field
The invention relates to the technical field of building curtain wall processing equipment, in particular to a portable interlayer curtain wall dotting and positioning device.
Background
At present, the building curtain wall adopts the molding aluminum plate curtain wall with various forms and different specifications for pursuing rich curved surface effect and simultaneously meeting use function, but because the appearance molding form of the building curtain wall is various and the specifications are different, each basic skeleton needs to be adjusted according to the positioning of spatial points, the positioning points can not be placed in the space for measurement, and the conventional need meets the requirement of placing measurement site carriers in the space through steel and the welding point-striking bearing objects of the original structure or the postposition embedded parts.
Conventional welding mechanism is complicated, and inconvenient carrying still needs two layers to destroy sometimes and demolishs, causes the material extravagant, and welding process needs a lot of manual works to operate moreover, extravagant manual work, and the welding position collet is inflexible, and efficiency is lower.
Disclosure of Invention
The invention aims to solve the following defects in the prior art that a conventional welding mechanism is complex and inconvenient to carry, two layers of materials are damaged and removed sometimes to cause material waste, a lot of manpower is needed for operation in the welding process to cause labor waste, a welding positioning bottom support is inflexible, and the efficiency is low.
In order to achieve the purpose, the invention adopts the following technical scheme:
a portable interlayer curtain wall dotting positioning device comprises a base, wherein an adjusting drag support is vertically and rotatably installed on the upper surface of the base, threads are formed in the surface of the adjusting drag support, a sliding block is sleeved on the upper threads of the adjusting drag support, a square pipe support is fixedly installed on one surface of the sliding block, a positioning tray is fixedly installed at the top end of the adjusting drag support, a mounting groove is formed in one end, away from the sliding block, of the square pipe support, two through holes communicated with the mounting groove are vertically formed in the upper surface of the square pipe support, a first mounting plate and a second mounting plate are respectively and vertically arranged in the two through holes, a threaded hole is formed in the surface of the first mounting plate, an occlusion adjustable end is installed in the threaded hole, two occlusion fixed ends are fixedly installed on one surface, close to the first mounting plate, of the second mounting plate, the occlusion adjustable end and the two occlusion fixed ends are not located on the same horizontal line, the slide block limits rotation through a limiting component.
Preferably, the limiting part comprises a vertical rod vertically and fixedly mounted on the upper surface of the base, a sliding groove is vertically formed in the surface of the vertical rod, a sliding rod is fixedly mounted on the surface of the sliding block, and one end, far away from the sliding block, of the sliding rod is slidably mounted in the sliding groove.
Preferably, mouthful wall symmetry fixed mounting has first sloping block about the opening, first mounting panel with the lower surface of second mounting panel all is equipped with the locking Assembly who is used for locking self position in the mounting groove.
Preferably, the locking assembly comprises an installation block, two first spring rods and two second inclined blocks, wherein the two first spring rods are fixedly installed on the left surface and the right surface of the installation block respectively, the two second inclined blocks are fixedly installed at one ends, far away from the first spring rods, of the first spring rods respectively, and the installation blocks are fixedly installed on the lower surfaces of the first installation plate and the second installation plate respectively.
Preferably, square pipe support left and right surfaces symmetry fixed mounting has the second spring beam, square pipe support left and right surfaces symmetry seted up two pairs respectively with the socket that communicates in the mounting groove, two the equal fixed mounting of one end that the second spring beam kept away from each other has a movable plate, two the equal fixed mounting in one side that the movable plate is close to each other has a pair of picture peg, four the picture peg respectively with four the socket position corresponds.
Preferably, the upper surface of the square pipe support is vertically provided with two pairs of slots, and two side walls of the two mounting blocks are fixedly provided with inserting blocks which are respectively inserted into the two pairs of slots.
Preferably, the base lower surface has been seted up and has been rotated the groove, the base upper surface is rotated perpendicularly and is installed the threaded rod, the top fixed mounting of threaded rod has the regulating wheel, the bottom of threaded rod penetrates rotate groove and screw thread and has cup jointed the slide, the equal fixed mounting in both sides has the connecting rod about the slide, the connecting rod is kept away from the one end fixed mounting of slide has the collar, the collar fixed mounting has the dead lever, it is equipped with a pair of gyro wheel to rotate the cover on the dead lever, the slide passes through the restriction of restriction part and rotates.
Preferably, the limiting component comprises a limiting rod vertically and fixedly mounted at the bottom of the rotating groove, and the sliding seat is sleeved on the limiting rod in a sliding manner.
Compared with the prior art, the invention has the beneficial effects that:
1. the stable triangular fixing body is formed by three-point structure occlusion fixing of the two occlusion fixing ends and the occlusion adjustable end, finally the height is adjusted by adjusting the drag support, the requirement of a lofting carrier of a positioning point of the on-site special-shaped curtain wall is met, after the framework is mounted at the lofting point, the occlusion adjustable end is adjusted to be taken down and reused at the next point position, secondary damage and demolition are avoided, the mounting efficiency is greatly improved, and the construction cost is reduced;
2. the first mounting plate and the second mounting plate can be bent and deformed after being used for a long time, the meshing fixed end and the meshing adjustable end can be abraded after being used for a long time, and the first mounting plate and the second mounting plate can be rapidly mounted and dismounted with the square pipe support through the matching among the locking assembly, the second spring rod and the two pairs of inserting plates, so that the replacement is convenient;
3. the two pairs of rollers facilitate a worker to move the device to a designated position, and whether the two pairs of rollers contact the ground or not can be quickly controlled through the matching between the threaded rod and the sliding seat, so that the device is prevented from being moved to the designated position and then moved wantonly.
Drawings

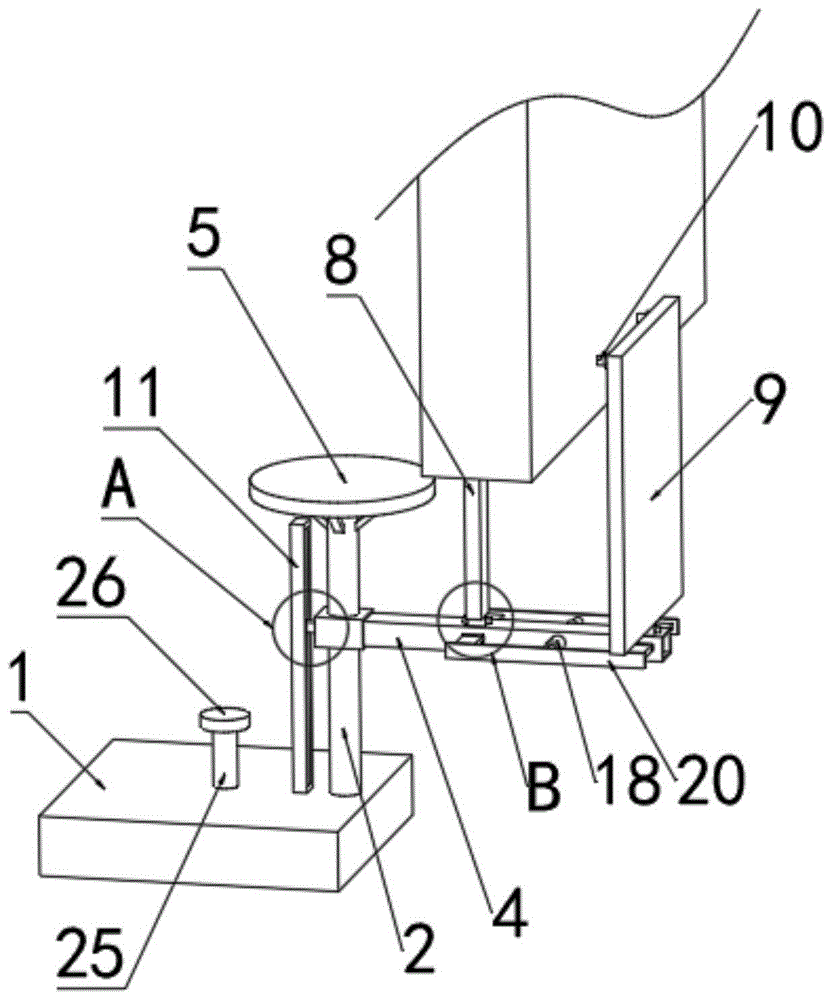

Fig. 1 is a schematic front perspective view of a portable interlayer curtain wall dotting positioning device provided by the invention;
FIG. 2 is a schematic view of a back side three-dimensional structure of a portable interlayer curtain wall dotting positioning device provided by the invention;
FIG. 3 is a schematic side-view perspective view of a portable interlayer curtain wall dotting positioning device according to the present invention;
FIG. 4 is a schematic bottom perspective view of a portable interlayer curtain wall dotting positioning device according to the present invention;
FIG. 5 is an enlarged view of the structure at A in FIG. 1;
FIG. 6 is an enlarged view of the structure at B in FIG. 1;
FIG. 7 is an enlarged view of the structure at C in FIG. 2;
fig. 8 is an enlarged schematic view of the structure at D in fig. 3.
In the figure: the adjustable clamp comprises a base 1, a 2-adjustment drag support, a 3 sliding block, a 4-square-tube support, a 5-positioning tray, a 6 mounting groove, a 7 through opening, a 8 first mounting plate, a 9 second mounting plate, a 10 meshing fixed end, a 11 vertical rod, a 12 sliding groove, a 13 sliding rod, a 14 first inclined block, a 15 mounting block, a 16 first spring rod, a 17 second inclined block, a 18 second spring rod, a 19 socket, a 20 moving plate, a 21 inserting plate, a 22 inserting groove, a 23 inserting block, a 24 rotating groove, a 25 threaded rod, a 26 adjusting wheel, a 27 sliding seat, a 28 connecting rod, a 29 fixed rod, a 30 roller, a 31 limiting rod, a 32 meshing adjustable end and a 33 mounting ring.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
Referring to fig. 1-8, a portable interlayer curtain wall dotting positioning device comprises a base 1, an adjusting drag support 2 is vertically and rotatably installed on the upper surface of the base 1, threads are formed on the surface of the adjusting drag support 2, a sliding block 3 is sleeved on the adjusting drag support 2 through the threads, a square pipe support 4 is fixedly installed on one surface of the sliding block 3, a positioning tray 5 is fixedly installed at the top end of the adjusting drag support 2, a mounting groove 6 is formed in one end, away from the sliding block 3, of the square pipe support 4, two through holes 7 communicated with the mounting groove 6 are vertically formed in the upper surface of the square pipe support 4, a first mounting plate 8 and a second mounting plate 9 are respectively and vertically arranged in the two through holes 7, a threaded hole is formed in the surface of the first mounting plate 8, an occlusion adjustable end 32 is installed in the threaded hole, two occlusion fixed ends 10 are fixedly installed on one surface, close to the first mounting plate 8, the occlusion adjustable end 32 and the two occlusion fixed ends 10 are not located on the same horizontal line, the slider 3 is restricted from rotating by a stopper.
In the embodiment applying the technical scheme, the stable triangular fixing body is formed by three-point structural occlusion fixing of the two occlusion fixing ends 10 and the occlusion adjustable end 32, finally, the height adjustment is carried out by adjusting the drag support 2, the requirement of a lofting carrier of a positioning point of the on-site special-shaped curtain wall is met, after the framework is mounted at the lofting point, the occlusion adjustable end 32 is adjusted, the device is taken down and reused at the next point position, the secondary damage is avoided, the mounting efficiency is greatly improved, and the construction cost is reduced.
In the preferred technical scheme in this embodiment, the limiting component includes an upright rod 11 vertically and fixedly mounted on the upper surface of the base 1, a sliding groove 12 is vertically formed in the surface of the upright rod 11, a sliding rod 13 is fixedly mounted on the surface of the sliding block 3, and one end of the sliding rod 13, which is far away from the sliding block 3, is slidably mounted in the sliding groove 12. The sliding rod 13 can only move in the sliding groove 12 in the vertical direction, so that when the adjusting drag support 2 rotates, the sliding block 3 which is sleeved on the adjusting drag support 2 through the threads can only drive the square pipe support 4 to move in the vertical direction, and cannot rotate along with the rotation of the adjusting drag support 2.
In the preferred technical scheme of this embodiment, the first sloping block 14 is symmetrically and fixedly installed on the wall of the left and right openings of the through opening 7, and the lower surfaces of the first mounting plate 8 and the second mounting plate 9 are respectively provided with a locking component for locking the position of the locking component in the mounting groove 6.
In the preferred technical solution of this embodiment, the locking assembly includes an installation block 15, two first spring rods 16 respectively fixedly installed on the left and right surfaces of the installation block 15, and two second inclined blocks 17 respectively fixedly installed on the ends far away from the two first spring rods 16, and the two installation blocks 15 are respectively fixedly installed on the lower surfaces of the first installation plate 8 and the second installation plate 9. The first mounting plate 8 and the second mounting plate 9 may be bent and deformed after being used for a long time, the engagement fixed end 10 and the engagement adjustable end 32 are also worn after being used for a long time, after the first mounting plate 8 and the second mounting plate 9 are replaced and mounted, as long as a worker pushes the two mounting blocks 15 into the two through holes 7, the inclined surface of the second inclined block 17 is in sliding contact with the inclined surface of the first inclined block 14, and therefore under the pressing action force of the inclined surface, the first spring rod 16 is contracted until the inclined surface of the second inclined block 17 is not in sliding contact with the inclined surface of the first inclined block 14 any more, and at the moment, the first spring rod 16 can be rapidly reset under the action of the elastic potential energy of the first spring rod 16 and enables the second inclined block 17 to be clamped with the lower surface of the first inclined block 14.
According to the preferable technical scheme in the embodiment, the second spring rods 18 are symmetrically and fixedly mounted on the left surface and the right surface of the square pipe support 4, two pairs of sockets 19 which are respectively communicated with the interior of the mounting groove 6 are symmetrically formed in the left surface and the right surface of the square pipe support 4, the moving plates 20 are fixedly mounted at the ends, far away from each other, of the two second spring rods 18, a pair of inserting plates 21 are fixedly mounted on the surfaces, close to each other, of the two moving plates 20, and the four inserting plates 21 correspond to the four sockets 19 respectively. When the movable plate is disassembled, only the two movable plates 20 are controlled to move towards the direction of approaching each other, at the moment, the two second spring rods 18 can contract, the four inserting plates 21 also extend into the four inserting holes 19 and abut against the four second inclined blocks 17, at the moment, the four first spring rods 16 can contract until the four second inclined blocks 17 do not abut against the lower surfaces of the four first inclined blocks 14, at the moment, the clamping between the second inclined blocks 17 and the first inclined blocks 14 is relieved, a worker can take the first mounting plate 8 and the second mounting plate 9 out of the two through holes 7 to complete the disassembly, then the two movable plates 20 are loosened, the two movable plates 20 can be reset by the two second spring rods 18, and at the moment, the four inserting plates 21 can move out of the four inserting holes 19.
In the preferred technical scheme of this embodiment, two pairs of slots 22 are vertically formed in the upper surface of the square tube support 4, and the two side walls of the two mounting blocks 15 are fixedly provided with the insertion blocks 23 respectively inserted into the two pairs of slots 22. When the mounting block 15 is inserted into the through hole 7, the insert plate 23 enters the slot 22, so that the moving track of the mounting block 15 in the mounting groove 6 can be limited, and only the vertical movement can be performed, but the horizontal movement cannot be performed.
The preferred technical scheme in this embodiment, base 1 lower surface has been seted up and has been rotated groove 24, surface vertical rotates on base 1 and installs threaded rod 25, the top fixed mounting of threaded rod 25 has regulating wheel 26, the bottom of threaded rod 25 penetrates and rotates groove 24 and screw thread cup joints slide 27, the equal fixed mounting in both sides has connecting rod 28 about slide 27, the one end fixed mounting that slide 27 was kept away from to connecting rod 28 has collar 33, fixed mounting has dead lever 29 in the collar 33, it is equipped with a pair of gyro wheel 30 to rotate the cover on the dead lever 29, slide 27 passes through the restriction of limiting means and rotates. The idler wheel 30 facilitates the movement of the pushing device on the ground by workers, the threaded rod 25 can be controlled to rotate by rotating the adjusting wheel 26 after the pushing device moves to a specified position, at the moment, the sliding seat 27 sleeved on the threaded rod 25 through threads can drive the two fixing rods 29 to move in the vertical direction under the action of the limiting component, and until the two pairs of idler wheels 30 sleeved on the two fixing rods 29 are rotated to be not in contact with the ground, the lower surface of the base 1 can be in contact with the ground at the moment, and the situation that the pushing device can move to the specified position arbitrarily is avoided.
In the preferred technical solution of this embodiment, the limiting component includes a limiting rod 31 vertically and fixedly installed at the bottom of the rotating groove 24, and the sliding seat 27 is slidably sleeved on the limiting rod 31. The slide 27 can only be displaced in the vertical direction on the stop rod 31, so that when the threaded rod 25 is rotated, the slide 27 screwed onto the threaded rod 25 is displaced in the vertical direction and cannot rotate with the threaded rod 25.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and the technical solutions and the inventive concepts thereof according to the present invention should be equivalent or changed within the scope of the present invention.
