Abstract
本发明适用于建筑幕墙领域，公开了拼接结构及曲面幕墙，曲面幕墙包括多个幕墙单元、多个拼接结构和主体支架，多个幕墙单元通过多个拼接结构拼接形成曲面幕墙，幕墙单元包括边框组件和安装在边框组件上的幕墙面板，拼接结构包括第一连接组件、第二连接组件和调节组件，第一连接组件和第二连接组件分别设于调节组件的两侧，第一连接组件与相邻两个幕墙单元的边框组件连接，第二连接组件与主体支架连接，调节组件用于调节第一连接组件与第二连接组件的间距以调节幕墙单元连接位置相对主体支架的间距；曲面幕墙能够通过拼接结构控制幕墙单元的平面角度，多个相邻的幕墙单元依次调节，就可以圆滑过渡为曲面，从而形成整体为曲面造型的幕墙。
The invention is suitable for the field of building curtain walls, and discloses a splicing structure and a curved curtain wall. The curved curtain wall includes a plurality of curtain wall units, a plurality of splicing structures and a main body bracket. The assembly and the curtain wall panel installed on the frame assembly. The splicing structure includes a first connecting assembly, a second connecting assembly and an adjusting assembly. The first connecting assembly and the second connecting assembly are respectively arranged on both sides of the adjusting assembly. The frame components of two adjacent curtain wall units are connected, the second connection component is connected with the main body bracket, and the adjustment component is used to adjust the distance between the first connection component and the second connection component to adjust the distance between the connection position of the curtain wall unit relative to the main body bracket; the curved curtain wall The plane angle of the curtain wall unit can be controlled through the splicing structure, and multiple adjacent curtain wall units can be adjusted in turn to smoothly transition into a curved surface, thereby forming a curtain wall with a curved surface shape as a whole.
Description
Technical Field
The invention relates to the field of building curtain walls, in particular to a splicing structure and a curved surface curtain wall.
Background
The existing metal curtain wall is generally formed by enclosing a square aluminum plate, a connection mode that steel corner connectors and aluminum alloy hanging pieces are combined is adopted, the square aluminum plate is monotonous in shape, the connection mode is large in processing difficulty and inconvenient to install, and the three-dimensional adjusting function is difficult to achieve, so that the enclosed curtain wall is mostly a plane, is not a space curved surface appearance, is monotonous in modeling and is easy to produce aesthetic fatigue.
Disclosure of Invention
The first purpose of the invention is to provide a splicing structure, which can adjust the distance between the connecting positions of curtain wall units and a wall body through an adjusting assembly, so that the plane angle of the curtain wall units can be controlled.
In order to achieve the purpose, the invention provides the following scheme:
the utility model provides a splicing structure, includes first coupling assembling, second coupling assembling and adjusting part, first coupling assembling with second coupling assembling locates respectively adjusting part's both sides, first coupling assembling is used for connecting two adjacent curtain units, second coupling assembling is used for installing on the main part support, adjusting part is used for adjusting first coupling assembling with second coupling assembling's interval is in order to adjust curtain unit hookup location is relative the interval of main part support.
Preferably, the adjusting part include with first regulating part that first coupling assembling connects, with second regulating part and the fastener that second coupling assembling connects, first regulating part axial is provided with the external screw thread, second regulating part axial is provided with the internal thread, just the second regulating part radially is provided with spacing hole, first regulating part with second regulating part screw-thread fit, the fastener is installed spacing downthehole to the butt is in on the first regulating part.
Preferably, first connecting assembly includes mounting disc, first angle sign indicating number piece and second angle sign indicating number piece, first angle sign indicating number piece with the equal demountable installation of second angle sign indicating number piece is in one side of mounting disc, adjusting part installs the opposite side of mounting disc, first angle sign indicating number piece is used for rather than one of them curtain wall unit sliding connection, second angle sign indicating number piece is used for with adjacent another curtain wall unit sliding connection.
Preferably, the second coupling assembling includes mount pad, first holder and with first holder complex second holder, the mount pad is fixed the adjusting part deviates from one side of first coupling assembling, first holder with the second holder is all located on the mount pad, just first holder with the second holder is used for the centre gripping on the main part support.
The second purpose of the invention is to provide a curved curtain wall, which comprises a plurality of curtain wall units, a plurality of splicing structures and a main body support, wherein the plurality of curtain wall units are spliced by the plurality of splicing structures to form the curved curtain wall, each curtain wall unit comprises a frame component and a curtain wall panel arranged on the frame component, the splicing structures adopt the splicing structures, the first connecting component is connected with the frame components of the two adjacent curtain wall units, and the second connecting component is connected with the main body support.
Preferably, the curtain panel is triangle-shaped curtain panel, frame subassembly and triangle-shaped curtain panel adaptation, every the frame subassembly includes three frame, and is three frame end to end, at least one the frame is provided with the spout, first connecting component includes mounting disc, first angle sign indicating number piece and second angle sign indicating number piece, first angle sign indicating number piece with the equal demountable installation of second angle sign indicating number piece is in one side of mounting disc, adjusting part installs the opposite side at the mounting disc, first angle sign indicating number piece and one of them the curtain unit spout sliding connection, second angle sign indicating number piece and adjacent another the curtain unit spout sliding connection.
Preferably, the frame subassembly still includes the connecting plate, the spout includes an open tip at least, adjacent two are located to the connecting plate the hookup location of frame, the connecting plate with the frame subassembly can be dismantled and be connected, and cover the tip of spout, first angle sign indicating number piece slidable mounting is in one of them in the spout of curtain unit, second angle sign indicating number piece is installed adjacent another in the spout of curtain unit.
Preferably, first angle piece is the setting of L type, including first plane portion and with the first vertical portion that first plane portion is perpendicular to be connected, first plane portion installs on the mounting disc, second angle piece is the setting of L type, including second plane portion and with the vertical portion of second that second plane portion is perpendicular to be connected, second plane portion installs on the mounting disc, the end of first vertical portion with the end of the vertical portion of second all is provided with cylindrical sliding part, the spout be with the circular arc spout of cylindrical sliding part adaptation.
Preferably, the main part support is provided with the crossbeam, second coupling assembling include mount pad, first holder and with first holder complex second holder, the mount pad is fixed the adjusting part deviates from one side of first coupling assembling, first holder with the second holder is all located on the mount pad, just first holder with second holder centre gripping slidable is in on the crossbeam.
Preferably, the cross beam is provided with a cylindrical slide rail, the first clamping piece comprises a first C-shaped clamping portion, a first connecting portion, a second connecting portion and a third connecting portion, the first connecting portion and the second connecting portion are respectively connected to two sides of the first C-shaped clamping portion, the third connecting portion is vertically connected with the second connecting portion, the third connecting portion is connected with the mounting seat, the second clamping piece comprises a second C-shaped clamping portion, a fourth connecting portion, a fifth connecting portion and a sixth connecting portion, the fourth connecting portion and the fifth connecting portion are respectively connected to two sides of the second C-shaped clamping portion, the sixth connecting portion is vertically connected with the fifth connecting portion, the sixth connecting portion is connected with the mounting seat, the second connecting portion is connected with the fifth connecting portion, and the first C-shaped clamping portion and the second C-shaped clamping portion are respectively clamped to two sides of the cylindrical slide rail, and the first connecting part and the fourth connecting part are respectively connected with the cross beam.
The splicing structure provided by the invention can adjust the distance between the connecting positions of the curtain wall units and the wall body through the adjusting assembly, so that the plane angle of the curtain wall units can be controlled.
The curved curtain wall provided by the invention is connected with two adjacent curtain wall units through the first connecting assembly of the splicing structure and is arranged on the main body bracket fixed on the wall body through the second connecting assembly of the splicing structure, so that the splicing installation of the curtain wall units is realized. In addition, mosaic structure can adjust the interval of the relative main part support of curtain unit hookup location through adjusting the subassembly, through the interval of the relative main part support of the different hookup location of regulation curtain unit, can control the plane angle of curtain unit, and a plurality of adjacent curtain units are adjusted in proper order, just can the rounding off be the curved surface to form whole being the figurative curtain of curved surface.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to the structures shown in the drawings without creative efforts.

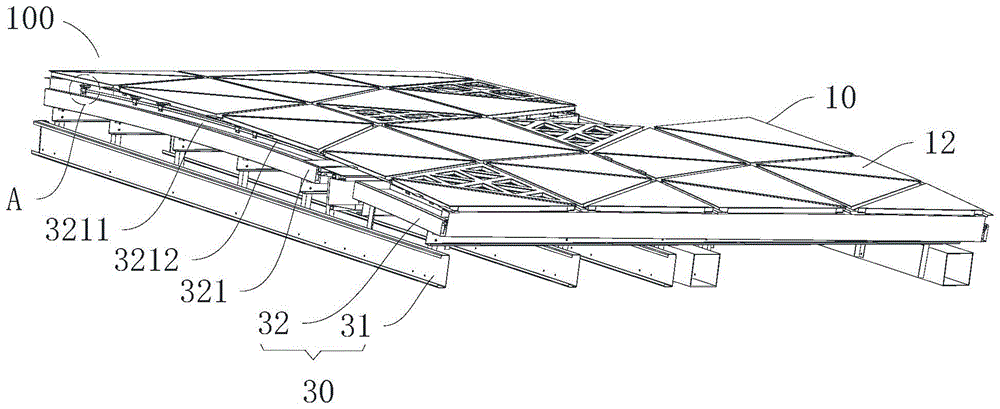

FIG. 1 is a schematic structural view of a curved curtain wall according to an embodiment of the present invention;
FIG. 2 is an enlarged view of A in FIG. 1;
FIG. 3 is a combined schematic view of a curtain wall unit and a splicing structure of a curved curtain wall provided by the embodiment of the invention;
FIG. 4 is an enlarged view of B in FIG. 3;
FIG. 5 is a schematic structural diagram of a splicing structure provided by an embodiment of the present invention;
FIG. 6 is a schematic structural diagram of a splice structure in another direction according to an embodiment of the present invention;
fig. 7 is a schematic structural diagram of the first corner piece and the second corner piece according to the embodiment of the present invention.
The reference numbers illustrate:
100. a curved curtain wall; 10. a curtain wall unit; 11. a frame component; 111. a frame; 112. a chute; 113. a connecting plate; 12. a curtain wall panel; 20. splicing structures; 21. a first connection assembly; 211. mounting a disc; 212. a first corner piece; 2121. a first planar portion; 2122. a first vertical portion; 2123. a cylindrical sliding portion; 213. a second corner brace; 2131. a second planar section; 3132. a second vertical portion; 22. a second connection assembly; 221. a mounting seat; 222. a first clamping member; 2221. a first C-shaped clamping part; 2222. a first connection portion; 2223. a second connecting portion; 2224. a third connecting portion; 223. a second clamping member; 2231. a second C-shaped clamping part; 2232. a fourth connecting portion; 2233. a fifth connecting part; 2234. a sixth connecting portion; 23. an adjustment assembly; 231. a first adjustment member; 232. a second adjustment member; 30. a main body support; 31. a back frame; 32. a curved plate assembly; 321. bending the plate; 3211. a cross beam; 3212. a cylindrical slide rail.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
It should be noted that all the directional indicators (such as upper, lower, left, right, front and rear … …) in the embodiment of the present invention are only used to explain the relative position relationship between the components, the movement situation, etc. in a specific posture (as shown in the drawing), and if the specific posture is changed, the directional indicator is changed accordingly.
It will also be understood that when an element is referred to as being "secured to" or "disposed on" another element, it can be directly on the other element or intervening elements may also be present. When an element is referred to as being "connected" to another element, it can be directly connected to the other element or intervening elements may also be present.
In addition, the descriptions related to "first", "second", etc. in the present invention are for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one such feature. In addition, technical solutions between various embodiments may be combined with each other, but must be realized by a person skilled in the art, and when the technical solutions are contradictory or cannot be realized, such a combination should not be considered to exist, and is not within the protection scope of the present invention.
Referring to fig. 1 to 7, an embodiment of the invention provides a splicing structure 20 for fixing two adjacent curtain wall units 10, including a first connecting assembly 21, a second connecting assembly 22 and an adjusting assembly 23, where the first connecting assembly 21 and the second connecting assembly 22 are respectively disposed at two sides of the adjusting assembly 23, the first connecting assembly 21 is used to connect two adjacent curtain wall units 10, the second connecting assembly 22 is used to be mounted on a main body bracket 30 fixed on a wall, and the adjusting assembly 23 is used to adjust a distance between the first connecting assembly 21 and the second connecting assembly 22, so as to adjust a distance between connection positions of the curtain wall units 10 and the main body bracket 30, and a plane angle of the curtain wall units 10 can be controlled by adjusting distances between different connection positions of the curtain wall units 10 and the main body bracket 30.
The splicing structure 20 of the embodiment of the invention connects two adjacent curtain wall units 10 through the first connecting component 21 and is installed on the main body bracket 30 fixed on the wall body through the second connecting component 22, thereby realizing splicing installation of the curtain wall units 10. In addition, the splicing structure 20 can adjust the distance between the connecting positions of the curtain wall units 10 and the main body support 30 through the adjusting assembly 23, and the distance between the different connecting positions of the curtain wall units 10 and the main body support 30 can be adjusted to control the plane angle of the curtain wall units 10, so that the adjacent curtain wall units 10 can be adjusted in sequence to be in smooth transition to a curved surface, and thus the whole curtain wall with the curved surface modeling is formed.
Referring to fig. 1 to 7, for example, in some embodiments, the splicing structure 20 is suitable for triangular curtain wall units 10, the first connecting assembly 21 includes a mounting plate 211, a first angle piece 212 and a second angle piece 213, the first angle piece 212 and the second angle piece 213 are detachably mounted on one side of the mounting plate 211, the adjusting assembly 23 is mounted on the other side of the mounting plate 211, the first angle piece 212 is used for slidably connecting with one of the triangular curtain wall units 10, the second angle piece 213 is used for slidably connecting with another adjacent triangular curtain wall unit 10, the first angle piece 212 and the second angle piece 213 are respectively pre-mounted on two adjacent triangular curtain wall units 10, and when connecting the triangular curtain wall units 10 and the splicing structure 20, the first angle piece 212 and the second angle piece 213 are slid along the triangular curtain wall units 10 to positions corresponding to the mounting plate 211, fix first angle piece 212 and second angle piece 213 on mounting disc 211 respectively again, first angle piece 212 and second angle piece 213 are fixed after, the position of triangle-shaped curtain wall unit 10 can be fixed, first angle piece 212 can not take place to remove with the position of triangle-shaped curtain wall unit 10 promptly, second angle piece 213 can not take place to remove with the position of triangle-shaped curtain wall unit 10 yet, consequently need not extra part restriction mosaic structure 20's slip, the installation adjustment is more convenient. Moreover, since the first and second angle members 212 and 213 can slide with respect to the triangular curtain wall unit 10, the first and second angle members 212 and 213 can be adjusted to be mounted at an accurate position while errors of mounting points can be offset.
Optionally, the first angle piece 212 is screwed with the mounting plate 211, and the second angle piece 213 is screwed with the mounting plate 211, so that the connection is reliable, and the assembly and disassembly are convenient.
Referring to fig. 5 to 7, for example, in some embodiments, the first corner piece 212 is disposed in an L shape, and includes a first flat portion 2121 and a first vertical portion 2122 perpendicularly connected to the first flat portion 2121, the first flat portion 2121 is mounted on the mounting plate 211, the second corner piece 213 is disposed in an L shape, and includes a second flat portion 2131 and a second vertical portion 3132 perpendicularly connected to the second flat portion 2131, the second flat portion 2131 is mounted on the mounting plate 211, a distal end of the first vertical portion 2122 and a distal end of the second vertical portion 3132 are each provided with a cylindrical sliding portion 2123, and the cylindrical sliding portions 2123 are adapted to the curtain wall unit 10, so that the first corner piece 212 and the second corner piece 213 are reasonably disposed, thereby enabling the splicing structure 20 to slide more smoothly and the adjustment to be more convenient.
Further, the second flat surface portion 2131 and the first flat surface portion 2121 are arranged side by side in a direction perpendicular to the splicing direction, so that the distance between the first corner piece 212 and the second corner piece 213 can be shortened, and the splicing gap between two adjacent curtain wall units 10 can be reduced.
Referring to fig. 5 to 7, for example, in some embodiments, the second connection assembly 22 includes an installation seat 221, a first clamping member 222, and a second clamping member 223 engaged with the first clamping member 222, the installation seat 221 is fixed on a side of the adjustment assembly 23 away from the first connection assembly 21, the first clamping member 222 and the second clamping member 223 are both disposed on the installation seat 221, and the first clamping member 222 and the second clamping member 223 are used for clamping on the cross beam 3211 of the main body bracket 30, and the second connection assembly 22 is simple in structure and convenient to connect.
Further, the first clamping member 222 includes a first C-shaped clamping portion 2221, a first connecting portion 2222, a second connecting portion 2223 and a third connecting portion 2224, the first connecting portion 2222 and the second connecting portion 2223 are respectively connected to both sides of the first C-shaped clamping portion 2221, the third connecting portion 2224 is perpendicularly connected to the second connecting portion 2223, the third connecting portion 2224 is connected to the mounting seat 221, the second clamping member 223 includes a second C-shaped clamping portion 2231, a fourth connecting portion 2232, a fifth connecting portion 2233 and a sixth connecting portion 2234, the fourth connecting portion 2232 and the fifth connecting portion 2233 are respectively connected to both sides of the second C-shaped clamping portion 2231, the sixth connecting portion 2234 is perpendicularly connected to the mounting seat 221, the second connecting portion 2223 is connected to the fifth connecting portion 2233, the first C-shaped clamping portion 2221 and the second C-shaped clamping portion 2231 are respectively clamped to both sides of the cross beam 3211 of the main body bracket 30, and the first connecting portion 2222 is respectively connected to the cross beam 3211 of the fourth connecting portion 22230, the first clamping member 222 and the second clamping member 223 have simple structures and are convenient to assemble and disassemble. The first clamping member 222 and the second clamping member 223 are installed in advance, and when the splicing structure 20 and the main body bracket 30 are connected, the first C-shaped clamping portion 2221 and the second C-shaped clamping portion 2231 are slid to appropriate positions along the cross beam 3211 of the main body bracket 30, and then the first connecting portion 2222 and the fourth connecting portion 2232 are connected to the cross beam 3211 of the main body bracket 30, respectively.
Optionally, the third connecting portion 2224 and the sixth connecting portion are both connected to the mounting base 221 through screws, the second connecting portion 2223 is connected to the fifth connecting portion 2233 through screws, and the first connecting portion 2222 and the fourth connecting portion 2232 are connected to the cross beam 3211 of the main body bracket 30 through screws.
Referring to fig. 5 to 7, for example, in some embodiments, the adjusting assembly 23 includes a first adjusting member 231 connected to the first connecting assembly 21, a second adjusting member 232 connected to the second connecting assembly 22, and a fastening member, the first adjusting member 231 is axially provided with an external thread, the second adjusting member 232 is axially provided with an internal thread, the second adjusting member 232 is radially provided with a limiting hole, the first adjusting member 231 and the second adjusting member 232 are in threaded engagement, and the fastening member is mounted in the limiting hole and abuts against the first adjusting member 231, so that the adjusting manner is simple and reliable. During adjustment, the fastener is loosened or removed, the first adjusting member 231 is rotated to a proper position, the fastener is inserted, and the movement of the first adjusting member 231 is restricted by the fastener.
Referring to fig. 1 to 7, an embodiment of the present invention further provides a curved curtain wall 100, including a plurality of curtain wall units 10, a plurality of splicing structures 20 and a main body bracket 30, where the plurality of curtain wall units 10 are spliced by the plurality of splicing structures 20 to form the curved curtain wall 100, each curtain wall unit 10 includes a frame component 11 and a curtain wall panel 12 installed on the frame component 11, the splicing structure 20 includes a first connecting component 21, a second connecting component 22 and an adjusting component 23, the first connecting component 21 and the second connecting component 22 are respectively disposed on two sides of the adjusting component 23, the first connecting component 21 is connected to two adjacent curtain wall units 10, the second connecting component 22 is connected to the main body bracket 30, the adjusting component 23 is configured to adjust a distance between the first connecting component 21 and the second connecting component 22, so as to adjust a distance between a connecting position of the curtain wall unit 10 and the main body bracket 30, the plane angle of the curtain wall unit 10 can be controlled by adjusting the distance between different connecting positions of the curtain wall unit 10 and the main body bracket 30, and the adjacent curtain wall units 10 are sequentially adjusted to be smoothly transited into a curved surface, and can be installed into different curved surface models according to requirements, particularly to form a large-curvature curved surface.
When the curved curtain wall 100 of the embodiment of the invention is installed, the main body bracket 30 is fixed on the wall body, the splicing structure 20 is installed on the main body bracket 30, the distance between the first connecting assembly 21 and the second connecting assembly 22 of the splicing structure 20 is adjusted in advance through the adjusting assembly 23 of the splicing structure 20, and finally the curtain wall unit 10 is connected with the splicing structure 20.
The curved curtain wall 100 of the embodiment of the invention connects two adjacent curtain wall units 10 through the first connecting component 21 of the splicing structure 20, and is mounted on the main body bracket 30 fixed on the wall body through the second connecting component 22 of the splicing structure 20, thereby realizing the splicing mounting of the curtain wall units 10. In addition, the splicing structure 20 can adjust the distance between the connecting positions of the curtain wall units 10 and the main body support 30 through the adjusting assembly 23, and the distance between the different connecting positions of the curtain wall units 10 and the main body support 30 can be adjusted to control the plane angle of the curtain wall units 10, so that the adjacent curtain wall units 10 can be adjusted in sequence to be in smooth transition to a curved surface, and thus the whole curtain wall with the curved surface modeling is formed.
Referring to fig. 1-7, for example, in some embodiments, the curtain wall panel 12 is a triangular curtain wall panel 12, the frame members 11 are adapted to the triangular curtain wall panel 12, each frame member 11 includes three frames 111, the three frames 111 are disposed end to end, at least one frame 111 is provided with a sliding slot 112, the first connection member 21 includes a mounting plate 211, a first angle member 212 and a second angle member 213, the first angle member 212 and the second angle member 213 are detachably mounted on one side of the mounting plate 211, the adjustment member 23 is mounted on the other side of the mounting plate 211, the first angle member 212 is slidably connected to the sliding slot 112 of one curtain wall unit 10, and the second angle member 213 is slidably connected to the sliding slot 112 of another adjacent curtain wall unit 10.
Optionally, the first angle piece 212 is screwed with the mounting plate 211, and the second angle piece 213 is screwed with the mounting plate 211, so that the connection is reliable, and the assembly and disassembly are convenient.
It can be understood that the curtain wall unit 10 at the periphery of the curved curtain wall 100 only needs to be provided with the sliding groove 112 on one frame 111 close to the inner side, and certainly, for convenience of processing, the sliding grooves 112 may be provided on both frames 111, and the curtain wall unit 10 at the inner periphery of the curved curtain wall 100 is provided with the sliding grooves 112 on at least two frames 111, so that the splicing of two adjacent curtain wall units 10 can be realized.
Referring to fig. 3 and 4, for example, in some embodiments, the frame 111 units further include a connecting plate 113, the sliding slot 112 includes at least one open end, the connecting plate 113 is disposed at a connecting position between two adjacent frames 111, the connecting plate 113 is detachably connected to the frame assembly 11 and covers the end of the sliding slot 112, so as to facilitate assembling the splicing structure 20, in an initial state, the connecting plate 113 is separated from the frame assembly 11, the first corner member 212 of the splicing structure 20 is assembled on the frame 111 from the open end of the sliding slot 112 of one curtain wall unit 10, the second corner member 213 of the splicing structure 20 is assembled on the frame 111 from the open end of the sliding slot 112 of another curtain wall unit 10, and finally the connecting plate 113 is installed on the frame assembly 11.
It is understood that the chute 112 may be open at only one end, or may be open at both ends.
Optionally, the connecting plate 113 is screwed to the frame 111, so that the assembly and disassembly are convenient.
Referring to fig. 5 to 7, for example, in some embodiments, the first corner piece 212 is disposed in an L shape, and includes a first flat portion 2121 and a first vertical portion 2122 perpendicularly connected to the first flat portion 2121, the first flat portion 2121 is mounted on the mounting plate 211, the second corner piece 213 is disposed in an L shape, and includes a second flat portion 2131 and a second vertical portion 3132 perpendicularly connected to the second flat portion 2131, the second flat portion 2131 is mounted on the mounting plate 211, a cylindrical sliding portion 2123 is disposed at each of a distal end of the first vertical portion 2122 and a distal end of the second vertical portion 3132, the sliding slot 112 is an arc-shaped sliding slot 112 adapted to the cylindrical sliding portion 2123, and the sliding structure of the first corner piece 212 and the second corner piece 213 and the sliding slot 112 of the bezel assembly 11 are reasonably disposed, so that the splicing structure 20 slides more smoothly and is more conveniently adjusted. Moreover, the first corner piece 212 and the second corner piece 213 are substantially identical in structure, and the installation position of the first corner piece 212 and the installation position of the second corner piece 213 are located on the same surface side of the installation plate 211, so that the adjustment of two adjacent curtain wall units 10 by the same splicing structure 20 is substantially identical, and the transition of two adjacent curtain wall units 10 is smoother.
Optionally, the first flat portion 2121 is screwed to the mounting plate 211, and the second flat portion 2131 is screwed to the mounting plate 211, so that the connection manner is simple and reliable.
Further, the second flat surface portion 2131 and the first flat surface portion 2121 are arranged side by side in a direction perpendicular to the splicing direction, so that the distance between the first corner piece 212 and the second corner piece 213 can be shortened, and the splicing gap between two adjacent curtain wall units 10 can be reduced.
Referring to fig. 5 to 7, for example, in some embodiments, the main body bracket 30 is provided with a cross beam 3211, the second connection assembly 22 includes a mounting seat 221, a first clamping member 222, and a second clamping member 223 engaged with the first clamping member 222, the mounting seat 221 is fixed on a side of the adjusting assembly 23 away from the first connection assembly 21, the first clamping member 222 and the second clamping member 223 are both disposed on the mounting seat 221, and the first clamping member 222 and the second clamping member 223 slidably clamp the cross beam 3211, so that the second connection assembly 22 has a simple structure and is convenient to connect.
Further, the cross beam 3211 is provided with a cylindrical sliding rail 3212, the first clamping member 222 includes a first C-shaped clamping portion 2221, a first connecting portion 2222, a second connecting portion 2223 and a third connecting portion 2224, the first connecting portion 2222 and the second connecting portion 2223 are respectively connected to two sides of the first C-shaped clamping portion 2221, the third connecting portion 2224 is vertically connected to the second connecting portion 2223, the third connecting portion 2224 is connected to the mounting base 221, the second clamping member 223 includes a second C-shaped clamping portion 2231, a fourth connecting portion 2232, a fifth connecting portion 2233 and a sixth connecting portion 2234, the fourth connecting portion 2232 and the fifth connecting portion 2233 are respectively connected to two sides of the second C-shaped clamping portion 2231, the sixth connecting portion 2234 is vertically connected to the fifth connecting portion 2233, the sixth connecting portion 2234 is connected to the mounting base 221, the second connecting portion 2223 is connected to the fifth connecting portion 2233, the first C-shaped clamping portion 2221 and the second C-shaped clamping portion 2231 are respectively clamped to two sides of the cylindrical sliding rail 3212, and first connecting portion 2222 and fourth connecting portion 2232 are connected with cylindrical slide rail 3212 respectively, and first holder 222 and second holder 223 simple structure, the loading and unloading of being convenient for. The first clamping member 222 and the second clamping member 223 are installed in advance, and when the splicing structure 20 and the main body bracket 30 are connected, the first C-shaped clamping portion 2221 and the second C-shaped clamping portion 2231 slide to appropriate positions along the cylindrical slide rail 3212, and then the first connecting portion 2222 and the fourth connecting portion 2232 are connected to the cross beam 3211 respectively.
Optionally, the third connecting portion 2224 and the sixth connecting portion are both connected to the mounting base 221 through screws, the second connecting portion 2223 is connected to the fifth connecting portion 2233 through screws, and the first connecting portion 2222 and the fourth connecting portion 2232 are connected to the cross beam 3211 of the main body bracket 30 through screws.
It is understood that the cross members 3211 have a length, and a plurality of splice structures 20 may be secured to a single cross member 3211.
Referring to fig. 5 to 7, for example, in some embodiments, the adjusting assembly 23 includes a first adjusting member 231 connected to the first connecting assembly 21, a second adjusting member 232 connected to the second connecting assembly 22, and a fastening member (not shown), the first adjusting member 231 is axially provided with an external thread, the second adjusting member 232 is provided with an internal thread, the second adjusting member 232 is radially provided with a limiting hole (not shown), the first adjusting member 231 is in threaded engagement with the second adjusting member 232, and the fastening member is mounted in the limiting hole and abuts against the first adjusting member 231, so that the adjusting manner is simple and reliable. During adjustment, the fastener is loosened or removed, the first adjusting member 231 is rotated to a proper position, the fastener is inserted, and the movement of the first adjusting member 231 is restricted by the fastener.
Referring to fig. 1-2 for illustrative purposes, in some embodiments, the main body frame 30 includes a back frame 31 fixed on the wall and a curved plate assembly 32 fixed on the back frame 31, the curvature of the curved plate assembly 32 approximately matches the curvature of the curved curtain wall 100, the curved plate assembly 32 includes a plurality of curved plates 321, the side of the curved plate 321 facing the curtain wall panel 12 is provided with the above-mentioned cross beams 3211, the curvature of the cross beams 3211 approximately matches the curvature of the curved curtain wall 100, by the design, no matter the splicing structure 20 is positioned at the convex position or the concave position of the curved curtain wall 100, the adjusting component 23 of the splicing structure 20 only needs to adjust the relative positions of the second adjusting piece 232 and the first adjusting piece 231 within a small range, so that the adjustment is more convenient, and the splicing structure 20 can use the splicing structure 20 with the same small adjusting range, which is beneficial to saving the cost. If do not set up crooked board subassembly 32, when the crooked radian of curved surface curtain wall 100 is great, the mosaic structure 20 that is located the protruding position of curved surface curtain wall 100 need have great accommodation, and the mosaic structure 20 that is located the sunken position of curved surface curtain wall 100 only needs to have less accommodation, and when both differed greatly, either need process the mosaic structure 20 of two kinds of accommodation, or process into whole mosaic structure 20 and have great accommodation, is unfavorable for practicing thrift the cost.
The above description is only a preferred embodiment of the present invention, and is not intended to limit the scope of the present invention, and all modifications and equivalents of the present invention, which are made by the contents of the present specification and the accompanying drawings, or directly/indirectly applied to other related technical fields, are included in the scope of the present invention.
