Prevent grass cloth production with high-efficient mixing arrangement of material
Technical Field
The invention relates to the technical field of grass cloth prevention production equipment, in particular to a high-efficiency material mixing device for grass cloth prevention production.
Background
The grass-proof cloth is also called gardening ground cloth, ground protection film and the like, is a cloth-shaped material woven by polypropylene or polyethylene materials, has the characteristics of strong tension, friction resistance, ageing resistance, ultraviolet resistance, erosion resistance, no toxicity, no odor and the like, can effectively inhibit the growth of weeds and reduce the harm of diseases and pests. As a green prevention and control measure for the diseases, pests and weeds of the novel vegetables, the application area of the grass prevention cloth in a facility vegetable field is increasingly large, the grass prevention cloth is deeply welcomed by vast vegetable producers, the environment-friendly material is used as a main raw material, the high-molecular functional material is added to be made into flat filaments, the novel grass prevention cloth material is woven in a fine and dense mode, and in the production process, the material mixing device is indispensable.
Present material mixing arrangement is in the course of the work, and its inner wall can remain there is more material, need clear up it in the later stage, but present material mixing arrangement is difficult to clear up its inner wall, and consumes time and manpower, secondly, in the course of the work, is difficult to carry out the operation of mixing while feeding to lead to holistic work efficiency slower.
Therefore, the high-efficiency material mixing device for the grass cloth production is provided.
Disclosure of Invention
The invention aims to provide a high-efficiency material mixing device for grass cloth production, which solves the problems that in the background art, in the working process of the conventional material mixing device, more materials are remained on the inner wall of the conventional material mixing device, and the conventional material mixing device needs to be cleaned in the later period, but the conventional material mixing device is difficult to clean the inner wall of the conventional material mixing device, consumes time and manpower, and is difficult to perform the operation of mixing and feeding materials simultaneously in the working process, so that the whole working efficiency is low.
In order to achieve the purpose, the invention provides the following technical scheme: a high-efficiency material mixing device for grass cloth production comprises a main box body, a stirring mechanism arranged in the main box body and a discharge pipe arranged on one side of the main box body, wherein a feeding mechanism is arranged at the upper end of the main box body, a rotating mechanism penetrates through the outer surface of the main box body, and an inner core mechanism is arranged in the main box body;
the feeding mechanism comprises a feeding box arranged at the upper end of the main box body, a temporary storage assembly arranged in the feeding box and a movable hinge arranged on the inner wall of the feeding box, the temporary storage assembly is connected with the inner wall of the feeding box through the movable hinge, the lower end of the feeding box is provided with a docking mechanism, and the feeding box is connected with the main box body through the docking mechanism.
Further, docking mechanism connects the pole including setting up the owner below the feeding case and connects, sets up the riser at owner and connects the pole both ends, cup joints the magnetic sleeve on the owner connects the pole surface to and set up the pressure spring in magnetic sleeve one side, and the one end of pressing the spring is connected with the riser, and the magnetic sleeve is provided with two sets ofly, and two sets of magnetic sleeve all is connected with the riser through pressing the spring, all is provided with the locating pin on two sets of magnetic sleeve outside of tubes surface.
Further, be provided with the perforation on the surface of riser, the inside of main extension rod is provided with well through-hole, and the inside of well through-hole is provided with the magnetic pole, and the magnetic pole is provided with two sets ofly, and two sets of magnetic poles are connected with the corresponding and magnetism of magnetic sleeve, and the upper surface of the main tank body is provided with the butt joint notch, and the feeding case is connected with the butt joint notch through the riser.
Further, the main box body comprises a face slot hole formed in the upper surface of the main box body, a butt joint round hole formed in the inner wall of the butt joint slot opening and a return spring arranged inside the butt joint round hole, an iron plate is arranged at one end of the return spring, a main connecting rod is connected with the butt joint round hole in a clamping mode through a magnetic rod, a square slot hole is further formed in one side of the main box body, and the main box body is connected with the rotating mechanism through the square slot hole.
Further, the subassembly of keeping in sets up the lug in board B one side of keeping in including setting up at the inside board A and the board B of keeping in of feeding case to and set up the recess in board A one side of keeping in, one side of lug is provided with elastic connection spare, keeps in and all is provided with the connecting groove board on board A and the surface of the board B of keeping in, keeps in board B and passes through the lug and be connected with the recess block, keeps in board A and keeps in board B and all through activity hinge and feeding incasement wall swing joint.
Further, the kernel mechanism is including setting up the riser in the internal portion of main tank, setting up the guide rail groove in riser one side to and set up the one-level board in guide rail groove one side, one side of one-level board is provided with the standing groove, the inside of standing groove is provided with the secondary plate, the one end of secondary plate is provided with electric putter, the secondary plate is connected with the standing groove inner wall through electric putter, the riser is provided with two sets ofly, two sets of risers all is connected with the main tank maxilla, the one-level board is provided with two sets ofly, two sets of one-level board opposition sets up.
Further, the inside in guide rail groove is provided with the lifter, the one end and the one-level board of lifter are connected, the one-level board passes through lifter and guide rail groove swing joint, the upper surface of one-level board is provided with the gangbar, the gangbar is provided with two sets ofly, two sets of gangbar is connected with board A and the board B of keeping in respectively, still be provided with the rubber slab on the surface of riser, the plate hole has been seted up on the surface of rubber slab, the plate hole sets up in same vertical plane with the face slot hole, the inside of the main tank body still is provided with the baffle, be provided with the limit hole on the surface of baffle, the baffle sets up the below at the riser.
Further, the stirring mechanism comprises a motor arranged at the upper end of the main box body, a first-stage rotating cylinder arranged at the lower end of the motor, a heating rod arranged at the lower end of the first-stage rotating cylinder, and a second-stage rotating cylinder arranged at the lower end of the heating rod, wherein the lower end of the second-stage rotating cylinder is provided with rotating teeth, and the second-stage rotating cylinder and the side hole are arranged in the same vertical plane.
Further, slewing mechanism is including setting up at inside mounting panel A and the mounting panel B of main tank, setting up the mounting hole on mounting panel A and the mounting panel B surface to and set up the rotatory section of thick bamboo between mounting panel A and mounting panel B, mounting panel A and mounting panel B set up the below at the baffle, and mounting panel A and mounting panel B's one end is provided with external block.
Furthermore, the upper end of the outer connecting block is provided with a plug board, a locking bolt penetrates through the outer surface of the plug board and is connected with the square groove hole, one end of the locking bolt is connected with the outer surface of the main box body, the upper surface of the rotary cylinder is provided with a tooth hole, the outer surface of the rotary cylinder is provided with a mounting ring, the outer surface of the mounting ring is provided with blades, and the rotating teeth are meshed with the tooth hole and connected.
Compared with the prior art, the invention has the beneficial effects that:
1. the invention provides a high-efficiency mixing device for materials for grass cloth production, a main connecting rod is arranged below a feeding box, vertical plates are arranged at two ends of the main connecting rod, magnetic sleeves are arranged on the outer surfaces of the main connecting rod, a pressing spring is arranged on one side of each magnetic sleeve, one end of the pressing spring is connected with the vertical plates, two groups of magnetic sleeves are arranged, the two groups of magnetic sleeves are connected with the vertical plates through the pressing spring, positioning pins are arranged on the outer surfaces of the two groups of magnetic sleeves, through holes are arranged on the outer surfaces of the vertical plates, a middle through hole is arranged inside the main connecting rod, magnetic rods are arranged inside the middle through hole, the two groups of magnetic rods are arranged, the two groups of magnetic rods correspond to the magnetic sleeves and are magnetically connected, a butt-joint notch is arranged on the upper surface of the main box body, the feeding box is connected with the butt-joint notch through the vertical plates, a slotted hole is arranged on the upper surface of the main box body, and a butt-joint round hole is arranged on the inner wall of the butt-joint notch, the inside of butt joint round hole is provided with reset spring, reset spring's one end is provided with the iron sheet board, the main pole that connects passes through the magnetic pole and is connected with butt joint round hole block, through removing the magnetic sleeve, it removes to both ends to drive the magnetic pole, inside the one end of magnetic pole enters into the butt joint round hole, and the one end of magnetic pole can extrude the iron sheet board, until complete fixed, realize the purpose that the feeding case is connected with the main tank body, on the contrary, also can shift out the magnetic pole from the butt joint round hole through removing the magnetic sleeve, realize the separation of the two, whole installation dismantlement process is comparatively simple, the clearance in the later stage of being convenient for, the quality of clearance and the efficiency in later stage are improved.
2. The invention provides a high-efficiency mixing device for materials for grass cloth production, wherein a temporary storage plate A and a temporary storage plate B are arranged inside a feeding box, one side of the temporary storage plate B is provided with a lug, one side of the temporary storage plate A is provided with a groove, one side of the lug is provided with an elastic connecting piece, the outer surfaces of the temporary storage plate A and the temporary storage plate B are respectively provided with a connecting groove plate, the temporary storage plate B is clamped and connected with the groove through the lug, the temporary storage plate A and the temporary storage plate B are both movably connected with the inner wall of the feeding box through movable hinges, a vertical plate is arranged inside a main box body, one side of the vertical plate is provided with a guide rail groove, one side of the guide rail groove is provided with a first-stage plate, one side of the first-stage plate is provided with a placing groove, a second-stage plate is arranged inside the placing groove, one end of the second-stage plate is provided with an electric push rod, the second-stage plate is connected with the inner wall of the placing groove through the electric push rod, the vertical plates are provided with two groups, and the two groups of vertical plates are both connected with the upper jaw of the main box body, the first-stage plate is provided with two groups, the two groups of first-stage plates are oppositely arranged, the lifting rods are arranged inside the guide rail grooves, one ends of the lifting rods are connected with the first-stage plates, the first-stage plates are movably connected with the guide rail grooves through the lifting rods, the linkage rods are arranged on the upper surface of the first-stage plates and are provided with two groups, the two groups of linkage rods are respectively connected with the temporary storage plate A and the temporary storage plate B, the outer surface of each vertical plate is also provided with a rubber plate, plate holes are formed in the outer surface of the rubber plate, the plate holes and the surface groove holes are arranged in the same vertical plane, a partition plate is arranged inside the main box body, side holes are formed in the outer surface of the partition plate, the partition plate is arranged below the vertical plate, materials are mixed and heated by the first-stage rotating cylinder, the heating rods and the second-stage rotating cylinder, originally solid raw materials are large in volume, the lower bottom surface of the first-stage plates is contacted with the tops of the solid materials, when heating to the certain degree, the material becomes the slurry gradually, and the volume diminishes, and the first grade board then can down move to make temporary storage board A and temporary storage board B open, thereby realize continuing the feeding, and the mixing process can not stop, and when the material that gets into reached a certain amount, the solid-like raw materials of adding can raise the first grade board again, thereby make temporary storage board A and temporary storage board B close, further realize the purpose of feeding while mixing, improve work efficiency.
3. The invention provides a high-efficiency mixing device for materials for grass cloth production, wherein a motor is arranged at the upper end of a main box body, a primary rotating cylinder is arranged at the lower end of the motor, a heating rod is arranged at the lower end of the primary rotating cylinder, a secondary rotating cylinder is arranged at the lower end of the heating rod, rotating teeth are arranged at the lower end of the secondary rotating cylinder, the secondary rotating cylinder and side holes are arranged in the same vertical plane, a mounting plate A and a mounting plate B are arranged inside the main box body, mounting holes are formed in the outer surfaces of the mounting plate A and the mounting plate B, a rotating cylinder is arranged between the mounting plate A and the mounting plate B, the mounting plate A and the mounting plate B are arranged below a partition plate, an outer connecting block is arranged at one end of the mounting plate A and the mounting plate B, an inserting plate is arranged at the upper end of the outer connecting block, a locking bolt penetrates through the outer surface of the inserting plate and is connected with a square groove hole, one end of the locking bolt is connected with the outer surface of the main box body, the upper surface of a rotatory section of thick bamboo is provided with the pick hole, is provided with the collar on the surface of a rotatory section of thick bamboo, is provided with the blade on the surface of collar, rotates the tooth and is connected with the pick hole meshing, and the material is when the baffle upper end is heated by the heating rod, along with rotating the continuous rotation of tooth, can drive a rotatory section of thick bamboo rotatory to improve the air current velocity of flow of baffle below, thereby indirectness makes the material heat homogenization of heating above the baffle, improves heating efficiency and quality.
Drawings

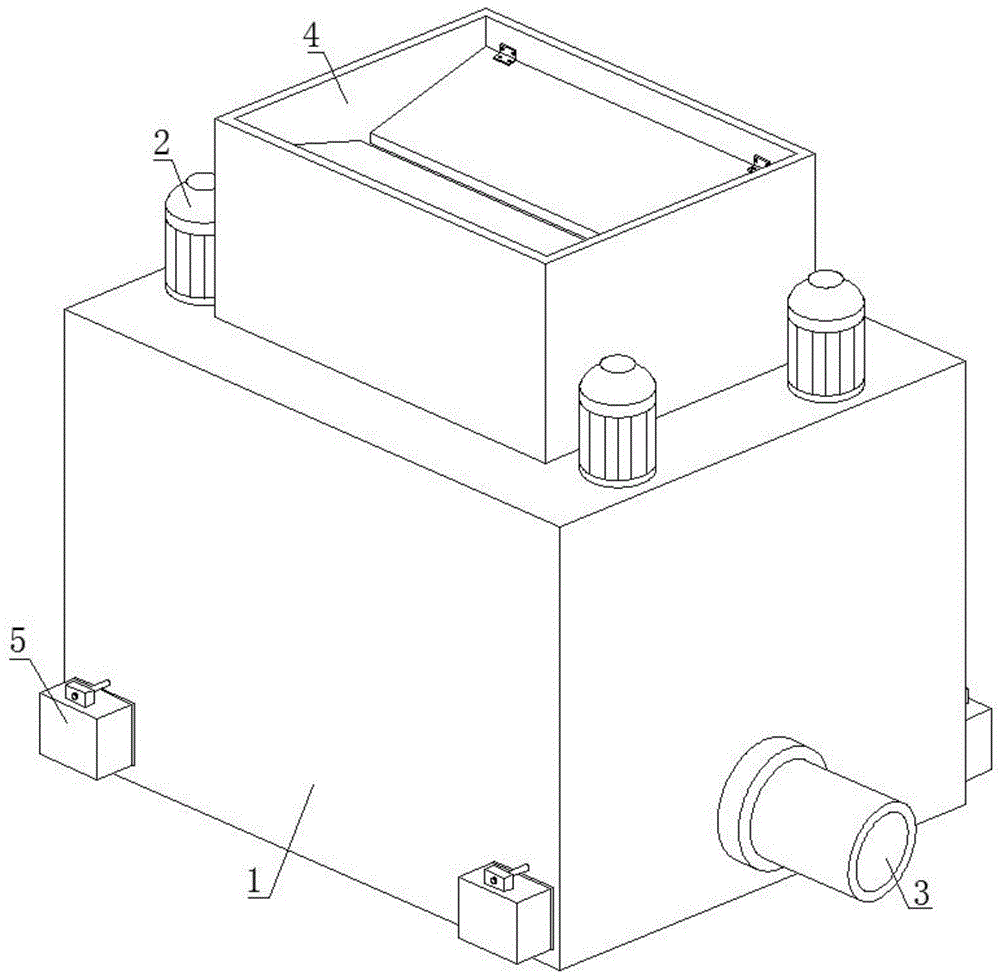

FIG. 1 is a schematic view of the overall structure of a high-efficiency material mixing device for grass cloth production of the present invention;
FIG. 2 is a schematic structural diagram of a main box body of the efficient material mixing device for grass cloth production of the present invention;
FIG. 3 is a schematic structural view of a feeding mechanism of the high-efficiency material mixing device for grass cloth production of the present invention;
FIG. 4 is a schematic structural view of a butt-joint mechanism of the high-efficiency material mixing device for grass cloth production of the present invention;
FIG. 5 is a schematic structural view of a rotating mechanism of the efficient material mixing device for grass cloth production of the present invention;
FIG. 6 is a schematic view of the internal structure of the main box body of the high-efficiency material mixing device for grass cloth production of the present invention;
FIG. 7 is a schematic structural view of a stirring mechanism of the high-efficiency material mixing device for grass cloth production of the present invention;
FIG. 8 is a schematic view of a partial structure of a temporary storage assembly of the high-efficiency material mixing device for grass cloth production according to the present invention.
In the figure: 1. a main box body; 11. a notch is butted; 12. a face slot; 13. butting circular holes; 14. a return spring; 15. an iron plate; 16. a square slot hole; 2. a stirring mechanism; 21. a motor; 22. a primary rotating cylinder; 23. a heating rod; 24. a secondary rotary drum; 25. rotating the teeth; 3. a discharge pipe; 4. a feeding mechanism; 41. a feeding box; 42. a temporary storage component; 421. a temporary storage board A; 422. a temporary storage board B; 423. a bump; 424. an elastic connecting member; 425. a groove; 426. connecting the groove plates; 43. a living hinge; 44. a docking mechanism; 441. a main connecting rod; 442. a vertical plate; 443. a magnetic sleeve; 444. positioning pins; 445. a pressing spring; 446. perforating; 447. a middle through hole; 448. a magnetic rod; 5. a rotating mechanism; 51. mounting a plate A; 52. mounting a plate B; 53. mounting holes; 54. a rotary drum; 541. a perforation; 542. a mounting ring; 543. a blade; 55. an external connection block; 56. inserting plates; 57. a locking bolt; 6. a kernel mechanism; 61. a vertical plate; 62. a guide rail groove; 63. a primary plate; 64. a placement groove; 65. a secondary plate; 651. an electric push rod; 66. a lifting rod; 67. a linkage rod; 68. a rubber plate; 681. plate holes; 69. a partition plate; 691. and (4) side holes.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In order to solve the technical problem of how to simplify the whole mounting and dismounting process, as shown in fig. 1 to 4, the following preferred technical solutions are provided:
the utility model provides a prevent high-efficient mixing arrangement of grass cloth production material, including the main tank body 1, the rabbling mechanism 2 of setting in the main tank body 1 inside, and set up the discharge pipe 3 in main tank body 1 one side, the upper end of the main tank body 1 is provided with feed mechanism 4, run through on the surface of the main tank body 1 and be provided with slewing mechanism 5, the inside of the main tank body 1 is provided with kernel mechanism 6, feed mechanism 4 is including setting up the feeding case 41 in the main tank body 1 upper end, set up the subassembly 42 of keeping in the feeding case 41 inside, and set up the activity hinge 43 on the feeding case 41 inner wall, the subassembly 42 of keeping in is connected with the feeding case 41 inner wall through activity hinge 43, the lower extreme of feeding case 41 is provided with docking mechanism 44, feeding case 41 is connected with the main tank body 1 through docking mechanism 44.
The docking mechanism 44 includes a main connection rod 441 disposed below the feeding box 41, vertical plates 442 disposed at two ends of the main connection rod 441, magnetic sleeves 443 sleeved on the outer surface of the main connection rod 441, and pressing springs 445 disposed on one side of the magnetic sleeves 443, one ends of the pressing springs 445 are connected to the vertical plates 442, two sets of the magnetic sleeves 443 are disposed, the two sets of the magnetic sleeves 443 are connected to the vertical plates 442 through the pressing springs 445, and positioning pins 444 are disposed on the outer surfaces of the two sets of the magnetic sleeves 443.
The outer surface of the vertical plate 442 is provided with a through hole 446, the main connecting rod 441 is internally provided with a middle through hole 447, the middle through hole 447 is internally provided with two groups of magnetic rods 448, the two groups of magnetic rods 448 are arranged in the middle through hole 447, the two groups of magnetic rods 448 correspond to and are magnetically connected with the magnetic sleeve 443, the upper surface of the main box body 1 is provided with a butt joint notch 11, and the feeding box 41 is connected with the butt joint notch 11 through the vertical plate 442.
The main box body 1 comprises a face slot 12 arranged on the upper surface of the main box body 1, a butt joint round hole 13 arranged on the inner wall of the butt joint slot 11, and a return spring 14 arranged inside the butt joint round hole 13, wherein one end of the return spring 14 is provided with an iron plate 15, a main connecting rod 441 is clamped and connected with the butt joint round hole 13 through a magnetic rod 448, one side of the main box body 1 is also provided with a square slot 16, and the main box body 1 is connected with the rotating mechanism 5 through the square slot 16.
Specifically, through removing magnetic sleeve 443, drive magnetic pole 448 and remove to both ends, it is inside to enter into butt joint round hole 13 until the one end of magnetic pole 448, and iron board 15 can be extruded to the one end of magnetic pole 448, until completely fixed, realize the purpose that feeding case 41 is connected with the main tank body 1, on the contrary, also can shift out magnetic pole 448 from butt joint round hole 13 through removing magnetic sleeve 443, realize the separation of the two, whole installation dismantlement process is comparatively simple, the clearance in the later stage of being convenient for, improve the clearance quality and the efficiency in later stage.
In order to solve the technical problem of how to realize the mixing while feeding, as shown in fig. 6 and 8, the following preferred technical solutions are provided:
the temporary storage assembly 42 comprises a temporary storage plate A421 and a temporary storage plate B422 which are arranged inside the feeding box 41, a convex block 423 arranged on one side of the temporary storage plate B422, a concave groove 425 arranged on one side of the temporary storage plate A421, one side of the convex block 423 is provided with an elastic connecting piece 424, the outer surfaces of the temporary storage plate A421 and the temporary storage plate B422 are respectively provided with a connecting groove plate 426, the temporary storage plate B422 is clamped and connected with the concave groove 425 through the convex block 423, and the temporary storage plate A421 and the temporary storage plate B422 are both movably connected with the inner wall of the feeding box 41 through a movable hinge 43.
The core mechanism 6 comprises a vertical plate 61 arranged inside the main box body 1, a guide rail groove 62 arranged on one side of the vertical plate 61, and a first-level plate 63 arranged on one side of the guide rail groove 62, a placing groove 64 is arranged on one side of the first-level plate 63, a second-level plate 65 is arranged inside the placing groove 64, an electric push rod 651 is arranged at one end of the second-level plate 65, the second-level plate 65 is connected with the inner wall of the placing groove 64 through the electric push rod 651, the vertical plate 61 is provided with two groups, the two groups of vertical plates 61 are connected with the upper jaw of the main box body 1, the first-level plate 63 is provided with two groups, and the two groups of first-level plates 63 are oppositely arranged.
The inside of guide rail groove 62 is provided with lifter 66, the one end of lifter 66 is connected with one-level board 63, one-level board 63 is through lifter 66 and guide rail groove 62 swing joint, the upper surface of one-level board 63 is provided with gangbar 67, gangbar 67 is provided with two sets ofly, two sets ofly gangbar 67 is connected with board A421 and the board B422 of keeping in respectively, still be provided with rubber slab 68 on the surface of riser 61, slab hole 681 has been seted up on the surface of rubber slab 68, slab hole 681 sets up in same vertical plane with face slot 12, the inside of main tank 1 still is provided with baffle 69, be provided with limit hole 691 on the surface of baffle 69, baffle 69 sets up the below at riser 61.
Concretely, the material is being rotated a section of thick bamboo 22 by the one-level, when a section of thick bamboo 24 hybrid heating is rotated to heating rod 23 and second grade, solid-like raw materials is originally in the course of working, and is bulky, the lower bottom surface of one-level board 63 contacts with solid-like material top, when heating to the certain degree, the material becomes the slurry gradually, the volume diminishes, one-level board 63 then can down move, thereby make board A421 and the board B422 of keeping in open, thereby realize continuing the feeding, and the mixing process can not stop, when the material that gets into reaches a certain amount, a solid-like raw materials of joining can raise one-level board 63 again, thereby make board A421 and the board B422 of keeping in close, further realize the purpose of mixing on one side of feeding, and improve work efficiency.
In order to solve the technical problem of how to improve the heating efficiency and quality, as shown in fig. 5 and 7, the following preferred technical solutions are provided:
the stirring mechanism 2 comprises a motor 21 arranged at the upper end of the main box body 1, a first-stage rotating cylinder 22 arranged at the lower end of the motor 21, a heating rod 23 arranged at the lower end of the first-stage rotating cylinder 22, and a second-stage rotating cylinder 24 arranged at the lower end of the heating rod 23, wherein the lower end of the second-stage rotating cylinder 24 is provided with a rotating tooth 25, and the second-stage rotating cylinder 24 and the side hole 691 are arranged in the same vertical plane.
The rotating mechanism 5 comprises a mounting plate A51 and a mounting plate B52 which are arranged inside the main box body 1, mounting holes 53 which are arranged on the outer surfaces of the mounting plate A51 and the mounting plate B52, and a rotating cylinder 54 which is arranged between the mounting plate A51 and the mounting plate B52, wherein the mounting plate A51 and the mounting plate B52 are arranged below the partition plate 69, an external connecting block 55 is arranged at one end of each of the mounting plate A51 and the mounting plate B52, an inserting plate 56 is arranged at the upper end of the external connecting block 55, a locking bolt 57 penetrates through the outer surface of the inserting plate 56, the external connecting block 55 is connected with the square groove hole 16, one end of the locking bolt 57 is connected with the outer surface of the main box body 1, a toothed hole 541 is arranged on the upper surface of the rotating cylinder 54, a mounting ring 542 is arranged on the outer surface of the rotating cylinder 54, a blade 543 is arranged on the outer surface of the mounting ring 542, and the rotating teeth 25 are connected with the toothed hole 541 in a meshing manner.
Specifically, when the material is heated by the heating rod 23 at the upper end of the partition 69, the rotating cylinder 54 is driven to rotate along with the continuous rotation of the rotating teeth 25, so that the airflow flowing speed below the partition 69 is increased, the heat of the heated material above the partition 69 is homogenized indirectly, and the heating efficiency and the heating quality are improved.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be able to cover the technical solutions and the inventive concepts of the present invention within the technical scope of the present invention.

Claims (10)

1.一种防草布生产用物料高效混合装置，包括主箱体(1)，设置在主箱体(1)内部的搅动机构(2)，以及设置在主箱体(1)一侧的排出管(3)，其特征在于：主箱体(1)的上端设置有进料机构(4)，主箱体(1)的外表面上贯穿设置有转动机构(5)，主箱体(1)的内部设置有内核机构(6)；1. A high-efficiency mixing device for materials used in the production of grass-proof cloth, comprising a main box (1), a stirring mechanism (2) arranged inside the main box (1), and a The discharge pipe (3) is characterized in that: the upper end of the main box body (1) is provided with a feeding mechanism (4), the outer surface of the main box body (1) is provided with a rotating mechanism (5), and the main box body (1) 1) is internally provided with a core mechanism (6); 进料机构(4)包括设置在主箱体(1)上端的进料箱(41)，设置在进料箱(41)内部的暂存组件(42)，以及设置在进料箱(41)内壁上的活动铰链(43)，暂存组件(42)通过活动铰链(43)与进料箱(41)内壁相连接，进料箱(41)的下端设置有对接机构(44)，进料箱(41)通过对接机构(44)与主箱体(1)相连接。The feeding mechanism (4) includes a feeding box (41) arranged at the upper end of the main box (1), a temporary storage component (42) arranged inside the feeding box (41), and a feeding box (41) A living hinge (43) on the inner wall, the temporary storage assembly (42) is connected with the inner wall of the feeding box (41) through the living hinge (43), and the lower end of the feeding box (41) is provided with a docking mechanism (44), feeding The box (41) is connected with the main box (1) through a docking mechanism (44). 2.如权利要求1所述的一种防草布生产用物料高效混合装置，其特征在于：对接机构(44)包括设置在进料箱(41)下方的主接杆(441)，设置在主接杆(441)两端的立板(442)，套接在主接杆(441)外表面上的磁套管(443)，以及设置在磁套管(443)一侧的按压弹簧(445)，按压弹簧(445)的一端与立板(442)相连接，磁套管(443)设置有两组，两组的磁套管(443)均通过按压弹簧(445)与立板(442)相连接，两组的磁套管(443)外表面上均设置有定位销(444)。2. The high-efficiency mixing device for materials used in the production of grass-proof cloth according to claim 1, characterized in that: the docking mechanism (44) comprises a main connecting rod (441) arranged under the feeding box (41), and is arranged in the The vertical plates (442) at both ends of the main post (441), the magnetic sleeve (443) sleeved on the outer surface of the main post (441), and the pressing spring (445) arranged on one side of the magnetic sleeve (443) ), one end of the pressing spring (445) is connected with the vertical plate (442), the magnetic sleeve (443) is provided with two groups, and the two magnetic sleeves (443) are connected to the vertical plate (442) by the pressing spring (445). ) are connected, and positioning pins (444) are provided on the outer surfaces of the two sets of magnetic sleeves (443). 3.如权利要求2所述的一种防草布生产用物料高效混合装置，其特征在于：立板(442)的外表面上设置有穿孔(446)，主接杆(441)的内部设置有中通孔(447)，中通孔(447)的内部设置有磁杆(448)，磁杆(448)设置有两组，两组的磁杆(448)与磁套管(443)相对应且磁性连接，主箱体(1)的上表面设置有对接槽口(11)，进料箱(41)通过立板(442)与对接槽口(11)相连接。3. The high-efficiency mixing device for materials used in the production of grass-proof cloth as claimed in claim 2, characterized in that: the outer surface of the vertical plate (442) is provided with perforations (446), and the interior of the main post (441) is provided with There is a middle through hole (447), and a magnetic rod (448) is arranged inside the middle through hole (447). Correspondingly and magnetically connected, the upper surface of the main box (1) is provided with a docking slot (11), and the feeding box (41) is connected with the docking slot (11) through a vertical plate (442). 4.如权利要求3所述的一种防草布生产用物料高效混合装置，其特征在于：主箱体(1)包括设置在主箱体(1)上表面的面槽孔(12)，设置在对接槽口(11)内壁上的对接圆孔(13)，以及设置在对接圆孔(13)内部的复位弹簧(14)，复位弹簧(14)的一端设置有铁质板(15)，主接杆(441)通过磁杆(448)与对接圆孔(13)卡合连接，主箱体(1)的一侧还设置有方槽孔(16)，主箱体(1)通过方槽孔(16)与转动机构(5)相连接。4. The high-efficiency mixing device for materials used in the production of grass-proof cloth as claimed in claim 3, characterized in that: the main box body (1) comprises a surface slot hole (12) arranged on the upper surface of the main box body (1), A butting circular hole (13) arranged on the inner wall of the butting slot (11), and a return spring (14) arranged inside the butting circular hole (13), one end of the return spring (14) is provided with an iron plate (15) , the main connecting rod (441) is connected with the docking circular hole (13) through the magnetic rod (448), and one side of the main box body (1) is also provided with a square slot hole (16), and the main box body (1) passes through The square slot hole (16) is connected with the rotating mechanism (5). 5.如权利要求4所述的一种防草布生产用物料高效混合装置，其特征在于：暂存组件(42)包括设置在进料箱(41)内部的暂存板A(421)和暂存板B(422)，设置在暂存板B(422)一侧的凸块(423)，以及设置在暂存板A(421)一侧的凹槽(425)，凸块(423)的一侧设置有弹性连接件(424)，暂存板A(421)和暂存板B(422)的外表面上均设置有连接槽板(426)，暂存板B(422)通过凸块(423)与凹槽(425)卡合连接，暂存板A(421)和暂存板B(422)均通过活动铰链(43)与进料箱(41)内壁活动连接。5. The high-efficiency mixing device for materials used in the production of grass-proof cloth according to claim 4, characterized in that: the temporary storage component (42) comprises a temporary storage plate A (421) arranged inside the feeding box (41) and Temporary storage board B (422), bumps (423) arranged on the side of temporary storage board B (422), and grooves (425), bumps (423) arranged on the side of temporary storage board A (421) An elastic connector (424) is provided on one side of the storage board, and connecting groove plates (426) are provided on the outer surfaces of the temporary storage board A (421) and the temporary storage board B (422). The temporary storage board B (422) passes through the convex The block (423) is snap-connected with the groove (425), and the temporary storage board A (421) and the temporary storage board B (422) are movably connected to the inner wall of the feed box (41) through the living hinge (43). 6.如权利要求5所述的一种防草布生产用物料高效混合装置，其特征在于：内核机构(6)包括设置在主箱体(1)内部的竖板(61)，设置在竖板(61)一侧的导轨槽(62)，以及设置在导轨槽(62)一侧的一级板(63)，一级板(63)的一侧设置有放置槽(64)，放置槽(64)的内部设置有二级板(65)，二级板(65)的一端设置有电动推杆(651)，二级板(65)通过电动推杆(651)与放置槽(64)内壁相连接，竖板(61)设置有两组，两组的竖板(61)均与主箱体(1)上颚相连接，一级板(63)设置有两组，两组的一级板(63)对立设置。6. The high-efficiency mixing device for materials used in the production of grass-proof cloth according to claim 5, characterized in that: the inner core mechanism (6) comprises a vertical plate (61) arranged inside the main box (1), and is arranged in the vertical A guide rail groove (62) on one side of the board (61), and a primary board (63) arranged on one side of the guide rail groove (62), one side of the primary board (63) is provided with a placement groove (64), the placement groove The interior of (64) is provided with a secondary plate (65), one end of the secondary plate (65) is provided with an electric push rod (651), and the secondary plate (65) passes through the electric push rod (651) and the placement slot (64) The inner walls are connected, the vertical plates (61) are provided with two groups, the vertical plates (61) of the two groups are connected with the upper jaw of the main box (1), the first-level plates (63) are provided with two groups, and the first-level plates (61) of the two groups are connected with the upper jaw of the main box (1). The plates (63) are arranged oppositely. 7.如权利要求6所述的一种防草布生产用物料高效混合装置，其特征在于：导轨槽(62)的内部设置有升降杆(66)，升降杆(66)的一端与一级板(63)相连接，一级板(63)通过升降杆(66)与导轨槽(62)活动连接，一级板(63)的上表面设置有联动杆(67)，联动杆(67)设置有两组，两组的联动杆(67)分别与暂存板A(421)和暂存板B(422)相连接，竖板(61)的外表面上还设置有橡胶板(68)，橡胶板(68)的外表面上开设有板孔(681)，板孔(681)与面槽孔(12)设置在同一垂直平面内，主箱体(1)的内部还设置有隔板(69)，隔板(69)的外表面上设置有边孔(691)，隔板(69)设置在竖板(61)的下方。7. The high-efficiency mixing device for materials used in the production of grass-proof cloth according to claim 6, characterized in that: a lifting rod (66) is arranged inside the guide rail groove (62), and one end of the lifting rod (66) is connected with the first-level The plates (63) are connected, the first-level plate (63) is movably connected with the guide rail groove (62) through the lifting rod (66), the upper surface of the first-level plate (63) is provided with a linkage rod (67), and the linkage rod (67) Two groups are provided, the linkage rods (67) of the two groups are respectively connected with the temporary storage board A (421) and the temporary storage board B (422), and the outer surface of the vertical plate (61) is also provided with a rubber plate (68) , the outer surface of the rubber plate (68) is provided with a plate hole (681), the plate hole (681) and the surface slot hole (12) are arranged in the same vertical plane, and the interior of the main box (1) is also provided with a partition plate (69), a side hole (691) is provided on the outer surface of the partition plate (69), and the partition plate (69) is arranged below the vertical plate (61). 8.如权利要求7所述的一种防草布生产用物料高效混合装置，其特征在于：搅动机构(2)包括设置在主箱体(1)上端的电机(21)，设置在电机(21)下端的一级转动筒(22)，设置在一级转动筒(22)下端的加热杆(23)，以及设置在加热杆(23)下端的二级转动筒(24)，二级转动筒(24)的下端设置有转动齿(25)，二级转动筒(24)与边孔(691)设置在同一垂直平面内。8. The high-efficiency mixing device for materials used in the production of grass-proof cloth as claimed in claim 7, wherein the stirring mechanism (2) comprises a motor (21) arranged on the upper end of the main box (1), and is arranged on the motor (2). 21) The first-level rotating drum (22) at the lower end, the heating rod (23) arranged at the lower end of the first-level rotating drum (22), and the second-level rotating drum (24) arranged at the lower end of the heating rod (23), the second-level rotation The lower end of the cylinder (24) is provided with rotating teeth (25), and the secondary rotating cylinder (24) and the side hole (691) are arranged in the same vertical plane. 9.如权利要求8所述的一种防草布生产用物料高效混合装置，其特征在于：转动机构(5)包括设置在主箱体(1)内部的安装板A(51)和安装板B(52)，设置在安装板A(51)和安装板B(52)外表面上的安装孔(53)，以及设置在安装板A(51)和安装板B(52)之间的旋转筒(54)，安装板A(51)和安装板B(52)设置在隔板(69)的下方，安装板A(51)和安装板B(52)的一端设置有外接块(55)。9. The high-efficiency mixing device for materials used in the production of grass-proof cloth according to claim 8, characterized in that: the rotating mechanism (5) comprises a mounting plate A (51) and a mounting plate arranged inside the main box (1) B ( 52 ), mounting holes ( 53 ) provided on the outer surfaces of mounting plate A ( 51 ) and mounting plate B ( 52 ), and rotation provided between mounting plate A ( 51 ) and mounting plate B ( 52 ) The cylinder (54), the mounting plate A (51) and the mounting plate B (52) are arranged below the partition plate (69), and one end of the mounting plate A (51) and the mounting plate B (52) is provided with an external block (55) . 10.如权利要求9所述的一种防草布生产用物料高效混合装置，其特征在于：外接块(55)的上端设置有插板(56)，插板(56)的外表面上贯穿设置有锁紧栓(57)，外接块(55)与方槽孔(16)相连接，锁紧栓(57)的一端与主箱体(1)外表面相连接，旋转筒(54)的上表面设置有齿孔(541)，旋转筒(54)的外表面上设置有安装环(542)，安装环(542)的外表面上设置有叶片(543)，转动齿(25)与齿孔(541)啮合连接。10. The high-efficiency mixing device for materials used in the production of grass-proof cloth according to claim 9, characterized in that: the upper end of the external block (55) is provided with a plug board (56), and the outer surface of the plug board (56) penetrates through A locking bolt (57) is provided, the external block (55) is connected with the square slot hole (16), one end of the locking bolt (57) is connected with the outer surface of the main box (1), and the upper part of the rotating cylinder (54) A tooth hole (541) is arranged on the surface, a mounting ring (542) is arranged on the outer surface of the rotating cylinder (54), a blade (543) is arranged on the outer surface of the installation ring (542), and the rotating tooth (25) is connected with the tooth hole. (541) Meshing connection.
