Abstract

The invention relates to the technical field of spinning maintenance, in particular to a spindle storage device for cotton yarn production, comprising a device casing and an iron plate, and the device casing is fixedly connected with a rectangular suction groove, a cylindrical handle, an external power supply, an iron plate, and an air pump , a filter screen and a bracket, the bottom of the left end of the housing of the device is movably connected with a rubber piston, the bottom of the bracket is fixedly connected with a roller, the front end of the iron plate is fixedly connected with an internal thread pipe, and the internal thread pipe spiral A screw is connected with a screw, the surface of the end of the screw is contacted with a spindle, the top of the screw is fixedly connected with a handle, the rectangular suction groove is fixedly connected with a plastic hose, the bottom of the middle bracket of the device shell There is a central hole at the end, and the central hole is in contact with the end of the plastic hose, and the bottom of the device shell is provided with an exhaust hole. The present invention completes the function of cleaning cotton dust through the plastic hose, air pump and filter screen. Promotional use.

Description

Spindle storage device for cotton yarn production

technical field

The invention relates to the technical field of spinning maintenance, in particular to a spindle storage device for cotton yarn production.

Background technique

The spindle is a part on the spinning machine used to twist the fiber into yarn and wind it into a certain shape. It is used to process cotton yarn products, but a large amount of cotton dust will be generated during the usual mechanical processing.

Cotton dust is the dust that exists in the atmosphere during processing, including the debris of each part of the ground cotton plant and the fiber. During the textile processing process, some of them will become flying flowers or medium and coarse impurities floating in the workshop, scurrying up and down, It pollutes the environment, contaminates machines and products, hinders operation and operation, deteriorates processing performance, reduces product quality, and greatly hinders air conditioning and lighting in the workshop. In severe cases, it will cause fire and explosion. Therefore, a proposal is made to address the above problems. Spindle storage device for cotton yarn production.

Contents of the invention

The object of the present invention is to provide a spindle storage device for cotton yarn production, so as to solve the problems raised in the above-mentioned background technology.

To achieve the above object, the present invention provides the following technical solutions:

A spindle storage device for cotton yarn production, comprising a device housing and an iron plate, an iron plate is fixedly connected to the inside of the top end of the device housing, the left end face, right end face, bottom end face of the iron plate and the top end face of the device housing are all A rectangular suction slot is fixedly connected, a rubber piston is screw-connected to the outside of one end of the device housing, a cylinder handle is fixedly connected to the right end of the device housing, an external power supply is fixedly connected to the right end of the device housing, and the bottom end of the device housing A bracket is fixedly connected, the bottom end of the bracket is fixedly connected with a roller, the front end of the iron plate is fixedly connected with an internally threaded pipe, and the outer side of the internally threaded pipe is spirally connected with a screw screw, and the front end of the screw screw is The spindle is connected in contact, the front end of the screw screw is fixedly connected with a handle, the rectangular suction groove is connected with a plastic hose, the inside of the bottom end of the device shell is fixedly connected with a filter net, and the inside of the bottom end of the device shell is fixed An air pump is connected, a central hole is provided at the bottom of the middle bracket of the device shell, and the central hole is connected with the end of the plastic hose, and an exhaust hole is provided at the bottom of the device shell.

Preferably, an air vent is provided at the bottom of the device housing.

Preferably, there are two filters and two air pumps, and they are symmetrically distributed on both sides of the central axis of the bottom end surface of the device housing.

Preferably, there are six rollers and six supports each, and they are evenly distributed below the bottom surface of the device housing in two rows and three columns.

Preferably, there are two rubber pistons, which are symmetrically distributed at the bottom positions of the left and right ends of the device housing.

Compared with prior art, the beneficial effect of the present invention is:

1. In the present invention, through the provided air pump, filter screen, rectangular suction groove, plastic hose and rubber piston, the negative pressure generated by the air pump can drive the rectangular suction groove to absorb the cotton dust in the surrounding air and transport it to the plastic hose. Since the cotton dust flocs cannot pass through the filter screen, the cotton dust will be deposited on one side of the filter screen, and the deposited cotton dust can be taken out by opening the rubber piston for disposal.

2. In the present invention, through the provided rollers, cylindrical handles, handles, screw leads and internally threaded pipes, the spindles can be fixed by using the handles to adjust the helical pitch between the screw leads and the internally threaded pipes during transportation and storage of the spindles, avoiding Dropped and contaminated with dust affects product quality, which greatly improves the practicability and reliability of the device.

Description of drawings

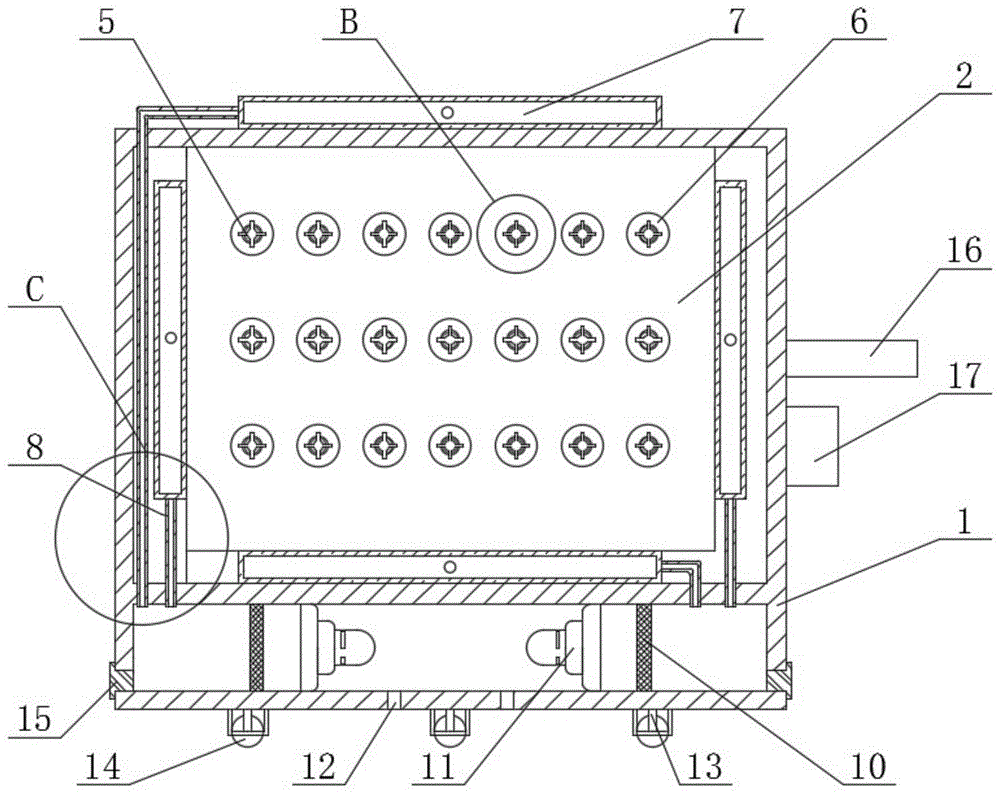

Fig. 1 is the overall structure schematic diagram of the present invention;

Fig. 2 is the side structure schematic diagram of Fig. 1 of the present invention;

Fig. 3 is a structural schematic diagram of place A of Fig. 2 of the present invention;

Fig. 4 is the structural schematic diagram of place B of Fig. 1 of the present invention;

Fig. 5 is a schematic structural diagram at C of Fig. 1 of the present invention;

Fig. 6 is a schematic diagram showing the structure of the center hole shown in Fig. 1 of the present invention.

In the figure: 1-device shell, 2-iron plate, 3-internal threaded pipe, 4-screw screw, 5-handle, 6-spindle, 7-rectangular suction groove, 8-plastic hose, 9-center hole , 10-filter, 11-air pump, 12-exhaust hole, 13-bracket, 14-roller, 15-rubber piston, 16-cylindrical handle, 17-external power supply.

Detailed ways

The following will clearly and completely describe the technical solutions in the embodiments of the present invention with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only some, not all, embodiments of the present invention. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the protection scope of the present invention.

Referring to Fig. 1-6, the present invention provides a technical solution:

A spindle storage device for cotton yarn production, comprising a device housing 1 and an iron plate 2, the inner top of the device housing 1 is fixedly connected with the iron plate 2, the left end face, the right end face, the bottom end face of the iron plate 2 and the top end of the device housing 1 The surface is fixedly connected with a rectangular suction groove 7, and the outer side of one end of the device shell 1 is spirally connected with a rubber piston 15. The rubber piston 15 is used to take out the deposited cotton dust. The right end of the device shell 1 is fixedly connected with a cylindrical handle 16, and the right end of the device shell 1 An external power supply 17 is fixedly connected, the bottom end of the device shell 1 is fixedly connected with a bracket 13, and the bottom end of the bracket 13 is fixedly connected with a roller 14. The roller 14 and the cylindrical handle 16 make the device more stable and labor-saving during transportation. The front end surface is fixedly connected with an internally threaded pipe 3, the outer side of the internally threaded pipe 3 is spirally connected with a screw screw 4, the front end of the screw screw 4 is connected with a spindle 6, and the front end of the screw screw 4 is fixedly connected with a handle 5, and the rectangular suction The groove 7 is connected with a plastic hose 8, and the inner side of the bottom end of the device shell 1 is fixedly connected with a filter screen 10, and the inner side of the bottom end of the device shell 1 is fixedly connected with an air pump 11, and the air pump 11 generates negative pressure to absorb cotton dust flocs during operation The bottom end of the middle bracket of the device shell 1 is provided with a central hole 9, the central hole 9 is in contact with the end of the plastic hose 8, and the bottom end of the device shell 1 is provided with an exhaust hole 12, which is used to make the air pump 11 work when the air is exhausted.

The bottom end of the device shell 1 is provided with an exhaust hole 12; there are two filter screens 10 and two air pumps 11, which are symmetrically distributed on both sides of the central axis of the bottom end surface of the device shell 1; there are six rollers 14 and six brackets 13, which are two. Rows and three columns are evenly distributed below the bottom end surface of the device casing 1; there are two rubber pistons 15, which are symmetrically distributed at the bottom of the left and right ends of the device casing 1; air pump 11, filter screen 10, rectangular suction groove 7, plastic soft Pipe 8 and rubber piston 15 can generate negative pressure through air pump 11 to drive rectangular suction groove 7 to absorb the cotton dust of the surrounding air and deliver it to plastic hose 8. Because cotton dust flocs cannot pass through filter screen 10, cotton dust will One side of the filter screen 10 is deposited, and the deposited cotton dust can be taken out and processed by opening the rubber piston 15; Use the handle 5 to adjust the helical distance between the screw rod 4 and the internally threaded tube 3 to fix the spindle 6, avoid falling and being contaminated with dust and affect the quality of the product, and greatly improve the practicability and reliability of the device.

Work process: the present invention is powered by an external power supply 17 before use, and the handle 5 is tightened during use. At this time, the thread distance between the screw screw 4 and the internal threaded pipe 3 is reduced, which plays the role of fixing the spindle 6. Under the action of cylindrical handle 16 and roller 14, the whole device is quickly transported to the place to be worked, and the screw handle 5 is unscrewed. At this time, the thread distance between the screw screw 4 and the internally threaded pipe 3 increases, and the spindle 6 is in a rotatable state. Driven by the production device, the rotation of the spindle 6 to manufacture cotton textile products will produce a large amount of cotton dust. The air pump 11 generates negative pressure under the action of the external power supply 17 to reach the filter screen 10 through the rectangular suction groove 7 and the plastic hose 8. Due to the cotton dust The floc can't pass through the filter screen 10, and will be deposited on the filter screen 10 side. The cotton dust deposited can be taken out by opening the rubber piston 15 to complete the use process of the device. The air pump 11, the filter screen 10, the rectangular suction groove 7, the plastic The hose 8 and the rubber piston 15 can generate negative pressure through the air pump 11 to drive the rectangular suction groove 7 to absorb the cotton dust in the surrounding air and deliver it to the plastic hose 8. Because the cotton dust flocs cannot pass through the filter screen 10, the cotton dust will Deposit on one side of the filter screen 10, the deposited cotton dust can be taken out and processed by opening the rubber piston 15, the roller 14, the cylindrical handle 16, the handle 5, the screw screw 4 and the internal threaded tube 3 can be transported and stored on the spindle 6 When using the knob 5 to adjust the helical pitch of the screw lead screw 4 and the internally threaded pipe 3, the spindle 6 is fixed to avoid falling and being contaminated with dust and affecting the product quality, which greatly improves the practicability and reliability of the device.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes, modifications and substitutions can be made to these embodiments without departing from the principle and spirit of the present invention. and modifications, the scope of the invention is defined by the appended claims and their equivalents.

Claims (4)

1. A spindle storage device for cotton yarn production, comprising a device housing (1) and an iron plate (2), characterized in that: the inside of the top end of the device housing (1) is fixedly connected with an iron plate (2), the The left end face, the right end face, the bottom end face of the iron plate (2) and the top end face of the device casing (1) are all fixedly connected with a rectangular suction groove (7), and the outer side of the device casing (1) is screw-connected with a rubber piston (15 ), there are two rubber pistons (15), and they are distributed symmetrically at the bottom positions of the left and right ends of the device housing (1); the right end of the device housing (1) is fixedly connected with a cylinder handle (16), the The right end of the device casing (1) is fixedly connected with an external power supply (17), the bottom end of the device casing (1) is fixedly connected with a bracket (13), and the bottom end of the bracket (13) is fixedly connected with a roller (14), The front end surface of the iron plate (2) is fixedly connected with an internally threaded pipe (3), and the outer side of the internally threaded pipe (3) is spirally connected with a screw screw (4), and the front end surface of the screw screw (4) contacts A spindle (6) is connected, a handle (5) is fixedly connected to the front end of the screw screw (4), the rectangular suction groove (7) is communicated with a plastic hose (8), and the device housing (1) The inner side of the bottom end is fixedly connected with a filter screen (10), the inner side of the bottom end of the device shell (1) is fixedly connected with an air pump (11), and the bottom end of the middle bracket of the device shell (1) is provided with a central hole (9), And the central hole (9) is in contact with the end of the plastic hose (8). 2. A spindle storage device for cotton yarn production according to claim 1, characterized in that: the bottom of the device casing (1) is provided with an air vent (12). 3. A spindle storage device for cotton yarn production according to claim 1, characterized in that: there are two filter screens (10) and two air pumps (11), and they are symmetrically distributed at the bottom of the device housing (1) Both sides of the central axis of the end face. 4. A kind of spindle storage device for cotton yarn production according to claim 1, characterized in that: there are six rollers (14) and six supports (13) respectively, and they are evenly distributed in two rows and three columns on the device casing ( 1) below the bottom end face.
