Abstract
本发明公开了一种印刷品烫印机用出料机构，涉及印刷品出料领域。一种印刷品烫印机用出料机构，包括支撑架，支撑架内侧固定安装有横向加固杆，且支撑架顶端焊接安装有传动架，传动架端部转动安装有耐热出料传动带，且耐热出料传动带一端转动安装有端部传动轮，端部传动轮两侧配合安装有转动支撑装置，耐热出料传动带中段内侧安装有中间承接轮，传动架两侧焊接安装有保护支撑杆，且保护支撑杆顶面固定安装有保护顶板，保护支撑杆内侧固定安装有红外视觉成像装置，保护顶板左侧接触安装有密封保护罩，耐热出料传动带上端转动安装有过渡装置。本发明具有时刻监控印刷品出料情况，同时出料过程中印刷品不会堆积等优点。
The invention discloses a discharging mechanism for a hot stamping machine for printed products, which relates to the field of discharging of printed products. A discharge mechanism for a hot stamping machine for printed matter, comprising a support frame, a transverse reinforcement rod is fixedly installed on the inner side of the support frame, a transmission frame is welded and installed at the top of the support frame, and a heat-resistant discharge transmission belt is rotatably installed at the end of the transmission frame. One end of the hot discharge transmission belt is rotatably installed with an end transmission wheel, and the two sides of the end transmission wheel are equipped with a rotating support device. The top surface of the protective support rod is fixedly installed with a protective top plate, the inner side of the protective support rod is fixedly installed with an infrared vision imaging device, the left side of the protective top plate is contacted and installed with a sealing protective cover, and the upper end of the heat-resistant discharge transmission belt is rotated and installed with a transition device. The invention has the advantages of monitoring the discharge of the printed matter at all times, and at the same time, the printed matter will not accumulate during the discharging process.
Description
Technical Field
The invention relates to the field of printed matter discharging, in particular to a discharging mechanism for a printed matter thermoprinting machine.
Background
Hot stamping is commonly called as gold stamping, which means that characters and patterns of materials such as color foils and the like are stamped on the first seal or the fourth seal of the hardcover book envelope and the book back part, or various convex-concave book names or patterns are stamped by a hot pressing method; the thermoprinting film determines the decorative effects of color, picture and text, and the like, and the equipment is provided with a film transmission and coiling device; the hot stamping fixture (mould, pad head) comprises a workbench and a conveying device. The hot stamping modes include flat stamping and rolling stamping.
The hot stamping discharging device at the present stage has the problem that the transportation position of the printed matter cannot be monitored; the problem that the printed matters are easy to stack and slide down in the transportation process exists. Therefore, the discharging mechanism for the printing thermoprinting machine is provided by the technical personnel in the field so as to solve the problems in the background technology.
Disclosure of Invention
The invention aims to provide a discharging mechanism for a printed matter thermoprinting machine, which aims to solve the problems in the background technology.
In order to achieve the purpose, the invention provides the following technical scheme: a discharging mechanism for a printed matter hot stamping machine comprises a supporting frame, wherein a transverse reinforcing rod is fixedly mounted on the inner side of the supporting frame, a transmission frame is welded and mounted at the top end of the supporting frame, a heat-resistant discharging transmission belt is rotatably mounted at the end part of the transmission frame, an end part transmission wheel is rotatably mounted at one end of the heat-resistant discharging transmission belt, rotary supporting devices are mounted on two sides of the end part transmission wheel in a matched manner, an intermediate bearing wheel is mounted on the inner side of the middle section of the heat-resistant discharging transmission belt, protective supporting rods are welded and mounted on two sides of the transmission frame, a protective top plate is fixedly mounted on the top surface of the protective supporting rods, an infrared vision imaging device is fixedly mounted on the inner side of the protective supporting rods, a sealing protective cover is mounted on the left side of the protective top plate in a contact manner, a transition device is rotatably mounted at the upper end of the heat-resistant discharging transmission belt, and a printed matter storage area is reserved on the outer side wall surface of the heat-resistant discharging transmission belt, the automatic discharging device has the advantages that the discharging condition of the printed matters is monitored constantly, and meanwhile, the printed matters cannot be accumulated in the discharging process.
Preferably, the bottom surface of the support frame is welded with a contact bottom frame which can support and fix the heat-resistant discharging transmission belt.
Preferably, the outer side of the heat-resistant discharging transmission belt is fixedly provided with a printed matter pushing plate, and the inner side of the heat-resistant discharging transmission belt is connected with an inner mounting shaft in a penetrating manner, so that printed matters can be transported.
Preferably, the data storage device is installed to infrared vision imaging device bottom, and the infrared imaging hole has been seted up to the data storage device outside, can realize the infrared imaging of printed matter.
Preferably, the reinforcing welding plate is welded and installed on the outer side of the transmission frame, a sealing protection cover is fixedly installed at the other end of the reinforcing welding plate, and the sealing protection cover can be fixedly installed.
Preferably, the support wheel frames are installed at two ends of the transition device, and the transition wheels are rotatably installed on the inner sides of the support wheel frames, so that corner transition of printed matters can be realized.
Preferably, the internal mounting shaft is rotatably mounted on the inner side of the rotary support device, so that power transmission of the transmission belt can be realized.
Compared with the prior art, the invention has the beneficial effects that:
(1) the utility model provides a discharging mechanism for printed matter thermoprinting machine, deposit parts such as district through installing heat-resisting ejection of compact drive belt and printed matter for discharging mechanism for the thermoprinting machine, the staff stops discharging mechanism's right-hand member in the thermoprinting machine exit, after the processing of printed matter is accomplished to the thermoprinting machine, the printed matter contacts with heat-resisting ejection of compact drive belt, because the thermoprinting machine can cause printed matter surface temperature higher in the course of working, so scribble in the drive belt outside and have heat-resisting rubber, improve the life of drive belt, after the printed matter that reserves between the printed matter gets into two printed matter slurcation boards deposits the district, rotation through inside installation axle and tip drive wheel, drive the anticlockwise rotation of drive belt, thereby realize the downward transportation of printed matter.
(2) The discharging mechanism for the printed matter hot stamping machine is provided with components such as an internal mounting shaft, an infrared imaging hole and the like, and the infrared imaging holes on two sides can radiate infrared rays through an infrared imaging technology, namely when the temperature of an object is higher than absolute zero, the infrared rays are radiated at every moment, and meanwhile the infrared radiation carries characteristic information of the object and is captured through the infrared imaging hole, so that new monitoring of the position of the printed matter is realized; because the printed matter storage area that this device was reserved is the same with the printed matter specification of thermoprint, so in the transportation, can not take place the problem that the printed matter piles up, can effectively block the mounted position of printed matter simultaneously in the transportation, prevent dropping of printed matter.
Drawings

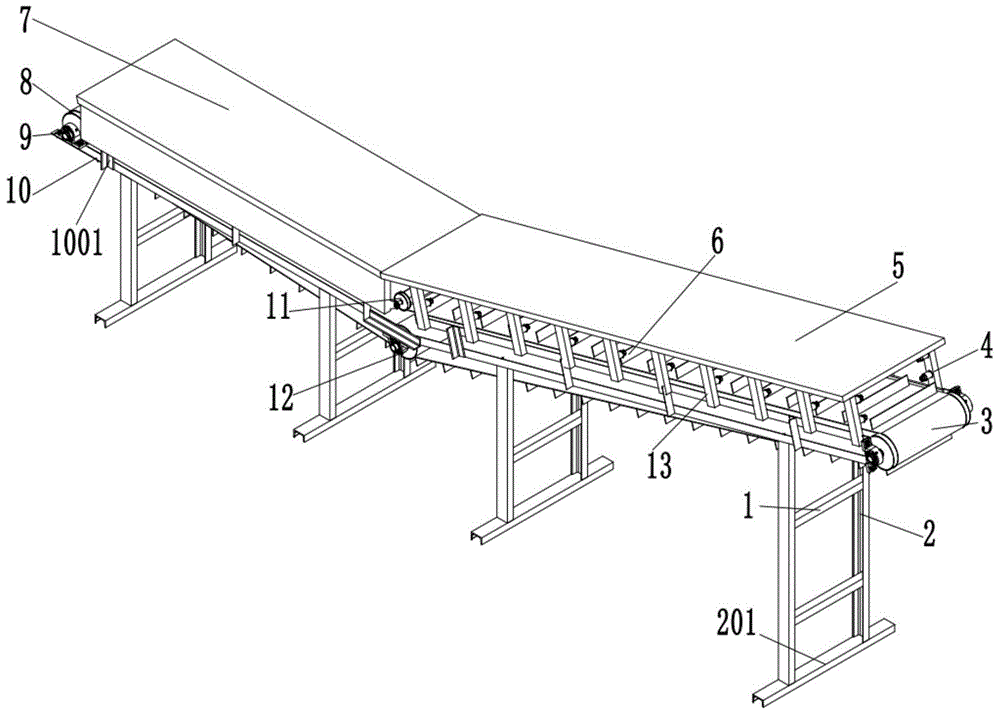

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a partial schematic view of the structure of the heat resistant discharge belt of the present invention;
FIG. 3 is a partial schematic view of the transition device of the present invention;
fig. 4 is a partial schematic view of the structure of the transmission frame of the present invention.
In the figure: 1. a transverse reinforcing rod; 2. a support frame; 201. a contact chassis; 3. a heat-resistant discharge transmission belt; 301. a printed matter pushing plate; 302. an internal mounting shaft; 4. an infrared vision imaging device; 401. a data storage device; 402. an infrared imaging aperture; 5. a protective top plate; 6. a printed matter storage area; 7. sealing the protective cover; 8. an end driving wheel; 9. a rotation support device; 10. a transmission frame; 1001. reinforcing the welded plate; 11. a transition device; 1101. a transition wheel; 1102. a support wheel carrier; 12. a middle bearing wheel; 13. the support rod is protected.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-4, in the embodiment of the present invention, a discharging mechanism for a printed matter hot stamping machine includes a supporting frame 2, a transverse reinforcing rod 1 is fixedly installed inside the supporting frame 2, a transmission frame 10 is welded on the top end of the supporting frame 2, a heat-resistant discharging transmission belt 3 is rotatably installed on the end portion of the transmission frame 10, an end portion transmission wheel 8 is rotatably installed on one end of the heat-resistant discharging transmission belt 3, rotary supporting devices 9 are cooperatively installed on both sides of the end portion transmission wheel 8, a middle receiving wheel 12 is installed on the inner side of the middle section of the heat-resistant discharging transmission belt 3, protective supporting rods 13 are welded on both sides of the transmission frame 10, a protective top plate 5 is fixedly installed on the top surface of the protective supporting rods 13, an infrared vision imaging device 4 is fixedly installed on the inner side of the protective supporting rods 13, a sealing protective cover 7 is installed on the left side of the protective top plate 5 in a contact manner, and a transition device 11 is rotatably installed on the upper end of the heat-resistant discharging transmission belt 3, and the outer side wall surface of the heat-resistant discharging transmission belt 3 is reserved with a printed matter storage area 6, so that the device has the advantages of constantly monitoring the discharging condition of the printed matter, preventing the printed matter from being accumulated in the discharging process and the like.
Wherein, the bottom surface of the support frame 2 is welded with a contact bottom frame 201 which can support and fix the heat-resistant discharging transmission belt 3; a printed matter pushing plate 301 is fixedly installed on the outer side of the heat-resistant discharging transmission belt 3, and an internal installation shaft 302 penetrates through the inner side of the heat-resistant discharging transmission belt 3 and can transport printed matters; the bottom of the infrared vision imaging device 4 is provided with a data storage device 401, and the outer side of the data storage device 401 is provided with an infrared imaging hole 402, so that infrared imaging of a printed matter can be realized; a reinforcing welding plate 1001 is welded and installed on the outer side of the transmission frame 10, a sealing protection cover 7 is fixedly installed at the other end of the reinforcing welding plate 1001, and the sealing protection cover 7 can be fixedly installed; the two ends of the transition device 11 are provided with the supporting wheel frames 1102, and the transition wheels 1101 are rotatably arranged on the inner sides of the supporting wheel frames 1102, so that corner transition of the printed matter can be realized; the internal mounting shaft 302 is rotatably mounted inside the rotation support device 9, and power transmission of a transmission belt can be achieved.
The working principle is as follows: the main body of the discharging mechanism for the hot stamping machine comprises components such as a transverse reinforcing rod 1, a support frame 2 and an infrared vision imaging device 4, and the equipment is different from the traditional discharging mechanism, can constantly monitor the discharging condition of printed matters, and has the advantages that the printed matters cannot be accumulated in the discharging process; the worker stops the right end of the discharging mechanism at the outlet of the thermoprinting machine, after the thermoprinting machine finishes the processing of the printed matter, the printed matter is contacted with the heat-resistant discharging transmission belt 3, because the thermoprinting machine can cause the surface temperature of the printed matter to be higher in the processing process, the heat-resistant rubber is coated on the outer side of the transmission belt, the service life of the transmission belt is prolonged, after the printed matter enters the printed matter storage area 6 reserved between the two printed matter pushing plates 301, the transmission belt is driven to rotate anticlockwise through the rotation of the internal mounting shaft 302 and the end part transmission wheel 8, thereby realizing the downward transportation of the printed matter, the transportation power is connected with the internal mounting shaft 302 through an externally purchased motor and a coupling, when the printed matter is transported, the infrared imaging holes 402 on the two sides can pass through the infrared imaging technology, namely when the temperature of the matter is higher than absolute zero degree, infrared rays are radiated every moment, and simultaneously the infrared radiation carries the characteristic information of the matter, capturing through the infrared imaging hole 402 to realize new monitoring of the position of the printed matter; because the printed matter storage area 6 that this device was reserved is the same with the printed matter specification of thermoprint, so in the transportation, can not take place the problem that the printed matter piles up, can effectively block the mounted position of printed matter simultaneously in the transportation, prevent dropping of printed matter.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
