Abstract
本发明公开的太阳能气压泵自动浇水装置，包括：气压泵水容器、止回阀、贮水容器、蓄水容器；利用所述止回阀控制水流方向构成进水管路和出水管路；利用所述气压泵水容器内空气热胀冷缩产生气压差实现泵水，所述气压泵水容器内部负压时水流从所述贮水容器经所述进水管路流入，正压时水流经所述出水管路流出到所述蓄水容器，形成气压泵水过程；所述蓄水容器中水位上升引发虹吸排水过程，水位下降虹吸排水过程结束。随着昼夜阴晴交替，所述气压泵水容器内温度循环往复变化，不断推动水流从所述贮水容器流向所述蓄水容器，实现自动泵水、蓄水和周期性浇水。本发明简易实用，可以充分利用现有资源和废弃物品，无电力消耗，节能环保，运行稳定可靠。
The solar air pressure pump automatic watering device disclosed by the invention comprises: a water pressure pump water container, a check valve, a water storage container and a water storage container; the check valve is used to control the water flow direction to form a water inlet pipeline and a water outlet pipeline; The air in the air pressure pump water container expands and contracts with heat to generate air pressure difference to pump water. When the pressure inside the air pressure pump water container is negative, the water flows from the water storage container through the water inlet pipeline, and when the pressure is positive, the water flows through the water. The water outlet pipeline flows out to the water storage container to form a water pressure pumping process; the rise of the water level in the water storage container triggers the siphon drainage process, and the water level drops the siphon drainage process. With the alternation of day and night, the temperature in the air pressure pump water container changes cyclically, constantly pushing the water flow from the water storage container to the water storage container to realize automatic water pumping, water storage and periodic watering. The invention is simple and practical, can make full use of existing resources and waste products, has no power consumption, is energy-saving and environmentally friendly, and operates stably and reliably.
Description
Technical Field
The invention belongs to the field of automatic watering of plants such as flowers and the like, and relates to an automatic watering device, in particular to an automatic watering device which utilizes solar energy to heat air in a container, realizes automatic water pumping, water storage and periodical watering through air pressure change generated by air expansion and contraction, and specifically relates to an automatic watering device with a solar energy pneumatic pump.
Background
The green plants can not be separated from sunlight and water, and proper illumination and water are provided according to the growth rule of the plants, which is a necessary condition for the normal growth of the plants. The transpiration of the big plants is enhanced in the sun illumination intensity in sunny days, and the consumed water is much; the sun illumination intensity is low in cloudy days, the plant transpiration is weakened, and the consumed water is less. The water consumed by plant transpiration mainly depends on the root system to absorb the water in the soil, the plant will wither or even dry and die due to water shortage because of summer inflammation and long-time water shortage in the soil, but if the water in the soil is too much and the ventilation is poor for a long time, the root system of the plant is short of necessary oxygen to cause root rot and root retting, and the plant will wither, so the watering principle of growing flowers and vegetables is that the plants are dry and wet, the surface layer of the soil is dry and permeable by one-time watering, but not watering every day or watering after the soil is completely dry and permeable. However, in actual life, flowers wither and wither because people return early after busy work and cannot water for a long time when traveling outdoors. For this reason, various automatic drip irrigation watering devices appear, among them CN105104128 (university of beijing forestry) 2015, 12 months and 2 days, a kind of automatic drip irrigation watering device for potted plants is disclosed, the water storage tank needs to be placed at a high place, the related components such as sensors and controllers need power supply, the related drip irrigation device has a complex structure and high manufacturing cost, and the device can not simply and effectively solve the watering problem of the household green plants such as potted flowers and the like.
Disclosure of Invention
The working principle of the invention is to utilize the property of expansion with heat and contraction with cold of a common object, and the expansion with heat and contraction with cold of the gas under the same temperature change condition is more obvious than the expansion with heat and contraction with cold of the solid and the liquid. When the closed container is exposed to illumination intensity (a solar light source or an incandescent light source) and environment temperature changes, the temperature inside the container changes due to energy conversion and heat exchange, the internal pressure changes due to the expansion and contraction of air inside the container, and according to an ideal gas equation, the temperature T, the volume V and the pressure P of the gas have a change relation of P1V1/T1= P2V2/T2When the pressure is constant, the volume is proportional to the temperature, and when the volume is constant, the pressure is proportional to the temperature. The pressure difference between the inside and outside of the container can push water flow (air when no water flow exists in the pipeline, the difference is that the water flow in the pipeline has water level height pressure difference, the height pressure difference of the air can be ignored) in the pipeline connected with the container to flow into or out of the container, when the temperature in the container rises and the air expands, the positive pressure difference pushes the water flow to flow out of the container, and the water flow can flow along the pipeThe water flow is sucked into the container from the pipeline by negative pressure difference when the air is contracted when the temperature in the container is reduced, and the water flow can be sucked from a lower part along the pipeline. When water flows into or out of the container, the volume and pressure of air in the container are changed continuously, and the water stops flowing when the pressure inside and outside the container reaches balance. The temperature and the air pressure in the container change in a circulating and reciprocating manner along with the alternation of sunrise, sunset and day and night, and the water flow continuously flows into the container and then flows out of the container. The temperature of the air in the sealed container rises after the sealed container is illuminated by light, the temperature rise amplitude and the illumination intensity form a positive relation, through experimental tests, when the weather is clear at normal temperature, the highest temperature in the sealed container of a single-layer structure directly illuminated by sunlight can reach 60 ℃ (333K) and can be higher than 30 ℃ (30K) than the lowest temperature of 25 ℃ (298K), when the pressure intensity is unchanged, the volume change can reach 30/298 and is about 10%, when the volume is unchanged, the pressure intensity change can also reach 10%, the pressure intensity change corresponds to 0.1 standard atmospheric pressure under normal pressure, and the corresponding height of a water column is 100 cm. The maximum day and night temperature difference in a common closed container under the irradiation of sunlight in different seasons is usually about 30 ℃ to 40 ℃, and the temperature in the container is consistent with the ambient temperature when no sunlight is irradiated.
In order to achieve the purpose, the application provides the following technical scheme:
the invention provides an automatic watering device of a solar pneumatic pump, which comprises:
the water storage device comprises a pneumatic pump water container, a check valve, a water storage container and a three-way joint;
wherein, the check valve is used for controlling the unidirectional flow of water flow;
the water storage container is provided with a water injection hole communicated with the atmosphere;
the water storage container is connected with an air inlet and outlet pipe and a siphon water outlet pipe, and is communicated with the atmosphere through the air inlet and outlet pipe;
the water storage container is connected with the pneumatic water pumping container through the check valve, and water flows from the water storage container to the pneumatic water pumping container to form a water inlet pipeline;
the water storage container is connected with the pneumatic pump water container through the other check valve, and water flows from the pneumatic pump water container to the water storage container to form a water outlet pipeline;
when the air pressure water pumping container changes along with illumination intensity and environmental temperature, the internal temperature changes, the internal air expands with heat and contracts with cold to cause air pressure change, and air pressure difference is generated between the internal air and the external air;
the water level is raised when the water level in the water storage container is exceeded by pumping water in the water pumping process of the air pressure pump, the siphon drainage process is initiated when the water level in the water storage container is lowered to the water inlet of the siphon drainage pipe, air enters the siphon drainage pipe, and the siphon drainage process is finished.
The temperature and the air pressure in the air pressure pump water container are circularly and repeatedly changed along with the alternation of sunrise, sunset, day and night, and the air pressure pump water process and the siphon water discharge process are repeatedly carried out, so that the automatic water pumping, water storage and periodical watering are realized.
In order to optimize the technical scheme, the adopted measures further comprise:
the pneumatic pump water container is a transparent container, and black heat-absorbing materials are placed in the pneumatic pump water container and are specifically used for: the light energy absorption efficiency is improved, the internal temperature of the water container of the pneumatic pump is improved, and the water efficiency of the pneumatic pump is improved.
In a possible implementation, the water inlet line and the water outlet line are connected to the inside of the water container of the pneumatic pump, respectively, and the check valve may be located at any position of the water inlet line and the water outlet line.
In yet another possible implementation manner, the first interface of the three-way joint is connected with a pneumatic water pump container; the second port of the three-way joint is connected with the water inlet pipeline, and the check valve is positioned between the water storage container and the second port of the three-way joint; the three-way joint third interface with the outlet pipe way links to each other, the check valve is located the retaining container with between the three-way joint third interface, specifically be used for: the water inlet pipeline and the water outlet pipeline are connected with the pneumatic pump water container through the same pipeline shared by the three-way joint.
The check valve is a water and air stop valve, and is specifically used for: preventing water flow and air from flowing out of the pneumatic pump water container from the water inlet pipeline; preventing water flow and air from flowing into the pneumatic pump water container from the water outlet pipeline.
The water storage container is lower in horizontal position than the water storage container, and is specifically used for: preventing a siphon line from forming between the water storage container and the water storage container.
The horizontal position of the highest point of the air inlet and exhaust pipe is higher than that of the highest point of the siphon water drainage pipe, and the siphon water drainage pipe is specifically used for: and preventing water from overflowing from the air inlet and outlet pipe in the siphoning process of the siphon water outlet pipe.
The horizontal position of admission and exhaust pipe water inlet is higher than the horizontal position of siphon drain pipe delivery port specifically is used for: when the siphoning process of the siphoning drain pipe is finished, the water flow in the air inlet and outlet pipe is completely emptied.
The invention has the advantages that the watering period is automatically adjusted through the synchronous equidirectional influence of the solar illumination intensity on the water consumption of the air pressure pump and the transpiration of the plants, and the watering according to the needs in the plant growth process is realized. Compared with the prior art, the invention has the advantages of clear technical scheme principle, clear technical circuit, simple and easy manufacture of the whole device, low resource consumption, capability of fully utilizing the existing resources or waste plastic products in life, no metal, mechanical and electrical parts, no electricity consumption, no electronic waste after the products are discarded, high design cost performance of the scheme of the invention, safety, reliability, energy conservation, water conservation and environmental protection.
Drawings

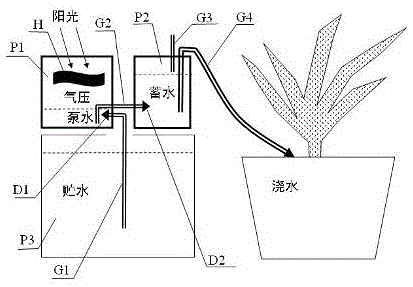

Fig. 1 is a general design schematic of the present invention.
FIG. 2 is a schematic view of the experimental apparatus of the present invention.
Reference numerals: p1 pneumatic pump water container P2 water storage container P3 water storage container H black plastic sheet D1 check valve D2 check valve G1 water inlet pipe G2 water outlet pipe G3 air inlet pipe G4 siphon water outlet pipe.
Detailed Description
The following describes in detail implementation procedures and experimental procedures of a possible implementation manner of the technical solution of the present invention with reference to the accompanying drawings.
Fig. 1 is a schematic view showing the general structure of the present invention, and as shown in fig. 1, the automatic solar water-watering device with a pneumatic pump of the present invention is composed of an automatic pneumatic pump water pipeline and an automatic water storage watering pipeline. The water pipelines of the automatic pneumatic pump are connected as follows: black plastic sheets H are placed in the pneumatic water pumping container P1 and are connected with a water inlet pipeline G1, a check valve D1 enables water to only flow into the pneumatic water pumping container P1, and the other end of the water inlet pipeline G1 is connected with a water storage container P3; the water outlet line G2 is connected, the check valve D2 enables water to flow out of the pneumatic pump water container P1 only, and the other end of the water outlet line G2 is connected to the water storage container P2.
As shown in fig. 1, the automatic water storage watering line of the present invention is connected as follows: an air inlet pipe G3 and a siphon drainage pipeline G4 are connected to the water storage container P2, and the horizontal position of a water outlet of the siphon drainage pipeline G4 outside the water storage container P2 is lower than the horizontal position of a water inlet of the siphon drainage pipeline G4 inside the water storage container P2. The air inlet and outlet pipe G3 is vertically upward outside the water storage container P2, and the horizontal position of the pipe orifice of the air inlet and outlet pipe G3 outside the water storage container P2 is higher than the highest position of the siphon drainage pipeline G4.
Fig. 2 is a schematic view of an experimental apparatus of the present invention, as shown in fig. 2, when an average height difference between a water level in a water storage container and a water level in a water storage container is 50 cm, through experimental tests under different weather conditions, it can be observed that a daily water level in the water storage container rises greatly in a clear weather, the water level rises slightly in a cloudy weather, the water level does not change in a cloudy weather, and under the same illumination intensity, the water amount of the air pressure pump is inversely proportional to the height difference between the water storage container and the water storage container.
In the embodiment, a potted green leaf plant which grows vigorously is selected, when the soil surface layer of the flowerpot is loose and has low moisture, water is slowly and thoroughly poured into the flowerpot, and when water flows out from the lower part of the flowerpot, the consumed water amount is measured, and the water consumption is about 0.5 liter. Under the condition of continuous sunny weather, the soil moisture of the flowerpot is observed after 7 days and is equivalent to that before the flowerpot is thoroughly watered, so that the water consumption of the selected flowerpot for thoroughly watering at one time is calculated to be about 0.5 liter, the watering period on the continuous sunny day is 7 days, and the daily water consumption is about 0.07 liter. A plastic barrel with the capacity of 5.0 liters is selected as the water storage container P3, a rigid plastic container with the capacity of 1.8 liters and higher transparency is selected as the water container P1 for the pneumatic pump, the plastic container with the capacity of 1.0 liter of the water storage container P2 is selected according to the water consumption 2 times of the water for one-time thorough pouring, the water inlet of the siphon drainage pipeline G4 is positioned in the middle of the water storage container P2, and the water storage container P2 is 50 centimeters higher than the water storage container P3. The water storage container P3 is full of water, the transparent air pressure container P1 is free of water, the water in the water storage container P2 reaches the water inlet position of the siphon drainage pipeline G4, and the flowerpot soil is thoroughly watered. The experimental device is placed at a position where balcony sunlight can irradiate together with the flowerpot, a small amount of water can be always seen in the water container P1 of the pneumatic pump through multiple-day observation, the water level in the water storage container P3 gradually drops, the water level in the water storage container P2 continuously rises, the container is filled with water automatically to drain along with different weather conditions for about 5 to 10 days, the water level drops to the position of a water inlet of a siphon drainage pipeline G4, soil moisture in the flowerpot gradually dries and then becomes wet from wetting, and the steps are repeated in a circulating mode.
The automatic watering device of the solar pneumatic pump utilizes the black light absorption material in the transparent container to absorb solar energy to directly heat the air in the container, and the air expands when heated to generate pressure to push water flow to flow out of the container. After the water container of the pneumatic pump is irradiated by sunlight, the temperature of the internal air rises, the gas expands, the air pressure rises, the check valve is automatically controlled, the water inlet pipeline is in a cut-off state, water flow is pushed to flow to the water storage container only through the water outlet pipe, the water level in the water storage container is continuously raised and flows to the air pipe connected to the water storage container, a siphon process is automatically formed after the water level in the air pipe exceeds the highest point of the siphon water outlet pipe, air flows back into the water storage container from the air pipe until the water level in the water storage container is reduced to be lower than the water inlet of the siphon water outlet pipe, the air enters the siphon water outlet pipe, the water flow in the pipe is emptied, and the siphon process is automatically finished. When the transparent closed container stops the sunlight irradiation, the temperature of the internal air is reduced, the air is contracted, the air pressure is reduced, the air pressure in the air pressure pumping water container is reduced, the water outlet pipeline is in a stop state under the automatic control of the check valve, the water surface atmospheric pressure of the water storage container pushes the water flow to continuously flow to the water storage container through the water inlet pipe, and the water inlet is stopped until the air pressure in the water pumping container is balanced. The invention completes the process of automatic water pumping and automatic watering, realizes watering according to requirements in the process of plant growth, and has stable and reliable system operation.
Claims (8)
