Abstract
本发明公开了海苔烘烤箱热能回收用的热交换管，热交换管为S型弯管，所述热交换管内侧比例卡接有减速圆环，所述热交换管外表面比例套设有若干导热条,所述导热条一侧安装有清理组件；所述清理组件包括固定圆板、清理圆板和导向杆，所述导热条一端固定安装有固定圆板，所述导热条远离固定圆板的一端套接滑动有清理圆板，所述导向杆安装在固定圆板上。本发明设置清理组件，通过固定圆板、清理圆板、固定板、滑动板、导向杆和限制圆板，对所附着在导热条表面的杂质进行刮除，保证了导热条表面的洁净，使得导热条可以充分与水接触，从而加速热交换。
The invention discloses a heat exchange tube used for heat energy recovery of a seaweed baking box. The heat exchange tube is an S-shaped elbow, the inner side of the heat exchange tube is proportionally clamped with a deceleration ring, and the outer surface of the heat exchange tube is proportionally sleeved with Several heat-conducting strips, one side of the heat-conducting strip is installed with a cleaning assembly; the cleaning assembly includes a fixed circular plate, a cleaning circular plate and a guide rod, one end of the heat-conducting strip is fixedly installed with a fixed circular plate, and the heat-conducting strip is far away from the fixed circle One end of the plate is sleeved and slid with a cleaning circular plate, and the guide rod is installed on the fixed circular plate. The present invention is provided with a cleaning assembly, which scrapes off the impurities attached to the surface of the heat-conducting strip through the fixing circular plate, the cleaning circular plate, the fixing plate, the sliding plate, the guide rod and the limiting circular plate, so as to ensure the cleanliness of the surface of the heat-conducting strip, so that the surface of the heat-conducting strip is kept clean. The thermally conductive strips can be fully in contact with the water, thereby accelerating the heat exchange.
Description
The application is a divisional application of an invention application named as a heat energy recovery and treatment system for baking sea sedge products, and the original application number is as follows: 202010739038.6, filing date 2020.07.28.
Technical Field
The invention relates to the technical field of baking of sea sedge products, in particular to a heat exchange tube for recovering heat energy of a sea sedge baking box.
Background
The sea sedge is a snack prepared by adding grease, salt and other seasonings after the sea sedge is baked, the baking is an indispensable environment in the sea sedge product process, most of the sea sedge products are baked by using an electric oven at present, water vapor is discharged in the baking process, heat energy in the baking process is discharged, the energy utilization rate is low in the baking process of the sea sedge products at present, and therefore the energy needs to be recycled and reused.
However, the sea sedge baking process in the market at present does not set the recovery and utilization of the generated steam, so that a large amount of heat is dissipated along with the steam during the manufacturing process, the heat energy released by the baking oven cannot be effectively utilized, the heat energy utilization efficiency is low, and a large amount of energy is wasted.
Disclosure of Invention
The invention provides a heat exchange tube for heat recovery of a sea sedge baking box, which can effectively solve the problems of low heat utilization efficiency and waste of a large amount of energy due to the fact that heat released by the baking box cannot be effectively utilized.
In order to achieve the purpose, the invention provides the following technical scheme:
heat exchange pipe of sea sedge toasting oven heat recovery usefulness, this heat exchange pipe are S type return bend, the inboard proportion joint of heat exchange pipe has the speed reduction ring, heat exchange pipe surface proportion cover is equipped with a plurality of heat conduction strips, the clearance subassembly is installed to heat conduction strip one side.
Preferably, the clearance subassembly includes fixed plectane, clearance plectane and guide bar, heat conduction strip one end fixed mounting has fixed plectane, the one end that fixed plectane was kept away from to the heat conduction strip cup joints and has slided the clearance plectane, the guide bar is installed on fixed plectane.
Preferably, a fixed plate is symmetrically and fixedly mounted on one side of the fixed circular plate, a guide rod is fixedly mounted on one side of the fixed plate, a sliding plate is symmetrically connected to the outer side surface of the cleaning circular plate, and one end of the guide rod penetrates through and is mounted on one side of the sliding plate.
Preferably, one end of the guide rod is fixedly provided with a limiting circular plate.
Preferably, the cleaning assembly further comprises a first electric push rod, a second electric push rod, a first connecting rod, a first fixing rod, a sliding column second fixing rod and a second connecting rod;
one end of the second connecting rod is fixedly arranged at one end of the second electric push rod, and the other end of the second connecting rod is fixedly connected with the sliding plate at the lowest layer;
one end of the first connecting rod is fixedly arranged at one end of the first electric push rod, and the other end of the first connecting rod is fixedly connected with the sliding plate on the uppermost layer;
one end of the first fixing rod is fixedly installed at the bottom end of the first connecting rod, a sliding column is installed at the bottom end of one side of the first fixing rod in a sliding mode, one end of the sliding column is fixedly installed at the end portion of one side of the second fixing rod, and one side of the second fixing rod is fixedly connected with the sliding plate.
Preferably, the clearance subassembly still includes the fixed mounting panel, the first electric push rod of fixed mounting panel one side fixed mounting, fixed mounting panel one side is kept away from first electric push rod position department fixed mounting and is had the second electric push rod.
Preferably, the diameter of the fixed circular plate is equal to that of the cleaning circular plate, the cleaning circular plate is embedded and mounted on one side of the heat conducting strip, and the length of the guide rod is equal to that of the heat conducting strip.
Preferably, heat exchange pipe one end is connected with the discharge tube through the adapter, drainage tank has all been seted up to discharge tube and heat exchange pipe inboard, the inboard one side of keeping away from heat exchange pipe of discharge tube is embedded and is installed the fan of giving vent to anger, the position department embedding of discharge tube one side near heat exchange pipe has the thermodetector.
Compared with the prior art, the invention has the beneficial effects that: the invention has scientific and reasonable structure and safe and convenient use:
1. set up the heat exchange assembly, through the blast pipe, first restriction valve, hot exchange pipe, the discharge pipe, the heat conduction strip, the speed reduction ring, fan and thermodetector of giving vent to anger, it is intraductal to have thermal vapor input to the heat exchange, reduce its flow velocity, it is at hot exchange pipe's heat exchange with higher speed, and detect gas discharge and make the temperature, thereby make the heat exchange effect perfect more, through the inlet tube, booster water pump and outlet pipe, circulate the water supply, the inside and outside temperature difference has been guaranteed, thereby heat exchange with higher speed, make the comdenstion water be convenient for collect through the water drainage tank.
2. Set up the clearance subassembly, through fixed plectane, clearance plectane, fixed plate, sliding plate, guide bar and restriction plectane, strike off the impurity that attaches on the heat conduction strip surface, guaranteed the clean on heat conduction strip surface for the heat conduction strip can be fully with water contact, thereby heat exchange with higher speed, through electric putter, connecting rod, dead lever, slip post and sliding tray, connect a plurality of continuous clearance plectanes, a plurality of clearance plectanes of being convenient for clear up simultaneously.
In conclusion, the heat exchange assembly is used for carrying out heat exchange, and the cleaning assembly is used for cleaning the heat conducting strip, so that the heat exchange efficiency is ensured, the heat recovery effect is the best, the energy is fully utilized through the cooperation of the assemblies, and the waste of the energy is reduced.
Drawings
The accompanying drawings, which are included to provide a further understanding of the invention and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention and together with the description serve to explain the principles of the invention and not to limit the invention.
In the drawings:
FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic structural view of the heat exchange assembly of the present invention;

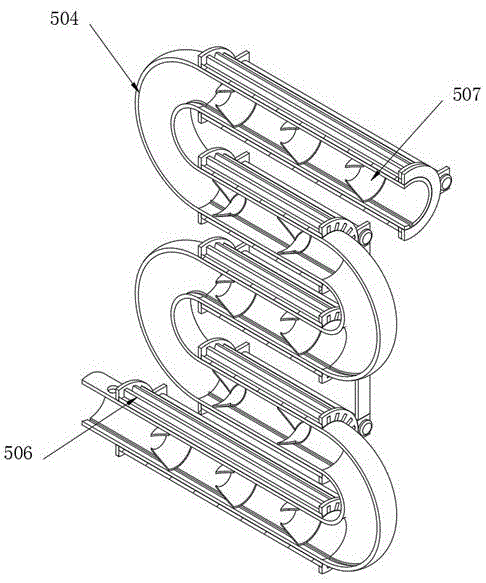

FIG. 3 is a schematic structural view of a heat exchange tube of the present invention;
FIG. 4 is a schematic structural view of the cleaning assembly of the present invention;
FIG. 5 is a schematic structural view of the reflow assembly of the present invention;
FIG. 6 is a schematic structural view of a first electric putter of the present invention;
FIG. 7 is a schematic structural view of the oven of the present invention;
FIG. 8 is a schematic structural view of the insulation cotton of the present invention;
reference numbers in the figures: 1. a baking oven; 2. an air outlet pipe; 3. an output pipe; 4. an exhaust fan;
5. a heat exchange assembly; 501. an exhaust pipe; 502. a first limiting valve; 503. a water storage tank; 504. a heat exchange tube; 505. a discharge pipe; 506. a heat conducting strip; 507. a decelerating ring; 508. a water discharge tank; 509. an air outlet fan; 510. a temperature detector; 511. a water inlet pipe; 512. a booster water pump; 513. a water outlet pipe; 514. a water tank sealing door; 515. an observation window; 516. a protective cover;
6. cleaning the assembly; 601. fixing the circular plate; 602. cleaning the circular plate; 603. a fixing plate; 604. a sliding plate; 605. a guide bar; 606. a restraining disk; 607. fixing the mounting plate; 608. a first electric push rod; 609. a first connecting rod; 610. a first fixing lever; 611. a sliding post; 612. a second fixing bar; 613. a second electric push rod; 614. a second connecting rod; 615. a sliding groove;
7. a reflow assembly; 701. drying the box; 702. t-shaped strips; 703. drying the net box; 704. a T-shaped groove; 705. a return pipe; 706. an air inlet pipe; 707. a second limiting valve; 708. supporting legs; 709. drying the sealing cover plate;
8. heat preservation cotton; 9. a third limiting valve; 10. a barometric pressure detector; 11. a thermometer.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are described herein for the purpose of illustration and explanation and not limitation.
Example (b): as shown in fig. 1-8, the heat energy recovery and treatment system for baking sea sedge products comprises a baking oven 1, wherein an air outlet pipe 2 is installed at the top end of the baking oven 1 in a penetrating manner, an output pipe 3 is installed at the top end of the air outlet pipe 2 through an adapter, an exhaust fan 4 is embedded into the inner side of the air outlet pipe 2, and the input end of the exhaust fan 4 is electrically connected with the external output end;
a heat exchange assembly 5 is installed on one side of the output pipe 3, and the heat exchange assembly 5 comprises an exhaust pipe 501, a first limiting valve 502, a water storage tank 503, a heat exchange pipe 504, a discharge pipe 505, a heat conduction strip 506, a speed reduction ring 507, a water discharge tank 508, an air outlet fan 509, a temperature detector 510, a water inlet pipe 511, a pressure water pump 512, a water outlet pipe 513, a water tank sealing door 514, an observation window 515 and a protective cover 516;
an exhaust pipe 501 is arranged on one side of an output pipe 3 through an adapter, a first limiting valve 502 is embedded and arranged on the end face of the exhaust pipe 501, the air inlet end of the exhaust pipe 501 penetrates through the top of a water storage tank 503, the exhaust pipe 501 is connected with a heat exchange pipe 504 through the adapter, the heat exchange pipe 504 is an S-shaped elbow pipe and slows down the flowing speed of air, so that the air has sufficient residence time in the heat exchange pipe 504, the inner diameter of an outlet pipe 2 is equal to that of the output pipe 3, the inner diameter of the output pipe 3 is equal to that of the heat exchange pipe 504, the stability of the air during output is ensured, one end of the heat exchange pipe 504 is connected with a discharge pipe 505 through the adapter, a plurality of heat conduction strips 506 are sleeved on the outer surface of the heat exchange pipe 504 in proportion, a speed reduction ring 507 is clamped on the inner side of the heat exchange pipe 504, drainage grooves 508 are respectively arranged on the inner sides of the discharge pipe 505 and the heat exchange pipe 504, and an air outlet fan 509 is embedded and arranged on the side of the discharge pipe 505 far away from the heat exchange pipe 504, a temperature detector 510 is embedded at the position of one side of the discharge pipe 505, which is close to the heat exchange pipe 504, a water inlet pipe 511 is arranged at the bottom end of one side of the water storage tank 503, which is close to the discharge pipe 505, in a penetrating way, a booster water pump 512 is arranged at one side of the water inlet pipe 511, a water outlet pipe 513 is arranged at one side of the water storage tank 503, which is close to the water inlet pipe 511, in a penetrating way, the inner diameter of the water inlet pipe 511 is equal to that of the water outlet pipe 513, thereby guaranteed the stability of business turn over water, storage water tank 503 one side is articulated to be installed water tank sealing door 514, water tank sealing door 514 length and width respectively with storage water tank 503 length and height equal, water tank sealing door 514 is connected with storage water tank 503 through the hasp, be convenient for open water tank sealing door 514 when having guaranteed to storage water tank 503 sealed, observation window 515 is installed to water tank sealing door 514 one side embedding, storage water tank 503 top is articulated to be installed visor 516, thermodetector 510 and booster pump 512 input and external power supply output electric connection.
A cleaning assembly 6 is arranged on one side of the heat conducting strip 506, and the cleaning assembly 6 comprises a fixed circular plate 601, a cleaning circular plate 602, a fixed plate 603, a sliding plate 604, a guide rod 605, a limiting circular plate 606, a fixed mounting plate 607, a first electric push rod 608, a first connecting rod 609, a first fixed rod 610, a sliding column 611, a second fixed rod 612, a second electric push rod 613, a second connecting rod 614 and a sliding groove 615;
one end of a heat conducting strip 506 is fixedly provided with a fixed circular plate 601, one end of the heat conducting strip 506, which is far away from the fixed circular plate 601, is sleeved with a cleaning circular plate 602 in a sliding manner, one side of the fixed circular plate 601 is symmetrically and fixedly provided with a fixed plate 603, the outer side surface of the cleaning circular plate 602 is symmetrically connected with a sliding plate 604, one side of the fixed plate 603 is fixedly provided with a guide rod 605, the diameter of the fixed circular plate 601 is equal to that of the cleaning circular plate 602, the cleaning circular plate 602 is embedded and arranged at one side of the heat conducting strip 506, the length of the guide rod 605 is equal to that of the heat conducting strip 506, so as to ensure the heat conducting strip 506 to be cleaned sufficiently, one end of the guide rod 605 is arranged at one side of the sliding plate 604 in a penetrating manner, one end of the guide rod 605 is fixedly provided with a limiting circular plate 606, the top end of the water storage tank 503 is fixedly provided with a fixed mounting plate 607, one side of the fixed mounting plate 607 is fixedly provided with a first electric push rod 608, one end of the first electric push rod 608 is fixedly provided with a first connecting rod 609, one end of the sliding plate 604 is fixedly connected with the sliding plate 604, a first fixing rod 610 is fixedly installed at the bottom end of a first connecting rod 609, a sliding column 611 is slidably installed at the bottom end of one side of the first fixing rod 610, one end of the sliding column 611 is fixedly installed at the end of one side of a second fixing rod 612, one side of the second fixing rod 612 is fixedly connected with a sliding plate 604, a second electric push rod 613 is fixedly installed at the position, far away from the first electric push rod 608, of one side of a fixing installing plate 607, the length of the first electric push rod 608 is equal to that of the second electric push rod 613, so that the heat conducting strip 506 is fully cleaned, a second connecting rod 614 is fixedly installed at one end of the second electric push rod 613, the length and the width of the first connecting rod 609 are respectively equal to that of the second connecting rod 614, a sliding groove 615 is symmetrically formed at the top end of the water storage tank 503, the width of the sliding groove 615 is equal to that of the second connecting rod 614, the sliding groove 615 corresponds to the positions of the first connecting rod 609 and the second connecting rod 614, so that the first connecting rod 609 and the second connecting rod 614 do not shift when moving, one end of the second connecting rod 614 is fixedly connected to the sliding plate 604, and the input ends of the first electric push rod 608 and the second electric push rod 613 are electrically connected to the output end of the external power source.
One end of the output pipe 3 is installed in the backflow component 7 in a penetrating mode, and the backflow component 7 comprises a drying box 701, a T-shaped strip 702, a drying net box 703, a T-shaped groove 704, a backflow pipe 705, an air inlet pipe 706, a second limiting valve 707, supporting legs 708 and a drying sealing cover plate 709;
one end of an output pipe 3 is installed at the top end of the drying box 701 in a penetrating manner, a T-shaped strip 702 is evenly and fixedly installed on the inner side of the drying box 701, a drying net box 703 is installed at the inner side of the drying box 701 in an embedded manner, a T-shaped groove 704 is formed in the position, close to the T-shaped strip 702, of the drying net box 703, the length and the width of the T-shaped strip 702 are respectively equal to those of the T-shaped groove 704, the drying net box 703 is installed at one side of the T-shaped strip 702 in an embedded manner so as to facilitate replacement of the drying net box 703, a return pipe 705 is installed at the middle part of the bottom end of the drying box 701 in a penetrating manner, one end of the return pipe 705 is installed at the bottom end of the baking box 1 in a penetrating manner, an air inlet pipe 706 is installed at one side of the top end of the drying box 701 in a penetrating manner, a second limiting valve 707 is installed at one side of the air inlet pipe 706, supporting legs 708 are fixedly installed at four corners of the bottom end of the drying box 701, a drying sealing cover plate 709 is hinged with the drying box 701, and connected with the drying box 701 through a lock catch, opening and closing of the drying box 701 is facilitated while sealability of the drying box 701 is ensured.
The working principle and the using process of the invention are as follows: when the sea sedge product is baked by the baking oven 1, the third limiting valve 9 is opened, the first limiting valve 502 and the second limiting valve 707 are closed, the exhaust fan 4 is started simultaneously, under the action of the exhaust fan 4, the water vapor is conveyed to the output pipe 3 from the baking oven 1 through the air outlet pipe 2, then is input into the drying box 701 through the output pipe 3, in the drying box 701, the gas passes through the drying net box 703 and reacts with the calcium oxide drying agent filled in the drying net box 703, the water vapor is absorbed by calcium oxide, so that the gas is rapidly dried, when the calcium oxide reacts with the water, a large amount of heat is released, the gas is reheated, the dried gas with heat flows back into the baking oven 1 again, and the heat is ensured to flow back into the baking oven 1 while the internal environment of the baking oven 1 is dried in the baking process of the sea sedge product, the heat is fully used, the baking of the seaweed product is accelerated, and meanwhile, the temperature and the air pressure inside the baking box 1 are detected through the thermometer 11 and the air pressure detector 10, so that the normal temperature and the normal air pressure inside the baking box 1 are ensured in the baking process of the seaweed product;
after the baking is finished, the third limiting valve 9 is closed, the booster water pump 512 is started at the same time, water is supplied to the water inlet pipe 511 through the booster water pump 512, the water level is observed through the observation window 515, when the water level reaches the required water level, the first limiting valve 502 is opened, so that the water vapor is output into the exhaust pipe 501 through the output pipe 3, the water vapor is conveyed into the heat exchange pipe 504 through the exhaust pipe 501, in the heat exchange pipe 504, the gas gradually slows down the flowing speed through the decelerating circular ring 507, the heat conducting area is increased outside the heat exchange pipe 504 through the heat conducting strip 506, thereby ensuring the sufficient heat exchange of the water vapor entering the heat exchange pipe 504, the condensed water generated in the process of the heat exchange of the water vapor flows into the water drainage tank 508 through the inner wall of the pipeline and is discharged through the water drainage tank 508, thereby avoiding the condensed water remaining in the pipeline and affecting the heat exchange effect of the pipeline, the gas after the heat exchange is discharged through the gas outlet fan 509 through the discharge pipe 505, during discharging, the temperature detector 510 detects the temperature of the discharged gas, so as to adjust the speed of the water flow, the exhaust fan 4 and the air outlet fan 509 according to the temperature, thereby ensuring the sufficiency of heat exchange and the full utilization of heat energy;
when the heat conducting strip 506 needs to be cleaned, the first electric push rod 608 is started to drive the first connecting rod 609 to move, so that the sliding plate 604 at the position of the first connecting rod 609 is driven to move, the first connecting rod 609 is driven to drive the first fixing rod 610 to move, so that the first fixing rod 610 slides along the sliding column 611, the slide rail is driven to the position of the second fixing rod 612 to move, and the sliding plate 604 at the position of the second fixing rod 612 is driven to move; the second electric push rod 613 is started to drive the second connecting rod 614 to move, so that the sliding plate 604 at the position of the second connecting rod 614 is driven to move, the sliding plate 604 is driven to slide along the guide rod 605, so that the cleaning circular plate 602 is driven to move, impurities attached to the surface of the heat conducting strip 506 are cleaned through the movement of the cleaning circular plate 602, so that the surface of the heat conducting strip 506 is clean, the heat conducting strip 506 can conduct heat fully during use, the contact area of the heat exchange tube 504 is increased by the fixing circular plate 601, the cleaning circular plate 602 and the guide rod 605, and the heat exchange efficiency is further accelerated;
in the heat exchange, gas flows into the heat exchange pipe 504, through opening the second limiting valve 707, make outside gas enter into the drying box 701 through the intake pipe 706, discharge to the baking box 1 after the drying of outside air through the drying box 701, thereby guaranteed the gas discharge back in the baking box 1, its inside atmospheric pressure is normal, also avoided outside air directly to discharge into the baking box 1 simultaneously, lead to its inside moist condition to appear once more, through discharging the outside air after drying into the baking box 1, can accelerate the cooling of sea sedge goods, make sea sedge goods cool off more, observe the inside temperature condition of baking box 1 through the thermometer 11, thereby be convenient for the staff to know inside temperature, avoid opening baking box 1 under the unknown condition, lead to the injury of high temperature to the human body.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that changes may be made in the embodiments and/or equivalents thereof without departing from the spirit and scope of the invention. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (8)
