CN113977275A - Drilling and polishing integrated machine for steel structure production and machining - Google Patents
Drilling and polishing integrated machine for steel structure production and machining Download PDFInfo
- Publication number
- CN113977275A CN113977275A CN202111480335.4A CN202111480335A CN113977275A CN 113977275 A CN113977275 A CN 113977275A CN 202111480335 A CN202111480335 A CN 202111480335A CN 113977275 A CN113977275 A CN 113977275A
- Authority
- CN
- China
- Prior art keywords
- grinding
- punching
- assembly
- gear
- steel structure
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
Images
Classifications
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B23—MACHINE TOOLS; METAL-WORKING NOT OTHERWISE PROVIDED FOR
- B23P—METAL-WORKING NOT OTHERWISE PROVIDED FOR; COMBINED OPERATIONS; UNIVERSAL MACHINE TOOLS
- B23P23/00—Machines or arrangements of machines for performing specified combinations of different metal-working operations not covered by a single other subclass
Landscapes
- Physics & Mathematics (AREA)
- Optics & Photonics (AREA)
- Engineering & Computer Science (AREA)
- Mechanical Engineering (AREA)
- Grinding Of Cylindrical And Plane Surfaces (AREA)
Abstract
本发明属于钻孔打磨加工技术领域，公开了一种钢结构生产加工用钻孔打磨一体机，包括：冲磨组件；所述冲磨组件包括由上至下依次连接的打磨件和冲孔件，且所述打磨件直径与冲孔件最大直径相等；工作台；所述工作台用于承载工件，且在所述工作台顶部嵌入有可转动的下磨盘；在所述下磨盘的中心位置处开设有可穿过冲磨组件的通孔，且所述通孔贯穿工作台；液压升降机构；所述液压升降机构用于驱使冲磨组件纵向升降，并在下降过程中执行工件冲孔，且在所述冲磨组件下降至最低处时，所述打磨件可与下磨盘连接；驱动电机；所述驱动电机用于在冲磨组件下降至最低处时，驱使打磨件与下磨盘同步转动；综上，高效实现工件的一体化冲孔打磨。
The invention belongs to the technical field of drilling and grinding processing, and discloses an integrated drilling and grinding machine for steel structure production and processing. , and the diameter of the grinding piece is equal to the maximum diameter of the punching piece; a workbench; the workbench is used to carry the workpiece, and a rotatable lower grinding disc is embedded on the top of the workbench; at the center of the lower grinding disc There is a through hole that can pass through the punching and grinding assembly, and the through hole penetrates the worktable; a hydraulic lifting mechanism; the hydraulic lifting mechanism is used to drive the punching and grinding assembly to vertically lift, and perform workpiece punching during the descending process, And when the punching and grinding assembly descends to the lowest position, the grinding piece can be connected with the lower grinding disc; the drive motor is used for driving the grinding piece and the lower grinding disc to rotate synchronously when the punching and grinding assembly descends to the lowest position ; To sum up, the integrated punching and grinding of the workpiece can be efficiently realized.
Description
Technical Field
The invention belongs to the technical field of drilling and polishing, and particularly relates to a drilling and polishing integrated machine for steel structure production and processing.
Background
At present, when carrying out the drilling of steel construction work piece and adding, its hole utilizes the drill bit on the drilling equipment to drill out usually, and current drilling equipment is after drilling is accomplished, and its partial deformation material can gather on the surface in hole to form downthehole burr, for the machining precision in improvement hole, then need further polish the processing to steel construction work piece surface and downthehole after drilling, but when polishing again, need carry out the change of drill bit and the secondary positioning of work piece, it is comparatively inconvenient to operate, influence machining efficiency.
Disclosure of Invention
In view of this, in order to solve the problems of inconvenient operation and low processing efficiency in the background art, the invention aims to provide a drilling and polishing all-in-one machine for producing and processing a steel structure.
In order to achieve the purpose, the invention provides the following technical scheme:
the utility model provides a steel construction production and processing is with drilling all-in-one of polishing, includes:
a punching and grinding assembly; the punching and grinding assembly comprises a grinding piece and a punching piece which are sequentially connected from top to bottom, and the diameter of the grinding piece is equal to the maximum diameter of the punching piece;
a work table; the workbench is used for bearing a workpiece, and a rotatable lower grinding disc is embedded into the top of the workbench; a through hole capable of penetrating through the grinding assembly is formed in the center of the lower grinding disc and penetrates through the workbench;
a hydraulic lifting mechanism; the hydraulic lifting mechanism is used for driving the punching and grinding assembly to lift longitudinally, punching a workpiece in the descending process, and the grinding piece can be connected with the lower grinding disc when the punching and grinding assembly descends to the lowest position;
a drive motor; the driving motor is used for driving the grinding piece and the lower grinding disc to synchronously rotate when the punching and grinding assembly descends to the lowest position.
Preferably, at least one mounting groove is formed in the inner wall of the lower grinding disc, and a movable limiting block is mounted in each mounting groove; at least one clamping groove is formed in the outer wall of the polishing piece, and when the abrasion component descends to the lowest position, the limiting block is moved to be clamped into the clamping groove.
Preferably, a spring is connected between the inner wall of the mounting groove and one end of the limiting block, a guide inclined plane is arranged at the other end of the limiting block, and the guide inclined plane is used for enabling the limiting block to be separated from the clamping groove when the punching and grinding assembly is lifted.
Preferably, the device further comprises: a mounting frame; the mounting bracket comprises two grudging posts and a crossbearer, the workstation is fixed in between two grudging posts, the crossbearer is fixed in two grudging post tops, just the crossbearer is parallel with the workstation, hydraulic pressure elevating system is fixed in on the crossbearer.
Preferably, a T-shaped seat is connected to the top of the punching and grinding assembly and in front of the hydraulic lifting mechanism, and the driving motor is installed in the T-shaped seat.
Preferably, the grinding piece is sleeved with an upper grinding disc which can only slide up and down, and the upper grinding disc, the grinding piece and the lower grinding disc are matched to grind synchronously.
Preferably, a rotatable threaded sleeve penetrates through the T-shaped seat, a threaded rod penetrates through the threaded sleeve, the threaded rod is connected with the threaded sleeve in a screwing mode, and the threaded rod is fixedly connected with the upper grinding disc.
Preferably, all be fixed with the diaphragm on two grudging posts of mounting bracket, two the diaphragm symmetry is located the both sides of punching and grinding subassembly, just be connected with rotatable lead screw between diaphragm and the workstation, the lead screw top spin closes and is connected with the clamp plate of liftable, just clamp plate and grudging post sliding fit.
Preferably, be connected with rotatable first gear and second gear between the crossbearer of diaphragm and mounting bracket the cover is equipped with and is fixed with the third gear on the thread bush, just first gear meshing in one side of second gear and with the coaxial assembly of lead screw, when the dashing and grinding subassembly rises to the highest point, the third gear meshing in the opposite side of second gear.
Preferably, a rotating motor is mounted on the cross frame of the mounting frame, and the rotating motor is used for driving the first gear or the second gear to rotate.
Compared with the prior art, the invention has the following beneficial effects:
(1) in the invention, the punching and grinding assembly integrating the upper grinding disc, the grinding piece and the punching piece is arranged, and the punching and grinding assembly is correspondingly connected with the lower grinding disc when the punching and grinding assembly is lowered to the lowest position, so that multidirectional grinding of the formed hole can be realized effectively and timely after punching is finished, the operation is convenient, and the processing precision and efficiency are higher.
(2) To above-mentioned lower mill, but its inside sets up the stopper that elastically stretches out and draws back, from this dash grind the subassembly and utilize when falling to the lowest department can the stopper accomplish polish and be connected between piece and the lower mill, simple structure, connection are stable.
(3) Aiming at the upper grinding disc, the upper grinding disc can be effectively driven to slide on the grinding piece by utilizing the matching of the threaded rod of the threaded sleeve, and then the distance between the upper grinding disc and the lower grinding disc when the punching and grinding assembly is lowered to the lowest position is adjusted, so that the whole device can be effectively suitable for workpieces with different thicknesses.
(4) A liftable pressure plate is correspondingly arranged on the upper grinding disc, so that workpieces with different thicknesses are effectively compressed and fixed; in addition, when the punching and grinding assembly ascends to the highest position, the three gears between the pressing plate and the upper grinding disc can form driving transmission, so that the consistency of the height of the pressing plate and the height of the upper grinding disc in a limited mode is effectively guaranteed, and the grinding precision is further guaranteed.
Drawings

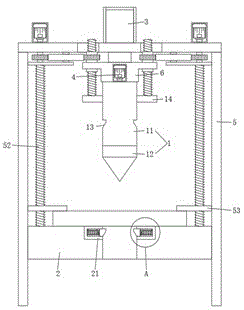

FIG. 1 is a schematic structural view of a punching and grinding device according to the present invention with a punching and grinding assembly raised to the highest position;
FIG. 2 is a schematic structural view of the punching and grinding device of the present invention with the punching and grinding assembly lowered to the lowest position;
FIG. 3 is a perspective view of a punch grinding assembly of the punch grinding apparatus of the present invention;
FIG. 4 is an enlarged view taken at A of FIG. 1 in accordance with the present invention;
FIG. 5 is an enlarged view of the invention at B in FIG. 2;
FIG. 6 is an enlarged view of the invention at C of FIG. 2;
in the figure: a punching and grinding component-1; a grinding part-11; punching a hole-12; a card slot-13; an upper grinding disc-14; a workbench-2; a lower grinding disc-21; a mounting groove-22; a limiting block-23; a spring-24; a hydraulic lifting mechanism-3; a drive motor-4; a mounting frame-5; a transverse plate-51; a lead screw-52; a pressure plate-53; a first gear-54; a second gear-55; a rotating motor-56; t-shaped seat-6; a threaded sleeve-61; a threaded rod-62; a third gear-63.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1 to 6, the present invention provides a drilling and polishing integrated machine for steel structure production and processing, and the device mainly includes the following structure:
a mounting frame 5, as can be seen from fig. 1 and 2, the mounting frame 5 is composed of two vertical frames and a cross frame;
a hydraulic lifting mechanism 3 fixed on the cross frame;
a T-shaped seat 6 fixed at the bottom of the hydraulic lifting mechanism 3;
a driving motor 4 arranged in the T-shaped seat 6;
the punching and grinding assembly 1 is connected to the bottom of the T-shaped seat 6, and the punching and grinding assembly 1 is driven to rotate by the driving motor 4; specifically, as can be seen from fig. 1 to 3, the punching and grinding assembly 1 includes a grinding member 11 and a punching member 12 which are connected in sequence from top to bottom, an upper grinding disc 14 is sleeved on the grinding member 11, and the diameter of the grinding member 11 is equal to the maximum diameter of the punching member 12;
the workbench 2 is fixed between the two vertical frames, and the workbench 2 is parallel to the transverse frame; specifically, the workbench 2 is used for bearing a workpiece, a rotatable lower grinding disc 21 is embedded in the top of the workbench 2, and the top of the workbench 2 is flush with the top of the lower grinding disc 21; a through hole which can pass through the grinding assembly 1 is arranged at the central position of the lower grinding disc 21, and the through hole passes through the workbench 2.
The structure disclosed above, wherein:
the hydraulic lifting mechanism 3 is used for driving the punching and grinding assembly 1 to vertically lift and carry out workpiece punching in the descending process, and when the punching and grinding assembly 1 descends to the lowest position, the lower grinding disc 21 is in contact with the lower surface of the workpiece, the grinding piece 11 is in contact with the inside of the forming hole, the upper grinding disc 14 is in contact with the upper surface of the workpiece, and in addition, the grinding piece 11 is connected with the lower grinding disc 21.
Specifically, regarding the connection between the grinding member 11 and the lower grinding disc 21, the following structure is adopted:
at least one mounting groove 22 is formed in the inner wall of the lower grinding disc 21, and a movable limiting block 23 is mounted in each mounting groove 22; a spring 24 is connected between the inner wall of the mounting groove 22 and one end of the limiting block 23, and a guide inclined plane is arranged at the other end of the limiting block 23;
at least one clamping groove 13 is formed in the outer wall of the polishing part 11, and when the abrasion component 1 descends to the lowest position, one end, provided with a guide inclined plane, of the limiting block 23 is moved to be clamped into the clamping groove 13.
As can be seen from the above and with reference to fig. 1 and 2, based on the above disclosed structure, the principle of the device of the present invention for performing workpiece punching and polishing is as follows:
in fig. 1, the hydraulic lifting mechanism 3 drives the punching and grinding assembly 1 to be positioned at the highest position, and at the moment, a workpiece to be machined can be placed on the workbench 2. Based on the position shown in fig. 1, the hydraulic lifting mechanism 3 is activated to drive the entire punch assembly 1 downward, so that the punch member 12 gradually approaches the workpiece and forms a punch hole in the workpiece.
In order to facilitate the formation of the hole, the bottom of the punching piece 12 is provided with a tip, so that in the descending process, when the punching piece 12 is contacted with the limiting block 23, the limiting block 23 is pushed by the inclined surface of the tip to compress the spring 24 and retract into the mounting groove 22, and the sequential downward movement of the punching piece 12 is further ensured; when the punching and grinding assembly 1 is lowered to the position shown in fig. 2, a hole required on the workpiece is punched and formed, meanwhile, the grinding piece 11 extends into the formed hole, the clamping groove 13 is positioned to the position corresponding to the limiting block 23, and the compressed spring 24 rebounds at the position, so that the limiting block 23 is clamped into the clamping groove 13, and the connection between the lower grinding disc 21 and the grinding piece 11 is realized.
In the position shown in fig. 2, the descending of the punching and grinding assembly 1 is stopped and the driving motor 4 is started, the driving motor 4 drives the punching and grinding assembly 1 to rotate, thereby realizing the synchronous rotation of the grinding piece 11, the upper grinding disc 14 and the lower grinding disc 21, wherein: the grinding piece 11 realizes grinding of the inner wall of the forming hole, the upper grinding disc 14 realizes grinding of the upper surface of the workpiece punching position, and the lower grinding disc 21 realizes grinding of the lower surface of the workpiece punching position, so that all-dimensional grinding of the corresponding position of the workpiece after punching is effectively realized.
Further, as for the upper grinding disc 14, the upper grinding disc is slidably sleeved on the grinding member 11, so that the height of the upper grinding disc 14 can be effectively adjusted. Specifically, the adjusting structure is as follows:
a rotatable threaded sleeve 61 penetrates through the T-shaped seat 6, a threaded rod 62 penetrates through the threaded sleeve 61, the threaded rod 62 is connected with the threaded sleeve 61 in a screwing mode, and the threaded rod 62 is fixedly connected with the upper grinding disc 14.
As can be seen from the above, the threaded sleeve 61 is rotated to form a screw transmission between the threaded sleeve 61 and the threaded rod 62, so as to drive the threaded rod 62 to move up and down, and further drive the upper grinding disc 14 to move up and down.
Further, in the present invention, there is also provided a structure for fixing a workpiece, and the structure includes:
both the two vertical frames of the mounting frame 5 are fixed with transverse plates 51, the two transverse plates 51 are symmetrically positioned at both sides of the punching and grinding assembly 1, a rotatable lead screw 52 is connected between the transverse plates 51 and the workbench 2, a liftable press plate 53 is connected on the lead screw 52 in a rotating and combining manner, and the press plate 53 is in sliding fit with the vertical frames.
From the above, the screw 52 and the pressing plate 53 can form a screw transmission by the rotation of the screw 52, so as to drive the pressing plate 53 to move up and down, and further the pressing plate 53 can be effectively pressed on the upper surface of the workpiece, thereby effectively fixing the workpiece.
In summary, the following linkage structure is provided with respect to the movement of the upper turn table 14 and the platen 53 as described above:
a rotatable first gear 54 and a rotatable second gear 55 are connected between the transverse plate 51 and the transverse frame of the mounting frame 5, a third gear 63 is fixedly sleeved on the threaded sleeve 61, the first gear 54 is meshed with one side of the second gear 55 and is coaxially assembled with the screw rod 52, and when the punching and grinding assembly 1 is lifted to the highest position, the third gear 63 is meshed with the other side of the second gear 55;
a rotating motor 56 is mounted on the cross frame of the mounting frame 5, and the rotating motor 56 is used for driving the first gear 54 or the second gear 55 to rotate.
In summary, in the position shown in fig. 1, the punching and grinding assembly 1 is positioned at the highest position, and at this time, the first gear 54, the second gear 55 and the third gear 63 are sequentially engaged, so that under the driving of the rotating motor 56, the three gears can rotate synchronously, so as to drive the screw rod 52 and the threaded sleeve 61 to rotate synchronously, thereby realizing the synchronous movement of the pressing plate 53 and the upper grinding disc 14, and the moving directions of the pressing plate 53 and the upper grinding disc 14 are the same. From the above, when the workpiece is fixed in the position shown in fig. 1, the positioning height of the upper grinding disc 14 can be effectively limited by the movement of the pressure plate 53 and the pressing of the workpiece, so as to ensure that the upper grinding disc 14 can accurately contact with the upper surface of the workpiece after the punch grinding assembly 1 is lowered.
After the workpiece is punched and polished, the hydraulic lifting mechanism 3 is firstly started, so that the position of the punching and polishing assembly 1 shown in fig. 2 is restored to the position shown in fig. 1, and then the rotating motor 56 is started, so that the upper grinding disc 14 and the pressure plate 53 are synchronously driven to move, the workpiece is conveniently replaced, and the matching accuracy between the upper grinding disc 14 and the pressure plate 53 is ensured.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
