Abstract

The invention provides a fully automatic labeling machine, which includes a label supply device, the label supply device is arranged on one side of the conveying device, the label supply device includes an adjustment mechanism and a label delivery mechanism arranged on the adjustment mechanism, and the label delivery mechanism includes a label along the label. A roll changing assembly, a label cutting assembly, a label receiving assembly, a label stripping assembly, a pulling assembly and a coil material assembly arranged in sequence in the running direction of the belt; wherein, the roll changing assembly comprises a rotary settable and a first drive unit for driving the rotary table to rotate , the turntable is provided with two oppositely arranged material trays for placing label material rolls and two oppositely arranged guide rollers, and the two material trays and the two guide rollers are distributed in a cross-shaped structure; the label cutting assembly includes a blade and a a second driving unit for driving the blade to move up and down to cut the tape longitudinally; the target receiving assembly includes a longitudinally arranged tape pick-up roller and a third drive unit for driving the tape pick-up roller to approach one of the material trays. The labeling machine has the function of changing rolls without stopping, thereby improving the production efficiency of the labeling machine.

Description

A fully automatic labeling machine

technical field

The invention relates to the technical field of automatic production equipment, in particular to a fully automatic labeling machine.

Background technique

In recent years, due to the rapid development of the food, beverage and pharmaceutical industries, coupled with consumers' increasing requirements for the appearance of food, beverage and pharmaceutical product packaging, relevant enterprises in my country have also paid great attention to the research and development of packaging equipment. This includes the development of labeling machines, and the market prospects for labeling are becoming more and more broad.

The labeling machine is a very important link at the end of the packaging line. The automatic labeling machine is an automatic device that sticks labels on the outer surface of the produced products. The automatic labeling machine largely solves the problems of low efficiency, low quality, irregularity and unsightly appearance of traditional manual labeling. However, after investigation, it was found that almost all existing labeling machines in our country are fed by a single tray. This labeling machine will stop to change the label whenever the label is used up, which will consume a lot of production time and greatly reduce the production time. The production efficiency of the labeling machine is reduced; in addition, the existing labeling machine also has shortcomings such as inaccurate labeling and air bubbles in the labels. Therefore, it is particularly necessary to develop a high-precision, high-quality automatic labeling machine that can automatically change rolls and splice materials.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a fully automatic labeling machine to solve at least one technical problem raised in the background art.

In order to achieve the above purpose, the present invention provides a fully automatic labeling machine, comprising: a frame; a conveying device, arranged on the frame, for conveying bottles to be labelled; a label supplying device, located in the conveying device Set on one side, the label supply device includes an adjustment mechanism and a label feeding mechanism arranged on the adjustment mechanism, and the label feeding mechanism includes a roll changing assembly, a label cutting assembly, and a label receiving assembly arranged in sequence along the running direction of the label tape. , stripping components, pulling components and coil components; of which,

The roll changing assembly includes a turntable arranged to rotate and a first drive unit for driving the turntable to rotate. The turntable is provided with two oppositely arranged material trays for placing label material rolls and two oppositely arranged material trays. The guide rollers, two of the material trays and the two guide rollers are distributed in a cross-shaped structure; the label cutting assembly includes a blade and a second drive unit for driving the blade to move up and down to cut the label longitudinally; the tagging assembly includes a longitudinally disposed splicing roller and a third drive unit for driving the splicing roller close to one of the feed trays; and,

The label covering device is arranged on one side of the conveying device, and is used for pressing the label peeled off from the label tape by the label peeling assembly to the surface of the bottle.

Further, the adjustment mechanism includes a horizontal adjustment component, a swing angle adjustment component and an up-down adjustment component, and the label feeding mechanism is arranged on the up-down adjustment component; wherein,

the up-down adjustment assembly is arranged on the swing angle adjustment assembly;

The horizontal adjustment assembly includes a longitudinal adjustment module and a lateral adjustment module arranged on the longitudinal adjustment module;

The swing angle adjustment assembly is arranged on the lateral adjustment module, and is used for adjusting the inclination angle of the up-down adjustment assembly.

Further, the longitudinal adjustment module includes a first installation substrate and a first adjustment unit disposed on the first installation substrate; the lateral adjustment module includes a second adjustment unit;

The structure of the first adjustment unit is the same as that of the second adjustment unit;

The first adjustment unit includes two fixed blocks arranged opposite to each other and a first sliding block arranged between the two fixed blocks. A first screw rod is passed through the first sliding block, and the first The slider is connected with the first screw rod through a screw nut; one end of the first screw rod is rotatably connected with one of the fixed blocks, and the other end rotates out from the other fixed block, and passes through the other piece of the fixed block. A first adjusting handwheel is installed on one end that comes out; a first guide rod is arranged in parallel on both sides of the first screw rod, and the first guide rod slides through the first sliding block, and the first Both ends of the guide rod are respectively fixedly connected with the corresponding fixing blocks;

the fixing block of the first adjusting unit is fixedly mounted on the first mounting substrate;

the fixing block of the second adjusting unit is fixedly installed on the first sliding block;

The swing angle adjusting assembly is fixedly mounted on the first sliding block of the second adjusting unit.

Further, the swing angle adjustment assembly includes a bottom plate, a swing plate whose one end is rotatably connected to the bottom plate, and a swing angle adjustment unit for adjusting the inclination angle of the swing plate;

One end of the bottom plate is provided with a connecting block, and the swinging plate is rotatably connected to the connecting block;

An angle block is connected between the outer wall of the other end of the swing plate and the outer wall of the bottom plate, the bottom of the angle block is fixedly connected to the outer wall of the bottom plate, an arc hole is opened on the angle block, and the angle block passes through the bottom plate. The bolts penetrated in the arc-shaped holes are connected with the swinging plate, and the bolts are screwed in the swinging plate;

The swing angle adjustment unit includes a first angle adjustment block and a second angle adjustment block that are oppositely arranged, and the first angle adjustment block and the second angle adjustment block are connected by a second screw rod, and the second screw rod The second angle adjustment block is radially traversed in the second angle adjustment block, the second angle adjustment block is connected with the second screw rod through a screw nut, and one end of the second screw rod is It is rotatably connected with the middle part of the first angle adjustment block, and a second adjustment hand wheel is installed on the other end of the second screw rod; the two ends of the first angle adjustment block are rotatably connected with the swing plate, so Both ends of the second angle adjustment block are rotatably connected with the bottom plate;

the bottom plate is fixedly mounted on the first sliding block of the second adjusting unit;

The up-and-down adjustment assembly is arranged on the swing plate.

Further, the up-down adjustment assembly includes an upper fixing base and a lower fixing base which are arranged opposite to each other, a third screw rod connected between the upper fixing base and the lower fixing base, and a third screw rod connected to the third screw rod. two mounting substrates, the second mounting substrate is connected to the third screw rod through a screw nut;

The bottom end of the third screw rod is rotatably connected with the lower fixing seat, and the top end of the third screw rod is rotated and passed out of the upper fixing seat and a third adjusting handwheel is installed;

Three second guide rods are also arranged between the upper fixed seat and the lower fixed seat, and the three second guide rods are distributed in a circular array with the third screw rod as the center, and the two ends of the second guide rod are respectively be fixedly connected with the upper fixing base and the lower fixing base;

the second mounting substrate is slidably connected to the second guide rod through a sliding sleeve;

the lower fixing seat is fixedly mounted on the swinging plate;

The label feeding mechanism is arranged on the second mounting substrate.

Further, the first drive unit includes a first step motor and a ratchet;

The ratchet is fixedly installed on the bottom of the turntable and arranged concentrically with the turntable; the bottom of the turntable is provided with a concentric connecting shaft, and the connecting shaft passes through the ratchet downward and is connected to the The first step is to connect the motor;

The turntable is rotatably arranged in the second installation base plate; a pawl engaged with the ratchet wheel is rotatably arranged on the lower surface of the second installation base plate, and the middle part of the pawl is connected to the second installation base plate through a tension spring. The lower surface of the mounting substrate is elastically connected;

The first stepping motor is fixedly mounted on the lower surface of the second mounting base through a fixing cover, the fixing cover is fixedly connected to the lower surface of the second mounting base, and the ratchet wheel and the pawl are both located on the lower surface of the second mounting base. The first step motor is fixedly connected to the bottom outer surface of the fixed cover through screws.

Further, the second driving unit includes an upper fixing plate and a lower fixing plate that are oppositely arranged up and down, a fourth screw rod connected between the upper and lower fixing plates, and a fourth screw rod for driving the fourth screw rod to rotate the second stepper motor;

The bottom end of the fourth screw rod is rotatably connected to the lower fixing plate, and the top end of the fourth screw rod is drivingly connected to the second stepping motor through a second coupling, and the second stepping motor is fixedly installed on said upper fixing plate;

One end of the blade is connected to the fourth screw rod through an installation block, the installation block is connected to the fourth screw rod through a screw nut, and the blade is fixedly connected to the installation block through a bolt;

The lower fixing plate is fixedly mounted on the second mounting substrate.

Further, the third driving unit includes an air cylinder, and the air cylinder is fixedly mounted on the second mounting substrate through a cylinder seat;

The cylinder seat is in an inverted T shape, including a horizontally arranged connecting plate and a vertical plate vertically arranged on the connecting plate, the cylinder is horizontally installed on one side wall of the vertical plate, and the The telescopic rod of the cylinder passes through the vertical plate;

The belt splice roller is connected with the telescopic rod of the cylinder through a mounting seat, a third guide rod is connected between the mounting seat and the vertical plate, and the third guide rod traverses the vertical plate. inside the plate, and is slidably connected to the vertical plate through a sliding sleeve; one end of the third guide rod is fixedly connected to the mounting seat.

Further, the traction assembly includes a first upper mounting plate and a first lower mounting plate that are arranged up and down opposite to each other, a driving traction wheel that is rotatably arranged between the first upper mounting plate and the first lower mounting plate, and a The first pressing roller and the second pressing roller on both sides of the driving pulley; wherein,

The first upper mounting plate and the first lower mounting plate are connected by support columns; the first lower mounting plate is fixedly mounted on the second mounting substrate;

The top end of the axle of the driving traction wheel is rotatably connected with the first upper mounting plate, and the bottom end of the axle of the driving traction wheel is rotated downward from the first lower mounting plate and the second mounting base plate and is installed with a a synchronizing wheel, the synchronizing wheel is drivingly connected with the coil assembly through a synchronous belt;

The first pressing roller and the second pressing roller both include a pressing roller shaft, the bottom end of the pressing roller shaft is rotatably connected to the first lower mounting plate, and the top end of the pressing roller shaft is connected from the first upper mounting plate. The mounting plate rotates and passes out, and a grip wheel is installed on the top of the pressing roller shaft;

An adjusting screw is screwed on the end surface of the first upper mounting plate, and one end of the adjusting screw which penetrates into the first upper mounting plate is abutted on the pressing roller shaft.

Further, the label covering device includes a rolling belt mechanism and a pressing plate mechanism that are oppositely arranged, the rolling belt mechanism and the pressing plate mechanism are respectively located on both sides of the conveying device, and the rolling belt mechanism and the label stripping assembly. arranged on the same side of the conveying device;

The rolling belt mechanism includes a belt and a deceleration motor that drives the belt to rotate through a friction wheel;

The pressing plate mechanism includes an adjusting assembly and an elastic pressing plate assembly; wherein, the adjusting assembly includes an up-down adjusting unit and a horizontal adjusting unit;

The up-down adjustment unit includes a second upper mounting plate and a second lower mounting plate arranged up and down relative to each other, a fourth guide rod connected between the second upper mounting plate and the second lower mounting plate, and a sliding sleeve connected to the second upper mounting plate and the second lower mounting plate. The second sliding block is slidably connected to the fourth guide rod, and the fifth screw rod is used to drive the second sliding block to slide up and down along the fourth guide rod. The fifth screw rod is connected, and a fourth adjusting handwheel is installed after the top end of the fifth screw rod passes through the second upper mounting plate; the second lower mounting plate is fixedly installed on one of the conveying devices. on the lateral outer wall;

The horizontal adjustment unit includes a swing shaft and a third installation plate that are horizontally opposite to each other, two fifth guide rods respectively connected between the swing shaft and the two ends of the third installation plate, and two fifth guide rods traversing the third installation plate. the sixth screw rod in the mounting plate; the two fifth guide rods traverse the second slider, the fifth guide rod is slidably connected with the second slider; the sixth screw rod It is located between the two fifth guide rods and is arranged in parallel with the fifth guide rod. One end of the sixth screw rod is rotatably connected with the second slider, and a fifth adjustment handwheel is installed on the other end. ; The third mounting plate is connected with the sixth screw through a screw nut;

The elastic pressing plate assembly includes a supporting plate and a pressing plate arranged oppositely, and the supporting plate and the pressing plate are connected by four elastic pieces distributed in a cross shape, and the elastic pieces include a connecting rod and a connecting rod sleeved on the connecting plate. A spring on the rod; one end of the connecting rod is fixedly connected to the pressure plate, and the other end of the connecting rod is threadedly connected with a nut after passing through the support plate, and the spring is located between the support plate and the pressure plate The side of the pressing plate away from the support plate is rotatably connected to the swing shaft through a rotating block, the rotating block is sleeved on the swing shaft, and the rotating block is connected to the swing shaft through tightening screws The shaft is locked, and the fastening screw is screwed into the rotating block.

The fully automatic labeling machine provided by the present invention has the following technical effects:

(1) The label supply device of this labeling machine is designed with a roll changing component, a label cutting component, and a label receiving component, which realizes the non-stop label changing function of the labeling machine. Compared with the single-tray feeding labeling machine, the labeling machine saves a lot of time for changing labels and improves the labeling production efficiency.

(2) The adjustment mechanism of the labeling machine can adjust the inclination of the label feeding mechanism, and the inclination of the pressing plate of the label covering device can also be adjusted correspondingly, so that the labeling machine can realize the function of labeling the conical flask. This labeling machine is not only limited to labeling cylindrical bottles, but also suitable for labeling conical bottles, expanding the scope of application of the labeling machine.

(3) The traction component of this labeling machine is designed with three rollers side by side, namely the first pressing roller, the active traction roller, and the second pressing roller, so that the label passes through the second pressing roller, the first pressing roller and the active traction successively. The gap between the wheels is tightly pressed on the active traction wheel, so that the label can obtain two traction forces, avoiding the error of label feeding caused by slippage between the label and the traction wheel, and improving the accuracy of label feeding. . An elastic piece is designed on the pressing plate of the label covering device to give a certain buffering distance to the pressing plate, so as to avoid problems such as bubbles and unevenness on the label caused by insufficient pressing force caused by the uncomfortable adjustment of the distance between the pressing plate and the rolling belt. The labeling quality of the labeling machine is improved.

Description of drawings

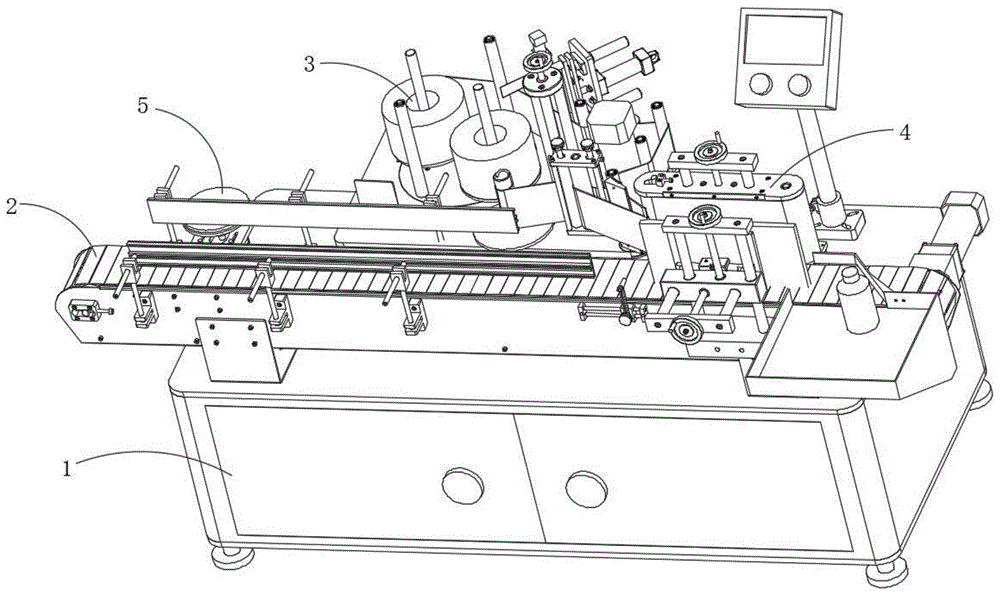

1 is a schematic structural diagram of a fully automatic labeling machine provided by an embodiment of the present invention;

2 is a schematic structural diagram 1 of a label supply device of a fully automatic labeling machine provided by an embodiment of the present invention;

3 is a second structural schematic diagram of a label supply device of a fully automatic labeling machine provided by an embodiment of the present invention;

4 is a schematic structural diagram three of a label supply device of a fully automatic labeling machine provided by an embodiment of the present invention;

5 is a schematic structural diagram of an adjustment mechanism of a fully automatic labeling machine according to an embodiment of the present invention;

6 is a schematic structural diagram of a longitudinal adjustment module of a fully automatic labeling machine according to an embodiment of the present invention;

7 is a schematic structural diagram of a horizontal adjustment component of a fully automatic labeling machine according to an embodiment of the present invention;

8 is a schematic structural diagram of a swing angle adjustment component of a fully automatic labeling machine according to an embodiment of the present invention;

9 is a schematic diagram of an installation structure of an up-down adjustment component of a fully automatic labeling machine according to an embodiment of the present invention;

10 is a schematic structural diagram of a roll changing assembly of a fully automatic labeling machine according to an embodiment of the present invention;

11 is a schematic diagram 1 of the internal structure of a roll changing assembly of a fully automatic labeling machine according to an embodiment of the present invention;

12 is a second schematic diagram of the internal structure of a roll changing assembly of a fully automatic labeling machine according to an embodiment of the present invention;

13 is a schematic structural diagram of a label cutting assembly of a fully automatic labeling machine according to an embodiment of the present invention;

14 is a schematic structural diagram of a label receiving assembly of a fully automatic labeling machine according to an embodiment of the present invention;

15 is a schematic structural diagram of a traction assembly of a fully automatic labeling machine according to an embodiment of the present invention;

16 is a schematic structural diagram of a labeling device of an automatic labeling machine provided by an embodiment of the present invention;

17 is a schematic structural diagram of an elastic pressing plate assembly of an automatic labeling machine according to an embodiment of the present invention.

In the figure: frame 1, conveying device 2, label supply device 3, label covering device 4, bottle separating device 5, adjustment mechanism 6, roll changing assembly 7, label cutting assembly 8, label receiving assembly 9, label stripping assembly 10, Traction assembly 11, coiling assembly 12, turntable 13, material tray 14, guide roller 15, blade 16, belt splice roller 17, level adjustment assembly 18, swing angle adjustment assembly 19, up and down adjustment assembly 20, fixed block 21, first A slider 22, a first screw rod 23, a first adjustment handwheel 24, a first guide rod 25, a first mounting base plate 26, a base plate 27, a swing plate 28, a connecting block 29, an angle block 30, an arc hole 31, The first angle adjustment block 32, the second angle adjustment block 33, the second screw rod 34, the second adjustment handwheel 35, the upper fixing seat 36, the lower fixing seat 37, the third screw rod 38, the second mounting base plate 39, the first Three adjusting handwheel 40 , second guide rod 41 , first stepping motor 42 , ratchet 43 , first coupling 44 , ratchet 45 , tension spring 46 , fixing cover 47 , upper fixing plate 48 , lower fixing plate 49 , the fourth screw 50, the second stepping motor 51, the second coupling 52, the mounting block 53, the cylinder 54, the cylinder seat 55, the mounting seat 56, the third guide rod 57, the first upper mounting plate 58, the first The lower mounting plate 59, the driving pulley 60, the first pressing roller 61, the second pressing roller 62, the support column 63, the synchronizing wheel 64, the pressing roller shaft 65, the gripping wheel 66, the adjusting screw 67, the rolling belt mechanism 68, Pressing plate mechanism 69, belt 70, second upper mounting plate 71, second lower mounting plate 72, fourth guide rod 73, second slider 74, fifth screw rod 75, fourth adjustment hand wheel 76, support plate 77, Pressure plate 78, connecting rod 79, spring 80, fifth guide rod 81, third mounting plate 82, sixth screw rod 83, fifth adjusting handwheel 84, swing shaft 85, rotating block 86, tightening screw 87, drive motor 88. Radius measuring sensor 89.

Detailed ways

The specific embodiments of the present invention will be described in more detail below with reference to the schematic diagrams. The advantages and features of the present invention will become more apparent from the following description. It should be noted that, the accompanying drawings are all in a very simplified form and in inaccurate scales, and are only used to facilitate and clearly assist the purpose of explaining the embodiments of the present invention.

As shown in FIGS. 1-17 , a fully automatic labeling machine provided by an embodiment of the present invention includes a frame 1 and a conveying device 2 arranged on the frame 1. The conveying device 2 is used for conveying the labels to be labelled. bottle. Along the conveying direction of the conveying device 2, a bottle dividing device 5, a label supplying device 3 and a label covering device 4 are arranged in sequence. The bottle dividing device 5 is used to separate the conveyed bottles by a certain distance, so that the subsequent precise labeling operation is easier to achieve.

Specifically, the label supply device 3 is arranged on one side of the conveying device 2 . The label supply device 3 includes an adjustment mechanism 6 and a label feeding mechanism arranged on the adjustment mechanism 6. The label feeding mechanism includes a roll changing assembly 7, a label cutting assembly 8, a label receiving assembly 9, and a label stripping assembly arranged in sequence along the running direction of the label tape. 10. Traction assembly 11 and coil assembly 12.

The adjustment mechanism 6 includes a horizontal adjustment component 18 , a swing angle adjustment component 19 and an up-down adjustment component 20 , and the label feeding mechanism is arranged on the up-down adjustment component 20 . The vertical adjustment assembly 20 is provided on the swing angle adjustment assembly 19, the horizontal adjustment assembly 18 includes a longitudinal adjustment module and a lateral adjustment module disposed on the longitudinal adjustment module, and the swing angle adjustment assembly 19 is disposed on the lateral adjustment module for adjusting Adjust the tilt angle of the assembly 20 up and down.

Specifically, the vertical adjustment module includes a first installation substrate 26 and a first adjustment unit disposed on the first installation substrate 26 , and the lateral adjustment module includes a second adjustment unit. The structure of the first adjustment unit is the same as that of the second adjustment unit. .

Specifically, the first adjustment unit includes two fixed blocks 21 arranged opposite to each other and a first sliding block 22 disposed between the two fixed blocks 21. The first sliding block 22 is provided with a first screw rod 23. The slider 22 is connected to the first lead screw 23 through a lead screw nut. One end of the first screw rod 23 is rotatably connected with one of the fixing blocks 21 , the other end rotates out from the other fixing block 21 , and a first adjusting handwheel 24 is installed on the pierced end. Two sides of the first screw rod 23 are provided with first guide rods 25 in parallel. The first guide rods 25 slide through the first slider 22 . The fixing block 21 of the first adjusting unit is fixedly installed on the first mounting base plate 26, the fixing block 21 of the second adjusting unit is fixedly installed on the first sliding block 22, and the swing angle adjusting assembly 19 is fixedly installed on the first sliding block 22 of the second adjusting unit. on a slider 22 .

Specifically, the swing angle adjustment assembly 19 includes a base plate 27 , a swing plate 28 , one end of which is rotatably connected to the base plate 27 , and a swing angle adjustment unit for adjusting the inclination angle of the swing plate 28 . One end of the bottom plate 27 is provided with a connecting block 29, and the swinging plate 28 is rotatably connected to the connecting block 29 through a pin shaft. An angle block 30 is connected between the outer wall of the other end of the swing plate 28 and the outer wall of the bottom plate 27. The bottom of the angle block 30 is fixedly connected to the outer wall of the bottom plate 27. The angle block 30 is provided with an arc hole 31, and the angle block 30 passes through the arc hole 31. The bolts in the shaped holes 31 are connected with the swinging plate 28 , and the bolts are screwed into the swinging plate 28 . The swing angle adjustment unit includes a first angle adjustment block 32 and a second angle adjustment block 33 that are oppositely arranged. The first angle adjustment block 32 and the second angle adjustment block 33 are connected by a second screw rod 34 , and the second screw rod 34 The second angle adjustment block 33 is radially traversed in the second angle adjustment block 33, the second angle adjustment block 33 is connected with the second screw rod 34 through the screw nut, and one end of the second screw rod 34 is connected with the first angle adjustment block 33. The middle part of the block 32 is rotatably connected through a bearing, and a second adjusting hand wheel 35 is installed on the other end of the second screw rod 34 . Both ends of the first angle adjustment block 32 are rotatably connected to the swing plate 28 through pins, and both ends of the second angle adjustment block 33 are rotatably connected to the bottom plate 27 through pins. The bottom plate 27 is fixedly installed on the first sliding block 22 of the second adjusting unit, and the up-and-down adjusting assembly 20 is arranged on the swinging plate 28 . By rotating the second adjusting hand wheel 35, the second screw rod 34 is driven to rotate, and the second screw rod 34 rotates through the screw nut to drive the swing plate 28 to rotate around the pin shaft connected to the connecting block 29, thereby adjusting the inclination angle of the swing plate 28.

Specifically, the up-down adjustment assembly 20 includes an upper fixing base 36 and a lower fixing base 37 which are arranged opposite to each other, a third screw rod 38 connected between the upper fixing base 36 and the lower fixing base 37 , and a third screw rod 38 The second mounting base 39 is connected to the third screw 38 through a screw nut. The bottom end of the third screw rod 38 is rotatably connected with the lower fixing base 37 , and the top end of the third screw rod 38 rotates out from the upper fixing base 36 and is installed with a third adjusting handwheel 40 . There are also three second guide rods 41 between the upper fixing base 36 and the lower fixing base 37 . The three second guide rods 41 are distributed in a circular array with the third screw rod 38 as the center of the circle. The fixing base 36 and the lower fixing base 37 are fixedly connected. The second mounting base plate 39 is slidably connected to the second guide rod 41 through a sliding sleeve, and the lower fixing base 37 is fixedly mounted on the swinging plate 28 . The marking mechanism is provided on the second mounting substrate 39 .

In the present embodiment, the roll changing assembly 7 includes a rotatable turntable 13 and a first drive unit for driving the turntable 13 to rotate. The turntable 13 is provided with two oppositely arranged material trays 14 and 14 for placing label rolls. The two oppositely arranged guide rollers 15, the two material trays 14 and the two guide rollers 15 are distributed in a cross-shaped structure.

Specifically, in this embodiment, the first driving unit includes a first stepping motor 42 and a ratchet 43 . The ratchet wheel 43 is fixedly mounted on the bottom of the turntable 13 and arranged concentrically with the turntable 13 . The bottom of the turntable 13 is provided with a concentric connecting shaft, and the connecting shaft passes through the ratchet 43 downward and is connected to the first stepping motor 42 through the first coupling 44 . The turntable 13 is rotatably mounted in the second mounting substrate 39 . The lower surface of the second mounting base 39 is rotatably provided with a pawl 45 that engages with the ratchet 43. The middle of the pawl 45 is elastically connected to the lower surface of the second mounting base 39 through a tension spring 46 to force the ratchet 43 to keep the pawl 45 in contact. Thereby, the turntable 13 is prevented from being reversed.

The first stepping motor 42 is fixedly mounted on the lower surface of the second mounting base 39 through the fixing cover 47 , the fixing cover 47 is fixedly connected to the lower surface of the second mounting base 39 , and the ratchet wheel 43 and the pawl 45 are located in the fixing cover 47 . . The first step motor 42 is fixedly connected to the bottom outer surface of the fixed cover 47 by screws.

The marking assembly 8 includes a blade 16 and a second driving unit for driving the blade 16 to move up and down to longitudinally cut the marking tape. In this embodiment, the second driving unit includes an upper fixing plate 48 and a lower fixing plate 49 which are arranged opposite to each other, a fourth screw rod 50 connected between the upper fixing plate 48 and the lower fixing plate 49, and a fourth screw for driving the fourth screw A second stepper motor 51 that rotates the lever 50 . The bottom end of the fourth screw rod 50 is rotatably connected to the lower fixing plate 49, and the top end of the fourth screw rod 50 is connected to the second stepping motor 51 through the second coupling 52, and the second stepping motor 51 is fixedly installed on the upper fixing plate. 48 on. One end of the blade 16 is connected to the fourth screw rod 50 through an installation block 53, the installation block 53 is connected to the fourth screw rod 50 through a screw nut, and the blade 16 is fixedly connected to the installation block 53 through a bolt. The lower fixing plate 49 is fixedly mounted on the second mounting substrate 39 .

The label receiving assembly 9 includes a longitudinally arranged tape pick-up roller 17 and a third drive unit for driving the tape pick-up roller 17 to approach one of the trays 14 . In this embodiment, the third driving unit includes an air cylinder 54 , and the air cylinder 54 is fixedly mounted on the second mounting substrate 39 through the cylinder seat 55 . The cylinder seat 55 is in an inverted T shape, including a horizontally arranged connecting plate and a vertical plate vertically arranged on the connecting plate. The cylinder 54 is horizontally installed on one side wall of the vertical plate. Out of the board. The splicing roller 17 is connected with the telescopic rod of the cylinder 54 through the mounting seat 56, and a third guide rod 57 is connected between the mounting seat 56 and the vertical plate. The sleeve is slidably connected to the vertical plate. One end of the third guide rod 57 is fixedly connected to the mounting seat 56 .

The traction assembly 11 includes a first upper mounting plate 58 and a first lower mounting plate 59 arranged up and down opposite to each other, a driving traction wheel 60 rotatably arranged between the first upper mounting plate 58 and the first lower mounting plate 59, and a driving traction wheel 60 arranged on the driving The first pressing roller 61 and the second pressing roller 62 on both sides of the traction sheave 60 . The first upper mounting plate 58 and the first lower mounting plate 59 are connected by the support column 63 , and the first lower mounting plate 59 is fixedly mounted on the second mounting substrate 39 .

The top end of the axle of the driving pulley 60 is rotatably connected with the first upper mounting plate 58 , and the bottom end of the axle of the driving traction wheel 60 is rotated downward from the first lower mounting plate 59 and the second mounting base plate 39 and is installed with a synchronizing wheel 64 . , the synchronous wheel 64 is connected with the coil assembly 12 through a synchronous belt. In this embodiment, the driving motor 88 drives the driving pulley 60 to rotate, and when the driving pulley 60 rotates, it drives the roll material assembly 12 to rotate synchronously, so that the stripped label is rolled on the roll material assembly 12 for recycling. . The drive motor 88 can be a stepping motor, and is fixedly mounted on the second mounting substrate 39 .

Both the first pressing roller 61 and the second pressing roller 62 include a pressing roller shaft 65 . The top end of the pressing roller shaft 65 is provided with a grip wheel 66 when it is rotated and passed out. An adjusting screw 67 is screwed on the end surface of the first upper mounting plate 58 , and one end of the adjusting screw 67 which penetrates into the first upper mounting plate 58 abuts on the pressing roller shaft 65 . After the label passes through the gaps between the second pressing roller 62, the first pressing roller 61 and the driving pulley 60, the pressure rollers on both sides are adjusted by adjusting screws 67 to press the label tightly on the driving pulling wheel 60. so that the label can obtain two traction forces at the left and right gaps, which can effectively reduce the error caused by the sliding between the roller and the label, thereby improving the stability and accuracy of label feeding.

The label covering device 4 is disposed on one side of the conveying device 2, and is used for pressing the label peeled off from the label tape by the label peeling assembly 10 to the surface of the bottle. Specifically, the label covering device 4 includes a rolling belt mechanism 68 and a pressing plate mechanism 69 arranged oppositely. The rolling belt mechanism 68 and the pressing plate mechanism 69 are respectively located on both sides of the conveying device 2, and the rolling belt mechanism 68 and the label stripping assembly 10 are located at The same side of the conveying device 2 is provided.

Specifically, the rolling and rubbing belt mechanism 68 includes a belt 70 and a deceleration motor that drives the belt 70 to rotate through a friction wheel, and when the belt 70 rotates, it drives the bottle to rotate.

The platen mechanism 69 includes an adjustment assembly and an elastic platen assembly. Wherein, the adjustment component includes an up-down adjustment unit and a horizontal adjustment unit.

Specifically, the up-and-down adjustment unit includes a second upper mounting plate 71 and a second lower mounting plate 72 disposed up and down relative to each other, a fourth guide rod 73 connected between the second upper mounting plate 71 and the second lower mounting plate 72, The second sliding block 74 is slidably connected to the fourth guide rod 73 through the sliding sleeve and the fifth screw rod 75 for driving the second sliding block 74 to slide up and down along the fourth guide rod 73. The second sliding block 74 passes through the screw nut Connected with the fifth screw rod 75 , the top end of the fifth screw rod 75 passes through the second upper mounting plate 71 and is installed with a fourth adjusting hand wheel 76 . The second lower mounting plate 72 is fixedly mounted on one outer side wall of the conveying device 2 .

The horizontal adjustment unit includes a horizontally opposite swing shaft 85 and a third installation plate 82, two fifth guide rods 81 connected between the swing shaft 85 and the third installation plate 82, respectively, and two fifth guide rods 81 traversing the third installation plate 82. The sixth screw 83 in the plate 82 . The two fifth guide rods 81 traverse the second sliding block 74 , and the fifth guide rods 81 are slidably connected with the second sliding block 74 . The sixth screw rod 83 is located between the two fifth guide rods 81 and is arranged in parallel with the fifth guide rod 81. One end of the sixth screw rod 83 is rotatably connected with the second slider 74, and a fifth adjusting hand is installed on the other end. round 84. The third mounting plate 82 is connected to the sixth screw 83 through a screw nut;

The elastic pressing plate assembly includes a supporting plate 77 and a pressing plate 78 arranged oppositely. The supporting plate 77 and the pressing plate 78 are connected by four elastic members distributed in a cross shape. The elastic members include a connecting rod 79 and a spring sleeved on the connecting rod 79 80; One end of the connecting rod 79 is fixedly connected with the pressure plate 78, the other end of the connecting rod 79 is threadedly connected with a nut after being movable out of the support plate 77, and the spring 80 is located between the support plate 77 and the pressure plate 78. The side of the pressing plate 78 away from the support plate 77 is rotatably connected to the swing shaft 85 through the rotating block 86, the rotating block 86 is sleeved on the swing shaft 85, and the rotating block 86 is locked with the swing shaft 85 by the tightening screw 87, and the tightening screw 87 It is screwed into the rotating block 86 . After the tightening screw 87 is loosened, the rotating block 86 can rotate around the swing shaft 85, so that the inclination angle of the elastic pressing plate assembly can be adjusted.

working principle:

In specific implementation, the radius size of the label roll being unloaded can be monitored by the radius sensor 89, which can be installed on the second mounting substrate 39 to connect the radius sensor to the controller signal. When it is detected that the radius size of the label roll being unloaded is smaller than the threshold, it means that the label roll needs to be replaced. At this time, the controller controls the cylinder 54 to extend, and drives the tape splicing roller 17 to press the tape on the outer surface of the spare roll to complete the bonding of the tape (the outer surface of the spare roll is pasted with double-sided tape). The meshing of the ratchet 43 and the pawl 45 is to prevent the turntable 13 from being reversed under the pressing action of the splicing roller 17 and causing the failure of splicing. Then, the controller controls the second stepping motor 51 to drive the blade 16 to move from top to bottom to longitudinally cut off the remaining tape currently being used. Subsequently, the controller controls the first stepping motor 42 to drive the turntable 13 to rotate 180° counterclockwise, Place the new label roll in its original position and continue labelling.

When labeling the conical flask, first adjust the inclination angle of the labeling head by adjusting the mechanism 6 . Then, the elastic pressing plate assembly is rotated around the swing shaft 85 by a certain angle to press the label on the conical flask. The support plate 77 and the pressure plate 78 of the elastic platen assembly are connected by an elastic member, and the spring 80 of the elastic member gives a certain buffering distance to the pressure plate 78, so as to avoid the unsuitable adjustment of the distance between the pressure plate 78 and the belt 70, resulting in insufficient extrusion force and the existence of the label attached. Problems such as bubbles and unevenness improve the labeling quality of the labeling machine.

The above are only preferred embodiments of the present invention, and do not have any limiting effect on the present invention. Any person skilled in the art, within the scope of not departing from the technical solution of the present invention, makes any form of equivalent replacement or modification to the technical solution and technical content disclosed in the present invention, all belong to the technical solution of the present invention. content still falls within the protection scope of the present invention.

Claims (10)

1. a fully automatic labeling machine, is characterized in that, comprises: rack(1); a conveying device (2), arranged on the frame (1), for conveying the bottles to be labeled; A bid-supplying device (3) is provided on one side of the conveying device (2), and the bid-supplying device (3) includes an adjustment mechanism (6) and a bid-feeding mechanism arranged on the adjustment mechanism (6), so that The label feeding mechanism comprises a roll changing component (7), a label cutting component (8), a label receiving component (9), a label stripping component (10), a pulling component (11) and a coiling component, which are sequentially arranged along the running direction of the label tape. (12); wherein, The reel changing assembly (7) comprises a rotatably arranged turntable (13) and a first driving unit for driving the turntable (13) to rotate, and two oppositely arranged turntables (13) are provided on the turntable (13) for A material tray (14) for placing the label material roll and two oppositely arranged guide rollers (15), the two said material trays (14) and the two said guide rollers (15) are distributed in a cross-shaped structure; The target assembly (8) includes a blade (16) and a second driving unit for driving the blade (16) to move up and down to cut the target tape longitudinally; 17) and a third drive unit for driving said splice rollers (17) close to one of said trays (14); and, A label covering device (4) is provided on one side of the conveying device (2), and is used for pressing the label peeled off from the label tape by the label peeling assembly (10) to the surface of the bottle. 2 . The fully automatic labeling machine according to claim 1 , wherein the adjustment mechanism ( 6 ) comprises a horizontal adjustment assembly ( 18 ), a swing angle adjustment assembly ( 19 ) and an up and down adjustment assembly ( 20 ). 3 . , the label sending mechanism is arranged on the upper and lower adjustment assembly (20); wherein, The up and down adjustment assembly (20) is arranged on the swing angle adjustment assembly (19); The horizontal adjustment assembly (18) includes a longitudinal adjustment module and a lateral adjustment module arranged on the longitudinal adjustment module; The swing angle adjustment assembly (19) is arranged on the lateral adjustment module, and is used for adjusting the inclination angle of the up and down adjustment assembly (20). 3. The fully automatic labeling machine according to claim 1, wherein the longitudinal adjustment module comprises a first mounting substrate (26) and a first mounting substrate (26) arranged on the first mounting substrate (26). an adjustment unit; the lateral adjustment module includes a second adjustment unit; The structure of the first adjustment unit is the same as that of the second adjustment unit; The first adjustment unit includes two fixed blocks (21) arranged opposite to each other and a first sliding block (22) disposed between the two fixed blocks (21), and the first sliding block (22) is inside the first sliding block (22). A first screw rod (23) is passed through, and the first slider (22) is connected with the first screw rod (23) through a screw rod nut; one end of the first screw rod (23) is connected to one of the first screw rods (23). The fixing block (21) is connected in rotation, and the other end rotates out from the other fixing block (21), and a first adjusting handwheel (24) is installed on the pierced end; the first wire A first guide rod (25) is arranged in parallel on both sides of the rod (23), the first guide rod (25) is slidably passed through the first slider (22), and the first guide rod (25) The two ends of the are respectively fixedly connected with the corresponding fixing blocks (21); The fixing block (21) of the first adjusting unit is fixedly mounted on the first mounting substrate (26); The fixing block (21) of the second adjusting unit is fixedly installed on the first sliding block (22); The swing angle adjusting assembly (19) is fixedly mounted on the first sliding block (22) of the second adjusting unit. 4 . The fully automatic labeling machine according to claim 3 , wherein the swing angle adjustment assembly ( 19 ) comprises a bottom plate ( 27 ), a swing plate ( one end of which is rotatably connected to the bottom plate ( 27 ) 28) and a swing angle adjustment unit for adjusting the inclination angle of the swing plate (28); One end of the bottom plate (27) is provided with a connecting block (29), and the swinging plate (28) is rotatably connected to the connecting block (29); An angle block (30) is connected between the outer wall of the other end of the swing plate (28) and the outer wall of the bottom plate (27), and the bottom of the angle block (30) is fixedly connected to the outer wall of the bottom plate (27), so The angle block (30) is provided with an arc-shaped hole (31), the angle block (30) is connected with the swing plate (28) by a bolt passing through the arc-shaped hole (31), and the bolts are screwed in the swing plate (28); The swing angle adjustment unit includes a first angle adjustment block (32) and a second angle adjustment block (33) arranged oppositely, and the first angle adjustment block (32) and the second angle adjustment block (33) pass through between the first angle adjustment block (32) and the second angle adjustment block (33). The second screw rod (34) is connected, the second screw rod (34) radially traverses the second angle adjustment block (33) in the second angle adjustment block (33), the second The angle adjustment block (33) is connected with the second screw rod (34) through a screw nut, and one end of the second screw rod (34) is rotatably connected with the middle of the first angle adjustment block (32), so A second adjusting handwheel (35) is installed on the other end of the second screw rod (34); both ends of the first angle adjusting block (32) are rotatably connected with the swinging plate (28), and the Both ends of the two-angle adjustment block (33) are rotatably connected with the bottom plate (27); the bottom plate (27) is fixedly mounted on the first sliding block (22) of the second adjusting unit; The up-and-down adjustment assembly (20) is arranged on the swing plate (28). 5. A fully automatic labeling machine according to claim 4, characterized in that: the upper and lower adjustment assembly (20) comprises an upper fixing seat (36) and a lower fixing seat (37) which are oppositely arranged up and down, and are connected to The third screw rod (38) between the upper fixing base (36) and the lower fixing base (37) and the second mounting base plate (39) connected to the third screw rod (38), the third screw rod (39) Two mounting bases (39) are connected to the third screw (38) through a screw nut; The bottom end of the third screw rod (38) is rotatably connected with the lower fixing seat (37), and the top end of the third screw rod (38) rotates out of the upper fixing seat (36) and is installed with a third screw rod (36). Three adjustment handwheels (40); Three second guide rods (41) are further arranged between the upper fixed seat (36) and the lower fixed seat (37), and the three second guide rods (41) are formed by the third screw rod (38). The centers of the circles are distributed in a circular array, and both ends of the second guide rod (41) are respectively fixedly connected to the upper fixing seat (36) and the lower fixing seat (37); The second mounting base plate (39) is slidably connected to the second guide rod (41) through a sliding sleeve; the lower fixing seat (37) is fixedly mounted on the swinging plate (28); The label feeding mechanism is arranged on the second mounting substrate (39). 6. A fully automatic labeling machine according to claim 5, characterized in that: the first drive unit comprises a first step motor (42) and a ratchet (43); The ratchet (43) is fixedly installed on the bottom of the turntable (13), and is arranged concentrically with the turntable (13); the bottom of the turntable (13) is provided with a concentric connecting shaft, and the connecting shaft passes downward through the The ratchet wheel (43) is then connected to the first stepping motor (42) through a first coupling (44); The turntable (13) is rotatably mounted in the second installation base plate (39); a pawl (45) that engages with the ratchet wheel (43) is rotatably disposed on the lower surface of the second installation base plate (39). ), the middle part of the pawl (45) is elastically connected with the lower surface of the second mounting base plate (39) through a tension spring (46); The first stepping motor (42) is fixedly mounted on the lower surface of the second mounting substrate (39) through a fixing cover (47), and the fixing cover (47) is fixedly connected to the second mounting substrate (39) ) on the lower surface, the ratchet wheel (43) and the pawl (45) are located in the fixing cover (47); the first stepping motor (42) is fixedly connected to the fixing cover (47) by screws ) on the bottom outer surface. 7. A fully automatic labeling machine according to claim 5, characterized in that: the second driving unit comprises an upper fixing plate (48) and a lower fixing plate (49) which are oppositely arranged up and down, and are connected to the a fourth screw (50) between the upper fixing plate (48) and the lower fixing plate (49), and a second stepping motor (51) for driving the fourth screw (50) to rotate; The bottom end of the fourth screw rod (50) is rotatably connected to the lower fixing plate (49), and the top end of the fourth screw rod (50) is connected to the second stepping motor through a second coupling (52). (51) A transmission connection, the second stepping motor (51) is fixedly installed on the upper fixing plate (48); One end of the blade (16) is connected to the fourth lead screw (50) through a mounting block (53), and the mounting block (53) is connected to the fourth lead screw (50) through a lead screw nut, The blade (16) is fixedly connected to the mounting block (53) through bolts; The lower fixing plate (49) is fixedly mounted on the second mounting base plate (39). 8. A fully automatic labeling machine according to claim 5, characterized in that: the third driving unit comprises a cylinder (54), and the cylinder (54) is fixedly installed on the on the second mounting substrate (39); The cylinder seat (55) is in an inverted T shape, comprising a horizontally arranged connecting plate and a vertical plate vertically arranged on the connecting plate, and the cylinder (54) is horizontally installed on one side of the vertical plate On the side wall, the telescopic rod of the air cylinder (54) passes through the vertical plate; The belt splice roller (17) is connected with the telescopic rod of the air cylinder (54) through a mounting seat (56), and a third guide rod (57) is connected between the mounting seat (56) and the vertical plate ), the third guide rod (57) traverses the vertical plate and is slidably connected to the vertical plate through a sliding sleeve; one end of the third guide rod (57) is connected to the mounting seat (56) Fixed connection. 9 . The fully automatic labeling machine according to claim 5 , wherein the traction assembly ( 11 ) comprises a first upper mounting plate ( 58 ) and a first lower mounting plate ( 59 ) which are oppositely arranged up and down. 10 . , a driving pulley (60) rotatably arranged between the first upper mounting plate (58) and the first lower mounting plate (59), and a first pressing wheel (60) arranged on both sides of the driving traction wheel (60) a roller (61) and a second pressing roller (62); wherein, The first upper mounting plate (58) and the first lower mounting plate (59) are connected through a support column (63); the first lower mounting plate (59) is fixedly mounted on the second mounting base plate (39) )superior; The top end of the axle of the driving traction wheel (60) is rotatably connected with the first upper mounting plate (58), and the bottom end of the axle of the driving traction wheel (60) is connected from the first lower mounting plate (59) and the first mounting plate (58). A synchronizing wheel (64) is installed in the two mounting base plates (39) after rotating downward and passing out, and the synchronizing wheel (64) is connected with the coil assembly (12) through a synchronous belt drive; Both the first pressing roller (61) and the second pressing roller (62) include a pressing roller shaft (65), and the bottom end of the pressing roller shaft (65) is rotatably connected to the first lower mounting plate (59) the top of the pressing roller shaft (65) rotates out from the first upper mounting plate (58), and a grip wheel (66) is installed on the top of the pressing roller shaft (65); An adjusting screw (67) is screwed on the end surface of the first upper mounting plate (58), and one end of the adjusting screw (67) that penetrates into the first upper mounting plate (58) is abutted against the pressure plate. on the roller (65). 10 . The fully automatic labeling machine according to claim 5 , wherein the labeling device ( 4 ) comprises a roller-rubbing belt mechanism ( 68 ) and a pressing plate mechanism ( 69 ) that are oppositely arranged, and the roller The belt rubbing mechanism (68) and the pressing plate mechanism (69) are respectively located on both sides of the conveying device (2), and the rolling and rubbing belt mechanism (68) and the label stripping assembly (10) are located on the conveying device (2). ) on the same side of the setting; The rolling and rubbing belt mechanism (68) includes a belt (70) and a deceleration motor that drives the belt (70) to rotate through a friction wheel; The pressing plate mechanism (69) includes an adjusting assembly and an elastic pressing plate assembly; wherein, the adjusting assembly includes an up-down adjusting unit and a horizontal adjusting unit; The up-down adjustment unit comprises a second upper mounting plate (71) and a second lower mounting plate (72) arranged up and down relative to each other, and connected to the second upper mounting plate (71) and the second lower mounting plate (72) A fourth guide rod (73) between, a second sliding block (74) slidably connected to the fourth guide rod (73) through a sliding sleeve, and a second sliding block (74) for driving the second sliding block (74) along the The fourth guide rod (73) slides up and down a fifth screw rod (75), the second slider (74) is connected to the fifth screw rod (75) through a screw nut, and the fifth screw rod ( 75) A fourth adjusting handwheel (76) is installed after the top end is protruded from the second upper mounting plate (71); the second lower mounting plate (72) is fixedly mounted on the conveyor device (2). on the outer side wall of one side; The horizontal adjustment unit includes a swing shaft (85) and a third mounting plate (82) that are horizontally opposite to each other, and two third mounting plates (82) respectively connected between the two ends of the swing shaft (85) and the third mounting plate (82). Five guide rods (81), and a sixth screw rod (83) crossing the third mounting plate (82); the two fifth guide rods (81) crossing the second sliding block In (74), the fifth guide rod (81) is slidably connected with the second slider (74); the sixth screw rod (83) is located between the two fifth guide rods (81) , arranged in parallel with the fifth guide rod (81), one end of the sixth screw rod (83) is rotatably connected with the second slider (74), and a fifth adjustment handwheel (84) is installed on the other end ); the third mounting plate (82) is connected with the sixth screw (83) through a screw nut; The elastic pressing plate assembly includes a supporting plate (77) and a pressing plate (78) arranged oppositely, and the supporting plate (77) and the pressing plate (78) are connected by four elastic pieces distributed in a cross shape. The elastic member comprises a connecting rod (79) and a spring (80) sleeved on the connecting rod (79); one end of the connecting rod (79) is fixedly connected with the pressing plate (78), and the connecting rod ( The other end of 79) is threadedly connected with a nut after passing through the support plate (77), and the spring (80) is arranged between the support plate (77) and the pressure plate (78); the pressure plate ( 78) The side away from the support plate (77) is rotatably connected to the swing shaft (85) through a rotating block (86), the rotating block (86) is sleeved on the swing shaft (85), and the The rotating block (86) is locked with the swing shaft (85) by a tightening screw (87), and the tightening screw (87) is screwed into the rotating block (86).
