Case is deposited in disinfection of nursing inspection apparatus
The technical field is as follows:
the invention belongs to the technical field of related structures of medical appliance storage boxes, and particularly relates to a disinfecting storage box for nursing and inspection appliances.
Background art:
when nursing, a large number of medical appliances are used, the appliances can be reused, but the medical appliances need to be effectively sterilized before being used next time, and most of the existing nursing appliances are stored in a special storage box.
Most of the existing storage boxes can only simply store the appliances, and the appliances can be placed in the storage boxes after being additionally sterilized, so that the using steps of the appliances are increased, the practicability of the storage boxes is reduced, the existing storage boxes are inconvenient to take and use the appliances, and the appliances are complex to find;
nursing inspection apparatus among the prior patent art disinfection is deposited case and is all placed through the disinfection equipment separation of the different disinfection function of multilayer, for example high temperature disinfection, shine disinfection or antiseptic solution cleaning and disinfecting, although can carry out the disinfection of multiple mode, but the inside self-disinfection that can't carry out of disinfect box still need additionally wash with the help of outside disinfecting equipment, in addition to the utensil of different sizes and different weight when carrying out high temperature hot gas disinfection, easily by the hot air wave blowing aversion.
The invention content is as follows:
the invention aims to solve the problems and provide a disinfecting storage box for nursing and examination tools, which can effectively solve the technical problems that most of the existing storage boxes can only simply store the tools, the tools can be placed in the storage boxes after being additionally disinfected, the using steps of the tools are increased, the practicability of the storage box is reduced, the taking of the tools in the existing storage boxes is inconvenient, and the tools are complex to find through parts such as a hot air bin, an irradiation bin, an immersion bin and the like.
In order to solve the above problems, the present invention provides a technical solution: a disinfection storage box for nursing and examination tools comprises a storage box, wherein a hot air bin, an irradiation bin and an immersion bin are arranged in the storage box, rotatable partition plates are arranged among the hot air bin, the irradiation bin and the immersion bin, a blowing box is fixedly connected to the side wall of the top of the storage box, an installation box is fixedly connected to the side wall of one side of the storage box, a first air blower is connected in the installation box, a conveying pipe is fixedly connected to the side wall of one side of the blowing box, one end of the conveying pipe extends into the hot air bin from the bottom of the hot air bin, a disinfection lamp is arranged in the irradiation bin, a disinfection pool is connected to the bottom of the immersion bin, and a net frame is arranged on the disinfection pool;
a connecting frame is arranged in the hot air bin, the inner wall of the connecting frame is fixedly connected with three pairs of supporting plates, a load sheet is placed on the upper side wall of each pair of supporting plates, a vertical slide rail is arranged on the inner wall of the connecting frame facing the supporting plates, a spring is arranged in the vertical slide rail, sliding blocks are arranged on two sides of the load sheet, the sliding blocks slide up and down on the vertical slide rail, the bottom of each sliding block is fixedly connected to the top end of the corresponding spring, the bottom end of each spring is connected to the inner wall of the corresponding vertical slide rail, and the supporting plates and the load sheets are made of metal heat conducting materials;
a drawer is arranged in the irradiation bin, the side walls of two sides of the drawer, which are far away from each other, are fixedly connected with sliding blocks, the inner wall of the irradiation bin is fixedly connected with a guide rail, and the sliding blocks are connected in the guide rail in a sliding manner;
the screen frame corresponds to the disinfection tank, lifting grooves are formed in the side walls of the two sides of the immersion bin, driven plates are arranged in the lifting grooves, and the two driven plates are fixedly connected to the upper edges of the side walls, far away from each other, of the two sides of the screen frame;
an air pipe is embedded and connected in a partition plate between the irradiation bin and the immersion bin, and the air pipe is respectively connected to a first air blower and a conveying pipe through an electric control three-way valve;
the net frame corresponds to the disinfection pool, lifting grooves are formed in the side walls of the two sides of the immersion bin, driven plates are arranged in the lifting grooves, and the driven plates are fixedly connected to the upper edges of the side walls of the two sides, far away from each other, of the net frame.
Preferably, an inner groove is formed in the middle of the inside of the blowing box, a second air blower is detachably connected to the inside of the inner groove, an air outlet is formed in one end of the second air blower, an air inlet is formed in one side wall, far away from the air outlet, of the blowing box, a fixedly connected filter plate is embedded in the air inlet, an electric heating sheet is detachably connected to the position, close to the air outlet, of the inner groove, a conveying pipe is connected to one end, far away from the air inlet, of the blowing box in an inserting mode, a horn-shaped air collecting cover is fixedly connected to one end, located in the inner groove, of the conveying pipe, and the electric heating sheet is in a staggered grid state.
Preferably, a partition plate with meshes is arranged in the hot air bin, an air duct is arranged between the partition plate and the inner wall of the hot air bin, one end of the conveying pipe extends into the air duct, the connecting frame is arranged in the middle of the partition plate, a sliding plate is fixedly connected to the side wall of the top of the connecting frame, a pair of hanging plates is fixedly connected to the side wall of the bottom in the hot air bin, the sliding plate is connected in the hanging plates in a sliding mode, the load piece is provided with the meshes, and medical appliances are placed on the side wall of the top of the load piece.
Preferably, the disinfection lamp is evenly connected to the side wall of the bottom of the partition plate, which is the hot air bin and the irradiation bin, two pairs of guide rails are evenly and fixedly connected to the side wall opposite to the irradiation bin, two drawers are arranged, two sliders are fixedly connected to the side walls of the two sides, which are far away from each other, of the drawers, the sliders are located in the guide rails, one end of each slider is rotatably connected with a ball, the drawers are made of medical transparent plastic, one of the drawers is evenly connected with the disinfection lamp on the side wall of the bottom of the drawer, and the disinfection lamp is an ultraviolet disinfection lamp.
Preferably, the lifting groove is connected with a screw rod in a rotating mode, an embedding groove is formed in the top of the lifting groove, a motor is detachably connected to the embedding groove, the output end of the motor extends into the lifting groove and is fixedly connected to the top end of the screw rod, a driven plate is connected to the screw rod in a threaded mode, and one end, extending out of the lifting groove, of the driven plate is fixedly connected with the screen frame.
Preferably, shine the storehouse and immerse the baffle between the storehouse in the inlay and be connected with the tuber pipe, the air outlet of a blower and the one end fixed connection of tuber pipe, the air exit has evenly been seted up to the bottom lateral wall of baffle, the air exit communicates with each other with the tuber pipe is inside.
As preferably, hot-blast storehouse, shine the storehouse and immerse the same one side in storehouse and all establish the opening, and the border all rotates under the opening and is connected with transparent door plant, hot-blast storehouse, shine the even distribution in storehouse and the storehouse of immersing are depositing incasement portion, the both sides lateral wall that the disinfection pond kept away from each other is fixedly connected with inlet pipe and discharging pipe respectively, and inlet pipe and discharging pipe pass the lateral wall of depositing the case and extend away.
The invention has the beneficial effects that: 1. according to the invention, through the rotation of the multiple layers of telescopic sliding load sheets and the heat-conducting material and the matching of the cold and hot air switching design of the rotatable air pipe, the internal self-disinfection can be carried out on the basis of enhancing the disinfection effect of various modes; 2. through the hot-blast storehouse, shine the storehouse and immerse the storehouse and can realize the efficient disinfection, and have different disinfection modes, can carry out nimble selection to different utensil, guarantee the most high-efficient of disinfection effect, and the disinfection storehouse that different utensil used is different, the later stage of also being convenient for is to taking of utensil, the effectual time of looking for the utensil needs of having saved, the usability of case is deposited in great increase.
The invention is provided with the door plate, the door plate is rotatably connected to the lower edges of the openings of the hot air bin, the irradiation bin and the immersion bin, and the rubber strip is connected to the door plate, so that the sealing of the bin is avoided, and the disinfection effect is ensured.
Description of the drawings:
for ease of illustration, the invention is described in detail by the following detailed description and the accompanying drawings.
FIG. 1 is a schematic perspective view of the present invention;

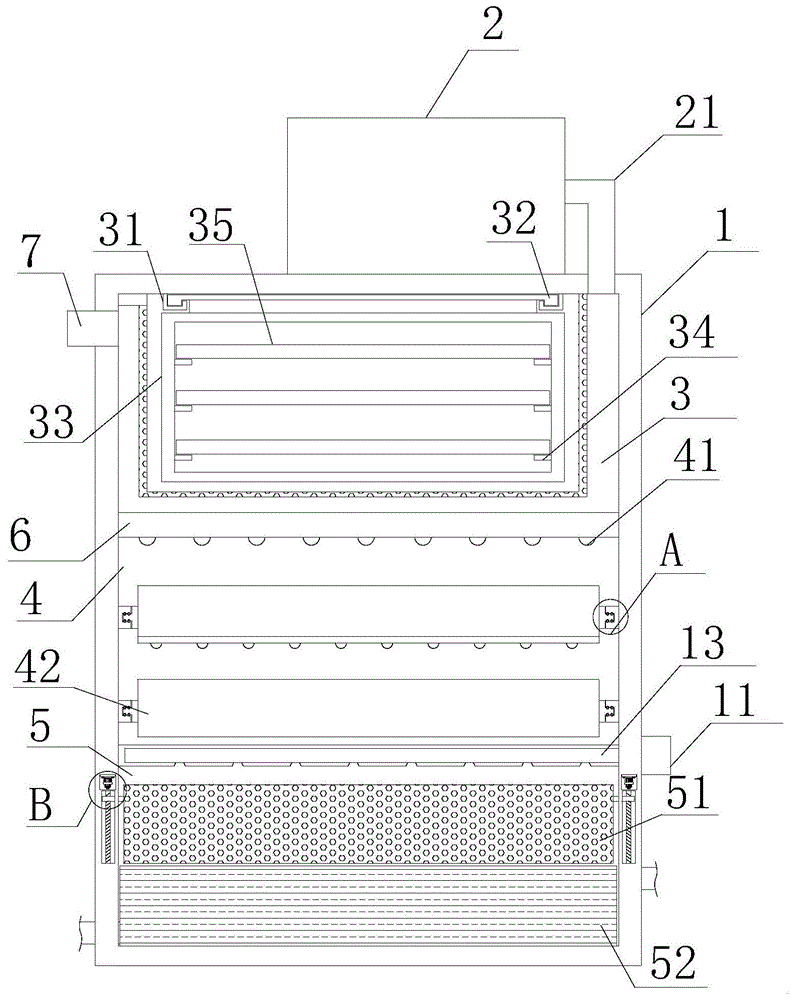

FIG. 2 is a schematic view of the internal plan structure of the present invention;
fig. 3 is a schematic view of the internal structure of the blow box according to the invention;
FIG. 4 is a schematic view of a partial plan view of the present invention;
FIG. 5 is an enlarged schematic view of the structure at A of the present invention;
fig. 6 is an enlarged schematic view of the structure at B of the present invention.
In the figure: 1. a storage box; 11. installing a box; 12. a first blower; 13. an air duct; 14. an air outlet; 2. a blow box; 21. a delivery pipe; 22. an inner tank; 23. a second blower; 24. an air outlet; 25. filtering the plate; 26. an electric heating sheet; 27. a wind collecting cover; 3. a hot air bin; 31. hanging the plate; 32. a slide plate; 33. a connecting frame; 34. a support plate; 35. a load sheet; 4. an irradiation bin; 41. a sterilizing lamp; 42. a drawer; 43. a slider; 44. a guide rail; 5. an immersion bin; 51. a screen frame; 52. a disinfection tank; 53. a lifting groove; 54. a screw; 55. A driven plate; 56. a motor; 6. a separator.
The specific implementation mode is as follows:
as shown in fig. 1 to 6, the following technical solutions are adopted in the present embodiment: a nursing and inspection tool disinfection storage box comprises a storage box 1, wherein a hot air bin 3, an irradiation bin 4 and an immersion bin 5 are arranged in the storage box 1, a rotatable partition plate 6 is arranged among the hot air bin 3, the irradiation bin 4 and the immersion bin 5, the side wall of the top of the storage box 1 is fixedly connected with a blowing box 2, the side wall of one side of the storage box 1 is fixedly connected with an installation box 11, a first air blower 12 is connected in the installation box 11, the side wall of one side of the blowing box 2 is fixedly connected with a conveying pipe 21, one end of the conveying pipe 21 extends into the interior of the hot air bin 3 from the bottom, a disinfection lamp 41 is arranged in the irradiation bin 4, a disinfection pool 52 is connected to the bottom in the immersion bin 5, and a net frame 51 is arranged on the disinfection pool 52;
a connecting frame 33 is arranged in the hot air cabin 3, three pairs of supporting plates 34 are fixedly connected to the inner wall of the connecting frame 33, a load piece 35 is placed on the upper side wall of each pair of supporting plates 34, a vertical slide rail is arranged on the inner wall of the connecting frame 33 facing the supporting plates 34, a spring is arranged in the vertical slide rail, sliding blocks are arranged on two sides of the load piece 35, the sliding blocks slide up and down on the vertical slide rail, the bottom of each sliding block is fixedly connected to the top end of the corresponding spring, the bottom end of each spring is connected to the inner wall of the corresponding vertical slide rail, and the supporting plates 34 and the load pieces 35 are made of metal heat conducting materials;
a drawer 42 is arranged in the irradiation bin 4, the side walls of two sides of the drawer 42, which are far away from each other, are fixedly connected with sliding blocks 43, the inner wall of the irradiation bin 4 is fixedly connected with a guide rail 44, and the sliding blocks 43 are slidably connected in the guide rail 44;
the screen frame 51 corresponds to the disinfection pond 52, lifting grooves 53 are respectively arranged in the side walls of the two sides of the immersion bin 5, driven plates 55 are arranged in the lifting grooves 53, and the two driven plates 55 are fixedly connected to the upper edges of the side walls of the two sides of the screen frame 51, which are far away from each other;
an air pipe 13 is embedded and connected in the partition plate 6 between the irradiation bin 4 and the immersion bin 5, and the air pipe 13 is respectively connected to a first air blower 12 and a delivery pipe 21 through an electric control three-way valve
Wherein, establish the inside centre of case 2 of blowing and have inside groove 22, the inside dismantlement of inside groove 22 is connected with No. two air-blowers 23, No. two air-blowers 23's one end has been established air outlet 24, the case 2 of blowing is kept away from one side lateral wall of air outlet 24 and has been link up and has been seted up the air intake, and inlay fixedly connected with filter plate 25 in the air intake, the position dismantlement that inside groove 22 is close to air outlet 24 is connected with electric heat piece 26, the one end interlude that the air intake was kept away from to case 2 of blowing is connected with conveyer pipe 21, and the one end fixedly connected with tubaeform air-collecting cover 27 that conveyer pipe 21 is arranged in inside groove 22, electric heat piece 26 is crisscross grid state.
Wherein, set up the division board of taking the mesh in hot-blast storehouse 3, and set up the wind channel between division board and the 3 inner walls in hot-blast storehouse, in the one end of conveyer pipe 21 extends the air inlet duct, link up the frame 33 and set up in the middle of the division board, link up frame 33 top lateral wall fixedly connected with slide 32, bottom lateral wall fixedly connected with a pair of link plate 31 in hot-blast storehouse 3, slide 32 sliding connection is in link plate 31, load piece 35 has the mesh, and its top lateral wall has placed medical instrument.
Wherein, the even connection of sterilamp 41 be with hot-blast storehouse 3 with shine 6 bottom lateral walls of baffle in the storehouse 4, shine two pairs of guide rails 44 of even fixedly connected with on the relative lateral wall in storehouse 4, drawer 42 has been established two, the equal fixedly connected with slider 43 of both sides lateral wall that two drawers 42 kept away from each other, slider 43 is located and rotates on the one end lateral wall in guide rail 44 and is connected with the ball, drawer 42 is the preparation of medical transparent plastic, the even sterilamp 41 that is connected with of one of them drawer 42 bottom lateral wall, sterilamp 41 is the ultraviolet ray disinfection lamp.
Wherein, the internal rotation of lift tank 53 is connected with screw rod 54, and the top of lift tank 53 is established and is inlayed the groove, and inlays inslot dismantlement and be connected with motor 56, and motor 56's output extends into in lift tank 53 and fixed connection is on the top of screw rod 54, and driven plate 55 threaded connection is on screw rod 54, and driven plate 55 extends lift tank 53's one end and screen frame 51 fixed connection.
Wherein, shine storehouse 4 and immerse the baffle 6 between the storehouse 5 in the embedded connection have tuber pipe 13, the wind gap of a blower 12 and the one end fixed connection of tuber pipe 13, air exit 14 has evenly been seted up to the bottom lateral wall of baffle 6, and air exit 14 communicates with each other with the inside of tuber pipe 13.
Wherein, hot-blast storehouse 3, shine storehouse 4 and immerse 5 the same one sides in storehouse and all establish the opening, and the border all rotates under the opening and is connected with transparent door plant, and hot-blast storehouse 3, shine storehouse 4 and immerse 5 even distributions in storehouse are depositing inside case 1, and the both sides lateral wall that disinfection pond 52 kept away from each other is fixedly connected with inlet pipe and discharging pipe respectively, and inlet pipe and discharging pipe pass the lateral wall of depositing case 1 and extend away.
When the specific disinfection storage box is used, different appliances are firstly placed in corresponding disinfection bins according to needs, if the appliances are disinfected by hot air, the load sheet 35 is pulled out, the appliances are placed on the load sheet 35 in order, and then the load sheet is pushed back to the original position, the appliances are placed on the load sheet 35 in the middle layer or the load sheets 35 on two sides according to the sizes of the appliances in the placing process, for example, the appliance with the larger size is placed on the middle layer, while the appliance with the smaller size is placed on the load sheet 35 in the middle layer, so that the appliance on the load sheet 35 in the middle layer is clamped by the appliance compression spring with the larger top, the appliance with the smaller weight can be stably swept when the hot air is swept and disinfected, then the second air blower 23 is started, the air blown out from the air outlet 24 by the second air blower 23 passes through the electric heating sheet 26, and the air drives the heat radiated by the electric heating sheet 26 to flow, finally, the hot air is sent into the hot air bin 3 through the conveying pipe 21, an air channel is arranged in the hot air bin 3, the hot air circularly flows in the hot air bin 3 along the air channel, so that the temperature in the hot air bin 3 is improved, the circulated hot air can be discharged from the hot air bin 3 through a discharge pipe, the temperature in the hot air bin 3 is continuously increased through the air channel, the aim of disinfecting the appliance is fulfilled, the appliance can be ensured to be in a disinfection state all the time because the hot air is continuous, the safety of the appliance is ensured, the load sheet 35 needs to be pulled out only by using the device, the appliance needing dry disinfection is placed in the drawer 42 of the irradiation bin 4, bacteria on the appliance can be effectively killed through the irradiation of the disinfection lamp 41, the disinfection lamp 41 is also arranged at the bottom of the drawer 42 on the upper layer, the effective disinfection effect of the appliance in each layer of the drawer 42 can be fully ensured, and the drawer 42 is pulled when in use, the sliding block 43 is moved out along the guide rail 44 to take the appliance, and the appliance which needs to be soaked by the disinfectant is placed in the net frame 51 in the immersion bin 5, after the net frame is placed in order, the motor 56 is started, the motor 56 drives the screw rod 54 to rotate, so that the driven plate 55 is driven to move up and down along the screw rod 54, the net frame 51 is sunk into the disinfection tank 52, the disinfection tank 52 is filled with disinfection solution in advance, and by immersing the instruments in the disinfection tank 52, the instruments can be disinfected comprehensively and effectively, after sterilization is completed, the reverse rotation motor 56 lifts the frame 51 out of the sterilization tank 52, starts the first blower 12, the first blower 12 blows air to the appliances in the net frame 51 so as to dry water stains on the appliances, so that the appliances can be put into use quickly, the first air blower 12 can blow hot air or selectively blow hot air, so that the drying of the appliance is accelerated.
In addition at hot-blast storehouse 3, shine storehouse 4 and immerse the opening lower limb of storehouse 5 and all rotate and be connected with the door plant, and be connected with the rubber strip on the door plant, it is sealed to guarantee not have the bin with this, guarantee sterile effect, in addition when carrying out inside self-disinfection, then it is rotatory with baffle 6, make the hot-blast storehouse 3 at its interior sterilamp alignment top, thereby make 3 outer walls in hot-blast storehouse receive the shining of light when receiving high temperature, the tuber pipe 13 that is located 52 tops of disinfection pond at this moment switches to hot-blast state, thereby carry out high temperature disinfection to inside, the disinfection lamp 41 that is located lower position in this process shines below disinfection pond 52 top, thereby make and carry out inside self-disinfection.
While there have been shown and described what are at present considered to be the fundamental principles of the invention and its essential features and advantages, it will be understood by those skilled in the art that the invention is not limited by the embodiments described above, which are merely illustrative of the principles of the invention, but that various changes and modifications may be made therein without departing from the spirit and scope of the invention as defined by the appended claims and their equivalents.
