Abstract
本发明公开了一种路灯，包括太阳能电池板，所述太阳能电池板的底部设有灯体外壳，所述灯体外壳的底部连接有安装座，所述安装座与灯体外壳之间设有去泥件，所述去泥件用于对灯体外壳表面泥土进行摩擦去除，所述安装座上设有驱动件，所述驱动件带动去泥件提供动力，且所述驱动件与去泥件之间设有连接件，所述连接件可便于对去泥件进行拆装，且所述连安装座内设有检测触发件，此路灯，通过其中的弧形支撑板不仅在起到支撑作用的同时还能够保证在不使用时，对支撑筒内中电缆线进行保护，可具体防止外界偷盗电缆线的目的，并且在使用中可以起到能够与去泥件快速拆装，便于在海绵条使用过久后将其进行更换使用。
The invention discloses a street lamp, comprising a solar cell panel, a lamp body shell is arranged at the bottom of the solar cell panel, a mounting seat is connected to the bottom of the lamp body shell, and a lamp body shell is provided between the mounting seat and the lamp body shell A mud removing piece, which is used to remove the mud on the surface of the lamp body shell by friction, a driving piece is arranged on the mounting seat, and the driving piece drives the mud removing piece to provide power, and the driving piece is connected with the mud removing piece. There is a connecting piece between the parts, the connecting piece can facilitate the disassembly and assembly of the mud removal piece, and the connecting seat is provided with a detection trigger, the street lamp, through the arc-shaped support plate therein, not only plays a supporting role At the same time, it can also ensure the protection of the cables in the support cylinder when not in use, which can specifically prevent the outside world from stealing the cables, and can be quickly disassembled and assembled with the mud removal parts during use, which is convenient for sponges. Replace the strip after it has been used for a long time.
Description
Technical Field
The invention relates to the technical field of road lighting, in particular to a street lamp.
Background
Dividing according to the height of the street lamp: high pole street lamps, medium pole lamps, street lamps, garden lamps, lawn lamps.
The lawn lamp is designed to add safety and beauty to urban green landscape mainly by using appearance and soft lamplight, has the characteristics of convenient installation, strong decoration and the like, and can be used for decorative illumination of greenbelts in parks, garden villas, square greening and other places.
Install in the park, the solar energy lawn lamp in square greenbelt, because solar energy lawn lamp's highly generally shorter, be the comparatively loose lawn of soil property in park and square greenbelt in addition, in summer, meet with under the torrential rain weather condition, make the earth splash in the lawn easily at lawn lamp surface, not only can influence its aesthetic measure, simultaneously, also can block the luminous intensity of lawn lamp, influence its illumination condition to the road surface, for this reason, we propose a street lamp.
Disclosure of Invention
The present invention is directed to a street lamp, so as to solve the problems of the background art.
In order to achieve the purpose, the invention provides the following technical scheme: a street lamp comprises a solar cell panel, wherein a lamp body shell is arranged at the bottom of the solar cell panel, an installation seat is connected to the bottom of the lamp body shell, a mud removing piece is arranged between the installation seat and the lamp body shell and used for removing mud on the surface of the lamp body shell in a friction mode;
the mounting seat is provided with a driving piece, the driving piece drives the mud removing piece to provide power, and a connecting piece is arranged between the driving piece and the mud removing piece and can be used for conveniently dismounting the mud removing piece;
and a detection trigger piece is arranged in the connecting mounting seat and can be used for starting a power source of the driving piece.
Preferably, the driving part comprises a motor installed in the installation seat, a supporting cylinder is arranged between the lamp body shell and the installation seat, and the supporting cylinder is movably connected with the lamp body shell and the installation seat;
the output end of the motor is fixedly connected with the supporting cylinder, the supporting cylinder is provided with a spiral track, a connecting block is arranged in the spiral track, the connecting block is provided with a connecting ring, and a plurality of groups of sliding plates are arranged on the outer side of the connecting ring;
the lamp body is characterized in that a fixing plate is arranged at the corresponding position of the mounting seat and the sliding plate on the connecting ring, and a supporting column is arranged between the fixing plate and the lamp body shell.
Preferably, the connecting piece comprises a plurality of groups of arc-shaped supporting plates arranged on the outer side of the connecting ring, the arc-shaped supporting plates are provided with guide grooves, one ends of the arc-shaped supporting plates, far away from the connecting ring, are provided with mounting rings, the mounting rings are provided with a plurality of groups of rectangular blocks, the rectangular blocks are provided with threaded holes, and bolts are connected in the threaded holes;
and a support plate is arranged on any one of the opposite arc-shaped support plates, an elastic clamping plate is arranged on the support plate, and the elastic clamping plate is connected with the mud removing piece.
Preferably, the mud removing piece comprises an installation block, a flow guide surface is arranged on the installation block, an energy reducing surface is arranged at the bottom of the flow guide surface, an avoiding groove is arranged at the bottom of the installation block, a clamping groove is formed in one side of the installation block, and the clamping groove is connected with the support plate and the elastic clamping plate;
be equipped with the first spring of multiunit in the installation piece, first spring is kept away from installation piece one end and is equipped with and is connected with linking piece, set up the mounting groove in the linking piece, be equipped with the buckle in the mounting groove, one side of buckle is connected with the sponge strip, just it is protruding to be equipped with the multiunit on the sponge strip.
Preferably, the detection trigger part comprises a humidity sensor installed on the installation seat, a controller is arranged at a signal transmission end of the humidity sensor, and a motor single chip is arranged at a control end of the controller.
Preferably, the diameter of the top end of the support column is smaller than the diameter of the bottom end.
Preferably, be equipped with the safety cover between go-between and the collar, just safety cover and arc backup pad joint, one side that the safety cover is close to the collar is equipped with the guide plate.
Preferably, the mounting groove and the pinch plate are provided with guide sliding surfaces.
Preferably, a connecting cylinder is arranged on the connecting ring close to the connecting block, and a second spring is arranged in the connecting cylinder;
one end, far away from the connecting cylinder, of the second spring is provided with a connecting column, a rolling ball is arranged between the connecting column and the spiral track, and a brush strip is arranged on the rolling ball.
Compared with the prior art, the invention has the beneficial effects that:
1. according to the invention, through the connecting piece, the arc-shaped supporting plate plays a supporting role and can also ensure that the cable in the supporting cylinder is protected when the sponge strip is not used, the aim of stealing the cable from the outside can be particularly fulfilled, and the sponge strip can be quickly assembled and disassembled with the mud removing piece when in use, so that the sponge strip can be conveniently replaced and used after being used for a long time.
2. The driving piece can drive the connecting ring to move upwards, and the arc-shaped track can reduce mud splashing in the arc-shaped track in the moving process, and the connecting ring rises to drive the sponge strips to move upwards, so that cleaning is performed.
Drawings

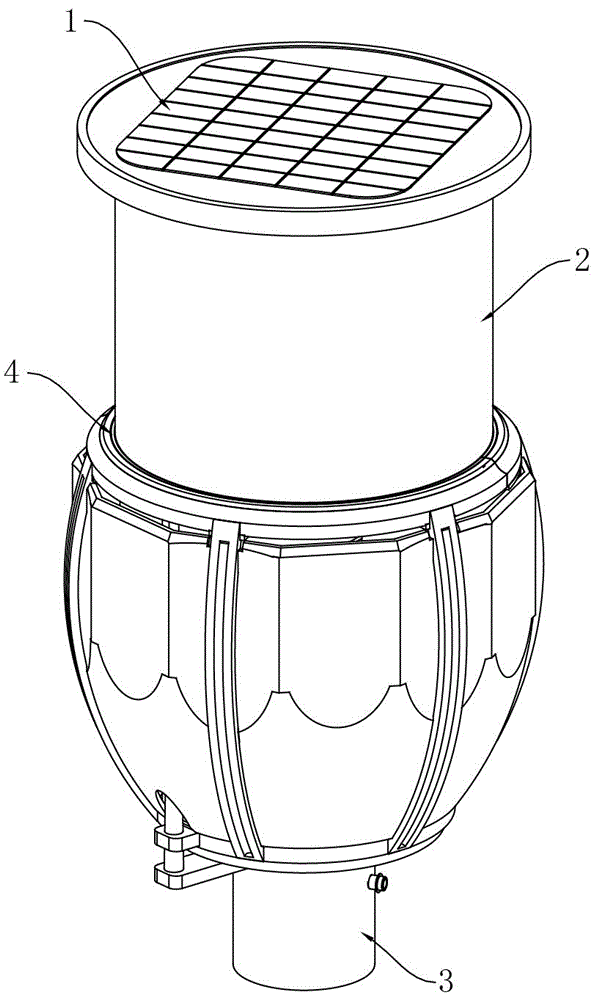

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of a portion of the present invention;
FIG. 3 is a partial schematic view of the present invention;
FIG. 4 is a schematic view of a partial cross-sectional structure of the present invention;
FIG. 5 is a schematic view of a protective cover according to the present invention;
FIG. 6 is a schematic diagram of a partially exploded structure of the mud removal element of the present invention;
FIG. 7 is a schematic view of a portion of the connector of the present invention;
fig. 8 is a schematic view of a partial cross-sectional view of a connector barrel of the present invention.
In the figure: 1-a solar panel; 2-a lamp body housing; 3-mounting a base; 4-removing mud pieces; 41-mounting block; 42-a flow guide surface; 43-energy reducing surface; 44-avoidance groove; 45-card slot; 46-a first spring; 47-an engagement block; 48-mounting grooves; 481-sliding surface; 49-buckle plate; 410-sponge strips; 411-protrusions; 5-a driving member; 51-a motor; 52-a support cylinder; 53-a spiral track; 54-connecting block; 55-a connecting ring; 551-protective cover; 552-baffle: 553-a connecting cylinder; 554-a second spring; 555-an adaptor post; 556-rolling beads; 557-brushing the strip; 56-sliding plate; 57-fixing plate; 58-support column; 6-connecting piece; 61-arc support plate; 62-diversion trench; 63-a mounting ring; 64-rectangular block; 65-a threaded hole; 66-bolt; 67-support plate; 68-a resilient catch plate; 7-detecting a trigger; 71-a humidity sensor; 72-controller.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-8, the present invention provides a technical solution: a street lamp comprises a solar cell panel 1, wherein a lamp body shell 2 is arranged at the bottom of the solar cell panel 1, a mounting seat 3 is connected to the bottom of the lamp body shell 2, the solar cell panel 1 is provided by a luminous total power supply of the street lamp, and wires required by a lamp body of the street lamp are all communicated into the mounting seat 3;
firstly, in the rainy season in summer, loose soil in lawns and parks is easy to splash to the lamp body shell 2 due to excessive precipitation, and soil and water stains are attached to the lamp body shell 2 to influence the luminous intensity of the lamp body;
the method comprises the steps that moisture in the environment is detected by a trigger 7, the trigger 7 comprises a humidity sensor 71 installed on an installation seat 3, the humidity of the humidity sensor 71 is set within a certain range, a controller 72 is arranged at a signal transmission end of the humidity sensor 71, a single motor 51 sheet is arranged at a control end of the controller 72, the solar cell panel 1 provides electricity for the humidity sensor 71, when the humidity reaches the range in rainy weather, the humidity sensor 71 transmits a signal output end to the controller 72, the single motor sheet of the motor 51 is triggered by the controller 72, the motor 51 is electrified, and therefore the driving piece 5 is electrified to be used;
as shown in fig. 4:
the driving part 5 comprises a motor 51 arranged in the mounting seat 3, a supporting cylinder 52 is arranged between the lamp body shell 2 and the mounting seat 3, and the supporting cylinder 52 is movably connected with the lamp body shell 2 and the mounting seat 3;
the output end of the motor 51 is fixedly connected with the support cylinder 52, the support cylinder 52 is provided with a spiral track 53, the spiral track is internally provided with a connecting block 54, the connecting block 54 is provided with a connecting ring 55, the outer side of the connecting ring 55 is provided with a plurality of groups of sliding plates 56, the mounting base 3 is provided with a fixing plate 57 at a position corresponding to the sliding plates 56 on the connecting ring 55, and a support column 58 is arranged between the fixing plate 57 and the lamp body shell 2;
after the motor 51 is powered on, the output end of the motor 51 supports the cylinder 52 to be connected, and the support cylinder 52 is movably connected with the mounting base 3 and the lamp body housing 2, so as to support the rotation of the cylinder 52, the spiral track 53 opened on the support cylinder 52 rotates along with the rotation of the support cylinder, so that the support cylinder is connected with the connecting block 54 in the spiral track 53 to move, and because the connecting ring 55 fixedly connected to the outer side of the connecting block 54 can drive the connecting ring 55 to move horizontally, and then drive the sliding plate 56 fixedly connected to the connecting ring 55 to move horizontally, the sliding plate 56 can move upwards along the support column 58, so that the movement is stable, and the connecting piece 6 is installed on the connecting ring 55.
As shown in fig. 2 and 6:
the connecting piece 6 comprises a plurality of groups of arc-shaped supporting plates 61 arranged on the outer side of the connecting ring 55, a diversion trench 62 is formed in each arc-shaped supporting plate 61, a mounting ring 63 is arranged at one end, away from the connecting ring 55, of each arc-shaped supporting plate 61, a plurality of groups of rectangular blocks 64 are arranged on each mounting ring 63, threaded holes 65 are formed in the rectangular blocks 64, and bolts 66 are connected in the threaded holes 65;
a support plate 67 is arranged on any opposite arc-shaped support plate 61, an elastic clamping plate 68 is arranged on the support plate 67, and the elastic clamping plate 68 is connected with the mud removing piece 4;
a protective cover 351 is arranged between the connecting ring 55 and the mounting ring 63, the protective cover 351 is clamped with the arc-shaped supporting plate 61, and a guide plate 352 is arranged on one side of the protective cover 351 close to the mounting ring 63;
the mud removing piece 4 comprises an installation block 41, a guide surface 42 is arranged on the installation block 41, an energy reducing surface 43 is arranged at the bottom of the guide surface 42, an avoiding groove 44 is arranged at the bottom of the installation block 41, a clamping groove 45 is formed in one side of the installation block 41, and the clamping groove 45 is connected with a support plate 67 and an elastic clamping plate 68;
a plurality of groups of first springs 46 are arranged in the mounting block 41, one ends, far away from the mounting block 41, of the first springs 46 are connected with a connecting block 47, a mounting groove 48 is formed in the connecting block 47, a buckling plate 49 is arranged in the mounting groove 48, one side of the buckling plate 49 is connected with a sponge strip 410, and a plurality of groups of protrusions 411 are arranged on the sponge strip 410;
the bottom of the arc-shaped support plate 61 is fixedly connected to the connecting ring 55, the other end of the arc-shaped support plate 61 is fixedly connected with the mounting ring 63, the mounting ring 63 is an unclosed circular ring, the mounting ring 63 is also fixedly connected with the rectangular blocks 64 at equal intervals, and the bottom of the mounting block 41 is provided with the avoidance grooves 44 corresponding to the rectangular blocks 64, so that when the mounting block 41 and the mounting ring 63 are mounted, the reference can be provided, the mounting position is accurate, and in order to ensure the mounting stability, when the mounting block is mounted, firstly, the avoidance grooves 44 of the mounting block 41 are aligned with the rectangular blocks 64; secondly, a support plate 67 and an elastic clamping plate 68 are arranged on one side of the plurality of arc-shaped support plates 61, the support plate 67 and the elastic clamping plate 68 are both arranged at the highest arc-shaped position of the mounting ring 63, the middle position of the support plate belongs to a semicircle, the mounting block 41 belonging to the semicircle is easy to pre-position, the support plate 67 and the elastic clamping plate 68 can be limited through the clamping groove 45 of the mounting block 41, and the elastic clamping plate 68 can conveniently enter the clamping groove 45 and is provided with a guide-in surface;
furthermore, in order to prevent soil and water stains from entering the spiral track 53, the protective cover 351 is clamped between the connecting ring 55 and the arc-shaped supporting plate 61, a through hole which is avoided from the supporting column 58 is formed in the protective cover 351, rainwater can flow out along the through hole after entering the protective cover 351, the arc-shaped supporting plate 61 and the protective cover 351 are both in an arc shape and a circular truncated cone shape with ornamental value, the attractiveness of the spiral-shaped supporting plate can be ensured in the action of the spiral-shaped supporting plate, and finally, when the spiral-shaped supporting plate and the protective cover are not used, the spiral-shaped supporting plate and the protective cover are arranged outside the supporting cylinder 52, and the reinforced protection can be prevented from being stolen;
meanwhile, the guide surface 42 and the energy reducing surface 43 arranged on the outer side of the mounting block 41 are arc-shaped, so that rainwater can flow down along the arc-shaped energy reducing surface 43 after flowing into the energy reducing surface 43 through the guide surface 42, but the impact of the rainwater is reduced by the arc-shaped surface, so that the impact of the rainwater is reduced, and the guide groove 62 arranged on the outer side of the arc-shaped support plate 61 and the guide plate 352 on the protective cover 351 can guide the generated rainwater when the rainwater passes through the invention in rainy days, thereby reducing the impact of the rainwater and the ground and fundamentally reducing the problem that soil is splashed on the lamp body shell 2;
finally, the sponge strip 410 is used for rubbing with the lamp body shell 2, a sponge bulge 411 is arranged on the sponge strip in order to increase the rubbing strength, and a buckle plate 49 is arranged on one side of the sponge strip 410 in order to be detached after long-term use;
the installation block 41 is internally and fixedly provided with a plurality of groups of first springs 46, one end of each first spring 46 is connected with a connecting block 47, a mounting groove 48 formed in the connecting block 47 can be connected with a buckling plate 49, the buckling plate 49 has certain toughness, the mounting groove 48 and the buckling plate 49 are provided with a guide sliding surface (481) at the part which is connected with the mounting groove 48 and the buckling plate 49 in the first guide way, the two parts can be better connected, the connected sponge strip 410 is in contact with the lamp body shell 2, and under the action force of the first spring 46, the sponge strip 410 is in closer contact with the lamp body shell 2, so that soil on the lamp body shell 2 is wiped completely.
It should be noted that the humidity sensor 71 does not operate when it rains, and this can be determined from the value set by the humidity sensor 71, and when it rains, the humidity is the maximum, and the set value may not be within this range, so that the lamp body housing 2 is cleaned using the sponge strip 410 while it is kept in a slightly wet state.
As shown in fig. 8:
a connecting cylinder 553 is arranged on the connecting ring 55 close to the connecting block 54, and a second spring 554 is arranged in the connecting cylinder 553;
an engaging column 555 is arranged at one end of the second spring 554 far away from the connecting cylinder 553, a rolling ball 556 is arranged between the engaging column 555 and the spiral track 53, and a brush bar 557 is arranged on the rolling ball 556.
When the lamp is in rainy days, the connecting ring 55 moves upwards along the spiral track 53, under the action of the second spring 554, the brush bar 557 on the rolling ball 556 can be tightly attached to the spiral slide rail, and the rolling ball 556 can rotate, so that in the movement of the lamp, the brush bar 557 and the spiral track 53 can be in rolling connection, the brush bar 557 can be in full contact with the spiral track 53, the cleaning effect on the spiral track 53 is ensured, a small amount of clay splashed inside the lamp can be cleaned in rainy days, and in order to reduce water stain in the spiral track 53, washing cotton can be arranged on the rolling ball 556, the spiral track 53 can be thoroughly cleaned, and the cleaning effect on the lawn lamp is ensured.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
