CN113854913A

CN113854913A - A high-efficiency double-roll washing machine

Info

Publication number: CN113854913A
Application number: CN202111301699.1A
Authority: CN
Inventors: 耿四化; 易洲
Original assignee: Sharetronic Data Technology Co ltd
Current assignee: Sharetronic Data Technology Co ltd
Priority date: 2021-11-04
Filing date: 2021-11-04
Publication date: 2021-12-31

Abstract

The invention discloses a high-efficiency double-rolling scrubber, comprising a scrubber body and two scrubbing roller brushes placed at the bottom of the scrubber body; the two scrubbing roller brushes are wet roller brushes and dry roller brushes respectively, The forward direction of the washing machine body is set in the front and rear positions; a nozzle is arranged above the wet roller brush for wetting the wet roller brush; the side of the wet roller brush is provided with a scraper for scraping the water stains on the wet roller brush; the side of the dry roller brush A tooth comb is provided for collecting the hair on the dry rolling brush; the scraper and the tooth comb are respectively connected with a dirt suction device to collect water stains and hair; the high-efficiency double-roll washing machine of the present invention is arranged in the front and rear positions. The two roller brushes, one wet and one dry, can clean the ground once and clean twice. The wet roller brush can clean the ground and remove some stubborn dirt on the ground. The dry roller brush can wipe and dry the ground. , to avoid water stains residue, but also effectively avoid secondary pollution.

Description

High-efficient two ground machines that roll

Technical Field

The invention belongs to the field of floor washers, and particularly relates to a high-efficiency double-roll floor washer.

Background

With the development of the floor washing machine technology, the floor washing machine is basically popularized in common households, and with the increase of users of the floor washing machine, people put forward higher requirements on the floor washing machine. For example, a floor washing machine in the prior art often leaves water stains on the ground after washing the ground, so that the cleaning degree is affected, and the problem that people slip and the like can also occur.

Disclosure of Invention

The invention aims to provide an efficient double-roller floor cleaning machine, which is characterized in that a wet roller brush and a dry roller brush are arranged at the front and back positions, so that the ground is cleaned once and cleaned twice, the wet roller brush is used for cleaning the ground, some intractable dirt on the ground is removed, the dry roller brush is used for wiping and drying the ground, water stain residue is avoided, and secondary pollution is effectively avoided.

The invention discloses a high-efficiency double-roller floor washing machine, which comprises a floor washing machine body and two floor washing roller brushes arranged at the bottom of the floor washing machine body; the two ground washing rolling brushes are respectively a wet rolling brush and a dry rolling brush and are arranged at the front and back positions along the advancing direction of the ground washing machine body; a spray head is arranged above the wet rolling brush and is used for wetting the wet rolling brush; a scraping plate for scraping water stains on the wet rolling brush is arranged on the side surface of the wet rolling brush; a tooth comb for collecting hair on the dry rolling brush is arranged on the side surface of the dry rolling brush; the side surfaces of the scraping plate and the tooth comb are respectively connected with a dirt absorbing device for collecting water stains and hair.

Preferably, the dirt absorbing device comprises a dirt absorbing fan, a dirt cavity and three absorbing openings communicated with the dirt cavity, and the three absorbing openings face the side face of the scraper blade, the side face of the tooth comb and the ground between the wet rolling brush and the dry rolling brush respectively.

Preferably, the rear part of the spray head is connected with a clean water tank and a control valve, the spray head comprises a plurality of nozzles which are connected in series, the nozzles are arranged above the wet rolling brush, and water outlets of the nozzles are in contact with the rolling surface of the wet rolling brush.

Preferably, the scraper is a hard scraper bar detachably mounted with the floor washing machine body; the scraping plate is arranged above the side of the wet rolling brush, the wet rolling brush rotates towards the scraping plate after scrubbing the ground, and the contact part of the scraping plate and the wet rolling brush faces the position of the adsorption port.

Preferably, the scraping plates are arranged obliquely downwards, the axes of the scraping plates are arranged along the defense line of the axes of the wet rolling brushes, and the scraping plates act on the rolling surfaces of the wet rolling brushes in a vertical state.

Preferably, the tooth comb is arranged above the side of the dry rolling brush, the dry rolling brush rotates towards the tooth comb after scrubbing the ground, and the contact part of the tooth comb and the dry rolling brush faces the position of the adsorption port.

Preferably, the comb comprises long teeth and short teeth which are arranged at intervals, and the long teeth and the short teeth are inserted into the rolling surface of the dry rolling brush.

Preferably, the dry rolling brush comprises a roller shaft, and long cotton bristles and short bristles which are fixed on the surface of the roller shaft at intervals, wherein the short bristles are made of ultra-long fibers.

The efficient double-rolling floor cleaning machine has the beneficial effects that:

1. through being a wet two round brushes dry that position set up around, realize once clean to ground, the process of twice clearance, wet round brush realizes that it is clean to the ground writing, gets rid of some stubborn dirt on the ground, and dry round brush realizes wiping the drying to ground, avoids water stain to remain, has also effectually avoided secondary pollution.

2. Dirt absorbing device can suck away dirty, the water stain on the wet round brush, can collect the hair on the dry round brush, can absorb remaining, the dirty of activity on the ground for it is efficient to wash ground with the scrubber. The dirt suction device can dry the dry roller through wind power when sucking the hair on the dry roller brush.

Drawings

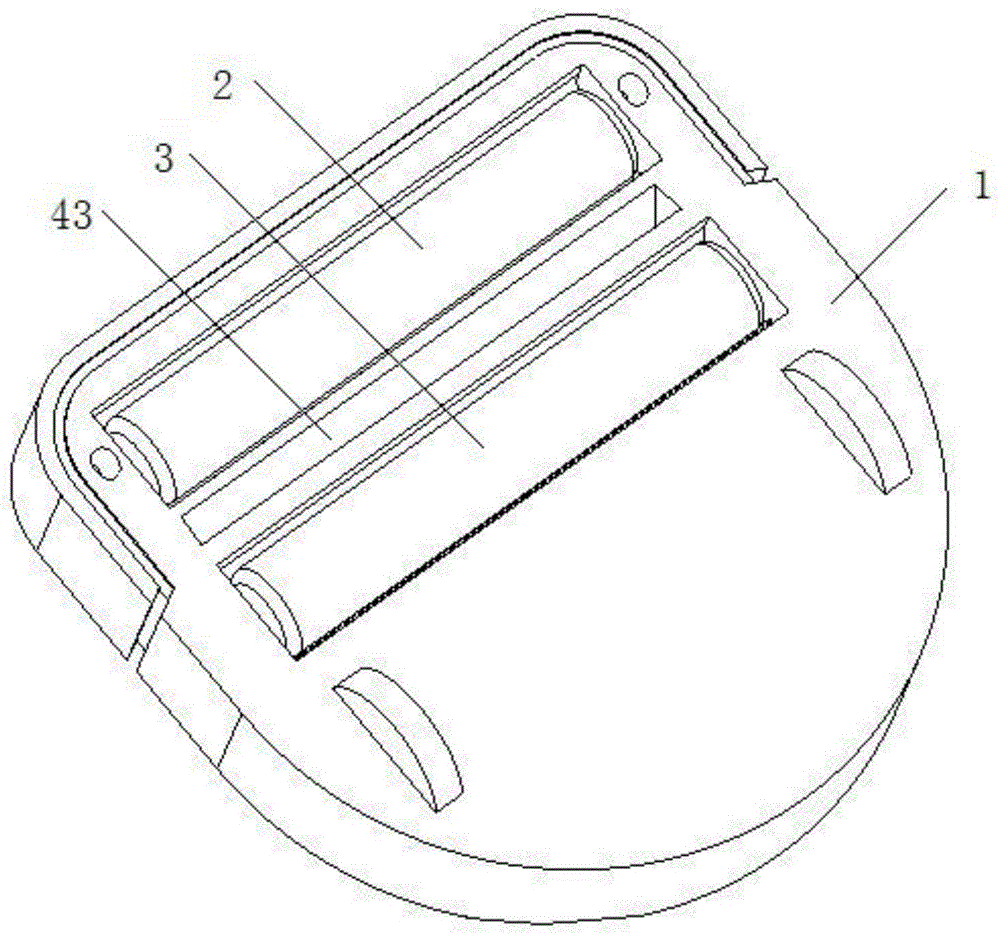

Figure 1 is a schematic structural view of a high-efficiency double-rolling floor machine in the technical scheme of the invention,

FIG. 2 is a schematic view of the internal structure of the high-efficiency double-rolling washing machine according to the technical solution of the present invention,

figure 3 is a schematic view of the location of the comb and dry roller brush,

fig. 4 is a schematic cross-sectional view of a dry roller brush.

Detailed Description

In order to facilitate the understanding of the technical solutions of the present invention for those skilled in the art, the technical solutions of the present invention will be further described with reference to the drawings attached to the specification.

As shown in fig. 1 and 2, the technical solution of the present invention is a high-efficiency double-rolling floor washing machine, which comprises a floor washing machine body 1 and two floor washing rolling brushes arranged at the bottom of the floor washing machine body 1. The two ground washing rolling brushes are respectively a wet rolling brush 2 and a dry rolling brush 3, and are arranged in front and back positions along the advancing direction of the ground washing machine body 1. Above the wet rolling brush 2, a spray head 52 is provided for wetting the wet rolling brush 2. The side surface of the wet rolling brush 2 is provided with a scraping plate 6 for scraping water stains on the wet rolling brush 2. The side of the dry rolling brush 3 is provided with a comb 7 for collecting the hair on the dry rolling brush 3. The side surfaces of the scraping plate 6 and the tooth comb 7 are respectively connected with a dirt suction device for collecting water stains and hair.

Based on the technical scheme, the wet rolling brush 2 is wetted through the spray head 52, the wet rolling brush 3 firstly cleans the ground when the floor washing machine moves forwards, dust and some stubborn dirt on the ground can be removed, and synchronously, the dry rolling brush 3 cleans the ground which is just cleaned by the wet rolling brush 2 at the rear part of the wet rolling brush 2, so as to clean water quality, some residual hair and the like on the ground. In the process of cleaning the ground by the wet rolling brush and the dry rolling brush, the scraping plate 6 and the tooth comb 7 work simultaneously to timely remove stains, hairs and the like on the wet rolling brush and the dry rolling brush, ensure the cleanness of the wet rolling brush and the dry rolling brush and ensure the cleaning effect of the wet rolling brush and the dry rolling brush on the ground.

This technical scheme is in, through the synchronous use of wet round brush and dry round brush, has ensured clean effect, simultaneously, effectually avoided subaerial water stain remaining, has avoided the walking personnel to slip to fall to tumble the scheduling problem, has also avoided the transfer of water stain, causes the secondary pollution scheduling problem.

As shown in fig. 2, the dirt suction device comprises a dirt suction fan, a dirt chamber and three

suction ports

42, 43 and 44 communicated with the dirt chamber through a dirt suction pipe 41, wherein the three

suction ports

42, 43 and 44 face the side surface of the scraper 6, the side surface of the tooth comb 7 and the ground at a position between the wet rolling brush 2 and the dry rolling brush 3 respectively. Towards the absorption mouth 42 on the ground of the position between wet round brush 2 and the dry round brush 3, realize adsorbing the ground of scrubbing through wet cylinder, absorb remaining more water stain and some dirt on the ground, reduce the operating pressure of the dry round brush of back, improve the cleaning performance of dry round brush, improve the holistic cleaning performance of floor cleaning machine.

As shown in figure 2, the rear part of the spray head 6 is connected with a clean water tank and a control valve through a water pipe 51, the spray head 6 comprises a plurality of nozzles which are connected in series, and the nozzles are arranged above the wet rolling brush. The delivery port of nozzle all with the contact of the rolling surface of wet round brush, ensure the delivery port water that flows through the nozzle, directly get into on the wet round brush, wet the round brush, avoid a large amount of rivers directly to flow down to subaerial, cause the remaining of a large amount of water stains of subaerial large tracts of land, the control valve realizes the control to discharge, make the rivers that flow through the nozzle just enough wet round brush that wets, avoid wet round brush too wet, lead to ground water stain to remain too much, or wet round brush is moist inadequately, influence the cleaning performance.

As shown in fig. 2, the scraper 6 is a hard scraper strip detachably mounted on the floor cleaning machine body 1, and the scraper is made of rubber. The scraping plate 6 is arranged above the side of the wet rolling brush 2, and the wet rolling brush 2 rotates towards the scraping plate 3 after scrubbing the ground. The contact part of the scraping plate 6 and the wet rolling brush 2 faces the position of the adsorption port 43, so that the effect of absorbing water stains on the wet roller by the dirt absorbing device is ensured. Among this technical scheme, in the rotatory a week of wet cylinder, at first the moist cylinder of clear water, wet cylinder is rotatory forward and washs ground, then the scraper blade scrapes wet cylinder, will wet cylinder water stain and dirty scraping and get and collected by the soil pick-up device, then the operation of the moist cylinder of repeated clear water wetting, in the rotatory a week of wet cylinder like this, the scraper blade will dirty and water stain scraping and get, ensured the cleanness of wet cylinder self, improve the clean effect to ground.

As shown in fig. 2, the squeegee 6 is disposed obliquely downward, and the axis of the squeegee 6 is disposed along the axial line of the wet roller brush 2. Scraper blade 6 is the vertical behavior and acts on wet round brush 6's the roll surface, and this technical scheme's setting improves scraper blade 6 and to water stain and dirty effect of scraping off on wet round brush 6's the roll surface.

As shown in fig. 2, the comb teeth 7 are disposed above the dry brush 3, and the dry brush 3 rotates in the direction of the comb teeth 7 after scrubbing the floor. The contact part of the comb teeth 7 and the dry rolling brush 3 faces the position of the adsorption port 44. The comb 7 combs off the hair and the like on the dry roller brush, and then the hair and the like are sucked away in time through the suction port 44, so that the comb 7 and the dry roller brush 3 are ensured to be clean. In this technical scheme, can produce certain air current because of the dirt suction fan effect because of absorption mouth 44 department, the air current passes through dry cylinder, can realize air-drying dry cylinder. Namely, the ground after being scrubbed by the wet rolling brush is adsorbed by the adsorption port 42, the water stain on the ground is less, the long cotton bristles 73 on the dry rolling brush 7 scrub, the water stain on the ground can be completely removed basically, a small amount of water stain enters the dry rolling brush 7, when the dirt absorption device absorbs the hair at the contact part of the tooth comb 7 and the dry rolling brush 3, the air flow generated by the removed hair is dry, the drying of the dry rolling brush 3 is ensured, and the cleaning effect of the dry rolling brush 3 on the water stain on the ground is ensured.

As shown in fig. 3, the comb 7 includes long teeth 71 and short teeth 72 arranged at intervals, and both the long teeth 71 and the short teeth 72 are inserted into the rolling surface of the dry roller brush 3. The long teeth 71 remove the hair deeply entangled with the dry brush 3, and the short teeth 72 are larger in number to remove the hair on the rolling surface of the dry brush 3.

As shown in FIG. 4, the dry roller brush 7 comprises a roller shaft, and long cotton bristles 73 and short bristles 74 fixed on the surface of the roller shaft at intervals, wherein the short bristles 74 are made of ultra-long fibers and have an electrostatic dust removal effect. In the working process of the dry rolling brush, the long cotton brush hairs 73 wipe off residual water stains on the ground, and the short brush hairs 74 made of the ultra-long fibers perform electrostatic dust removal on residual hair, dust and the like on the ground, so that the dust removal effect is good. After the ground is scrubbed by the wet rolling brush and is adsorbed by the adsorption port 42, the water stain on the ground is less, and the water stain on the ground can be basically and completely removed by scrubbing by the long cotton bristles 73 on the dry rolling brush 7. The longer cotton bristles 73 of the super-long fiber length are short, so that a small amount of water stain is prevented from entering the short bristles 74, the short bristles 74 are dried, and the adsorption effect on dust, hair and the like on the ground is ensured.

Technical solution of the invention is described above with reference to the accompanying drawings, it is obvious that the specific implementation of the invention is not limited by the above-mentioned manner, and it is within the scope of the invention to adopt various insubstantial modifications of the inventive method concept and technical solution, or to apply the inventive concept and technical solution to other occasions without modification.

Claims

1. A high-efficiency double-roll scrubber, characterized in that it comprises a scrubber body and two scrubbers placed at the bottom of the scrubber body; the two scrubbers are respectively wet rollers and dry rollers, And it is arranged in front and rear positions along the forward direction of the washing machine body; a spray head is arranged above the wet rolling brush for wetting the wet rolling brush; Water-stained scraper; the side of the dry-rolling brush is provided with a tooth comb for collecting hair on the dry-rolling brush; the scraper and the side of the tooth-comb are respectively connected with a dirt-absorbing device for collecting water-stained and hair .

2 . The high-efficiency double-roll scrubber according to claim 1 , wherein the sewage suction device comprises a sewage suction fan, a dirty cavity, and three adsorption ports communicated with the dirty cavity. 3 . Each suction port faces the side of the scraper, the side of the tooth comb, and the ground between the wet brush and the dry brush.

3. A high-efficiency double-roll scrubber according to claim 1, characterized in that, a clean water tank and a control valve are connected to the rear of the spray head, the spray head includes a number of nozzles connected in series, and the nozzles are placed in the wet area. Above the rolling brush, and the water outlet of the nozzle is in contact with the rolling surface of the wet rolling brush.

4. A high-efficiency double-roller scrubber according to claim 1, wherein the scraper is a hard scraper that can be detachably installed with the scrubber body; the scraper is arranged on the wet roller Above the brush side, the wet rolling brush rotates in the direction of the scraper after scrubbing the ground, and the contact part of the scraper and the wet rolling brush faces the position of the suction port.

5. A high-efficiency double-rolling scrubber according to claim 4, characterized in that the scraper is arranged obliquely downward, and the axis of the scraper is arranged along the axis line of the wet rolling brush, and the scraper acts in a vertical state on the brush. Wet the rolling surface of the rolling brush.

6 . The high-efficiency double-roll scrubber according to claim 1 , wherein the tooth comb is arranged above the side of the dry roller brush, and the dry roller brush rotates in the direction of the tooth comb after scrubbing the ground. 7 . , and the contact part of the tooth comb and the dry rolling brush faces the position of the suction port.

7 . The high-efficiency double-roll scrubber according to claim 6 , wherein the tooth comb comprises long teeth and short teeth arranged at intervals, and both the long teeth and the short teeth are inserted into the rolling surface of the dry rolling brush. 8 . .

8. A high-efficiency double-roller scrubber according to claim 1, wherein the dry roller brush comprises a roller shaft and long cotton bristles and short bristles fixed on the surface of the roller shaft at intervals, and the short The bristles are made of extra long fibers.
