本发明公开了智能低损精准定位丰胸填充系统及使用方法，包括支撑杆，支撑杆共设置有两个，移动机构，移动机构包括移动部件、固定齿条和移动块，移动部件设置于两个支撑杆之间，固定齿条设置于移动部件上，移动块设置于移动部件上，固定齿条贯穿于移动块，传输机构，传输机构包括支撑部件、定位部件、安装管、移动管，通过将移动块调节到合适的位置，通过拧动调节螺栓将限位机构和传输机构调节到合适的位置，再将限位板和安装管进行调节，可以方便医护人员对丰胸假体进行精准定位并放置，增加医护人员的工作效率，通过将固定机构固定在手术床上，从而增加了本装置的稳定性，减少对使用者伤口的损伤，同时增加使用者的使用舒适性。
The invention discloses an intelligent low-loss accurate positioning breast augmentation filling system and a method of use, including support rods, two support rods are arranged in total, and a moving mechanism. The moving mechanism includes a moving part, a fixed rack and a moving block. Between the support rods, the fixed rack is arranged on the moving part, the moving block is arranged on the moving part, the fixed rack runs through the moving block, and the transmission mechanism includes a supporting part, a positioning part, an installation tube, and a moving tube. The moving block is adjusted to the appropriate position, the limit mechanism and transmission mechanism are adjusted to the appropriate position by twisting the adjustment bolt, and then the limit plate and the installation tube are adjusted, which can facilitate the medical staff to accurately position and place the breast augmentation prosthesis. , to increase the work efficiency of medical staff, and by fixing the fixing mechanism on the operating bed, the stability of the device is increased, the damage to the user's wound is reduced, and the user's comfort is increased at the same time.
Description
Technical Field
The invention belongs to the technical field of medical equipment, and particularly relates to an intelligent low-loss accurate positioning breast augmentation filling system and a using method thereof.
Background
Breast augmentation, also called breast augmentation or breast augmentation, is an augmentation action performed by women for breasts in order to improve the charm of the women, and mainly depends on an external force manipulation to shape the breast, and common breast augmentation methods include: the food breast enlargement, namely the purpose of enlarging the breast by using nutrient substances in vegetables through adjusting the diet rule; the medicine breast enlargement is to enlarge the breast by using or taking the medicine, to enlarge the breast by an operation, to fill silica gel and other products into the breast to achieve the purpose of enlarging the breast, wherein the breast enlargement operation needs to cut a wound to put a filler, and the wound needs to be concealed certainly to avoid being discovered by people. Therefore, many people can select the armpit, areola or breast armpit as the operation place for operation for beautiful wounds, and when the operation is performed for breast enlargement, the auxiliary tool is needed to be used for filling the silica gel to the breast part of the user.
Present rich chest operation uses the transmission band that leaks hopper-shaped in actual operation to assist, and the transmission band size is fixed and need rely on medical personnel adjusting position, leads to its location precision not good, has increased medical personnel's work load simultaneously, and the current transmission band that leaks hopper-shaped needs a plurality of medical personnel to cooperate simultaneously, uses, and its stability part causes secondary damage to user's incision easily, leads to it to use the travelling comfort not good.
Disclosure of Invention
The invention aims to: the movable block drives the limiting mechanism and the transmission mechanism to move on the fixed rod through the rotation of the fixed motor, when the movable block is adjusted to a proper position, the limiting mechanism and the transmission mechanism are adjusted to the proper position through screwing the adjusting bolt and rotating the fixed plate, the fixed plate is fixed on the connecting piece through screwing the adjusting bolt, the limiting plate is positioned at the cut, then the rotating ring drives the fixed gear ring to rotate, the bidirectional threaded rod is rotated, the angle between the limiting brackets is changed through the rotation of the bidirectional threaded rod, the cut is limited, the fixed ring is screwed, then the movable pipe is pulled, the movable pipe slides on the limiting rod, when the movable pipe moves to a proper position, the movable pipe can be stopped to be pulled, the movable pipe and the mounting pipe are fixed together through the fixed ring, a medical worker places the breast augmentation prosthesis through the movable pipe, can make things convenient for medical personnel to carry out accurate location and place rich chest false body, increase medical personnel's work efficiency, fix a position the filling system through fixed establishment and fix on the operation table, place operation table both sides edge with mounting panel and movable plate, the magnetite adsorbs on the operation table, twist and move the dwang, the dwang rotates and drives the movable plate and remove, the movable plate removes and drives the slide bar and rises, slide bar extrusion fixed spring, until movable plate and mounting panel are fixed to the operation table, through rubber block and magnetite effect, can increase fixed establishment's fixed effect, thereby the stability of this device has been increased, reduce the damage to user's wound, increase user's use travelling comfort simultaneously.
The technical scheme adopted by the invention is as follows: intelligent low-loss accurate positioning breast augmentation filling system comprises:
the number of the support rods is two;
the moving mechanism comprises a moving part, a fixed rack and a moving block, the moving part is arranged between the two support rods, the fixed rack is arranged on the moving part, the moving block is arranged on the moving part, and the fixed rack penetrates through the moving block;
the conveying mechanism comprises a supporting part, a positioning part, a mounting pipe and a moving pipe, wherein the supporting part is arranged on a moving block, the mounting pipe is arranged on the supporting part, the positioning part is arranged on the mounting pipe, the moving pipe is embedded between the inner walls of the mounting pipe in a sliding manner, and the moving pipe is arranged on the positioning part; and
the limiting mechanism is provided with two sets of limiting mechanisms, each set of limiting mechanism comprises two adjusting parts, rotating parts and limiting plates, the adjusting parts and the rotating parts are arranged on the installation pipe, the rotating parts are arranged on the adjusting parts, and the limiting plates are arranged on the adjusting parts.
The movable part comprises a fixed motor, a fixed rod, a movable gear and a stabilizer bar, the fixed rod and the stabilizer bar are respectively and fixedly connected between the two support rods, the fixed rod and the stabilizer bar penetrate through the movable block, the fixed rack is fixedly embedded at the top of the fixed rod, the movable gear is fixedly connected with the fixed motor, the movable gear is fixedly sleeved at the output end of the fixed motor, and the movable gear is meshed with the fixed rack.
The supporting component comprises a connecting piece, an adjusting bolt and a fixing plate, the bottom of the connecting piece is fixedly connected to the top of the moving block, the fixing plate is fixedly connected to the bottom of the mounting pipe, and the bottom of the fixing plate is fixedly connected with the connecting piece through the adjusting bolt.
The positioning component comprises two limiting rods and a fixing ring, limiting grooves are formed in the upper inner wall and the lower inner wall of the installation pipe, the limiting rods are fixedly connected between the inner walls of the two sides of the two limiting grooves respectively and are connected with the inner walls of the two sides of the two limiting grooves respectively, the limiting rods penetrate through the movable pipe respectively, the outer surface of the movable pipe is arranged in the fixing ring in a sliding sleeved mode, and the fixing ring is in threaded connection with the installation pipe.
Each group of adjusting parts comprises a rotating ring and a fixed gear ring, the rotating ring is rotatably embedded in the outer surface of the installation pipe, and the fixed gear rings are fixedly connected between the inner walls of the rotating rings.
Wherein, every group rotatable part includes two-way threaded rod, fixed gear and spacing support, the mounting groove has all been seted up to the both sides surface of installation pipe, two-way threaded rod rotates to be connected between the both sides inner wall of mounting groove, the one end of two-way threaded rod is located to the fixed cover of fixed gear, and fixed gear and fixed ring gear intermeshing, spacing support and two-way threaded rod threaded connection, and spacing support and limiting plate fixed connection.
Wherein, two the bottom of bracing piece is provided with fixed establishment respectively, every group fixed establishment includes spacing part, movable plate, mounting panel and dwang, the top fixed connection of mounting panel is in the top of bracing piece, the dwang with mounting panel threaded connection, and the bottom of dwang runs through in the mounting panel and the movable plate rotates to be connected, spacing part sets up between mounting panel and movable plate.
Each limiting part comprises a fixed spring and a sliding rod, a sliding groove is formed in the bottom of the mounting plate, the sliding rods are embedded between the inner walls of the sliding grooves in a sliding mode, and the fixed springs are fixedly connected between the sliding rods and the sliding grooves.
The mounting plate is fixedly connected with a magnet inside, and the top of the moving plate is provided with a rubber block in an adhering mode.
The use method of the intelligent low-loss accurate positioning breast augmentation filling system comprises the following steps:
fixing a positioning and filling system, namely fixing the positioning and filling system on an operating bed through a fixing mechanism, placing an installation plate and a movable plate at the edges of two sides of the operating bed, adsorbing a magnet on the operating bed, screwing a rotating rod, driving the movable plate to move by rotating the rotating rod, driving a sliding rod to ascend by moving the movable plate, extruding a fixed spring by the sliding rod until the movable plate and the installation plate are fixed on the operating bed, and stopping rotating the installation plate;
adjusting a positioning and filling system, adjusting the positions of a limiting mechanism and a transmission mechanism according to the position of a user, rotating a fixed motor to drive a moving gear to rotate, meshing the moving gear with a fixed rack to drive a moving block to drive the limiting mechanism and the transmission mechanism to move on a fixed rod, and stopping rotating the fixed motor when the position is adjusted to a proper position;
step three, limiting the incision, namely, screwing an adjusting bolt, rotating a fixing plate to adjust a limiting mechanism and a transmission mechanism to proper positions, screwing the adjusting bolt to fix the fixing plate on a connecting piece, wherein a limiting plate is positioned at the incision, then rotating a ring, wherein the rotating ring drives a fixed gear ring to rotate, the fixed gear ring drives a fixed gear to rotate, the fixed gear ring drives a bidirectional threaded rod to rotate, the bidirectional threaded rod rotates to drive an angle between limiting supports to change, the two limiting plates are far away from each other, and the incision is limited;
and step four, adjusting the transmission channel, screwing the fixing ring, pulling the movable tube, sliding the movable tube on the limiting rod, stopping pulling the movable tube when the movable tube moves to a proper position, fixing the movable tube and the installation tube together through the fixing ring, and placing the breast augmentation prosthesis by medical staff through the movable tube.
In summary, due to the adoption of the technical scheme, the invention has the beneficial effects that:
(1) in the invention, the moving gear is driven to rotate by the rotation of the fixed motor, the moving block drives the limiting mechanism and the transmission mechanism to move on the fixed rod by meshing the moving gear with the fixed rack, when the limiting mechanism and the transmission mechanism are adjusted to a proper position, the limiting mechanism and the transmission mechanism are adjusted to a proper position by screwing the adjusting bolt and rotating the fixed plate, the fixed plate is fixed on the connecting piece by screwing the adjusting bolt, the limiting plate is positioned at the cut, then the rotating ring drives the fixed gear ring to rotate, the bidirectional threaded rod rotates to drive the angle between the limiting brackets to change, the cut is limited, the fixed ring is screwed, then the moving pipe is pulled, the moving pipe slides on the limiting rod, when the moving pipe moves to a proper position, the pulling of the moving pipe can be stopped, and then the moving pipe and the mounting pipe are fixed together by the fixed ring, medical personnel place the abundant breast prosthesis through removing the pipe, can make things convenient for medical personnel to carry out accurate location and place abundant breast prosthesis, increase medical personnel's work efficiency.
(2) According to the fixing device, the positioning and filling system is fixed on the operating bed through the fixing mechanism, the mounting plate and the moving plate are placed at the edges of two sides of the operating bed, the magnets are adsorbed on the operating bed, the rotating rod is screwed, the rotating rod rotates to drive the moving plate to move, the moving plate moves to drive the sliding rod to ascend, the sliding rod extrudes the fixing spring until the moving plate and the mounting plate are fixed on the operating bed, and the fixing effect of the fixing mechanism can be increased through the action of the rubber blocks and the magnets, so that the stability of the fixing device is improved, the damage to wounds of a user is reduced, and the use comfort of the user is improved.
Drawings

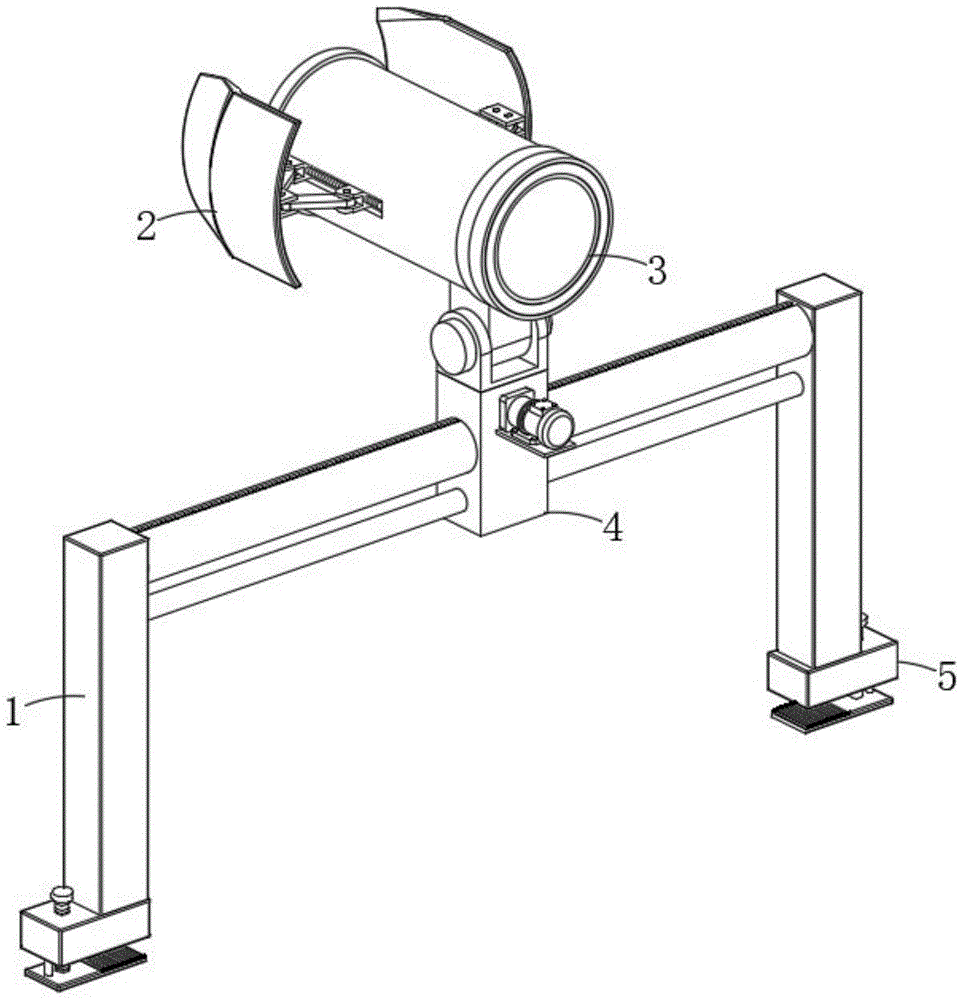

FIG. 1 is a front perspective view of the present invention;
FIG. 2 is a rear perspective view of the present invention;
FIG. 3 is an elevational perspective partially cut-away view of the present invention;
FIG. 4 is an elevational perspective semi-sectional view of the present invention;
FIG. 5 is a partial cross-sectional view of the moving and stationary mechanisms of the present invention;
FIG. 6 is an enlarged view of portion A of the present invention;
FIG. 7 is a side perspective cut-away view of the securing mechanism of the present invention;
FIG. 8 is an exploded perspective view of the securing mechanism of the present invention;
FIG. 9 is an exploded perspective view of the moving mechanism of the present invention;
FIG. 10 is a perspective view, partially in section, of the transport mechanism and stop mechanism of the present invention;
FIG. 11 is an exploded perspective view of the transport mechanism and spacing mechanism of the present invention;
FIG. 12 is a flow chart of the present invention.
The labels in the figure are: 1. a support bar; 2. a limiting mechanism; 201. a limiting plate; 202. a limiting bracket; 203. a bidirectional threaded rod; 204. fixing a gear; 205. rotating the ring; 206. fixing the gear ring; 3. a transport mechanism; 301. installing a pipe; 302. moving the tube; 303. a limiting rod; 304. a connecting member; 305. adjusting the bolt; 306. a stationary ring; 307. a fixing plate; 4. a moving mechanism; 401. fixing a motor; 402. a moving block; 403. fixing the rod; 404. fixing a rack; 405. a moving gear; 406. a stabilizer bar; 5. a fixing mechanism; 501. mounting a plate; 502. moving the plate; 503. fixing the spring; 504. a slide bar; 505. rotating the rod; 506. a rubber block; 507. a magnet is provided.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more apparent, the present invention is described in further detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.
Example one, with reference to fig. 1-12: intelligent low-loss accurate positioning breast augmentation filling system comprises: the two support rods 1 are arranged on the support rods 1, the support rods 1 are arranged for supporting and fixing, the moving mechanism 4 is arranged, the moving mechanism 4 comprises a moving part, a fixed rack 404 and a moving block 402, the moving part is arranged between the two support rods 1, the fixed rack 404 is arranged on the moving part, the moving block 402 is arranged on the moving part, the fixed rack 404 penetrates through the moving block 402, the moving mechanism 4 is arranged for adjusting the position, the moving block 402 can move through the matching of the moving part and the fixed rack 404, the moving block 402 is arranged for installing and fixing, the transmission mechanism 3 comprises a support part, a positioning part, an installation pipe 301 and a moving pipe 302, the support part is arranged on the moving block 402, the installation pipe 301 is arranged on the support part, the positioning part is arranged on the installation pipe 301, and the moving pipe 302 is slidably embedded between the inner walls of the installation pipe 301, the movable pipe 302 is arranged on the positioning part, the transmission mechanism 3 is arranged for transmission, the supporting part is arranged for supporting, the positioning part is arranged for fixing the movable pipe 302, the outer surface of the installation pipe 301 close to one end is provided with threads, the installation pipe 301 is arranged for supporting and installing, the outer surface of the movable pipe 302 is also provided with external threads, the movable pipe 302 is arranged for transmission, and the limiting mechanisms 2 are arranged in two groups, each group of limiting mechanisms 2 comprises two adjusting parts, a rotating part and a limiting plate 201, the adjusting parts and the rotating part are both arranged on the installation pipe 301, the rotating part is arranged on the adjusting parts, the limiting plates 201 are arranged on the adjusting parts, the limiting mechanisms 2 are arranged for limiting the notches, and the two limiting plates 201 can be pushed to be close to or far away from each other through the matching of the adjusting parts and the rotating parts, the device is used for supporting the size of a cut and limiting the cut, the limiting plate 201 is used for limiting the cut, the moving part comprises a fixed motor 401, a fixed rod 403, a moving gear 405 and a stabilizing rod 406, the fixed rod 403 and the stabilizing rod 406 are respectively and fixedly connected between the two support rods 1, the fixed rod 403 and the stabilizing rod 406 both penetrate through the moving block 402, the fixed rod 404 is fixedly embedded at the top of the fixed rod 403, the fixed motor 401 and the moving block 402 are fixedly connected by the moving gear 405, the moving gear 405 is fixedly sleeved at the output end of the fixed motor 401, the moving gear 405 and the fixed rod 404 are mutually meshed, the fixed motor 401 is arranged for providing rotation, the structure and the principle of the fixed motor 401 belong to the prior art, detailed description is omitted, the type can be selected according to the actual use condition, the fixed rod 403 is positioned above the stabilizing rod 406, and the fixed rod 403 is used for supporting the moving block 402, the stabilizing rod 406 is arranged for limiting, the moving gear 405 is arranged for transmission, the moving gear 405 can be driven to rotate by the rotation of the fixed motor 401, the moving block 402 can move by the meshing of the moving gear 405 and the fixed rack 404, the supporting component comprises a connecting piece 304, an adjusting bolt 305 and a fixed plate 307, the bottom of the connecting piece 304 is fixedly connected to the top of the moving block 402, the fixed plate 307 is fixedly connected to the bottom of the mounting pipe 301, the bottom of the fixed plate 307 is fixedly connected with the connecting piece 304 through the adjusting bolt 305, the connecting piece 304 is arranged for mounting the fixed plate 307, the fixed plate 307 is arranged for supporting, the adjusting bolt 305 is arranged for adjusting, the angle between the fixed plate 307 and the connecting piece 304, the positioning component comprises two limiting rods 303 and a fixed ring 306, the upper inner wall and the lower inner wall of the mounting pipe 301 are both provided with limiting grooves, the two limiting rods 303 are respectively and fixedly connected between the inner walls at both sides of the two limiting grooves, two gag lever posts 303 run through respectively in removal pipe 302, the surface of removal pipe 302 is located to retainer plate 306 slip cover, and retainer plate 306 and installation pipe 301 threaded connection, seting up of spacing groove is used for installing gag lever post 303, the internal thread has been seted up to the inside of retainer plate 306, and the internal thread of retainer plate 306 matches each other with the screw thread of installation pipe 301 and removal pipe 302, the setting of retainer plate 306 is used for fixed mounting pipe 301 and removal pipe 302, the setting of gag lever post 303 is used for spacing removal pipe 302, make things convenient for removal pipe 302 to remove, every group adjusting part includes rotating ring 205 and fixed ring gear 206, rotating ring 205 rotates to inlay and locates the surface of installation pipe 301, fixed ring gear 206 fixed connection is between the inner wall of rotating ring 205, the setting of rotating ring 205 can make things convenient for medical personnel to rotate fixed ring gear 206, the setting of fixed ring gear 206 is used for the transmission, every group rotating part includes two-way threaded rod 203, the surface of removal pipe 302, and the screw thread of removal pipe 302, and the setting of every group rotating part, and the fixed ring gear are fixed ring gear ring 206, and are fixed to be convenient for the setting of the two-way threaded rod, the two-way threaded rod of the two-way of the utility model, the utility model is suitable for the utility model, A fixed gear 204 and a limit bracket 202, wherein the outer surfaces of two sides of the installation tube 301 are respectively provided with an installation groove, the two-way threaded rod 203 is rotatably connected between the inner walls of two sides of the installation groove, the installation groove is used for installing the two-way threaded rod 203, the limit bracket 202 can be limited by the installation groove, the fixed gear 204 is fixedly sleeved at one end of the two-way threaded rod 203, the fixed gear 204 is meshed with the fixed gear ring 206, the limit bracket 202 is in threaded connection with the two-way threaded rod 203, the limit bracket 202 is fixedly connected with the limit plate 201, the outer surface of the two-way threaded rod 203 is provided with two opposite threads, the limit bracket 202 is composed of two connecting plates, two rotating parts and a fixing part, the fixing part is fixedly connected with the limit plate 201, the rotating part is in threaded connection with the two-way threaded rod 203, the connecting plates are rotatably connected between the fixing part and the rotating part, the two rotating parts are respectively positioned on different threads on the two-way threaded rod 203, the two rotation members can be moved close to or away from each other by rotating the bidirectional threaded rod 203 for adjusting the position of the position restricting plate 201.
Referring to FIGS. 5-7: the bottom of two support rods 1 are respectively provided with a fixing mechanism 5, each group of fixing mechanisms 5 comprises a limiting part, a moving plate 502, a mounting plate 501 and a rotating rod 505, the top of the mounting plate 501 is fixedly connected to the top of the support rod 1, the rotating rod 505 is in threaded connection with the mounting plate 501, the bottom end of the rotating rod 505 penetrates through the mounting plate 501 and is rotatably connected with the moving plate 502, the limiting part is arranged between the mounting plate 501 and the moving plate 502 and is used for limiting, the edges of the operating bed can be clamped by the arrangement of the moving plate 502 and the mounting plate 501, the outer surface of the rotating rod 505 is provided with external threads, the rotating rod 505 penetrates through the mounting plate 501 and is used for adjusting the distance between the moving plate 502 and the mounting plate 501, each limiting part comprises a fixed spring 503 and a sliding rod 504, the bottom of the mounting plate 501 is provided with a sliding groove, the sliding rod 504 is slidably embedded between the inner walls of the sliding grooves, fixed spring 503 fixed connection is between slide bar 504 and sliding tray, sliding tray's setting is used for installing slide bar 504 and fixed spring 503, slide bar 504 sets up and is used for spacingly, fixed spring 503 sets up and is used for supporting slide bar 504, the inside fixedly connected with magnetite 507 of mounting panel 501, the top of two movable plates 502 all bonds and is provided with rubber block 506, the setting of magnetite 507 is used for increasing the effect of being connected of mounting panel 501 and operation table, the setting of rubber block 506 is used for increasing frictional force, increase the effect of being connected of movable plate 502 and operation table simultaneously.
When the positioning and filling system is used, the positioning and filling system is fixed through the fixing mechanism 5 on an operating bed, the mounting plate 501 and the moving plate 502 are placed at the edges of two sides of the operating bed, the magnets 507 are adsorbed on the operating bed, the rotating rod 505 is screwed, the rotating rod 505 rotates to drive the moving plate 502 to move, the moving plate 502 moves to drive the sliding rod 504 to ascend, the sliding rod 504 extrudes the fixing spring 503 until the moving plate 502 and the mounting plate 501 are fixed on the operating bed, the mounting plate 501 stops rotating, the positioning and filling system is adjusted, the positions of the limiting mechanism 2 and the transmission mechanism 3 are adjusted according to the position of a user, the fixing motor 401 rotates to drive the moving gear 405 to rotate, the moving gear 405 is meshed with the fixing rack 404, the moving block 402 drives the limiting mechanism 2 and the transmission mechanism 3 to move on the fixing rod 403, and the fixing motor 401 stops rotating when the position is adjusted to be proper, step three, limiting the incision, adjusting the limiting mechanism 2 and the transmission mechanism 3 to proper positions by screwing the adjusting bolt 305 and rotating the fixing plate 307, and screwing the adjusting bolt 305 to fix the fixing plate 307 to the connecting piece 304, at the moment, the limiting plate 201 is positioned at the incision, then the ring 205 is rotated, the ring 205 is rotated to drive the fixing gear 206 to rotate, the fixing gear 206 is rotated to drive the fixing gear 204 to rotate, the fixing gear 204 is rotated to drive the bidirectional threaded rod 203 to rotate, the bidirectional threaded rod 203 is rotated to drive the angle between the limiting brackets 202 to change, the two limiting plates 201 are far away from each other to limit the incision, step four, adjusting the transmission channel, screwing the fixing ring 306, then pulling the movable pipe 302, the movable pipe 302 slides on the limiting rod 303, when the movable pipe 302 moves to a proper position, the movable pipe 302 can be stopped to be pulled, and then the movable pipe 302 and the installation pipe 301 are fixed together through the fixing ring 306, the health care professional places the breast augmentation prosthesis by moving tube 302.
