The invention relates to the field of aerial work, in particular to a portable aerial auxiliary line hanging device, comprising a hand-held rod, an arc-shaped hook and a barb, one end of the hand-held rod is connected with one end of the arc-shaped hook, and the arc-shaped hook has a The other end is connected with one end of the barb, the other end of the barb is provided with a cube block, and the end of the cube block away from the barb is vertically provided with a first hole. The operation is convenient, only one person can hang the cable that needs to be hung on the original cable. The device has the following beneficial effects: 1. The construction workers do not need to climb up the high-altitude steel wire, and can stand on the ground and hold the aerial work pole to carry out the aerial wireline operation; 2. The operation is convenient, time-saving and labor-saving, with low use cost and high construction efficiency; 3. It avoids the personal safety risk of high-altitude operators during high-altitude operations; 4. It has a wide range of applications and can be applied to safe high-altitude operations on various lines and complex terrains; 5. The invention is flexible in assembly and easy to carry.

Description

Supplementary hanging wire device in high altitude

Technical Field

The invention relates to the field of high-altitude operation, in particular to an auxiliary high-altitude wire hanging device.

Background

With the rapid development of the power industry, the scale of the power grid is continuously accelerated, and the maintenance task of the line is increasingly heavy. Some old lines and network cables are erected on the existing lines through cable hooks, the hooks are prone to falling off after long-time work, if the cables falling on the ground are not repaired and hung in time, serious safety accidents can happen, line transmission is affected, and human life is also affected.

Many optical cable lines are erected on farmlands, hills or grasslands, and since no road for large vehicles to run exists in the places, the high-altitude operation vehicles cannot reach emergency repair sites in the emergency repair process, and although some emergency repair sites are arranged beside roads, the emergency repair vehicles can reach the emergency repair sites, the use cost of maintenance personnel is high. The special overhead workers are used, so that the time and the use cost are higher, and serious personal safety risks exist when the special workers slide on overhead steel wires for operation. The prior art has no effective portable high-altitude operation equipment. Therefore, in order to reduce the construction cost and the personal safety risk of constructors, it is necessary to develop a portable all-terrain device which does not need to climb to the high altitude and can be used for high-altitude operation by constructors standing on the ground.

Disclosure of Invention

The invention aims to provide a convenient, quick and safe high-altitude operating rod to solve the problems in the background technology.

In order to achieve the above object, the present invention provides the following technical solutions: an overhead auxiliary wire hanging device comprises an overhead working pole and a cable supporting pole, wherein the overhead working pole comprises a first handheld pole 1, an arc-shaped hook 2 and an inverted hanging piece, one end of the first handheld pole 1 is connected with one end of the arc-shaped hook 2, the other end of the arc-shaped hook 2 is connected with one end of the inverted hanging piece, and a hole is vertically formed in the inverted hanging piece; the cable supporting rod comprises a second holding rod 15 and a C-shaped ring 16; the opening of the C-shaped ring 16 is upward, the second holding rod 15 is arranged at the bottom end of the C-shaped ring 16, and two ends of the opening of the C-shaped ring 16 are bent downward to form a hook shape.

Preferably, the inverted hanging piece is a barb 3, and the barb 3 is a hook with an upward opening; one end of the barb 3 is connected with one end, far away from the handheld rod, of the arc-shaped hook 2, the other end of the barb 3 is provided with a cube block 4, and one end, far away from the barb 3, of the cube block 4 is vertically provided with a first hole 5.

Preferably, the aerial working pole further comprises a cross bar 6, a square hole 7 matched with the cube block 4 is formed in the center of the cross bar 6, and the cross bar 6 is arranged on the cube block 4 through the square hole 7; the cross rod 6 is provided with a plurality of second holes 8, and the second holes 8 are sequentially arranged from large to small.

The cross rod and the holes with different sizes on the cross rod are suitable for C-shaped hooks with different specifications, and the C-shaped hooks can be placed in sequence, so that the hanging time is shortened, and the hanging efficiency is improved.

Preferably, the reverse hanging piece is a semi-cylinder 9, one end of the cross section of the semi-cylinder 9 is connected with one end of the arc hook 2 far away from the handheld rod 1, and a plurality of third holes 14 are formed in the cross section of the semi-cylinder 9.

Preferably, the aerial working pole further comprises a connecting rod 10, a stop lever 11 and a bolt; the connecting rod 10 is connected with one end of the arc-shaped hook 2 close to the handheld rod 1 through a bolt, and a sliding groove 13 is formed in the connecting rod; the stop lever is arranged on the sliding groove 13 through a bolt.

According to the arrangement of the invention, when the cable drops more and is loose, the hanging hooks are stacked together due to the gravity of the cable when the device is combined with the C-shaped hook for operation, and the effect of hanging the cable cannot be realized.

Preferably, the arc-shaped hook 2 is provided with a T-shaped bolt 12.

According to the T-shaped bolt designed by the invention, under the condition of less cables, the T-shaped bolt is pulled out, the cable is hung on the T-shaped bolt to play a role of supporting, and then the cable is hung, so that the cable hanging operation can be carried out more quickly.

Preferably, the first handheld rod 1 and the second handheld rod are composed of a plurality of short rods, the short rods are connected with the short rods through bolts, one ends of the short rods are threaded rods, the other ends of the short rods are nuts, the nuts are embedded into the short rods, and the nuts are matched with threads of the threaded rods.

Preferably, the handheld rod 1 is a telescopic rod.

Preferably, the first handheld bar 1 is connected with the arc-shaped hook 2 through a bolt.

According to the high-altitude operating rod, one end of the C-shaped hook is placed in the first hole 5 through the specific C-shaped hook, the cable is manually placed in the C-shaped hook, and the cable is slowly lifted up to be placed at the original position through the C-shaped hook. The cable that simple operation only needs alone can hang the establishing cable on original cable.

The handheld rod is formed by connecting a plurality of short rods, is convenient to carry, and can be freely assembled to be suitable for cables with different heights when in use.

Compared with the prior art, the invention has the following beneficial effects:

1 constructors can stand on the ground to hold the high-altitude operation rod to perform high-altitude stringing operation without climbing up high-altitude suspended steel wires.

2, the operation is convenient, the time and the labor are saved, the use cost is low, and the construction efficiency is high;

3, personal safety risks of the high-altitude operation personnel during high-altitude operation are avoided;

4, the application range is wide, and the device is suitable for safe high-altitude operation on various lines and complex terrains.

5 the invention has flexible assembly and convenient carrying.

Drawings

FIG. 1 is a schematic view of the structure of the present invention.

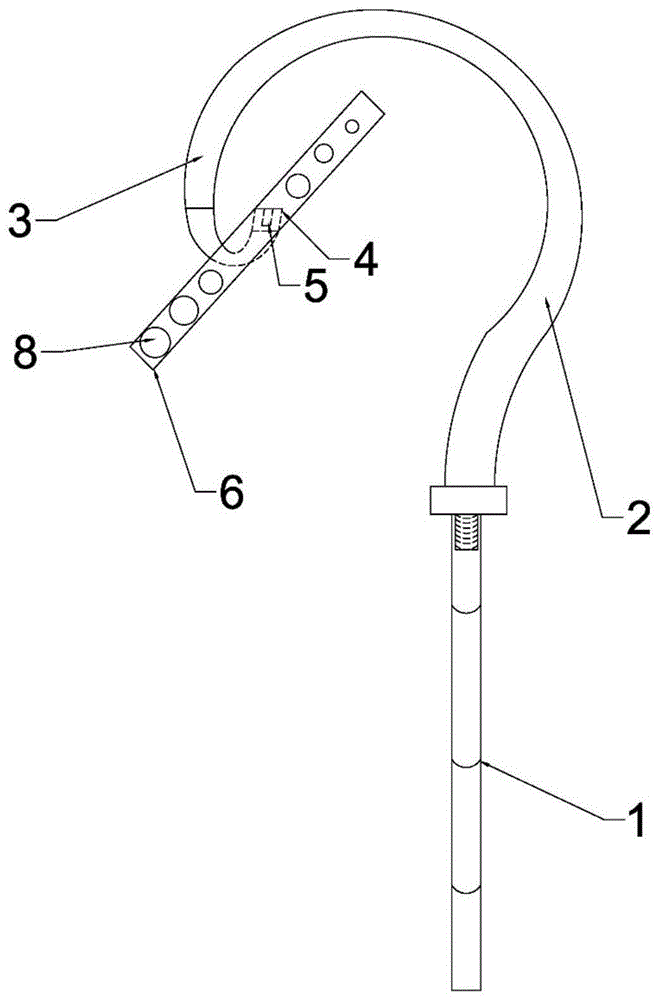

Fig. 2 is a schematic structural diagram of embodiment 2 of the present invention.

Fig. 3 is a schematic structural view of the cross bar of the present invention.

Fig. 4 is a structural view of embodiment 3 of the present invention.

Fig. 5 is a schematic structural diagram of a shift lever according to embodiment 4 of the present invention during operation.

Fig. 6 is a schematic structural view of the cable-receiving stay and the support rod of the present invention.

In the figure: 1. a first hand-held lever; 2. an arc-shaped hook; 3. a barb; 4. a cube block; 5. a first hole; 6. a cross bar; 7. a square hole; 8. a second hole; 9. a semi-cylinder; 10. a connecting rod; 11 shift levers; 12. a T-bolt; 13. a chute; 14. a third hole; 15. a second handle bar; 16. and a C-shaped ring.

Detailed Description

In order to make the purpose, technical solution and advantages of the embodiments of the present invention clearer, the technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings of the present invention.

An overhead auxiliary wire hanging device comprises an overhead working pole and a cable supporting pole, wherein the overhead working pole comprises a first handheld pole 1, an arc-shaped hook 2 and an inverted hanging piece, one end of the first handheld pole 1 is connected with one end of the arc-shaped hook 2, the other end of the arc-shaped hook 2 is connected with one end of the inverted hanging piece, and a hole is vertically formed in the inverted hanging piece; the cable supporting rod comprises a second holding rod 15 and a C-shaped ring 16; the opening of the C-shaped ring 16 is upward, the second holding rod 15 is arranged at the bottom end of the C-shaped ring 16, and two ends of the opening of the C-shaped ring 16 are bent downward to form a hook shape.

Example 1

As shown in fig. 1, the aerial working pole comprises a handheld pole 1, an arc-shaped hook 2 and a barb 3, wherein one end of the handheld pole 1 is connected with one end of the arc-shaped hook 2, the other end of the arc-shaped hook 2 is connected with one end of the barb 3, the other end of the barb 3 is provided with a cube block 4, and one end, far away from the barb 3, of the cube block 4 is vertically provided with a first hole 5.

The handheld rod 1 comprises a plurality of short rods and short rod connecting pieces, and the short rods are connected with the short rods through bolts. The handheld rod 1 is connected with the hook through a bolt. According to the high-altitude operating rod, one end of the C-shaped hook is placed in the first hole 5 through the specific C-shaped hook, the cable is manually placed in the C-shaped hook, and the cable is slowly lifted up to be placed at the original position through the C-shaped hook. The cable that simple operation only needs alone can hang the establishing cable on original cable.

Example 2

As shown in fig. 6, the cable support pole includes a second hand-held pole 15 and a C-ring 16; the opening of the C-shaped ring 16 is upward, the second holding rod 15 is arranged at the bottom end of the C-shaped ring 16, and two ends of the opening of the C-shaped ring 16 are bent downward to form a hook shape.

When utilizing this device to carry out the operation in this embodiment, when the cable is very heavy a lot, because the cable is very smooth, hang and to pile up C type couple together because the gravity of cable when establishing the cable, consequently utilize this device, hang and at first utilize the cable bracing piece to pick up the cable before establishing, then carry out hanging of C type couple and establish the operation, so can use even hanging the cable of C type couple to establish.

Example 3

As shown in fig. 2, the aerial working pole comprises a handheld pole 1, an arc-shaped hook 2 and a barb 3, wherein one end of the handheld pole 1 is connected with one end of the arc-shaped hook 2, the other end of the arc-shaped hook 2 is connected with one end of the barb 3, the other end of the barb 3 is provided with a cube block 4, and one end, far away from the barb 3, of the cube block 4 is vertically provided with a first hole 5.

The aerial working pole also comprises a cross bar 6, and a square hole 7 matched with the cube block 4 is arranged at the midpoint of the cross bar 6; a plurality of second holes 8 are formed in the cross rod 6, and the second holes 8 are sequentially arranged from large to small; the cross bar 6 is disposed on the cube block 4 through a square hole 7.

Example 4

As shown in fig. 4, the aerial work pole comprises a handheld pole 1, an arc-shaped hook 2 and a semi-cylinder 9, wherein one end of the handheld pole 1 is connected with one end of the arc-shaped hook 2, one end of the cross section of the semi-cylinder 9 is connected with one end of the arc-shaped hook 2 far away from the handheld pole 1, and a plurality of third holes 14 are formed in the cross section of the semi-cylinder 9.

Example 5

As shown in fig. 5, the aerial working pole comprises a handheld pole 1, an arc-shaped hook 2 and an inverted hanging piece, wherein one end of the handheld pole 1 is connected with one end of the arc-shaped hook 2, the other end of the arc-shaped hook 2 is connected with one end of the inverted hanging piece, and a hole is vertically formed in the inverted hanging piece.

The inverted hanging piece is a semi-cylinder 9, one end of the cross section of the semi-cylinder 9 is connected with one end, away from the handheld rod 1, of the arc hook 2, and a plurality of third holes 14 are formed in the cross section of the semi-cylinder 9.

The aerial working pole further comprises a connecting rod 10, a stop lever 11 and a bolt; the connecting rod 10 is connected with one end of the arc-shaped hook 2 close to the handheld rod 1 through a bolt, and a sliding groove 13 is formed in the connecting rod; the stop lever is arranged on the sliding groove 13 through a bolt.

According to the arrangement, when the cable drops more and is loose, the hanging hooks are stacked together due to the gravity of the cable when the device is combined with the C-shaped hook for operation, and the effect of hanging the cable cannot be realized.

The arc-shaped hook 2 is provided with a T-shaped bolt 12.

The handheld rod 1 comprises a plurality of short rods, the short rods are connected with one another through bolts, one ends of the short rods are threaded rods, the other ends of the short rods are nuts, the nuts are embedded into the short rods, and the nuts are matched with threads of the threaded rods. The handheld rod 1 is connected with the arc-shaped hook 2 through a bolt.

The preferred embodiments of the present invention have been described in detail, however, the present invention is not limited to the specific details of the above embodiments, and various changes may be made to the technical solution of the present invention within the technical idea of the present invention, and these simple modifications are included in the protective scope of the present invention.

It should be noted that, in the foregoing embodiments, various specific technical features and steps described in the above embodiments can be combined in any suitable manner, and in order to avoid unnecessary repetition, various possible combinations of the features and steps are not described separately.

In addition, any combination of the various embodiments of the present invention is also possible, and the same should be considered as the disclosure of the present invention as long as it does not depart from the spirit of the present invention.

Claims

1. A high-altitude auxiliary wire-hanging device, comprising an aerial work rod and a cable support rod, characterized in that: the aerial work rod comprises a first hand-held rod (1), an arc hook (2), an upside-down part, and the One end of the first hand-held rod (1) is connected with one end of the arc hook (2), and the other end of the arc hook (2) is connected with one end of an upside-down hanging piece, and a hole is vertically arranged on the upside-down piece ;

The cable support rod includes a second handle rod (15) and a C-shaped ring (16); the opening of the C-shaped ring (16) is upward, and the second handle rod (15) is arranged on the C-shaped ring At the bottom end of (16), both ends of the opening of the C-shaped ring (16) are bent downward to form a hook shape.

2. A high-altitude auxiliary line hanging device according to claim 1, characterized in that: the upside-down member is a barb (3), and the barb (3) is a hook with an upward opening; the barb One end of (3) is connected to the end of the arc hook (2) away from the hand-held rod, the other end of the barb (3) is provided with a cube block (4), and the cube block (4) is away from the barb (3). ) is vertically provided with a first hole (5).

3. A kind of aerial auxiliary line hanging device according to claim 2, it is characterized in that: described aerial work pole further comprises cross bar (6), and described cross bar (6) center position is provided with cube block ( 4) A matching square hole (7), the cross bar (6) is arranged on the cube block (4) through the square hole (7); the cross bar (6) is provided with a number of second holes (8), The second holes (8) are arranged in order from large to small.

4. A kind of high-altitude auxiliary line hanging device according to claim 1, characterized in that: the upside-down member is a semi-cylindrical body (9), and one end of the cross-section of the semi-cylindrical body (9) is connected to an arc-shaped hook (9). 2) Connected to one end away from the hand-held rod (1), a plurality of third holes (14) are provided on the cross section of the semi-cylindrical body (9).

5. An aerial auxiliary line hanging device according to claim 1, characterized in that: the aerial work rod further comprises a connecting rod (10), a blocking rod (11) and a bolt; the connecting rod (10) passes through the The bolt is connected with one end of the arc hook (2) close to the hand-held rod (1), and the connecting rod is provided with a chute (13); one end of the gear rod is a fixed end and the other end is a movable end, and the fixed end It is respectively connected with the chute (13) and the arc hook (2) by bolts, and the range of the movable end is movable in the inner cavity formed by the arc hook (2).

6. A high-altitude auxiliary line hanging device according to claim 1, wherein a T-bolt (12) is provided on the arc hook (2).

7. A high-altitude auxiliary line hanging device according to claim 1, characterized in that: the first hand-held rod (1) and the second hand-held rod (15) are composed of several short rods, and the short The rod and the short rod are connected by bolts, one end of the short rod is a screw rod, and the other end is a nut, the nut is embedded in the short rod, and the nut matches the thread of the screw rod.

8. A high-altitude auxiliary line hanging device according to claim 1, characterized in that: the hand-held rod (1) is a telescopic rod.

9. A high-altitude auxiliary line hanging device according to claim 1, characterized in that: the hand-held rod (1) and the arc-shaped hook (2) are connected by bolts.
