Abstract
本发明涉及一种双层壳的多功能手电筒，包括外壳、内壳和光电组件；本发明的手电筒采用双层壳体设计，内壳为常规金属材料，外壳则可搭配如竹木、皮革、棉麻等各种非金属材料，不仅从色彩、质感等多方面提升了产品外观品质，使用触感上也更温暖柔和，产品舒适性也有大幅提升，同步配合柔光罩，还可作为台灯或临时吊灯使用，扩展了产品功能范围，本发明成本不高易于生产，操作简单使用灵活，具有一定的市场价值。
The invention relates to a multifunctional flashlight with a double-layer shell, including an outer shell, an inner shell and a photoelectric component; the flashlight of the invention adopts a double-layer shell design, the inner shell is made of conventional metal materials, and the outer shell can be matched with bamboo, wood, leather, Various non-metallic materials such as cotton and linen not only improve the appearance quality of the product in terms of color and texture, but also feel warmer and softer in use, and the comfort of the product has also been greatly improved. It can also be used as a desk lamp or temporary The use of the chandelier expands the functional scope of the product, the present invention is not high in cost, easy to produce, simple in operation and flexible in use, and has a certain market value.
Description
Technical Field
The invention relates to the technical field of illumination, in particular to a double-shell multifunctional flashlight.
Background
The flashlight is as handheld lighting fixture commonly used, it is closely relevant with people's life to have closely, traditional flashlight is mostly the individual layer casing, the casing material majority is the metal, a small amount of be the plastic, consequently the outward appearance is comparatively dull, it is also cold hard to feel comparatively, the function is also single relatively, along with the improvement of standard of living, the user has provided higher requirement to product function outward appearance variety and use comfort, traditional flashlight can't all satisfy the market demand yet, to above circumstances, it is abundant to wait to develop a shell material, use the comfortable multi-functional flashlight of sense of touch, solve current problem.
Disclosure of Invention
In view of the above, the present invention provides a multifunctional flashlight with a double-shell.
The purpose of the invention is realized by the following technical scheme:
a multifunctional flashlight with a double-layer shell comprises an outer shell, an inner shell and a photoelectric component; the inside of shell is equipped with the inner shell, the shell bottom is equipped with the tail-hood, the top is equipped with the lamp holder lid, the lamp holder covers the inner wall and is equipped with sheen cover connecting device, photoelectric component set up in the inner shell, the photoelectric component middle section is the battery case, the loading has the battery in the battery case, the battery below is provided with the control panel, the battery case upper end is equipped with the light source seat, install the LED light source in the light source seat, be connected with anti-light cup on the LED light source, anti-light cup top is equipped with logical slide.
Specifically, the top of lamp holder lid is provided with the diffuser, the diffuser bottom outside is equipped with torch connecting device, the diffuser connecting device of inner wall is fixed with the lamp holder lid to the diffuser connecting device butt joint, the diffuser with the fixed detachable fixed mode of lamp holder lid.
Furthermore, the tail ring is arranged on the outer side of the tail cover, a switch and a charging port are arranged at the bottom of the tail cover, the switch and the charging port are electrically connected with the control panel, the control panel is electrically connected with the battery, the battery is electrically connected with the LED light source, the switch can be pressed to switch on and off and adjust the brightness of the LED light source, and the external power supply can charge the battery through the charging port.
Preferably, the inner shell (2) is made of a metal material, and the outer shell (1) is made of any one of the following materials: bamboo, wood, cloth, paper, leather, felt, resin, plastic.
The invention has the beneficial effects that:
the multifunctional flashlight with the double-layer shell adopts the design of the double-layer shell, the inner shell is made of conventional metal materials, the outer shell can be made of various non-metal materials such as bamboo, leather, cotton and hemp, the appearance quality of the product is improved from various aspects such as color, texture and the like, the use touch is warmer and softer, the comfort of the product is greatly improved, the multifunctional flashlight is synchronously matched with a soft light cover and can be used as a desk lamp or a temporary ceiling lamp, the functional range of the product is expanded, the cost is low, the production is easy, the operation is simple, the use is flexible, and certain market value is achieved.
Drawings
The invention is further illustrated with reference to the following figures and examples:
FIG. 1 is a schematic structural diagram of one embodiment of the present invention;

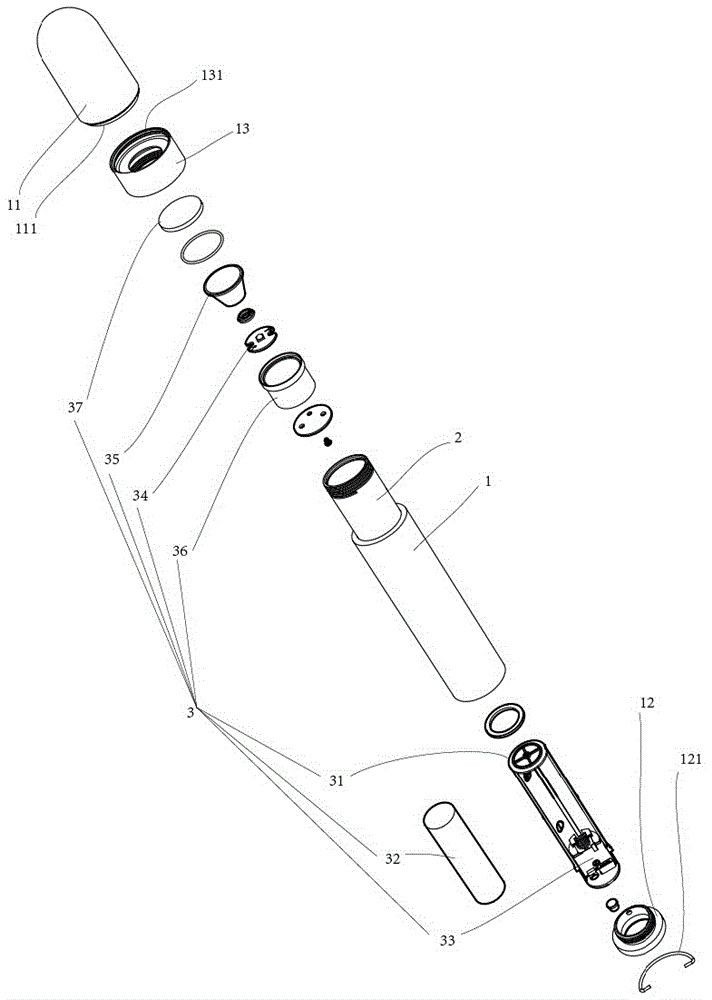

FIG. 2 is an exploded view of one embodiment of the present invention;
fig. 3 is an exploded view of one embodiment of the present invention.
In the figure: the flashlight with the soft light comprises an outer shell 1, a soft light cover 11, a flashlight connecting device 111, a tail cover 12, a tail ring 121, a switch 122, a charging port 123, a lamp cap 13, a soft light cover connecting device 131, an inner shell 2, an optoelectronic component 3, a battery box 31, a battery 32, a control panel 33, an LED light source 34, a reflecting cup 35, a light source seat 36 and a light-transmitting sheet 37.
Detailed Description
To facilitate understanding of those skilled in the art, the present invention will be described in further detail below with reference to specific embodiments and the accompanying drawings.
Wherein like or similar reference numerals refer to like or similar elements or elements having like or similar functions throughout.
The embodiments described below with reference to the drawings are illustrative and intended to be illustrative of the invention and should not be construed as limiting the invention.
In the description of the present invention, it is to be understood that the terms "center", "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on those shown in the drawings, and are used only for convenience in describing the present invention and for simplicity in description, and do not indicate or imply that the referenced devices or components must have a particular orientation, be constructed in a particular orientation, and be operated, and thus, are not to be construed as limiting the present invention.
In the present invention, unless otherwise expressly stated or limited, the terms "connected," "mounted," "secured," and the like are to be construed broadly, as if the terms "connected," such as mechanically or electrically connected; the connection can be direct connection, indirect connection through an intermediate medium, internal connection, or internal and external connection. The specific meanings of the above terms in the present invention can be specifically understood according to specific situations by those of ordinary skill in the art.
Referring to fig. 1 to 3, one embodiment of the present invention includes:
a multifunctional electric torch with double-layer shell comprises an outer shell 1, an inner shell 2 and an optoelectronic component 3; the inside of shell 1 is equipped with inner shell 2, 1 bottom of shell is equipped with tail-hood 12, the top is equipped with lamp holder lid 13, the inner wall is equipped with sheen cover connecting device 131 on the lamp holder lid 13, optoelectronic component 3 set up in the inner shell 2, 3 middle sections of optoelectronic component are battery case 31, the loading has battery 32 in the battery case, battery 32 below is provided with control panel 33, battery case 31 upper end is equipped with light source seat 36, install LED light source 34 in the light source seat 36, be connected with anti-light cup 35 on the LED light source 34, anti-light cup 35 top is equipped with logical light piece 37.
Referring to fig. 2, as an embodiment of the present invention, a soft light cover 11 is disposed on a top of the lamp cap cover 13, a flashlight connecting device 111 is disposed on an outer side of a bottom of the soft light cover 11, the flashlight connecting device 111 is fixed to a soft light cover connecting device 131 on an inner wall of the lamp cap cover 13 in a butt joint manner, and the soft light cover 11 and the lamp cap cover 13 are fixed in a detachable manner.
Referring to fig. 1 and 3, as an embodiment of the present invention, a tail ring 121 is disposed outside the tail cover 12, a switch 122 and a charging port 123 are disposed at the bottom of the tail cover 12, the switch 122 and the charging port 123 are both electrically connected to the control board 33, the control board 33 is electrically connected to the battery 32, the battery 32 is electrically connected to the LED light source 34, the LED light source 34 can be switched and dimmed by pressing the switch 122, and the battery 32 can be charged by an external power source through the charging port 123.
As an embodiment of the invention, the inner shell (2) is made of a metal material, and the outer shell (1) is made of any one of the following materials: bamboo, wood, cloth, paper, leather, felt, resin, plastic.
Although embodiments of the present invention have been shown and described, it should be noted that the above-mentioned embodiments are illustrative and not restrictive, and that those skilled in the art may make equivalent changes, modifications, substitutions and alterations to the above embodiments without departing from the spirit and scope of the present invention, and that these equivalent changes, modifications, substitutions and alterations are also included in the scope of the present invention as defined by the appended claims.
Claims (4)
1. A multifunctional electric torch with a double-layer shell comprises an outer shell (1), an inner shell (2) and a photoelectric component (3), it is characterized in that an inner shell (2) is arranged inside the outer shell (1), a tail cover (12) is arranged at the bottom of the outer shell (1), a lamp cap cover (13) is arranged at the top of the outer shell, the upper inner wall of the lamp cap cover (13) is provided with a soft light cover connecting device (131), the photoelectric component (3) is arranged in the inner shell (2), the middle section of the photoelectric component (3) is a battery box (31) which is loaded with a battery (32), a control panel (33) is arranged below the battery (32), a light source seat (36) is arranged at the upper end of the battery box (31), the LED light source seat is characterized in that an LED light source (34) is installed in the light source seat (36), a reflecting cup (35) is connected to the LED light source (34), and a light-transmitting sheet (37) is arranged at the top of the reflecting cup (35).
2. The multifunctional flashlight with a double-shell according to claim 1, wherein a light-diffusing cover (11) is arranged on the top of the light head cover (13), a flashlight connecting device (111) is arranged on the outer side of the bottom of the light-diffusing cover (11), the flashlight connecting device (111) is fixedly connected with a light-diffusing cover connecting device (131) on the inner wall of the light head cover (13) in a butt joint mode, and the light-diffusing cover (11) and the light head cover (13) are fixed in a detachable fixing mode.
3. The multifunctional flashlight with a double shell according to claim 1, wherein a tail ring (121) is arranged on the outer side of the tail cover (12), a switch (122) and a charging port (123) are arranged at the bottom of the tail cover (12), the switch (122) and the charging port (123) are both electrically connected with the control board (33), the control board (33) is electrically connected with the battery (32), the battery (32) is electrically connected with the LED light source (34), the LED light source (34) can be switched on and off and adjusted in brightness by pressing the switch (122), and the battery (32) can be charged by an external power supply through the charging port (123).
4. The multifunctional flashlight with a double shell according to claim 1, wherein the inner shell (2) is made of metal, and the outer shell (1) is made of any one of the following materials: bamboo, wood, cloth, paper, leather, felt, resin, plastic.
