CN113700205A - Installation design structure of super-large hyperboloid modeling felt plate embedded with light-transmitting soft film - Google Patents
Installation design structure of super-large hyperboloid modeling felt plate embedded with light-transmitting soft film Download PDFInfo
- Publication number
- CN113700205A CN113700205A CN202111103452.9A CN202111103452A CN113700205A CN 113700205 A CN113700205 A CN 113700205A CN 202111103452 A CN202111103452 A CN 202111103452A CN 113700205 A CN113700205 A CN 113700205A
- Authority
- CN
- China
- Prior art keywords
- soft film
- felt
- board
- fixing
- super
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
Images
Classifications
-
- E—FIXED CONSTRUCTIONS
- E04—BUILDING
- E04B—GENERAL BUILDING CONSTRUCTIONS; WALLS, e.g. PARTITIONS; ROOFS; FLOORS; CEILINGS; INSULATION OR OTHER PROTECTION OF BUILDINGS
- E04B9/00—Ceilings; Construction of ceilings, e.g. false ceilings; Ceiling construction with regard to insulation
-
- E—FIXED CONSTRUCTIONS
- E04—BUILDING
- E04B—GENERAL BUILDING CONSTRUCTIONS; WALLS, e.g. PARTITIONS; ROOFS; FLOORS; CEILINGS; INSULATION OR OTHER PROTECTION OF BUILDINGS
- E04B9/00—Ceilings; Construction of ceilings, e.g. false ceilings; Ceiling construction with regard to insulation
- E04B9/06—Ceilings; Construction of ceilings, e.g. false ceilings; Ceiling construction with regard to insulation characterised by constructional features of the supporting construction, e.g. cross section or material of framework members
- E04B9/061—Ceilings; Construction of ceilings, e.g. false ceilings; Ceiling construction with regard to insulation characterised by constructional features of the supporting construction, e.g. cross section or material of framework members supporting construction for curved ceilings
-
- E—FIXED CONSTRUCTIONS
- E04—BUILDING
- E04B—GENERAL BUILDING CONSTRUCTIONS; WALLS, e.g. PARTITIONS; ROOFS; FLOORS; CEILINGS; INSULATION OR OTHER PROTECTION OF BUILDINGS
- E04B9/00—Ceilings; Construction of ceilings, e.g. false ceilings; Ceiling construction with regard to insulation
- E04B9/18—Means for suspending the supporting construction
-
- E—FIXED CONSTRUCTIONS
- E04—BUILDING
- E04B—GENERAL BUILDING CONSTRUCTIONS; WALLS, e.g. PARTITIONS; ROOFS; FLOORS; CEILINGS; INSULATION OR OTHER PROTECTION OF BUILDINGS
- E04B9/00—Ceilings; Construction of ceilings, e.g. false ceilings; Ceiling construction with regard to insulation
- E04B9/22—Connection of slabs, panels, sheets or the like to the supporting construction
Landscapes
- Engineering & Computer Science (AREA)
- Architecture (AREA)
- Physics & Mathematics (AREA)
- Electromagnetism (AREA)
- Civil Engineering (AREA)
- Structural Engineering (AREA)
- Finishing Walls (AREA)
Abstract
本发明公开了一种嵌入透光软膜的超大双曲面造型毛毡板安装设计结构，属于建筑装饰技术领域，包括多根弧形龙骨，其通过多根吊杆吊挂在墙顶上，多根所述弧形龙骨之间相互平行；至少两块基层板，所述基层板固定安装在多根所述弧形龙骨上，至少两块所述基层板之间留有间隙；本发明采用弧形龙骨利用吊杆吊挂在墙顶上，基层板固定在弧形龙骨上，将软膜本体的两端卡接在基层板上并填充间隙的位置，使得软膜本体在两块基层板之间形成良好的过渡，使用插接的方式将毛毡板本体固定安装在基层板上，便于毛毡板本体的安装，毛毡板本体遮住基层板和软膜本体的接头位置，毛毡板本体抵住软膜本体，使得软膜本体与毛毡板本体之间的嵌合效果好，装饰效果好。
The invention discloses an installation design structure of a super-large hyperboloid shaped felt board embedded in a light-transmitting soft film, belonging to the technical field of architectural decoration. The arc-shaped keels are parallel to each other; at least two base plates are fixedly installed on a plurality of the arc-shaped keels, and a gap is left between at least two of the base plates; the present invention adopts an arc-shaped The keel is hung on the top of the wall with a boom, the base plate is fixed on the arc-shaped keel, and the two ends of the soft membrane body are clamped on the base plate and the gap is filled, so that the soft membrane body is between the two base plates. To form a good transition, the felt board body is fixed and installed on the base board by plugging, which is convenient for the installation of the felt board body. The felt board body covers the joint position of the base board and the soft film body, and the felt board body is against the soft film. body, so that the fitting effect between the soft film body and the felt board body is good, and the decoration effect is good.
Description
Technical Field
The invention belongs to the technical field of architectural decoration, and particularly relates to an installation design structure of an ultra-large hyperboloid modeling felt plate embedded with a light-transmitting soft film.
Background
Felt board is because its possess non-deformable, not loose, can not break can not fall bits, advantages such as durable receive indoor designer's favor more and more, are applied to the top surface and the wall of indoor high-grade decoration engineering by the designer often. Especially some indoor lobby dysmorphism top surfaces adopt the design that felt plate and printing opacity mantle combined together, realize whole interior decoration science and technology and feel the effect.
Chinese patent (CN201910980971.X) discloses an intelligent noise-reducing suspended ceiling, which comprises a keel frame, a suspended ceiling plate, a sound absorbing layer and an active noise-reducing device, wherein the keel frame is suspended at the top of the layer through a hanging piece; the suspended ceiling plate is arranged on the keel frame and is used for being matched with the roof to form a silencing cavity; the sound absorption layer is arranged on the ceiling board and used for absorbing noise; the active noise reduction device is arranged in the sound attenuation cavity and comprises a pickup module, a sound production module and a main control module, the main control module is used for electrically connecting the pickup module with the sound production module, the main control module is used for picking up the noise in the sound attenuation cavity through the pickup module, and the noise is controlled when being arranged at a preset value, the sound production module sends out anti-noise with equal noise amplitude and opposite phase.
Chinese patent (CN202020794510.1) discloses an assembled detachable light-transmitting soft-film suspended ceiling system, aiming to solve the technical problem of overcoming the complex replacement defect in the prior art, which is mainly realized by the following technical scheme: an assembled removable light transmissive soft film ceiling system comprising: the suspended ceiling assembly comprises a hanging rib, a main keel, a secondary keel and a triangular keel, wherein the main keel is fixed below the hanging rib, and the secondary keel and the triangular keel are both fixed on the main keel; the lamp component comprises a lamp strip and a fixed iron sheet, the lamp strip is fixed on the fixed iron sheet, and the fixed iron sheet is fixed on the auxiliary keel; the light-transmitting component covers the lamp component, the light-transmitting film is fixedly spliced with the keel flat codes, and the keel flat codes are fixedly spliced in the triangular keels.
Chinese patent (CN202021278759.3) discloses a fire-retardant dado of no aldehyde relates to ornamental material technical field, including the dado body, two piece adjacent dado bodies pass through the constant head tank and the locating piece inlay card is fixed, and the dado body from the top down has set gradually exempted from the lacquer decorative board, has gone up the radiation protection layer, has protected against radiation layer, glass fiber board, diatom board, sound insulation felt, corrosion resistant layer down, and the one side of protecting against radiation layer is equipped with a plurality of recesses that are equipped with initiative absorbing material under the radiation protection layer is hugged closely on last radiation protection layer.
At present, the construction of traditional wall top face super large hyperboloid felt board top all carries out the top surface basic unit earlier and handles, guarantee that the basic unit levels, clean connection face or top surface adopt basic unit gypsum board furred ceiling, according to design drawing requirement, confirm the unwrapping wire location of installing furred ceiling height and felt board segmentation composing, after mill processed the felt board according to design positioning drawing, the scene is according to modes such as infrared unwrapping wire on-the-spot concatenation bonding fixed, carry out felt board joint treatment at last, in imbedding mounting structure with the printing opacity mantle again, make the installation operation of felt board complicated, the transition effect between printing opacity mantle and the felt board is poor, can't carry out quick replacement to the pattern of felt board.
Disclosure of Invention
The invention aims to: the installation design structure of the felt plate with the ultra-large hyperboloid molding embedded with the light-transmitting soft film is provided for solving the problems that the installation operation is complicated, the embedding effect of the light-transmitting soft film is poor and the felt plate cannot be quickly replaced due to the fact that the felt plate is fixed on a base gypsum plate in a bonding mode.
In order to achieve the purpose, the invention adopts the following technical scheme: the utility model provides an embedding printing opacity mantle's super large hyperboloid molding felt board installation design structure, it includes:
the plurality of arc keels are hung on the wall top through a plurality of hanging rods, and the plurality of arc keels are parallel to each other;
the base plate is fixedly arranged on the arc keels, and a gap is reserved between the at least two base plates;
the felt plate bodies are fixedly connected to the base plate through a plurality of bonding mechanisms, and two adjacent felt plate bodies are attached to each other;
the flexible film body is positioned between two adjacent base plate plates, two ends of the flexible film body are respectively clamped on the two base plate plates, and the flexible film body is positioned below the felt plate body.
As a further description of the above technical solution:
the bottom surface of the base plate is provided with a plurality of clamping grooves, the bonding mechanism comprises a plurality of fixing strips and a plurality of fixing needles, the fixing strips are clamped in the clamping grooves and correspond to the clamping grooves one to one, the fixing needles are fixedly connected to the fixing strips, and the fixing needles are inserted into the felt plate body.
As a further description of the above technical solution:
the cross-sections of the clamping grooves and the fixing strips are T-shaped.
As a further description of the above technical solution:
the bottom surface of the base plate is provided with a fixing groove, the fixing groove is close to the end part of the base plate, a pressing strip is wound on the end part of the flexible film body, and the pressing strip is clamped in the fixing groove.
As a further description of the above technical solution:
the pressing strip is fixedly connected to the bottom of the fixing groove through a plurality of adjusting bolts.
As a further description of the above technical solution:
the top surface of the felt plate body is attached to the bottom surface of the base plate, and the arcs of the felt plate body, the base plate and the felt plate body are kept consistent.
As a further description of the above technical solution:
an adjusting rod is arranged between the soft film body and the base plate.
As a further description of the above technical solution:
the end part of the felt board body is provided with a flange which is attached to the bottom surface of the soft film body.
In summary, due to the adoption of the technical scheme, the invention has the beneficial effects that:
1. according to the invention, the arc-shaped keel is hung on the wall top by utilizing the hanging rod, the base plate is fixed on the arc-shaped keel, a gap is kept between the base plates, two ends of the soft film body are clamped on the base plates and the gap is filled, so that the soft film body forms good transition between the two base plates, the felt plate body is fixedly arranged on the base plates in an inserting mode, the installation of the felt plate body is facilitated, the felt plate body covers the joint positions of the base plates and the soft film body, and the felt plate body supports against the soft film body, so that the embedding effect between the soft film body and the felt plate body is good, and the decoration effect is good.
2. According to the felt plate fixing device, the fixing strip with the fixing needles is inserted into the clamping grooves, and the felt plate body is inserted into the fixing needles, so that the felt plate body can be quickly fixed, the felt plate body can quickly adapt to the curved surface radian of the base plate, and the felt plate body can be quickly changed in style.
3. According to the invention, the pressing strips are wound at the two ends of the soft film body, the pressing strips are clamped in the fixing grooves, the pressing strips are fixed in the fixing grooves by using the adjusting bolts, the positions of the pressing strips in the fixing grooves can be adjusted by screwing the adjusting bolts, so that the tightness of the soft film body is adjusted, the adjusting rods with different radius specifications are plugged between the base plate and the soft film body, and then the positions of the adjusting rods are moved, so that the inclination angle of the soft film body is adjusted, and the base plate with different hyperboloid shapes has an attractive decorative effect and is simple and convenient to install and operate.
Drawings
Fig. 1 is a schematic view of an overall structure of a mounting design structure of a felt plate with an ultra-large hyperboloid molding embedded with a light-transmitting soft film.
Fig. 2 is a partially enlarged view of a portion a in fig. 1.

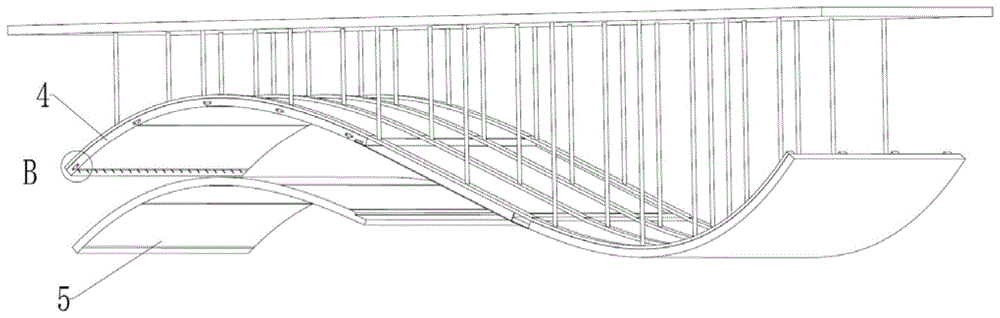

Fig. 3 is an exploded view of a mounting design structure of a felt plate with an ultra-large hyperboloid molding embedded with a light-transmitting soft film.
Fig. 4 is a partially enlarged view of a portion B in fig. 3.
Illustration of the drawings:
1. an arc keel; 2. a boom; 3. a wall top; 4. a base layer plate; 5. a felt board body; 6. a bonding mechanism; 61. a fixing strip; 62. a fixing pin; 7. a flexible film body; 8. a card slot; 9. fixing grooves; 10. layering; 11. adjusting the bolt; 12. adjusting a rod; 13. and (5) flanging.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are some, but not all, embodiments of the present invention. The components of embodiments of the present invention generally described and illustrated in the figures herein may be arranged and designed in a wide variety of different configurations. Thus, the following detailed description of the embodiments of the present invention, presented in the figures, is not intended to limit the scope of the invention, as claimed, but is merely representative of selected embodiments of the invention. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention. It should be noted that: like reference numbers and letters refer to like items in the following figures, and thus, once an item is defined in one figure, it need not be further defined and explained in subsequent figures. In the description of the embodiments of the present invention, it should be noted that the terms "upper", "inner", and the like refer to orientations or positional relationships based on the orientations or positional relationships shown in the drawings or orientations or positional relationships that are conventionally arranged when the products of the present invention are used, and are used only for convenience in describing the present invention and simplifying the description, but do not indicate or imply that the devices or elements referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-4, the present invention provides a technical solution: the utility model provides an embedding printing opacity mantle's super large hyperboloid molding felt board installation design structure, includes:
the wall structure comprises a plurality of arc keels 1, a plurality of hanging rods 2 and a plurality of connecting rods, wherein the arc keels 1 are hung on a wall top 3 and are parallel to each other;
the base plate 4 is fixedly arranged on the arc-shaped keels 1, and a gap is reserved between the at least two base plates 4;
the felt plate bodies 5 are fixedly connected to the base plate 4 through a plurality of bonding mechanisms 6, and two adjacent felt plate bodies 5 are attached to each other;
the soft film body 7 is positioned between two adjacent base plate plates 4, two ends of the soft film body 7 are respectively clamped on the two base plate plates 4, and the soft film body 7 is positioned below the felt plate body 5;
a plurality of clamping grooves 8 are formed in the bottom surface of the base plate 4, the bonding mechanism 6 comprises a plurality of fixing strips 61 and a plurality of fixing needles 62, the fixing strips 61 are clamped in the clamping grooves 8, the fixing strips 61 correspond to the clamping grooves 8 one by one, the fixing needles 62 are fixedly connected to the fixing strips 61, the fixing needles 62 are inserted into the felt plate body 5, the fixing strips 61 with the fixing needles 62 are inserted into the clamping grooves 8, and the felt plate body 5 is inserted into the fixing needles 62, so that the felt plate body 5 can be quickly fixed, the felt plate body 5 can quickly adapt to the curved surface radian of the base plate 4, and the felt plate body 5 can be quickly replaced;
the cross sections of the clamping groove 8 and the fixing strip 61 are both T-shaped, the edge fixing strip 61 is quickly installed in the clamping groove 8, and the clamping between the fixing strip 61 and the clamping groove 8 is also ensured to be stable;
a fixing groove 9 is formed in the bottom surface of the base plate 4, the fixing groove 9 is close to the end portion of the base plate 4, a pressing strip 10 is wound on the end portion of the flexible film body 7, the pressing strip 10 is clamped in the fixing groove 9, the flexible film body 7 can be conveniently and quickly clamped and mounted, and mounting operation is simple and convenient;
the pressing strip 10 is fixedly connected to the bottom of the fixing groove 9 through a plurality of adjusting bolts 11, so that the pressing strip 10 is fixed in the fixing groove 9 conveniently, and the position of the pressing strip 10 in the fixing groove 9 can be adjusted by screwing the adjusting bolts 11, so that the tightness of the soft membrane body 7 is adjusted;
the top surface of the felt board body 5 is attached to the bottom surface of the base board 4, and the arcs of the felt board body 5, the base board 4 and the felt board body 5 are kept consistent, so that the integral decorative effect has the style of a hyperboloid;
an adjusting rod 12 is arranged between the soft film body 7 and the base plate 4, and the adjusting rod 12 can adjust the inclination angle of the soft film body 7, so that the butt joint between different base plates 4 is adapted, and the use flexibility is strong;
the end of the felt board body 5 is provided with a flange 13, the flange 13 is attached to the bottom surface of the soft film body 7, and the flange 13 covers the position of the fixing groove 9, so that good transition is realized between the felt board body 5 and the soft film body 7, the embedding effect of the soft film body 7 is natural, and the attractiveness of the decorative effect is improved.
The working principle is as follows: firstly, a plurality of arc-shaped keels 1 are hung on a wall top 3 through a plurality of hanging rods 2, the parallel arrangement of the arc-shaped keels 1 is ensured, secondly, at least two base plate plates 4 are fixedly arranged on the arc-shaped keels 1, a gap is reserved between two adjacent base plate plates 4, pressing strips 10 are wound at two opposite ends of a soft film body 7, the pressing strips 10 and the soft film body 7 are clamped into a fixing groove 9, the pressing strips 10 are fixedly connected to the bottom of the fixing groove 9 through a plurality of adjusting bolts 11, the positions of the pressing strips 10 in the fixing groove 9 can be adjusted by screwing the adjusting bolts 11, so that the tightness of the soft film body 7 is adjusted, an adjusting rod 12 is plugged between the soft film body 7 and the base plate plates 4, the adjusting rod 12 with different radius specifications is used, the position of the adjusting rod 12 is adjusted, the angle of the soft film body 7 and the hyperboloid modeling of the base plate 4 can be adjusted, make decorative effect natural pleasing to the eye, then, go into the draw-in groove 8 on the base plate 4 with the fixed strip 61 card that has many fixed needles 62, fixed needle 62 salient in the bottom surface of base plate 4, finally, peg graft felt board body 5 on many fixed needles 62, pressfitting felt board body 5 laminates on base plate 4, keep the hyperboloid molding coincidence with base plate 4, turn-ups 13 on felt board body 5 tip hides the position of fixed slot 9, turn-ups 13 laminates on the surface of mantle body 7, butt joint between two adjacent felt board bodies 5, accomplish the installation, in addition, when needs change the decoration style, remove felt board body 5 from fixed needle 62, insert new felt board body 5 on fixed needle 62 can, the felt board body 5 that changes can also continue to utilize.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and the technical solutions and the inventive concepts thereof according to the present invention should be equivalent or changed within the scope of the present invention.
