The invention belongs to the technical field of bean sauce fermentation, and discloses a fermentation tank for brewing bean sauce, which comprises: the tank body is provided with a stirring cavity internally provided with a stirring mechanism, and the upper end of the tank body is at least provided with a tank opening communicated with the stirring cavity; the opening and closing cover is matched with the tank opening and is hinged with the tank opening; the opening and closing adjusting component is used for adjusting the opening and closing angle of the opening and closing cover relative to the tank opening; the opening and closing adjusting part comprises a mounting seat, a winding roller and a driving motor, the winding roller is rotatably mounted on the tank body through the mounting seat, a pull rope is wound on the winding roller, the free end of the pull rope is connected with the movable end of the opening and closing cover, and the winding roller is driven by the driving motor to rotate; and the meteorological detection part is arranged on the tank body. The invention also provides a brewing and fermenting method of the Pixian broad bean paste. The invention is suitable for outdoor fermentation, has high automation degree and low labor intensity, and the tedding and fermentation of the broad beans are basically not influenced by the external environment.

Description

Bean cotyledon brewing fermentation tank and Pi county bean cotyledon brewing fermentation method
Technical Field
The invention belongs to the technical field of bean cotyledon fermentation, and particularly relates to a bean cotyledon brewing fermentation tank and a Pi county bean cotyledon brewing fermentation method.
Background
Pi county bean cotyledon is a specialty of Pi city district (called Pi county old) in Chengdu city, and is also a geographical mark product of China. Pi county bean cotyledon is one of the top seasonings in China, is unique in material selection and process, is distinctive, has mellow fragrance without adding a little spice, is oily in color, and fully meets the standards of good color, fragrance and taste by fine processing technology and excellent raw materials. The Pi county bean cotyledon has the characteristics of heavy spicy taste, bright red and oily, large chili block and fragrant and sweet aftertaste, is a common seasoning item in Sichuan-style recipes and is called Chuancheng. It makes the second batch of national-level non-material cultural heritage list of skills.
The production of the Pi county broad bean paste needs fermentation, and the fermentation of the Pi county broad bean paste in the prior art mainly adopts the open-air tedding fermentation technology of a fermentation vat and a fermentation tank:
the fermentation cylinder/fermentation tank is driven to be turned over and aired for fermentation in the open air, namely fermentation is carried out in the fermentation cylinder/fermentation tank in the open air, a fermentation medium is in a semi-solid state, the semi-solid material fermentation relates to a solid-liquid-gas three-phase state, only a small amount of free water exists in the fermentation medium, wherein only a gas phase is a continuous phase, microorganisms mainly adsorb on the surface of a solid substrate to grow or permeate into the solid substrate to grow, and nutritional ingredients required by growth are mainly absorbed from broad bean pieces and hot peppers through a small amount of liquid water; the uniformity degree of solid matters in fermentation can directly influence the uniform fermentation and metabolism of microorganisms; because the metabolic heat is easy to be discharged by manual stirring heat transfer in the fermentation process of the fermentation cylinder (the height of the cylinder is 0.5-0.6m), the fermentation temperature is relatively easy to control; however, the fermentation technology is greatly influenced by external harmful microorganisms, so that the flavor of the product is greatly influenced by the outside and is easy to fluctuate, the overall stability of the product quality is poor, the labor intensity is high, the occupied area of the fermentation is large, and the automation level is low.
At present, pot fermentation is mainly applied to liquid medium fermentation materials, the liquid phase is a continuous phase, nutrient components for microbial growth and propagation are easy to transfer and absorb through moisture, no nutrient concentration gradient exists basically, required oxygen mainly comes from a gas phase, oxygen and material circulation can be supplemented through high-pressure air, microorganisms are uniformly distributed on the materials and are easy to realize, metabolic heat in the fermentation process is easy to discharge through heat transfer, the fermentation temperature is easy to control, however, the fermentation technology needs high-pressure air, the energy consumption is high, the microbial fermentation is mainly aerobic, and therefore the pot fermentation is not applied to the fermentation mode of the Pixian county broad bean paste, which is mainly anaerobic fermentation.
Therefore, there is a need for a bean cotyledon brewing fermentation tank and a bean cotyledon brewing fermentation method in pi county, which are less affected by the environment and have better uniformity of material stirring.
Disclosure of Invention
The invention aims to provide a bean cotyledon brewing fermentation tank and a Pi county bean cotyledon brewing fermentation method, which solve the problem that the existing bean cotyledon fermentation tank and fermentation method are greatly influenced by the environment.
In order to achieve the purpose, the invention adopts the following technical scheme:
in one aspect, a fermentation tank for brewing bean comprises:
the tank body is provided with a stirring cavity internally provided with a stirring mechanism, and the upper end of the tank body is at least provided with a tank opening communicated with the stirring cavity;
the opening and closing cover is matched with the tank opening and is hinged with the tank opening;
the opening and closing adjusting component is used for adjusting the opening and closing angle of the opening and closing cover relative to the tank opening; the opening and closing adjusting part comprises a mounting seat, a winding roller and a driving motor, the winding roller is rotatably mounted on the tank body through the mounting seat, a pull rope is wound on the winding roller, the free end of the pull rope is connected with the movable end of the opening and closing cover, and the winding roller is driven by the driving motor to rotate;
the meteorological detection component is arranged on the tank body;
the controller is electrically connected with the driving motor and the meteorological detection part respectively; and
the discharge gate, locate the bottom of jar body and with the stirring chamber intercommunication.
In a possible implementation mode, the top of the tank body is provided with a convex part, and the convex part is hollow and communicated with the stirring cavity;
the tank body is arranged on two sides of the convex part respectively, and a ventilation structure is arranged on one side of the convex part adjacent to each tank opening.
In a possible implementation manner, the ventilation structure comprises a plurality of ventilation holes which are uniformly opened on the convex part.
In a possible implementation, the projection communicates with a feed tube.
In a possible implementation, the stirring mechanism comprises a stirring shaft, an outer spiral blade and an inner spiral blade;
the stirring shaft is arranged in the stirring cavity in a rotating mode, the inner spiral blades are fixed on the outer side of the stirring shaft, the outer spiral blades are fixedly connected to the outer spiral blades of the stirring shaft, and the spiral directions of the outer spiral blades and the inner spiral blades are opposite.
In a possible implementation manner, a driving part for driving the stirring mechanism is arranged at the top of the convex part, and the driving part comprises a stirring motor and a speed reducer;
and an output shaft of the stirring motor is connected with a power input end of the speed reducer, and a power output end of the speed reducer is connected with a stirring shaft of the stirring mechanism.
In a possible implementation mode, a connecting block is fixed at the top of the movable end of the opening and closing cover, a rope penetrating hole is formed in the connecting block, and the pull rope penetrates through the rope penetrating hole and is fixedly connected with the connecting block.
In a possible implementation manner, when the opening and closing cover closes the tank opening, the upper surface of the opening and closing cover has an inclination relative to a plane where the tank opening is located, and the upper surface of the opening and closing cover is inclined downwards from the hinged end to the movable end of the opening and closing cover.
On the other hand, a pi county bean cotyledon brewing fermentation method is also provided, the bean cotyledon brewing fermentation tank based on any one of the technical schemes, and the pi county bean cotyledon brewing fermentation method includes:
discharging: putting the Pi county broad bean paste mixed clinker to be brewed and fermented into an outdoor fermentation tank;
fermentation in the first stage: stirring once every 4-5 hours for 5-8 minutes, simultaneously discharging waste gas generated in the fermentation process through the vent holes of the tank body, and controlling the opening and closing of the opening and closing cover according to weather conditions;
and (3) second-stage fermentation: stirring once every 7-8 hours, and 3-5 minutes every time, simultaneously discharging waste gas generated in the fermentation process through the vent holes of the tank body, and controlling the opening and closing of the opening and closing cover according to weather conditions;
and (3) fermentation in the third stage: stirring once every 24 hours, and 2-4 minutes each time, simultaneously discharging waste gas generated in the fermentation process through the vent holes of the tank body, and controlling the opening and closing of the opening and closing cover according to weather conditions.
In a possible implementation, the fermentation time of the first stage fermentation is 4 months, the fermentation time of the second stage fermentation is 4 months, and the fermentation time of the third stage fermentation is at least one month.
In a possible implementation manner, the stirring speed of the first-stage fermentation, the second-stage fermentation and the third-stage fermentation is 40-50 revolutions per minute.
Compared with the prior art, the invention has the following beneficial effects:
the fermentation tank for brewing the bean cotyledon can be suitable for outdoor fermentation, has high automation degree and low labor intensity, the tedding and fermentation of the bean cotyledon are basically not influenced by the external environment, the occupied area is small, the bearing efficiency is high, and the material bearing capacity reaches 2.4t/m2The fermentation tank can meet the traditional fermentation modes of sunny days, rainy days, daytime turnover and night exposure, is more beneficial to the growth and the propagation of various beneficial microorganisms, and is beneficial to full and complete compound fermentation of materials.
Moreover, through adopting the stirring structure of the inner spiral blade and the outer spiral blade with opposite rotation directions, the shearing action of the traditional stirring mode can be reduced, the ventilation holes and the opening and closing covers are matched, the relative balance of solid-liquid gas phases above and below the material and the balance of material temperature and microorganism growth can be realized, the mode of the inner and outer rotation directions of the stirring blades can enable the material to uniformly circulate from top to bottom inside, the uniformity of material moisture and salt and the uniformity of microorganism growth are facilitated, the damage to the mature material is small, and the ventilation holes and the opening and closing covers are matched, the relative balance of solid-liquid gas phases above and below the material and the balance of material temperature and microorganism growth and the realization of exposure can be realized.
The Pixian county bean cotyledon brewing fermentation method adopts the bean cotyledon brewing fermentation tank, and stirring fermentation is performed by stages and at different stirring frequencies, so that the body form and flavor indexes of the formed product are relatively stable, the color and luster of the prepared Pixian county bean cotyledon are ruddy and glossy, the texture is finer and smoother than that of the traditional Pixian county bean cotyledon, the thick and solid texture is achieved, the requirements of the flavor and body form of the red oil type Pixian county bean cotyledon and the flavor and body form of the traditional Pixian county bean cotyledon can be met, the glossiness and taste of the prepared Pixian county bean cotyledon are better than those of the traditional Pixian county bean cotyledon and the red oil type bean cotyledon, and the soft color and flavor of the Pixian county bean cotyledon are particularly suitable for the current requirements for increasing the color and flavor of the Pixian county bean cotyledon.
Drawings
FIG. 1 is a schematic perspective view of a fermentation tank for brewing bean cotyledon according to the embodiment of the present application;
FIG. 2 is an enlarged schematic view of the on-off adjustment feature of FIG. 1;
FIG. 3 is a schematic cross-sectional view of a fermentation tank for brewing bean cotyledon according to an embodiment of the present invention;
FIG. 4 is a schematic perspective view of a stirring mechanism of a fermentation tank for brewing bean cotyledon according to an embodiment of the present disclosure.
In the figure: 1-tank body; 11-a convex part; 12-a feed pipe; 13-a discharge pipe; 14-a tank opening; 15-stirring chamber; 2, opening and closing the cover; 3-an opening and closing adjusting part; 31-a mounting seat; 32-a winding roller; 33-a drive motor; 34-a pull rope; 4-a vent hole; 5-a stirring motor; 6-a handle; 7-a reducer; 8-a stirring mechanism; 81-stirring shaft; 82-inner helical leaf; 83-external helical leaf.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are some, but not all, embodiments of the present invention. The components of embodiments of the present invention generally described and illustrated in the figures herein may be arranged and designed in a wide variety of different configurations.
The invention is further described with reference to the following figures and specific embodiments.
Please refer to fig. 1-3. Embodiments of the present application provide a thick broad-bean brewing fermentation cylinder, can include: the device comprises a tank body 1, an opening and closing cover 2, an opening and closing adjusting part 3, a meteorological detection part, a controller and a discharge hole; the bean cotyledon brewing fermentation tank is suitable for outdoor use, and can realize traditional fermentation of sunny days, rainy days, daytime turnover and night exposure; of course, the fermentation tank for brewing the broad beans is not limited to outdoor, and the fermentation can be performed indoors in a ventilating way.
The tank body 1 is provided with a stirring cavity 15 internally provided with a stirring mechanism 8, and the upper end of the tank body 1 is at least provided with a tank opening 14 communicated with the stirring cavity 15; the inside of the tank body 1 is provided with a stirring cavity 15, the stirring is carried out by a stirring mechanism 8 arranged in the stirring cavity 15, and the upper end of the tank body 1 is provided with a tank opening 14 for ventilation and airing, so that the balance of materials can be improved by matching with the stirring of the stirring mechanism 8.
The opening and closing cover 2 is matched with the tank opening 14 and is hinged with the tank opening 14; the shape of this opening and closing lid 2 matches with jar mouth 14, and it can make can rotate through articulating with jar mouth 14 to in realizing opening and closing of jar mouth 14, and then can close jar mouth 14 in rainy day, and can open when fine and carry out sunning etc..
The opening and closing adjusting component 3 is used for adjusting the opening and closing angle of the opening and closing cover 2 relative to the tank opening 14; the opening and closing adjusting component 3 comprises a mounting seat 31, a winding roller 32 and a driving motor 33, the winding roller 32 is rotatably mounted on the tank body 1 through the mounting seat 31, a pull rope 34 is wound on the winding roller 32, the free end of the pull rope 34 is connected with the movable end of the opening and closing cover 2, and the winding roller 32 is driven by the driving motor 33 to rotate; the winding roller 32 can rotate on the mounting seat 31 and can rotate by itself under the driving of the driving motor 33, so that the pull rope 34 connected with the opening and closing cover 2 can be shortened or lengthened, and the angle between the opening and closing cover 2 and the can opening 14 can be adjusted.
The meteorological detection component is arranged on the tank body 1; the weather detection component is used for detecting weather conditions, wherein the weather conditions comprise one or more of sunny days, rainy days, nights, air humidity, air temperature and the like, so that the opening and closing angle of the opening and closing cover is adjusted according to the weather conditions in the environment of the tank body, and a corresponding detector or a sensor can be arranged for realizing the corresponding detection function for detection; in a specific implementation process, the weather detection component is mainly used for detecting whether rain falls or not, so that the tank opening 14 is closed when rain falls to prevent rainwater from entering the tank body 1 to influence fermentation.
In some implementation processes of the weather detection component, the weather detection component may be a humidity sensor, and determines whether it rains through detection of ambient humidity, or may be a rainfall detection sensor, and determines whether it rains through detection of rainfall, without excluding the adoption of other existing sensors or devices capable of determining rains, and specifically, the configuration may be selected according to actual conditions; in some other embodiments, a temperature sensor may be further provided, and the opening angle of the opening and closing cover 2 relative to the tank opening 14 is controlled according to the outdoor temperature through the detection of the outdoor temperature, for example, the opening and closing cover 2 is opened to an angle in the range of 60 ° to 80 ° in daytime when the temperature is high, so as to better dry the air.
The controller is electrically connected with the driving motor 33 and the meteorological detection part respectively; the controller is used for judging according to the detection signal or data information obtained from the weather detection component, so as to control the action of the opening and closing adjusting component to adjust the opening and closing of the opening and closing cover 2 under the weather condition. In some specific embodiments, the controller may be an industrial personal computer in a factory floor, or may be a separately configured controller that can execute a certain control logic, such as a PLC.
The discharge gate, locate jar body 1 the bottom and with stirring chamber 15 intercommunication. The discharge port is connected with a discharge pipe 13 so as to realize pipeline transmission and clean production.
By the technical schemeThe bean-sauce brewing fermentation tank is suitable for outdoor fermentation, has high automation degree and low labor intensity, the tedding and fermentation of the bean sauce are basically not influenced by the external environment, the occupied area is small, the bearing efficiency is high, and the material bearing capacity reaches 2.4t/m2The fermentation tank can meet the traditional fermentation modes of sunny days, rainy days, daytime turnover and night exposure, is more beneficial to the growth and the propagation of various beneficial microorganisms, and is beneficial to full and complete compound fermentation of materials.
Referring to fig. 1 and 3, in the embodiment of the present application, a convex portion 11 is formed on the top of the tank 1, and the convex portion 11 is hollow and is communicated with the stirring chamber 15; the tank body 1 is characterized in that the tank openings 14 are respectively formed in two sides of the convex portion 11, and a ventilation structure is arranged on one side, adjacent to each tank opening 14, of the convex portion 11. The convex part 11 is integrally constructed by the tank body 1, so that a ventilation structure is better arranged, and the ventilation structure can realize the communication between the stirring cavity 15 and the outside, so that the oxygen can enter and the waste gas can be discharged; by providing the openings 14 on both sides, this allows for better contact with air and better drying of the material in the stir chamber 15.
In a specific embodiment, as shown in fig. 1, the ventilation structure includes a plurality of ventilation holes 4 uniformly opened in the convex portion 11. The ventilation holes 4 are elongated and uniformly distributed along the length direction of the convex portion 11.
In order to facilitate the piping of the feed, in the present embodiment, the protrusion 11 is connected to a feed pipe 12.
Referring to fig. 3 and 4, in the embodiment of the present application, the stirring mechanism 8 includes a stirring shaft 81, an outer spiral blade 83 and an inner spiral blade 82; the stirring shaft 81 is rotatably arranged in the stirring cavity 15, the inner spiral blade 82 is fixed on the outer side of the stirring shaft 81, the outer spiral blade 83 fixedly connected to the stirring shaft 81 is arranged on the outer side of the inner spiral blade 82, and the spiral direction of the outer spiral blade 83 is opposite to that of the inner spiral blade 82.
The outer helical blade 83 and the inner helical blade 82 are fixed on the stirring shaft 81 in opposite helical directions, and the outer screw rod is also positioned at the outer side of the inner helical blade 82, so that the relative balance of solid-liquid-gas phases above and below the material in the stirring cavity 15 and the balance of the material temperature and the growth of microorganisms can be realized when the stirring shaft 81 rotates.
In a specific embodiment, as shown in fig. 1, a driving member for driving the stirring mechanism 8 is provided on the top of the protruding portion 11, and the driving member includes a stirring motor 5 and a speed reducer 7; the output shaft of the stirring motor 5 is connected with the power input end of the speed reducer 7, and the power output end of the speed reducer 7 is connected with the stirring shaft 81 of the stirring mechanism 8. The stirring motor 5 can drive the stirring shaft 81 to rotate through the speed reducer 7 so as to realize the stirring speed matched with the bean fermentation.
In the embodiment of the application, a connecting block is fixed at the top of the movable end of the opening and closing cover 2, a rope threading hole is formed in the connecting block, and the pull rope 34 penetrates through the rope threading hole and is fixedly connected with the connecting block. The opening and closing cover 2 can be connected with the pull rope 34 through the connecting block, so that the opening and closing angle of the opening and closing cover 2 relative to the tank opening 14 can be adjusted under the control of the opening and closing adjusting component 3.
In order to facilitate drainage in the presence of dew or rain, as shown in fig. 1, when the opening and closing cover 2 closes the tank opening 14, the upper surface of the opening and closing cover 2 has an inclination with respect to the plane of the tank opening 14, and the upper surface of the opening and closing cover 2 is inclined downward from the hinge end to the movable end thereof. Therefore, the top surface of the opening and closing cover 2 is set to be of a structure with an inclination, so that dew or rainwater can flow out and be discharged along the structure, and the phenomenon that the rainwater or the dew enters the tank body 1 to destroy the flavor and the balance of materials can be avoided.
Specifically, the inclination of the opening and closing cover 2 is 10 °.
In order to facilitate manual opening of the opening and closing cover 2, a handle 6 may be provided on the opening and closing cover 2.
For the fermentation tank for brewing bean cotyledon in the embodiment of the present application, it should be noted that:
regarding the fermentation mode of the Pixian broad bean paste, if the pot-type fermentation is adopted, the height-diameter ratio of the fermentation tank needs to be reasonably selected, and the like, so that the fermentation environment of the fermentation material and the growth change rule of microorganisms need to be fully mastered, different bearing capacities of materials in unit area and different heights of the fermentation material cause great influence on the material turnover and the growth environment of the microorganisms, and finally, different flavors and qualities of final products are formed due to different growth, propagation and metabolism of the microorganisms. Due to the change of the bearing capacity and the height, physical and chemical indexes such as salt, water and the like can be changed due to the change of the height, and generally, if the stirring uniformity and timeliness are influenced, the sinking of salt, water and the like easily causes the phenomenon that materials are rotten and deteriorated due to too low local salt. Due to the change of the bearing capacity and the height, compared with the traditional fermentation vat or fermentation tank, the efficiency of ventilation and exhaust of unit specific surface area and sunlight irradiation is greatly different, which has great influence on the final fermentation end point of the product, the color of the formed product and the like. Therefore, the Pi county broad bean paste suitable for the semi-solid state fermentation state is not a physical position change for simply erecting a fermentation tank, and relates to the full mastery of related technologies such as the growth change rule of microorganisms, the realization of the solid-liquid-gas three-phase uniformity of materials, the timeliness of the removal of fermentation waste gas and heat exchange, the influence of a mechanical stirring mode on the damage of the materials, the positive promotion effect of the technical parameters of the stirring process on the growth of the microorganisms, the exchange of the fermentation waste gas and heat under the condition of no uncovering in rainy and snowy seasons and the like, and the key of the Pi county broad bean paste tank fermentation is how to further improve the automatic production level and the food safety protection level after the bearing capacity of a unit area is improved.
The fermentation tank for brewing the broad beans is more suitable for outdoor fermentation, high in automation degree and low in labor intensity, the broad beans are tedded and fermented slightly under the influence of the external environment, the occupied area is small, the bearing efficiency is high, and the material bearing capacity reaches 2.4t/m2(the bearing capacity of the fermentation vat and the fermentation tank is about 0.8-1t/m2) The bearing efficiency is obviously improved. Through the analysis of the height-diameter ratio matched with the materials of various fermentation tanks at present, the fermentation tank is suitable for the semi-solid fermentation materials with the height-diameter ratio of about 1.2-1.5, the comprehensive height-diameter ratio of the traditional fermentation tank is about 1.3, and the effective height-diameter ratio of the fermentation tank is 1.2 in consideration of the influence of overhigh height on stirring the materials and the like, so that the fermentation tank can be suitable for the semi-solid materials and is also suitable for the semi-solid materialsThe particularity of the materials is considered.
The embodiment of the application also provides a method for brewing and fermenting the Pixian bean paste, which is based on the bean paste brewing and fermenting tank of any one of the above embodiments and comprises the following steps:
discharging: putting the Pi county broad bean paste mixed clinker to be brewed and fermented into an outdoor fermentation tank;
fermentation in the first stage: stirring once every 4-5 hours for 5-8 minutes, simultaneously discharging waste gas generated in the fermentation process through the vent holes 4 of the tank body 1, and controlling the opening and closing of the opening and closing cover 2 according to weather conditions;
and (3) second-stage fermentation: stirring once every 7-8 hours, and 3-5 minutes each time, simultaneously discharging waste gas generated in the fermentation process through the vent holes 4 of the tank body 1, and controlling the opening and closing of the opening and closing cover 2 according to weather conditions;
and (3) fermentation in the third stage: stirring once every 24 hours, and 2-4 minutes each time, simultaneously discharging waste gas generated in the fermentation process through the vent holes 4 of the tank body 1, and controlling the opening and closing of the opening and closing cover 2 according to weather conditions.
Specifically, the fermentation time of the first stage fermentation is 4 months, the fermentation time of the second stage fermentation is 4 months, and the fermentation time of the third stage fermentation is at least one month.
Comparative example:
in order to compare the Pi county bean cotyledon brewed by the Pi county bean cotyledon brewing and fermenting method in the embodiment of the application with the traditional bean cotyledon brewing method, 500kg of material is used for making the Pi county bean cotyledon and the Picounty bean cotyledon is brewed according to the making process parameters as follows:
pi county bean paste making process parameters of embodiments of the application
Figure BDA0003220312670000121

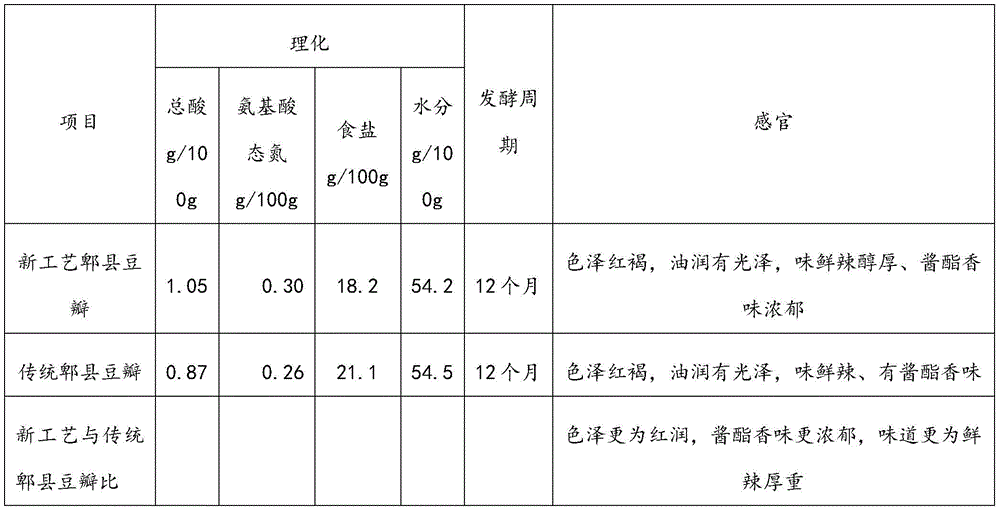

Then, the brewed pi county bean cotyledon is subjected to physicochemical and sensory comparison with the traditional pi county bean cotyledon, and the comparison result is as follows:
Figure BDA0003220312670000122
for the brewing and fermenting method of the pi county broad bean paste in the embodiment of the application, it needs to be explained;
pi county broad bean paste has a large amount of mould, microzyme, bacteria and the like in the fermentation process, the water content is high in the early stage of fermentation, the dissolved oxygen is high, sweet paste is added to provide a large amount of carbon sources (glucose and the like) for microorganisms, and the microorganisms release a large amount of carbon dioxide and heat by utilizing the carbon sources through an EMP (glycolysis) path and a TCA (tricarboxylic acid cycle), so that sufficient oxygen is provided and the carbon dioxide is removed in an accelerated manner in the early stage of fermentation, the growth and the propagation of the microorganisms are facilitated, and the surface area of materials in a fermentation container is compared with the bearing weight data, and the fermentation cylinder and a fermentation tank are about 2.83m2T, fermentation tank 0.42m2The stirring times of the fermentation tank are about 7 times per day (1 time per day in the early stage of fermentation of the traditional Pixian bean paste, mainly for the reason of labor intensity, the actual increase times are beneficial to fermentation in the early stage), the influence of stirring on the material state and the promotion of enzymatic browning and non-enzymatic browning of the sweet paste on the formation of the special brown color of the Pixian bean paste is comprehensively considered, and the stirring times are set to be 4-5 hours once; the stirring time of a conventional fermentation cylinder/fermentation adjusting tank is approximately 0.3-0.5min/kg by manual or mechanical stirring, so the stirring time of the fermentation cylinder is 3-5 min/ton, and the fermentation time is 5-8 min due to the fact that the height of materials of the fermentation cylinder is approximately twice of that of the fermentation cylinder and the fermentation tank;
in the middle stage of fermentation, because the moisture of the materials is reduced, the dissolved oxygen is reduced, the carbon source is reduced, the growth and the reproduction of the microorganisms are slowed down, and the growth and the metabolism of the microorganisms in the secondary stage are relatively vigorous, but the secondary stage is not as early as the early stage of fermentation, the carbon dioxide and the heat generated by the metabolism are obviously reduced, and the secondary stage begins to enter the post-ripening and flavoring stage of the bean paste in Pi county, namely: lactic acid bacteria of bacteria produce lactic acid and ethanol generated by fermentation of yeast microorganisms, and the lactic acid and the ethanol form ester aroma-enhancing substances and the like, so that the stirring times of the fermentation tank and the stirring time of each stirring trend are reduced;
at the later stage of fermentation, because the water volatilization is obviously reduced, the viscosity of the material is obviously increased, the oxygen content of the material is obviously reduced, the growth of microorganisms is in an obvious logarithmic reduction stage, and the soybean paste enters an after-ripening and aroma-enhancing stage of a Pi county soybean paste, particularly a traditional Pi county soybean paste, the stage mainly takes standing fermentation as a main step, and the microorganisms secrete alcohols, aldehydes organic acids, esterification reaction thereof and the like generated by decomposing raw materials by various enzymes to form the peculiar taste of the Pi county soybean paste (because of the particularity of the semi-solid Pi county soybean paste fermentation materials, each fermentation period is not strictly distinguished, only the material fermentation process has certain correlation with the growth stage of the growth condition of the microorganisms, and is consistent with the traditional Pi county soybean paste fermentation mode, and each fermentation period in the physical meaning has the process of color enhancement and aroma enhancement. Traditional Pi county bean cotyledon adopts the pestle to stir, and the fermentation vat adopts single spiral leaf stirring (stirring rotational speed is more than 60 revolutions per minute), therefore, the damage degree to the material of comprehensive consideration, fermentation vat stirring spiral leaf rotational speed location 40-50 revolutions per minute can reduce spiral shearing effect.
Finally, it should be noted that: the above description is only a preferred embodiment of the present invention, and is not intended to limit the scope of the present invention. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims (10)

1. The utility model provides a thick broad-bean sauce brewing fermentation cylinder which characterized in that: the method comprises the following steps:
the tank body (1) is provided with a stirring cavity (15) internally provided with a stirring mechanism (8), and the upper end of the tank body (1) is at least provided with a tank opening (14) communicated with the stirring cavity (15);
the opening and closing cover (2) is matched with the tank opening (14) and is hinged with the tank opening (14);
the opening and closing adjusting component (3) is used for adjusting the opening and closing angle of the opening and closing cover (2) relative to the tank opening (14); the opening and closing adjusting part (3) comprises a mounting seat (31), a winding roller (32) and a driving motor (33), the winding roller (32) is rotatably mounted on the tank body (1) through the mounting seat (31), a pull rope (34) is wound on the winding roller (32), the free end of the pull rope (34) is connected with the movable end of the opening and closing cover (2), and the winding roller (32) is driven by the driving motor (33) to rotate;
the meteorological detection component is arranged on the tank body (1);
the controller is electrically connected with the driving motor (33) and the meteorological detection part respectively; and
the discharge port is arranged at the bottom end of the tank body (1) and communicated with the stirring cavity (15).
2. The fermented soybean milk fermenter according to claim 1, wherein: the top of the tank body (1) is provided with a convex part (11), and the convex part (11) is hollow and communicated with the stirring cavity (15);
the tank body (1) is characterized in that the tank openings (14) are respectively formed in two sides of the convex portion (11), and a ventilation structure is arranged on one side, close to each tank opening (14), of the convex portion (11).
3. The fermented soybean milk fermenter according to claim 2, wherein: the ventilation structure comprises a plurality of ventilation holes (4) which are uniformly arranged on the convex part (11).
4. The fermented soybean milk fermenter according to claim 3, wherein: the convex part (11) is communicated with a feeding pipe (12).
5. The fermented soybean bowl according to any one of claims 1 to 4, wherein: the stirring mechanism (8) comprises a stirring shaft (81), an outer spiral blade (83) and an inner spiral blade (82);
the stirring shaft (81) is arranged in the stirring cavity (15) in a rotating mode, the inner spiral blade (82) is fixed to the outer side of the stirring shaft (81), the outer spiral blade (83) fixedly connected to the stirring shaft (81) is arranged on the outer side of the inner spiral blade (82), and the spiral directions of the outer spiral blade (83) and the inner spiral blade (82) are opposite.
6. The fermented soybean milk fermenter according to claim 2, wherein: the top of the convex part (11) is provided with a driving part for driving the stirring mechanism (8), and the driving part comprises a stirring motor (5) and a speed reducer (7);
the output shaft of the stirring motor (5) is connected with the power input end of the speed reducer (7), and the power output end of the speed reducer (7) is connected with the stirring shaft (81) of the stirring mechanism (8).
7. The fermented soybean milk fermenter according to claim 1, wherein: the top of the movable end of the opening and closing cover (2) is fixedly provided with a connecting block, the connecting block is provided with a rope penetrating hole, and the pull rope (34) penetrates through the rope penetrating hole and is fixedly connected with the connecting block.
8. The fermented soybean milk fermenter according to claim 1, wherein: when the opening and closing cover (2) closes the tank opening (14), the upper surface of the opening and closing cover (2) has inclination relative to the plane of the tank opening (14), and the upper surface of the opening and closing cover (2) inclines downwards from the hinged end to the movable end.
9. A brewing and fermenting method of Pixian bean paste is characterized in that: the bean paste brewing fermentation tank according to any one of claims 1 to 8, wherein the pi county bean paste brewing fermentation method comprises the following steps:
discharging: putting the Pi county broad bean paste mixed clinker to be brewed and fermented into an outdoor fermentation tank;
fermentation in the first stage: stirring once every 4-5 hours for 5-8 minutes, simultaneously discharging waste gas generated in the fermentation process through the vent hole (4) of the tank body (1), and controlling the opening and closing of the opening and closing cover (2) according to weather conditions;
and (3) second-stage fermentation: stirring once every 7-8 hours, and 3-5 minutes each time, simultaneously discharging waste gas generated in the fermentation process through the vent holes (4) of the tank body (1), and controlling the opening and closing of the opening and closing cover (2) according to weather conditions;
and (3) fermentation in the third stage: stirring once every 24 hours, and 2-4 minutes each time, simultaneously discharging waste gas generated in the fermentation process through the vent holes (4) of the tank body (1), and controlling the opening and closing of the opening and closing cover (2) according to weather conditions.
10. The brewing and fermenting method of pi county bean cotyledon as claimed in claim 9, wherein: the fermentation time of the first stage fermentation is 4 months, the fermentation time of the second stage fermentation is 4 months, and the fermentation time of the third stage fermentation is at least one month.
CN202110955468.6A 2021-08-19 2021-08-19 Bean cotyledon brewing fermentation tank and Pi county bean cotyledon brewing fermentation method Pending CN113637573A (en)

Priority Applications (1)

Application Number Priority Date Filing Date Title
CN202110955468.6A CN113637573A (en) 2021-08-19 2021-08-19 Bean cotyledon brewing fermentation tank and Pi county bean cotyledon brewing fermentation method

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
CN202110955468.6A CN113637573A (en) 2021-08-19 2021-08-19 Bean cotyledon brewing fermentation tank and Pi county bean cotyledon brewing fermentation method

Publications (1)

Publication Number Publication Date
CN113637573A true CN113637573A (en) 2021-11-12

Family

ID=78422890

Family Applications (1)

Application Number Title Priority Date Filing Date
CN202110955468.6A Pending CN113637573A (en) 2021-08-19 2021-08-19 Bean cotyledon brewing fermentation tank and Pi county bean cotyledon brewing fermentation method

Country Status (1)

Country Link
CN (1) CN113637573A (en)

Citations (13)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
KR200217226Y1 (en) * 2000-09-19 2001-03-15 조원색 Soy Jar Cover
WO2011035701A1 (en) * 2009-09-23 2011-03-31 广西力源新资源开发有限公司 Fermentation stirrer of spiral type
CN206303192U (en) * 2016-11-16 2017-07-07 湖北老鬼生物科技有限公司 A kind of efficient enzymolysis device for fish-bait feedstuff production
CN107493720A (en) * 2017-05-27 2017-12-22 马鞍山绿丰种业有限公司 A kind of vegetable seeds drying device
CN207252502U (en) * 2017-08-03 2018-04-20 深圳市百澳飞生物技术有限公司 A kind of pig farm liquid reactive fermented feed feeds system
CN207614845U (en) * 2017-11-30 2018-07-17 李亚梅 A kind of multi-functional degumming retort
CN207744685U (en) * 2017-07-11 2018-08-21 尧记酱道股份有限公司 Novel fermentation tank
CN209481677U (en) * 2018-12-20 2019-10-11 郫县恒星调味品有限公司 A kind of three-dimensional thick broad-bean sauce installation for fermenting of time regulatable temperature
CN209854138U (en) * 2019-04-30 2019-12-27 湖北蓝谷中微生物技术有限公司 Bran biological fermentation system
CN112553041A (en) * 2020-11-25 2021-03-26 贵州赤水黔老翁晒醋有限公司 A fermenting installation that is used for red water to shine vinegar and increases spices of fragrant smell technology
CN213037776U (en) * 2020-08-25 2021-04-23 詹碧平 Automatic cover turning device of drying cylinder
CN213977646U (en) * 2020-11-13 2021-08-17 天津市岳川食品科技有限公司 An anaerobic fermentation device for the production of red oil bean paste
CN216005864U (en) * 2021-08-19 2022-03-11 四川省郫县豆瓣股份有限公司 Thick broad-bean sauce brewing fermentation cylinder

Patent Citations (13)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
KR200217226Y1 (en) * 2000-09-19 2001-03-15 조원색 Soy Jar Cover
WO2011035701A1 (en) * 2009-09-23 2011-03-31 广西力源新资源开发有限公司 Fermentation stirrer of spiral type
CN206303192U (en) * 2016-11-16 2017-07-07 湖北老鬼生物科技有限公司 A kind of efficient enzymolysis device for fish-bait feedstuff production
CN107493720A (en) * 2017-05-27 2017-12-22 马鞍山绿丰种业有限公司 A kind of vegetable seeds drying device
CN207744685U (en) * 2017-07-11 2018-08-21 尧记酱道股份有限公司 Novel fermentation tank
CN207252502U (en) * 2017-08-03 2018-04-20 深圳市百澳飞生物技术有限公司 A kind of pig farm liquid reactive fermented feed feeds system
CN207614845U (en) * 2017-11-30 2018-07-17 李亚梅 A kind of multi-functional degumming retort
CN209481677U (en) * 2018-12-20 2019-10-11 郫县恒星调味品有限公司 A kind of three-dimensional thick broad-bean sauce installation for fermenting of time regulatable temperature
CN209854138U (en) * 2019-04-30 2019-12-27 湖北蓝谷中微生物技术有限公司 Bran biological fermentation system
CN213037776U (en) * 2020-08-25 2021-04-23 詹碧平 Automatic cover turning device of drying cylinder
CN213977646U (en) * 2020-11-13 2021-08-17 天津市岳川食品科技有限公司 An anaerobic fermentation device for the production of red oil bean paste
CN112553041A (en) * 2020-11-25 2021-03-26 贵州赤水黔老翁晒醋有限公司 A fermenting installation that is used for red water to shine vinegar and increases spices of fragrant smell technology
CN216005864U (en) * 2021-08-19 2022-03-11 四川省郫县豆瓣股份有限公司 Thick broad-bean sauce brewing fermentation cylinder

Similar Documents

Publication Publication Date Title
US4808419A (en) Automated method for a semi-solid fermentation used in the production of ancient quality rice vinegar and/or rice wine
CN216005864U (en) Thick broad-bean sauce brewing fermentation cylinder
CN101787341B (en) Synchronous fermentation process for mature vinegar
CN105062801B (en) The production method of clear sauce and Flavor white wine
CN101696392B (en) Saccharomyces cerevisiae strain and application in preparation of purple yarn yellow wine
CN109161468A (en) A kind of solid-state vinegar generation method improving starch utilization ratio
CN104629977A (en) Method for producing Maotai-flavor Daqu
CN107114691A (en) A kind of low temperature less salt pot type fermentation preparation of broad bean paste valve
CN112625829A (en) Preparation method and application of massive raw wheat koji for brewing food
CN107916209B (en) A kind of method of producing rose vinegar by mechanical stirring method
CN102972713A (en) Onion sauce fermentation production method
CN100506965C (en) Method for producing liquor by enzymatic mash production with mixed fermentation of various types of yeast
CN111676108B (en) Saccharification bed system is piled up with grain unstrained spirits to making wine
CN104974875B (en) Domestic automatic brewing fruit wine machine and the method made grape wine using the machine
CN113637573A (en) Bean cotyledon brewing fermentation tank and Pi county bean cotyledon brewing fermentation method
CN108728319A (en) A kind of innovative technology method of the koji-making and fermentation of the wine brewing of honey raisin tree Gu method
CN107691686A (en) A kind of process using intelligent fermenting house fermented black tea
CN206692623U (en) A kind of fruits and vegetable vinegar fermentation machine
CN208087595U (en) A kind of equipment of mechanical mixing method production rose vinegar
KR19980043434A (en) Method of making traditional liquor brewing malt
CN107904133B (en) Method for producing rose vinegar by pump reflux method
CN112457950B (en) Tomato-flavored fermented bean curd sauce equipment and technology thereof
KR101732800B1 (en) Fabrication of microbial citrus fermented liquid
CN111518705B (en) Distiller's yeast and preparation method and use method thereof
CN210048735U (en) Automatic fermentation tank for mulberry enzyme

Legal Events

Date Code Title Description
PB01 Publication
PB01 Publication
SE01 Entry into force of request for substantive examination
SE01 Entry into force of request for substantive examination
RJ01 Rejection of invention patent application after publication

Application publication date: 20211112

RJ01 Rejection of invention patent application after publication
