Abstract
本发明公开了一种衣物处理装置箱体结构及衣物处理装置，所述的衣物处理装置箱体结构包括：箱体，箱体包括背板和设于背板左右两侧的侧板；横向支架，横向支架的后端分别与左侧板和右侧板的顶部前端连接；纵向支架，纵向支架的下端与横向支架的后端连接；加强板，设于横向支架和纵向支架的前侧，加强板的上端与纵向支架的上端连接，加强板的下端与横向支架的前端连接。本发明中，横向支架与两侧板连接，增强了箱体的支撑强度，防止箱体在衣物处理装置组装过程中发生变形，而横向支架、纵向支架和加强板之间固定连接，进一步提高了箱体的支撑强度，防止箱体在衣物处理装置工作时发生晃动，同时还有利于拆卸，便于维修和保养。
The invention discloses a box body structure of a clothes treatment device and a clothes treatment device. The clothes treatment device box body structure comprises: a box body, the box body includes a back plate and side plates arranged on the left and right sides of the back plate; , the rear end of the transverse bracket is respectively connected with the top front end of the left side plate and the right side plate; the longitudinal bracket, the lower end of the longitudinal bracket is connected with the rear end of the transverse bracket; the reinforcement plate is arranged on the front side of the transverse bracket and the longitudinal bracket to strengthen The upper end of the plate is connected with the upper end of the longitudinal support, and the lower end of the reinforcing plate is connected with the front end of the transverse support. In the present invention, the lateral brackets are connected with the two side plates, which enhances the supporting strength of the box body and prevents the box body from being deformed during the assembly process of the clothes treatment device, and the lateral brackets, the longitudinal brackets and the reinforcing plates are fixedly connected, which further improves the The supporting strength of the box body prevents the box body from shaking when the clothes processing device is working, and is also conducive to disassembly, which is convenient for repair and maintenance.
Description
Technical Field
The invention belongs to the field of clothes treatment devices, and particularly relates to a box body structure of a clothes treatment device and the clothes treatment device with the box body structure.
Background
Along with the continuous improvement of living standard of people, the demand of people to the clothes treatment device is continuously refined, more and more families have two or more clothes treatment devices, wherein, clothes dryers and washing machines are the clothes treatment devices commonly used by families to realize washing and drying to the clothes.
The washing and drying integrated machine is an intelligent novel washing machine which is added with a drying function on the basis of a full-automatic washing machine and integrates multiple functions of washing, drying and drying, wherein the heat pump type washing and drying integrated machine realizes internal heat transfer through a heat pump system without heating by a heater, has the characteristics of high energy efficiency and low power consumption, and is more and more favored by consumers.
The heat pump system usually includes the fan, condenser and evaporimeter etc, heat pump system's part is more, weight is heavier, in washing and drying all-in-one machine assembling process, in order to prevent the box deformation, with the gate-type support mounting at the top front end of the left and right sides board of box, in order to improve the support intensity of box, then with bucket subassembly, parts such as heat pump system install inside the box, install the reinforcing plate on the gate-type support again, when maintenance and maintenance, the gate-type support makes the part shift out the difficulty from the box, especially the part is more, the heat pump system that weight is heavier need upwards move out to a take the altitude in can following the box, it is time-consuming, hard to shift out the operation.
In view of the above, the present invention is particularly proposed.
Disclosure of Invention
The technical problem to be solved by the invention is to overcome the defects of the prior art and provide a box body structure of a clothes processing device so as to achieve the purpose of improving the supporting strength of the box body; still another object of the present invention is to provide a cabinet structure of a laundry treating apparatus for achieving a quick disassembly.
In order to solve the technical problems, the invention adopts the technical scheme that:
a laundry treating apparatus cabinet structure comprising:
the box body comprises a back plate and side plates arranged on the left side and the right side of the back plate;
the rear ends of the transverse brackets are respectively connected with the front ends of the tops of the two side plates;
the lower end of the longitudinal bracket is connected with the rear end of the transverse bracket;
the reinforcing plate is arranged on the front sides of the transverse support and the longitudinal support, the upper end of the reinforcing plate is connected with the upper end of the longitudinal support, and the lower end of the reinforcing plate is connected with the front end of the transverse support.
Furthermore, the transverse support comprises a first support arm and first fixing arms which are arranged at the left end and the right end of the first support arm and are bent backwards, the top of each side plate is bent towards the inside of the box body to form a side plate flanging, and the first fixing arms are connected with the corresponding side plate flanging;
preferably, the fastener passes the connecting hole of seting up on first fixed arm and the curb plate turn-ups in proper order to with first fixed arm and curb plate turn-ups fastening connection.
Further, the first fixing arm comprises a first inclined part which is integrally connected with the first supporting arm and extends upwards in an inclined mode, the extending end of the first inclined part is bent towards the horizontal direction to form a horizontal part, and the side plate flanging comprises an inclined flanging and a horizontal flanging which are matched with the first inclined part and the horizontal part;
preferably, the first inclined part and the inclined flanging are correspondingly provided with connecting holes for the fasteners to pass through;
preferably, the horizontal part and the horizontal flanging of the side plate are correspondingly provided with connecting holes for the fasteners to pass through.
Furthermore, a part of the upper end of the first support arm is bent upwards to form a connecting flange, and the left end and the right end of the connecting flange are integrally connected with the first inclined part on the opposite side.
Furthermore, the reinforcing plate is arranged on the front side of the first supporting arm and is detachably and fixedly connected with the first supporting arm;
preferably, the fastening piece sequentially penetrates through connecting holes formed in the reinforcing plate and the first supporting arm so as to fixedly connect the reinforcing plate and the first supporting arm;
more preferably, a partial area of the first support arm is horizontally bent forwards to form a horizontal folded edge, and the bottom end of the reinforcing plate is overlapped on the horizontal folded edge.
Furthermore, the longitudinal support comprises a second support arm and second fixing arms which are arranged at the left end and the right end of the second support arm and are bent downwards, and the lower ends of the second fixing arms are connected with the corresponding first fixing arms;
preferably, the fastener passes through the connecting hole that offers on second fixed arm and the second fixed arm in proper order to with second fixed arm and first fixed arm fastening connection.
Further, the second fixing arm comprises a vertical part which is integrally connected with the first supporting arm and extends downwards, the extending end of the vertical part is bent forwards to form a second inclined part, and the second inclined part is matched with the first inclined part;
preferably, the second inclined part and the first inclined part are correspondingly provided with connecting holes for the fasteners to pass through.
Furthermore, the peripheral edges of the second supporting arm and the second fixing arm are bent backwards to form a circle of reinforcing flanging, partial area of the bottom end of the reinforcing flanging extends downwards to form a protrusion, and the first fixing arm is provided with a plug hole for the insertion of the protrusion;
preferably, the second support arm and the peripheral edge of vertical portion bend backward and form the round and strengthen the turn-ups, offer the spliced eye that supplies the arch grafting to pack into on the horizontal part.
Furthermore, the reinforcing plate is arranged on the front side of the second supporting arm and is detachably and fixedly connected with the second supporting arm;
preferably, the fastener sequentially penetrates through connecting holes formed in the reinforcing plate and the second supporting arm so as to fixedly connect the reinforcing plate with the second supporting arm;
more preferably, the peripheral edge of the reinforcing plate is bent backwards to form a reinforcing plate flange, and the reinforcing plate flange is overlapped at the upper end of the second supporting arm.
A clothes treatment device is provided with the box structure.
After the technical scheme is adopted, compared with the prior art, the invention has the following beneficial effects.
1. In the invention, the transverse bracket is respectively connected with the two side plates, so that the supporting strength of the box body is enhanced, the box body is prevented from deforming in the assembling process of the clothes processing device, the longitudinal bracket is connected with the transverse bracket, and the reinforcing plate is respectively connected with the longitudinal bracket and the transverse bracket, so that the supporting strength of the box body is further improved.
2. According to the invention, the transverse support, the longitudinal support and the reinforcing plate are sequentially installed, so that the supporting strength of the box body is ensured, the box body is convenient to disassemble, and the maintenance and the repair are facilitated.
The following describes embodiments of the present invention in further detail with reference to the accompanying drawings.
Drawings
The accompanying drawings, which are included to provide a further understanding of the invention, are incorporated in and constitute a part of this specification, illustrate embodiments of the invention and together with the description serve to explain the invention without limiting the invention to the right. It is obvious that the drawings in the following description are only some embodiments, and that for a person skilled in the art, other drawings can be derived on the basis of these drawings without inventive effort. In the drawings:
FIG. 1 is a schematic view illustrating a cabinet structure of a laundry treating apparatus according to an embodiment of the present invention;
fig. 2 is an exploded view of a cabinet structure of a laundry treating apparatus according to an embodiment of the present invention;

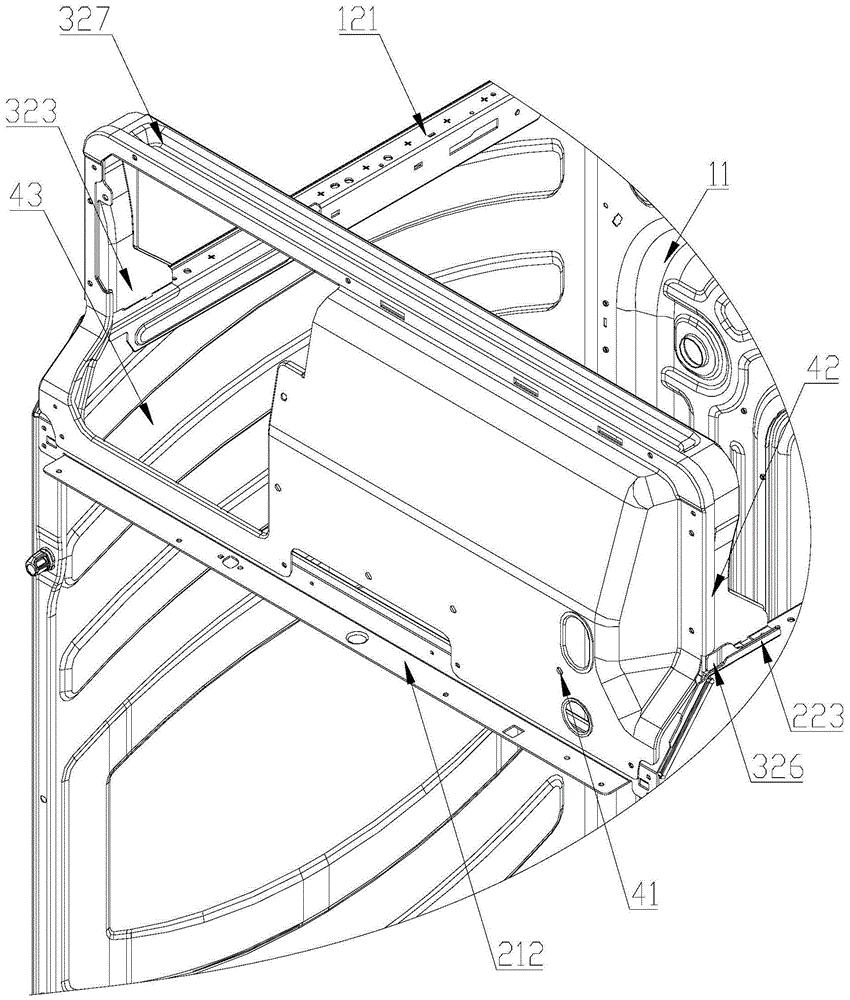

FIG. 3 is a partial schematic view showing a cabinet structure of a clothes treating apparatus according to an embodiment of the present invention;
FIG. 4 is a schematic view of a lateral support in an embodiment of the present invention;
FIG. 5 is a schematic view of a longitudinal support in an embodiment of the present invention;
FIG. 6 is a schematic view of a stiffener in an embodiment of the present invention;
fig. 7 is a schematic view of a case in an embodiment of the present invention.
In the figure:
1. a box body; 11. a back plate; 12. a side plate; 121. flanging the side plate; 1211. obliquely flanging; 1212. horizontally flanging; 2. a transverse support; 21. a first support arm; 211. connecting the flanging; 212. horizontally folding edges; 22. a first fixed arm; 221. a first inclined portion; 222. a horizontal portion; 2221. inserting holes; 223. a first flange; 3. a longitudinal support; 31. a second support arm; 32. a second fixed arm; 321. a vertical portion; 322. a second inclined portion; 323. reinforcing the flanging; 324. a protrusion; 325. supporting the flanging; 326. a second flange; 327. profiling; 4. a reinforcing plate; 41. a reinforcing plate body; 42. flanging the reinforcing plate; 43. and (7) installing the opening.
It should be noted that the drawings and the description are not intended to limit the scope of the inventive concept in any way, but to illustrate it by a person skilled in the art with reference to specific embodiments.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and the following embodiments are used for illustrating the present invention and are not intended to limit the scope of the present invention.
In the description of the present invention, it should be noted that the terms "upper", "lower", "front", "rear", "left", "right", "longitudinal", "inner", "outer", etc., indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention.
In the description of the present invention, it should be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; may be directly connected or indirectly connected through an intermediate. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Example one
As shown in fig. 1 to 7, an embodiment of the present invention provides a cabinet structure of a laundry treating apparatus, including: the box body 1 comprises a back plate 11 and side plates 12 arranged on the left side and the right side of the back plate 11; the rear ends of the transverse brackets 2 are respectively connected with the front ends of the tops of the two side plates 12; the lower end of the longitudinal support 3 is connected with the rear end of the transverse support 2; the reinforcing plate 4 is arranged on the front sides of the transverse support 2 and the longitudinal support 3, the upper end of the reinforcing plate 4 is connected with the upper end of the longitudinal support 3, and the lower end of the reinforcing plate 4 is connected with the front end of the transverse support 2.
In the above scheme, the transverse brackets 2 are respectively connected with the two side plates 12, so that the supporting strength of the box body 1 is enhanced, the box body 1 is prevented from deforming in the assembling process of the clothes processing device, the longitudinal bracket 3 is connected with the transverse brackets 2, and the reinforcing plate 4 is respectively connected with the longitudinal bracket 3 and the transverse brackets 2, so that the supporting strength of the box body 1 is further improved.
As shown in fig. 1 to 5, in this embodiment, horizontal support 2 is the U type, vertical support 3 is the U type of invering, horizontal support 2 and vertical support 3 inject the installation space of reinforcing plate 4, the front side of horizontal support 2 and vertical support 3 is located to reinforcing plate 4, vertical support 3 and horizontal support 2 detachable between the three are connected, can promote the structural stability of box 1 by a wide margin, and can reduce the condition of rocking of clothing processing apparatus during operation box 1, promote user's use experience.
As shown in fig. 1 to 4, in this embodiment, the transverse bracket 2 includes a first support arm 21 and a first fixing arm 22 disposed at the left and right ends of the first support arm 21 and bent backward, the top of the side plate 12 is bent toward the inside of the box body 1 to form a side plate flange 121, the first fixing arm 22 is connected to the corresponding side plate flange 121, the first fixing arm 22 disposed at the left and right ends of the first support arm 21 is connected to the corresponding plate flange respectively, a closed structure connected in sequence is formed, the support strength of the box body 1 is improved, the box body 1 is prevented from shaking, and the box body 1 is prevented from deforming.
Preferably, the fastener passes the connecting hole of seting up on first fixed arm 22 and the curb plate turn-ups 121 in proper order to with first fixed arm 22 and curb plate turn-ups 121 fastening connection, and then horizontal support 2 and the detachable fixed connection of box 1 guarantee the stability of box 1 structure, and it is more convenient to dismantle simultaneously.
As shown in fig. 1 to 4, in this embodiment, the first fixing arm 22 includes a first inclined portion 221 integrally connected with the first support arm 21 and extending obliquely upward, an extending end of the first inclined portion 221 is bent toward a horizontal direction to form a horizontal portion 222, the side panel flange 121 includes an inclined flange 1211 and a horizontal flange 1212 matched with the first inclined portion 221 and the horizontal portion 222, such that the inclined angles of the first inclined portion 221 and the inclined flange 1211 are the same, the first inclined portion 221 and the inclined flange 1211 are tightly attached, and the horizontal portion 222 and the horizontal flange 1212 are tightly attached, thereby ensuring that the transverse bracket 2 and the box 1 are more firmly connected.
Preferably, the first inclined portion 221 and the inclined flange 1211 are correspondingly provided with connecting holes for fasteners to pass through, and the fasteners sequentially pass through the connecting holes formed in the first inclined portion 221 and the inclined flange 1211 to tightly connect the first inclined portion 221 and the inclined flange 1211, so that the structural stability of the box body 1 is ensured, and the box body 1 is prevented from shaking.
Preferably, the horizontal portion 222 and the horizontal flange 1212 of the side plate 12 are correspondingly provided with a connecting hole for a fastener to pass through, and the fastener sequentially passes through the connecting holes provided on the horizontal portion 222 and the horizontal flange 1212 of the side plate 12 to fasten and connect the horizontal portion 222 and the horizontal flange 1212 of the side plate 12, so as to further enhance the supporting strength of the box body 1 and prevent the box body 1 from deforming.
As shown in fig. 1 to 4, in the present embodiment, a portion of the upper end of the first support arm 21 is bent upward to form a connection flange 211, and both left and right ends of the connection flange 211 are integrally connected to the first inclined portion 221 on the opposite side.
In the above scheme, the left and right ends of the connecting flange 211 extend to the first inclined portions 221 on the opposite sides, so that the first fixing arms 22 arranged at the left and right ends of the first supporting arm 21 are integrally connected, the overall supporting strength of the transverse bracket 2 is enhanced, and the transverse bracket 2, the longitudinal bracket 3 and the reinforcing plate 4 are more firmly connected.
As shown in fig. 1 to 4, in the present embodiment, the reinforcing plate 4 is disposed at the front side of the first supporting arm 21, the reinforcing plate 4 is detachably and fixedly connected to the first supporting arm 21, and the reinforcing plate 4 does not affect the removal of the components such as the heat pump system and the tub assembly from the inside of the cabinet 1 or the installation of the components in the cabinet 1 during the assembly and disassembly of the laundry treating apparatus.
Preferably, the fastener passes the connecting hole of seting up on reinforcing plate 4 and the first support arm 21 in proper order to with reinforcing plate 4 and the fastening connection of first support arm 21, and then horizontal support 2 and the 4 detachable fixed connection of reinforcing plate guarantee the stability of 1 structure of box, it is more convenient to dismantle simultaneously.
More preferably, a partial region of the first support arm 21 is bent forward horizontally to form a horizontal folded edge 212, and the bottom end of the reinforcing plate 4 is overlapped on the horizontal folded edge 212, so as to further enhance the connection strength between the transverse bracket 2 and the reinforcing plate 4, further enhance the support strength of the box body 1, and prevent the box body 1 from deforming.
As shown in fig. 1 to 4, in the present embodiment, the peripheral edges of the first inclined part 221 and the horizontal part 222 are bent upward to form the first blocking edge 223 for defining the installation position of the transverse bracket 2 and the longitudinal bracket 3 and the reinforcing plate 4, thereby improving the assembly efficiency, making the worker more labor-saving, and simultaneously preventing the longitudinal bracket 3 and the reinforcing plate 4 from moving relative to the transverse bracket 2 when the laundry treating apparatus is operated.
In this embodiment, the transverse support 2, the longitudinal support 3 and the reinforcing plate 4 are all metal members, so that the supporting strength of the transverse support 2, the longitudinal support 3 and the reinforcing plate 4 is ensured, and the structural stability of the box body 1 is further improved.
Preferably, horizontal support 2, vertical support 3 and reinforcing plate 4 are the sheet metal component, and the sheet metal component has advantages such as light in weight, intensity height, with low costs, processing are easy.
As shown in fig. 7, in this embodiment, the box body 1 includes a front plate and a back plate 11 respectively fixedly connected to the left and right side plates 12 in sequence to form a framework of the box body 1 of the clothes treatment device, or the left and right side plates 12 and the back plate 11 are integrally formed to form a U-shaped member, and an opening end of the U-shaped member is fixedly connected to the left and right ends of the front plate to form the framework of the box body 1 of the clothes treatment device.
Specifically, in the assembling process of the clothes treating device, firstly, the transverse support 2 is installed at the front end of the top of the left side plate 12 and the right side plate 12 to improve the supporting strength of the box body 1, then the components such as a barrel assembly, a heat pump system and the like are sequentially installed in the box body 1, then the longitudinal support 3 is installed at the front side of the transverse support 2, and finally the reinforcing plate 4 is installed at the front sides of the transverse support 2 and the longitudinal support 3 to further improve the supporting strength of the box body 1 and prevent the box body 1 from shaking when the clothes treating device works; when maintaining and maintaining the inside part of box 1, demolish reinforcing plate 4 and vertical support 3 in proper order, horizontal support 2 is connected with box 1 and guarantees box 1 and support intensity, does not influence the maintenance and the maintenance of the inside part of box 1 moreover.
Through above-mentioned clothing processing apparatus box structure, horizontal support 2 is connected with both sides board 12 respectively, the support intensity of box 1 has been strengthened, prevent that box 1 from taking place to warp in the clothing processing apparatus equipment process, and vertical support 3 is connected with horizontal support 2, reinforcing plate 4 is connected respectively with vertical support 3 and horizontal support 2, the support intensity of box 1 has further been improved, horizontal support 2, vertical support 3 and reinforcing plate 4 are installed in proper order, not only can prevent that box 1 from taking place to warp, still be favorable to dismantling the inside part of box 1.
Example two
As shown in fig. 1 to 7, this embodiment is further limited to the first embodiment, the longitudinal frame 3 includes a second supporting arm 31 and second fixing arms 32 disposed at the left and right ends of the second supporting arm 31 and bent downward, and the lower ends of the second fixing arms 32 are connected to the corresponding first fixing arms 22, so as to fixedly connect the transverse frame 2 and the longitudinal frame 3, thereby further improving the firmness of the overall structure of the box 1.
Preferably, the fastener passes through the connecting holes that are seted up on second fixed arm 32 and the second fixed arm 32 in proper order to with second fixed arm 32 and the fastening of first fixed arm 22, realize horizontal support 2 and vertical support 3 detachably fixed connection, be convenient for maintain and maintain the inside part of box 1.
As shown in fig. 1 to 3 and 5, in the present embodiment, the second fixing arm 32 includes a vertical portion 321 integrally connected to the first support arm 21 and extending downward, an extending end of the vertical portion 321 is bent forward to form a second inclined portion 322, and the second inclined portion 322 and the first inclined portion 221 are engaged with each other so that the first inclined portion 221 and the second inclined portion 322 are arranged in parallel, thereby ensuring that the first inclined portion 221 and the second inclined portion 322 are closely attached to each other.
Preferably, the second inclined part 322 and the first inclined part 221 are correspondingly provided with connecting holes for the fasteners to pass through, so that the transverse support 2 and the longitudinal support 3 can be detachably and fixedly connected, the structural stability of the box body 1 is ensured, and the disassembly is more convenient.
As shown in fig. 1 to fig. 3 and fig. 5, in this embodiment, the peripheral edges of the second support arm 31 and the second fixing arm 32 are bent backwards to form a circle of reinforcing flange 323, a partial area of the bottom end of the reinforcing flange 323 extends downwards to form a protrusion 324, the first fixing arm 22 is provided with a plugging hole 2221 for plugging and installing the protrusion 324, and the protrusion 324 is plugged and installed in the plugging hole 2221 from top to bottom, so as to achieve the primary fixing of the transverse bracket 2 and the longitudinal bracket 3, which is beneficial to further fastening and connecting the transverse bracket 2 and the longitudinal bracket 3 by a fastener, so that the assembly is more time-saving and labor-saving.
Preferably, the second support arm 31 and the peripheral edge of the vertical portion 321 are bent backwards to form a circle of reinforcing flange 323, the horizontal portion 222 is provided with an insertion hole 2221 for inserting the protrusion 324, the protrusion 324 is inserted into the insertion hole 2221, and the bottom end of the vertical portion 321 is tightly attached to the upper end of the horizontal portion 222.
As shown in fig. 1 to 3 and 5, the peripheral edge of the vertical portion 321 is bent and extended backward to form a reinforcing flange 323, and the extended end of the reinforcing flange 323 is bent and extended outward horizontally to form a supporting flange 325, so as to tightly attach to the upper surface of the horizontal portion 222, thereby ensuring that the connection between the transverse bracket 2 and the longitudinal bracket 3 is more stable, and particularly reducing the vibration frequency of the cabinet 1 when the clothes treating apparatus works.
As shown in fig. 1 to 3 and 5, the extended end of the support flange 325 is bent upward to form a second flange 326 for defining the installation position of the longitudinal bracket 3 and the lateral bracket 2, thereby improving the assembly efficiency, saving labor for workers, and preventing the lateral bracket 2 from moving relative to the longitudinal bracket 3 when the laundry treating apparatus is in operation.
As shown in fig. 1 to 3 and 6, in the present embodiment, the reinforcing plate 4 is disposed at the front side of the second supporting arm 31, the reinforcing plate 4 is detachably and fixedly connected with the second supporting arm 31, and the reinforcing plate 4 can be assembled with or separated from the longitudinal bracket 3 during the assembling and disassembling process of the laundry treating apparatus, so that the heat pump system, the tub assembly and other components are not affected to be removed from or installed inside the cabinet 1.
Preferably, the fastener passes the connecting hole of seting up on reinforcing plate 4 and the second support arm 31 in proper order to with reinforcing plate 4 and second support arm 31 fastening connection, and then detachable fixed connection between horizontal support 2, vertical support 3 and the reinforcing plate 4 guarantees the stability of 1 structure of box, and it is more convenient to dismantle simultaneously.
More preferably, the peripheral edge of the reinforcing plate 4 is bent backwards to form a reinforcing plate flange 42, and the reinforcing plate flange 42 is overlapped on the upper end of the second supporting arm 31, so as to further enhance the firmness of the connection between the longitudinal support 3 and the reinforcing plate 4 and prevent the longitudinal support 3 from being deformed and broken due to the excessive local stress.
As shown in fig. 1 to 3 and 6, in the present embodiment, the reinforcing plate 4 includes a plate-shaped reinforcing plate body 41 that is vertically disposed, an outer peripheral edge of the reinforcing plate body 41 is bent backwards to form a reinforcing plate flange 42, and the reinforcing plate body 41 is further provided with a mounting opening 43 for mounting the additive feeding device.
As shown in fig. 1 to 3 and 5, the peripheral edge of the second support arm 31 is bent backwards to form a reinforcing flange 323, and a partial region of the reinforcing flange 323 is recessed downwards to form a profiling 327, so as to reinforce the supporting strength of the longitudinal support 3, avoid deformation and fracture of the longitudinal support 3, and ensure the connection stability and reliability of the longitudinal support 3 with the transverse support 2 and the reinforcing plate 4.
Preferably, the profiling 327 comprises a first profiling 327 arranged in the middle of the reinforcing flange 323 and a second profiling 327 arranged on the periphery of the first profiling 327, so that the supporting strength of the longitudinal support 3 is further enhanced, and the profiling 327 is simple to process and has higher strength.
Through above-mentioned clothing processing apparatus box structure, fixed connection between horizontal support 2, vertical support 3 and the reinforcing plate 4 has further improved the support intensity of box 1, prevents that box 1 from taking place to rock at clothing processing apparatus during operation, still is favorable to dismantling the inside part of box 1 simultaneously.
Although the present invention has been described with reference to a preferred embodiment, it should be understood that various changes, substitutions and alterations can be made herein without departing from the spirit and scope of the invention as defined by the appended claims.
