Abstract
本发明公开了一种电感器骨架组装加工设备，本发明涉及电感器技术领域，包括：电感器骨架本体：电感器骨架本体包括引脚、端盖和骨架筒；主板：所述主板上安装有推动组件，所述推动组件包括第一推送装置、第三推送装置、第四推送装置和第五推送装置，所述推动组件用于推动电感器骨架零件，所述第一推送装置用于推动引脚，所述第三推送装置用于推动端盖，所述第五推送装置用于引脚和端盖组合之后，推动骨架筒并将骨架筒组装在端盖上，本发明中，通过在主板上安装的推送装置，减少组装错误几率，提高电感器的加工效率，通过设置的骨架旋转组件，有利于节省夹紧装置的空间，同时减少夹紧电感器骨架的时间。
The invention discloses an inductor skeleton assembly and processing equipment, and the invention relates to the technical field of inductors, including: an inductor skeleton body: the inductor skeleton body includes pins, an end cover and a skeleton cylinder; The push assembly includes a first push device, a third push device, a fourth push device and a fifth push device, the push assembly is used to push the inductor skeleton part, and the first push device is used to push the lead feet, the third pushing device is used to push the end cap, and the fifth pushing device is used to push the skeleton cylinder and assemble the skeleton cylinder on the end cap after the pin and the end cap are combined. The push device installed on the top reduces the probability of assembly errors and improves the processing efficiency of the inductor. The skeleton rotation component provided is beneficial to save the space of the clamping device and reduce the time for clamping the inductor skeleton.
Description
Technical Field
The invention belongs to the technical field of inductors, and particularly relates to assembling and processing equipment for an inductor framework.
Background
The inductor can be the component that can convert the electric energy into magnetic energy and store, the structure of inductor is similar to the transformer, but only a winding, the inductor mainly comprises inductor skeleton and winding, in the inductor manufacturing process, usually assemble inductor skeleton earlier, wind the winding and establish on inductor skeleton again, at present, during inductor skeleton equipment, through dedicated inductor skeleton equipment processingequipment, but current inductor skeleton equipment processingequipment still has the weak point when using, the part of inductor skeleton needs artifical accurate putting on the processing station, it is high to artifical operating requirement, and need to carry out the wire winding through pressing from both sides after inductor skeleton equipment, clamping device structure is complicated, occupation space.
Disclosure of Invention
In view of this, the present invention provides an inductor frame assembling and processing apparatus, so as to effectively solve the problems that the parts of the inductor frame proposed in the above-mentioned background art need to be manually and accurately placed on the processing station, and the clamping device has a complex structure and occupies a space.
In order to achieve the purpose, the invention provides the following technical scheme: an inductor bobbin assembly processing apparatus comprising:
inductor skeleton body: the inductor framework body comprises pins, an end cover and a framework cylinder;
mainboard: the inductor frame component comprises a main board and is characterized in that a pushing assembly is mounted on the main board and comprises a first pushing device, a third pushing device, a fourth pushing device and a fifth pushing device, the pushing assembly is used for pushing the inductor frame component, the first pushing device is used for pushing pins, the third pushing device is used for pushing the end cover, and the fifth pushing device is used for pushing the frame cylinder and assembling the frame cylinder on the end cover after the pins and the end cover are combined.
Preferably, a fourth pushing device is installed on one side, close to the fifth pushing device, of the main board, a framework rotating assembly is installed on the fourth pushing device, an installation plate is installed on the framework rotating assembly, a motor is installed at the top of the installation plate, a rotating drum is installed at a main shaft end of the motor, a slot is installed inside the rotating drum, and a magnetic block is installed inside the slot.
Preferably, a wire winding assembly is installed on one side of the end portion of the fourth pushing device, a third telescopic device is installed on the wire winding assembly, a plug plate is installed at one end of the third telescopic device, a shearing device is installed on one side of the wire winding assembly, and a groove is formed in one end of the framework cylinder.
Preferably, the third pushing device is provided with a screw rod transmission assembly, the screw rod transmission assembly is provided with a sliding plate, one side of the screw rod transmission assembly is provided with a sliding rail, a placing groove is formed in the sliding rail, and a sliding groove is formed in the middle of the placing groove.
Preferably, a winding wire device is installed on one side of the third pushing device, and a first telescopic device is installed on one side of the winding wire device.
Preferably, a fixing frame is installed on one side, close to the fourth pushing device, of the main board, a second telescopic device is installed on the fixing frame, and a magnetic suction device is installed at one end of the second telescopic device.
Preferably, a second pushing device is installed on one side, close to the end portion of the first pushing device, of the main board.
Preferably, a through hole is formed in the end cover, and a through hole is formed in one end of the pin.
Preferably, the rotary drum is made of a plastic material, and the slot is in transition fit with the pin.
Compared with the prior art, the invention has the beneficial effects that:
(1) according to the invention, through the pushing device arranged on the main board, the parts of the inductor framework are placed on the pushing device, so that the positioning precision of the parts of the inductor framework is improved, the parts of the inductor framework can be conveniently and rapidly placed on the machining station, the assembling error probability is reduced, and the machining efficiency of the inductor is improved.
(2) According to the invention, through the arranged framework rotating assembly, after the assembled inductor framework is pushed to one side of the framework rotating assembly, the magnetic block in the framework rotating assembly attracts the pins at the end part of the inductor framework, so that the inductor framework is automatically attracted, a clamping device is not needed to clamp the inductor framework, the space of the clamping device is saved, the time for clamping the inductor framework is reduced, and the winding is wound.
(3) According to the invention, based on the inductor framework structure, the groove is formed in the framework cylinder, and in the winding process of the winding, one end of the winding wire is attached to the inner wall of the groove and extruded, so that the end part of the winding wire is favorably inserted into the end cover and connected with the pin on the end cover, the threading operation is favorably carried out before the winding wire is wound on the inductor framework, and the threading operation difficulty is reduced.
Drawings

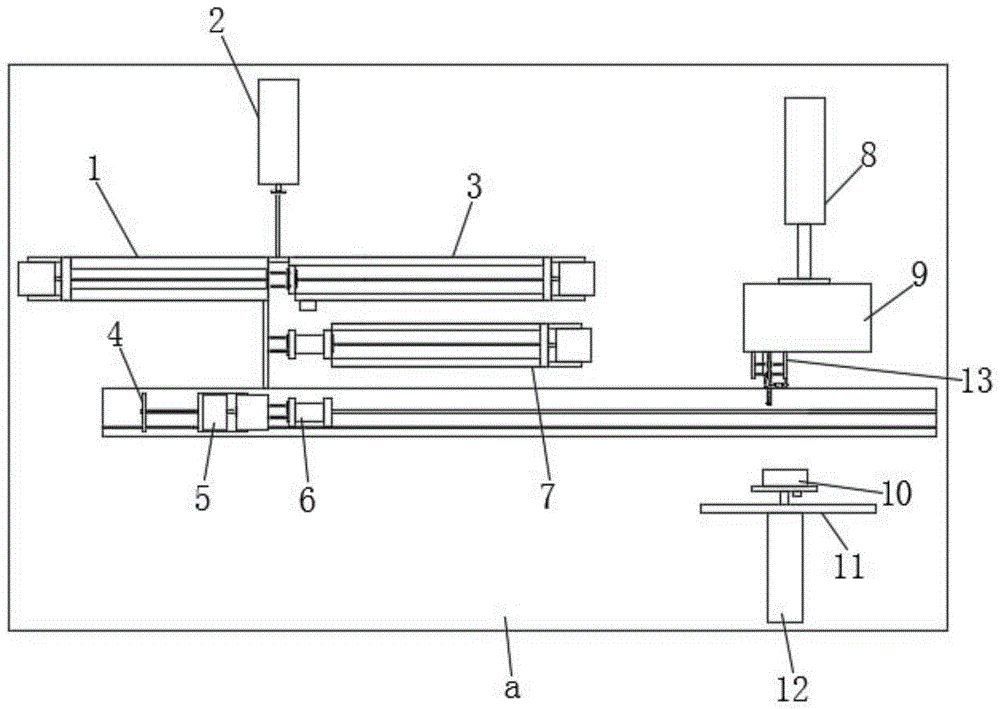

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic structural diagram of a third pushing device according to the present invention;
FIG. 3 is a diagram of the sliding state of the frame rotating assembly of the present invention on the fourth pushing device;
FIG. 4 is a schematic structural view of the wire winding assembly and the bobbin rotating assembly of the present invention;
FIG. 5 is a cross-sectional view of a skeletal cylinder of the present invention;
FIG. 6 is an enlarged view of portion A of FIG. 4;
FIG. 7 is a schematic view of a frame rotating assembly according to the present invention;
in the figure: a-a main board; 1-a first pushing device; 2-a second pushing device; 3-a third pushing device; 31-a slide plate; 32-a slide rail; 33-a chute; 34-a screw rod transmission assembly; 35-placing grooves; 4-a fourth pushing device; 5-a framework rotation assembly; 51-a motor; 52-a mounting plate; 53-a drum; 54-a slot; 55-magnetic block; 6-framework cylinder; 7-a fifth pushing device; 8-a first telescopic device; 9-a wire winding arrangement; 10-magnetic attraction device; 11-a fixing frame; 12-a second telescopic device; 13-a filament winding assembly; 14-an end cap; 15-a through hole; 16-a groove; 17-a third telescopic device; 18-a plug plate; 19-a shearing device; 20-pin.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-7, the present invention provides the following technical solutions: an inductor bobbin assembly processing apparatus comprising:
inductor skeleton body: the inductor bobbin body comprises pins 20, end caps 14 and a bobbin 6;
a main board a: a pushing assembly is mounted on the main board a, the pushing assembly comprises a first pushing device 1, a third pushing device 3, a fourth pushing device 4 and a fifth pushing device 7, the pushing assembly is used for pushing the inductor framework part, the first pushing device 1 is used for pushing the pin 20, the third pushing device 3 is used for pushing the end cover 14, the fifth pushing device 7 is used for pushing the framework cylinder 6 and assembling the framework cylinder 6 on the end cover 14 after the pin 20 and the end cover 14 are combined, specifically, the first pushing device 1, the third pushing device 3 and the fifth pushing device 7 have the same structure, the pin 20 is placed on a placing groove 35 of the first pushing device 1, a screw rod transmission assembly 34 of the first pushing device 1 pushes a sliding plate 31, the sliding plate 31 pushes the pin 20 to move, the end cover 14 is placed on a placing groove 35 of the third pushing device 3, the screw rod transmission assembly 34 on the third pushing device 3 pushes the sliding plate 31, the pin 20 moves to the end of the first pushing device 1, the sliding plate 31 pushes the end cover 14 to move to the end of the third pushing device 3, the pin 20 is spliced with the end cover 14, the framework cylinder 6 is placed on the fifth pushing device 7, and the framework cylinder 6 is pushed to the end of the fifth pushing device 7 and connected with the end cover 14.
In this embodiment, preferably, the fourth pushing device 4 is installed on the main board a near the fifth pushing device 7, the framework rotating assembly 5 is installed on the fourth pushing device 4, the mounting plate 52 is installed on the framework rotating assembly 5, and the top of the mounting plate 52 is provided with a motor 51, the main shaft end of the motor 51 is provided with a rotating drum 53, and the inside of the rotary drum 53 is provided with a slot 54, and the inside of the slot 54 is provided with a magnetic block 55, specifically, after the inductor framework body is assembled, pushed to the fourth pushing device 4 by the second pushing device 2, the magnetic block 55 in the framework rotating assembly 5 attracts the pins 20, meanwhile, the framework body of the inductor is arranged on the framework rotating component 5, the structure of the fourth pushing device 4 is the same as that of the third pushing device 3, the framework rotating assembly 5 is pushed to move to one side of the wire winding assembly 13 by the fourth pushing device 4.
In this embodiment, preferably, a wire winding assembly 13 is installed on one side of the end portion of the fourth pushing device 4, a third expansion device 17 is installed on the wire winding assembly 13, a plug plate 18 is installed at one end of the third expansion device 17, a shearing device 19 is installed on one side of the wire winding assembly 13, a groove 16 is formed in one end of the framework cylinder 6, specifically, the plug plate 18 is pushed to move to one side of the groove 16 by the third expansion device 17 on the wire winding assembly 13, a winding wire at one end of the winding wire device 9 is pushed to be close to the groove 16 by the first expansion device 8, and enters the groove 16, and the end portion of the winding wire moves along the groove 16 and enters the through hole 15 in the end cover 14.
In this embodiment, preferably, the third pushing device 3 is provided with a screw transmission assembly 34, the screw transmission assembly 34 is composed of a motor and a screw, the sliding plate 31 is connected with the screw through a thread, the sliding plate 31 is installed on the screw transmission assembly 34, the sliding rail 32 is installed on one side of the screw transmission assembly 34, the inside of the sliding rail 32 is provided with a placing groove 35, and the middle part of the placing groove 35 is provided with a sliding groove 33.
In this embodiment, it is preferable that the winding wire device 9 is installed on one side of the third pushing device 3, a winding wire coil is installed inside the winding wire device 9, the winding wire is pulled and wound on the outer wall of the bobbin 6 when the inductor bobbin body rotates, the first expansion device 8 is installed on one side of the winding wire device 9, and the first expansion device 8, the second expansion device 12, and the third expansion device 17 are all air cylinders or oil cylinders.
In this embodiment, preferably, a fixing frame 11 is installed on one side of the main board a close to the fourth pushing device 4, a second telescopic device 12 is installed on the fixing frame 11, and a magnetic attraction device 10 is installed at one end of the second telescopic device 12.
In the present embodiment, it is preferable that the second pushing device 2 is attached to the main plate a on the side close to the end of the first pushing device 1.
In the present embodiment, it is preferable that the end cap 14 has a through hole 15 formed therein, and the through hole 15 is attached to one end of the pin 20.
Preferably, the barrel 53 is made of a plastic material, and the slot 54 is in transition fit with the pin 20.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (9)
1. An inductor bobbin assembly processing apparatus comprising:
inductor skeleton body: the inductor framework body comprises pins (20), an end cover (14) and a framework barrel (6);
the method is characterized in that:
main plate (a): the inductor frame component is characterized in that a pushing component is mounted on the main board (a), the pushing component comprises a first pushing device (1), a third pushing device (3), a fourth pushing device (4) and a fifth pushing device (7), the pushing component is used for pushing the inductor frame component, the first pushing device (1) is used for pushing the pins (20), the third pushing device (3) is used for pushing the end cover (14), and the fifth pushing device (7) is used for pushing the frame barrel (6) and assembling the frame barrel (6) on the end cover (14) after the pins (20) and the end cover (14) are combined.
2. The inductor framework assembling and processing equipment as claimed in claim 1, wherein: the improved pneumatic conveying device is characterized in that a fourth pushing device (4) is installed on one side, close to a fifth pushing device (7), of the main board (a), a framework rotating assembly (5) is installed on the fourth pushing device (4), a mounting plate (52) is installed on the framework rotating assembly (5), a motor (51) is installed at the top of the mounting plate (52), a rotary drum (53) is installed at a main shaft end of the motor (51), a slot (54) is installed inside the rotary drum (53), and a magnetic block (55) is installed inside the slot (54).
3. The inductor framework assembling and processing equipment as claimed in claim 2, wherein: wire winding assembly (13) is installed to tip one side of fourth pusher (4), install third telescoping device (17) on wire winding assembly (13), and cock board (18) are installed to the one end of third telescoping device (17), shearing device (19) are installed to one side of wire winding assembly (13), recess (16) are seted up to the one end of a skeleton section of thick bamboo (6).
4. The inductor framework assembling and processing equipment of claim 3, wherein: install screw drive assembly (34) on third pusher (3), install slide (31) on screw drive assembly (34), slide rail (32) are installed to one side of screw drive assembly (34), and the inside of slide rail (32) has seted up standing groove (35), spout (33) have been seted up at the middle part of standing groove (35).
5. The inductor framework assembling and processing equipment as claimed in claim 4, wherein: and a winding wire device (9) is installed on one side of the third pushing device (3), and a first telescopic device (8) is installed on one side of the winding wire device (9).
6. The inductor framework assembling and processing equipment as claimed in claim 5, wherein: the main board (a) is provided with a fixing frame (11) at one side close to the fourth pushing device (4), the fixing frame (11) is provided with a second telescopic device (12), and one end of the second telescopic device (12) is provided with a magnetic suction device (10).
7. The inductor framework assembling and processing equipment of claim 6, wherein: and a second pushing device (2) is arranged on one side of the main board (a) close to the end part of the first pushing device (1).
8. The inductor framework assembling and processing equipment of claim 7, wherein: through holes (15) are formed in the end covers (14), and the through holes (15) are mounted at one ends of the pins (20).
9. The inductor framework assembling and processing equipment of claim 8, wherein: the rotary drum (53) is made of plastic materials, and the slot (54) is in transition fit with the pin (20).
