Abstract
The invention belongs to the technical field of high-speed trains, and particularly discloses a telescopic wing device for regulating and controlling aerodynamic force of a high-speed train, the high-speed train and a control method; the telescopic wing device comprises a supporting seat and a telescopic wing structure which is arranged on the supporting seat and moves along the width direction of the high-speed train; the telescopic wing structure comprises a first telescopic wing arranged on the supporting seat, a telescopic wing unit sleeved in the first telescopic wing and moving along the axial direction of the first telescopic wing, and a telescopic mechanism arranged in the first telescopic wing and controlling the movement of the telescopic wing unit. And a high-speed train based on the telescopic wing device and a control method of the telescopic wing device; the invention provides necessary lifting force for the whole train during normal operation, so as to reduce the pressure borne by the wheels and simultaneously prevent the train from derailing; when the high-speed train runs to a special environment with a crosswind effect, the telescopic wing units are controlled to provide lift force only on the leeward side of the crosswind effect to resist the lateral force generated by the crosswind effect, and the stability of train running is maintained.
Description
Technical Field
The invention relates to the technical field of high-speed trains, in particular to a telescopic wing device for regulating and controlling aerodynamic force of a high-speed train, the high-speed train and a control method.
Background
At present, the running speed per hour of a high-speed train in China is between 200 and 400km/h, the running speed per hour of a plurality of railway lines is maintained between 300 and 350km/h, the running state of the high speed is maintained, and high requirements are put forward on wheel components of the high-speed train. The wheels are used as connecting parts between the train body and the steel rails, and the stability and the reliability of the wheels are important guarantee for the stable and comfortable running of the train. However, as a component of high speed operation, wheel wear is inevitable, especially when the train is running under heavy load, with more severe damage to the wheels. When the wheel is abraded greatly, the wheel hub tread is unsmooth and unsmooth, and then the problem of train running stability is brought, and even potential safety hazards are caused. In addition, the high-speed train line usually spans a very long distance and is influenced by different natural environments, some of the influences are not negligible, the strong wind environment is one of the influences, the strong wind environment needs to be considered, and otherwise potential safety hazards can be buried in the running of the train. Compared with the environment with zero wind speed, when a high-speed train runs in a crosswind environment, the aerodynamic characteristics of the high-speed train can be obviously changed, so that the aerodynamic load on the train and the acting force between wheel rails are obviously changed, and a crosswind effect is generated. When the effect is small, the caused transverse aerodynamic force may resonate with each aerodynamic torque, so that the structure of the train is subjected to fatigue failure; if the effect is increased, the dynamic characteristics between the train wheel rails are greatly different from the original design, so that the transverse overrun and derailment of the train are caused, and the life safety of people is directly threatened. When the high-speed train runs in some special environments, such as areas of super-large bridges, viaducts, tuyere areas in mountainous areas and the like, the crosswind effect is particularly strong, the transverse acting force is more obvious, and the possibility of derailment and overturning of the train is greatly increased.
In summary, it is very important to study how to reduce the pressure on the wheels of the high-speed train and reduce the lateral force on the high-speed train in the crosswind environment.
In order to ensure the reliability and stability of the operation of the wheel as much as possible, a method for detecting the wheel at regular time is generally adopted, and unqualified wheels can be replaced in time. However, since the wheels of the high-speed train are made of special materials, the manufacturing process requirement is high, and the cost is high, the economical burden is increased by replacing the wheels.
In order to avoid the derailment of the high-speed train in the crosswind environment as much as possible, the most direct method is to stop the train, but the method is obviously not matched with the future development of the high-speed train. In addition, according to the data of weather prediction, the train is subjected to deceleration operation in different degrees aiming at the crosswind environment of the obstructed wind speed, so that the traveling efficiency of people can be influenced to a certain extent, and the method belongs to an alternative scheme.
In the prior art, patents with publication numbers CN202175052U and CN202175053U adjust the pitch angle of the wing device according to different situations, so as to achieve the effect of generating lift or resistance by using the energy of the airflow, thereby achieving the purposes of reducing energy consumption and shortening braking distance. The above patent does not provide for the reduction of the crosswind effect. The patent with the publication number of CN112498386B is that a fish scale imitating device is arranged on one side of a train body, and the angle of the device is adjusted according to the cross wind direction and the wind speed, so that the flow direction of the airflow is changed, and the purpose of weakening the cross wind effect is achieved. However, the device can only prevent the cross wind action on one side of the train, and the device is arranged in the whole area on one side of the train body, so that the original design of the train, such as windows, doors and the like, is influenced, and the device is not easy to use in practice.
Disclosure of Invention
The invention aims to solve the technical problem of providing a telescopic wing device for regulating and controlling aerodynamic force of a high-speed train, the high-speed train and a control method of the telescopic wing device; the lifting force can be controlled according to the running environment of the train, so that the pressure borne by the wheels is reduced, the influence on the wheels is weakened, and the derailment of the train is avoided; meanwhile, when the high-speed train runs to a special environment with a crosswind effect, the device can only provide lifting force on the leeward side of the crosswind effect by controlling the telescopic wing units so as to resist the lateral force generated by the crosswind effect, and the device is favorable for maintaining the safety and the stability of train running under the condition of keeping the running speed of the high-speed train unchanged.
The technical problem to be solved by the invention is as follows:
the telescopic wing device for regulating and controlling the aerodynamic force of the high-speed train comprises a supporting seat and a telescopic wing structure which is arranged on the supporting seat and moves along the width direction of the high-speed train;
the telescopic wing structure comprises a first telescopic wing arranged on the supporting seat, a telescopic wing unit sleeved in the first telescopic wing and moving along the axial direction of the first telescopic wing, and a telescopic mechanism arranged in the first telescopic wing and controlling the movement of the telescopic wing unit.
When the telescopic wing unit is used, the high-speed train monitors different running environments, and the telescopic wing unit is controlled to extend or retract through the telescopic mechanism;
when the telescopic wing unit moves to the side far away from the telescopic wing; the lifting force is increased, the acting force of the wheels on the carriage is reduced, the abrasion of the wheels is reduced, and the wheels are effectively protected;
when the telescopic wing unit moves towards one side of the telescopic wing, the lifting force is reduced, and the acting force of the carriage on the wheels is increased, so that the deceleration operation or braking stop of the train is facilitated;
in some possible embodiments, the first telescopic wing is of a hollow structure and comprises a first upper wing plate in an arc-shaped structure and a first lower wing plate which is connected with an open end of the first upper wing plate and forms a mounting cavity of the first telescopic wing unit; the curvature radius of the first lower wing plate is larger than that of the first upper wing plate.
In some possible embodiments, the high-speed train is influenced by the influence of environmental factors and is influenced by crosswind during operation; in order to ensure the running safety of the high-speed train, when the high-speed train runs, unequal lift force is effectively provided from the width direction of the train, so that the situation that the high-speed train overturns due to the cross wind effect is avoided;
the two telescopic wing units are symmetrically arranged along the telescopic wing; the telescopic mechanisms and the telescopic wing units are arranged in a one-to-one correspondence mode.
In some possible embodiments, in order to efficiently achieve the driving of the telescopic wing units by the telescopic mechanism; the telescopic mechanism comprises a telescopic driving mechanism arranged in the first telescopic wing and a top cover arranged on one side of the first telescopic wing unit, which is far away from the first telescopic wing; the telescopic driving mechanism is connected with the top cover.
In some possible embodiments, in order to avoid the airflow entering the first telescopic wing, airflow disturbance is formed; the cross section profile of the telescopic wing unit is consistent with that of the first telescopic wing.
In some possible embodiments, the telescopic wing unit comprises a second telescopic wing which is sleeved in the first telescopic wing and is in a hollow structure, and a third telescopic wing which is sleeved in the second telescopic wing and is in a hollow structure; the second telescopic wing and the third telescopic wing are consistent with the first telescopic wing in section profile; the telescopic wing II comprises an upper wing plate II and a lower wing plate II connected with the opening end of the upper wing plate II; the telescopic wing III comprises an upper wing plate III and a lower wing plate III connected with the three opening ends of the upper wing plate; the curvature radii of the upper wing plate I, the upper wing plate II and the upper wing plate III are sequentially decreased progressively, and the curvature radii of the lower wing plate I, the lower wing plate II and the lower wing plate III are sequentially decreased progressively; the top cover is installed on one side, far away from the second telescopic wing, of the third telescopic wing.
In some possible embodiments, in order to effectively realize the driving of the second telescopic wing and the third telescopic wing;
the telescopic driving mechanism is a three-stage hydraulic telescopic rod and comprises a fixed rod, a first telescopic rod and a second telescopic rod; the first telescopic rod is in transmission connection with the telescopic wing, and the second telescopic rod is in transmission connection with the top cover.
In some possible embodiments, the telescopic wing unit and the telescopic wing are coaxially arranged; the axis of the telescopic wing structure is parallel to the width direction of the high-speed train.
A high-speed train comprises a wind power monitoring system, a control system, a carriage, wheels and the telescopic wing device; the telescopic wing device is installed at the top of the carriage and connected with the control system, and the telescopic direction of the telescopic wing device is parallel to the width direction of the carriage.
A control method of a telescopic wing device for regulating and controlling aerodynamic force of a high-speed train,
when the high-speed train runs to an open road section: the driving telescopic mechanism controls the telescopic wing unit to move to one side far away from the first telescopic wing; the telescopic wing units can provide maximum lift force for the high-speed train and reduce the pressure on wheels;
when the high-speed train runs to a narrow space road section or is subjected to deceleration operation: the driving telescopic mechanism controls the telescopic wing unit to move towards one side close to the first telescopic wing; the telescopic wing units can provide minimum lifting force for the high-speed train, so that the pressure on the wheels is increased;
when the high-speed train runs to a crosswind area: according to the wind direction and the wind power of crosswind, the telescopic wing unit on the windward side is controlled to move to the side close to the first telescopic wing, and the telescopic wing unit on the leeward side moves to the side far away from the first telescopic wing; the two telescopic wing units provide unequal lift force for the high-speed train, wherein the lift force on the leeward side is greater than that on the windward side, and the redundant lift force on the leeward side is used for resisting the lateral force of the crosswind effect.
Compared with the prior art, the invention has the beneficial effects that:
the invention realizes the effective improvement of the lift force of the high-speed train under the normal running condition by controlling the extension of the telescopic wing units along the width direction of the carriage, reduces the acting force applied to the wheels by the carriage and reduces the abrasion of the wheels;
the telescopic wing units are controlled to retract from the extension state along the width direction of the carriage, so that the reduction of the lifting force is realized, and the acting force received by the wheels is increased due to the reduction of the lifting force, so that the deceleration braking of the high-speed train is effectively realized;
the second telescopic wing and the third telescopic wing are symmetrically arranged at two ends of the first telescopic wing, so that the extension or retraction of the first telescopic wing in the width direction of a carriage can be controlled respectively, when the train runs in a crosswind area, the second telescopic wing and the third telescopic wing move towards the sides close to the first telescopic wing one by one through the telescopic wing units positioned on the windward side, and the telescopic wing units on the leeward side are controlled to move towards the side far away from the first telescopic wing, so that the lift force on the leeward side is greater than that on the windward side, the train is prevented from overturning, and the probability of derailment of the high-speed train is reduced.
Drawings
FIG. 1 is a schematic axial view of a telescopic wing apparatus according to the present invention;
FIG. 2 is a bottom view of the telescopic wing apparatus of the present invention;
FIG. 3 is a schematic mechanical view of the section of FIG. 2;
FIG. 4 is a schematic view of one telescopic wing unit being extended and the other telescopic wing unit being retracted in the telescopic wing apparatus of the present invention;
FIG. 5 is a schematic view of the configuration of the telescopic wing unit of the present invention fully retracted inside the first telescopic wing;
FIG. 6 is a side view of a high speed train of the present invention;
FIG. 7 is a schematic cross-sectional view of a first retractable wing or a second retractable wing or a third retractable wing according to the present invention;
FIG. 8 is a schematic view of the position relationship among the first telescopic wing, the second telescopic wing and the third telescopic wing;
wherein: 1. a base; 2. a support pillar; 3. a first telescopic wing; 4. a fixed seat; 5. fixing the rod; 6. a top cover; 7. a second telescopic wing; 8. a third telescopic wing; 9. a carriage.
Detailed Description
In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "connected," "secured," and the like are to be construed broadly and can, for example, be fixedly connected, detachably connected, or integrally formed; either directly or indirectly through intervening media, either internally or in any other relationship. Reference herein to "first," "second," and similar words, does not denote any order, quantity, or importance, but rather are used to distinguish one element from another. Also, the use of the terms "a" or "an" and the like do not denote a limitation of quantity, but rather denote the presence of at least one. In the implementation of the present application, "and/or" describes an association relationship of associated objects, which means that there may be three relationships, for example, a and/or B, which may mean: a exists alone, A and B exist simultaneously, and B exists alone. In the description of the embodiments of the present application, the meaning of "a plurality" means two or more unless otherwise specified. For example, the plurality of positioning posts refers to two or more positioning posts. The specific meanings of the above terms in the present invention can be understood by those skilled in the art according to specific situations.
The present invention will be described in detail below.
As shown in fig. 1-8:
the telescopic wing device for regulating and controlling the aerodynamic force of the high-speed train comprises a supporting seat and a telescopic wing structure which is arranged on the supporting seat and moves along the width direction of the high-speed train;
the telescopic wing structure comprises a first telescopic wing unit 3 installed on the supporting seat, a telescopic wing unit sleeved in the first telescopic wing unit 3 and axially moving along the first telescopic wing unit 3, and a telescopic mechanism installed in the first telescopic wing unit 3 and controlling the telescopic wing unit to move.
When the telescopic wing unit is used, the high-speed train monitors different running environments, and the telescopic wing unit is controlled to extend or retract through the telescopic mechanism;
when the telescopic wing unit moves to the side far away from the first telescopic wing 3, the telescopic wing unit extends to increase the lift force, reduce the acting force of the carriage 9 on the wheels, reduce the abrasion of the wheels and effectively protect the wheels;
when the telescopic wing unit moves towards the side close to the first telescopic wing 3, the telescopic wing retracts into the first telescopic wing 3, the reduction of the lifting force is realized, the acting force of the carriage 9 on wheels is increased at the moment, and the deceleration operation or the braking stop of the train is facilitated.
In some possible embodiments, as shown in fig. 7, in order to effectively realize the provision of lift force to the high-speed train; the telescopic wing I3 is of a hollow structure and comprises an upper wing plate I of an arc-shaped structure and a lower wing plate I which is connected with the opening end of the upper wing plate I and is of an arc-shaped structure; the curvature radius of the first lower wing plate is larger than that of the first upper wing plate.
Preferably, the open ends of the first upper wing plate and the first lower wing plate are connected with each other and are in arc transition, and a mounting cavity for mounting the telescopic wing unit is formed;
preferably, in order to further effectively realize the provision of the lift force to the carriage 9; the length-width ratio of the first telescopic wing 3 is 5: 1;
in some possible embodiments, during operation, under the influence of environmental factors, the high-speed train will be subjected to the action of crosswind; in order to ensure the running safety of the high-speed train, when the high-speed train runs, unequal lift force is effectively provided from the width direction of the train, so that the situation that the high-speed train overturns due to the cross wind effect is avoided;
the two telescopic wing units are symmetrically arranged along the first telescopic wing 3; the telescopic mechanisms and the telescopic wing units are arranged in a one-to-one correspondence mode.
Preferably, the length of the two telescopic wing units one and the telescopic wing unit 3 is twice as long as the width of the carriage 9 under the condition of full extension.
Preferably, the supporting seat is cylindrical, and the axis of the supporting seat is located on the center line of the carriage 9 in the length direction and the width direction;
further, as shown in fig. 1-5, the supporting seat comprises a base 1 installed at the top of the carriage 9, and a supporting pillar 2 installed on the base 1 and connected with the first telescopic wing 3; preferably, the axis of the support column 2 and the center of the first telescopic wing 3 are on the same straight line, so that the stability of the structure of the telescopic wing is ensured;
wherein the sum of the height of the supporting seat in the vertical direction and the height of the telescopic wing structure in the vertical direction is less than the height of the pantograph.
In some possible embodiments, in order to efficiently achieve the driving of the telescopic wing unit by the telescopic mechanism; the telescopic mechanism comprises a telescopic driving mechanism arranged in the first telescopic wing 3 and a top cover 6 arranged on one side of the first telescopic wing unit far away from the first telescopic wing 3; the telescopic driving mechanism is connected with the top cover 6.
The telescopic driving mechanism is mainly used for realizing the movement of the telescopic wing unit along the width direction of the carriage 9; can be realized by adopting a linear electric push rod, a lead screw or a telescopic rod.
In some possible embodiments, in order to avoid the airflow entering the first telescopic wing 3, airflow disturbance is formed; the cross-sectional profile of the telescopic wing unit is consistent with that of the first telescopic wing unit 3.
In some possible embodiments, as shown in fig. 7, the telescopic wing unit includes a second telescopic wing 7 which is sleeved in the first telescopic wing 3 and has a hollow structure, and a third telescopic wing 8 which is sleeved in the second telescopic wing 7 and has a hollow structure; the second telescopic wing 7 and the third telescopic wing 8 are consistent with the first telescopic wing 3 in section; the second telescopic wing 7 comprises an upper wing plate II and a lower wing plate II connected with the open end of the upper wing plate II;
the telescopic wing III 8 comprises an upper wing plate III and a lower wing plate III connected with the three opening ends of the upper wing plate; the curvature radii of the upper wing plate I, the upper wing plate II and the upper wing plate III are sequentially decreased progressively, and the curvature radii of the lower wing plate I, the lower wing plate II and the lower wing plate III are sequentially decreased progressively; the top cover 6 is arranged on one side of the third telescopic wing 8 far away from the second telescopic wing 7.

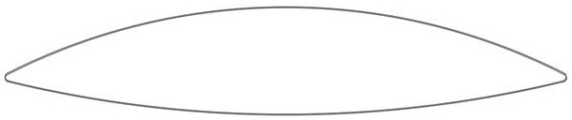

The shapes of the first telescopic wing 3, the second telescopic wing 7 and the third telescopic wing 8 are all streamline, and the first upper wing plate and the first lower wing plate, the second upper wing plate and the second lower wing plate, and the third upper wing plate and the third lower wing plate are all in smooth transition; the provision of lift is effectively achieved.
Preferably, the first telescopic wing 3 is in sealing connection with the second telescopic wing 7, the second telescopic wing 7 is in sealing connection with the third telescopic wing 8, and the third telescopic wing 8 is in sealing connection with the top cover 6, so that a closed structure is formed, and the influence of air flow on pneumatic performance is avoided.
Preferably, as shown in fig. 7 and 8; in order to ensure that the airflow disturbance at the position where the airflow flows through the airfoil section is as small as possible, a larger lift force is provided under the condition of ensuring the structural strength of the telescopic wing; the cross-sectional area of the first telescopic wing 3 in the vertical direction is S, the cross-sectional area of the second telescopic wing 7 in the vertical direction is D, and the cross-sectional area of the third telescopic wing 8 in the vertical direction is L, wherein S: d: l = 10: 9: 8; the cross section areas of the first telescopic wing 3, the second telescopic wing 7 and the third telescopic wing 8 in the vertical direction are reduced in equal proportion, the change of the cross sections of the first telescopic wing 3, the second telescopic wing 7 and the third telescopic wing 8 is small as much as possible, the first telescopic wing 3, the second telescopic wing 7 and the third telescopic wing 8 are not affected by airflow as much as possible, and the improved lift force is maximized.
Preferably, the telescopic wing structure is made of stainless steel material.
In some possible embodiments, in order to effectively realize the driving of the second telescopic wing 7 and the third telescopic wing 8;
as shown in fig. 3, the telescopic driving mechanism is a three-stage hydraulic telescopic rod, and comprises a fixed rod 5 arranged along the width direction of the high-speed train, and a first telescopic rod and a second telescopic rod which are sequentially sleeved in the fixed rod 5; the first telescopic rod is in transmission connection with the second telescopic wing 7, and the second telescopic rod is in transmission connection with the top cover 6.
The telescopic driving mechanism also comprises a fixed seat 4 arranged in the first telescopic wing 3; one end of a fixed rod 5 is arranged on the fixed seat 4, a telescopic rod is sleeved in the fixed rod 5, and a telescopic rod is sleeved in the telescopic rod I; the first telescopic rod is in transmission connection with the second telescopic wing 7, and the second telescopic rod is in transmission connection with the third telescopic wing 8.
Preferably, fixing base 4 is wing section short column structure, installs in flexible wing 3 through the welding, supports flexible wing 3, avoids flexible wing 3 to appear warping.
Preferably, as shown in fig. 3, the bottom of the fixed seat 4 is provided with a mounting groove for mounting the supporting column 2. The support column 2 is a cylinder, the inside of the support column is a hollow cylindrical cavity, and 4 screw holes are uniformly distributed in the top surface of the support column 2 and are connected with the fixing seat 4 through fastening bolts.
The hydraulic telescopic rod is the prior art, and how to realize the extension and contraction of the driving telescopic wings two 7 and three telescopic wings 8 along the width direction of the carriage 9 is not detailed here.
Preferably, the extension length of the first telescopic rod for controlling the second telescopic wing 7 is smaller than the length of the second telescopic wing 7 in the width direction of the carriage 9, and the extension length of the second telescopic rod for controlling the third telescopic wing 8 is smaller than the length of the third telescopic wing 8 in the width direction of the carriage 9, so that the separation of the second telescopic wing 7 from the first telescopic wing 3 and the separation of the third telescopic wing 8 from the second telescopic wing 7 in the extension process are effectively avoided.
In some possible embodiments, the telescopic wing unit and the telescopic wing I3 are coaxially arranged; the axis of the telescopic wing structure is parallel to the width direction of the high-speed train.
A high-speed train comprises a wind power monitoring system, a control system connected with the wind power monitoring system, a carriage 9, wheels and the telescopic wing device; the telescopic wing device is installed at the top of the carriage 9 and connected with the control system, and the telescopic direction of the telescopic wing device is parallel to the width direction of the carriage 9.
When the high-speed train passes through a crosswind area, as shown in fig. 4, the wind power monitoring system transmits detection data to a control system on the high-speed train, and the control system controls a telescopic driving mechanism to drive a telescopic wing unit to extend or retract, so that the influence of a crosswind effect on the operation of the high-speed train is reduced to the maximum extent, and the overturning in the operation process is avoided;
when deceleration braking or deceleration running is required, such as: when the vehicle enters a tunnel or meets a pre-accident and needs emergency deceleration braking, as shown in fig. 5, the control system controls the telescopic wing units to retract, so that the lift force is reduced, the load on the wheels is increased, and the purpose of deceleration operation is achieved; wherein the telescopic wing unit is mainly used for braking when being fully retracted.
During normal operation, such as in an open road, as shown in fig. 1 to 3, the control unit controls the telescopic driving mechanism to drive the telescopic wing unit to extend along the width of the carriage 9, so that the telescopic wing unit can provide maximum lift force for a high-speed train, reduce the pressure on the wheels, reduce the friction between the wheel rails, and prolong the service life of the wheels.
A control method of a telescopic wing device for regulating and controlling aerodynamic force of a high-speed train,
when the high-speed train runs to an open road section:
the telescopic driving mechanism obtains an instruction of the control system, and drives the telescopic mechanism to control the telescopic wing unit to move to one side far away from the first telescopic wing unit 3; the telescopic wing units can provide maximum lift force for high-speed trains, and reduce the pressure on wheels and the friction between wheel rails, so that the service life of the wheels is prolonged;
when the high-speed train runs to a narrow space road section or is subjected to deceleration operation:
the telescopic driving mechanism obtains an instruction of a control system and controls the telescopic wing unit to move towards one side close to the first telescopic wing 3; the telescopic wing units can provide lift force for the high-speed train to be reduced along with the retraction of the telescopic wing units, when the telescopic wing units are all retracted into the first telescopic wings 3, the telescopic wing devices provide the minimum lift force for the high-speed train, the pressure borne by the wheels is increased to the maximum, the load of the wheels is effectively increased, and the purposes of speed reduction operation, speed reduction passing on a narrow space section and speed reduction braking are achieved;
when the high-speed train runs to an area with strong crosswind:
according to the wind direction and the wind power of crosswind, the telescopic driving mechanism obtains an instruction of a control system, and moves the telescopic wing unit on the windward side to the side close to the first telescopic wing 3, and simultaneously moves the telescopic wing unit on the leeward side to the side far away from the first telescopic wing 3; the two telescopic wing units provide unequal lift force for the high-speed train, wherein the lift force on the leeward side is greater than that on the windward side, and the redundant lift force on the leeward side is used for resisting the lateral force of the crosswind effect, so that the safety and stability of the train in operation are ensured, and the probability of train derailment is reduced; in the process, when the redundant lifting force on the leeward side just can resist the lateral force of the crosswind effect, the telescopic wing units do not move any more, and the acting forces are mutually offset.
The invention is not limited to the foregoing embodiments. The invention extends to any novel feature or any novel combination of features disclosed in this specification and any novel method or process steps or any novel combination of features disclosed.
Claims (8)
1. The telescopic wing device for regulating and controlling the aerodynamic force of the high-speed train is characterized by comprising a supporting seat and a telescopic wing structure which is arranged on the supporting seat and moves along the width direction of the high-speed train;
the telescopic wing structure comprises a first telescopic wing arranged on the supporting seat, a telescopic wing unit which is sleeved in the first telescopic wing and moves along the axial direction of the first telescopic wing, and a telescopic mechanism which is arranged in the first telescopic wing and controls the movement of the telescopic wing unit;
the two telescopic wing units are symmetrically arranged along the telescopic wing; the telescopic mechanisms and the telescopic wing units are arranged in a one-to-one correspondence manner;
the control method of the telescopic wing device comprises the following steps:
when the high-speed train runs to an open road section: the driving telescopic mechanism controls the telescopic wing unit to move to one side far away from the first telescopic wing; the telescopic wing units can provide maximum lift force for the high-speed train and reduce the pressure on wheels;
when the high-speed train runs to a narrow space road section or is subjected to deceleration operation: the driving telescopic mechanism controls the telescopic wing unit to move towards one side close to the first telescopic wing; the telescopic wing units can provide minimum lifting force for the high-speed train, so that the pressure on the wheels is increased;
when the high-speed train runs to a crosswind area: according to the wind direction and the wind power of crosswind, the telescopic wing unit on the windward side is controlled to move to the side close to the first telescopic wing, and the telescopic wing unit on the leeward side moves to the side far away from the first telescopic wing; the two telescopic wing units provide unequal lift force for the high-speed train, wherein the lift force on the leeward side is greater than that on the windward side, and the redundant lift force on the leeward side is used for resisting the lateral force of the crosswind effect.
2. The aerodynamic force modulated telescopic wing device of a high-speed train as claimed in claim 1, wherein the first telescopic wing is of a hollow structure and comprises a first upper wing plate of an arc-shaped structure and a first lower wing plate which is connected with an open end of the first upper wing plate and forms a mounting cavity of the telescopic wing unit; the curvature radius of the first lower wing plate is larger than that of the first upper wing plate.
3. The high-speed train aerodynamic force control telescopic wing device according to claim 1, wherein the telescopic mechanism comprises a telescopic driving mechanism arranged in the telescopic wing unit, and a top cover arranged on one side of the telescopic wing unit far away from the telescopic wing unit; the telescopic driving mechanism is connected with the top cover.
4. The high-speed train aerodynamic force control telescopic wing device according to claim 3, wherein the cross-sectional profile of the telescopic wing unit is identical to the cross-sectional profile of the first telescopic wing.
5. The aerodynamic force control telescopic wing device for the high-speed train as claimed in claim 4, wherein the telescopic wing unit comprises a second telescopic wing which is sleeved in the first telescopic wing and is of a hollow structure, and a third telescopic wing which is sleeved in the second telescopic wing and is of a hollow structure; the second telescopic wing and the third telescopic wing are consistent with the first telescopic wing in section profile; the telescopic wing II comprises an upper wing plate II and a lower wing plate II connected with the opening end of the upper wing plate II; the telescopic wing III comprises an upper wing plate III and a lower wing plate III connected with the three opening ends of the upper wing plate; the curvature radii of the upper wing plate I, the upper wing plate II and the upper wing plate III are sequentially decreased progressively, and the curvature radii of the lower wing plate I, the lower wing plate II and the lower wing plate III are sequentially decreased progressively; the top cover is installed on one side, far away from the second telescopic wing, of the third telescopic wing.
6. The aerodynamic force control telescopic wing device for the high-speed train as claimed in claim 5, wherein the telescopic driving mechanism is a three-stage hydraulic telescopic rod, and comprises a fixed rod, a first telescopic rod and a second telescopic rod; the first telescopic rod is in transmission connection with the telescopic wing, and the second telescopic rod is in transmission connection with the top cover.
7. The high speed train aerodynamic force modulated telescopic wing device according to claim 1, wherein said telescopic wing unit, telescopic wing are coaxially arranged; the axis of the telescopic wing structure is parallel to the width direction of the high-speed train.
8. A high speed train comprising a wind monitoring system, a control system, a car, wheels, and a telescopic wing apparatus according to any one of claims 1 to 7; the telescopic wing device is installed at the top of the carriage and connected with the control system, and the telescopic direction of the telescopic wing device is parallel to the width direction of the carriage.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202111168341.6A CN113602299B (en) | 2021-10-08 | 2021-10-08 | Telescopic wing device for regulating aerodynamic force of high-speed train, high-speed train and control method |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202111168341.6A CN113602299B (en) | 2021-10-08 | 2021-10-08 | Telescopic wing device for regulating aerodynamic force of high-speed train, high-speed train and control method |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN113602299A CN113602299A (en) | 2021-11-05 |
| CN113602299B true CN113602299B (en) | 2022-02-15 |
Family
ID=78310751
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202111168341.6A Active CN113602299B (en) | 2021-10-08 | 2021-10-08 | Telescopic wing device for regulating aerodynamic force of high-speed train, high-speed train and control method |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN113602299B (en) |
Families Citing this family (11)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN114872750B (en) * | 2022-05-26 | 2023-10-20 | 中南大学 | Barrier removing diffuser for train |
| CN114906184B (en) * | 2022-05-26 | 2023-10-17 | 中南大学 | Train with obstacle removing diffuser |
| CN114954546A (en) * | 2022-07-04 | 2022-08-30 | 中南大学 | Method, computer device and storage medium for controlling a lifting wing of a high speed train |
| CN115303304B (en) * | 2022-07-26 | 2023-06-23 | 华设设计集团股份有限公司 | Lift wing device of high-speed train |
| CN115214729B (en) * | 2022-08-23 | 2023-09-19 | 中南大学 | High-speed train anti-crosswind overturning telescopic wing |
| CN115214730B (en) * | 2022-08-23 | 2023-09-19 | 中南大学 | Method for resisting crosswind of high-speed train and wing |
| CN115158376B (en) * | 2022-08-23 | 2023-09-19 | 中南大学 | A high-speed train anti-cross wind vertical telescopic wing and control method |
| CN115158377B (en) * | 2022-08-23 | 2023-11-28 | 中南大学 | A high-speed train anti-cross wind method and reversible wings |
| CN115675548B (en) * | 2022-09-27 | 2023-07-11 | 兰州交通大学 | Symmetrical synchronous multistage tread balance wing for high-speed train |
| CN115476885B (en) * | 2022-09-27 | 2023-07-07 | 兰州交通大学 | A high-speed train flank lift control device |
| CN116373924A (en) * | 2023-04-26 | 2023-07-04 | 湖南大学 | Lift wing device of train and control method |
Citations (7)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN101104410A (en) * | 2007-03-23 | 2008-01-16 | 西南交通大学 | Train crosswind fixed wing |
| CN101774381A (en) * | 2010-02-26 | 2010-07-14 | 西南交通大学 | Crosswind hazard inhibition method of train and device thereof |
| CN103171571A (en) * | 2013-03-28 | 2013-06-26 | 唐山轨道客车有限责任公司 | Railway vehicle body and railway vehicle |
| CN103847954A (en) * | 2014-01-29 | 2014-06-11 | 江村 | Telescopic wing |
| CN106864469A (en) * | 2015-12-14 | 2017-06-20 | 北京康华源科技发展有限公司 | A kind of floated conveying arrangement and application thereof |
| CN208069975U (en) * | 2018-03-23 | 2018-11-09 | 青岛中邦智能技术有限公司 | A kind of auxiliary balance device for unmanned boat |
| CN109383796A (en) * | 2018-12-13 | 2019-02-26 | 南京航空航天大学 | A kind of ground effect vehicle |
Family Cites Families (5)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| GB639875A (en) * | 1947-07-12 | 1950-07-05 | Forges Chantiers Mediterranee | Improvements in chimneys or funnels, in particular for land vehicles or marine craft |
| JPH07277189A (en) * | 1994-04-11 | 1995-10-24 | Hitachi Ltd | Winged car body |
| CN101574971B (en) * | 2008-05-05 | 2013-11-06 | 迪马·W·E·马杰 | Air flow train and operation method thereof |
| CN102951166B (en) * | 2011-08-23 | 2016-01-20 | 北京航空航天大学 | Based on the chassis of vehicle body of high speed railway with the aerodynamic force aerotrain of imitative wing |
| JP6315770B2 (en) * | 2014-01-09 | 2018-04-25 | 公益財団法人鉄道総合技術研究所 | Vehicle rollover prevention device |
-
2021
- 2021-10-08 CN CN202111168341.6A patent/CN113602299B/en active Active
Patent Citations (7)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN101104410A (en) * | 2007-03-23 | 2008-01-16 | 西南交通大学 | Train crosswind fixed wing |
| CN101774381A (en) * | 2010-02-26 | 2010-07-14 | 西南交通大学 | Crosswind hazard inhibition method of train and device thereof |
| CN103171571A (en) * | 2013-03-28 | 2013-06-26 | 唐山轨道客车有限责任公司 | Railway vehicle body and railway vehicle |
| CN103847954A (en) * | 2014-01-29 | 2014-06-11 | 江村 | Telescopic wing |
| CN106864469A (en) * | 2015-12-14 | 2017-06-20 | 北京康华源科技发展有限公司 | A kind of floated conveying arrangement and application thereof |
| CN208069975U (en) * | 2018-03-23 | 2018-11-09 | 青岛中邦智能技术有限公司 | A kind of auxiliary balance device for unmanned boat |
| CN109383796A (en) * | 2018-12-13 | 2019-02-26 | 南京航空航天大学 | A kind of ground effect vehicle |
Non-Patent Citations (2)
| Title |
|---|
| 新型陆空两用飞行器空气动力特性研究;赵凡等;《第六届中国航空学会青年科技论坛文集（上册）》;20140624;第347-353页 * |
| 气动悬浮列车单向翼翼型优化与地面效应分析;赖晨光等;《空气动力学学报》;20170131(第1期);第123-128页 * |
Also Published As
| Publication number | Publication date |
|---|---|
| CN113602299A (en) | 2021-11-05 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN113602299B (en) | Telescopic wing device for regulating aerodynamic force of high-speed train, high-speed train and control method | |
| CN101624054B (en) | Travel structure of magnetic levitation type rail polling car | |
| US8371226B2 (en) | Air cushion or wheeled overhead guideway system | |
| CN215436426U (en) | High-temperature superconducting magnetic suspension bogie and sightseeing vehicle | |
| CN113264070B (en) | Inter-city train is with vortex device | |
| JP2004525030A (en) | Combination traveling vehicles that can travel on various traveling paths | |
| KR101306279B1 (en) | high-speed train applied weight lightening by lift force | |
| CN114604287A (en) | Hydraulic drive-based bidirectional wind resistance braking device for high-speed motor train unit and working method of device | |
| CN102874271B (en) | Anti-side-rolling torsion bar composed device for rail vehicle | |
| CN111845372A (en) | Ultra-high speed superconducting magnetic suspension rail transit system | |
| RU2409488C1 (en) | Railway car | |
| CN210101624U (en) | Tunnel type medium-low speed magnetic levitation transportation system | |
| CN219029407U (en) | Lift wing device of high-speed maglev train | |
| CN115946730B (en) | Safety guide system | |
| KR20080059978A (en) | Aerodynamic brake for railway vehicles | |
| CN113291343B (en) | Rubber wheel train and bogie system thereof | |
| CN1876459A (en) | Air cushion train | |
| CN109334364B (en) | Road-rail dual-purpose tractor with three traveling wheels | |
| CN213649266U (en) | Rail guide device for road-rail vehicle | |
| CN212685533U (en) | Ultra-high speed superconducting magnetic suspension rail transit system | |
| CN107864647A (en) | Drives for track-guided vehicles | |
| CN214355398U (en) | Guide wheel pair, guide assembly and combined car | |
| CN210133111U (en) | High-speed rail transit train flank lift force control mechanism | |
| CN116409351A (en) | High-speed train wing adjustment device | |
| KR20130040095A (en) | Air-resistance reducing apparatus for railway vehicle |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| GR01 | Patent grant | ||
| GR01 | Patent grant |
