Abstract

本发明涉及空气净化技术领域，具体为一种新风系统空气净化装置及使用方法，包括：筒体、新风系统、净化系统、清洁系统、消杀装置；所述新风系统、净化系统、清洁系统、消杀装置等装置均安装于筒体内或隐蔽安装于筒体侧面，本发明通过各大机构配合实现了对新风系统的多级净化处理，提高了净化的效率以及净化效果，其中清洁系统能够对多级净化系统进行分级清洁，提高了本装置的使用率，所述消杀装置设置有两种消杀模式，提高了本装置在多种使用环境下的适用性；与新风系统相结合，不仅能够更新室内空气，还能够对室外空气含量较高的病菌进行消杀处理。

Figure 202111057340

The invention relates to the technical field of air purification, in particular to an air purification device for a fresh air system and a method for using it, comprising: a cylinder, a fresh air system, a purification system, a cleaning system, and a disinfecting device; the fresh air system, purification system, cleaning system, The sterilizing device and other devices are installed in the cylinder or hidden on the side of the cylinder. The present invention realizes the multi-stage purification treatment of the fresh air system through the cooperation of various mechanisms, and improves the purification efficiency and purification effect. The multi-level purification system performs graded cleaning, which improves the utilization rate of the device. The disinfecting device is provided with two disinfecting modes, which improves the applicability of the device in a variety of use environments; combined with the fresh air system, not only It can renew indoor air and disinfect germs with high outdoor air content.

Figure 202111057340

Description

Air purification device of fresh air system and use method
Technical Field
The invention relates to the technical field of air purification, in particular to an air purification device of a fresh air system and a using method thereof.
Background
An air purifier is also called as an air cleaner, an air freshener and a purifier, and is a product capable of adsorbing, decomposing or converting various air pollutants (generally comprising PM2.5, dust, pollen, peculiar smell, formaldehyde and other decoration pollution, bacteria, allergen and the like) and effectively improving the air cleanliness, and is mainly divided into household, commercial, industrial and building products, the common air purifier only filters, humidifies and the like indoor air, and under the condition that the indoor space is closed, the oxygen content of the indoor air is reduced, the carbon dioxide concentration is increased, people can breathe deeply, and symptoms such as headache, tinnitus, blood pressure increase and the like occur, so that the air purifier is not beneficial to human health;
patent numbers: CN 210532574U's utility model discloses an integrated ion waterfall purifies and automatic cleaning function in concentrated new trend processor of an organic whole, the utility model discloses an integrated ion waterfall purifies and automatic cleaning function in concentrated new trend processor of an organic whole, including the casing that is equipped with air exit, fresh air inlet, return air inlet, supply-air outlet, be equipped with the ion waterfall air purification device, the board-like heat recovery core, exhaust fan, forced draught blower, two cold sources dehumidification coil pipe/heating coil pipe, the condenser that dispels the heat in the casing that have the automatic cleaning function. The concentrated fresh air processor integrating the functions of ion waterfall purification and automatic cleaning provided by the utility model has higher filtering efficiency on particles with various particle diameters in the air, can ionize and purify most of common harmful gases and bacteria and viruses in the air, has small wind resistance, no material consumption and no need of maintenance (automatic cleaning), and can meet all requirements of a concentrated air conditioning system on fresh air treatment;
through the research discovery this utility model is not enough to the purifying effect of some macroparticles in-service use, and single-stage ion waterfall can't satisfy the purification requirement of some special occasions, and does not accomplish better effect of killing to some bacterium virus class particles when purifying, consequently needs a multistage purification and subsidiary fresh air system who kills the device that disappears.
Disclosure of Invention
Aiming at the problems, the invention provides an air purification device of a fresh air system and a using method thereof, and aims to solve the problems in the background art.
In order to achieve the purpose, the invention provides the following technical scheme: the utility model provides a new trend system air purification device which characterized in that includes: the device comprises a cylinder, a fresh air system, a purification system, a cleaning system and a sterilizing device; the fresh air system is arranged at the bottom of the barrel, the air supply outlet in the purification system and the fresh air system is communicated, the cleaning system is used for cleaning the purification system, the sterilizing device is arranged on the side face of the barrel in a concealed mode, the barrel is provided with a control module and a control display panel, and an air detector is arranged at the position, where the barrel exhausts air, of the barrel indoors.
Further, new trend system includes: the heat exchanger comprises an outdoor air inlet part, an indoor air inlet part and a heat exchange mechanism; the outdoor air inlet part and the indoor air inlet part are respectively provided with an outdoor air inlet pipe and an indoor air inlet pipe, and the outdoor air inlet pipe and the indoor air inlet pipe are communicated with a heat exchange mechanism; the heat exchange mechanism further comprises: fresh air inlet, return air inlet, air exit, fresh air inlet and outdoor air inlet portion intercommunication, the return air inlet and indoor air inlet portion intercommunication, the air exit is used for discharging indoor air outdoor, the supply-air outlet is used for sending into clean system with outdoor air.
Furthermore, a drying module is arranged at the top of the heat exchange mechanism, and a corner-shaped through hole is formed in the drying module and used for drying the air to be purified; an air detector is arranged at an indoor air outlet of the cylinder body.
Furthermore, a resistance wire heating module is arranged between the heat exchange mechanism and the purification system, and the resistance wire heating module can heat and raise the temperature of air entering the purification system through the air supply outlet.
Further, the purification system is divided into: a primary purification device, a secondary purification device and a tertiary purification device; the primary purification device is communicated with the air supply outlet to carry out primary dust removal; the secondary purification device and the tertiary purification device are arranged above the primary purification device; the first-stage purification device is an ion waterfall generation device, and the second-stage purification device and the third-stage purification device are electrostatic dust removal devices.
Further, the cleaning system is divided into: the device comprises a primary cleaning device, a secondary cleaning device and a waste liquid recovery device, wherein the waste liquid recovery device is installed between a drying module and a primary purification device, the middle part of the waste liquid recovery device is connected with an exposed port of an outdoor air inlet pipe in a matched mode, the primary cleaning device is installed at the top of the primary purification device, and the secondary cleaning device is installed at the top of a tertiary purification device.
Preferably, the primary cleaning device comprises: the device comprises a primary cleaning water tank, a primary cleaning water pump, a rod-shaped spray head, an annular matching gear, a rotating motor and a meshing rotating gear, wherein the primary cleaning water tank is rotatably arranged in a barrel body through a bearing in a rotating mode; the annular matching gear is fixed at the top of the primary purification sealing sleeve, the meshing rotating gear is meshed with the annular matching gear, the rotating motor is fixed with one end of the rod-shaped spray head, and an output shaft is connected with the meshing rotating gear; the waste liquid recovery device includes: the temporary liquid storage barrel is rotatably arranged between the primary purification sealing sleeve and the heat exchange barrel, and a through hole is formed in the side face of the top of the communicating pipeline and used for discharging outdoor air; the liquid outlet hole is formed in the side face of the bottom of the temporary liquid storage barrel, a through hole with a corresponding size is formed in the uniform horizontal line of the side face of the barrel, a liquid outlet switch deflector rod is arranged above the liquid outlet hole, penetrates out of the barrel and is slidably mounted with a slide rail arranged on the barrel; the rod-shaped spray head is driven by a rotating motor to rotate above the primary purification sealing sleeve, and is provided with a water spray hole corresponding to the cylindrical ion waterfall adsorption plate.
Preferably, the secondary cleaning device comprises: a secondary cleaning water tank, a secondary water tank exhaust funnel, a rotary closing plate and a closing plate deflector rod, wherein the secondary cleaning water tank is arranged above the tertiary purification device, the bottom plate of the secondary cleaning water tank is provided with a water outlet hole, the exhaust funnel of the secondary water tank penetrates through the bottom plate and the top plate of the secondary cleaning water tank, and is fixed with the secondary cleaning water tank, the rotary closing plate is rotatably arranged in the secondary cleaning water tank, the diameter of the rotary closing plate is the same as that of the secondary cleaning water tank, a plurality of through holes are arranged on the rotary closing plate, one end of a closing plate deflector rod is connected with the rotary closing plate, the other end of the closing plate deflector rod is exposed out of the cylinder body through the secondary cleaning water tank and is slidably installed with the secondary cleaning water tank and the cylinder body, the sealing plate deflector rod can rotate to rotate the sealing plate, so that the through hole of the rotating sealing plate is superposed with a water outlet hole formed in the bottom plate of the secondary cleaning water tank, the cleaning solution is discharged, and the adsorption plate is cleaned.
Further, the killing apparatus includes: a sliding cover device and a lamp rotating device; the sliding cover device is arranged on the side surface of the cylinder in a sliding manner, and the rotating lamp device and the sliding cover device are correspondingly arranged in a groove arranged on the side surface of the cylinder; when the sliding cover device is in a closed state, the rotating lamp device is covered; when the sliding cover device is in an opening state, the rotating lamp device is exposed.
Further, the slide cover device includes: the device comprises a motor sliding support, a screw motor, a screw slider gear, a sliding cover linkage matching shaft, a sliding cover, an arc-shaped rack, a sliding block gear baffle I and a sliding block gear baffle II; the side surface of the cylinder body is provided with a plurality of arc-shaped notches, the sliding cover is movably arranged in the arc-shaped notches, a boss is arranged in the cylinder body, a sliding groove is formed in the boss, the motor sliding support is in sliding fit in the sliding groove, the lead screw motor is fixed on the motor sliding support, the output shaft of the lead screw motor is connected with a lead screw, the lead screw slider gear is in fit with the output shaft of the lead screw motor, one side of the lead screw slider gear is provided with a sliding cover linkage matching shaft, and the sliding cover linkage matching shaft is movably connected with a shaft cap arranged on the sliding cover; the arc-shaped rack is arranged on the boss, the first sliding block gear baffle and the second sliding block gear baffle are arranged on two sides of the arc-shaped rack, and the arc-shaped rack is meshed with the sliding block gear.
Further, the lamp-turning device comprises: the device comprises an ultraviolet lamp mounting plate, a UVC ultraviolet spot lamp and a rotation limiting shaft; the UVC ultraviolet spot lamp is connected with the barrel through the ultraviolet lamp mounting panel, the UVC ultraviolet spot lamp rotates the installation through rotating spacing axle and ultraviolet lamp mounting panel, rotate spacing axle one end and be connected with the ultraviolet lamp mounting panel rotation, the middle part is the pull pole, and the other end sets up to the spacing hole cooperation of the correspondence that sets up on spacing end of polygon and the barrel.
The use method of the air purification device of the fresh air system is characterized in that the device has a manual mode and an automatic mode: the automatic mode is automatically adjusted under the influence of air quality, and the manual mode is controlled by a user through operating the display panel; the user can know the air quality of the space in real time through the control display panel, and the air detector is used for detecting the quality of air finally discharged into a room and displaying the air quality parameters on the control display panel in real time;
a user can control the first-stage purification device, the second-stage purification device and the third-stage purification device respectively by operating the display panel, and when the average PM2.5 value is greater than a first preset value, the multistage purification system is started, wherein the first-stage purification device can adsorb most particles, and a few particles with larger or smaller particles are purified again by the second-stage purification device and the third-stage purification device; when the average PM2.5 value is below a second preset value, the system defaults to not start the purification system, and a user can select to manually start the one-stage or multi-stage purification system by operating the display panel;
the primary cleaning device is arranged at the head of dust removal, so that the primary cleaning device is independently arranged and can select a certain area to perform cleaning operation, and the primary cleaning device is not completely powered off; the secondary cleaning device is a whole purification system comprising a secondary purification device and a tertiary purification device and is used for completely cleaning;
the sterilizing device is provided with two modes, namely a hidden sterilizing mode which is suitable for being used when the discharged air quality is high, children exist in the house and pets are nearby, the hidden sterilizing mode is safe, and the occupied space is small; and in the wing spreading sterilization mode, the UVC ultraviolet spot lamps are spread out from the barrel, can sterilize and disinfect the barrel and the surrounding environment in a large range, is high in efficiency, and is suitable for the condition that more germs are left in the air at home.
Due to the adoption of the technical scheme, the invention has the following advantages:
1. by arranging the multi-stage purification device, the invention can overcome the problems that the single purification device, especially the electric dust removal purification technology, can not completely adsorb dust with larger particle diameter during dust removal operation, so that a certain amount of dust escapes and the cleaning efficiency is reduced.
2. According to the invention, the sliding cover device and the lamp rotating device are adopted, the ultraviolet lamp is hidden in the barrel body, the integral attractiveness is ensured, the lamp rotating device can be used for manually turning the ultraviolet lamp outwards, the disinfection range is increased, the disinfection time is shortened, the ultraviolet lamp is set to be the UVC ultraviolet lamp, the wavelength of the ultraviolet lamp is maintained at 222 nanometers, the safety of people and animals to be irradiated is ensured, and the lamp rotating device has the disinfection function.
Drawings
FIG. 1 is a schematic cross-sectional view of the overall assembly structure of the present invention;
FIG. 2 is a three-dimensional schematic view of the inner assembly structure of the cylinder of the present invention;
FIG. 3 is a three-dimensional schematic view of the cartridge of the present invention;
FIG. 4 is a schematic three-dimensional assembly diagram of a fresh air system and a heat exchange mechanism according to the present invention;
FIG. 5 is a schematic view showing the positional relationship between the outdoor air intake duct and the outdoor-indoor air intake duct according to the present invention;
FIG. 6 is a schematic view of the interior of the outdoor air inlet interface of the present invention;
FIG. 7 is a schematic diagram showing the positional relationship between the primary purification apparatus, the primary cleaning apparatus and the waste liquid recovery apparatus according to the present invention;
FIG. 8 is a schematic view of the cross-sectional internal structure of FIG. 7;
FIG. 9 is an exploded view of a primary purification apparatus according to the present invention;
FIG. 10 is a schematic view of the assembly of the cylindrical ion waterfall adsorption plate and the ion waterfall installation pedestal according to the present invention;
FIG. 11 is a schematic view of an ion waterfall mounting pedestal and a multi-stage ion emitting assembly according to the present invention;
FIG. 12 is an enlarged view of a portion of FIG. 11 at A in accordance with the present invention;
FIG. 13 is a top two-dimensional schematic view of a primary purge sealing sleeve of the present invention;
FIG. 14 is a schematic sectional view of the primary purifying sealing sleeve and the waste liquid recovering device according to the present invention;
FIG. 15 is a schematic sectional view of the whole of a primary purification apparatus according to the present invention;
FIG. 16 is a schematic top view of the primary cleaning apparatus of the present invention;
FIG. 17 is a schematic three-dimensional assembly of a primary cleaning apparatus of the present invention;
FIG. 18 is a schematic top view of a two-stage purification apparatus and a three-stage purification apparatus according to the present invention;
FIG. 19 is a schematic view of the assembly of the secondary and tertiary cleaning devices and the secondary cleaning device of the present invention;
FIG. 20 is a schematic view showing the positional relationship between the bottom plate of the secondary cleaning water tank and the rotary closing plate according to the present invention;
FIG. 21 is a cross-sectional view of the slide cover device and the barrel body of the present invention;
FIG. 22 is a partially enlarged assembly view of the sliding closure device of FIG. 20 according to the present invention;
FIG. 23 is a schematic view of the assembly and cross-section of a lead screw motor, a lead screw slider gear, and a sliding cover linkage mating shaft according to the present invention;
FIG. 24 is a schematic view of a light turning device according to the present invention;
FIG. 25 is a schematic view showing the spacing relationship between the rotation limiting shaft and the barrel according to the present invention;
fig. 26 is a three-dimensional schematic view of a heat exchange tub according to the present invention.
The reference numbers: a cylinder body-1, a fresh air system-2, a purification system-4, a cleaning system-5, a killing device-6, a drying module-10, an outdoor air inlet part-21, an indoor air inlet part-22, a heat exchange mechanism-23, a first-level purification device-41, a second-level purification device-42, a third-level purification device-43, a first-level cleaning device-51, a second-level cleaning device-52, a waste liquid recovery device-53, a sliding cover device-61, a rotating lamp device-62, an air detector-101, a control module-102, a control display panel-103, an outdoor air inlet pipe-211, an outdoor indoor air inlet pipe-221, a first-level purification sealing sleeve-411, a cylindrical ion waterfall adsorption plate-412, an ion waterfall installation shaft bracket-413, a multi-level ion emission assembly-414, An electric plate mounting rod-421, an adsorption electric plate-422, an electrode plate-423, a primary clean water tank-511, a primary clean water pump-512, a rod-shaped spray head-513, a ring-shaped matching gear-514, a rotating motor-515, a meshing rotating gear-516, a secondary clean water tank-521, a secondary water tank exhaust tube-522, a rotating closing plate-523, a closing plate deflector rod-524, a temporary liquid storage barrel-531, a liquid outlet hole-533, a liquid outlet switch deflector rod-534, a composition motor sliding bracket-611, a screw motor-612, a screw slider gear-613, a sliding cover linkage matching shaft-614, a sliding cover-615, an arc rack-616, a sliding block gear baffle-617, a sliding block gear baffle-618, an ultraviolet lamp mounting plate-621, a lead screw slider gear-613, a sliding block gear-613, a sliding cover linkage matching shaft-614, UVC ultraviolet ray spot lamp-622, rotation limiting shaft-623, corner through hole-1001, fresh air inlet-2301, air supply outlet-2302, air return outlet-2303, heat exchange barrel-2304, air outlet-2305, partition-4111, ion rod-4141 and ion emission needle-4142.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. In the embodiments of the present invention, all other embodiments obtained by workers skilled in the art without any inventive work are within the scope of the present invention.
Referring to fig. 1 to 2, the present invention provides a technical solution: the utility model provides a new trend system air purification device which characterized in that includes: the device comprises a cylinder body 1, a fresh air system 2, a purification system 4, a cleaning system 5 and a killing device 6; the fresh air system 2 is arranged at the bottom of the cylinder 1, the purification system 4 is communicated with an air supply outlet 2302 in the fresh air system 2, the cleaning system 5 is used for cleaning the purification system 4, the sterilizing device 6 is arranged on the side surface of the cylinder 1 in a concealed manner, the control module 102 and the control display panel 103 are arranged on the cylinder 1, and the air detector 101 is arranged at the position of the cylinder 1 for exhausting air to the room; the control module 102 transmits the data to the control display panel 103 for display, and the user can select the purification mode according to the self-requirement or the method for setting the purification value.
In this embodiment, the new trend system 2 includes: an outdoor air inlet portion 21, an indoor air inlet portion 22, and a heat exchange mechanism 23; the outdoor air inlet part 21 and the indoor air inlet part 22 are respectively provided with an outdoor air inlet pipe 211 and an indoor air inlet pipe 221, and the outdoor air inlet pipe 211 and the indoor air inlet pipe 221 are communicated with the heat exchange mechanism 23; the heat exchanging mechanism 23 further includes: the fresh air inlet 2301, the air return 2303 and the air outlet 2305, wherein the fresh air inlet 2301 is communicated with the outdoor air inlet 21, the air return 2303 is communicated with the indoor air inlet 22, the air outlet 2305 is used for discharging indoor air out of a room, and the air supply outlet 2302 is used for supplying outdoor air into the purification system 4; the heat exchanging mechanism 23 further includes: a heat exchange barrel 2304, the heat exchange barrel 2304 being loaded with a solution having a large specific heat capacity, the outdoor air inlet pipe 211 entering from the fresh air inlet 2301 and spirally and upwardly exposed to the air inlet 2302; the indoor air inlet pipe 221 is communicated with the air return opening 2303 to the bottom of the heat exchange barrel 2304, the air return opening 2303 is installed at the top of the heat exchange barrel 2304, and by setting the specific shape of the indoor air inlet pipe 221, indoor and outdoor air can be ensured to be completely contacted with a solution when entering the heat exchange barrel, so that heat of the indoor and outdoor air can be better absorbed for storage, and the heat exchange effect is improved; the exhaust port 2305 is installed at the top of the heat exchange tub 2304 to discharge the waste indoor air to the outside.
In this embodiment, the outdoor air intake portion 21 further includes: the outdoor air inlet fan 212 is fixedly connected with an output shaft of the outdoor air inlet motor 213, the outdoor air inlet interface 214 is communicated with the top of the outdoor air inlet fan 212, and the outdoor air inlet interface 214 is connected with the heat exchange barrel 2304 through an outdoor air inlet pipe 211.
The outdoor air inlet joint 214 is internally provided with a filter disc which is a hollow shell, and the upper surface and the lower surface of the filter disc are provided with staggered chutes for air to enter and exit.
In this embodiment, the indoor air intake portion 22 further includes: indoor air intake fan 222, indoor air intake motor 223, style 224; the indoor air inlet fan 222 is connected with an output shaft of the indoor air inlet motor 223, the style 224 is installed at the bottom of the indoor air inlet fan 222 and is matched with an air inlet arranged at the bottom of the barrel 1, and the indoor air inlet pipe 221 is connected between the indoor air inlet motor 223 and the heat exchange barrel 2304.
In this embodiment, the top of the heat exchange mechanism 23 is provided with a drying module 10, and the inside of the drying module is provided with a corner-shaped through hole 1001 for drying the air to be purified; the air detector 101 is installed at an indoor air outlet of the barrel 1, when entering air passes through the corner-shaped through hole 1001, water vapor can be blocked by the corner and further absorbed by a water absorbing material, and the air detector 101 is used for detecting the number and density of PM2.5 particles in the discharged air.
In this embodiment, the heat exchange mechanism 23 further includes: the resistance wire heating module can heat and warm the air entering the purification system 4 through the air supply opening 2302.
In this embodiment, the purification system 4 is divided into: a primary purification device 41, a secondary purification device 42, and a tertiary purification device 43; the primary purification device 41 is communicated with an air supply outlet 2302 to perform primary dust removal; the secondary purification device 42 and the tertiary purification device 43 are arranged above the primary purification device 41, the primary purification device 41 is an ion waterfall generating device, and the secondary purification device 42 and the tertiary purification device 43 are electrostatic dust removal devices; during purification, after the purification system 4 is started, the gas to be purified is firstly purified by the first-stage purification device 41, and if the gas does not meet the purification requirement, the second-stage purification device 42 and the third-stage purification device 43 can be selectively and continuously started.
In this embodiment, the primary purification device 41 includes: a first-stage purification sealing sleeve 411, a cylindrical ion waterfall adsorption plate 412, an ion waterfall installation shaft bracket 413 and a multi-stage ion emission assembly 414; a partition plate 4111 is arranged in the primary purification sealing sleeve 411, and through holes which are uniformly distributed are formed in the partition plate 4111; the cylindrical ion waterfall adsorption plate 412 is composed of a bottom plate and a cylindrical adsorption plate, the bottom plate of the ion waterfall adsorption plate 412 is provided with a through hole corresponding to the partition 4111, and the cylindrical adsorption plate on the ion waterfall adsorption plate 412 is correspondingly arranged between the through hole of the bottom plate and the partition 4111; a corresponding mounting shaft hole is formed in the axis of the bottom plate of the partition plate 4111 and the ion waterfall adsorption plate 412, a main shaft of the ion waterfall mounting shaft bracket 413 is fixedly mounted in the shaft hole, the mounting shaft bracket 413 is positioned above the communication pipeline 532, mounting rods distributed circumferentially are arranged on the side surface of the bottom of the mounting shaft bracket 413, and the mounting rods are arranged at the bottom of the cylindrical ion waterfall adsorption plate 412 in a matched manner; the multi-stage ion emission assembly 414 is arranged corresponding to the cylindrical adsorption plate, the multi-stage ion emission assembly 414 is composed of ion rods 4141 and ion emission needles 4142, the ion rods 4141 are arranged on the installation rod of the installation shaft frame 413 and are arranged corresponding to the cylindrical adsorption plate of the cylindrical ion waterfall adsorption plate 412, the length of the ion rods 4141 is slightly smaller than that of the cylindrical adsorption plate of the ion waterfall adsorption plate 412, the ion emission needles 4142 are uniformly arranged on the side surface of the ion rods 4141 in a circumferential manner by taking five ion rods as a group, the ion emission needles 4142 are arranged in a group at intervals of 5cm-10cm, outdoor air enters the cylindrical ion waterfall adsorption plate 412 through the primary purification sealing sleeve 411, and a plurality of groups of ion emission needles 4142 arranged on the multi-stage ion emission assembly 414 discharge to form an ion waterfall for primary air purification.
In this embodiment, second grade purifier 42 is located tertiary purifier 43 below, comprises electroplax installation pole 421, absorption electroplax 422, electrode plate 423, electroplax installation pole 421 sets up inside with barrel 1, absorption electroplax 422, electrode plate 423 alternate fixed mounting each other on electroplax installation pole 421, and adsorb electroplax 422 and electrode plate 423 interlude density in second grade purifier 42 and be less than tertiary purifier 43 and alternate density, tertiary purifier 43 can further purify the air of not complete purification in second grade purifier 42, improves clean purified effect.
In this embodiment, the cleaning system 5 is divided into: one-level cleaning device 51, second grade cleaning device 52, waste liquid recovery unit 53 installs between drying module 10 and one-level purifier 41, waste liquid recovery unit 53 middle part and the outdoor intake pipe 211 expose the port and cooperate and be connected, one-level cleaning device 51 installs in one-level purifier 41 top, second grade cleaning device 52 installs in tertiary purifier 43 top.
In this embodiment, the primary cleaning device 51 includes: the device comprises a primary clean water tank 511, a primary clean water pump 512, a rod-shaped spray head 513, an annular matching gear 514, a rotating motor 515 and a meshing rotating gear 516, wherein the primary clean water tank 511 is rotatably arranged on a cylinder body 1 through a bearing, the rod-shaped spray head 513 is arranged at the bottom of the primary clean water tank 511, the primary clean water pump 512 is arranged on the rod-shaped spray head 513, and water spray holes are formed in the bottom of the rod-shaped spray head 513 and correspond to a cylindrical adsorption plate of a cylindrical ion waterfall adsorption plate 412; the annular matching gear 514 is fixed at the top of the primary purification sealing sleeve 411, the meshing rotating gear 516 is meshed with the annular matching gear 514, the rotating motor 515 is fixed at one end of the rod-shaped spray head 513, and an output shaft of the rotating motor 515 is connected with the meshing rotating gear 516; the waste liquid recovery device 53 includes: the temporary liquid storage barrel 531 is rotatably arranged between the primary purification sealing sleeve 411 and the heat exchange barrel 2304, and the side surface of the top of the communicating pipeline 532 is provided with a through hole for discharging outdoor air; the liquid outlet hole 533 is arranged on the side surface of the bottom of the temporary liquid storage barrel 531, a through hole with a corresponding size is arranged on a uniform horizontal line on the side surface of the barrel body 1, a liquid outlet switch deflector rod 534 is arranged above the liquid outlet hole 533, and the liquid outlet switch deflector rod 534 penetrates out of the barrel body 1 and is slidably mounted with a slide rail arranged on the barrel body 1; the rod-shaped spray head 513 is driven to rotate above the primary purification sealing sleeve 411 by rotating the motor 515, a water spray hole is formed in the rod-shaped spray head 513 and corresponds to the cylindrical ion waterfall adsorption plate 412, a cleaning solution is sprayed into the cylindrical ion waterfall adsorption plate 412 for cleaning, waste liquid flows out along the cylindrical ion waterfall adsorption plate 412 and enters the temporary liquid storage barrel 531 at the bottom, and a user can align the liquid outlet hole 533 with the outlet hole of the barrel body 1 by rotating the liquid outlet switch deflector rod 534 to flow out the waste liquid;
in this embodiment, the secondary cleaning device 52 includes: the secondary cleaning water tank 521 is arranged above the tertiary purification device 43, a bottom plate of the secondary cleaning water tank 521 is provided with a water outlet hole, the secondary water tank exhaust cylinder 522 penetrates through the bottom plate and the top plate of the secondary cleaning water tank 521 and is fixed with the secondary cleaning water tank 521, the rotary closing plate 523 is rotatably arranged inside the secondary cleaning water tank 521 and has the same diameter as the secondary cleaning water tank 521, the rotary closing plate 523 is provided with thirty through holes, one end of the closing plate deflector 524 is connected with the rotary closing plate 523, the other end of the closing plate deflector 524 is exposed out of the barrel body 1 through the secondary cleaning water tank 521 and is slidably arranged with the secondary cleaning water tank 521 and the barrel body 1, and the closing plate deflector 524 can rotate the closing plate 523 to enable the through hole of the rotary closing plate 523 to coincide with the water outlet hole arranged on the bottom plate of the secondary cleaning water tank 521, the cleaning solution is discharged to clean the adsorption plate 422.
In this embodiment, the killing device 6 includes: a slide cover device 61 and a lamp rotating device 62; the killing device 6 comprises: a slide cover device 61 and a lamp rotating device 62; the sliding cover device 61 is arranged on the side surface of the cylinder body 1 in a sliding manner, and the lamp rotating device 62 and the sliding cover device 61 are correspondingly arranged in a groove arranged on the side surface of the cylinder body 1; when the slide cover device 61 is in the closed state, the light turning device 62 is covered; when the sliding cover device 61 is in an open state, the light turning device 62 is exposed; the sliding cover device 61 is used for shielding the rotary lamp device 62, so that the rotary lamp device 62 can be completely hidden inside the cylinder body 1 in a closed state, the safety of the rotary lamp device 62 is guaranteed, the using area is saved, the overall design is more attractive, the angle of the ultraviolet spot lamp can be manually adjusted by the rotary lamp device 62, and after adjustment, the ultraviolet spot lamp can be fully exposed in the air to sterilize and disinfect the discharged outdoor air and the field near the rotary lamp device.
In this embodiment, the sliding cover device 61 includes: the device comprises a motor sliding support 611, a screw motor 612, a screw slider gear 613, a sliding cover linkage matching shaft 614, a sliding cover 615, an arc-shaped rack 616, a slider gear baffle I617 and a slider gear baffle II 618; the side surface of the cylinder body 1 is provided with a plurality of arc-shaped notches, the sliding cover 615 is movably arranged in the arc-shaped notches, a boss is arranged in the cylinder body, a sliding groove is arranged on the boss, the motor sliding support 611 is in sliding fit in the sliding groove, the lead screw motor 612 is fixed on the motor sliding support 611, the output shaft of the lead screw motor 612 is connected with a lead screw, the lead screw slider gear 613 is arranged on the output shaft of the lead screw motor 612 in a matched manner, one side of the lead screw slider gear 613 is provided with a sliding cover linkage matching shaft 614, and the sliding cover linkage matching shaft 614 is movably connected with a shaft cap arranged on the sliding cover 615; the arc-shaped rack 616 is arranged on the boss, the first slider gear baffle 617 and the second slider gear baffle 618 are arranged on two sides of the arc-shaped rack 616, and the arc-shaped rack 616 is meshed with the slider gear 613; when the sliding cover 615 slides outwards, the lead screw sliding block gear 613 is driven to move forwards through the lead screw motor 612, the sliding cover linkage matching shaft 614 is in matching connection with the sliding cover 615 and pushes the sliding cover 615 out of the notch of the cylinder 1, when the lead screw sliding block gear 613 is blocked by the first sliding block gear baffle 617, the lead screw sliding block gear 613 is meshed with the arc-shaped rack 616, the motor sliding support 611 slides in the boss sliding groove of the cylinder 1, the sliding cover 615 slides towards one side in a linkage mode, when the sliding cover 615 needs to be closed, the lead screw motor 612 rotates reversely, the lead screw sliding block gear 613 is limited by the second sliding block gear baffle 618 and cannot move backwards, the sliding cover 615 is driven to return to the front of the notch by meshing of the arc-shaped rack 616, the second sliding block gear baffle 618 is limited and disappears, and the lead screw sliding block gear 613 drives the lead screw sliding block gear 613 backwards to reset.
In this embodiment, the light turning device 62 includes: an ultraviolet lamp mounting plate 621, a UVC ultraviolet spot lamp 622, and a rotation limiting shaft 623; UVC ultraviolet shot-light 622 is connected with barrel 1 through ultraviolet lamp mounting panel 621, UVC ultraviolet shot-light 622 rotates the installation through rotating spacing axle 623 and ultraviolet lamp mounting panel 621, rotate spacing axle 623 one end and ultraviolet lamp mounting panel 621 and rotate and be connected, the middle part is elasticity pull pole, the other end sets up to the spacing hole cooperation of corresponding that sets up on spacing end of square and the barrel 1, the user presses once and rotates spacing axle 623 the spacing axle 623 of rotation pops out, and the user rotates to required state, presses once more, rotates spacing axle 623 and withdraws to the spacing downthehole that sets up on the barrel 1.
In the embodiment, its characterized in that, installing alkaloid module 7, anion generating device 8, indoor exhaust fan 9 in proper order above clean system 4, alkaloid module 7 can purify to the ozone that the ionization dust removal in-process produced, anion generating device 8 can carry out anion pressurization and discharge through indoor exhaust fan 9 to the air after purifying.
The use method of the air purification device of the fresh air system is characterized in that the device has a manual mode and an automatic mode: the automatic mode is automatically adjusted by the influence of air quality, and the manual mode is controlled by a user through the manipulation of the display panel 103; a user can know the air quality of the space in real time by operating the display panel 103, and the air detector 101 is used for detecting the quality of air finally discharged into a room and displaying the air quality parameter on the operating display panel 103 in real time;
a user can control the first-stage purification device 41, the second-stage purification device 42 and the third-stage purification device 43 respectively by operating the display panel 103, and when the average PM2.5 value is greater than a first preset value, the multi-stage purification system is started, wherein the first-stage purification device 41 can adsorb most particles, and a few particles with larger or smaller particles are purified again by the second-stage purification device 42 and the third-stage purification device 43; when the average PM2.5 value is below a second preset value, the system defaults to not start the purification system, and a user can select to manually start one-stage or multi-stage purification system by operating the display panel 103;
since the primary purification device 41 is at the head of dust removal, the primary cleaning device 51 is separately provided, and the primary cleaning device 51 can select a certain area for cleaning operation, so that the primary purification device 41 is not completely powered off; the secondary cleaning device 52 is used for completely cleaning the whole purification system 4 including the secondary purification device 42 and the tertiary purification device 43, and the cleaning efficiency is high;
the sterilizing device 6 is provided with two modes, namely a hidden sterilizing mode which is suitable for being used when the discharged air quality is high, children exist in the house and pets are nearby, and the hidden sterilizing mode is safe and occupies small space; and in the wing unfolding sterilizing mode, the UVC ultraviolet spot lamp 622 is unfolded from the barrel, can sterilize the barrel 1 and the surrounding environment in a large range, is high in efficiency, and is suitable for the condition that more germs are left in the air at home.
In this embodiment, an air dust removal effect identification experiment was performed on the above-described embodiment:
1. the dust removal standard set in the experiment refers to environmental air quality standard (GB 3095-2012), and the components measured in the experiment are as follows: particles (particle size of 2.5 μm or less), particles (particle size of 10 μm or less), benzo (BaP), and lead (Pb);
2. the average concentration of indoor and outdoor air in one hour is set as: the concentration of the particles (the particle diameter is less than or equal to 2.5 mu m) is 150 mu g/m3, the concentration of the particles (the particle diameter is less than or equal to 10 mu m) is 100 mu g/m3, the concentration of benzo (BaP) is 0.1 mu g/m3, and the concentration of lead (Pb) is 1.0 mu g/m 3;
3. three cases are set in total: 1): starting the first-stage purification device 41, closing the second-stage purification device 42 and the third-stage purification device 43, and measuring the concentration of 50m in 1h3A purifying effect in the closed space; 2): starting the first-stage purification device 41 and the second-stage purification device 42, closing the third-stage purification device 43, and measuring the concentration of the solution at 50m in 1h3A purifying effect in the closed space; 3): starting the first-stage purification device 41, the second-stage purification device 42 and the third-stage purification device 43, and measuring the concentration of the wastewater within 1h to 50m3A purifying effect in the closed space;
4. the experimental steps are as follows: the first step is as follows: the air in the purified front room is subjected to data inspection and recorded through an air detector 101; secondly, setting air detection in the air detector 101 within the time interval (20 minutes/time); thirdly, comparing experimental data after one hour;

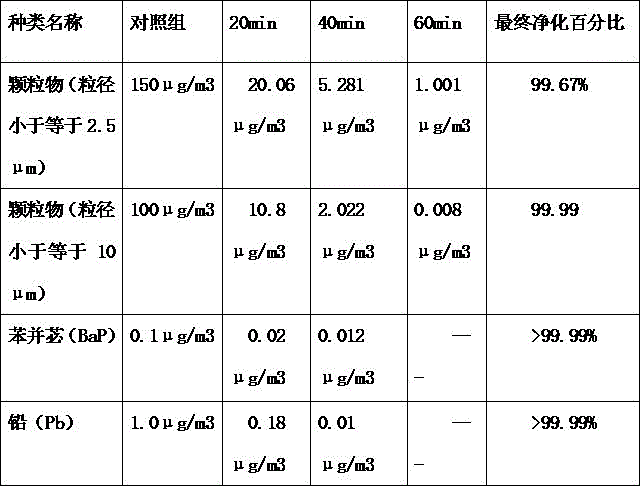

5. experimental data: a: starting the primary purification device 41;
Figure 446667DEST_PATH_IMAGE001

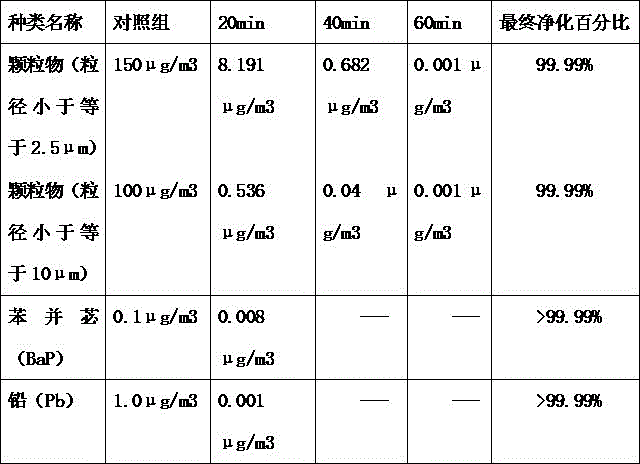

b: starting the first-stage purification device 41 and the second-stage purification device 42;
Figure 629387DEST_PATH_IMAGE002

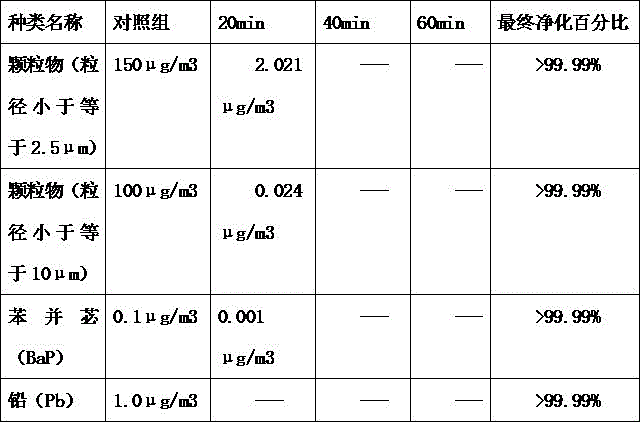

c: all the switches are turned on;
Figure 612386DEST_PATH_IMAGE003
note: "- - -" indicates an out of instrument test accuracy, calculated as less than 0.0001;
from this experimental data, it can be concluded: the concentration of the particles (particle size is less than or equal to 2.5 μm) is 150 μ g/m3, the concentration of the particles (particle size is less than or equal to 10 μm) is 100 μ g/m3, the concentration of benzo (BaP) is 0.1 μ g/m3, the concentration of lead (Pb) is 1.0 μ g/m3, and the experimental space is 50m3；
At this time, when the primary purification device 41 is independently opened, the purification effect is 99.67% in a hour for the particulate matter (particle size of 2.5 μm or less), and the effect is 99.99% for the particulate matter (particle size of 10 μm or less), benzo (BaP), and lead (Pb);
if the first-stage purification device 41 and the second-stage purification device 42 are started; the purification effect of the particles (the particle size is less than or equal to 2.5 mu m) and the particles (the particle size is less than or equal to 10 mu m) in one hour is 99.99 percent; the effect on benzo (BaP) and lead (Pb) reaches 99.99 percent in twenty minutes;
after all the materials are started, the purification effect on the particles (the particle size is less than or equal to 2.5 mu m), the particles (the particle size is less than or equal to 10 mu m) and the benzene (BaP) is finished within 20 minutes, and the purification effect on the lead (Pb) is achieved within twenty minutes;
therefore, the device can obviously improve the essence efficiency of the particles (the particle size is less than or equal to 2.5 mu m), the particles (the particle size is less than or equal to 10 mu m), the benzene (BaP) and the lead (Pb).
The foregoing shows and describes the general principles, essential features, and advantages of the invention. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, and the preferred embodiments of the present invention are described in the above embodiments and the description, and are not intended to limit the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims (10)

1.一种新风系统空气净化装置，其特征在于，包括：筒体（1）、新风系统（2）、净化系统（4）、清洁系统（5）和消杀装置（6）；所述新风系统（2）安装于筒体（1）底部，所述净化系统（4）与新风系统（2）中送风口（2302）相连通，所述清洁系统（5）用于对净化系统（4）进行清洁，所述消杀装置（6）隐蔽安装于筒体（1）的侧面，所述筒体（1）上安装有控制模块（102）、操控显示面板（103），筒体（1）向室内排风的位置设置有空气检测仪（101）。1. An air purification device for a fresh air system, characterized in that it comprises: a cylinder (1), a fresh air system (2), a purification system (4), a cleaning system (5) and a disinfecting device (6); the fresh air The system (2) is installed at the bottom of the cylinder (1), the purification system (4) is communicated with the air supply port (2302) in the fresh air system (2), and the cleaning system (5) is used to clean the purification system (4) For cleaning, the disinfecting device (6) is concealed and installed on the side of the cylinder (1) on which a control module (102), a control display panel (103), and a cylinder (1) are installed. An air detector (101) is installed at the position where the air is exhausted into the room. 2.根据权利要求1所述的一种新风系统空气净化装置，其特征在于，所述新风系统（2）包括：室外进气部（21）、室内进气部（22）、换热机构（23）；所述室外进气部（21）、室内进气部（22）各设置有室外进气管（211）、室内进气管（221），所述室外进气管（211）与室内进气管（221）连通换热机构（23）；所述换热机构（23）还包括：新风口（2301）、回风口（2303）、排风口（2305），所述新风口（2301）与室外进气部（21）连通，所述回风口（2303）与室内进气部（22）连通，所述排风口（2305）用于将室内空气排出室外，所述送风口（2302）用于将室外空气送入净化系统（4）。2. An air purification device for a fresh air system according to claim 1, characterized in that the fresh air system (2) comprises: an outdoor air intake (21), an indoor air intake (22), a heat exchange mechanism ( 23); the outdoor air intake portion (21) and the indoor air intake portion (22) are respectively provided with an outdoor air intake pipe (211) and an indoor air intake pipe (221), the outdoor air intake pipe (211) and the indoor air intake pipe ( 221) communicates with the heat exchange mechanism (23); the heat exchange mechanism (23) further comprises: a fresh air outlet (2301), a return air outlet (2303), and an air outlet (2305), and the fresh air outlet (2301) is connected to the outdoor air inlet (2301). The air portion (21) is communicated with, the air return port (2303) is communicated with the indoor air inlet portion (22), the air outlet (2305) is used to discharge indoor air to the outside, and the air supply port (2302) is used to Outdoor air is fed into the purification system (4). 3.根据权利要求2所述的一种新风系统空气净化装置，其特征在于，所述换热机构（23）顶部设置有干燥模块（10），用于对待净化空气进行干燥。3 . An air purification device for a fresh air system according to claim 2 , wherein a drying module ( 10 ) is provided on the top of the heat exchange mechanism ( 23 ) for drying the air to be purified. 4 . 4.根据权利要求3所述的一种新风系统空气净化装置，其特征在于，所述换热机构（23）与净化系统（4）之间设有电阻丝加热模块,所述电阻丝加热模块能够对由送风口（2302）进入净化系统（4）的空气进行加热升温。4. An air purification device for a fresh air system according to claim 3, characterized in that a resistance wire heating module is arranged between the heat exchange mechanism (23) and the purification system (4), and the resistance wire heating module The air entering the purification system (4) through the air supply port (2302) can be heated and heated. 5.根据权利要求1所述的一种新风系统空气净化装置，其特征在于，所述净化系统（4）分为：一级净化装置（41）、二级净化装置（42）、三级净化装置（43）；所述一级净化装置（41）与送风口（2302）相连通；所述二级净化装置（42）、三级净化装置（43）安置于一级净化装置（41）上方；所述一级净化装置（41）为离子瀑发生装置，所述二级净化装置（42）、三级净化装置（43）为静电除尘装置。5. An air purification device for a fresh air system according to claim 1, characterized in that the purification system (4) is divided into: a primary purification device (41), a secondary purification device (42), and a tertiary purification device device (43); the primary purification device (41) is communicated with the air supply port (2302); the secondary purification device (42) and the tertiary purification device (43) are arranged above the primary purification device (41) ; The primary purification device (41) is an ion waterfall generating device, and the secondary purification device (42) and the tertiary purification device (43) are electrostatic precipitators. 6.根据权利要求1所述的一种新风系统空气净化装置，其特征在于，所述清洁系统（5）分为：一级清洁装置（51）、二级清洁装置（52）、废液回收装置（53），所述废液回收装置（53）安装于干燥模块（10）与一级净化装置（41）之间，所述废液回收装置（53）中部与送风口（2302）相配合连接，所述一级清洁装置（51）安装于一级净化装置（41）顶部，所述二级清洁装置（52）安装于三级净化装置（43）顶部。6. An air purification device for a fresh air system according to claim 1, characterized in that the cleaning system (5) is divided into: a primary cleaning device (51), a secondary cleaning device (52), a waste liquid recovery device A device (53), the waste liquid recovery device (53) is installed between the drying module (10) and the primary purification device (41), and the middle of the waste liquid recovery device (53) is matched with the air supply port (2302) connected, the primary cleaning device (51) is installed on the top of the primary purification device (41), and the secondary cleaning device (52) is installed on the top of the tertiary purification device (43). 7.根据权利要求1所述的一种新风系统空气净化装置，其特征在于，所述消杀装置（6）包括：滑盖装置（61）、转灯装置（62）；所述滑盖装置（61）设置在筒体（1）的侧面上，所述转灯装置（62）与滑盖装置（61）对应安装在筒体（1）侧面设置的凹槽内；当滑盖装置（61）处于关闭状态时，转灯装置（62）被覆盖；滑盖装置（61）处于打开状态时，转灯装置（62）露出。7 . The air purification device for a fresh air system according to claim 1 , wherein the disinfecting device ( 6 ) comprises: a sliding cover device ( 61 ), a light turning device ( 62 ); the sliding cover device (61) is arranged on the side of the cylinder (1), and the turn-lamp device (62) is installed in the groove provided on the side of the cylinder (1) corresponding to the sliding cover device (61); when the sliding cover device (61) ) is in a closed state, the turning light device (62) is covered; when the sliding cover device (61) is in an open state, the turning light device (62) is exposed. 8.根据权利要求7所述的一种新风系统空气净化装置，其特征在于，所述滑盖装置（61）包括：电机滑动支架（611）、丝杠电机（612）、丝杠滑块齿轮（613）、滑盖联动配合轴（614）、滑盖（615）、弧形齿条（616）、滑块齿轮挡板一（617）、滑块齿轮挡板二（618）；所述筒体（1）侧面上设置有若干个弧形缺口，所述滑盖（615）活动安装于弧形缺口内，所述筒体内部设置有凸台，凸台上设置有滑槽，所述电机滑动支架（611）滑动配合于滑槽内，所述丝杠电机（612）固定于电机滑动支架（611），所述丝杠电机（612）输出轴连接有丝杠，所述丝杠滑块齿轮（613）配合安装于丝杠电机（612）输出轴，所述丝杠滑块齿轮（613）一侧安装有滑盖联动配合轴（614），所述滑盖联动配合轴（614）与滑盖（615）设置的轴帽活动连接；所述弧形齿条（616）安装于凸台上，所述滑块齿轮挡板一（617）、滑块齿轮挡板二（618）设置于弧形齿条（616）两侧，所述弧形齿条（616）与滑块齿轮（613）相啮合。8 . The air purification device for a fresh air system according to claim 7 , wherein the sliding cover device ( 61 ) comprises: a motor sliding bracket ( 611 ), a lead screw motor ( 612 ), a lead screw slider gear (613), sliding cover linkage matching shaft (614), sliding cover (615), arc-shaped rack (616), slider gear baffle one (617), slider gear baffle two (618); the cylinder The side of the body (1) is provided with a number of arc-shaped notches, the sliding cover (615) is movably installed in the arc-shaped notches, the cylinder body is provided with a boss, and the boss is provided with a chute, and the motor The sliding bracket (611) is slidably fitted in the chute, the lead screw motor (612) is fixed on the motor sliding bracket (611), the lead screw motor (612) output shaft is connected with a lead screw, and the lead screw slider The gear (613) is fitted on the output shaft of the lead screw motor (612), and a sliding cover linkage matching shaft (614) is installed on one side of the lead screw slider gear (613). The shaft cap provided on the sliding cover (615) is movably connected; the arc-shaped rack (616) is mounted on the boss, and the first slider gear baffle (617) and the second slider gear baffle (618) are arranged on the On both sides of the arc-shaped rack (616), the arc-shaped rack (616) meshes with the slider gear (613). 9.根据权利要求7所述的一种新风系统空气净化装置，其特征在于，所述转灯装置（62）包括：紫外线灯安装板（621）、UVC紫外线射灯（622）、转动限位轴（623）；所述UVC紫外线射灯（622）通过紫外线灯安装板（621）与筒体（1）相连接，所述UVC紫外线射灯（622）通过转动限位轴（623）与紫外线灯安装板（621）转动安装，所述转动限位轴（623）一端与紫外线灯安装板（621）转动连接，中部为抽拉杆，另一端设置为多边形限位端与筒体（1）上设置的对应限位孔配合。9 . The air purification device for a fresh air system according to claim 7 , wherein the turning light device ( 62 ) comprises: an ultraviolet lamp mounting plate ( 621 ), a UVC ultraviolet spotlight ( 622 ), a rotation limiter shaft (623); the UVC ultraviolet spotlight (622) is connected to the cylinder (1) through the ultraviolet lamp mounting plate (621), and the UVC ultraviolet spotlight (622) is connected to the ultraviolet light through the rotation limit shaft (623) The lamp mounting plate (621) is rotatably installed, one end of the rotation limit shaft (623) is rotatably connected with the ultraviolet lamp mounting plate (621), the middle part is a pull rod, and the other end is set as a polygonal limit end and the upper part of the cylinder (1). Set the corresponding limit hole to match. 10.一种新风系统空气净化装置使用方法，其特征在于，10. A method of using an air purification device for a fresh air system, characterized in that, 使用者能够通过操控显示面板（103）实时了解所处空间的空气质量，所述空气检测仪（101）用于检测最终排入室内空气质量，并将该空气质量参数实时显示于操控显示面板（103）上；The user can know the air quality of the space in which they live in real time by manipulating the display panel (103), and the air detector (101) is used to detect the air quality finally discharged into the room, and display the air quality parameters on the control display panel (101) in real time. 103) on; 本装置有手动模式、自动模式：所述自动模式受空气质量影响自动调节，所述手动模式由使用者通过操控显示面板（103）进行控制；使用者通过操控显示面板（103）分别对一级净化装置（41）、二级净化装置（42）、三级净化装置（43）进行控制，当时均PM2.5值大于第一预设值时，开启多级净化系统，其中一级净化装置（41）能够吸附绝大多数微粒，少数颗粒较大或较小的微粒由所述二级净化装置（42）、三级净化装置（43）进行再次净化；当时均PM2.5处于第二预设值以下时，系统默认不开启净化系统，使用者可以通过操控显示面板（103）选择手动开启一级或多级净化系统；The device has manual mode and automatic mode: the automatic mode is automatically adjusted by the influence of air quality, and the manual mode is controlled by the user by manipulating the display panel (103); The purification device (41), the secondary purification device (42), and the tertiary purification device (43) are controlled, and when the average PM2.5 value at that time is greater than the first preset value, the multi-stage purification system is turned on, wherein the primary purification device ( 41) Most particles can be adsorbed, and a few particles with larger or smaller particles are purified again by the secondary purification device (42) and the tertiary purification device (43); at that time, the average PM2.5 was at the second preset When the value is below, the system does not turn on the purification system by default, and the user can choose to manually turn on the one-stage or multi-stage purification system by operating the display panel (103); 由于一级净化装置（41）处于除尘的首位，单独设置有一级清洁装置（51），该一级清洁装置（51）能够选择一级净化装置（41）某一区域进行清洁作业，从而不造成一级净化装置（41）的全部断电；所述二级清洁装置（52）为包括二级净化装置（42）、三级净化装置（43）在内的整个净化系统（4）进行全部彻底清洁，清洁效率较高；Since the primary cleaning device (41) is in the first place for dust removal, a primary cleaning device (51) is provided separately, and the primary cleaning device (51) can select a certain area of the primary cleaning device (41) for cleaning operations, so as not to cause All power-off of the primary purification device (41); the secondary cleaning device (52) conducts all thorough cleaning for the entire purification system (4) including the secondary purification device (42) and the tertiary purification device (43). Clean, high cleaning efficiency; 所述消杀装置（6）设置有两种模式，一，种隐藏消杀模式，该模式适合于在排出空气质量较高、家中有孩子、宠物在附近时使用，隐藏消杀模式较为安全，占用空间较小；二，展翼消杀模式，UVC紫外线射灯（622）自筒体内展出，能够对筒体（1）及周边环境进行大范围的消毒杀菌，效率高，适用于家中空气中残留较多病菌的情况。The disinfecting device (6) is provided with two modes, one is a hidden disinfecting mode, which is suitable for use when the exhaust air quality is high, there are children at home, and pets are nearby, and the hidden disinfecting mode is safer, It takes up less space; 2. The wingspan disinfecting mode, the UVC ultraviolet spotlight (622) is displayed from the cylinder, which can sterilize the cylinder (1) and the surrounding environment in a wide range, with high efficiency, suitable for the air at home In the case of more germs remaining.
CN202111057340.4A 2021-09-09 2021-09-09 Air purification device of fresh air system and use method Pending CN113587309A (en)

Priority Applications (1)

Application Number Priority Date Filing Date Title
CN202111057340.4A CN113587309A (en) 2021-09-09 2021-09-09 Air purification device of fresh air system and use method

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
CN202111057340.4A CN113587309A (en) 2021-09-09 2021-09-09 Air purification device of fresh air system and use method

Publications (1)

Publication Number Publication Date
CN113587309A true CN113587309A (en) 2021-11-02

Family

ID=78241651

Family Applications (1)

Application Number Title Priority Date Filing Date
CN202111057340.4A Pending CN113587309A (en) 2021-09-09 2021-09-09 Air purification device of fresh air system and use method

Country Status (1)

Country Link
CN (1) CN113587309A (en)

Citations (7)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
KR20140110513A (en) * 2013-03-08 2014-09-17 주식회사 엔아이티코리아 Plasma Electric Filter Apparatus for Being Equipped within Range Hood
CN109070096A (en) * 2016-03-04 2018-12-21 Aavi技术有限公司 Air purifier and the method for purifying air
CN110529947A (en) * 2019-09-26 2019-12-03 北京金茂绿建科技有限公司 Integrated ion waterfall purifies and self-cleaning function in concentrated new trend processor of an organic whole
CN111905124A (en) * 2020-08-28 2020-11-10 厦门大白科技有限公司 Ultraviolet sterilizing lamp
CN212179098U (en) * 2020-04-22 2020-12-18 佛山市山盟电器有限公司 Air purifier
CN112665091A (en) * 2020-12-18 2021-04-16 上海芯夷半导体科技有限公司 Gas disinfection and sterilization device
CN215723876U (en) * 2021-09-09 2022-02-01 江西浣星谷科技有限公司 Air purification device of fresh air system

Patent Citations (7)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
KR20140110513A (en) * 2013-03-08 2014-09-17 주식회사 엔아이티코리아 Plasma Electric Filter Apparatus for Being Equipped within Range Hood
CN109070096A (en) * 2016-03-04 2018-12-21 Aavi技术有限公司 Air purifier and the method for purifying air
CN110529947A (en) * 2019-09-26 2019-12-03 北京金茂绿建科技有限公司 Integrated ion waterfall purifies and self-cleaning function in concentrated new trend processor of an organic whole
CN212179098U (en) * 2020-04-22 2020-12-18 佛山市山盟电器有限公司 Air purifier
CN111905124A (en) * 2020-08-28 2020-11-10 厦门大白科技有限公司 Ultraviolet sterilizing lamp
CN112665091A (en) * 2020-12-18 2021-04-16 上海芯夷半导体科技有限公司 Gas disinfection and sterilization device
CN215723876U (en) * 2021-09-09 2022-02-01 江西浣星谷科技有限公司 Air purification device of fresh air system

Similar Documents

Publication Publication Date Title
KR102101374B1 (en) Multifunctional air purifying device that removes indoor pollution by using pyrolysis
CN202061515U (en) Wash type air purifier
CN104728945B (en) A kind of stacked intelligent air processing system
CN201612874U (en) A kind of indoor air purifier
CN203785115U (en) Novel negative ion air purifier
CN206320890U (en) A kind of self-cleaning wall-mounted new blower fan of heat exchange
WO2018018989A1 (en) Bicirculating fresh air system and fresh air fan
CN205448088U (en) Air purifier
WO2011140964A1 (en) Pipeline type air cleaner
CN201628325U (en) air purifier
CN104197424B (en) The new blower fan and its control method of a kind of many operational modes
CN204115099U (en) The dual-purpose fresh air purification device of a kind of indoor and outdoor
CN104879845A (en) Multifunctional warming and refrigerating air sterilization device
CN103925645B (en) Indoor air purification filter
CN211177207U (en) Haze air purifier with automatic humidification atomizing device
CN210197529U (en) Electrostatic peculiar smell removing and purifying device
CN105276685A (en) Household air heating anion purification device with replaceable purification media
CN201652626U (en) Indoor air purifying device
CN215723876U (en) Air purification device of fresh air system
CN102865630A (en) Air purifier
CN212132788U (en) Multifunctional indoor air humidifying and purifying device
CN210373882U (en) Air purification device with sterilization and virus killing functions
CN204665480U (en) A kind of stacked intelligent air treatment system
CN2695842Y (en) Multifunctional air-conditioning cabinet unit of nano, photocatalysed sterilization and purification
CN206514467U (en) A kind of self-cleaning new blower fan of ceiling mounting type heat exchange

Legal Events

Date Code Title Description
PB01 Publication
PB01 Publication
SE01 Entry into force of request for substantive examination
SE01 Entry into force of request for substantive examination
RJ01 Rejection of invention patent application after publication
RJ01 Rejection of invention patent application after publication

Application publication date: 20211102
