Abstract
本发明涉及一种带高拍仪的显示一体机，包括支撑座，所述支撑座上设有一立柱，所述立柱远离支撑座的一端设有一横杆，所述横杆远离支撑座的一端连接显示器的后端面，所述立柱的一侧上设有高拍仪，所述高拍仪的下方设有一认证组件，所述认证组件包括一外壳体，所述外壳体上表面设有身份证识别模块，所述身份证识别模块的一侧设有指纹录入模块，所述外壳体的一侧设有I C卡读卡模块；通过将身份证识别模块、指纹录入模块、I C卡读卡模块集成在认证组件上，所述认证组件、高拍仪、显示器均与立柱连接，从而使上述多个模块集成为一体，减少办公设备数量，简化办公桌面，提高使用便捷性，从而提高工作效率。
The present invention relates to an integrated display machine with an altimeter, comprising a support seat, a column is arranged on the support seat, a cross bar is arranged at one end of the column away from the support seat, and the end of the cross bar away from the support seat is connected to On the rear surface of the display, a high-speed camera is arranged on one side of the upright, and an authentication component is arranged below the high-speed meter. The certification component includes an outer casing, and the upper surface of the outer casing is provided with ID card identification Module, one side of the ID card recognition module is provided with a fingerprint input module, and one side of the outer casing is provided with an IC card reader module; by integrating the ID card recognition module, fingerprint input module and IC card reader module in the On the authentication component, the authentication component, the high-speed camera, and the display are all connected to the column, so that the above-mentioned multiple modules are integrated into one, reducing the number of office equipment, simplifying the desk, and improving the convenience of use, thereby improving work efficiency.
Description
Technical Field
The invention relates to the technical field of display equipment, in particular to a display all-in-one machine with a high-speed shooting instrument.
Background
When the bank counter staff transacts business for the client, the fingerprint information and the IC card information of the client and the identity card of the scanned client are respectively identified by adopting a fingerprint identifier, an IC card reader and a high-speed shooting instrument which are independently arranged. A plurality of foretell equipment and graphoscope place jointly on the mesa, not only occupy a large amount of mesa spaces and be unfavorable for improving the influence of sales counter window, cause inconvenience to staff's operation moreover easily, influence staff's work efficiency.
Therefore, the prior art has a larger improvement space.
Disclosure of Invention
The invention aims to make up for the defects of the prior art and provides a display all-in-one machine with a high-speed shooting instrument.
In order to achieve the purpose, the invention is realized by the following technical scheme:
the invention provides a display all-in-one machine with a high-speed shooting instrument, which comprises a supporting seat, wherein an upright post is arranged on the supporting seat, a cross rod is arranged at one end, away from the supporting seat, of the upright post, one end, away from the supporting seat, of the cross rod is connected with the rear end face of a display, the high-speed shooting instrument is arranged on one side of the upright post, an authentication assembly is arranged below the high-speed shooting instrument and comprises an outer shell, an identity card identification module is arranged on the upper surface of the outer shell, a fingerprint input module is arranged on one side of the identity card identification module, and an IC card reading module is arranged on one side of the outer shell.
The high-speed shooting instrument, the identity card identification module, the fingerprint input module and the IC card reading module adopt the structures in the prior art, and detailed details on the specific structures are not given.
According to the scheme, the shell is further provided with a data interface, the high-speed shooting instrument, the identification card identification module, the fingerprint input module and the IC card reading module are connected with the computer host through the data interface, and the computer host is connected with the display.
According to the scheme, the high-speed shooting instrument and the authentication assembly are located on the right side of the stand column, and the length direction of the high-speed shooting instrument is parallel to the length direction of the display.
According to the scheme, the rear end face of the display is rotatably connected with the cross rod through the rotating shaft.
According to the scheme, the upper portion of the display is provided with the camera base, the camera base is rotatably connected with the camera through the rotating shaft, and the camera is connected with the computer host.
According to the scheme, the IC card reading module is arranged on one side facing the display.
The invention has the beneficial effects that:
according to the display all-in-one machine with the high-speed shooting instrument, the identity card identification module, the fingerprint input module and the IC card reading module are integrated on the authentication assembly, and the authentication assembly, the high-speed shooting instrument and the display are all connected with the stand column, so that the modules are integrated, the number of office equipment is reduced, an office desktop is simplified, and the use convenience is improved, so that the working efficiency is improved.
Drawings

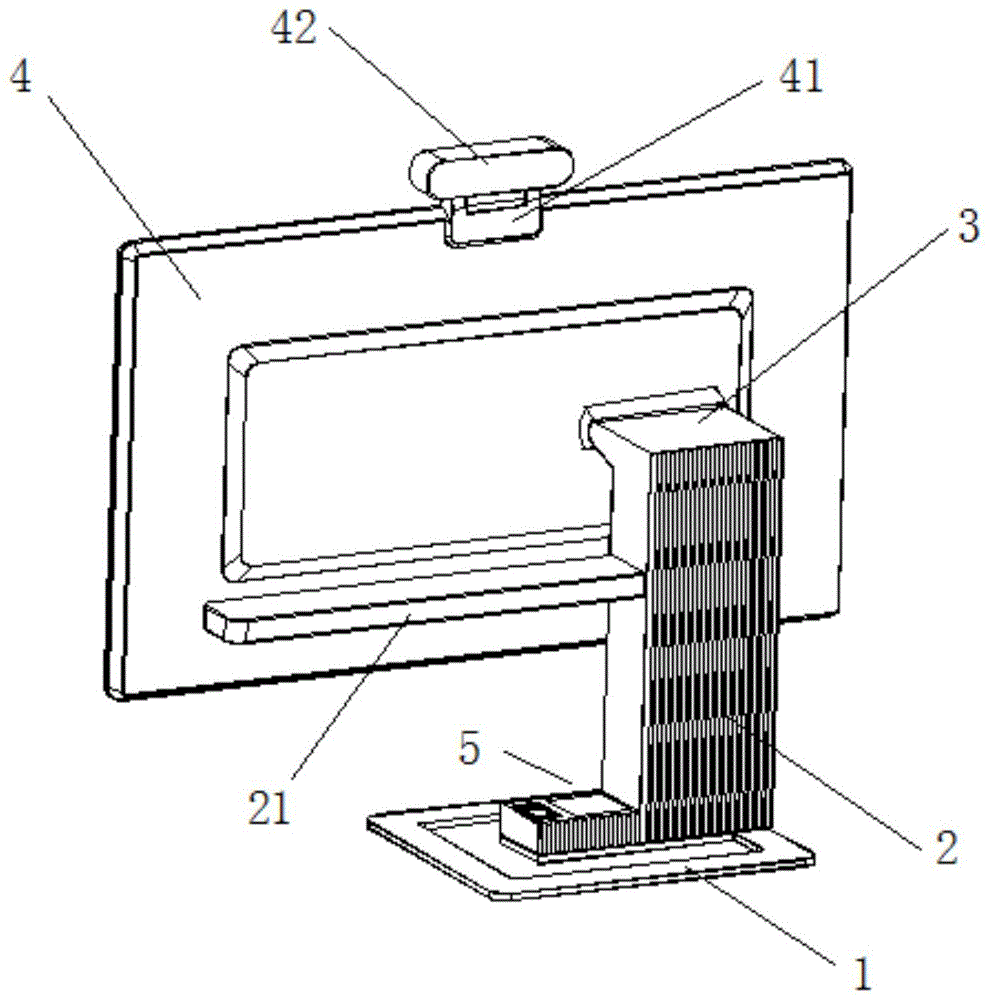

FIG. 1 is a first schematic structural diagram of a display all-in-one machine with a high-speed shooting instrument, provided by the invention;
FIG. 2 is a schematic structural diagram II of the display all-in-one machine with the high-speed shooting instrument;
FIG. 3 is a schematic structural diagram of an authentication component of the display all-in-one machine with the high-speed shooting instrument.
In the figure: 1. a supporting seat; 2. a column; 21. a high shooting instrument; 3. a cross bar; 4. a display; 41. a camera head base; 42. a camera; 5. an authentication component; 51. an outer housing; 511. an identification card identification module; 512. a fingerprint input module; 513. and an IC card reading module.
Detailed Description
The technical solution of the present invention is described below with reference to the accompanying drawings and examples.
As shown in fig. 1-2, the display all-in-one machine with a high-speed scanner comprises a supporting seat 1, wherein an upright post 2 is arranged on the supporting seat 1, a cross rod 3 is arranged at one end of the upright post 2 away from the supporting seat 1, one end of the cross rod 3 away from the supporting seat 1 is connected with the rear end surface of a display 4, a high-speed scanner 21 is arranged on one side of the upright post 2, an authentication component 5 is arranged below the high-speed scanner 21, the authentication component 5 comprises an outer shell 51, an identity card identification module 511 is arranged on the upper surface of the outer shell 51, a fingerprint entry module 512 is arranged on one side of the identity card identification module 511, an IC card reading module 513 is arranged on one side of the outer shell 51, a data interface is further arranged on the outer shell 51, the high-speed scanner 21, the identity card identification module 511, the fingerprint entry module 512 and the IC card reading module 513 are connected with a computer host through the data interface, the computer host is connected with the display 4.
Further, the rear end face of the display 4 is rotatably connected with the cross bar 3 through a rotating shaft. The user can hold the display 4 so that the display 4 is rotated up and down to an optimum display angle with respect to the cross bar 3.
Furthermore, a camera base 41 is arranged on the upper portion of the display 4, the camera base 41 is rotatably connected with a camera 42 through a rotating shaft, and the camera 42 is connected with a computer host. The user can rotate the camera 42 back and forth to a desired angle, thereby improving convenience of use.
Further, in order to make the arrangement of each module more conform to the working habit of people and improve the working efficiency, the high-speed scanner 21 and the authentication assembly 5 are arranged on the right side of the upright post 2, and the length direction of the high-speed scanner 21 is parallel to the length direction of the display 4; the IC card reading module 513 is disposed on a side facing the display 4.
When the display all-in-one machine with the high shooting instrument is used, the data interface is communicated with the computer host through the data transmission line, the identity card is placed under the identity card identification module 511 to obtain identity card information, the fingerprint input module 512 is pressed by a hand to obtain fingerprint information, the identity card is placed under the high shooting instrument 21, the high shooting instrument 21 is controlled by the computer host to shoot the identity card to obtain an identity card photo, the obtained identity card information, the obtained fingerprint information and the obtained identity card photo are transmitted to the computer host through the data interface and the data transmission line, and the computer host receives and displays the identity card photo on the display screen 4; after the camera 42 is rotated to a proper position, the face is shot through the camera 42, the shot image is transmitted to the computer host, and the computer host receives and displays the image to the display screen.
The above description is only a preferred embodiment of the present invention, and all equivalent changes or modifications of the structure, characteristics and principles described in the present invention are included in the scope of the present invention.
Claims (6)
1. The utility model provides a show all-in-one of appearance is clapped to area height, includes supporting seat (1), its characterized in that, be equipped with a stand (2) on supporting seat (1), the one end that supporting seat (1) was kept away from in stand (2) is equipped with a horizontal pole (3), the rear end face of display (4) is connected to the one end that supporting seat (1) was kept away from in horizontal pole (3), be equipped with high bat appearance (21) on one side of stand (2), the below that high bat appearance (21) was equipped with one authentication subassembly (5), authentication subassembly (5) are including a shell body (51), shell body (51) upper surface is equipped with ID card identification module (511), one side of ID card identification module (511) is equipped with fingerprint and types module (512), one side of shell body (51) is equipped with IC-card and reads card module (513).
2. The display all-in-one machine with the high-speed shooting instrument is characterized in that a data interface is further arranged on the outer shell (51), the high-speed shooting instrument (21), the identity card identification module (511), the fingerprint entry module (512) and the IC card reading module (513) are connected with a computer host through the data interface, and the computer host is connected with the display (4).
3. The integrated display machine with the high-speed shooting instrument according to claim 1, wherein the rear end face of the display (4) is rotatably connected with the cross rod (3) through a rotating shaft.
4. The integrated display machine with the high-speed shooting instrument according to claim 1, wherein a camera base (41) is arranged on the upper portion of the display (4), the camera base (41) is rotatably connected with a camera (42) through a rotating shaft, and the camera (42) is connected with a computer host.
5. The display all-in-one machine with the high-speed shooting instrument is characterized in that the high-speed shooting instrument (21) and the authentication assembly (5) are positioned on the right side of the upright post (2), and the length direction of the high-speed shooting instrument (21) is parallel to the length direction of the display (4).
6. The display all-in-one machine with the high-speed shooting instrument is characterized in that the IC card reading module (513) is arranged on one side facing the display (4).
