Abstract
本发明提供一种建筑用进出料平台，所述的建筑用进出料平台包括设置在每一个楼层外围梁上的预埋件，设置在预埋件上的安装组件、设置在安装组件上的平台主桥板、设置在平台主桥板上的承重组件、设置在平台主桥板上的平台护栏，所述进出料平台的承力面与进出料平台的安装楼层的地面在同一水平面上，所述承重组件包括设置在平台主桥板上的承重底座、设置在进出料平台安装楼层以上楼层的预埋件上的拉索固定杆和连接拉索固定杆与承重底座的拉索，所述每一个楼层外围梁上的预埋件之间所形成的连线与楼层地面垂直。本发明公开的一种建筑用进出料平台能够达到便于小车运料和便于安装和调整卸料平台受力的效果。
The invention provides an in-feed and out-feed platform for construction. The construction in-feed and out-feed platform includes embedded parts arranged on the peripheral beams of each floor, installation components arranged on the embedded parts, and platforms arranged on the installation components. The main bridge plate, the load-bearing components arranged on the platform main bridge plate, and the platform guardrail arranged on the platform main bridge plate, the load-bearing surface of the loading and unloading platform and the ground of the installation floor of the loading and unloading platform are on the same level, so The load-bearing assembly includes a load-bearing base set on the main bridge deck of the platform, a cable fixing rod set on the embedded parts on the floors above the installation floor of the in-feed and discharging platform, and a cable connecting the cable fixing rod and the load-bearing base. The connection line formed between the embedded parts on the peripheral beams of a floor is perpendicular to the floor. The material feeding and discharging platform for construction disclosed by the invention can achieve the effects of facilitating the transport of materials by a trolley and facilitating the installation and adjustment of the force of the unloading platform.
Description
Technical Field
The invention relates to the building industry, in particular to a feeding and discharging platform for buildings.
Background
The unloading platform is a transfer platform which is convenient for indoor materials to be lifted to other areas through a tower crane in the construction process, and can also be called as a transfer platform.
There is a difference in height between the floor of the platform of unloading among the prior art and the installation, causes the dolly to be difficult to directly transport on the platform of unloading, and on the other hand the platform of unloading is when fixed with the span wire, and the span wire atress of both sides need keep unanimous, and this just needs to carry out real-time adjustment when the platform of unloading is installed to the security of guarantee platform of unloading, but the platform span wire length adjustment of unloading at present is inconvenient, needs to improve.
Disclosure of Invention
In view of the defects of the prior unloading platform, the invention provides the feeding and discharging platform for the building, which can achieve the effects of facilitating the transportation of a trolley and facilitating the installation and adjustment of the stress of the unloading platform.
In order to achieve the purpose, the invention adopts the following technical scheme:
the utility model provides a business turn over material platform for building, business turn over material platform for building including setting up the built-in fitting on each floor periphery roof beam, set up installation component on the built-in fitting, set up the platform main bridge board on installation component, set up the bearing subassembly on platform main bridge board, set up the platform guardrail on platform main bridge board, the top surface of business turn over material platform and the ground of the installation floor of business turn over material platform are on same horizontal plane, the bearing subassembly is including setting up the bearing base on platform main bridge board, setting up the cable dead lever on the built-in fitting of the floor above the business turn over material platform installation floor and the cable of connecting cable dead lever and bearing base, the line that forms between the built-in fitting on each floor periphery roof beam is perpendicular with floor ground.
According to one aspect of the invention, the bearing base is the same as the auxiliary bearing base in structure, the bearing base comprises a bearing frame arranged on the main bridge plate of the platform, a connecting hole arranged on the bearing frame and the main bridge plate of the platform, a nut arranged on the main bridge plate of the platform and a bearing screw rod arranged in the connecting hole, the bearing screw rod and the nut are matched with each other, and the pull rope is sleeved on the screw rod.
According to one aspect of the invention, the platform guardrail comprises two side guardrails, a front guardrail and a safety door arranged on the front guardrail, the safety door bears down the trapezoid, the bottoms of the front guardrail and the two side guardrails are respectively provided with a plug pin, the platform main bridge plate is provided with a slot, and the plug pins and the slots are matched with each other to fix the guardrails.
According to one aspect of the invention, the bearing assembly further comprises a secondary bearing base, a secondary cable embedded part arranged on the floor peripheral beam and a secondary cable for connecting the secondary cable embedded part and the secondary bearing base.
According to one aspect of the invention, the auxiliary cable and the stay cable are length-adjustable stay cables.
According to one aspect of the invention, the connecting hole is formed by welding a square steel pipe, the connecting hole penetrates through the square steel pipe, and the connecting hole is sealed by welding a channel pipe.
According to one aspect of the invention, the feeding and discharging platform for the building further comprises a supporting plate arranged on an embedded part on a floor below the installation floor of the feeding and discharging platform and a supporting rod arranged on the supporting plate at one end, and the other end of the supporting rod is arranged on the main bridge plate of the platform.
According to one aspect of the invention, the stay cable is the same as the secondary stay cable in structure and comprises a first threaded rod, a sleeve which is connected with the pull rod through threads and is provided with internal threads, a second threaded rod which is connected with the threaded sleeve through threads, and a steel cable with one end arranged on the second threaded rod, wherein the threads of the first threaded rod are trapezoidal threads, and the other end of the steel cable is sleeved on the bearing screw rod.
According to one aspect of the invention, the mounting assembly includes a mounting steel plate mounted on the embedment, a mounting block disposed on the mounting steel plate, and a mounting hole disposed on the mounting block.
According to one aspect of the invention, the outriggers on the loading and unloading platform installation floor are broken when the loading and unloading platform is in use.
The implementation of the invention has the advantages that:
the invention provides a feeding and discharging platform for buildings, which comprises embedded parts arranged on peripheral beams of each floor, mounting assemblies arranged on the embedded parts, a main bridge plate of the platform arranged on the mounting assemblies, bearing assemblies arranged on the main bridge plate of the platform and platform guardrails arranged on the main bridge plate of the platform, wherein the top surface of the feeding and discharging platform and the ground of the mounting floors of the feeding and discharging platform are on the same horizontal plane, each bearing assembly comprises a bearing base arranged on the main bridge plate of the platform, a guy cable fixing rod arranged on the embedded parts of the floors above the mounting floors of the feeding and discharging platform and a guy cable for connecting the guy cable fixing rod with the bearing base, and a connecting line formed between the embedded parts on the peripheral beams of each floor is vertical to the ground of the floor. The effect of being convenient for dolly fortune material and being convenient for installation and adjustment platform atress of unloading can be reached.
Drawings
In order to more clearly illustrate the technical solutions in the embodiments of the present invention, the drawings needed to be used in the embodiments will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without creative efforts.

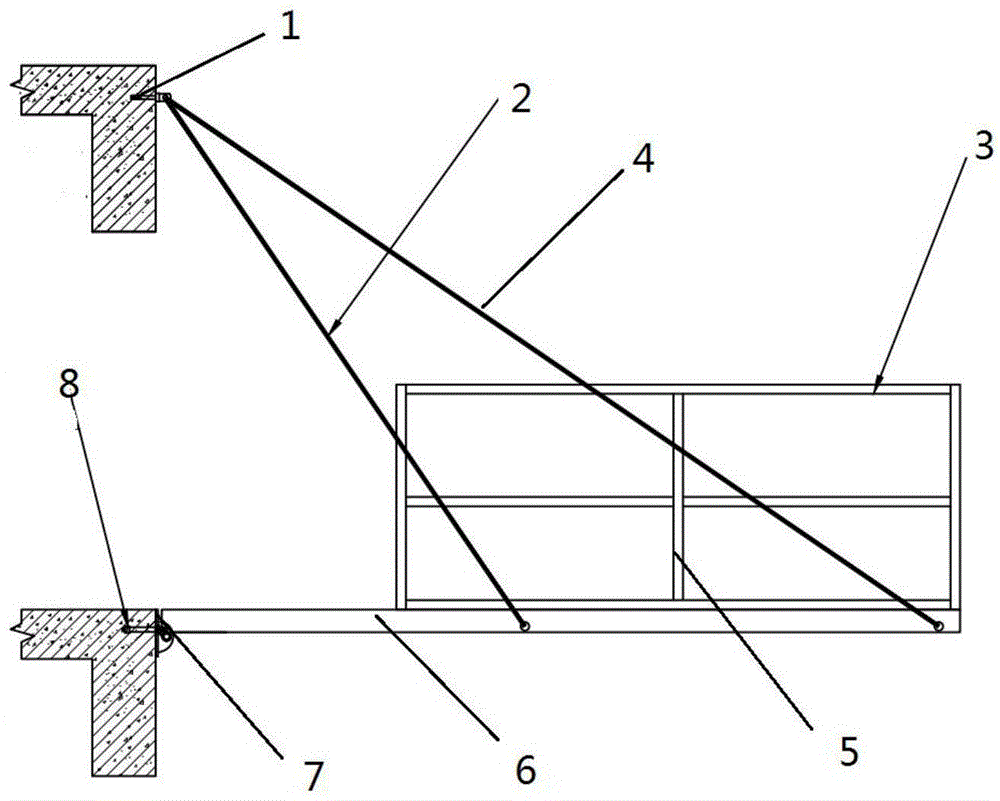

FIG. 1 is a structural diagram of a feeding and discharging platform for building according to the present invention;
FIG. 2 is a top view structural diagram of a feeding and discharging platform for building according to the present invention;
FIG. 3 is a structural diagram of a mounting steel plate of a feeding and discharging platform for building according to the present invention;
fig. 4 is a structural view of a guardrail of a feeding and discharging platform for buildings.
FIG. 5 is a connection structure diagram of a support plate and a support rod of a feeding and discharging platform for building according to the present invention;
FIG. 6 is a schematic structural view of a sleeve of a feeding and discharging platform for building according to the present invention;
fig. 7 is a structural diagram of a main zipper embedded part and an auxiliary zipper embedded part of a feeding and discharging platform for a building.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
The first embodiment is as follows:
as shown in fig. 1, fig. 2, fig. 3, fig. 4 and fig. 5, the feeding and discharging platform for buildings comprises embedded parts 1 arranged on the peripheral beams of each floor, mounting assemblies arranged on the embedded parts 1, a platform main bridge plate 6 arranged on the mounting assemblies, bearing assemblies arranged on the platform main bridge plate 6, platform guardrails 3 arranged on the platform main bridge plate 6, the top surface of the feeding and discharging platform and the ground of the installation floor of the feeding and discharging platform are on the same horizontal plane, the bearing component comprises a bearing base arranged on a main bridge plate 6 of the platform, a guy cable fixing rod arranged on an embedded part 1 of a floor above the installation floor of the feeding and discharging platform and a guy cable 4 connecting the guy cable fixing rod and the bearing base, and a connecting line formed between the embedded parts 1 on the peripheral beams of each floor is vertical to the floor ground.
In the in-service use, through the mutual cooperation of built-in fitting and bearing component for this business turn over material platform can be in same horizontal plane with floor ground, can make in the dolly directly transports into business turn over material platform, the dolly transportation goods of being convenient for.
In actual use, after the feeding and discharging platform of the feeding and discharging platform installation floor is used, the feeding and discharging platform can be installed at the position of the zipper fixing rod originally installed on the last floor, and the engineering quantity is saved.
In this embodiment, the bearing base is the same as the auxiliary bearing base in structure, the bearing base comprises a bearing frame arranged on the platform main bridge plate 6, a connecting hole arranged on the bearing frame and the platform main bridge plate 6, a nut arranged on the platform main bridge plate 6 and a bearing screw rod arranged in the connecting hole, the bearing screw rod is matched with the nut, and the inhaul cable 4 is sleeved on the screw rod.
In this embodiment, platform guardrail 3 includes both sides guardrail, preceding guardrail and sets up the emergency exit in the front guardrail, the emergency exit holds down trapezoidally, the bottom of preceding guardrail and both sides guardrail all is provided with the bolt, be provided with the slot on the platform main bridge plate 6, the bolt is mutually supported fixed guardrail with the slot.
In practical application, the safety door can be opened when a long material needs to be fed in and out, so that the material is convenient to transport.
In this embodiment, the bearing assembly further includes an auxiliary bearing base, an embedded part 1 of an auxiliary cable 2 arranged on the floor peripheral beam, and an auxiliary cable 2 connecting the embedded part 1 of the auxiliary cable 2 and the auxiliary bearing base.
In practical use, the structural stress of the unloading platform can be improved by adding the auxiliary bearing assembly.
In this embodiment, the secondary cable 2 and the cable 4 are both adjustable length cables 4.
In actual use, the stay cable is stressed by double embedded parts, and the auxiliary stay cable is stressed by single embedded part.
In this embodiment, the connecting hole is formed by welding a square steel pipe, penetrates through the square steel pipe, and is sealed by welding a channel pipe at the connecting hole.
In the in-service use, because the main bridge plate of platform adopts square steel pipe to make, can lose inside gas tightness after punching, can ensure the gas tightness of the main bridge plate of platform through passageway pipe seal welding, effectively organize the main bridge plate of platform and corrode from inside, improved the life of this equipment.
The implementation of the invention has the advantages that:
the invention provides a feeding and discharging platform for buildings, which comprises embedded parts arranged on peripheral beams of each floor, mounting assemblies arranged on the embedded parts, a main bridge plate of the platform arranged on the mounting assemblies, bearing assemblies arranged on the main bridge plate of the platform and platform guardrails arranged on the main bridge plate of the platform, wherein the top surface of the feeding and discharging platform and the ground of the mounting floors of the feeding and discharging platform are on the same horizontal plane, each bearing assembly comprises a bearing base arranged on the main bridge plate of the platform, a guy cable fixing rod arranged on the embedded parts of the floors above the mounting floors of the feeding and discharging platform and a guy cable for connecting the guy cable fixing rod with the bearing base, and a connecting line formed between the embedded parts on the peripheral beams of each floor is vertical to the ground of the floor. The effect of being convenient for dolly fortune material and being convenient for installation and adjustment platform atress of unloading can be reached. Through the mutual cooperation of embedded part and bearing component for this business turn over material platform can be in same horizontal plane with floor ground, can make the dolly directly transport in the business turn over material platform, the dolly transportation goods of being convenient for. After the feeding and discharging platform of the feeding and discharging platform installation floor is used, the feeding and discharging platform can be installed at the position of the zipper fixing rod originally installed on the last floor, and the engineering quantity is saved. The safety door can be opened when long materials need to be fed in and out, and the materials are convenient to transport. Because the main bridge plate of platform adopts square steel pipe to make, can lose inside gas tightness after punching, can ensure the gas tightness of main bridge plate of platform through the sealed welding of passageway pipe, effective tissue platform main bridge plate corrodes from the inside, has improved the life of this equipment.
Example two:
as shown in fig. 1, fig. 2, fig. 3, fig. 4 and fig. 5, the feeding and discharging platform for buildings comprises embedded parts 1 arranged on the peripheral beams of each floor, mounting assemblies arranged on the embedded parts 1, a platform main bridge plate 6 arranged on the mounting assemblies, bearing assemblies arranged on the platform main bridge plate 6, platform guardrails 3 arranged on the platform main bridge plate 6, the top surface of the feeding and discharging platform and the ground of the installation floor of the feeding and discharging platform are on the same horizontal plane, the bearing component comprises a bearing base arranged on a main bridge plate 6 of the platform, a guy cable fixing rod arranged on an embedded part 1 of a floor above the installation floor of the feeding and discharging platform and a guy cable 4 connecting the guy cable fixing rod and the bearing base, and a connecting line formed between the embedded parts 1 on the peripheral beams of each floor is vertical to the floor ground.
In the in-service use, through the mutual cooperation of built-in fitting and bearing component for this business turn over material platform can be in same horizontal plane with floor ground, can make in the dolly directly transports into business turn over material platform, the dolly transportation goods of being convenient for.
In actual use, after the feeding and discharging platform of the feeding and discharging platform installation floor is used, the feeding and discharging platform can be installed at the position of the zipper fixing rod originally installed on the last floor, and the engineering quantity is saved.
In this embodiment, the bearing base is the same as the auxiliary bearing base in structure, the bearing base comprises a bearing frame arranged on the platform main bridge plate 6, a connecting hole arranged on the bearing frame and the platform main bridge plate 6, a nut arranged on the platform main bridge plate 6 and a bearing screw rod arranged in the connecting hole, the bearing screw rod is matched with the nut, and the inhaul cable 4 is sleeved on the screw rod.
In this embodiment, platform guardrail 3 includes both sides guardrail, preceding guardrail and sets up the emergency exit in the front guardrail, the emergency exit holds down trapezoidally, the bottom of preceding guardrail and both sides guardrail all is provided with the bolt, be provided with the slot on the platform main bridge plate 6, the bolt is mutually supported fixed guardrail with the slot.
In practical application, the safety door can be opened when a long material needs to be fed in and out, so that the material is convenient to transport.
In this embodiment, the bearing assembly further includes an auxiliary bearing base, an embedded part 1 of an auxiliary cable 2 arranged on the floor peripheral beam, and an auxiliary cable 2 connecting the embedded part 1 of the auxiliary cable 2 and the auxiliary bearing base.
In practical use, the structural stress of the unloading platform can be improved by adding the auxiliary bearing assembly.
In this embodiment, the secondary cable 2 and the cable 4 are both adjustable length cables 4.
In actual use, the stay cable is stressed by double embedded parts, and the auxiliary stay cable is stressed by single embedded part.
In this embodiment, the connecting hole is formed by welding a square steel pipe, penetrates through the square steel pipe, and is sealed by welding a channel pipe at the connecting hole.
In the in-service use, because the main bridge plate of platform adopts square steel pipe to make, can lose inside gas tightness after punching, can ensure the gas tightness of the main bridge plate of platform through passageway pipe seal welding, effectively organize the main bridge plate of platform and corrode from inside, improved the life of this equipment.
In this embodiment, the feeding and discharging platform for building further comprises a supporting plate arranged on the floor embedded part 1 below the installation floor of the feeding and discharging platform and a supporting rod with one end arranged on the supporting plate, and the other end of the supporting rod is arranged on the main bridge plate 6 of the platform.
In actual use, the loading capacity requirements of the feeding and discharging platform are often different in the process of material transportation in the building industry, and under the condition that the loading capacity requirements of the feeding and discharging platform are high, the supporting rods can be increased to improve the bearing capacity of the feeding and discharging platform.
In this embodiment, the cable 4 has the same structure as the auxiliary cable 2, the cable 4 includes a first threaded rod, a sleeve which is connected with the pull rod through a thread and has an internal thread, a second threaded rod which is connected with the threaded sleeve through a thread, and a steel rope of which one end is arranged on the second threaded rod, the thread of the first threaded rod is a trapezoidal thread, and the other end of the steel rope is sleeved on the bearing screw rod.
In actual use, the stay cable is stressed by double embedded parts, and the auxiliary stay cable is stressed by single embedded part.
In the in-service use, through first threaded rod, second threaded rod and telescopic mutually supporting for cable and vice cable can shrink, are convenient for adjust the atress of cable, and trapezoidal thread can improve stronger shear stress, and guarantee zip or vice cable do not split, improve the stability of this equipment.
In the embodiment, the mounting assembly comprises a mounting steel plate mounted on the embedded part 1, a mounting block arranged on the mounting steel plate and a mounting hole arranged on the mounting block.
In this embodiment, the outrigger on the charging and discharging platform installation floor is disconnected when the charging and discharging platform is used.
The implementation of the invention has the advantages that:
the invention provides a feeding and discharging platform for buildings, which comprises embedded parts arranged on peripheral beams of each floor, mounting assemblies arranged on the embedded parts, a main bridge plate of the platform arranged on the mounting assemblies, bearing assemblies arranged on the main bridge plate of the platform and platform guardrails arranged on the main bridge plate of the platform, wherein the top surface of the feeding and discharging platform and the ground of the mounting floors of the feeding and discharging platform are on the same horizontal plane, each bearing assembly comprises a bearing base arranged on the main bridge plate of the platform, a guy cable fixing rod arranged on the embedded parts of the floors above the mounting floors of the feeding and discharging platform and a guy cable for connecting the guy cable fixing rod with the bearing base, and a connecting line formed between the embedded parts on the peripheral beams of each floor is vertical to the ground of the floor. The effect of being convenient for dolly fortune material and being convenient for installation and adjustment platform atress of unloading can be reached. Through the mutual cooperation of embedded part and bearing component for this business turn over material platform can be in same horizontal plane with floor ground, can make the dolly directly transport in the business turn over material platform, the dolly transportation goods of being convenient for. After the feeding and discharging platform of the feeding and discharging platform installation floor is used, the feeding and discharging platform can be installed at the position of the zipper fixing rod originally installed on the last floor, and the engineering quantity is saved. The safety door can be opened when long materials need to be fed in and out, and the materials are convenient to transport. Because the main bridge plate of platform adopts square steel pipe to make, can lose inside gas tightness after punching, can ensure the gas tightness of main bridge plate of platform through the sealed welding of passageway pipe, effective tissue platform main bridge plate corrodes from the inside, has improved the life of this equipment. In the process of material transportation in the building industry, the loading capacity requirements of the feeding and discharging platform are often different, and under the condition that the loading capacity requirements of the feeding and discharging platform are high, the supporting rods can be increased to improve the bearing capacity of the feeding and discharging platform. Through first threaded rod, second threaded rod and telescopic mutually supporting for cable and vice cable can contract, are convenient for adjust the atress of cable, and trapezoidal thread can improve stronger shear stress, and guarantee zip or vice cable do not split improve the stability of this equipment.
The above description is only an embodiment of the present invention, but the scope of the present invention is not limited thereto, and any changes or substitutions that can be easily conceived by those skilled in the art within the technical scope of the present invention disclosed herein are intended to be covered by the scope of the present invention. Therefore, the protection scope of the present invention shall be subject to the protection scope of the appended claims.
Claims (9)
1. The utility model provides a business turn over material platform for building which characterized in that: the feeding and discharging platform for the building comprises embedded parts arranged on peripheral beams of each floor, mounting assemblies arranged on the embedded parts, a main platform bridge plate arranged on the mounting assemblies, bearing assemblies arranged on the main platform bridge plate and platform guardrails arranged on the main platform bridge plate, wherein the top surface of the feeding and discharging platform and the ground of the mounting floors of the feeding and discharging platform are on the same horizontal plane, each bearing assembly comprises a bearing base arranged on the main platform bridge plate, a guy cable fixing rod arranged on the embedded parts of the floors above the mounting floors of the feeding and discharging platform and guy cables for connecting the guy cable fixing rods with the bearing bases, and a connecting line formed between the embedded parts on the peripheral beams of each floor is perpendicular to the ground of the floor.
2. The feeding and discharging platform for building as claimed in claim 1, wherein the bearing base is the same structure as the auxiliary bearing base, the bearing base comprises a bearing frame disposed on the main bridge plate of the platform, a connecting hole disposed on the bearing frame and the main bridge plate of the platform, a nut disposed on the main bridge plate of the platform, and a bearing screw disposed in the connecting hole, the bearing screw and the nut are engaged with each other, and the pulling rope is sleeved on the screw.
3. The feeding and discharging platform for the building of claim 1, wherein the platform guardrail comprises two side guardrails, a front guardrail and a safety door arranged on the front guardrail, the safety door is in a shape of an inverted trapezoid, the bottoms of the front guardrail and the two side guardrails are provided with bolts, the platform main bridge plate is provided with slots, and the bolts and the slots are matched with each other to fix the guardrails.
4. The feeding and discharging platform for buildings according to claim 1, wherein the bearing assembly further comprises an auxiliary bearing base, an auxiliary cable embedded part arranged on the floor peripheral beam and an auxiliary cable connecting the auxiliary cable embedded part and the auxiliary bearing base.
5. The feeding and discharging platform for buildings according to claim 4, wherein the auxiliary guy cable and the guy cable are guy cables with adjustable lengths. The feeding and discharging platform for building as claimed in claim 1, wherein the feeding and discharging platform is made of square steel pipes by welding, the connecting holes penetrate through the square steel pipes, and the connecting holes are sealed by welding through passage pipes.
6. The feeding and discharging platform for building as claimed in any one of claims 1-6, further comprising a support plate disposed on an embedded part of a floor below the installation floor of the feeding and discharging platform, and a support rod disposed on the support plate at one end, wherein the other end of the support rod is disposed on the main bridge plate of the platform.
7. The feeding and discharging platform for building as claimed in claim 7, wherein the pulling cable is the same structure as the auxiliary pulling cable, the pulling cable comprises a first threaded rod, a sleeve which is connected with the pulling rod through a thread and has an internal thread, a second threaded rod which is connected with the threaded sleeve through a thread, and a steel cable with one end arranged on the second threaded rod, the thread of the first threaded rod is a trapezoidal thread, and the other end of the steel cable is sleeved on the bearing screw rod.
8. The feeding and discharging platform for building as claimed in claim 7, wherein the mounting assembly comprises a mounting steel plate mounted on the embedded part, a mounting block arranged on the mounting steel plate and a mounting hole arranged on the mounting block.
9. A feeding and discharging platform for building as claimed in claim 7, wherein the outer frame on the installation floor of the feeding and discharging platform is broken when the feeding and discharging platform is in use.
