Abstract
本发明涉及环保设备的技术领域，特别是涉及一种便于清理的污水处理用沉淀池，其可以合理的将污水中的淤泥以及杂质清除掉，提高其过滤污水的效果，避免污水污染环境，并且操作简单，降低其局限性；还包括水池、支腿、进水管、进水阀、导水管、溢流管、电机、螺杆、两组固定座、第一螺套、滑杆、滑套、连接杆、固定杆和连接块，电机安装在水池左端，电机输出端穿过水池左端伸至储水腔内与螺杆左端连接，螺杆通过两组固定座可转动安装在储水腔内壁，第一螺套与螺杆螺装连接，滑杆安装在储水腔内壁，滑套与滑杆可滑动连接，滑套通过连接杆与第一螺套连接，固定杆安装在滑套底端，连接块安装在固定杆底端，连接块底端设置有刮板。
The invention relates to the technical field of environmental protection equipment, in particular to a sedimentation tank for sewage treatment that is easy to clean, which can reasonably remove sludge and impurities in sewage, improve the effect of filtering sewage, avoid sewage polluting the environment, and Simple operation and reduce its limitations; also includes pool, outrigger, water inlet pipe, water inlet valve, water guide pipe, overflow pipe, motor, screw, two sets of fixed seats, first screw sleeve, sliding rod, sliding sleeve, connection Rod, fixing rod and connecting block, the motor is installed on the left end of the pool, the output end of the motor extends through the left end of the pool to the left end of the water storage cavity and is connected with the left end of the screw rod. The sleeve is threadedly connected with the screw, the sliding rod is installed on the inner wall of the water storage cavity, the sliding sleeve and the sliding rod can be slidably connected, the sliding sleeve is connected with the first screw sleeve through the connecting rod, the fixing rod is installed at the bottom end of the sliding sleeve, and the connecting block is installed on the The bottom end of the fixed rod is provided with a scraper at the bottom end of the connecting block.
Description
Technical Field
The invention relates to the technical field of environment-friendly equipment, in particular to a sedimentation tank for sewage treatment, which is convenient to clean.
Background
As is well known, the method commonly used for treating sewage is to filter the sewage manually through a filter screen and then discharge the sewage to the outside; however, sewage is filtered through the filter screen manually, and then is found in the use of the external world, the filtering effect is poor, the sewage is discharged to the external world to cause environmental pollution, and the process is too tedious, and the limitation is higher.
Disclosure of Invention
In order to solve the technical problems, the invention provides the sedimentation tank for sewage treatment, which can reasonably remove silt and impurities in sewage, improve the sewage filtering effect, avoid the pollution of the sewage to the environment, is simple to operate, reduces the limitation, and is convenient to clean.
The invention relates to a sewage treatment sedimentation tank convenient to clean, which comprises a water tank, supporting legs, a water inlet pipe, a water inlet valve, a water guide pipe, an overflow pipe, a motor, a screw rod, two groups of fixing seats, a first screw sleeve, a sliding rod, a sliding sleeve, a connecting rod, a fixing rod and a connecting block, wherein a water storage cavity is arranged inside the water tank, the bottom end of the water tank is communicated with a collecting device, the bottom end of the water tank is connected with the top end of the supporting legs, the output end of the water inlet pipe penetrates through the left end of the water tank and extends into the water storage cavity, the water inlet valve is arranged on the right side of the input end of the water tank, an opening is arranged on the upper side of the right end of the water tank in a communicating mode, the input end of the water guide pipe is arranged on the water tank outside the opening and is communicated with the opening, the output end of the water guide pipe is connected with the input end of the overflow pipe, the overflow pipe is provided with an adjusting device, the motor is arranged at the left end of the water tank, the output end of the motor penetrates through the left end of the water tank and extends into the water storage cavity and is connected with the left end of the screw rod, the screw rod is rotatably arranged on the inner wall of the water storage cavity through the two groups of the fixing seats, first swivel nut is connected with screw rod spiral shell dress, and the slide bar is installed at water storage intracavity wall, and sliding sleeve and slide bar sliding connection, sliding sleeve pass through the connecting rod and are connected with first swivel nut, and the dead lever is installed in the sliding sleeve bottom, and the connecting block is installed in the dead lever bottom, and the connecting block bottom is provided with the scraper blade.
The invention discloses a sedimentation tank convenient to clean and used for sewage treatment, which comprises a fixed sleeve, a connecting plate, a first fixed frame, a lead screw, a second threaded sleeve, a rotary table and two groups of guide rods, wherein the fixed sleeve is arranged at the bottom end of the connecting plate, the bottom end of the fixed sleeve is sleeved on an overflow pipe, the first fixed frame is arranged at the right end of a water tank, the lead screw is in threaded connection with the second threaded sleeve, the bottom end of the lead screw is rotatably arranged at the top end of the connecting plate, the second threaded sleeve is arranged on the first fixed frame, the rotary table is arranged at the top end of the lead screw, the bottom ends of the two groups of guide rods penetrate through the first fixed frame and are arranged at the top end of the connecting plate, and the two groups of guide rods are in slidable connection with the first fixed frame.
The sedimentation tank convenient to clean for sewage treatment further comprises two groups of limiting blocks, and the two groups of limiting blocks are respectively arranged at the top ends of the two groups of guide rods.
The sedimentation tank convenient to clean for sewage treatment further comprises two groups of bolts, and the two groups of bolts are in threaded connection with the first fixing frame.
The invention relates to a sedimentation tank for sewage treatment, which is convenient to clean.
The sedimentation tank for sewage treatment convenient to clean further comprises two groups of supporting plates and a filter screen, wherein the two groups of supporting plates are arranged on the inner wall of the water storage cavity, the filter screen is arranged on the two groups of supporting plates, and the position of the filter screen corresponds to the position of the input end of the water guide pipe.
The sedimentation tank convenient to clean for sewage treatment further comprises a conical baffle plate, wherein the conical baffle plate is arranged on the inner wall of the water storage cavity and is positioned above the screw rod.
The sedimentation tank convenient to clean for sewage treatment further comprises a stabilizing sleeve and a second fixing frame, wherein the stabilizing sleeve is sleeved on the water inlet pipe and is positioned outside the water tank, and the stabilizing sleeve is fixed at the left end of the water tank through the second fixing frame.
Compared with the prior art, the invention has the beneficial effects that: through opening the water intaking valve, it is leading-in to the water storage intracavity with sewage through the inlet tube, then sewage makes impurity and silt wherein deposit water storage chamber bottom through static, then adjust the height of overflow pipe through adjusting device, thereby decide the height of water storage intracavity sewage, later sewage after the sediment passes through aqueduct and overflow pipe outflow, then open the motor, make screw rod and first swivel nut spiral shell device, first swivel nut then drives connecting rod and sliding sleeve and removes, the sliding sleeve then slides on the slide bar, the sliding sleeve motion then drives dead lever global motion, thereby make the scraper blade strike off the impurity in silt and the sewage of water storage chamber bottom and the collection device and discharge, can be reasonable with silt and impurity in the sewage dispose, improve its effect of filtering sewage, avoid the sewage pollution environment, and easy operation, reduce its limitation.
Drawings

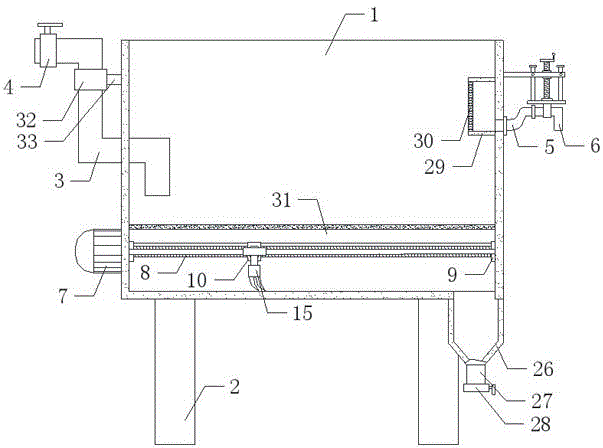

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is an enlarged schematic view of a slide rod, a slide sleeve and the like;
FIG. 3 is an enlarged view of the fixing sleeve and the connecting plate;
FIG. 4 is a left enlarged view of the conical baffle and the first threaded sleeve;
in the drawings, the reference numbers: 1. a pool; 2. a support leg; 3. a water inlet pipe; 4. a water inlet valve; 5. a water conduit; 6. an overflow pipe; 7. a motor; 8. a screw; 9. a fixed seat; 10. a first threaded sleeve; 11. a slide bar; 12. a sliding sleeve; 13. a connecting rod; 14. fixing the rod; 15. connecting blocks; 16. a squeegee; 17. fixing a sleeve; 18. a connecting plate; 19. a first fixing frame; 20. a lead screw; 21. a second thread insert; 22. a turntable; 23. a guide bar; 24. a limiting block; 25. a bolt; 26. a collection bin; 27. a drain pipe; 28. a discharge valve; 29. a support plate; 30. a filter screen; 31. a conical baffle; 32. a stabilizing sleeve; 33. a second fixing frame.
Detailed Description
The following detailed description of embodiments of the present invention is provided in connection with the accompanying drawings and examples. The following examples are intended to illustrate the invention but are not intended to limit the scope of the invention.
As shown in fig. 1 to 4, the sedimentation tank for sewage treatment convenient to clean comprises a water tank 1, supporting legs 2, a water inlet pipe 3, a water inlet valve 4, a water guide pipe 5, an overflow pipe 6, a motor 7, a screw 8, two groups of fixing seats 9, a first screw sleeve 10, a slide rod 11, a slide sleeve 12, a connecting rod 13, a fixing rod 14 and a connecting block 15, wherein a water storage cavity is arranged inside the water tank 1, the bottom end of the water tank 1 is communicated with a collecting device, the bottom end of the water tank 1 is connected with the top end of the supporting legs 2, the output end of the water inlet pipe 3 penetrates through the left end of the water tank 1 and extends into the water storage cavity, the water inlet valve 4 is arranged on the right side of the input end of the water inlet pipe 3, an opening is arranged on the upper side of the right end of the water tank 1, the input end of the water guide pipe 5 is arranged on the water tank 1 outside the opening and communicated with the opening, the output end of the water guide pipe 5 is connected with the input end of the overflow pipe 6, an adjusting device is arranged on the overflow pipe 6, the motor 7 is arranged at the left end of the water tank 1, the output end of the motor 7 penetrates through the left end of the water pool 1 to extend into the water storage cavity to be connected with the left end of the screw rod 8, the screw rod 8 is rotatably installed on the inner wall of the water storage cavity through two groups of fixing seats 9, a first threaded sleeve 10 is in threaded connection with the screw rod 8, a sliding rod 11 is installed on the inner wall of the water storage cavity, a sliding sleeve 12 is in slidable connection with the sliding rod 11, the sliding sleeve 12 is connected with the first threaded sleeve 10 through a connecting rod 13, a fixed rod 14 is installed at the bottom end of the sliding sleeve 12, a connecting block 15 is installed at the bottom end of the fixed rod 14, and a scraper 16 is arranged at the bottom end of the connecting block 15; by opening the water inlet valve 4, sewage is guided into the water storage cavity through the water inlet pipe 3, then the sewage is made to settle impurities and sludge in the sewage to the bottom of the water storage cavity through stillness, then the height of the overflow pipe 6 is adjusted through the adjusting device, thereby determining the height of the sewage in the water storage cavity, then the settled sewage overflows through the water guide pipe 5 and the overflow pipe 6, then the motor 7 is opened, the screw 8 and the first screw sleeve 10 are screwed, the first screw sleeve 10 drives the connecting rod 13 and the sliding sleeve 12 to move, the sliding sleeve 12 slides on the sliding rod 11, the sliding sleeve 12 moves to drive the fixing rod 14 to move integrally, thereby the scraper 16 scrapes the sludge and the impurities in the sewage at the bottom of the water storage cavity to the collecting device for discharge, the sludge and the impurities in the sewage can be reasonably removed, the sewage filtering effect is improved, the sewage pollution to the environment is avoided, and the operation is simple, reducing its limitations.
The invention relates to a sedimentation tank convenient for cleaning and used for sewage treatment, which comprises a fixed sleeve 17, a connecting plate 18, a first fixed frame 19, a screw rod 20, a second screw sleeve 21, a rotary table 22 and two groups of guide rods 23, wherein the fixed sleeve 17 is arranged at the bottom end of the connecting plate 18, the bottom end of the fixed sleeve 17 is sleeved on an overflow pipe 6, the first fixed frame 19 is arranged at the right end of a water tank 1, the screw rod 20 is in threaded connection with the second screw sleeve 21, the bottom end of the screw rod 20 is rotatably arranged at the top end of the connecting plate 18, the second screw sleeve 21 is arranged on the first fixed frame 19, the rotary table 22 is arranged at the top end of the screw rod 20, the bottom ends of the two groups of guide rods 23 penetrate through the first fixed frame 19 and are arranged at the top end of the connecting plate 18, and the two groups of guide rods 23 are in slidable connection with the first fixed frame 19; through twisting the carousel 22, make lead screw 20 and second swivel nut 21 spiral shell dress, lead screw 20 then drives the connecting plate 18 motion, and two sets of guide bars 23 then slide on first mount 19, and the connecting plate 18 motion drives fixed cover 17 and overflow pipe 6 motion to adjust the height of overflow pipe 6 and determine the height of the interior sewage of water storage chamber, improve the practicality.
The sedimentation tank for sewage treatment, which is convenient to clean, also comprises two groups of limiting blocks 24, wherein the two groups of limiting blocks 24 are respectively arranged at the top ends of the two groups of guide rods 23; the limiting block 24 can limit the guide rod 23, so that the guide rod 23 is prevented from being separated from the first fixing frame 19, and controllability is improved.
The sedimentation tank convenient to clean for sewage treatment further comprises two groups of bolts 25, wherein the two groups of bolts 25 are in threaded connection with the first fixing frame 19; after the screw rod 20 drives the connecting plate 18 to move integrally to adjust the height of the overflow pipe 6, the two groups of bolts 25 are screwed with the first fixing frame 19 until the bolts are contacted with the guide rod 23, so that the guide rod 23 can be fixed, and the stability of the connecting plate 18 is improved.
The invention relates to a sedimentation tank convenient for cleaning and used for sewage treatment, which comprises a collection bin 26, a discharge pipe 27 and a discharge valve 28, wherein the right side of the bottom end of a water tank 1 is communicated with an opening, the collection bin 26 is arranged on the water tank 1 outside the opening, the collection bin 26 is communicated with the opening, the input end of the discharge pipe 27 is communicated with the collection bin 26, and the discharge valve 28 is arranged on the discharge pipe 27; by arranging the collection bin 26, the discharge pipe 27 and the discharge valve 28, the sludge and the impurities scraped by the scraper 16 fall into the collection bin 26, and then the discharge valve 28 is opened to discharge the sludge and the impurities through the discharge pipe 27, so that the sludge and the impurities can be timely discharged, and the working efficiency of the sludge and the impurities is improved.
The sedimentation tank for sewage treatment convenient to clean further comprises two groups of supporting plates 29 and a filter screen 30, wherein the two groups of supporting plates 29 are arranged on the inner wall of the water storage cavity, the filter screen 30 is arranged on the two groups of supporting plates 29, and the position of the filter screen 30 corresponds to the position of the input end of the water guide pipe 5; through setting up backup pad 29 and filter screen 30, can prevent that the floater in the sewage from discharging through aqueduct 5 and overflow pipe 6, also can play filterable effect for sewage.
The sedimentation tank convenient to clean for sewage treatment further comprises a conical baffle 31, wherein the conical baffle 31 is installed on the inner wall of the water storage cavity, and the conical baffle 31 is positioned above the screw rod 8; by arranging the conical baffle 31, the effect of protecting the screw 8 can be achieved, and the service life of the screw 8 is prolonged.
The sedimentation tank convenient to clean for sewage treatment further comprises a stabilizing sleeve 32 and a second fixing frame 33, wherein the stabilizing sleeve 32 is sleeved on the water inlet pipe 3, the stabilizing sleeve 32 is positioned outside the water tank 1, and the stabilizing sleeve 32 is fixed at the left end of the water tank 1 through the second fixing frame 33; through setting up stabilizing sleeve 32 and second mount 33, can play the effect of fixed inlet tube 3, improve inlet tube 3's stability.
The invention relates to a sedimentation tank for sewage treatment convenient to clean, which is characterized in that when in work, firstly, a water inlet valve 4 is opened, sewage is led into a water storage cavity through a water inlet pipe 3, then impurities and silt in the sewage are precipitated at the bottom of the water storage cavity, then a rotary disc 22 is screwed, a screw rod 20 and a second screw sleeve 21 are screwed, the screw rod 20 drives a connecting plate 18 to move, two groups of guide rods 23 slide on a first fixing frame 19, the connecting plate 18 moves to drive a fixing sleeve 17 and an overflow pipe 6 to move, so that the height of the overflow pipe 6 is adjusted to determine the height of the sewage in the water storage cavity, after the overflow pipe 6 is adjusted, two groups of bolts 25 and a first fixing frame 19 are screwed until the bolts are contacted with the guide rods 23 to fix the two groups of guide rods 23, then the precipitated sewage overflows through a water guide pipe 5 and the overflow pipe 6, then a motor 7 is opened, so that a screw rod 8 and the first screw sleeve 10 are screwed, the first screw sleeve 10 drives the connecting rod 13 and the sliding sleeve 12 to move, the sliding sleeve 12 slides on the sliding rod 11, the sliding sleeve 12 drives the fixing rod 14 to move integrally, so that the scraper 16 scrapes and guides sludge at the bottom of the water storage cavity and impurities in sewage into the collecting bin 26, and then the discharge valve 28 is opened to discharge the sludge through the discharge pipe 27.
The sedimentation tank convenient to clean for sewage treatment is installed, connected or arranged in a common mechanical mode, and can be implemented as long as the beneficial effects of the sedimentation tank are achieved; the motor 7 of the sedimentation tank for sewage treatment convenient to clean is purchased from the market, and technicians in the industry only need to install and operate according to the attached operating instructions.
The above description is only a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, several modifications and variations can be made without departing from the technical principle of the present invention, and these modifications and variations should also be regarded as the protection scope of the present invention.
Claims (8)
1. A sedimentation tank convenient for cleaning and used for sewage treatment is characterized by further comprising a water tank (1), supporting legs (2), a water inlet pipe (3), a water inlet valve (4), a water guide pipe (5), an overflow pipe (6), a motor (7), a screw rod (8), two groups of fixing seats (9), a first screw sleeve (10), a slide rod (11), a sliding sleeve (12), a connecting rod (13), a fixing rod (14) and a connecting block (15), wherein a water storage cavity is arranged inside the water tank (1), the bottom end of the water tank (1) is communicated with a collecting device, the bottom end of the water tank (1) is connected with the top end of the supporting legs (2), the output end of the water inlet pipe (3) penetrates through the left end of the water tank (1) and extends into the water storage cavity, the water inlet valve (4) is arranged on the right side of the input end of the water inlet pipe (3), the upper side of the right end of the water tank (1) is communicated with an opening, the input end of the water guide pipe (5) is arranged on the water tank (1) outside the opening and is communicated with the opening, aqueduct (5) output is connected with overflow pipe (6) input, be provided with adjusting device on overflow pipe (6), install at pond (1) left end motor (7), the output passes pond (1) left end and extends in the water storage chamber and be connected with screw rod (8) left end, screw rod (8) are rotatable to be installed at water storage chamber inner wall through two sets of fixing base (9), first swivel nut (10) are connected with screw rod (8) spiral shell dress, install at water storage chamber inner wall slide bar (11), sliding sleeve (12) and slide bar (11) slidable connection, sliding sleeve (12) are connected with first swivel nut (10) through connecting rod (13), install in sliding sleeve (12) bottom dead lever (14), install in dead lever (14) bottom block (15), connecting block (15) bottom is provided with scraper blade (16).
2. The sedimentation tank convenient for sewage treatment to clean as claimed in claim 1, wherein the adjusting device comprises a fixing sleeve (17), a connecting plate (18), a first fixing frame (19), a screw rod (20), a second screw sleeve (21), a rotary disc (22) and two sets of guide rods (23), the fixing sleeve (17) is installed at the bottom end of the connecting plate (18), the bottom end of the fixing sleeve (17) is sleeved on the overflow pipe (6), the first fixing frame (19) is installed at the right end of the water tank (1), the screw rod (20) is connected with the second screw sleeve (21) in a screw fit manner, the bottom end of the screw rod (20) is rotatably installed at the top end of the connecting plate (18), the second screw sleeve (21) is installed on the first fixing frame (19), the rotary disc (22) is installed at the top end of the screw rod (20), the bottom ends of the two sets of guide rods (23) are installed at the top end of the connecting plate (18) through the first fixing frame (19), the two groups of guide rods (23) are connected with the first fixing frame (19) in a sliding way.
3. A sewage treatment sedimentation tank convenient to clean as claimed in claim 2, further comprising two sets of stoppers (24), wherein the two sets of stoppers (24) are respectively installed on the top ends of the two sets of guide rods (23).
4. A sedimentation tank for sewage treatment convenient to clean up according to claim 3, further comprising two sets of bolts (25), wherein the two sets of bolts (25) are connected with the first fixing frame (19) in a screw-fitting manner.
5. A sedimentation tank for sewage treatment convenient for cleaning according to claim 4, wherein the collecting device comprises a collecting bin (26), a discharge pipe (27) and a discharge valve (28), an opening is arranged at the right side of the bottom end of the water tank (1) in a communicating manner, the collecting bin (26) is installed on the water tank (1) outside the opening, the collecting bin (26) is communicated with the opening, the input end of the discharge pipe (27) is communicated with the collecting bin (26), and the discharge valve (28) is installed on the discharge pipe (27).
6. A sewage treatment sedimentation tank convenient to clean as claimed in claim 5, further comprising two sets of support plates (29) and a filter screen (30), wherein the two sets of support plates (29) are installed on the inner wall of the water storage cavity, the filter screen (30) is installed on the two sets of support plates (29), and the position of the filter screen (30) corresponds to the position of the input end of the water conduit (5).
7. A sewage treatment sedimentation tank convenient to clean as claimed in claim 6, further comprising a conical baffle (31), wherein the conical baffle (31) is installed on the inner wall of the water storage chamber, and the conical baffle (31) is positioned above the screw (8).
8. A sewage treatment sedimentation tank convenient to clean up as claimed in claim 7, further comprising a stabilizing sleeve (32) and a second fixing frame (33), wherein the stabilizing sleeve (32) is sleeved on the water inlet pipe (3), the stabilizing sleeve (32) is positioned outside the water tank (1), and the stabilizing sleeve (32) is fixed at the left end of the water tank (1) through the second fixing frame (33).
