CN113558920A

CN113558920A - Lifting device for inspection

Info

Publication number: CN113558920A
Application number: CN202110865208.XA
Authority: CN
Inventors: 李德全; 袁钰; 楚彦升
Original assignee: Individual
Current assignee: Yuan Yu
Priority date: 2021-07-29
Filing date: 2021-07-29
Publication date: 2021-10-29
Anticipated expiration: 2041-07-29
Also published as: CN113558920B

Abstract

A lifting device for inspection relates to the technical field of lifting devices, and includes a support seat, a support platform is vertically lifted and lowered on the support seat, and an extension platform for switching along the top and side of the support platform is swayed and installed. The invention solves the problem that the device in the traditional technology cannot be applied to its appearance when it is not in use, and occupies a large indoor space; when lifting a large-volume object, it is necessary to use multiple people and auxiliary equipment for auxiliary support, resulting in inability to Stable lifting of large-volume objects; and when only a single part of the body needs to be opened as a whole, the lifting device is not only complicated to operate, but also the lifting device cannot be fully utilized.

Description

Lifting device for inspection

Technical Field

The invention relates to the technical field of lifting devices, in particular to a lifting device for inspection.

Background

The department of neurology is mainly used for diagnosing and treating cerebrovascular diseases (cerebral infarction and cerebral hemorrhage), migraine, brain inflammatory diseases (encephalitis and meningitis), myelitis, epilepsy, dementia, nervous system degenerative diseases, metabolic diseases and genetic diseases, trigeminal neuralgia, sciatic neuropathy, peripheral neuropathy (numbness and weakness of limbs), myasthenia gravis and the like.

Clinically at department of neurology, patient insensitive to local nervous atrophy or local nerve stimulation, medical personnel will inspect disease department, need patient to fix both hands in health both sides sometimes, also need lift up both arms sometimes, fully expose patient pleuroperitoneal cavity, but most patient limbs activity is inconvenient, can not the free motion, need the supplementary cooperation of medical staff, make medical staff and patient all feel very tired, also inconvenient inspection operation.

The prior art discloses a patent with publication number CN211634154U, which comprises a base, wherein a supporting plate is arranged above the base, one end of the supporting plate is inclined upwards, a bed plate matched with the supporting plate is arranged above the supporting plate, and fixing devices are arranged on two sides of the supporting plate in a sliding manner; the fixing device comprises a fixing plate, a sliding block is arranged on one side, close to the supporting plate, of the fixing plate, a sliding groove matched with the sliding block is formed in the side face of the supporting plate, mounting holes matched with each other are formed in the fixing plate and the sliding groove, the depth of each mounting hole in the sliding groove is larger than that of the sliding groove, a detachable limiting column is arranged in each mounting hole, a U-shaped groove is rotatably formed above the fixing plate, and a plurality of groups of magic tapes are arranged in each U-shaped groove; the upward inclined end of the bed board is provided with an arch frame which is convenient to hold by hand, and the length of the arch frame is between 50 cm and 90cm, the utility model has the advantages that: the lifting effect is good, and the device is suitable for different inspection requirements.

However, the existing device gradually exposes the defects of the technology along with production and use:

first, the existing lifting device is composed of a plurality of lifting assemblies, so that the existing lifting device cannot be applied to the external surface of the existing lifting device in a non-use state, occupies a large indoor space, and affects the layout of the space.

Secondly, in the lifting inspection process, the large-size object is often required to be lifted, which is limited by the lifting platform of the device, and when the large-size object is lifted, a plurality of persons and auxiliary equipment are required to be used for auxiliary support, so that the large-size object cannot be stably lifted.

Thirdly, because the volume of the lifting device is large, when only a single part of the body, such as an arm, is lifted, the lifting device needs to be opened integrally, so that the operation is complex, the lifting device cannot be fully utilized, and the resources are wasted.

In view of the above, the prior art is obviously inconvenient and disadvantageous in practical use, and needs to be improved.

Disclosure of Invention

Aiming at the defects in the prior art, the invention provides a lifting device for inspection, which is used for solving the problems that the device in the prior art cannot be applied to the outer surface of the device in a non-use state, and occupies a large indoor space; when a large-volume object is lifted, a plurality of persons and auxiliary equipment are required to be used for auxiliary support, so that the large-volume object cannot be stably lifted; and when only a single part of the body is needed, the lifting device needs to be opened integrally, so that the operation is complicated, and the lifting device cannot be fully utilized.

In order to achieve the purpose, the invention provides the following technical scheme:

the utility model provides an inspection is with lifting device, includes the supporting seat, be equipped with a supporting bench along vertical lift on the supporting seat, it installs along its top and side extension platform that switches still to swing on the supporting bench.

As an optimized scheme, a positioning table in a swinging arrangement is hinged on the extension platform.

As an optimized scheme, the extension platform is hinged with two telescopic cylinders, the telescopic ends of the two telescopic cylinders are hinged with a driving block together, and the lower surface of the positioning table is provided with a driving groove for restraining the driving block.

As an optimized scheme, the upper surface of the extension platform is further provided with hidden grooves, and the cylinder body ends of the two telescopic cylinders are hinged in the hidden grooves.

As an optimized scheme, the supporting seat is further provided with an extension mechanism which is used for swinging to the position above the supporting table and forming the workbench.

As an optimized scheme, the extension mechanism comprises a side plate hinged to one side of the supporting seat, the upper end portion of the side plate is hinged to a cover plate, and when the cover plate swings to the position above the supporting table, the cover plate is supported on the extension platform.

As an optimized scheme, side plates are hinged to the side walls of the supporting seat in other three directions, and the supporting seat is coated with the four side plates and the cover plate.

As an optimized scheme, the upper surface of the positioning table is further uniformly provided with a plurality of supporting and lifting seats, and the lower surface of each supporting and lifting seat is fixedly connected with a plurality of compression springs in parallel between the upper surfaces of the positioning tables.

As an optimized scheme, two extension platforms are arranged in parallel and are hinged to two ends of the supporting platform through hinge pieces respectively.

As an optimized scheme, the articulated elements comprise vertical columns, the extension platform and the hinged end of the support platform are respectively vertically provided with hinged holes, the vertical columns penetrate through the hinged holes, and the extension platform and the end wall of the support platform close to the hinged end are further provided with guide inclined planes which are arranged in a relatively inclined mode.

As an optimized scheme, the supporting platform is installed on the supporting seat through a scissor type lifting frame.

As an optimized scheme, the bottom of the supporting seat is also provided with a movable wheel assembly.

As an optimized scheme, a partial bracket assembly is further arranged on the supporting seat in a vertically sliding mode.

As an optimized scheme, when the extension platform swings to the side of the support platform, the local lifting assembly further supports the extension platform through a conversion piece.

As an optimized scheme, the local bracket assembly comprises a lifting cylinder which is vertically fixed on the supporting seat, and a local supporting and lifting seat is arranged at the upper end part of the lifting cylinder in a swinging mode along the vertical direction to the horizontal direction.

Preferably, the conversion member includes a rotating sleeve rotatably mounted on an upper end portion of the lifting cylinder, and a hinge end of the partial lifting seat is hinged to an outer wall of the rotating sleeve.

Compared with the prior art, the invention has the beneficial effects that:

the device is coated by the side plates and the cover plate to form a box body when not in use, and objects can be placed or other operations can be carried out by using the top surface of the cover plate as a workbench, wherein the side plates and the cover plate coat the device and can also play a role in dust removal;

the support platform can be adjusted along the upper part and the side part of the support platform, so that the support platform is normally positioned above the support platform to carry out lifting work, and when a large-volume object needs to be supported, the large-volume object swings to the side part of the support platform, so that the support area of the support platform is expanded, the support surface is improved, and the large-volume object is conveniently and stably supported; and does not need to be operated by a plurality of people and auxiliary equipment; the operation is convenient;

when the local operation of the human body is needed, the lifting cylinder is used for lifting the local lifting seat; then the local lifting seat is swung to be in a horizontal state to support the local part of the human body, so that the operation of opening other parts of the lifting device is omitted, the operation is convenient and fast, and the full utilization of the lifting device is realized;

the stability in the working process is improved; the parts are few, the working procedure is simple and convenient, and the failure rate is low; the structure is simple, and the service life is long; simple and convenient operation and control, easy large-scale manufacture and installation and wide application range.

Drawings

In order to more clearly illustrate the detailed description of the invention or the technical solutions in the prior art, the drawings that are needed in the detailed description of the invention or the prior art will be briefly described below. Throughout the drawings, like elements or portions are generally identified by like reference numerals. In the drawings, elements or portions are not necessarily drawn to scale.

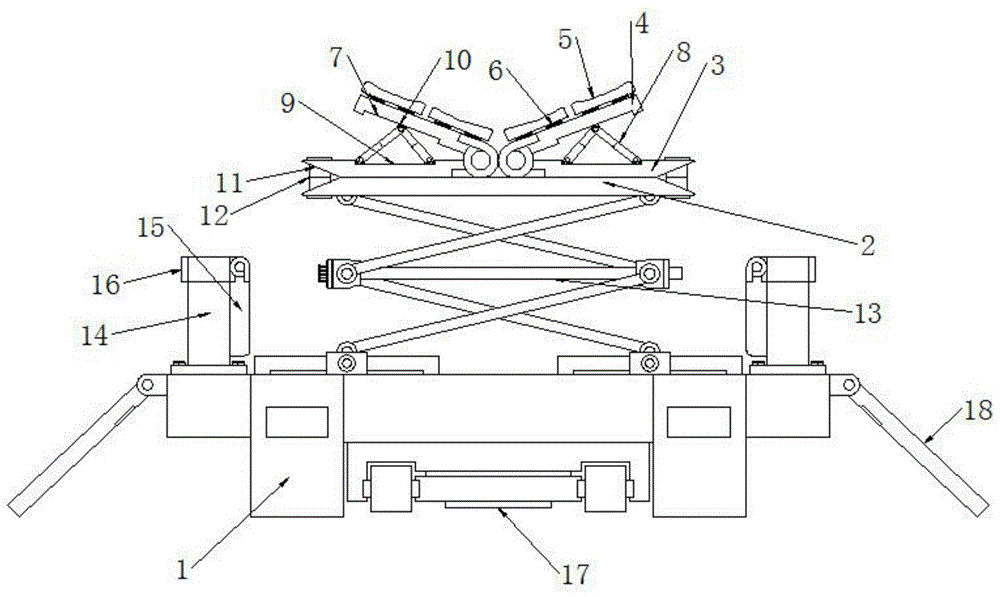

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic structural view of the extension platform of the present invention in a side view;

FIG. 3 is a schematic structural view of the working condition of the partial bracket assembly of the present invention;

FIG. 4 is a schematic view of the spreading mechanism of the present invention in a spread state;

FIG. 5 is a schematic structural diagram of the present invention in an unused state.

In the figure: 1-a support seat; 2-supporting the table; 3-extending the platform; 4-a positioning table; 5-lifting seat; 6-compression spring; 7-a drive slot; 8-a telescopic cylinder; 9-hidden groove; 10-a drive block; 11-vertical posts; 12-a guide ramp; 13-a scissor-fork type lifting frame; 14-a lifting cylinder; 15-local lifting seat; 16-a rotating sleeve; 17-a moving wheel assembly; 18-side plate; 19-cover plate.

Detailed Description

Embodiments of the present invention will be described in detail below with reference to the accompanying drawings. The following examples are only for illustrating the technical solutions of the present invention more clearly, and therefore are only examples, and the protection scope of the present invention is not limited thereby.

As shown in fig. 1 to 5, the lifting device for inspection comprises a supporting base 1, a supporting base 2 is arranged on the supporting base 1 along the vertical lifting, and an extension platform 3 which is switched along the upper part and the side part of the supporting base 2 is also installed on the supporting base in a swinging mode.

The extending platform 3 is also hinged with a positioning table 4 which is arranged in a swinging way.

The extension platform 3 is hinged with two telescopic cylinders 8, the telescopic ends of the two telescopic cylinders 8 are hinged with a driving block 10, and the lower surface of the positioning table 4 is provided with a driving groove 7 for restraining the driving block 10.

The upper surface of the extension platform 3 is also provided with a hidden groove 9, and the cylinder body ends of the two telescopic cylinders 8 are hinged in the hidden groove 9.

The supporting base 1 is also provided with an extension mechanism which is used for swinging to the upper part of the supporting base 2 and forming a workbench.

The extension mechanism comprises a side plate 18 hinged to one side of the supporting seat 1, a cover plate 19 is hinged to the upper end portion of the side plate 18, and when the cover plate 19 swings to the position above the supporting platform 2, the cover plate 19 is supported on the extension platform 3.

The side walls of the supporting seat 1 located in other three directions are also respectively hinged with a side plate 18, and the four side plates 18 and the cover plate 19 cover the supporting seat 1.

The four side plates 18 and the supporting seat 1 are detachably mounted, and when the detachable structure is used, the four side plates 18 are detached after being opened, which is common in daily life, for example, the shaft is inserted from one end of the shaft sleeve, and therefore, the detachable structure is common knowledge of those skilled in the art, and therefore, the detailed description thereof is omitted.

A plurality of lifting seats 5 are uniformly distributed on the upper surface of the positioning table 4, and a plurality of compression springs 6 are fixedly connected between the lower surface of the lifting seat 5 and the upper surface of the positioning table 4 in parallel.

The extension platforms 3 are arranged in parallel and are respectively hinged at two ends of the support platform 2 through hinges.

The articulated elements includes the upstand 11, and the hinge end of extension platform 3 and brace table 2 has seted up the hinge hole along vertical respectively, and the upstand 11 runs through two hinge holes, still sets up the direction inclined plane 12 that relative slope set up on extension platform 3 and the end wall that brace table 2 is close to the hinge end.

The support platform 2 is arranged on the support base 1 through a scissor type lifting frame 13.

The bottom of the support base 1 is also provided with a moving wheel assembly 17.

Remove wheel subassembly 17 including removing the base, remove and be equipped with between base and the supporting seat 1 and lift, for example telescopic cylinder 8, realize when needs remove, will remove base and ground contact, make supporting seat 1 break away from the contact with ground.

A local bracket assembly is arranged on the supporting seat 1 along the vertical sliding.

When the extension platform 3 swings to the side of the support platform 2, the local lifting assembly also supports the extension platform 3 through the conversion piece.

The local bracket component comprises a lifting cylinder 14 which is vertically fixed on the supporting base 1, and a local lifting seat 15 is arranged at the upper end part of the lifting cylinder 14 in a swinging mode along the vertical direction to the horizontal direction.

The conversion member includes a rotary sleeve 16 rotatably mounted on the upper end of the lifting cylinder 14, and the hinged end of the partial lifting base 15 is hinged to the outer wall of the rotary sleeve 16.

A positioning structure is provided between the hinged end of the local lifting seat 15 and the rotating sleeve 16, so that the local lifting seat can be supported in a horizontal state to prevent falling, for example, a fixing manner of connecting a stop knob on the hinged portion by screw threads is adopted, and the positioning structure is common in daily life and is common in the common knowledge of the skilled person, so that the detailed description is omitted.

Finally, it should be noted that: the above embodiments are only used to illustrate the technical solution of the present invention, and not to limit the same; while the invention has been described in detail and with reference to the foregoing embodiments, it will be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some or all of the technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention, and they should be construed as being included in the following claims and description.

Claims

1. A lifting device for inspection, characterized in that: it comprises a support seat (1), and a support table (2) is provided on the support seat (1) along the vertical lift, and the support table (2) is also provided with a support table (2). The swinging installation is provided with an extension platform (3) which is switched along its upper and side sides.

2 . The lifting device for inspection according to claim 1 , characterized in that: the extension platform ( 3 ) is also hinged with a positioning platform ( 4 ) arranged to swing. 3 .

3. The lifting device for inspection according to claim 2, characterized in that: the extension platform (3) is hinged with two telescopic cylinders (8), and the two telescopic cylinders (8) are telescopic A driving block (10) is jointly hinged at the ends, and a driving groove (7) for constraining the driving block (10) is opened on the lower surface of the positioning table (4).

4 . The lifting device for inspection according to claim 1 , wherein the support base ( 1 ) is further provided with a device for swinging to the top of the support table ( 2 ) and forming an extension of the work table. 5 . mechanism.

5. An inspection lifting device according to claim 4, characterized in that: the extension mechanism comprises a side plate (18) hinged on one side of the support base (1), the side plate (18) The upper end of the ) is hinged with a cover plate (19), when the cover plate (19) swings above the support table (2), the cover plate (19) is supported on the extension platform (3).

6. The lifting device for inspection according to claim 2, characterized in that: the upper surface of the positioning table (4) is also evenly distributed with a plurality of lifting seats (5), the lifting seats (5). A plurality of compression springs (6) are fixed in parallel between the lower surface of 5) and the upper surface of the positioning table (4).

7 . The lifting device for inspection according to claim 1 , wherein two extension platforms ( 3 ) are arranged side by side, and are respectively hinged to the two sides of the support platform ( 2 ) through hinges. 8 . end.

8 . The lifting device for inspection according to claim 1 , characterized in that: the support base ( 1 ) is further provided with a partial bracket assembly slidably along the vertical direction. 9 .

9 . The lifting device for inspection according to claim 8 , wherein: when the extension platform (3) swings to the side of the support table (2), the partial lifting assembly also passes through the The transition piece supports the extension platform (3).

10 . The lifting device for inspection according to claim 8 , wherein the partial bracket assembly comprises a lifting cylinder ( 14 ) vertically fixed on the support base ( 1 ). 10 . A partial lift seat (15) is installed on the upper end of the lift cylinder (14) to swing from vertical to horizontal direction.
