CN113512874A - Environment-friendly easily-degradable antibacterial non-woven fabric and preparation method thereof - Google Patents
Environment-friendly easily-degradable antibacterial non-woven fabric and preparation method thereof Download PDFInfo
- Publication number
- CN113512874A CN113512874A CN202110459395.1A CN202110459395A CN113512874A CN 113512874 A CN113512874 A CN 113512874A CN 202110459395 A CN202110459395 A CN 202110459395A CN 113512874 A CN113512874 A CN 113512874A
- Authority
- CN
- China
- Prior art keywords
- woven fabric
- parts
- machine
- treatment
- fiber
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
- 239000004745 nonwoven fabric Substances 0.000 title claims abstract description 188
- 230000000844 anti-bacterial effect Effects 0.000 title claims abstract description 113
- 238000002360 preparation method Methods 0.000 title claims abstract description 42
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Chemical compound O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 claims abstract description 112
- 238000011282 treatment Methods 0.000 claims abstract description 93
- 239000000463 material Substances 0.000 claims abstract description 83
- 239000000835 fiber Substances 0.000 claims abstract description 75
- 239000000022 bacteriostatic agent Substances 0.000 claims abstract description 56
- KRKNYBCHXYNGOX-UHFFFAOYSA-N citric acid Chemical compound OC(=O)CC(O)(C(O)=O)CC(O)=O KRKNYBCHXYNGOX-UHFFFAOYSA-N 0.000 claims abstract description 51
- 239000004744 fabric Substances 0.000 claims abstract description 50
- 238000009987 spinning Methods 0.000 claims abstract description 42
- 229920006306 polyurethane fiber Polymers 0.000 claims abstract description 38
- 238000004804 winding Methods 0.000 claims abstract description 38
- 239000002131 composite material Substances 0.000 claims abstract description 34
- 238000000034 method Methods 0.000 claims abstract description 34
- 239000003963 antioxidant agent Substances 0.000 claims abstract description 32
- 230000003078 antioxidant effect Effects 0.000 claims abstract description 32
- 238000010438 heat treatment Methods 0.000 claims abstract description 29
- 229920001131 Pulp (paper) Polymers 0.000 claims abstract description 28
- 229920002678 cellulose Polymers 0.000 claims abstract description 28
- 239000001913 cellulose Substances 0.000 claims abstract description 28
- 238000009960 carding Methods 0.000 claims abstract description 27
- FHVDTGUDJYJELY-UHFFFAOYSA-N 6-{[2-carboxy-4,5-dihydroxy-6-(phosphanyloxy)oxan-3-yl]oxy}-4,5-dihydroxy-3-phosphanyloxane-2-carboxylic acid Chemical compound O1C(C(O)=O)C(P)C(O)C(O)C1OC1C(C(O)=O)OC(OP)C(O)C1O FHVDTGUDJYJELY-UHFFFAOYSA-N 0.000 claims abstract description 25
- 229940072056 alginate Drugs 0.000 claims abstract description 25
- 229920000615 alginic acid Polymers 0.000 claims abstract description 25
- 235000010443 alginic acid Nutrition 0.000 claims abstract description 25
- 239000007864 aqueous solution Substances 0.000 claims abstract description 25
- 238000007493 shaping process Methods 0.000 claims abstract description 23
- 238000001035 drying Methods 0.000 claims abstract description 22
- 238000003756 stirring Methods 0.000 claims abstract description 21
- 239000008367 deionised water Substances 0.000 claims abstract description 17
- 229910021641 deionized water Inorganic materials 0.000 claims abstract description 17
- VOZRXNHHFUQHIL-UHFFFAOYSA-N glycidyl methacrylate Chemical compound CC(=C)C(=O)OCC1CO1 VOZRXNHHFUQHIL-UHFFFAOYSA-N 0.000 claims abstract description 17
- 238000002791 soaking Methods 0.000 claims abstract description 14
- 238000001816 cooling Methods 0.000 claims abstract description 12
- 238000002156 mixing Methods 0.000 claims abstract description 12
- 238000002844 melting Methods 0.000 claims abstract description 11
- 230000008018 melting Effects 0.000 claims abstract description 11
- 238000003825 pressing Methods 0.000 claims description 59
- 238000004080 punching Methods 0.000 claims description 54
- 238000013016 damping Methods 0.000 claims description 42
- 239000002657 fibrous material Substances 0.000 claims description 33
- 238000005098 hot rolling Methods 0.000 claims description 33
- 239000000843 powder Substances 0.000 claims description 30
- 238000004544 sputter deposition Methods 0.000 claims description 25
- 239000000243 solution Substances 0.000 claims description 24
- CSCPPACGZOOCGX-UHFFFAOYSA-N Acetone Chemical compound CC(C)=O CSCPPACGZOOCGX-UHFFFAOYSA-N 0.000 claims description 16
- GWEVSGVZZGPLCZ-UHFFFAOYSA-N Titan oxide Chemical compound O=[Ti]=O GWEVSGVZZGPLCZ-UHFFFAOYSA-N 0.000 claims description 16
- 239000002994 raw material Substances 0.000 claims description 16
- BQCADISMDOOEFD-UHFFFAOYSA-N Silver Chemical compound [Ag] BQCADISMDOOEFD-UHFFFAOYSA-N 0.000 claims description 14
- 239000000203 mixture Substances 0.000 claims description 14
- NDVLTYZPCACLMA-UHFFFAOYSA-N silver oxide Substances [O-2].[Ag+].[Ag+] NDVLTYZPCACLMA-UHFFFAOYSA-N 0.000 claims description 14
- 229910001923 silver oxide Inorganic materials 0.000 claims description 14
- 239000000758 substrate Substances 0.000 claims description 14
- LFQSCWFLJHTTHZ-UHFFFAOYSA-N Ethanol Chemical compound CCO LFQSCWFLJHTTHZ-UHFFFAOYSA-N 0.000 claims description 13
- 239000007789 gas Substances 0.000 claims description 12
- 239000002023 wood Substances 0.000 claims description 12
- 238000005485 electric heating Methods 0.000 claims description 11
- 238000005507 spraying Methods 0.000 claims description 11
- SPSPIUSUWPLVKD-UHFFFAOYSA-N 2,3-dibutyl-6-methylphenol Chemical compound CCCCC1=CC=C(C)C(O)=C1CCCC SPSPIUSUWPLVKD-UHFFFAOYSA-N 0.000 claims description 8
- MRBKEAMVRSLQPH-UHFFFAOYSA-N 3-tert-butyl-4-hydroxyanisole Chemical compound COC1=CC=C(O)C(C(C)(C)C)=C1 MRBKEAMVRSLQPH-UHFFFAOYSA-N 0.000 claims description 8
- XKRFYHLGVUSROY-UHFFFAOYSA-N Argon Chemical compound [Ar] XKRFYHLGVUSROY-UHFFFAOYSA-N 0.000 claims description 8
- 235000017166 Bambusa arundinacea Nutrition 0.000 claims description 8
- 235000017491 Bambusa tulda Nutrition 0.000 claims description 8
- 241001330002 Bambuseae Species 0.000 claims description 8
- 229920001661 Chitosan Polymers 0.000 claims description 8
- 235000015334 Phyllostachys viridis Nutrition 0.000 claims description 8
- 239000005708 Sodium hypochlorite Substances 0.000 claims description 8
- KKEYFWRCBNTPAC-UHFFFAOYSA-N Terephthalic acid Chemical compound OC(=O)C1=CC=C(C(O)=O)C=C1 KKEYFWRCBNTPAC-UHFFFAOYSA-N 0.000 claims description 8
- 239000011425 bamboo Substances 0.000 claims description 8
- 235000010354 butylated hydroxytoluene Nutrition 0.000 claims description 8
- 239000003610 charcoal Substances 0.000 claims description 8
- 238000001125 extrusion Methods 0.000 claims description 8
- SOQBVABWOPYFQZ-UHFFFAOYSA-N oxygen(2-);titanium(4+) Chemical compound [O-2].[O-2].[Ti+4] SOQBVABWOPYFQZ-UHFFFAOYSA-N 0.000 claims description 8
- 229920000136 polysorbate Polymers 0.000 claims description 8
- 239000012286 potassium permanganate Substances 0.000 claims description 8
- 239000010453 quartz Substances 0.000 claims description 8
- VYPSYNLAJGMNEJ-UHFFFAOYSA-N silicon dioxide Inorganic materials O=[Si]=O VYPSYNLAJGMNEJ-UHFFFAOYSA-N 0.000 claims description 8
- SUKJFIGYRHOWBL-UHFFFAOYSA-N sodium hypochlorite Chemical compound [Na+].Cl[O-] SUKJFIGYRHOWBL-UHFFFAOYSA-N 0.000 claims description 8
- 239000004408 titanium dioxide Substances 0.000 claims description 8
- 238000006243 chemical reaction Methods 0.000 claims description 7
- 239000008223 sterile water Substances 0.000 claims description 6
- 229910052786 argon Inorganic materials 0.000 claims description 4
- 239000002245 particle Substances 0.000 claims description 4
- 238000010298 pulverizing process Methods 0.000 claims description 4
- 239000008213 purified water Substances 0.000 claims description 4
- 238000007873 sieving Methods 0.000 claims description 4
- 229940074404 sodium succinate Drugs 0.000 claims description 4
- ZDQYSKICYIVCPN-UHFFFAOYSA-L sodium succinate (anhydrous) Chemical compound [Na+].[Na+].[O-]C(=O)CCC([O-])=O ZDQYSKICYIVCPN-UHFFFAOYSA-L 0.000 claims description 4
- 238000004519 manufacturing process Methods 0.000 claims description 3
- 229920002635 polyurethane Polymers 0.000 claims description 3
- 239000004814 polyurethane Substances 0.000 claims description 3
- 230000008569 process Effects 0.000 abstract description 18
- 238000013461 design Methods 0.000 abstract description 4
- SMZOUWXMTYCWNB-UHFFFAOYSA-N 2-(2-methoxy-5-methylphenyl)ethanamine Chemical compound COC1=CC=C(C)C=C1CCN SMZOUWXMTYCWNB-UHFFFAOYSA-N 0.000 abstract 1
- NIXOWILDQLNWCW-UHFFFAOYSA-N 2-Propenoic acid Natural products OC(=O)C=C NIXOWILDQLNWCW-UHFFFAOYSA-N 0.000 abstract 1
- 238000007598 dipping method Methods 0.000 description 11
- 230000000694 effects Effects 0.000 description 10
- 230000007797 corrosion Effects 0.000 description 7
- 238000005260 corrosion Methods 0.000 description 7
- 230000002045 lasting effect Effects 0.000 description 7
- 230000003647 oxidation Effects 0.000 description 7
- 238000007254 oxidation reaction Methods 0.000 description 7
- 230000000638 stimulation Effects 0.000 description 7
- 230000037303 wrinkles Effects 0.000 description 5
- 241000894006 Bacteria Species 0.000 description 4
- 238000009826 distribution Methods 0.000 description 4
- 238000012360 testing method Methods 0.000 description 4
- 230000009471 action Effects 0.000 description 3
- 238000006065 biodegradation reaction Methods 0.000 description 3
- 230000015556 catabolic process Effects 0.000 description 3
- 238000004140 cleaning Methods 0.000 description 3
- 238000006731 degradation reaction Methods 0.000 description 3
- 230000001954 sterilising effect Effects 0.000 description 3
- 238000004659 sterilization and disinfection Methods 0.000 description 3
- 238000009423 ventilation Methods 0.000 description 3
- QGZKDVFQNNGYKY-UHFFFAOYSA-N Ammonia Chemical compound N QGZKDVFQNNGYKY-UHFFFAOYSA-N 0.000 description 2
- 229920000742 Cotton Polymers 0.000 description 1
- XSQUKJJJFZCRTK-UHFFFAOYSA-N Urea Chemical compound NC(N)=O XSQUKJJJFZCRTK-UHFFFAOYSA-N 0.000 description 1
- 229910021529 ammonia Inorganic materials 0.000 description 1
- 230000009286 beneficial effect Effects 0.000 description 1
- 239000004202 carbamide Substances 0.000 description 1
- 238000011161 development Methods 0.000 description 1
- 238000005516 engineering process Methods 0.000 description 1
- 230000002349 favourable effect Effects 0.000 description 1
- 230000036541 health Effects 0.000 description 1
- 235000015097 nutrients Nutrition 0.000 description 1
- 238000005457 optimization Methods 0.000 description 1
- 238000011056 performance test Methods 0.000 description 1
- 229920000642 polymer Polymers 0.000 description 1
- 230000002787 reinforcement Effects 0.000 description 1
- 239000012779 reinforcing material Substances 0.000 description 1
- 210000004243 sweat Anatomy 0.000 description 1
- 239000004753 textile Substances 0.000 description 1
Images
Classifications
-
- D—TEXTILES; PAPER
- D06—TREATMENT OF TEXTILES OR THE LIKE; LAUNDERING; FLEXIBLE MATERIALS NOT OTHERWISE PROVIDED FOR
- D06M—TREATMENT, NOT PROVIDED FOR ELSEWHERE IN CLASS D06, OF FIBRES, THREADS, YARNS, FABRICS, FEATHERS OR FIBROUS GOODS MADE FROM SUCH MATERIALS
- D06M11/00—Treating fibres, threads, yarns, fabrics or fibrous goods made from such materials, with inorganic substances or complexes thereof; Such treatment combined with mechanical treatment, e.g. mercerising
- D06M11/73—Treating fibres, threads, yarns, fabrics or fibrous goods made from such materials, with inorganic substances or complexes thereof; Such treatment combined with mechanical treatment, e.g. mercerising with carbon or compounds thereof
- D06M11/74—Treating fibres, threads, yarns, fabrics or fibrous goods made from such materials, with inorganic substances or complexes thereof; Such treatment combined with mechanical treatment, e.g. mercerising with carbon or compounds thereof with carbon or graphite; with carbides; with graphitic acids or their salts
-
- D—TEXTILES; PAPER
- D01—NATURAL OR MAN-MADE THREADS OR FIBRES; SPINNING
- D01F—CHEMICAL FEATURES IN THE MANUFACTURE OF ARTIFICIAL FILAMENTS, THREADS, FIBRES, BRISTLES OR RIBBONS; APPARATUS SPECIALLY ADAPTED FOR THE MANUFACTURE OF CARBON FILAMENTS
- D01F1/00—General methods for the manufacture of artificial filaments or the like
- D01F1/02—Addition of substances to the spinning solution or to the melt
- D01F1/10—Other agents for modifying properties
-
- D—TEXTILES; PAPER
- D01—NATURAL OR MAN-MADE THREADS OR FIBRES; SPINNING
- D01F—CHEMICAL FEATURES IN THE MANUFACTURE OF ARTIFICIAL FILAMENTS, THREADS, FIBRES, BRISTLES OR RIBBONS; APPARATUS SPECIALLY ADAPTED FOR THE MANUFACTURE OF CARBON FILAMENTS
- D01F8/00—Conjugated, i.e. bi- or multicomponent, artificial filaments or the like; Manufacture thereof
- D01F8/02—Conjugated, i.e. bi- or multicomponent, artificial filaments or the like; Manufacture thereof from cellulose, cellulose derivatives, or proteins
-
- D—TEXTILES; PAPER
- D01—NATURAL OR MAN-MADE THREADS OR FIBRES; SPINNING
- D01F—CHEMICAL FEATURES IN THE MANUFACTURE OF ARTIFICIAL FILAMENTS, THREADS, FIBRES, BRISTLES OR RIBBONS; APPARATUS SPECIALLY ADAPTED FOR THE MANUFACTURE OF CARBON FILAMENTS
- D01F8/00—Conjugated, i.e. bi- or multicomponent, artificial filaments or the like; Manufacture thereof
- D01F8/04—Conjugated, i.e. bi- or multicomponent, artificial filaments or the like; Manufacture thereof from synthetic polymers
- D01F8/16—Conjugated, i.e. bi- or multicomponent, artificial filaments or the like; Manufacture thereof from synthetic polymers with at least one other macromolecular compound obtained otherwise than by reactions only involving carbon-to-carbon unsaturated bonds as constituent
-
- D—TEXTILES; PAPER
- D01—NATURAL OR MAN-MADE THREADS OR FIBRES; SPINNING
- D01F—CHEMICAL FEATURES IN THE MANUFACTURE OF ARTIFICIAL FILAMENTS, THREADS, FIBRES, BRISTLES OR RIBBONS; APPARATUS SPECIALLY ADAPTED FOR THE MANUFACTURE OF CARBON FILAMENTS
- D01F8/00—Conjugated, i.e. bi- or multicomponent, artificial filaments or the like; Manufacture thereof
- D01F8/18—Conjugated, i.e. bi- or multicomponent, artificial filaments or the like; Manufacture thereof from other substances
-
- D—TEXTILES; PAPER
- D04—BRAIDING; LACE-MAKING; KNITTING; TRIMMINGS; NON-WOVEN FABRICS
- D04H—MAKING TEXTILE FABRICS, e.g. FROM FIBRES OR FILAMENTARY MATERIAL; FABRICS MADE BY SUCH PROCESSES OR APPARATUS, e.g. FELTS, NON-WOVEN FABRICS; COTTON-WOOL; WADDING ; NON-WOVEN FABRICS FROM STAPLE FIBRES, FILAMENTS OR YARNS, BONDED WITH AT LEAST ONE WEB-LIKE MATERIAL DURING THEIR CONSOLIDATION
- D04H3/00—Non-woven fabrics formed wholly or mainly of yarns or like filamentary material of substantial length
- D04H3/08—Non-woven fabrics formed wholly or mainly of yarns or like filamentary material of substantial length characterised by the method of strengthening or consolidating
- D04H3/10—Non-woven fabrics formed wholly or mainly of yarns or like filamentary material of substantial length characterised by the method of strengthening or consolidating with bonds between yarns or filaments made mechanically
- D04H3/11—Non-woven fabrics formed wholly or mainly of yarns or like filamentary material of substantial length characterised by the method of strengthening or consolidating with bonds between yarns or filaments made mechanically by fluid jet
-
- D—TEXTILES; PAPER
- D04—BRAIDING; LACE-MAKING; KNITTING; TRIMMINGS; NON-WOVEN FABRICS
- D04H—MAKING TEXTILE FABRICS, e.g. FROM FIBRES OR FILAMENTARY MATERIAL; FABRICS MADE BY SUCH PROCESSES OR APPARATUS, e.g. FELTS, NON-WOVEN FABRICS; COTTON-WOOL; WADDING ; NON-WOVEN FABRICS FROM STAPLE FIBRES, FILAMENTS OR YARNS, BONDED WITH AT LEAST ONE WEB-LIKE MATERIAL DURING THEIR CONSOLIDATION
- D04H3/00—Non-woven fabrics formed wholly or mainly of yarns or like filamentary material of substantial length
- D04H3/08—Non-woven fabrics formed wholly or mainly of yarns or like filamentary material of substantial length characterised by the method of strengthening or consolidating
- D04H3/14—Non-woven fabrics formed wholly or mainly of yarns or like filamentary material of substantial length characterised by the method of strengthening or consolidating with bonds between thermoplastic yarns or filaments produced by welding
- D04H3/147—Composite yarns or filaments
-
- D—TEXTILES; PAPER
- D06—TREATMENT OF TEXTILES OR THE LIKE; LAUNDERING; FLEXIBLE MATERIALS NOT OTHERWISE PROVIDED FOR
- D06C—FINISHING, DRESSING, TENTERING OR STRETCHING TEXTILE FABRICS
- D06C7/00—Heating or cooling textile fabrics
- D06C7/02—Setting
-
- D—TEXTILES; PAPER
- D06—TREATMENT OF TEXTILES OR THE LIKE; LAUNDERING; FLEXIBLE MATERIALS NOT OTHERWISE PROVIDED FOR
- D06M—TREATMENT, NOT PROVIDED FOR ELSEWHERE IN CLASS D06, OF FIBRES, THREADS, YARNS, FABRICS, FEATHERS OR FIBROUS GOODS MADE FROM SUCH MATERIALS
- D06M11/00—Treating fibres, threads, yarns, fabrics or fibrous goods made from such materials, with inorganic substances or complexes thereof; Such treatment combined with mechanical treatment, e.g. mercerising
- D06M11/32—Treating fibres, threads, yarns, fabrics or fibrous goods made from such materials, with inorganic substances or complexes thereof; Such treatment combined with mechanical treatment, e.g. mercerising with oxygen, ozone, ozonides, oxides, hydroxides or percompounds; Salts derived from anions with an amphoteric element-oxygen bond
- D06M11/36—Treating fibres, threads, yarns, fabrics or fibrous goods made from such materials, with inorganic substances or complexes thereof; Such treatment combined with mechanical treatment, e.g. mercerising with oxygen, ozone, ozonides, oxides, hydroxides or percompounds; Salts derived from anions with an amphoteric element-oxygen bond with oxides, hydroxides or mixed oxides; with salts derived from anions with an amphoteric element-oxygen bond
- D06M11/46—Oxides or hydroxides of elements of Groups 4 or 14 of the Periodic Table; Titanates; Zirconates; Stannates; Plumbates
-
- D—TEXTILES; PAPER
- D06—TREATMENT OF TEXTILES OR THE LIKE; LAUNDERING; FLEXIBLE MATERIALS NOT OTHERWISE PROVIDED FOR
- D06M—TREATMENT, NOT PROVIDED FOR ELSEWHERE IN CLASS D06, OF FIBRES, THREADS, YARNS, FABRICS, FEATHERS OR FIBROUS GOODS MADE FROM SUCH MATERIALS
- D06M11/00—Treating fibres, threads, yarns, fabrics or fibrous goods made from such materials, with inorganic substances or complexes thereof; Such treatment combined with mechanical treatment, e.g. mercerising
- D06M11/32—Treating fibres, threads, yarns, fabrics or fibrous goods made from such materials, with inorganic substances or complexes thereof; Such treatment combined with mechanical treatment, e.g. mercerising with oxygen, ozone, ozonides, oxides, hydroxides or percompounds; Salts derived from anions with an amphoteric element-oxygen bond
- D06M11/50—Treating fibres, threads, yarns, fabrics or fibrous goods made from such materials, with inorganic substances or complexes thereof; Such treatment combined with mechanical treatment, e.g. mercerising with oxygen, ozone, ozonides, oxides, hydroxides or percompounds; Salts derived from anions with an amphoteric element-oxygen bond with hydrogen peroxide or peroxides of metals; with persulfuric, permanganic, pernitric, percarbonic acids or their salts
-
- D—TEXTILES; PAPER
- D06—TREATMENT OF TEXTILES OR THE LIKE; LAUNDERING; FLEXIBLE MATERIALS NOT OTHERWISE PROVIDED FOR
- D06M—TREATMENT, NOT PROVIDED FOR ELSEWHERE IN CLASS D06, OF FIBRES, THREADS, YARNS, FABRICS, FEATHERS OR FIBROUS GOODS MADE FROM SUCH MATERIALS
- D06M15/00—Treating fibres, threads, yarns, fabrics, or fibrous goods made from such materials, with macromolecular compounds; Such treatment combined with mechanical treatment
- D06M15/01—Treating fibres, threads, yarns, fabrics, or fibrous goods made from such materials, with macromolecular compounds; Such treatment combined with mechanical treatment with natural macromolecular compounds or derivatives thereof
- D06M15/03—Polysaccharides or derivatives thereof
-
- D—TEXTILES; PAPER
- D06—TREATMENT OF TEXTILES OR THE LIKE; LAUNDERING; FLEXIBLE MATERIALS NOT OTHERWISE PROVIDED FOR
- D06M—TREATMENT, NOT PROVIDED FOR ELSEWHERE IN CLASS D06, OF FIBRES, THREADS, YARNS, FABRICS, FEATHERS OR FIBROUS GOODS MADE FROM SUCH MATERIALS
- D06M16/00—Biochemical treatment of fibres, threads, yarns, fabrics, or fibrous goods made from such materials, e.g. enzymatic
-
- D—TEXTILES; PAPER
- D06—TREATMENT OF TEXTILES OR THE LIKE; LAUNDERING; FLEXIBLE MATERIALS NOT OTHERWISE PROVIDED FOR
- D06M—TREATMENT, NOT PROVIDED FOR ELSEWHERE IN CLASS D06, OF FIBRES, THREADS, YARNS, FABRICS, FEATHERS OR FIBROUS GOODS MADE FROM SUCH MATERIALS
- D06M2101/00—Chemical constitution of the fibres, threads, yarns, fabrics or fibrous goods made from such materials, to be treated
- D06M2101/02—Natural fibres, other than mineral fibres
- D06M2101/04—Vegetal fibres
-
- D—TEXTILES; PAPER
- D06—TREATMENT OF TEXTILES OR THE LIKE; LAUNDERING; FLEXIBLE MATERIALS NOT OTHERWISE PROVIDED FOR
- D06M—TREATMENT, NOT PROVIDED FOR ELSEWHERE IN CLASS D06, OF FIBRES, THREADS, YARNS, FABRICS, FEATHERS OR FIBROUS GOODS MADE FROM SUCH MATERIALS
- D06M2101/00—Chemical constitution of the fibres, threads, yarns, fabrics or fibrous goods made from such materials, to be treated
- D06M2101/02—Natural fibres, other than mineral fibres
- D06M2101/04—Vegetal fibres
- D06M2101/06—Vegetal fibres cellulosic
-
- D—TEXTILES; PAPER
- D06—TREATMENT OF TEXTILES OR THE LIKE; LAUNDERING; FLEXIBLE MATERIALS NOT OTHERWISE PROVIDED FOR
- D06M—TREATMENT, NOT PROVIDED FOR ELSEWHERE IN CLASS D06, OF FIBRES, THREADS, YARNS, FABRICS, FEATHERS OR FIBROUS GOODS MADE FROM SUCH MATERIALS
- D06M2101/00—Chemical constitution of the fibres, threads, yarns, fabrics or fibrous goods made from such materials, to be treated
- D06M2101/16—Synthetic fibres, other than mineral fibres
- D06M2101/30—Synthetic polymers consisting of macromolecular compounds obtained otherwise than by reactions only involving carbon-to-carbon unsaturated bonds
- D06M2101/38—Polyurethanes
Landscapes
- Engineering & Computer Science (AREA)
- Textile Engineering (AREA)
- Chemical Kinetics & Catalysis (AREA)
- General Chemical & Material Sciences (AREA)
- Chemical & Material Sciences (AREA)
- Life Sciences & Earth Sciences (AREA)
- Biochemistry (AREA)
- Mechanical Engineering (AREA)
- Microbiology (AREA)
- Manufacturing & Machinery (AREA)
- Health & Medical Sciences (AREA)
- Toxicology (AREA)
- Treatments For Attaching Organic Compounds To Fibrous Goods (AREA)
Abstract
The invention discloses an environment-friendly easily-decomposed antibacterial non-woven fabric and a preparation method thereof, wherein the method comprises the following steps: s1, heating and melting the modified polyurethane fiber, the alginate fiber and the wood pulp cellulose, and stirring and reacting the acrylic acid, the citric acid, the glycidyl methacrylate and the antioxidant; s2, mixing, melting, spinning, cooling, stretching, winding and carding the material obtained in the step S1 to obtain a composite fiber web; s3, carrying out spunlace treatment on the composite fiber net to obtain a non-woven fabric base material; s4, shaping the non-woven fabric base material to obtain a non-woven fabric finished product; s5, soaking the finished non-woven fabric in an aqueous solution formed by a bacteriostatic agent and deionized water, and drying to obtain the antibacterial non-woven fabric; the device comprises a double-screw extruder, a spinning machine, a fabric setting machine and a dryer; the process structure of the invention is reasonable in design, and the obtained antibacterial non-woven fabric has good biodegradability and antibacterial performance, and is suitable for mass popularization.
Description
Technical Field
The invention relates to the technical field of non-woven fabric preparation, in particular to an environment-friendly easily-degradable antibacterial non-woven fabric and a preparation method thereof.
Background
The non-woven fabric is a high-technology content in a flexible material production system, has wide market demand, relates to a wide-range modern material industry, develops at an astonishing speed, and is known as the 'sunward industry' in the textile industry. The non-woven fabric is a non-woven fabric which is formed by directly utilizing high polymer slices, short fibers or filaments to form a net through air flow or machinery, then carrying out spunlace, needling or hot rolling reinforcement, and finally carrying out after-treatment. A novel fabric product having a soft, air-permeable and planar structure, which is strong, durable, silky and soft without generating lint, is one of reinforcing materials, and has a cotton-like feeling, and a non-woven fabric bag which is easy to form and inexpensive as compared with cotton.
Although the non-woven fabrics produced by different processes have excellent effects in improving sanitary environment and facilitating use. However, human skin and clothes are places where bacteria grow, the bacteria take human excrement such as urea in sweat as a nutrient source, the bacteria continuously propagate, and ammonia with strong odor is discharged, so that the health of people is affected and the bacteria are not sanitary.
Disclosure of Invention
Aiming at the technical problems, the invention provides the environment-friendly easily-degradable antibacterial non-woven fabric with reasonable process design and the preparation method and the device thereof.
The technical scheme of the invention is as follows: a preparation method of an environment-friendly easily-degradable antibacterial non-woven fabric comprises the following raw materials in parts by weight: 15-45 parts of modified polyurethane fiber, 8-20 parts of alginate fiber, 6-18 parts of wood pulp cellulose, 5-8 parts of citric acid, 12-26 parts of glycidyl methacrylate, 1-3 parts of bacteriostatic agent, 0.5-2 parts of antioxidant and 16-25 parts of deionized water;
the bacteriostatic agent comprises the following raw materials in parts by weight: 15-30 parts of nano bamboo charcoal, 5-12 parts of potassium permanganate, 4-7 parts of chitosan, 5-15 parts of nano titanium dioxide, 4-8 parts of sodium hypochlorite solution, 2-4 parts of acetone solution and 3-6 parts of tween; the bacteriostatic agent in the proportion has a lasting antibacterial effect, has excellent biocompatibility and does not generate any stimulation to users in the using process;
the antioxidant is a mixture of titanium dioxide, quartz powder, dibutyl hydroxy toluene and butyl hydroxy anisol according to the mass ratio of 1:2:1: 3; the antioxidant in the proportion can avoid oxidation corrosion of the antibacterial non-woven fabric in the using process and the phenomenon of fiber breakage inside the antibacterial non-woven fabric, and prolong the service life of the antibacterial non-woven fabric;
the preparation method of the non-woven fabric comprises the following steps:
s1, placing the modified polyurethane fiber, the alginate fiber and the wood pulp cellulose in a melting furnace, heating the materials to 175-215 ℃, and continuously stirring the materials in the heating process to obtain a mixed fiber material A; stirring citric acid, glycidyl methacrylate and antioxidant at 40-60 deg.C for 15-25 min; obtaining a mixed material B;
s2, feeding the mixed fiber material A and the mixed material B obtained in the step S1 into a double-screw extruder respectively to be melted into mixed melt; then putting the mixed melt into a spinning machine, spraying the mixed melt out of a spinneret plate of the spinning machine to form composite fiber strands, and then cooling, stretching, winding and carding to obtain a composite fiber web; the working temperature of the double-screw extruder is 180-230 ℃, the fineness of the composite fiber filament is 2-5dtex, and the rotating speed of a carding and carding machine used for carding operation is 500-900 rad/min;
s3, carrying out spunlace treatment on the composite fiber web obtained in the step S2 for 25-30min by using atomized water to obtain a non-woven fabric substrate; wherein, the water punching treatment is carried out for 3 times, the first and second water punching treatment adopts round net type water punching, the third water punching treatment adopts platform type water punching, the water pressure of the water punching treatment is 30-60bar, and the number of water punching heads is 3-9;
s4, placing the non-woven fabric base material obtained in the step S3 into a fabric setting machine, setting the temperature at 130-150 ℃, setting the time at 15-45S, after setting is finished, symmetrically folding the obtained material, placing the material into a hot rolling machine for hot rolling treatment, controlling the temperature of a hot rolling roll at 150-180 ℃, and the pressure at 1-3kg/cm2After hot rolling is finished, obtaining a non-woven fabric finished product;
s5, uniformly mixing the bacteriostatic agent and deionized water to form bacteriostatic agent aqueous solution, heating the bacteriostatic agent aqueous solution to 35-50 ℃, then soaking the non-woven fabric finished product obtained in the step S4 in the bacteriostatic agent aqueous solution for 1-3h, and finally, drying the soaked non-woven fabric finished product in a dryer for 15-45min to obtain the antibacterial non-woven fabric.
Further, before the step S1, the modified polyurethane fiber and the alginate fiber are respectively washed by sterile water for 3-6 times under the ventilation condition, and then are respectively soaked in purified water at 50-55 ℃ for 30-35min, so that the fibers are fluffy, and the use comfort of the antibacterial non-woven fabric is improved.
Further, after the step S5 is completed, the antibacterial non-woven fabric is subjected to alcohol dipping treatment for 50-80min under the ultrasonic condition, and then is subjected to pressure drying treatment, wherein the alcohol dipping treatment temperature is 20-50 ℃, the power of the ultrasonic wave is 300-500W, and the use safety of the antibacterial non-woven fabric is improved by performing the alcohol dipping treatment on the antibacterial non-woven fabric.
Further, the preparation method of the wood pulp cellulose comprises the following steps: 1) pulverizing wood, and sieving with 60-80 mesh sieve to obtain wood powder with particle size of 0.15-0.25 mm; 2) dissolving the wood powder obtained in the step 1) in a sodium succinate solution with the mass concentration of 12-16% at room temperature, heating the mixture in water bath at 55-60 ℃, and mechanically stirring for 20-35h to obtain the wood pulp cellulose.
Further, the preparation method of the modified polyurethane fiber comprises the following steps: the polyurethane fiber and the terephthalic acid solution are uniformly mixed according to the volume ratio of 1:2-4, then the mixture is reacted for 1-2h under the condition of ultraviolet irradiation, after the reaction is finished, the mixture is taken out, centrifugally dried for 4-15min, and finally dried for 1-3h under the condition of 120-160 ℃, and cooled to room temperature, so that the modified polyurethane fiber can be obtained.
Further, after the step S5 is completed, 5-15 parts of nano silver oxide powder is sprayed on the surface of the antibacterial non-woven fabric in a gas sputtering mode, the sputtering gas is argon, the working pressure during sputtering is 3-7Pa, the sputtering power is 30-50W, the sputtering time is 3-5min, the nano silver oxide powder is sprayed on the surface of the antibacterial non-woven fabric through a gas sputtering method, and the antibacterial effect of the nano silver oxide powder is utilized, so that the sterilization effect of the antibacterial non-woven fabric is further improved, and the use effect is improved.
Further, in step S3, the water pressure of the first water-jet treatment is 30-40bar, the water pressure of the second water-jet treatment is 40-50bar, and the water pressure of the third water-jet treatment is 50-70bar, and by performing the three water-jet treatments, the damage of the internal fiber in the non-woven fabric during the preparation process is reduced, the uniformity of material distribution is improved, and the flatness of the surface of the non-woven fabric is improved.
An environment-friendly and easily-decomposed antibacterial non-woven fabric preparation device comprises a double-screw extruder, a spinning machine, a fabric setting machine and a dryer, wherein the double-screw extruder is used for melt extrusion of a mixed fiber material A and a mixed material B, the spinning machine is used for spinning a mixed melt formed by the mixed fiber material A and the mixed material B, and the fabric setting machine is used for setting the base part of the non-woven fabric subjected to spunlace treatment; the drying machine is used for drying the formed non-woven fabric finished product, the fabric forming machine comprises a machine base, an upper forming press plate, a lower forming press plate, a guide roller, a winding drum and a lower pressing component, the machine base is hollow, the upper end of the machine base is provided with a mounting groove, the lower forming press plate is movably clamped on the mounting groove through a sliding column, a first damping spring is arranged between the sliding column and the mounting groove, two sides of the lower end surface of the upper forming press plate are respectively provided with two sliding support rods, the upper forming press plate is inserted in the machine base through the sliding support rods, the movable support rods extend into the machine base, the two sliding support rods positioned on the two sides in the machine base are connected through pull rods, the lower ends of the two pull rods are respectively provided with a connecting rod, and one side of the upper forming press plate, which is opposite to the lower forming press plate, is provided with an electric heating plate; the guide rolls are provided with two, two guide rolls are arranged at the head end of the base up and down through the first mounting frame, the winding drum is arranged at the tail end of the base through the second mounting frame, a rotary hand wheel is arranged on the winding drum, the pressing component comprises a guide slide bar and a pressing plate, the guide slide bar is provided with two guide slide bars, the two guide slide bars are arranged at two sides inside the base in parallel, the two guide slide bars are all sleeved with a second damping spring, the pressing plate is movably sleeved on the two guide slide bars, and abutted against the second damping spring, the upper end face of the pressing plate is fixedly connected with the connecting rod, the pressing plate is provided with a pedal, the pedal penetrates through the side wall of the base, and can move up and down along the side wall of the base.
Further, two guide rolls all are provided with third damping spring with first mounting bracket junction for two guide rolls are close to each other all the time, have avoided non-woven fabrics base cloth to produce the fold when passing two guide rolls, improve the roughness of the non-woven fabrics base cloth after the design through setting up third damping spring.
The working principle of the fabric setting machine provided by the invention is as follows: when the non-woven fabric winding device is used, an external power supply is used for supplying power to the electric heating plate, and one end of the non-woven fabric substrate penetrates through a gap between the two guide rollers and then is connected with the winding drum; at the moment, the lower shaping pressing plate is close to the lower end face of the non-woven fabric substrate under the action of the first damping spring, and the pedal is stepped on, so that the lower pressing plate passes through the connecting rod, the upper shaping pressing plate is pulled by the pull rod and the sliding support rod to move downwards and coincide with the lower shaping pressing plate, the non-woven fabric substrate is heated and shaped by the electric heating plates on the upper shaping pressing plate and the lower shaping pressing plate, after shaping is finished, the pedal is loosened, the lower end face of the non-woven fabric substrate is close to the lower end face of the non-woven fabric substrate under the action of the first damping spring, the upper shaping pressing plate is stepped on to move upwards under the action of the second damping spring, the winding drum is rotated by the rotating hand wheel, and the non-woven fabric substrate after shaping is collected and sorted.
Compared with the prior art, the invention has the beneficial effects that: the process structure of the invention is reasonable in design, the modified polyurethane fiber and the alginate fiber are subjected to melting treatment after being subjected to sterile water treatment, and the obtained mixed fiber material is extremely easy to biodegrade, and has a certain antibacterial property, so that the use effect and efficiency of the antibacterial non-woven fabric are improved, and the development of the non-woven fabric manufacturing industry is promoted; the wood pulp cellulose and the modified polyurethane fiber prepared by the method not only realize the sustainable utilization efficiency of natural resources, but also improve the degradation efficiency of the antibacterial non-woven fabric, avoid the pollution of the degraded non-woven fabric to the environment, improve the toughness and resilience of the polyurethane fiber and improve the transverse and longitudinal tensile strength of the polyurethane fiber; after the antibacterial non-woven fabric is prepared, the antibacterial effect of the antibacterial non-woven fabric is further improved and the using effect is improved by alcohol dipping treatment and nano silver oxide powder sputtering treatment and utilizing the antibacterial effect of the nano silver oxide powder.
Drawings
FIG. 1 is a longitudinal cross-sectional view of the fabric setter of the present invention;
FIG. 2 is a schematic view of the upper setting platen, guide rollers and winding drum of the present invention in position on a machine base;
FIG. 3 is a front view of the fabric setting machine of the present invention;
FIG. 4 is a left side view of the fabric setter of the present invention;
the device comprises a base 1, a mounting groove 10, an upper shaping pressing plate 2, a sliding support rod 20, a pull rod 21, a connecting rod 22, a lower shaping pressing plate 3, a sliding column 30, a first damping spring 31, a guide roller 4, a first mounting rack 40, a winding drum 5, a second mounting rack 50, a rotary hand wheel 51, a pressing component 6, a guide sliding rod 60, a second damping spring 600, a pressing plate 61, a pedal 610 and an electric heating plate 7.
Detailed Description
Example 1: a preparation method of an environment-friendly easily-degradable antibacterial non-woven fabric comprises the following raw materials in parts by weight: 15 parts of modified polyurethane fiber, 8 parts of alginate fiber, 6 parts of wood pulp cellulose, 5 parts of citric acid, 12 parts of glycidyl methacrylate, 1 part of bacteriostatic agent, 0.5 part of antioxidant and 16 parts of deionized water;
the bacteriostatic agent comprises the following raw materials in parts by weight: 15 parts of nano bamboo charcoal, 5 parts of potassium permanganate, 4 parts of chitosan, 5 parts of nano titanium dioxide, 4 parts of sodium hypochlorite solution, 2 parts of acetone solution and 3 parts of tween; the bacteriostatic agent in the proportion has a lasting antibacterial effect, has excellent biocompatibility and does not generate any stimulation to users in the using process;
the antioxidant is a mixture of titanium dioxide, quartz powder, dibutyl hydroxy toluene and butyl hydroxy anisol according to the mass ratio of 1:2:1: 3; the antioxidant in the proportion can avoid oxidation corrosion of the antibacterial non-woven fabric in the using process and the phenomenon of fiber breakage inside the antibacterial non-woven fabric, and prolong the service life of the antibacterial non-woven fabric;
the preparation method of the non-woven fabric comprises the following steps:
s1, placing the modified polyurethane fiber, the alginate fiber and the wood pulp cellulose in a melting furnace, heating the materials to 175 ℃, and continuously stirring the materials in the heating process to obtain a mixed fiber material A; stirring and reacting citric acid, glycidyl methacrylate and an antioxidant at the temperature of 40 ℃ for 15 min; obtaining a mixed material B;
s2, feeding the mixed fiber material A and the mixed material B obtained in the step S1 into a double-screw extruder respectively to be melted into mixed melt; then putting the mixed melt into a spinning machine, spraying the mixed melt out of a spinneret plate of the spinning machine to form composite fiber strands, and then cooling, stretching, winding and carding to obtain a composite fiber web; the working temperature of the double-screw extruder is 180 ℃, the fineness of the composite fiber strand silk is 2dtex, and the rotating speed of a carding machine used for carding operation is 500 rad/min;
s3, carrying out spunlace treatment on the composite fiber web obtained in the step S2 for 25min by using atomized water to obtain a non-woven fabric substrate; wherein, the water punching treatment is carried out for 3 times, the first and second water punching treatment adopts round net type water punching, the third water punching treatment adopts platform type water punching, the water pressure of the water punching treatment is 30bar, and the number of water punching heads is 3;
s4, placing the non-woven fabric base material obtained in the step S3 into a fabric setting machine, setting the temperature at 130 ℃ for 15S, symmetrically folding the obtained material after setting, placing the material into a hot rolling mill for hot rolling treatment, controlling the temperature of the hot rolling mill at 150 ℃ and the pressure at 1kg/cm2After hot rolling is finished, obtaining a non-woven fabric finished product;
s5, uniformly mixing the bacteriostatic agent and deionized water to form bacteriostatic agent aqueous solution, heating the bacteriostatic agent aqueous solution to 35 ℃, then soaking the non-woven fabric finished product obtained in the step S4 in the bacteriostatic agent aqueous solution for 1h, and finally, sending the soaked non-woven fabric finished product into a dryer to dry for 15min to obtain the antibacterial non-woven fabric.
The preparation device of the environment-friendly easily-degradable antibacterial non-woven fabric used in the method of the embodiment, as shown in fig. 1, 2, 3 and 4, comprises a double-screw extruder, a spinning machine, a fabric setting machine and a dryer, wherein the double-screw extruder is used for melt extrusion of the mixed fiber material a and the mixed material B, the spinning machine is used for spinning a mixed melt formed by the mixed fiber material a and the mixed material B, and the fabric setting machine is used for setting the base of the non-woven fabric subjected to the spunlace treatment; the dryer is used for drying the formed non-woven fabric finished product, the fabric forming machine comprises a machine base 1, an upper forming press plate 2, a lower forming press plate 3, a guide roller 4, a winding drum 5 and a lower pressing component 6, the machine base 1 is hollow, the upper end of the machine base is provided with a mounting groove 10, the lower forming press plate 3 is movably clamped on the mounting groove 10 through a sliding column 30, a first damping spring 31 is arranged between the sliding column 30 and the mounting groove 10, two sides of the lower end surface of the upper forming press plate 2 are respectively provided with two sliding support rods 20, the upper forming press plate 2 is inserted on the machine base 1 through the sliding support rods 20, the movable support rod 20 extends into the machine base 1, the two sliding support rods 20 positioned at two sides in the machine base 1 are connected through a pull rod 21, the lower ends of the two pull rods 21 are respectively provided with a connecting rod 22, and one side of the upper shaping press plate 2 opposite to one side of the lower shaping press plate 3 is respectively provided with an electric heating plate 7; the guide rollers 4 are provided with two, the two guide rollers 4 are arranged at the head end of the base 1 up and down in parallel through the first mounting rack 40, the winding drum 5 is arranged at the tail end of the base 1 through the second mounting rack 50, the rotating hand wheel 51 is arranged on the winding drum 5, the pressing component 6 comprises two guide slide rods 60 and a pressing plate 61, the two guide slide rods 60 are arranged at two sides inside the base 1 in parallel, the two guide slide rods 60 are sleeved with the second damping spring 600, the pressing plate 61 is movably sleeved on the two guide slide rods 60 and abutted against the second damping spring 600, the upper end face of the pressing plate 61 is fixedly connected with the connecting rod 22, the pressing plate 61 is provided with a pedal 610, and the pedal 610 penetrates through the side wall of the base 1 and can move up and down along the side wall of the base 1.
Example 2: a preparation method of an environment-friendly easily-degradable antibacterial non-woven fabric comprises the following raw materials in parts by weight: 30 parts of modified polyurethane fiber, 15 parts of alginate fiber, 13 parts of wood pulp cellulose, 6 parts of citric acid, 21 parts of glycidyl methacrylate, 2 parts of bacteriostatic agent, 1.2 parts of antioxidant and 120 parts of deionized water;
the bacteriostatic agent comprises the following raw materials in parts by weight: 18 parts of nano bamboo charcoal, 9 parts of potassium permanganate, 6 parts of chitosan, 9 parts of nano titanium dioxide, 7 parts of sodium hypochlorite solution, 3 parts of acetone solution and 5 parts of tween; the bacteriostatic agent in the proportion has a lasting antibacterial effect, has excellent biocompatibility and does not generate any stimulation to users in the using process;
the antioxidant is a mixture of titanium dioxide, quartz powder, dibutyl hydroxy toluene and butyl hydroxy anisol according to the mass ratio of 1:2:1: 3; the antioxidant in the proportion can avoid oxidation corrosion of the antibacterial non-woven fabric in the using process and the phenomenon of fiber breakage inside the antibacterial non-woven fabric, and prolong the service life of the antibacterial non-woven fabric;
the preparation method of the non-woven fabric comprises the following steps:
s1, respectively carrying out sterile water cleaning on the modified polyurethane fibers and the alginate fibers for 3 times under the ventilation condition, then respectively soaking the modified polyurethane fibers and the alginate fibers in purified water at 50 ℃ for 30min, enabling the fibers to be fluffy through the operation, improving the use comfort of the antibacterial non-woven fabric, then placing the modified polyurethane fibers, the alginate fibers and the wood pulp cellulose in a melting furnace, heating the materials to 200 ℃, and continuously stirring the materials in the heating process to obtain a mixed fiber material A; stirring and reacting citric acid, glycidyl methacrylate and an antioxidant at the temperature of 50 ℃ for 20 min; obtaining a mixed material B;
s2, feeding the mixed fiber material A and the mixed material B obtained in the step S1 into a double-screw extruder respectively to be melted into mixed melt; then putting the mixed melt into a spinning machine, spraying the mixed melt out of a spinneret plate of the spinning machine to form composite fiber strands, and then cooling, stretching, winding and carding to obtain a composite fiber web; the working temperature of the double-screw extruder is 215 ℃, the fineness of the composite fiber filament is 4dtex, and the rotating speed of a carding machine used for carding operation is 700 rad/min;
s3, carrying out spunlace treatment on the composite fiber web obtained in the step S2 for 28min by using atomized water to obtain a non-woven fabric substrate; wherein, the water punching treatment is carried out for 3 times, the first and second water punching treatment adopts round net type water punching, the third water punching treatment adopts platform type water punching, the water pressure of the water punching treatment is 50bar, and the number of water punching heads is 7;
s4, placing the non-woven fabric base material obtained in the step S3 into a fabric setting machine, setting the temperature at 142 ℃ for 33S, symmetrically folding the obtained material after setting, placing the material into a hot rolling mill for hot rolling treatment, controlling the temperature of the hot rolling mill at 165 ℃ and the pressure at 2kg/cm2After hot rolling is finished, obtaining a non-woven fabric finished product;
s5, uniformly mixing the bacteriostatic agent and deionized water to form bacteriostatic agent aqueous solution, heating the bacteriostatic agent aqueous solution to 43 ℃, then soaking the non-woven fabric finished product obtained in the step S4 in the bacteriostatic agent aqueous solution for 2 hours, and finally, sending the soaked non-woven fabric finished product into a dryer to dry for 30 minutes to obtain the antibacterial non-woven fabric.
The preparation device of the environment-friendly easily-degradable antibacterial non-woven fabric used in the method of the embodiment, as shown in fig. 1, 2, 3 and 4, comprises a double-screw extruder, a spinning machine, a fabric setting machine and a dryer, wherein the double-screw extruder is used for melt extrusion of the mixed fiber material a and the mixed material B, the spinning machine is used for spinning a mixed melt formed by the mixed fiber material a and the mixed material B, and the fabric setting machine is used for setting the base of the non-woven fabric subjected to the spunlace treatment; the dryer is used for drying the formed non-woven fabric finished product, the fabric forming machine comprises a machine base 1, an upper forming press plate 2, a lower forming press plate 3, a guide roller 4, a winding drum 5 and a lower pressing component 6, the machine base 1 is hollow, the upper end of the machine base is provided with a mounting groove 10, the lower forming press plate 3 is movably clamped on the mounting groove 10 through a sliding column 30, a first damping spring 31 is arranged between the sliding column 30 and the mounting groove 10, two sides of the lower end surface of the upper forming press plate 2 are respectively provided with two sliding support rods 20, the upper forming press plate 2 is inserted on the machine base 1 through the sliding support rods 20, the movable support rod 20 extends into the machine base 1, the two sliding support rods 20 positioned at two sides in the machine base 1 are connected through a pull rod 21, the lower ends of the two pull rods 21 are respectively provided with a connecting rod 22, and one side of the upper shaping press plate 2 opposite to one side of the lower shaping press plate 3 is respectively provided with an electric heating plate 7; the two guide rollers 4 are arranged, the two guide rollers 4 are arranged at the head end of the base 1 in parallel up and down through the first mounting frame 40, third damping springs are arranged at the joints of the two guide rollers 4 and the first mounting frame 40, and the two guide rollers 4 are always close to each other through the arrangement of the third damping springs, so that wrinkles generated when the non-woven base cloth passes through the two guide rollers 4 are avoided, and the flatness of the shaped non-woven base cloth is improved; the winding drum 5 is arranged at the tail end of the base 1 through the second mounting frame 50, a rotary hand wheel 51 is arranged on the winding drum 5, the pressing component 6 comprises two guide slide bars 60 and a pressing plate 61, the two guide slide bars 60 are arranged in parallel at two sides inside the base 1, the two guide slide bars 60 are sleeved with a second damping spring 600, the pressing plate 61 is movably sleeved on the two guide slide bars 60 and abutted against the second damping spring 600, the upper end face of the pressing plate 61 is fixedly connected with the connecting rod 22, a pedal 610 is arranged on the pressing plate 61, the pedal 610 penetrates through the side wall of the base 1 and can move up and down along the side wall of the base 1.
Example 3: a preparation method of an environment-friendly easily-degradable antibacterial non-woven fabric comprises the following raw materials in parts by weight: 45 parts of modified polyurethane fiber, 20 parts of alginate fiber, 18 parts of wood pulp cellulose, 8 parts of citric acid, 26 parts of glycidyl methacrylate, 3 parts of bacteriostatic agent, 2 parts of antioxidant and 25 parts of deionized water;
the bacteriostatic agent comprises the following raw materials in parts by weight: 30 parts of nano bamboo charcoal, 12 parts of potassium permanganate, 7 parts of chitosan, 15 parts of nano titanium dioxide, 8 parts of sodium hypochlorite solution, 4 parts of acetone solution and 6 parts of tween; the bacteriostatic agent in the proportion has a lasting antibacterial effect, has excellent biocompatibility and does not generate any stimulation to users in the using process;
the antioxidant is a mixture of titanium dioxide, quartz powder, dibutyl hydroxy toluene and butyl hydroxy anisol according to the mass ratio of 1:2:1: 3; the antioxidant in the proportion can avoid oxidation corrosion of the antibacterial non-woven fabric in the using process and the phenomenon of fiber breakage inside the antibacterial non-woven fabric, and prolong the service life of the antibacterial non-woven fabric;
the preparation method of the non-woven fabric comprises the following steps:
s1, placing the modified polyurethane fiber, the alginate fiber and the wood pulp cellulose in a melting furnace, heating the materials to 215 ℃, and continuously stirring the materials in the heating process to obtain a mixed fiber material A; stirring and reacting citric acid, glycidyl methacrylate and an antioxidant at the temperature of 60 ℃ for 25 min; obtaining a mixed material B;
s2, feeding the mixed fiber material A and the mixed material B obtained in the step S1 into a double-screw extruder respectively to be melted into mixed melt; then putting the mixed melt into a spinning machine, spraying the mixed melt out of a spinneret plate of the spinning machine to form composite fiber strands, and then cooling, stretching, winding and carding to obtain a composite fiber web; the working temperature of the double-screw extruder is 230 ℃, the fineness of the composite fiber filament is 5dtex, and the rotating speed of a carding machine used for carding operation is 900 rad/min;
s3, carrying out spunlace treatment on the composite fiber web obtained in the step S2 for 30min by using atomized water to obtain a non-woven fabric substrate; wherein, the water punching treatment is carried out for 3 times, the first and second water punching treatment adopts round net type water punching, the third water punching treatment adopts platform type water punching, the water pressure of the water punching treatment is 60bar, and the number of water punching heads is 9;
s4, placing the non-woven fabric base material obtained in the step S3 into a fabric setting machine, setting the temperature at 150 ℃ for 45S, symmetrically folding the obtained material after setting, placing the material into a hot rolling mill for hot rolling treatment, controlling the temperature of the hot rolling mill at 180 ℃ and the pressure at 3kg/cm2After hot rolling is finished, obtaining a non-woven fabric finished product;
s5, uniformly mixing a bacteriostatic agent and deionized water to form a bacteriostatic agent aqueous solution, heating the bacteriostatic agent aqueous solution to 50 ℃, then soaking the non-woven fabric finished product obtained in the step S4 in the bacteriostatic agent aqueous solution for 3 hours, and finally, sending the soaked non-woven fabric finished product into a dryer to dry for 45 minutes to obtain the antibacterial non-woven fabric; and then carrying out alcohol dipping treatment on the antibacterial non-woven fabric for 50min under the ultrasonic condition, and then carrying out pressure drying treatment, wherein the alcohol dipping treatment temperature is 20 ℃, the power of ultrasonic waves is 300W, the use safety of the antibacterial non-woven fabric is improved by carrying out alcohol dipping treatment on the antibacterial non-woven fabric, finally spraying 5 parts of nano silver oxide powder on the surface of the antibacterial non-woven fabric in a gas sputtering mode, the sputtering gas is argon, the working pressure during sputtering is 3Pa, the sputtering power is 30W, the sputtering time is 3min, spraying the nano silver oxide powder on the surface of the antibacterial non-woven fabric by a gas sputtering method, and utilizing the antibacterial action of the nano silver oxide powder, so that the sterilization effect of the antibacterial non-woven fabric is further improved, and the use effect is improved.
The preparation device of the environment-friendly easily-degradable antibacterial non-woven fabric used in the method of the embodiment, as shown in fig. 1, 2, 3 and 4, comprises a double-screw extruder, a spinning machine, a fabric setting machine and a dryer, wherein the double-screw extruder is used for melt extrusion of the mixed fiber material a and the mixed material B, the spinning machine is used for spinning a mixed melt formed by the mixed fiber material a and the mixed material B, and the fabric setting machine is used for setting the base of the non-woven fabric subjected to the spunlace treatment; the dryer is used for drying the formed non-woven fabric finished product, the fabric forming machine comprises a machine base 1, an upper forming press plate 2, a lower forming press plate 3, a guide roller 4, a winding drum 5 and a lower pressing component 6, the machine base 1 is hollow, the upper end of the machine base is provided with a mounting groove 10, the lower forming press plate 3 is movably clamped on the mounting groove 10 through a sliding column 30, a first damping spring 31 is arranged between the sliding column 30 and the mounting groove 10, two sides of the lower end surface of the upper forming press plate 2 are respectively provided with two sliding support rods 20, the upper forming press plate 2 is inserted on the machine base 1 through the sliding support rods 20, the movable support rod 20 extends into the machine base 1, the two sliding support rods 20 positioned at two sides in the machine base 1 are connected through a pull rod 21, the lower ends of the two pull rods 21 are respectively provided with a connecting rod 22, and one side of the upper shaping press plate 2 opposite to one side of the lower shaping press plate 3 is respectively provided with an electric heating plate 7; the two guide rollers 4 are arranged, the two guide rollers 4 are arranged at the head end of the base 1 in parallel up and down through the first mounting frame 40, third damping springs are arranged at the joints of the two guide rollers 4 and the first mounting frame 40, and the two guide rollers 4 are always close to each other through the arrangement of the third damping springs, so that wrinkles generated when the non-woven base cloth passes through the two guide rollers 4 are avoided, and the flatness of the shaped non-woven base cloth is improved; the winding drum 5 is arranged at the tail end of the base 1 through the second mounting frame 50, a rotary hand wheel 51 is arranged on the winding drum 5, the pressing component 6 comprises two guide slide bars 60 and a pressing plate 61, the two guide slide bars 60 are arranged in parallel at two sides inside the base 1, the two guide slide bars 60 are sleeved with a second damping spring 600, the pressing plate 61 is movably sleeved on the two guide slide bars 60 and abutted against the second damping spring 600, the upper end face of the pressing plate 61 is fixedly connected with the connecting rod 22, a pedal 610 is arranged on the pressing plate 61, the pedal 610 penetrates through the side wall of the base 1 and can move up and down along the side wall of the base 1.
Example 4: a preparation method of an environment-friendly easily-degradable antibacterial non-woven fabric comprises the following raw materials in parts by weight: 15 parts of modified polyurethane fiber, 8 parts of alginate fiber, 6 parts of wood pulp cellulose, 5 parts of citric acid, 12 parts of glycidyl methacrylate, 1 part of bacteriostatic agent, 0.5 part of antioxidant and 16 parts of deionized water;
the bacteriostatic agent comprises the following raw materials in parts by weight: 15 parts of nano bamboo charcoal, 5 parts of potassium permanganate, 4 parts of chitosan, 5 parts of nano titanium dioxide, 4 parts of sodium hypochlorite solution, 2 parts of acetone solution and 3 parts of tween; the bacteriostatic agent in the proportion has a lasting antibacterial effect, has excellent biocompatibility and does not generate any stimulation to users in the using process;
the antioxidant is a mixture of titanium dioxide, quartz powder, dibutyl hydroxy toluene and butyl hydroxy anisol according to the mass ratio of 1:2:1: 3; the antioxidant in the proportion can avoid oxidation corrosion of the antibacterial non-woven fabric in the using process and the phenomenon of fiber breakage inside the antibacterial non-woven fabric, and prolong the service life of the antibacterial non-woven fabric;
the preparation method of the modified polyurethane fiber comprises the following steps: uniformly mixing polyurethane and terephthalic acid solution according to a volume ratio of 1:2, then reacting for 1h under the condition of ultraviolet irradiation, taking out after the reaction is finished, centrifugally drying for 4min, finally drying for 1h at 120 ℃, and cooling to room temperature to obtain modified polyurethane fiber;
the preparation method of the wood pulp cellulose comprises the following steps: 1) pulverizing wood, and sieving with 60 mesh sieve to obtain wood powder with particle size of 0.20-0.25 mm; 2) dissolving the wood powder obtained in the step 1) in a sodium succinate solution with the mass concentration of 12% at room temperature, heating the mixture in water bath at 55 ℃, and mechanically stirring for 20 hours to obtain wood pulp cellulose;
the preparation method of the non-woven fabric comprises the following steps:
s1, placing the modified polyurethane fiber, the alginate fiber and the wood pulp cellulose in a melting furnace, heating the materials to 175 ℃, and continuously stirring the materials in the heating process to obtain a mixed fiber material A; stirring and reacting citric acid, glycidyl methacrylate and an antioxidant at the temperature of 40 ℃ for 15 min; obtaining a mixed material B;
s2, feeding the mixed fiber material A and the mixed material B obtained in the step S1 into a double-screw extruder respectively to be melted into mixed melt; then putting the mixed melt into a spinning machine, spraying the mixed melt out of a spinneret plate of the spinning machine to form composite fiber strands, and then cooling, stretching, winding and carding to obtain a composite fiber web; the working temperature of the double-screw extruder is 180 ℃, the fineness of the composite fiber strand silk is 2dtex, and the rotating speed of a carding machine used for carding operation is 500 rad/min;
s3, carrying out spunlace treatment on the composite fiber web obtained in the step S2 for 25min by using atomized water to obtain a non-woven fabric substrate; wherein, the water punching treatment is carried out for 3 times, the first and second water punching treatment adopts round net type water punching, the third water punching treatment adopts platform type water punching, the water pressure of the water punching treatment is 30bar, and the number of water punching heads is 3;
s4, placing the non-woven fabric base material obtained in the step S3 into a fabric setting machine, setting the temperature at 130 ℃ for 15S, symmetrically folding the obtained material after setting, placing the material into a hot rolling mill for hot rolling treatment, controlling the temperature of the hot rolling mill at 150 ℃ and the pressure at 1kg/cm2After hot rolling is finished, obtaining a non-woven fabric finished product;
s5, uniformly mixing the bacteriostatic agent and deionized water to form bacteriostatic agent aqueous solution, heating the bacteriostatic agent aqueous solution to 35 ℃, then soaking the non-woven fabric finished product obtained in the step S4 in the bacteriostatic agent aqueous solution for 1h, and finally, sending the soaked non-woven fabric finished product into a dryer to dry for 15min to obtain the antibacterial non-woven fabric.
The preparation device of the environment-friendly easily-degradable antibacterial non-woven fabric used in the method of the embodiment, as shown in fig. 1, 2, 3 and 4, comprises a double-screw extruder, a spinning machine, a fabric setting machine and a dryer, wherein the double-screw extruder is used for melt extrusion of the mixed fiber material a and the mixed material B, the spinning machine is used for spinning a mixed melt formed by the mixed fiber material a and the mixed material B, and the fabric setting machine is used for setting the base of the non-woven fabric subjected to the spunlace treatment; the dryer is used for drying the formed non-woven fabric finished product, the fabric forming machine comprises a machine base 1, an upper forming press plate 2, a lower forming press plate 3, a guide roller 4, a winding drum 5 and a lower pressing component 6, the machine base 1 is hollow, the upper end of the machine base is provided with a mounting groove 10, the lower forming press plate 3 is movably clamped on the mounting groove 10 through a sliding column 30, a first damping spring 31 is arranged between the sliding column 30 and the mounting groove 10, two sides of the lower end surface of the upper forming press plate 2 are respectively provided with two sliding support rods 20, the upper forming press plate 2 is inserted on the machine base 1 through the sliding support rods 20, the movable support rod 20 extends into the machine base 1, the two sliding support rods 20 positioned at two sides in the machine base 1 are connected through a pull rod 21, the lower ends of the two pull rods 21 are respectively provided with a connecting rod 22, and one side of the upper shaping press plate 2 opposite to one side of the lower shaping press plate 3 is respectively provided with an electric heating plate 7; the two guide rollers 4 are arranged, the two guide rollers 4 are arranged at the head end of the base 1 in parallel up and down through the first mounting frame 40, third damping springs are arranged at the joints of the two guide rollers 4 and the first mounting frame 40, and the two guide rollers 4 are always close to each other through the arrangement of the third damping springs, so that wrinkles generated when the non-woven base cloth passes through the two guide rollers 4 are avoided, and the flatness of the shaped non-woven base cloth is improved; the winding drum 5 is arranged at the tail end of the base 1 through the second mounting frame 50, a rotary hand wheel 51 is arranged on the winding drum 5, the pressing component 6 comprises two guide slide bars 60 and a pressing plate 61, the two guide slide bars 60 are arranged in parallel at two sides inside the base 1, the two guide slide bars 60 are sleeved with a second damping spring 600, the pressing plate 61 is movably sleeved on the two guide slide bars 60 and abutted against the second damping spring 600, the upper end face of the pressing plate 61 is fixedly connected with the connecting rod 22, a pedal 610 is arranged on the pressing plate 61, the pedal 610 penetrates through the side wall of the base 1 and can move up and down along the side wall of the base 1.
Example 5: a preparation method of an environment-friendly easily-degradable antibacterial non-woven fabric comprises the following raw materials in parts by weight: 30 parts of modified polyurethane fiber, 15 parts of alginate fiber, 13 parts of wood pulp cellulose, 6 parts of citric acid, 21 parts of glycidyl methacrylate, 2 parts of bacteriostatic agent, 1.2 parts of antioxidant and 120 parts of deionized water;
the bacteriostatic agent comprises the following raw materials in parts by weight: 18 parts of nano bamboo charcoal, 9 parts of potassium permanganate, 6 parts of chitosan, 9 parts of nano titanium dioxide, 7 parts of sodium hypochlorite solution, 3 parts of acetone solution and 5 parts of tween; the bacteriostatic agent in the proportion has a lasting antibacterial effect, has excellent biocompatibility and does not generate any stimulation to users in the using process;
the antioxidant is a mixture of titanium dioxide, quartz powder, dibutyl hydroxy toluene and butyl hydroxy anisol according to the mass ratio of 1:2:1: 3; the antioxidant in the proportion can avoid oxidation corrosion of the antibacterial non-woven fabric in the using process and the phenomenon of fiber breakage inside the antibacterial non-woven fabric, and prolong the service life of the antibacterial non-woven fabric;
the preparation method of the non-woven fabric comprises the following steps:
s1, placing the modified polyurethane fiber, the alginate fiber and the wood pulp cellulose in a melting furnace, heating the materials to 175-215 ℃, and continuously stirring the materials in the heating process to obtain a mixed fiber material A; stirring and reacting citric acid, glycidyl methacrylate and an antioxidant at the temperature of 50 ℃ for 20 min; obtaining a mixed material B;
s2, feeding the mixed fiber material A and the mixed material B obtained in the step S1 into a double-screw extruder respectively to be melted into mixed melt; then putting the mixed melt into a spinning machine, spraying the mixed melt out of a spinneret plate of the spinning machine to form composite fiber strands, and then cooling, stretching, winding and carding to obtain a composite fiber web; the working temperature of the double-screw extruder is 215 ℃, the fineness of the composite fiber filament is 4dtex, and the rotating speed of a carding machine used for carding operation is 700 rad/min;
s3, carrying out spunlace treatment on the composite fiber web obtained in the step S2 for 28min by using atomized water to obtain a non-woven fabric substrate; wherein, the water punching treatment is carried out for 3 times, the first and second water punching treatment adopts round net type water punching, the third water punching treatment adopts platform type water punching, and the number of water punching heads is 7; the water pressure of the first water-jet treatment is 30bar, the water pressure of the second water-jet treatment is 40bar, the water pressure of the third water-jet treatment is 50bar, and the three water-jet treatments reduce the damage of internal fibers in the non-woven fabric preparation process, improve the uniformity of material distribution and improve the flatness of the surface of the non-woven fabric;
s4, placing the non-woven fabric base material obtained in the step S3 into a fabric setting machine, setting the temperature at 142 ℃ for 33S, symmetrically folding the obtained material after setting, placing the material into a hot rolling mill for hot rolling treatment, controlling the temperature of the hot rolling mill at 165 ℃ and the pressure at 2kg/cm2After hot rolling is finished, obtaining a non-woven fabric finished product;
s5, uniformly mixing the bacteriostatic agent and deionized water to form bacteriostatic agent aqueous solution, heating the bacteriostatic agent aqueous solution to 43 ℃, then soaking the non-woven fabric finished product obtained in the step S4 in the bacteriostatic agent aqueous solution for 2 hours, and finally, sending the soaked non-woven fabric finished product into a dryer to dry for 30 minutes to obtain the antibacterial non-woven fabric.
An environment-friendly and easily-degradable antibacterial non-woven fabric preparation device used in the method of the embodiment is shown in fig. 1, 2, 3 and 4 and comprises a double-screw extruder, a spinning machine, a fabric setting machine and a dryer, wherein the double-screw extruder is used for melt extrusion of a mixed fiber material A and a mixed material B, the spinning machine is used for spinning a mixed melt formed by the mixed fiber material A and the mixed material B, and the fabric setting machine is used for setting the base part of a non-woven fabric subjected to spunlace treatment; the dryer is used for drying the formed non-woven fabric finished product, the fabric forming machine comprises a machine base 1, an upper forming press plate 2, a lower forming press plate 3, a guide roller 4, a winding drum 5 and a lower pressing component 6, the machine base 1 is hollow, the upper end of the machine base is provided with a mounting groove 10, the lower forming press plate 3 is movably clamped on the mounting groove 10 through a sliding column 30, a first damping spring 31 is arranged between the sliding column 30 and the mounting groove 10, two sides of the lower end surface of the upper forming press plate 2 are respectively provided with two sliding support rods 20, the upper forming press plate 2 is inserted on the machine base 1 through the sliding support rods 20, the movable support rod 20 extends into the machine base 1, the two sliding support rods 20 positioned at two sides in the machine base 1 are connected through a pull rod 21, the lower ends of the two pull rods 21 are respectively provided with a connecting rod 22, and one side of the upper shaping press plate 2 opposite to one side of the lower shaping press plate 3 is respectively provided with an electric heating plate 7; the two guide rollers 4 are arranged, the two guide rollers 4 are arranged at the head end of the base 1 in parallel up and down through the first mounting frame 40, third damping springs are arranged at the joints of the two guide rollers 4 and the first mounting frame 40, and the two guide rollers 4 are always close to each other through the arrangement of the third damping springs, so that wrinkles generated when the non-woven base cloth passes through the two guide rollers 4 are avoided, and the flatness of the shaped non-woven base cloth is improved; the winding drum 5 is arranged at the tail end of the base 1 through the second mounting frame 50, a rotary hand wheel 51 is arranged on the winding drum 5, the pressing component 6 comprises two guide slide bars 60 and a pressing plate 61, the two guide slide bars 60 are arranged in parallel at two sides inside the base 1, the two guide slide bars 60 are sleeved with a second damping spring 600, the pressing plate 61 is movably sleeved on the two guide slide bars 60 and abutted against the second damping spring 600, the upper end face of the pressing plate 61 is fixedly connected with the connecting rod 22, a pedal 610 is arranged on the pressing plate 61, the pedal 610 penetrates through the side wall of the base 1 and can move up and down along the side wall of the base 1.
Example 6: a preparation method of an environment-friendly easily-degradable antibacterial non-woven fabric comprises the following raw materials in parts by weight: 45 parts of modified polyurethane fiber, 20 parts of alginate fiber, 18 parts of wood pulp cellulose, 8 parts of citric acid, 26 parts of glycidyl methacrylate, 3 parts of bacteriostatic agent, 2 parts of antioxidant and 25 parts of deionized water;
the bacteriostatic agent comprises the following raw materials in parts by weight: 30 parts of nano bamboo charcoal, 12 parts of potassium permanganate, 7 parts of chitosan, 15 parts of nano titanium dioxide, 8 parts of sodium hypochlorite solution, 4 parts of acetone solution and 6 parts of tween; the bacteriostatic agent in the proportion has a lasting antibacterial effect, has excellent biocompatibility and does not generate any stimulation to users in the using process;
the antioxidant is a mixture of titanium dioxide, quartz powder, dibutyl hydroxy toluene and butyl hydroxy anisol according to the mass ratio of 1:2:1: 3; the antioxidant in the proportion can avoid oxidation corrosion of the antibacterial non-woven fabric in the using process and the phenomenon of fiber breakage inside the antibacterial non-woven fabric, and prolong the service life of the antibacterial non-woven fabric;
the preparation method of the wood pulp cellulose comprises the following steps: 1) pulverizing wood, and sieving with 80 mesh sieve to obtain wood powder with particle size of 0.15-0.195 mm; 2) dissolving the wood powder obtained in the step 1) in a sodium succinate solution with the mass concentration of 16% at room temperature, heating the mixture in water bath at 60 ℃, and mechanically stirring for reaction for 35 hours to obtain wood pulp cellulose, wherein the wood pulp cellulose prepared by the method not only realizes the sustainable utilization efficiency of natural resources, but also can improve the degradation efficiency of the antibacterial non-woven fabric, and avoids the pollution of the degraded non-woven fabric to the environment;
the preparation method of the modified polyurethane fiber comprises the following steps: uniformly mixing polyurethane and terephthalic acid solution according to a volume ratio of 1:4, then reacting for 2h under the condition of ultraviolet irradiation, taking out after the reaction is finished, centrifugally drying for 15min, finally drying for 3h at 160 ℃, and cooling to room temperature to obtain modified polyurethane fiber;
the preparation method of the non-woven fabric comprises the following steps:
s1, respectively carrying out sterile water cleaning on the modified polyurethane fibers and the alginate fibers for 6 times under the ventilation condition, then respectively soaking the modified polyurethane fibers and the alginate fibers in purified water at 55 ℃ for 35min, enabling the fibers to be fluffy through the operation, improving the use comfort of the antibacterial non-woven fabric, then placing the modified polyurethane fibers, the alginate fibers and the wood pulp cellulose in a melting furnace, heating the materials to 215 ℃, and continuously stirring the materials in the heating process to obtain a mixed fiber material A; stirring and reacting citric acid, glycidyl methacrylate and an antioxidant at the temperature of 60 ℃ for 25 min; obtaining a mixed material B;
s2, feeding the mixed fiber material A and the mixed material B obtained in the step S1 into a double-screw extruder respectively to be melted into mixed melt; then putting the mixed melt into a spinning machine, spraying the mixed melt out of a spinneret plate of the spinning machine to form composite fiber strands, and then cooling, stretching, winding and carding to obtain a composite fiber web; the working temperature of the double-screw extruder is 230 ℃, the fineness of the composite fiber filament is 5dtex, and the rotating speed of a carding machine used for carding operation is 900 rad/min;
s3, carrying out spunlace treatment on the composite fiber web obtained in the step S2 for 30min by using atomized water to obtain a non-woven fabric substrate; wherein, the water punching treatment is carried out for 3 times, the first and second water punching treatment adopts round net type water punching, the third water punching treatment adopts platform type water punching, and the number of water punching heads is 9; the water pressure of the first water-jet treatment is 40bar, the water pressure of the second water-jet treatment is 50bar, the water pressure of the third water-jet treatment is 70bar, and the three water-jet treatments reduce the damage of internal fibers in the non-woven fabric preparation process, improve the uniformity of material distribution and improve the flatness of the surface of the non-woven fabric;
s4, placing the non-woven fabric base material obtained in the step S3 into a fabric setting machine, setting the temperature at 150 ℃ for 45S, symmetrically folding the obtained material after setting, placing the material into a hot rolling mill for hot rolling treatment, controlling the temperature of the hot rolling mill at 180 ℃ and the pressure at 3kg/cm2After hot rolling is finished, obtaining a non-woven fabric finished product;
s5, uniformly mixing a bacteriostatic agent and deionized water to form a bacteriostatic agent aqueous solution, heating the bacteriostatic agent aqueous solution to 50 ℃, then soaking the non-woven fabric finished product obtained in the step S4 in the bacteriostatic agent aqueous solution for 3 hours, finally sending the soaked non-woven fabric finished product into a dryer to dry for 45 minutes to obtain an antibacterial non-woven fabric, then carrying out alcohol dipping treatment on the antibacterial non-woven fabric for 80 minutes under the ultrasonic condition, and carrying out pressure drying treatment after the treatment is finished, wherein the alcohol dipping treatment temperature is 50 ℃, the power of ultrasonic waves is 500W, and the use safety of the antibacterial non-woven fabric is improved by carrying out alcohol dipping treatment on the antibacterial non-woven fabric; and finally, spraying 15 parts of nano silver oxide powder on the surface of the antibacterial non-woven fabric in a gas sputtering mode, wherein the sputtering gas is argon, the working pressure during sputtering is 7Pa, the sputtering power is 50W, the sputtering time is 5min, and the nano silver oxide powder is sprayed on the surface of the antibacterial non-woven fabric by a gas sputtering method, so that the antibacterial effect of the nano silver oxide powder is utilized, the sterilization effect of the antibacterial non-woven fabric is further improved, and the use effect is improved.
The preparation device of the environment-friendly easily-degradable antibacterial non-woven fabric used in the method of the embodiment, as shown in fig. 1, 2, 3 and 4, comprises a double-screw extruder, a spinning machine, a fabric setting machine and a dryer, wherein the double-screw extruder is used for melt extrusion of the mixed fiber material a and the mixed material B, the spinning machine is used for spinning a mixed melt formed by the mixed fiber material a and the mixed material B, and the fabric setting machine is used for setting the base of the non-woven fabric subjected to the spunlace treatment; the drying machine is used for drying the formed non-woven fabric finished product, the fabric forming machine comprises a machine base, an upper forming press plate, a lower forming press plate, a guide roller, a winding drum and a lower pressing component, the machine base is hollow, the upper end of the machine base is provided with a mounting groove, the lower forming press plate is movably clamped on the mounting groove through a sliding column, a first damping spring is arranged between the sliding column and the mounting groove, two sides of the lower end surface of the upper forming press plate are respectively provided with two sliding support rods, the upper forming press plate is inserted in the machine base through the sliding support rods, the movable support rods extend into the machine base, the two sliding support rods positioned on the two sides in the machine base are connected through pull rods, the lower ends of the two pull rods are respectively provided with a connecting rod, and one side of the upper forming press plate, which is opposite to the lower forming press plate, is provided with an electric heating plate; the two guide rollers are arranged at the head end of the base through the first mounting frame in parallel up and down, the joints of the two guide rollers and the first mounting frame are provided with third damping springs, and the two guide rollers are always close to each other through the arrangement of the third damping springs, so that wrinkles generated when the non-woven base cloth passes through the two guide rollers are avoided, and the flatness of the shaped non-woven base cloth is improved; the winding drum passes through the tail end of second mounting bracket setting at the frame, be provided with rotatory hand wheel on the winding drum, the pushing down component includes direction slide bar and holding down plate, the direction slide bar is provided with two, two direction slide bars set up in the inside both sides of frame side by side, all the cover is equipped with second damping spring on two direction slide bars, holding down plate movable sleeve is established on two direction slide bars, and with second damping spring butt, holding down plate up end and connecting rod fixed connection, be provided with the pedal on the holding down plate, the pedal runs through the lateral wall of frame, and can reciprocate along the lateral wall of frame.
Test example: the antibacterial nonwoven fabrics obtained in the embodiments 1 to 6 of the present invention were subjected to antibacterial performance test and biodegradation residual weight rate test, and the test results are shown in table 1:

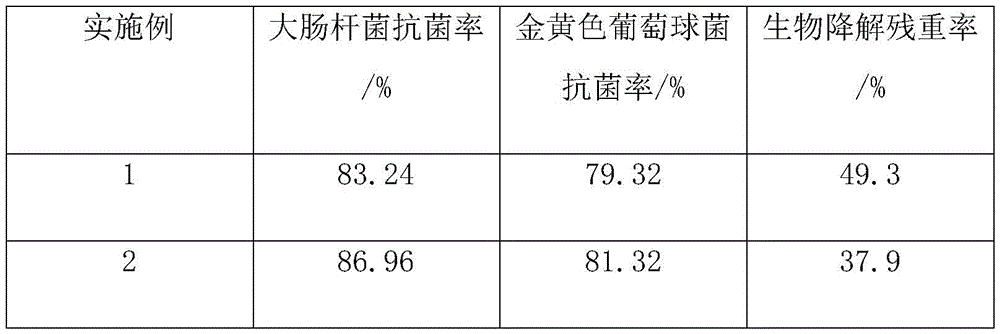

table 1, test results of antibacterial performance and biodegradation residual weight ratio of the antibacterial non-woven fabric under the non-use condition;
as can be seen from the data in table 1, in example 2, compared with example 1, since the modified polyurethane fibers and the alginate fibers are subjected to sterile water cleaning and pure water soaking before the step S1 is performed, the fibers are bulkier, and the use comfort and the antibacterial performance of the antibacterial non-woven fabric are improved; compared with the embodiment 1, the embodiment 3 has the advantages that the antibacterial non-woven fabric is subjected to alcohol dipping treatment, and the nano silver oxide powder is sprayed on the surface of the antibacterial non-woven fabric by a gas sputtering method, so that the antibacterial effect of the nano silver oxide powder is further improved, and the using effect is improved; compared with the embodiment 1, the wood pulp cellulose and the modified polyurethane fiber prepared by the method improve the degradation efficiency of the antibacterial non-woven fabric, and avoid the pollution of the degraded non-woven fabric to the environment; compared with the embodiment 1, the embodiment 5 has the advantages that three times of spunlace treatment are carried out at different spunlace pressures in the preparation process of the non-woven fabric base material, so that the damage to internal fibers in the non-woven fabric in the preparation process is reduced, the uniformity of material distribution is improved, and the antibacterial performance is improved; compared with the examples 1 to 5, the antibacterial rate and the biodegradation residual weight rate of the obtained antibacterial non-woven fabric are further improved due to comprehensive optimization of all favorable conditions.
Claims (9)
1. The preparation method of the environment-friendly easily-decomposed antibacterial non-woven fabric is characterized by comprising the following raw materials in parts by weight: 15-45 parts of modified polyurethane fiber, 8-20 parts of alginate fiber, 6-18 parts of wood pulp cellulose, 5-8 parts of citric acid, 12-26 parts of glycidyl methacrylate, 1-3 parts of bacteriostatic agent, 0.5-2 parts of antioxidant and 16-25 parts of deionized water;
the bacteriostatic agent comprises the following raw materials in parts by weight: 15-30 parts of nano bamboo charcoal, 5-12 parts of potassium permanganate, 4-7 parts of chitosan, 5-15 parts of nano titanium dioxide, 4-8 parts of sodium hypochlorite solution, 2-4 parts of acetone solution and 3-6 parts of tween;
the antioxidant is a mixture consisting of titanium dioxide, quartz powder, dibutyl hydroxy toluene and butyl hydroxy anisol according to the mass ratio of 1:2:1: 3;
the preparation method of the non-woven fabric comprises the following steps:
s1, placing the modified polyurethane fiber, the alginate fiber and the wood pulp cellulose in a melting furnace, heating the materials to 175-215 ℃, and continuously stirring the materials in the heating process to obtain a mixed fiber material A; stirring the citric acid, the glycidyl methacrylate and the antioxidant at the temperature of 40-60 ℃ for reaction for 15-25 min; obtaining a mixed material B;
s2, feeding the mixed fiber material A and the mixed material B obtained in the step S1 into a double-screw extruder respectively to be melted into mixed melt; then putting the mixed melt into a spinning machine, spraying the mixed melt from a spinneret plate of the spinning machine to form a composite fiber strand silk, and then cooling, stretching, winding and carding to obtain a composite fiber web; the working temperature of the double-screw extruder is 180-230 ℃, the fineness of the composite fiber filament is 2-5dtex, and the rotating speed of a carding and carding machine used for carding operation is 500-900 rad/min;
s3, carrying out spunlace treatment on the composite fiber web obtained in the step S2 for 25-30min by using atomized water to obtain a non-woven fabric substrate; wherein, the water punching treatment is carried out for 3 times, the first and second water punching treatment adopts round net type water punching, the third water punching treatment adopts platform type water punching, the water pressure of the water punching treatment is 30-60bar, and the number of water punching heads is 3-9;
s4, placing the non-woven fabric base material obtained in the step S3 into a fabric setting machine, setting the temperature at 130-150 ℃, setting the time at 15-45S, after setting is finished, symmetrically folding the obtained material, placing the material into a hot rolling machine for hot rolling treatment, controlling the temperature of a hot rolling roll at 150-180 ℃, and the pressure at 1-3kg/cm2After hot rolling is finished, obtaining a non-woven fabric finished product;
s5, uniformly mixing the bacteriostatic agent and deionized water to form a bacteriostatic agent aqueous solution, heating the bacteriostatic agent aqueous solution to 35-50 ℃, then soaking the non-woven fabric finished product obtained in the step S4 in the bacteriostatic agent aqueous solution for 1-3h, and finally sending the soaked non-woven fabric finished product into a dryer to be dried for 15-45min, thus obtaining the antibacterial non-woven fabric.
2. The method for preparing the environment-friendly easily-degradable antibacterial non-woven fabric according to claim 1, wherein before the step S1, the modified polyurethane fiber and the alginate fiber are respectively washed with sterile water for 3-6 times under a ventilated condition, and then are respectively soaked in purified water at 50-55 ℃ for 30-35 min.
3. The method for preparing the environment-friendly and easily degradable antibacterial non-woven fabric according to claim 1, wherein after step S5 is completed, the antibacterial non-woven fabric is subjected to alcohol soaking treatment for 50-80min under the condition of ultrasonic waves, and then is subjected to pressure drying treatment, wherein the alcohol soaking treatment temperature is 20-50 ℃, and the power of the ultrasonic waves is 300-500W.
4. The method for preparing the environment-friendly easily-degradable antibacterial non-woven fabric according to claim 1, wherein the method for preparing the wood pulp cellulose comprises the following steps: 1) pulverizing wood, and sieving with 60-80 mesh sieve to obtain wood powder with particle size of 0.15-0.25 mm; 2) dissolving the wood powder obtained in the step 1) in a sodium succinate solution with the mass concentration of 12-16% at room temperature, heating the mixture in water bath at 55-60 ℃, and mechanically stirring for reaction for 20-35h to obtain the wood pulp cellulose.
5. The preparation method of the environment-friendly easily-degradable antibacterial non-woven fabric according to claim 1, wherein the preparation method of the modified polyurethane fiber comprises the following steps: uniformly mixing polyurethane and terephthalic acid solution according to the volume ratio of 1:2-4, then reacting for 1-2h under the condition of ultraviolet irradiation, taking out after the reaction is finished, centrifugally drying for 4-15min, finally drying for 1-3h under the condition of 160 ℃ plus materials at 120 ℃, and cooling to room temperature to obtain the modified polyurethane fiber.
6. The method for preparing the environment-friendly easily-decomposed antibacterial non-woven fabric according to claim 1, wherein after the step S5 is completed, 5-15 parts of nano silver oxide powder is sprayed on the surface of the antibacterial non-woven fabric in a gas sputtering mode, the sputtering gas is argon, the working pressure during sputtering is 3-7Pa, the sputtering power is 30-50W, and the sputtering time is 3-5 min.
7. The method for preparing the environment-friendly and easily decomposable antibacterial nonwoven fabric according to claim 1, wherein in step S3, the water pressure of the first hydroentangling treatment is 30-40bar, the water pressure of the second hydroentangling treatment is 40-50bar, and the water pressure of the third hydroentangling treatment is 50-70 bar.
8. The apparatus for preparing the environment-friendly easily-degradable antibacterial non-woven fabric according to any one of claims 1 to 7, comprising a twin-screw extruder, a spinning machine, a fabric setting machine and a dryer, wherein the twin-screw extruder is used for melt extrusion of the mixed fiber material A and the mixed material B, the spinning machine is used for spinning a mixed melt formed by the mixed fiber material A and the mixed material B, and the fabric setting machine is used for setting a non-woven fabric base after the spunlace treatment; the dryer is used for drying a formed non-woven fabric finished product, the fabric forming machine comprises a machine base (1), an upper forming pressing plate (2), a lower forming pressing plate (3), a guide roller (4), a winding drum (5) and a lower pressing component (6), the machine base (1) is hollow, the upper end of the machine base is provided with a mounting groove (10), the lower forming pressing plate (3) is movably clamped on the mounting groove (10) through a sliding column (30), a first damping spring (31) is arranged between the sliding column (30) and the mounting groove (10), two sliding support rods (20) are respectively arranged on two sides of the lower end face of the upper forming pressing plate (2), the upper forming pressing plate (2) is inserted on the machine base (1) through the sliding support rods (20), the moving support rods (20) extend into the machine base (1), and the two sliding support rods (20) positioned on two sides in the machine base (1) are connected through pull rods (21), the lower ends of the two pull rods (21) are respectively provided with a connecting rod (22), and one sides of the upper shaping press plate (2) and the lower shaping press plate (3) which are opposite are respectively provided with an electric heating plate (7); the guide rollers (4) are provided with two guide rollers (4), the two guide rollers (4) are arranged at the head end of the base (1) through a first mounting rack (40) in parallel from top to bottom, the winding drum (5) is arranged at the tail end of the base (1) through a second mounting rack (50), a rotary hand wheel (51) is arranged on the winding drum (5), the pressing component (6) comprises guide sliding rods (60) and pressing plates (61), the guide sliding rods (60) are provided with two guide sliding rods (60) which are arranged at two sides in the base (1) in parallel, the two guide sliding rods (60) are respectively sleeved with a second damping spring (600), the pressing plates (61) are movably sleeved on the two guide sliding rods (60) and are abutted against the second damping springs (600), the upper end surfaces of the pressing plates (61) are fixedly connected with the connecting rods (22), and pedals (610) are arranged on the pressing plates (61), the pedal (610) penetrates through the side wall of the machine base (1) and can move up and down along the side wall of the machine base (1).
9. The manufacturing device according to claim 8, characterized in that a third damping spring is provided at the junction of the guide roll (4) and the first mounting frame (40).
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202110459395.1A CN113512874A (en) | 2021-04-27 | 2021-04-27 | Environment-friendly easily-degradable antibacterial non-woven fabric and preparation method thereof |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202110459395.1A CN113512874A (en) | 2021-04-27 | 2021-04-27 | Environment-friendly easily-degradable antibacterial non-woven fabric and preparation method thereof |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN113512874A true CN113512874A (en) | 2021-10-19 |
Family
ID=78063759
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202110459395.1A Pending CN113512874A (en) | 2021-04-27 | 2021-04-27 | Environment-friendly easily-degradable antibacterial non-woven fabric and preparation method thereof |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN113512874A (en) |
Citations (9)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN102580133A (en) * | 2011-01-14 | 2012-07-18 | 无锡百奥科环境科技有限公司 | Nano antibacterial freshener and preparation method thereof |
| WO2015160027A1 (en) * | 2014-04-18 | 2015-10-22 | 구기승 | Environment-friendly short fiber non-woven fabric and method for manufacturing same |
| CN207259788U (en) * | 2017-05-19 | 2018-04-20 | 上饶市维邦纺织有限公司 | A kind of new forming machine |
| CN108660668A (en) * | 2018-07-11 | 2018-10-16 | 江苏宇顺纺织有限公司 | A kind of weaving gauze removes crimped device |
| CN109265718A (en) * | 2018-07-17 | 2019-01-25 | 海安浩驰科技有限公司 | A kind of AgO/Si automobile adhesive film material with spectral selection absorption function |
| CN110804857A (en) * | 2019-11-26 | 2020-02-18 | 界首市远航织带有限公司 | Treatment method for improving stain-resistant and anti-pilling capability of woven tape |
| CN211498177U (en) * | 2019-12-23 | 2020-09-15 | 浙江越大实业集团有限公司 | High peel strength lining cloth modular system |
| CN212099576U (en) * | 2019-12-25 | 2020-12-08 | 昆山西乐机电技术有限公司 | Pedal type food packaging sealing machine |
| CN112458624A (en) * | 2020-11-26 | 2021-03-09 | 杭州靖舒新材料有限公司 | Preparation method of non-woven fabric material with mite removing function |
-
2021
- 2021-04-27 CN CN202110459395.1A patent/CN113512874A/en active Pending
Patent Citations (9)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN102580133A (en) * | 2011-01-14 | 2012-07-18 | 无锡百奥科环境科技有限公司 | Nano antibacterial freshener and preparation method thereof |
| WO2015160027A1 (en) * | 2014-04-18 | 2015-10-22 | 구기승 | Environment-friendly short fiber non-woven fabric and method for manufacturing same |
| CN207259788U (en) * | 2017-05-19 | 2018-04-20 | 上饶市维邦纺织有限公司 | A kind of new forming machine |
| CN108660668A (en) * | 2018-07-11 | 2018-10-16 | 江苏宇顺纺织有限公司 | A kind of weaving gauze removes crimped device |
| CN109265718A (en) * | 2018-07-17 | 2019-01-25 | 海安浩驰科技有限公司 | A kind of AgO/Si automobile adhesive film material with spectral selection absorption function |
| CN110804857A (en) * | 2019-11-26 | 2020-02-18 | 界首市远航织带有限公司 | Treatment method for improving stain-resistant and anti-pilling capability of woven tape |
| CN211498177U (en) * | 2019-12-23 | 2020-09-15 | 浙江越大实业集团有限公司 | High peel strength lining cloth modular system |
| CN212099576U (en) * | 2019-12-25 | 2020-12-08 | 昆山西乐机电技术有限公司 | Pedal type food packaging sealing machine |
| CN112458624A (en) * | 2020-11-26 | 2021-03-09 | 杭州靖舒新材料有限公司 | Preparation method of non-woven fabric material with mite removing function |
Non-Patent Citations (1)
| Title |
|---|
| 张拥军: "《食品卫生与检验》", 28 February 2007, 中国计量出版社 * |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN112323485B (en) | Production process for online fruit dyeing spunlace non-woven fabric | |
| CN105586720B (en) | A kind of soft SMS composite nonwoven materials | |
| CN108660606B (en) | Preparation method of light and thin all-cotton non-woven fabric, non-woven fabric and application | |
| CN108950867B (en) | Production process of high-strength anti-wrinkle spunlace non-woven fabric | |
| CN106906635A (en) | A kind of method for sorting of medical high-absorbility hydrophilic non-woven | |
| CN106811848B (en) | A kind of silver fiber and cotton fiber blended yarn and its preparation process | |
| CN109295726B (en) | Preparation method and application of polyvinyl alcohol non-woven fabric finishing agent | |
| CN111231440A (en) | Antibacterial breathable child fabric and preparation method thereof | |
| CN211074984U (en) | A kind of PLA composite non-woven fabric for hygiene and its preparation system | |
| CN113512874A (en) | Environment-friendly easily-degradable antibacterial non-woven fabric and preparation method thereof | |
| CN102733096B (en) | Non-allergenic fully-degradable medical and hygienic non-woven material capable of adjusting moisture | |
| CN108790316A (en) | A kind of Compound Fabric and preparation method thereof of Tan Xier fibers and cotton gauze | |
| CN205662683U (en) | Production system of super gentle hydrophobic non -woven fabrics | |
| US20170292207A1 (en) | Lyocell crimped fiber | |
| CN102934963A (en) | Preparation method of environment-friendly degradable wet tissue material | |
| CN109763260A (en) | A kind of Compound Fabric and its preparation process of super fine denier viscose fiber and Lyocell fibers | |
| CN109097985A (en) | A kind of preparation and its application method of faintly acid health fiber | |
| CN100485106C (en) | Production method of silk non-woven fabric for knitting | |
| CN115648755B (en) | Breathable high-strength composite non-woven fabric and preparation method thereof | |
| CN118374923A (en) | A continuous spunbond spunlace ultrafine fiber mask material and preparation method thereof | |
| CN110629404A (en) | Taxus chinensis environmental protection antibacterial and anti-mite flakes and preparation method thereof | |
| CN105755854B (en) | A kind of woven fabric imitates the preparation method of lamb suede | |
| CN116446104A (en) | Functional non-woven fabric and production process thereof | |
| CN115652536A (en) | High-strength water-punched composite material for colorful soft towel and preparation method thereof | |
| CN107988710A (en) | A kind of system for being used to prepare high thickness non-woven cloth |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| RJ01 | Rejection of invention patent application after publication |
Application publication date: 20211019 |
|
| RJ01 | Rejection of invention patent application after publication |
