Abstract
本发明涉及LED灯具技术领域，具体的说是一种方便拆卸安装外壳的LED灯具，包括灯具外壳和灯具罩板，所述灯具罩板固定安装在灯具外壳下表面中心，所述灯具外壳内部开设有灯光安装槽，所述灯具外壳两端且位于灯光安装槽内部安装有安装组件，所述安装组件内部安装有LED灯板，所述LED灯板位于灯具罩板的上端，本发明通过辅助组件可以实现对安装时中间的间隙距离进行控制，使其和现有技术相比有效避免出现因安装的空间间隙较小，从而导致其不能进行快速的拆卸安装操作影响后期操作，使其较为繁琐且耗时耗力的问题，使得本灯具在使用时可根据需求进行对应调整，并且还可以根据需要进行对照射距离进行对应调整，从而使得本灯具使用时效果更佳。
The invention relates to the technical field of LED lamps, in particular to an LED lamp with a shell that is easy to disassemble and install. There is a light installation slot, the two ends of the lamp housing are located inside the lamp installation slot, and installation components are installed. The installation component is installed with an LED light board, and the LED light board is located at the upper end of the lamp cover. The present invention uses auxiliary components. The gap distance in the middle of the installation can be controlled, so that compared with the existing technology, it can effectively avoid the occurrence of small installation space gaps, so that it cannot be quickly disassembled and installed. The problem of time-consuming and labor-intensive causes the lamp to be adjusted according to the needs when in use, and the irradiation distance can also be adjusted according to the needs, so that the effect of the lamp is better when used.
Description
Technical Field
The invention relates to the technical field of LED lamps, in particular to an LED lamp with a shell convenient to disassemble and install.
Background
LED is emitting diode, is a solid-state semiconductor device that can turn into the visible light with the electric energy, it can be directly to the electricity transformation light, wherein the shell is all installed to the general periphery of LED lamp, but generally all use silver glue or white glue solidification to the support, lead to dismantling comparatively inconveniently when carrying out later maintenance, and current LED lamps and lanterns are in the installation in use, because of the space clearance of installation is less, thereby lead to it to carry out quick dismantlement installation operation influence later stage operation, make it comparatively loaded down with trivial details and consuming time power.
Disclosure of Invention
Technical problem to be solved
Aiming at the defects of the prior art, the invention provides the LED lamp with the conveniently-disassembled and assembled shell, and solves the problems that the LED lamp is inconvenient to disassemble in the later maintenance process when the LED lamp is assembled in the prior lamp and the problem that the LED lamp is inconvenient to assemble or disassemble to a great extent due to small installation space when the LED lamp is assembled.
(II) technical scheme
In order to achieve the purpose, the invention adopts the technical scheme that:
an LED lamp with a conveniently detachable and mountable shell comprises a lamp shell and a lamp cover plate, wherein the lamp cover plate is fixedly mounted at the center of the lower surface of the lamp shell, a light mounting groove is formed in the lamp shell, mounting assemblies are mounted at two ends of the lamp shell and positioned in the light mounting groove, LED lamp plates are mounted in the mounting assemblies and positioned at the upper ends of the lamp cover plate, the mounting assemblies are respectively provided with two sliding grooves, the two sliding grooves are respectively formed in the two ends of the lamp shell, connecting assemblies are respectively mounted at two ends of the upper surface of the lamp shell and positioned at the upper ends of the mounting assemblies, each connecting assembly comprises an assembly shell and is respectively and integrally mounted at two ends of the upper surface of the lamp shell, auxiliary assemblies are mounted in the connecting assemblies, and top end fixing plates are fixedly mounted at the top ends of the auxiliary assemblies, the LED lamp panel is characterized in that a cable through hole is formed in the center of the top end fixing plate in a penetrating mode, a cable guide pipe is fixedly mounted at the lower end of the cable through hole, and the LED lamp panel is connected to an external power source through the two cable guide pipes and the cable through hole on one side of a cable.
Preferably, the inner side of each sliding groove penetrates through the lamp shell and the light mounting groove to be communicated, a rotating rod mounting seat is fixedly mounted on the inner wall of one side of the inner portion of each sliding groove, the other side of each sliding groove penetrates through the lamp shell, and a work transferring rotating rod is rotatably mounted in each sliding groove through the rotating rod mounting seat.
Preferably, a control knob is fixedly mounted at one end, far away from the rotating rod mounting seat, of each work transfer rotating rod, a limiting sleeve rod is sleeved at the middle of the rod body of each work transfer rotating rod in a limiting mode, each limiting sleeve rod is fixedly arranged at the middle of the sliding groove, positive and negative threads are integrally arranged at two ends of the rod body of each work transfer rotating rod, a movable threaded sleeve is in threaded fit with the periphery of each positive and negative thread, and each movable threaded sleeve is movably arranged inside the corresponding sliding groove.
As preferred, every side corresponds fixed mounting has the slide board, every between the activity thread bush inboard the lower extreme homogeneous of slide board is provided with light guide board, every light guide board corresponds surface homogeneous and is provided with the fixed positioning piece, every light guide board upper end surface is equipped with slipmat lower extreme surface and sets up to guide slope, every the LED lamp plate is spacing to be installed through the fixed positioning piece between the light guide board.
Preferably, every the inside interlude spread groove that has all seted up of subassembly shell, every the inside outside of interlude spread groove all is provided with spacing chucking groove, every subassembly shell upper end middle part fixed mounting has a mounting support, every the inside control lead screw of installing all rotating of mounting support, every the equal fixed mounting in control lead screw pole body outer end has the holding rod.
Preferably, every the subassembly shell upper surface just is located to correspond erection support position and runs through and has seted up driving plate movable groove, every the inside thread groove driving plate that all slides of driving plate movable groove is provided with thread groove driving plate, every thread groove driving plate upper end is provided with the screw hole and carries out screw-thread fit with corresponding control lead screw, every thread groove driving plate lower extreme integration sets up the upper end at the chucking board.
Preferably, every the chucking board all slides and sets up in spacing chucking inslot, every spacing chucking groove and driving plate movable groove intercommunication, every chucking inboard surface of board is provided with a plurality of dead-lock fixture blocks respectively, every dead-lock fixture block all carries out the chucking cooperation with the dead-lock draw-in groove of lock, every the interlude spread groove inslot all alternates and is provided with the side position and pierces through the inserted bar.
Preferably, the auxiliary assembly comprises a dust sealing plate and a side mounting sleeve, wherein the four corners of the upper surface of the dust sealing plate are respectively and fixedly provided with the side mounting sleeve, the side mounting sleeves are internally provided with second extension rods in a limiting and sliding manner, and one of the extension rods is rotatably arranged inside the side mounting sleeves.
Preferably, the two ends of the rod body of the dustproof sealing plate are provided with side insertion rods in an integrated mode, a plurality of locking clamping grooves are formed in the outer side surface of the rod body of each side insertion rod respectively, the dustproof sealing plate and the light mounting groove are consistent in size, a cable through hole is formed in the center of the dustproof sealing plate in a penetrating mode, a cable guide pipe is integrally arranged on the center of the dustproof sealing plate, a transmission gear is fixedly arranged in the side mounting sleeve and is located on the rod body of the connecting rotating rod, and an outer end of the rod body of the connecting rotating rod is fixedly provided with a distance adjusting knob.
Preferably, one of them side position installation cover outside surface and all seted up a plurality of angle locating holes with roll adjustment knob surface, every the inside location interlude that all is provided with of angle locating hole is provided with the location interlude pole, one of them side position installation cover inside one side spacing installation has first extension rod, first extension rod one side be provided with a plurality of teeth and with carry out the gear engagement transmission between the drive gear.
Compared with the prior art, the invention has the following beneficial effects:
1. can realize the stable installation to the LED lamp plate through the installation component, and still can adapt to the size of LED lamp plate and laminate fixedly, and be equipped with slipmat lower extreme surface through every light guide board upper end surface and set up to guide slope, it guides to the lamps and lanterns cover plate to prevent the activity more stably and to its light that shines out when making it use, thereby effectively promote this lamps and lanterns light brightness reduction consumption, and through installation component easy operation and cooperate the part that realizes dismantling the lamps and lanterns shell fast with coupling assembling, thereby the personnel of being convenient for take out the installation, compare with prior art and effectively avoid leading to its required time longer problem because of the flow is loaded down with trivial details when later maintenance.
2. Can realize the connection installation between auxiliary assembly and the installation component through coupling assembling to easy operation when using through coupling assembling can realize user's quick dismantlement operation and make it more convenient, and still make the stability ability of this lamps and lanterns promote greatly through the installation component, compare with prior art and avoid appearing leading to it to have the potential safety hazard because of connecting the unstability.
3. The middle gap distance can be controlled during installation through the auxiliary assembly, and compared with the prior art, the gap is effectively prevented from being smaller due to installation, so that the later-stage operation is influenced by quick disassembly and installation operation, the lamp is more complex and time-consuming, the lamp can be adjusted correspondingly according to requirements during use, and the lamp can also be adjusted correspondingly according to the emission distance as required, so that the lamp is better in effect during use.
4. The light that shines the LED lamp plate through the lamps and lanterns cover plate shines outward and protects the LED lamp plate, can make things convenient for personnel to walk the line distribution in the installation through cable guiding tube and cable through-hole to cooperate this lamps and lanterns to realize quick installation line operation, and protect the cable and prevent that it from receiving external factor influence, through top fixed plate fixed mounting at required installation sites such as wall or ceiling.
Drawings
FIG. 1 is a schematic view of an overall structure of an LED lamp with a housing convenient to disassemble and assemble;
FIG. 2 is a schematic diagram of a top view structure of an LED lamp with a housing easy to disassemble and assemble according to the present invention;
FIG. 3 is a schematic front view of an LED lamp with a housing easy to disassemble and assemble according to the present invention;
FIG. 4 is a schematic cross-sectional view taken along line A-A in FIG. 3 of an LED lamp with a housing that is easily disassembled and assembled according to the present invention;
FIG. 5 is a schematic view of a partial structure of an LED lamp with a housing easy to disassemble and assemble according to the present invention;
FIG. 6 is a schematic structural diagram of a side view portion of an LED lamp with a housing easy to disassemble and assemble according to the present invention;
FIG. 7 is a schematic cross-sectional view taken along line B-B in FIG. 6 of an LED lamp with a housing conveniently disassembled and assembled according to the present invention;
FIG. 8 is a schematic cross-sectional view taken at C-C of the LED lamp with the housing conveniently disassembled and assembled according to the present invention;
FIG. 9 is another schematic structural diagram of a portion of an LED lamp with a housing that is easily disassembled and assembled according to the present invention;
FIG. 10 is another schematic structural diagram of a top view of an LED lamp with a housing being easily disassembled and assembled according to the present invention;
FIG. 11 is a schematic cross-sectional view taken along line D-D in FIG. 10 of an LED lamp with a housing that is easily disassembled and assembled according to the present invention;
FIG. 12 is a schematic view of a connecting assembly of an LED lamp with a housing easy to disassemble and assemble according to the present invention;

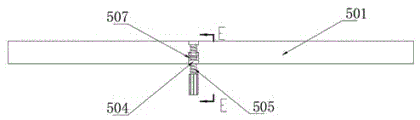

FIG. 13 is a schematic view of a top connection assembly of an LED lamp with a housing that is easily disassembled and assembled according to the present invention;
fig. 14 is a schematic cross-sectional view taken along line E-E in fig. 13 of an LED lamp with a conveniently detachable housing according to the present invention.
In the figure: 1. a lamp housing; 2. a lamp housing plate; 3. mounting the component; 301. a control knob; 302. a sliding groove; 303. a slide plate; 304. positive and negative threads; 305. a power transmission rotating rod; 306. a limiting sleeve rod; 307. a light guide plate; 308. fixing a positioning block; 309. a movable threaded sleeve; 310. a rotating rod mounting base; 4. an auxiliary component; 401. a dust-proof sealing plate; 402. a lateral position mounting sleeve; 403. a first extension bar; 404. a second extension bar; 405. the lateral position is inserted through the rod; 406. locking the clamping groove; 407. a distance adjusting knob; 408. angle positioning holes; 409. positioning the insertion rod; 410. a transmission gear; 411. connecting the rotating rod; 5. a connecting assembly; 501. a component housing; 502. a holding rod; 503. inserting and connecting grooves; 504. mounting a support; 505. controlling the screw rod; 506. a thread groove drive plate; 507. a driving plate moving groove; 508. a chucking plate; 509. locking the clamping block; 510. a limiting clamping groove; 6. a top end fixing plate; 7. a cable through hole; 8. a cable guide tube; 9. an LED lamp panel; 10. light mounting groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Examples
As shown in fig. 1-14, an LED lamp with a conveniently detachable mounting housing comprises a lamp housing 1 and a lamp cover plate 2, the lamp cover plate 2 is fixedly mounted at the center of the lower surface of the lamp housing 1, a light mounting groove 10 is formed in the lamp housing 1, mounting components 3 are mounted at two ends of the lamp housing 1 and positioned in the light mounting groove 10, an LED lamp panel 9 is mounted in the mounting components 3, the LED lamp panel 9 is positioned at the upper end of the lamp cover plate 2, the mounting components 3 are respectively provided with two sliding grooves 302, the two sliding grooves 302 are respectively formed in the two ends of the lamp housing 1, connecting components 5 are respectively mounted at two ends of the upper surface of the lamp housing 1 and positioned at the upper end of the mounting components 3, each connecting component 5 comprises a component housing 501 and is respectively integrally mounted at two ends of the upper surface of the lamp housing 1, and auxiliary components 4 are mounted in the connecting components 5 at two ends, 4 top fixed mounting of auxiliary assembly has top fixed plate 6, and 6 centers of top fixed plate run through and have been seted up cable through-hole 7, and 7 lower extreme fixed mounting of cable through-hole have cable guiding tube 8, and LED lamp plate 9 is connected to external power supply through two cable guiding tubes 8 and cable through-hole 7 through cable one side.
Through above-mentioned technical scheme, the light that shines LED lamp plate 9 through lamps and lanterns cover plate 2 externally shines and protects LED lamp plate 9, can make things convenient for personnel to walk the line distribution in the installation through cable guiding tube 8 and cable through-hole 7 to cooperate this lamps and lanterns to realize quick installation line operation, and protect the cable and prevent that it from receiving external factors influence, through 6 fixed mounting in required installation sites such as wall or ceiling of top fixed plate.
In this embodiment, the inner side of each sliding groove 302 penetrates through the lamp housing 1 and the lamp mounting groove 10 to communicate with each other, a rotating rod mounting seat 310 is fixedly mounted on the inner wall of one side inside each sliding groove 302, the other side of each sliding groove 302 penetrates through the lamp housing 1, a work transferring rotating rod 305 is rotatably mounted inside each sliding groove 302 through the rotating rod mounting seat 310, a control knob 301 is fixedly mounted at one end of each work transferring rotating rod 305, which is far away from the rotating rod mounting seat 310, a limit sleeve 306 is sleeved at the middle part of each work transferring rotating rod 305, and each limit sleeve 306 is fixedly arranged at the middle part of each sliding groove 302. Can realize the stable installation to LED lamp plate 9 through installation component 3, and still can adapt to the size of LED lamp plate 9 and laminate fixedly, and be equipped with slipmat lower extreme surface through every light guide board 307 upper end surface and set up to guide slope, it guides to lamp cover plate 2 to prevent the activity more stably and to its light that shines out when making it use, thereby effectively promote this lamp light luminance reduction consumption, and through installation component 3 easy operation and cooperate the part that realizes dismantling lamp housing 1 fast with coupling assembling 5, thereby the personnel of being convenient for take out the installation, compare with prior art and effectively avoid the longer problem of flow loaded down with trivial details its required time that leads to when later maintenance.
It should be noted that, positive and negative screw threads 304 are integrally formed at two ends of each power transmission rotating rod 305, a movable threaded sleeve 309 is in threaded fit with the periphery of each positive and negative screw thread 304, each movable threaded sleeve 309 is movably arranged inside the corresponding sliding groove 302, a sliding plate 303 is fixedly arranged between the inner sides of the corresponding movable threaded sleeves 309 on each side, a light guide plate 307 is integrally formed at the lower end of each sliding plate 303, a fixed positioning block 308 is integrally formed on the corresponding surface of each light guide plate 307, a non-slip mat is arranged on the upper end surface of each light guide plate 307, a guide slope is formed on the lower end surface of the non-slip mat, and an LED lamp panel 9 is arranged between each light guide plate 307 in a limiting manner through the fixed positioning block 308. Use control knob 301 to carry out spacing rotation to inside biography merit bull 305 through bull stick mount pad 310 and spacing loop bar 306 afterwards, be provided with positive and negative screw 304 and thread bush through pole body both ends integration when passing merit bull 305 rotates and be equipped with movable thread bush 309, realize that both sides activity thread bush 309 slides the translation, also make the sliding plate 303 in the inside activity of sliding groove 302, carry out fixed operation to LED lamp plate 9 through fixed positioning piece 308 afterwards, thereby the realization is to the installation of LED lamp plate 9, the same principle only need the reversal rotation control knob 301 when needing to take out can.
When specifically setting up, every subassembly shell 501 is inside all to have seted up interlude connecting groove 503, every interlude connecting groove 503 inside outside all is provided with spacing chucking groove 510, every subassembly shell 501 upper end middle part fixed mounting has erection support 504, the inside all rotation of every erection support 504 installs control lead screw 505, the equal fixed mounting in every control lead screw 505 pole body outer end has holding rod 502, every subassembly shell 501 upper surface just is located corresponding erection support 504 position and runs through and has seted up driving plate movable groove 507, the inside all slip of every driving plate movable groove 507 is provided with thread groove driving plate 506. Can realize the connection installation between auxiliary assembly 4 and the installation component 3 through coupling assembling 5 to easy operation when using through coupling assembling 5 can realize user's quick dismantlement operation and make it more convenient, and still make the stability ability of this lamps and lanterns promote greatly through coupling assembling 5, compare with prior art and avoid appearing leading to it to have the potential safety hazard because of connecting unstability.
It can be understood, in this application, every thread groove driving plate 506 upper end is provided with the screw hole and carries out screw-thread fit with corresponding control lead screw 505, every thread groove driving plate 506 lower extreme integration sets up the upper end at chucking plate 508, every chucking plate 508 all slides and sets up inside spacing chucking groove 510, every spacing chucking groove 510 and driving plate movable slot 507 intercommunication, every chucking plate 508 inside surface is provided with a plurality of dead fixture blocks 509 of locking respectively, every dead fixture block 509 all carries out the chucking cooperation with dead clamping groove 406 of locking, every interlude connection groove 503 inslot all alternates and is provided with side position interlude pole 405. During the use through alternate side position interlude pole 405 to interlude spread groove 503 inslot, use holding rod 502 afterwards to make control lead screw 505 rotate and carry out the transmission fit with thread groove driving plate 506 to drive chucking plate 508 at spacing chucking groove 510 inside activity through thread groove driving plate 506, and all carry out the chucking cooperation with the dead draw-in groove 406 of lock with every dead fixture block 509 of lock, if need relieve the same reason reversal can.
In this embodiment, the auxiliary assembly 4 is including dust sealing plate 401 and side position installation cover 402, dust sealing plate 401 upper surface four corners department fixed mounting has side position installation cover 402 respectively, wherein three side position installation cover 402 is inside all spacing slidable mounting has second extension rod 404, the inside rotation of one of them side position installation cover 402 is installed and is connected bull stick 411, dust sealing plate 401 pole body both ends homogeneity is provided with side position interlude pole 405, a plurality of dead-lock draw-in grooves 406 have been seted up respectively to every side position interlude pole 405 pole body outside surface, dust sealing plate 401 and light mounting groove 10 size are unanimous, dust sealing plate 401 center is run through and has been seted up cable through-hole 7 and the integral type and be provided with cable guiding tube 8. Through auxiliary assembly 4 can realize controlling the clearance distance in the middle of when installing, make it effectively avoid appearing less because of the space clearance of installation with prior art to lead to it to carry out quick dismantlement installation operation influence later stage operation, make its problem comparatively loaded down with trivial details and consuming time and power, make this lamps and lanterns can correspond the adjustment when using according to the demand, and can also carry out corresponding adjustment to the distance of penetrating as required, thereby the effect is better when making this lamps and lanterns use.
Wherein, connect the bull stick 411 pole body and be located the inside fixed mounting of side position installation cover 402 and have drive gear 410, connect the fixed roll adjustment knob 407 that is provided with in bull stick outer end of bull stick 411, a plurality of angle locating holes 408 have all been seted up on one of them side position installation cover 402 outside surface and the roll adjustment knob 407 surface, every angle locating hole 408 is inside all to be interspersed and to be provided with the location and to penetrate pole 409, the inside one side spacing installation of one of them side position installation cover 402 has first extension rod 403, first extension rod 403 one side be provided with a plurality of teeth and with drive gear 410 between carry out the gear engagement transmission. Use supplementary subassembly 4 at first to rotate roll adjustment knob 407 for first extension rod 403 one side be provided with a plurality of teeth and with drive gear 410 between carry out gear engagement transmission, realize driving three second extension rod 404 and carry out displacement upwards, realize temporary regulation, follow through every angle locating hole 408 inside all alternate and be provided with location interlude pole 409, thereby fix its distance and realize adjusting.
The working principle of the LED lamp with the conveniently-disassembled and assembled shell is as follows:
when the installation component 3 is used, firstly, the control knob 301 is used, then the internal work transfer rotating rod 305 is subjected to limited rotation through the rotating rod installation seat 310 and the limiting sleeve rod 306, when the work transfer rotating rod 305 rotates, the positive and negative threads 304 are integrally arranged at the two ends of the rod body, the thread sleeves are provided with the movable thread sleeves 309, the movable thread sleeves 309 on the two sides are subjected to sliding translation, the sliding plate 303 is enabled to move in the sliding groove 302, then, the LED lamp panel 9 is fixedly operated through the fixed positioning block 308, and therefore the LED lamp panel 9 is installed, and if the installation component is required to be taken out, the control knob 301 is rotated reversely;
after the installation of the LED lamp panel 9 is completed, the installation and connection are carried out through the connecting assembly 5, when the LED lamp panel is used, the lateral inserting rod 405 is inserted into the inserting connecting groove 503, then the holding rod 502 is used for enabling the control screw rod 505 to rotate and to be in transmission fit with the thread groove transmission plate 506, the thread groove transmission plate 506 drives the clamping plate 508 to move in the limiting clamping groove 510, each locking clamping block 509 is in clamping fit with the locking clamping groove 406, and if the same inversion needs to be removed;
in order to control the installation distance, the auxiliary assembly 4 is required to be used to firstly rotate the distance adjusting knob 407, so that one side of the first extension rod 403 is provided with a plurality of teeth and is in gear engagement transmission with the transmission gear 410, the three second extension rods 404 are driven to move upwards, the temporary adjustment is realized, and then the positioning insertion rods 409 are arranged inside each angle positioning hole 408 in an inserted manner, so that the distance between the positioning insertion rods 409 is fixed to realize the adjustment.
The foregoing shows and describes the general principles and broad features of the present invention and advantages thereof. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, which are described in the specification and illustrated only to illustrate the principle of the present invention, but that various changes and modifications may be made therein without departing from the spirit and scope of the present invention, which fall within the scope of the invention as claimed. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (8)
1. The utility model provides a LED lamps and lanterns of installation shell is conveniently dismantled, includes lamp housing (1) and lamp cover plate (2), lamp cover plate (2) fixed mounting is at lamp housing (1) lower surface center, lamp housing (1) inside light mounting groove (10), its characterized in that of having seted up: the LED lamp is characterized in that the lamp shell (1) is provided with mounting components (3) at two ends and located in a light mounting groove (10), the mounting components (3) are provided with LED lamp panels (9) at inner parts, the LED lamp panels (9) are located at the upper ends of the lamp cover plates (2), the mounting components (3) are respectively provided with two sliding grooves (302), the two sliding grooves (302) are respectively arranged in two ends of the lamp shell (1), the two ends of the upper surface of the lamp shell (1) are located at the upper ends of the mounting components (3) and are respectively provided with a connecting component (5), each connecting component (5) comprises a component shell (501) and is respectively and integrally arranged at two ends of the upper surface of the lamp shell (1), the two ends of the connecting component (5) are internally provided with auxiliary components (4), and the top end fixing plates (6) are fixedly arranged at the top ends of the auxiliary components (4), the center of the top end fixing plate (6) is provided with a cable through hole (7) in a penetrating manner, the lower end of the cable through hole (7) is fixedly provided with a cable guide pipe (8), the LED lamp panel (9) is connected to an external power supply through the two cable guide pipes (8) and the cable through hole (7) on one side of a cable, each assembly shell (501) is internally provided with a penetrating connection groove (503), the outer side of the inner part of each penetrating connection groove (503) is provided with a limiting clamping groove (510), the middle part of the upper end of each assembly shell (501) is fixedly provided with an installation support (504), each installation support (504) is internally provided with a control lead screw (505) in a rotating manner, the outer end of a rod body of each control lead screw (505) is fixedly provided with a holding rod (502), the upper surface of each assembly shell (501) is positioned at a position corresponding to the installation support (504) and is provided with a transmission plate movable groove (507) in a penetrating manner, every the inside screw thread groove driving plate (506) that all slides of driving plate activity groove (507), every screw thread groove driving plate (506) upper end is provided with the screw hole and carries out screw-thread fit with corresponding control lead screw (505), every screw thread groove driving plate (506) lower extreme integration sets up the upper end at chucking plate (508).
2. The LED lamp with the conveniently-disassembled and conveniently-assembled shell as claimed in claim 1, is characterized in that: the inner side of each sliding groove (302) penetrates through the lamp shell (1) and the light installation groove (10) to be communicated, the inner wall of one side of the inner part of each sliding groove (302) is fixedly provided with a rotating rod installation seat (310), the other side of each sliding groove (302) penetrates through the lamp shell (1), and a work transfer rotating rod (305) is rotatably installed in each sliding groove (302) through the rotating rod installation seat (310).
3. The LED lamp with the conveniently-disassembled and conveniently-installed shell as claimed in claim 2, is characterized in that: every the equal fixed mounting of one end that bull stick mount pad (310) was kept away from in biography merit bull stick (305) has control knob (301), every equal spacing cover in biography merit bull stick (305) pole body middle part is equipped with spacing loop bar (306), every spacing loop bar (306) are all fixed to be set up at the middle part of sliding groove (302), every the integration of biography merit bull stick (305) pole body both ends is provided with positive and negative screw thread (304), every end equal screw-thread fit in positive and negative screw thread (304) periphery has movable thread bush (309), every activity thread bush (309) is all movable to be set up inside corresponding sliding groove (302).
4. The LED lamp with the conveniently-disassembled and conveniently-assembled shell as claimed in claim 3, wherein: every side corresponds fixed mounting has sliding plate (303), every between activity thread bush (309) the inboard sliding plate (303) lower extreme homogeneous body is provided with light guide board (307), every light guide board (307) correspond surface homogeneous body and are provided with fixed position piece (308), every light guide board (307) upper end surface is equipped with slipmat lower extreme surface and sets up to guide slope, every through the spacing LED lamp plate (9) of installing of fixed position piece (308) between light guide board (307).
5. The LED lamp with the conveniently-disassembled and conveniently-assembled shell as claimed in claim 1, is characterized in that: every chucking board (508) all slides and sets up inside spacing chucking groove (510), every spacing chucking groove (510) and driving plate movable groove (507) intercommunication, every chucking board (508) inboard surface is provided with a plurality of dead fixture blocks of locks (509) respectively, every dead fixture block of lock (509) all carries out the chucking cooperation with dead draw-in groove of lock (406), every interlude spread groove (503) inslot all alternates and is provided with side position interlude pole (405).
6. The LED lamp with the conveniently-disassembled and conveniently-assembled shell as claimed in claim 1, is characterized in that: auxiliary assembly (4) are including dust sealing plate (401) and side position installation cover (402), there are side position installation cover (402) at dust sealing plate (401) upper surface four corners department fixed mounting respectively, and wherein three the inside equal spacing slidable mounting of side position installation cover (402) has second extension rod (404), one of them side position installation cover (402) inside rotation is installed and is connected bull stick (411).
7. The LED lamp with the conveniently-disassembled and conveniently-installed shell as claimed in claim 6, wherein: dust sealing plate (401) pole body both ends homogeneous is provided with side position pole (405), every side position pole (405) pole body outside surface has seted up a plurality of dead draw-in grooves of locks (406) respectively, dust sealing plate (401) and light mounting groove (10) size are unanimous, dust sealing plate (401) center is run through and has been seted up cable through-hole (7) and the integral type is provided with cable guiding tube (8), connect bull stick (411) pole body and be located side position installation cover (402) inside fixed mounting have drive gear (410), it is provided with roll adjustment knob (407) to connect bull stick (411) pole body outer end is fixed.
8. The LED lamp with the conveniently-disassembled and conveniently-installed shell as claimed in claim 7, wherein: one of them side position installation cover (402) outside surface and with roll adjustment knob (407) surface all seted up a plurality of angle locating holes (408), every angle locating hole (408) inside all interlude is provided with location interlude pole (409), one of them side position installation cover (402) inside one side is spacing installs first extension rod (403), first extension rod (403) one side be provided with a plurality of teeth and with drive gear (410) between carry out the gear engagement transmission.
