CN113475972A - Dust collector capable of removing and collecting dust in one-key mode and dust discharging method thereof - Google Patents
Dust collector capable of removing and collecting dust in one-key mode and dust discharging method thereof Download PDFInfo
- Publication number
- CN113475972A CN113475972A CN202110643180.5A CN202110643180A CN113475972A CN 113475972 A CN113475972 A CN 113475972A CN 202110643180 A CN202110643180 A CN 202110643180A CN 113475972 A CN113475972 A CN 113475972A
- Authority
- CN
- China
- Prior art keywords
- dust
- guide plate
- collection box
- dust collection
- telescopic
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
- 239000000428 dust Substances 0.000 title claims abstract description 198
- 238000000034 method Methods 0.000 title claims abstract description 9
- 238000007599 discharging Methods 0.000 title abstract description 5
- 239000000463 material Substances 0.000 description 2
- 230000007547 defect Effects 0.000 description 1
- 230000000694 effects Effects 0.000 description 1
- 230000005284 excitation Effects 0.000 description 1
- 238000001914 filtration Methods 0.000 description 1
- 238000012986 modification Methods 0.000 description 1
- 230000004048 modification Effects 0.000 description 1
Images
Classifications
-
- A—HUMAN NECESSITIES
- A47—FURNITURE; DOMESTIC ARTICLES OR APPLIANCES; COFFEE MILLS; SPICE MILLS; SUCTION CLEANERS IN GENERAL
- A47L—DOMESTIC WASHING OR CLEANING; SUCTION CLEANERS IN GENERAL
- A47L5/00—Structural features of suction cleaners
- A47L5/12—Structural features of suction cleaners with power-driven air-pumps or air-compressors, e.g. driven by motor vehicle engine vacuum
-
- A—HUMAN NECESSITIES
- A47—FURNITURE; DOMESTIC ARTICLES OR APPLIANCES; COFFEE MILLS; SPICE MILLS; SUCTION CLEANERS IN GENERAL
- A47L—DOMESTIC WASHING OR CLEANING; SUCTION CLEANERS IN GENERAL
- A47L9/00—Details or accessories of suction cleaners, e.g. mechanical means for controlling the suction or for effecting pulsating action; Storing devices specially adapted to suction cleaners or parts thereof; Carrying-vehicles specially adapted for suction cleaners
-
- A—HUMAN NECESSITIES
- A47—FURNITURE; DOMESTIC ARTICLES OR APPLIANCES; COFFEE MILLS; SPICE MILLS; SUCTION CLEANERS IN GENERAL
- A47L—DOMESTIC WASHING OR CLEANING; SUCTION CLEANERS IN GENERAL
- A47L9/00—Details or accessories of suction cleaners, e.g. mechanical means for controlling the suction or for effecting pulsating action; Storing devices specially adapted to suction cleaners or parts thereof; Carrying-vehicles specially adapted for suction cleaners
- A47L9/02—Nozzles
-
- A—HUMAN NECESSITIES
- A47—FURNITURE; DOMESTIC ARTICLES OR APPLIANCES; COFFEE MILLS; SPICE MILLS; SUCTION CLEANERS IN GENERAL
- A47L—DOMESTIC WASHING OR CLEANING; SUCTION CLEANERS IN GENERAL
- A47L9/00—Details or accessories of suction cleaners, e.g. mechanical means for controlling the suction or for effecting pulsating action; Storing devices specially adapted to suction cleaners or parts thereof; Carrying-vehicles specially adapted for suction cleaners
- A47L9/10—Filters; Dust separators; Dust removal; Automatic exchange of filters
Landscapes
- Engineering & Computer Science (AREA)
- Mechanical Engineering (AREA)
- Filters For Electric Vacuum Cleaners (AREA)
Abstract
The invention relates to a dust collector capable of removing and collecting dust by one key and a dust discharging method thereof, wherein the dust collector comprises a suction port assembly, the suction port assembly is detachably connected with a dust collection shell through an elastic connection mechanism, a dust collection mechanism is arranged in an inner cavity of the dust collection shell and comprises a dust collection box, a first dust inlet guide plate and a second dust inlet guide plate are respectively arranged at an opening of the dust collection box, a limiting chute is arranged on the side wall of the outer end of the dust collection box, telescopic abutting springs are fixed on the side wall of the inner cavity of the limiting chute, telescopic clamping blocks are fixed on each group of telescopic abutting springs, and fixing groove holes clamped with the telescopic clamping blocks are uniformly arranged on the outer side wall of the inner cavity of the dust collection shell.
Description
Technical Field
The invention relates to the field of dust collectors, in particular to a dust collector capable of removing and collecting dust by one key and a dust discharging method thereof.
Background
The dust collector mainly comprises three parts of dust generation, dust collection and dust filtration, and generally comprises a series excitation commutator motor, a centrifugal fan, a dust filter (bag) and a dust collection accessory. .
The existing dust collector has the defects that dust enters the dust collecting box, is easy to disperse from the dust collecting box and enters the inner cavity of the dust removing shell, is inconvenient to clean, is in direct contact with the dust during dust removal, and increases the danger of secondary pollution
Disclosure of Invention
The invention aims to overcome the problems in the prior art and provides a dust collector capable of removing and collecting dust by one key and a dust discharging method thereof.
In order to achieve the technical purpose and achieve the technical effect, the invention is realized by the following technical scheme:
a dust collector capable of removing dust and collecting dust by one key comprises a suction port assembly, wherein the suction port assembly is detachably connected with a dust removing shell through an elastic connecting mechanism, and a dust collecting mechanism is arranged in an inner cavity of the dust removing shell;
the dust collecting mechanism comprises a dust collecting box, a first dust inlet guide plate and a second dust inlet guide plate are respectively installed at the opening of the dust collecting box, a limiting sliding groove is formed in the side wall of the outer end of the dust collecting box, a telescopic abutting spring is fixed to the side wall of the inner cavity of the limiting sliding groove, telescopic clamping blocks are fixed to the telescopic abutting springs in each group, and fixing groove holes clamped with the telescopic clamping blocks are evenly formed in the outer side wall of the inner cavity of the dust collecting shell.
Preferably, the elastic connection mechanism comprises a dust cup rotating shaft torsion spring, the dust cup rotating shaft torsion spring is fixed on the side wall of the inner cavity of the suction port assembly, a pressing shifting block is fixed on the dust cup rotating shaft torsion spring, a limiting clamping block is fixed at the top of the pressing shifting block, a limiting clamping groove which is clamped with the limiting clamping block is formed in the side wall of the top of the dust removal shell, a suction port button is hinged to the side wall of the outer end of the dust removal shell, and a pressing sliding block is fixed at the bottom of the suction port button.
Preferably, the pressing slide block and the limiting fixture block are in the same vertical direction.
Preferably, the number of the telescopic clamping blocks is not less than five, the telescopic clamping blocks are uniformly distributed on the outer side walls of the upper end and the lower end of the dust collecting box, and the number of the fixing slot holes and the number of the telescopic clamping blocks are the same and correspond to each other.
Preferably, threaded slotted holes are formed in the first dust inlet guide plate, the second dust inlet guide plate and the dust collection box, and the first dust inlet guide plate and the second dust inlet guide plate are detachably connected with the dust collection box through fastening screws and threaded slotted holes in a threaded mode.
Preferably, the fastening screw rod is positioned outside the dust collection box and is fixedly provided with a connecting rotating handle.
Preferably, the height of the pressing slider is higher than that of the limiting clamping groove.
Has the advantages that:
1. through the suction port subassembly with outdoor dust through first dust guide, the second dust guide of advancing inhales the dust-collecting box inner chamber, first dust guide and second are led dust guide and dust-collecting box opening part and are the back taper structure, effectively prevent to enter into the inside dust of dust-collecting box, from the internal part effluvium of dust-collecting box, enter into the dust removal shell inner chamber, the clearance of being not convenient for.
2. When clearing up the inside dust of dust collection box, press the suction inlet button downwards, and then drive and press the shifting block and move down, press the shifting block bottom with spacing fixture block butt downwards, spacing fixture block drives dust cup pivot torsional spring downwards, breaks away from each other until spacing fixture block and spacing draw-in groove, dismantles the suction inlet subassembly from dust removal casing afterwards.
3. The dust collection box is pulled towards the direction far away from the dust removal shell by force, and in the pulling process, as the telescopic clamping blocks are fixed on the telescopic abutting springs and abut against the telescopic abutting springs, the dust collection box is taken out from the inner cavity of the dust removal shell 3 until the telescopic clamping blocks completely enter the limiting sliding grooves, and then the fastening screw is rotatably screwed out, the first dust guide plate and the second dust guide plate are taken down, and finally the dust in the dust collection box is poured out.
Of course, it is not necessary for any one product that embodies the invention to achieve all of the above advantages simultaneously.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to the drawings without creative efforts.

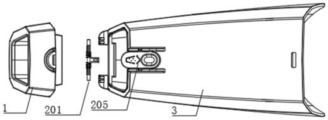

FIG. 1 is a schematic structural view of the present invention;
