CN113430976A - Leveling device for repairing roads and facilitating waste cleaning - Google Patents
Leveling device for repairing roads and facilitating waste cleaning Download PDFInfo
- Publication number
- CN113430976A CN113430976A CN202010209168.9A CN202010209168A CN113430976A CN 113430976 A CN113430976 A CN 113430976A CN 202010209168 A CN202010209168 A CN 202010209168A CN 113430976 A CN113430976 A CN 113430976A
- Authority
- CN
- China
- Prior art keywords
- rod
- mounting
- sleeve
- device body
- leveling mechanism
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
- 238000004140 cleaning Methods 0.000 title claims abstract description 37
- 239000002699 waste material Substances 0.000 title abstract description 31
- 230000007246 mechanism Effects 0.000 claims abstract description 49
- 238000009434 installation Methods 0.000 claims abstract description 17
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 claims description 42
- 235000017166 Bambusa arundinacea Nutrition 0.000 claims description 10
- 235000017491 Bambusa tulda Nutrition 0.000 claims description 10
- 241001330002 Bambuseae Species 0.000 claims description 10
- 235000015334 Phyllostachys viridis Nutrition 0.000 claims description 10
- 239000011425 bamboo Substances 0.000 claims description 10
- 238000005086 pumping Methods 0.000 claims description 9
- 239000007921 spray Substances 0.000 claims description 7
- 238000004891 communication Methods 0.000 claims description 3
- 238000003466 welding Methods 0.000 claims description 3
- 230000008439 repair process Effects 0.000 abstract description 5
- 230000003139 buffering effect Effects 0.000 abstract description 4
- 238000012423 maintenance Methods 0.000 abstract description 4
- 230000000694 effects Effects 0.000 abstract description 3
- 230000009471 action Effects 0.000 description 8
- 239000004568 cement Substances 0.000 description 7
- 238000010276 construction Methods 0.000 description 5
- 239000000463 material Substances 0.000 description 3
- 238000007790 scraping Methods 0.000 description 3
- 238000005507 spraying Methods 0.000 description 3
- 238000000034 method Methods 0.000 description 2
- 238000012986 modification Methods 0.000 description 2
- 230000004048 modification Effects 0.000 description 2
- 230000008569 process Effects 0.000 description 2
- 230000009286 beneficial effect Effects 0.000 description 1
- 230000007547 defect Effects 0.000 description 1
- 238000005516 engineering process Methods 0.000 description 1
- 239000002912 waste gas Substances 0.000 description 1
Images
Classifications
-
- E—FIXED CONSTRUCTIONS
- E01—CONSTRUCTION OF ROADS, RAILWAYS, OR BRIDGES
- E01H—STREET CLEANING; CLEANING OF PERMANENT WAYS; CLEANING BEACHES; DISPERSING OR PREVENTING FOG IN GENERAL CLEANING STREET OR RAILWAY FURNITURE OR TUNNEL WALLS
- E01H1/00—Removing undesirable matter from roads or like surfaces, with or without moistening of the surface
-
- E—FIXED CONSTRUCTIONS
- E01—CONSTRUCTION OF ROADS, RAILWAYS, OR BRIDGES
- E01C—CONSTRUCTION OF, OR SURFACES FOR, ROADS, SPORTS GROUNDS, OR THE LIKE; MACHINES OR AUXILIARY TOOLS FOR CONSTRUCTION OR REPAIR
- E01C19/00—Machines, tools or auxiliary devices for preparing or distributing paving materials, for working the placed materials, or for forming, consolidating, or finishing the paving
- E01C19/22—Machines, tools or auxiliary devices for preparing or distributing paving materials, for working the placed materials, or for forming, consolidating, or finishing the paving for consolidating or finishing laid-down unset materials
- E01C19/42—Machines for imparting a smooth finish to freshly-laid paving courses other than by rolling, tamping or vibrating
-
- E—FIXED CONSTRUCTIONS
- E01—CONSTRUCTION OF ROADS, RAILWAYS, OR BRIDGES
- E01C—CONSTRUCTION OF, OR SURFACES FOR, ROADS, SPORTS GROUNDS, OR THE LIKE; MACHINES OR AUXILIARY TOOLS FOR CONSTRUCTION OR REPAIR
- E01C23/00—Auxiliary devices or arrangements for constructing, repairing, reconditioning, or taking-up road or like surfaces
- E01C23/03—Arrangements for curing paving; Devices for applying curing means; Devices for laying prefabricated underlay, e.g. sheets, membranes; Protecting paving under construction or while curing, e.g. use of tents
-
- E—FIXED CONSTRUCTIONS
- E01—CONSTRUCTION OF ROADS, RAILWAYS, OR BRIDGES
- E01H—STREET CLEANING; CLEANING OF PERMANENT WAYS; CLEANING BEACHES; DISPERSING OR PREVENTING FOG IN GENERAL CLEANING STREET OR RAILWAY FURNITURE OR TUNNEL WALLS
- E01H1/00—Removing undesirable matter from roads or like surfaces, with or without moistening of the surface
- E01H1/08—Pneumatically dislodging or taking-up undesirable matter or small objects; Drying by heat only or by streams of gas; Cleaning by projecting abrasive particles
- E01H1/0827—Dislodging by suction; Mechanical dislodging-cleaning apparatus with independent or dependent exhaust, e.g. dislodging-sweeping machines with independent suction nozzles ; Mechanical loosening devices working under vacuum
- E01H1/0836—Apparatus dislodging all of the dirt by suction ; Suction nozzles
- E01H1/0845—Apparatus dislodging all of the dirt by suction ; Suction nozzles with mechanical loosening or feeding instruments for the dirt to be sucked- up, e.g. brushes, scrapers
Landscapes
- Engineering & Computer Science (AREA)
- Architecture (AREA)
- Civil Engineering (AREA)
- Structural Engineering (AREA)
- Cleaning In General (AREA)
Abstract
The invention discloses a leveling device for repairing roads, which is convenient for waste cleaning and comprises a device body, a collecting cover and a limiting cylinder, wherein a control mechanism is arranged on the left side of the device body, a seat is arranged on the right side of the control mechanism, the lower end of the seat is fixedly connected with the device body, driving wheels are arranged at four corners of the device body, a shoveling device is arranged on the left side of the lower end of the device body, a leveling mechanism is arranged on the right side of the shoveling device, an installation rod is arranged on the edge of the upper surface of the leveling mechanism, the upper end of the installation rod is positioned in the fixing cylinder, a cleaning brush is arranged on the outer side of the leveling mechanism, and the upper end of the cleaning brush is connected with the installation plate through an installation bolt. This repair road is with flattening device convenient to garbage cleaning, work efficiency is higher, and is convenient for clear up the waste material to can play the effect of maintenance to the road, have the function of buffering protection to relevant parts moreover.
Description
Technical Field
The invention relates to the technical field of road repair, in particular to a road repair leveling device convenient for waste cleaning.
Background
The construction of road needs many stages, wherein in cement road construction, after cement is laid and is accomplished, need carry out the flattening to cement road surface to guarantee the level and smooth of road surface, and there are a lot of ways at the road surface flattening, but current flattening device for repairing still has certain defect, for example:
1. the existing leveling device for repairing roads has lower working efficiency, cannot meet the leveling standard once, and is easy to damage related components;
2. the general leveling device for repairing the road cannot clean the waste materials generated in the leveling process, so that the waste materials are easily adhered to the road surface for a long time, and the use of the road is influenced;
3. in the cement road construction, the road surface needs to be regularly watered and maintained, and the general leveling device for road construction cannot give consideration to the watering work;
4. when the road surface is rough, the existing road leveling device cannot play a good role in buffering and protecting the leveling component and the waste collecting mechanism.
The invention aims to provide a flattening device for repairing roads, which is convenient for waste cleaning, so as to solve the problem of the flattening device for repairing roads in the current market, which is provided by the background technology.
Disclosure of Invention
The invention aims to provide a leveling device for repairing roads, which is convenient for cleaning waste materials, and solves the problems that most of the leveling devices for repairing roads provided by the background art have low working efficiency, are inconvenient for cleaning the waste materials, cannot maintain the roads and are easy to damage related parts.
In order to achieve the purpose, the invention provides the following technical scheme: a leveling device for road repair convenient for waste cleaning comprises a device body, a collecting cover and a limiting cylinder, wherein a control mechanism is installed on the left side of the device body, a seat is arranged on the right side of the control mechanism, the lower end of the seat is fixedly connected with the device body, driving wheels are installed at four corners of the device body, a shoveling device is installed on the left side of the lower end of the device body, a leveling mechanism is arranged on the right side of the shoveling device, the middle of the upper end of the leveling mechanism is connected with the output end of a driving motor through a driving rod, an installation rod is installed on the edge of the upper surface of the leveling mechanism, the upper end of the installation rod is located inside a fixed cylinder, a cleaning brush is arranged on the outer side of the leveling mechanism, and the upper end of the cleaning brush is connected with the installation plate through an installation bolt;
the collecting cover is positioned on the right side of the leveling mechanism, the upper end of the collecting cover is connected with the connecting pipe through the mounting piece, the upper end of the connecting pipe is connected with the fixed pipe through the connecting piece, the top end of the fixed pipe is connected with the input end of the pumping pump, the output end of the pumping pump is connected with the control valve, and the left end of the control valve is positioned inside the collecting box;
spacing section of thick bamboo fixed mounting is at the lower surface of collecting the cover, and the inside of spacing section of thick bamboo is connected with the stopper through the spring to the gyro wheel is installed to the lower extreme of stopper, the inside right-hand member of device body is provided with the water tank, and the bottom of water tank installs the water pump, the output of water pump is connected with the water pipe, and the lower extreme of water pipe is connected with the control panel, and the lower surface mounting of control panel has the shower nozzle.
Preferably, the shoveling device comprises a shoveling plate, a vertical rod, an installation block, a sleeve, a loop bar and a connecting spring, the upper end of the shoveling plate is fixedly provided with the vertical rod, the upper end of the vertical rod is hinged to the lower end of the installation block, the loop bar is welded to the outer surface of the vertical rod, one end, away from the vertical rod, of the loop bar is located inside the sleeve, and the connecting spring is fixedly arranged inside the sleeve.
Preferably, the longitudinal section shapes of the sleeve and the loop bar are both arc shapes, the loop bar is of a sliding structure in the sleeve, and the loop bar and the sleeve form a telescopic structure.
Preferably, the leveling mechanism has a trapezoidal longitudinal cross section, the upper surface of the leveling mechanism and the lower end of the mounting rod form a sliding structure, and the upper end of the mounting rod and the inside of the fixed cylinder form a sliding telescopic structure.
Preferably, the cleaning brushes are symmetrically arranged about a vertical central axis of the device body, the cross sections of the 2 groups of cleaning brushes form an 'eight' -shaped structure, and the cleaning brushes and the mounting plate form a dismounting structure.
Preferably, the size of the opening at the lower end of the collecting cover is larger than that of the opening at the upper end of the collecting cover, and the collecting cover, the connecting pipe and the mounting piece are in threaded connection.
Preferably, the diameter of the lower end of the connecting pipe is larger than that of the upper end of the connecting pipe, and the connecting pipe and the fixed pipe form a detachable structure.
Preferably, the control valve includes valve body, limiting plate, control, accepts a section of thick bamboo and bracing piece, and the internal surface welded connection of valve body has the limiting plate, and the left side of limiting plate is provided with the control, and the left end of control is installed and is accepted a section of thick bamboo, accepts the interior surface welded connection of a section of thick bamboo through bracing piece and valve body.
Preferably, the control piece is of a spherical structure, the outer surface of the control piece is attached to the inner surface of the limiting plate, and the control piece and the bearing cylinder form a telescopic structure.
Preferably, the nozzles are arranged on the control panel at equal intervals, and the interior of the control panel forms a communication structure with the water pump through a water pipe.
Compared with the prior art, the invention has the beneficial effects that: the road repairing flattening device convenient for waste cleaning has high working efficiency, is convenient for cleaning waste, can play a role in maintaining roads, and has a buffer protection function on related parts;
1. the shoveling device is arranged at the lower end of the device body, and the leveling mechanism is arranged on the right side of the shoveling device, so that when the road is leveled, the shoveling device can firstly shovel cement blocks dropping on the road surface and other objects causing unevenness, and then the leveling mechanism rotates to integrate the road surface, so that the efficiency of leveling the road surface by the device can be improved under the mutual matching of the shoveling device and the leveling mechanism;
2. the collecting cover is arranged on the right side of the leveling mechanism, the waste materials generated after leveling are gathered under the action of the cleaning brush in the splayed structure, and the waste materials are absorbed in the collecting box under the action of the collecting cover, so that the waste materials are conveniently and uniformly treated;
3. the control panel and the spray head are arranged at the lower end of the right side of the device body, so that water in the water tank can be uniformly sprayed on the leveled road surface through the spray head under the action of the water pump, and the water spraying maintenance effect on the cement road is achieved;
4. through installing the loop bar on the montant, and the loop bar is slip extending structure in telescopic inside, consequently can make the montant rotate on the installation piece, prevent that the protruding object from being difficult to clear away and causing the damage of shoveling plate, all constitute extending structure between the lower extreme of leveling mechanism and collection cover and the ground in addition, consequently can play the effect of buffering protection to leveling mechanism and collection cover on the road of unevenness, prolong the life of relevant part.
Drawings
FIG. 1 is a schematic front view of the present invention;
FIG. 2 is a schematic front sectional view of the present invention;
FIG. 3 is a schematic view of a front cross-sectional view of the shoveling device of the present invention;
FIG. 4 is a schematic structural view of a control valve of the present invention in elevation section;
FIG. 5 is a schematic sectional view of the collecting hood of the present invention in front view;
FIG. 6 is an enlarged view of the structure at A in FIG. 5 according to the present invention;
FIG. 7 is a schematic bottom view of the device body of the present invention;
FIG. 8 is a schematic view of the connection of the collecting hood and the mounting member according to the present invention;
FIG. 9 is a schematic view of the connection structure of the cleaning brush and the mounting plate according to the present invention.
In the figure: 1. a device body; 2. a control mechanism; 3. a seat; 4. a drive wheel; 5. a shoveling device; 501. a shoveling plate; 502. a vertical rod; 503. mounting blocks; 504. a sleeve; 505. a loop bar; 506. a connecting spring; 6. a leveling mechanism; 7. a drive rod; 8. a drive motor; 9. mounting a rod; 10. a fixed cylinder; 11. cleaning a brush; 12. mounting a plate; 13. installing a bolt; 14. a collection hood; 15. a mounting member; 16. a connecting pipe; 17. a connecting member; 18. a fixed tube; 19. a material pumping pump; 20. a control valve; 2001. a valve body; 2002. a limiting plate; 2003. a control member; 2004. a receiving cylinder; 2005. a support bar; 21. a collection box; 22. a limiting cylinder; 23. a limiting block; 24. a roller; 25. a water tank; 26. a water pump; 27. a water pipe; 28. a control panel; 29. and (4) a spray head.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all embodiments, and all other embodiments obtained by a person of ordinary skill in the art without creative efforts based on the embodiments of the present invention belong to the protection scope of the present invention.
Referring to fig. 1-9, the present invention provides a technical solution: a flattening device for road repair convenient for waste cleaning comprises a device body 1, a control mechanism 2, seats 3, driving wheels 4, a scraping device 5, a flattening mechanism 6, a driving rod 7, a driving motor 8, a mounting rod 9, a fixed cylinder 10, a cleaning brush 11, a mounting plate 12, a mounting bolt 13, a collecting cover 14, a mounting part 15, a connecting pipe 16, a connecting piece 17, a fixed pipe 18, a material pumping pump 19, a control valve 20, a collecting box 21, a limiting cylinder 22, a limiting block 23, idler wheels 24, a water tank 25, a water pump 26, a water pipe 27, a control panel 28 and a spray head 29, wherein the control mechanism 2 is mounted on the left side of the device body 1, the seats 3 are arranged on the right side of the control mechanism 2, the lower ends of the seats 3 are fixedly connected with the device body 1, the driving wheels 4 are mounted at four corners of the device body 1, the scraping device 5 is mounted on the left side of the lower end of the device body 1, the flattening mechanism 6 is mounted on the right side of the scraping device 5, the middle of the upper end of the leveling mechanism 6 is connected with the output end of a driving motor 8 through a driving rod 7, an installation rod 9 is installed on the edge of the upper surface of the leveling mechanism 6, the upper end of the installation rod 9 is located inside a fixed cylinder 10, a cleaning brush 11 is arranged on the outer side of the leveling mechanism 6, and the upper end of the cleaning brush 11 is connected with an installation plate 12 through an installation bolt 13;
the collecting cover 14 is positioned at the right side of the leveling mechanism 6, the upper end of the collecting cover 14 is connected with a connecting pipe 16 through a mounting part 15, the upper end of the connecting pipe 16 is connected with a fixed pipe 18 through a connecting part 17, the top end of the fixed pipe 18 is connected with the input end of a pumping pump 19, the output end of the pumping pump 19 is connected with a control valve 20, and the left end of the control valve 20 is positioned inside a collecting box 21;
spacing section of thick bamboo 22 fixed mounting is at the lower surface of collecting cover 14, and the inside of spacing section of thick bamboo 22 is connected with stopper 23 through the spring to gyro wheel 24 is installed to the lower extreme of stopper 23, and the inside right-hand member of device body 1 is provided with water tank 25, and the bottom of water tank 25 installs water pump 26, and the output of water pump 26 is connected with water pipe 27, and the lower extreme of water pipe 27 is connected with control panel 28, and the lower surface mounting of control panel 28 has shower nozzle 29.
As shown in fig. 2, the leveling mechanism 6 has a trapezoidal longitudinal section, the upper surface of the leveling mechanism 6 and the lower end of the mounting rod 9 form a sliding structure, and the upper end of the mounting rod 9 and the inside of the fixed cylinder 10 form a sliding telescopic structure, so that the leveling mechanism 6 can be buffered in the vertical direction, and the leveling mechanism 6 is prevented from being damaged;
as shown in fig. 3, the shoveling device 5 includes a shoveling plate 501, a vertical rod 502, a mounting block 503, a sleeve 504, a loop bar 505 and a connecting spring 506, the vertical rod 502 is fixedly mounted at the upper end of the shoveling plate 501, the upper end of the vertical rod 502 is hinged to the lower end of the mounting block 503, the loop bar 505 is welded to the outer surface of the vertical rod 502, one end of the loop bar 505, which is far away from the vertical rod 502, is located inside the sleeve 504, the connecting spring 506 is fixedly mounted inside the sleeve 504, the longitudinal cross-sectional shapes of the sleeve 504 and the loop bar 505 are both arc-shaped, the loop bar 505 is in a sliding structure inside the sleeve 504, and the loop bar 505 and the sleeve 504 form a telescopic structure, so that the vertical rod 502 can rotate around the mounting block 503 to play a role in buffering protection for the shoveling plate 501;
as shown in fig. 4, the control valve 20 comprises a valve body 2001, a limit plate 2002, a control member 2003, a receiving cylinder 2004 and a support rod 2005, wherein the limit plate 2002 is welded to the inner surface of the valve body 2001, the control member 2003 is arranged on the left side of the limit plate 2002, the receiving cylinder 2004 is mounted at the left end of the control member 2003, the receiving cylinder 2004 is welded to the inner surface of the valve body 2001 through the support rod 2005, the control member 2003 is in a spherical structure, the outer surface of the control member 2003 is attached to the inner surface of the limit plate 2002, and the control member 2003 and the receiving cylinder 2004 form a telescopic structure, so that the inlet and the outlet of waste materials and gas are controlled conveniently, and the return of the waste materials is prevented;

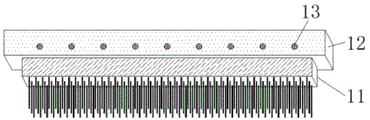

as shown in fig. 7, the cleaning brushes 11 are symmetrically arranged about the vertical central axis of the device body 1, the cross sections of 2 groups of the cleaning brushes 11 form an eight-shaped structure, the cleaning brushes 11 and the mounting plate 12 form a disassembly structure, waste materials can be gathered under the action of the cleaning brushes 11, the waste materials can be conveniently collected, the spray heads 29 are arranged on the control panel 28 at equal intervals, and the interior of the control panel 28 forms a communication structure with the water pump 26 through the water pipe 27, so that uniform sprinkling can be conveniently carried out on the road surface;
as shown in fig. 5 and 8, the opening size of the lower end of the collecting cover 14 is larger than the opening size of the upper end of the collecting cover 14, and the collecting cover 14 and the connecting pipe 16 are connected with the mounting member 15 by threads, so that the absorbing capacity of the collecting cover 14 is stronger, the absorbing surface is enlarged, the diameter size of the lower end of the connecting pipe 16 is larger than that of the upper end of the connecting pipe 16, and the connecting pipe 16 and the fixing pipe 18 form a disassembly structure, which is convenient for disassembling and maintaining the connecting pipe 16.
The working principle is as follows: when the leveling device for repairing roads convenient for waste cleaning is used, a worker sits on the seat 3 and operates the control mechanism 2 through the worker, so that the device normally walks and normally works through the driving wheel 4, when leveling work is performed, redundant cement blocks and other projections which are mainly dripped on the road surface are leveled through the device, the projection on the road surface is firstly shoveled through the shoveling device 5, then the driving rod 7 is driven to rotate through the driving motor 8, so that the leveling mechanism 6 is rotated through the driving rod 7, the lower end of the leveling mechanism 6 is provided with a grinding plane, and the road surface can be ground and leveled through the rotation of the leveling mechanism 6;
during the leveling process, waste materials are generated after redundant projections are removed, so that the waste materials are gathered under the action of the cleaning brush 11, the waste materials are gathered in the collection cover 14, the collection cover 14 has certain suction force under the action of the material pumping pump 19, the waste materials are sucked into the collection box 21 through the collection cover 14, when the waste materials enter the control valve 20, the control member 2003 is extruded due to the flowing of air, the control member 2003 is disengaged from the limiting plate 2002, the waste materials enter the collection box 21 through a gap between the control member 2003 and the limiting plate 2002, and the waste materials in the collection box 21 can be prevented from returning to the fixing pipe 18 under the action of the control valve 20;
when the road needs to be subjected to water spraying maintenance, the water pump 26 is started, so that water in the water tank 25 enters the water pipe 27 under the action of the water pump 26, is introduced into the control panel 28 through the water pipe 27, and is finally sprayed out by the spray head 29 below the control panel 28, the water spraying maintenance is carried out on the road, and the construction with the road is facilitated;
after using a certain time, the accessible rotates installed part 15 for collect cover 14 and connecting pipe 16 and break away from the connection, and through rotating connecting piece 17, make the upper end and the fixed 18 of connecting pipe 16 break away from the connection, then stimulate connecting pipe 16 downwards again, make connecting pipe 16 pull down from collecting cover 14, be convenient for clear up the inside of connecting pipe 16, prevent that connecting pipe 16 and fixed 18 are inside to cause the jam, this is exactly this flattening device for repairing roads's the theory of operation of waste material clearance of being convenient for.
The standard parts used in the invention can be purchased from the market, the special-shaped parts can be customized according to the description of the specification and the accompanying drawings, the specific connection mode of each part adopts conventional means such as bolts, rivets, welding and the like mature in the prior art, the machinery, parts and equipment adopt conventional models in the prior art, and the circuit connection adopts the conventional connection mode in the prior art, and the details are not described, and the content not described in detail in the specification belongs to the prior art known by persons skilled in the art.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that various changes in the embodiments and/or modifications of the invention can be made, and equivalents and modifications of some features of the invention can be made without departing from the spirit and scope of the invention.
Claims (10)
1. The utility model provides a leveling device for repairing roads convenient to garbage cleaning, includes device body (1), collects cover (14) and spacing section of thick bamboo (22), its characterized in that: a control mechanism (2) is arranged on the left side of the device body (1), a seat (3) is arranged on the right side of the control mechanism (2), the lower end of the seat (3) is fixedly connected with the device body (1), four corners of the device body (1) are provided with driving wheels (4), and the left side of the lower end of the device body (1) is provided with a shoveling device (5), the right side of the shoveling device (5) is provided with a leveling mechanism (6), the right middle of the upper end of the leveling mechanism (6) is connected with the output end of a driving motor (8) through a driving rod (7), the edge of the upper surface of the leveling mechanism (6) is provided with a mounting rod (9), the upper end of the mounting rod (9) is positioned in the fixed cylinder (10), the outer side of the leveling mechanism (6) is provided with a cleaning brush (11), the upper end of the cleaning brush (11) is connected with the mounting plate (12) through a mounting bolt (13);
the collecting cover (14) is positioned on the right side of the leveling mechanism (6), the upper end of the collecting cover (14) is connected with a connecting pipe (16) through a mounting piece (15), the upper end of the connecting pipe (16) is connected with a fixed pipe (18) through a connecting piece (17), the top end of the fixed pipe (18) is connected with the input end of a pumping pump (19), the output end of the pumping pump (19) is connected with a control valve (20), and the left end of the control valve (20) is positioned inside a collecting box (21);
spacing section of thick bamboo (22) fixed mounting is at the lower surface of collecting cover (14), and the inside of spacing section of thick bamboo (22) is connected with stopper (23) through the spring to gyro wheel (24) are installed to the lower extreme of stopper (23), the inside right-hand member of device body (1) is provided with water tank (25), and the bottom of water tank (25) installs water pump (26), the output of water pump (26) is connected with water pipe (27), and the lower extreme of water pipe (27) is connected with control panel (28), and the lower surface mounting of control panel (28) has shower nozzle (29).
2. The road finisher of claim 1, wherein: the shoveling device (5) comprises a shoveling plate (501), a vertical rod (502), an installation block (503), a sleeve (504), a sleeve rod (505) and a connecting spring (506), the upper end of the shoveling plate (501) is fixedly provided with the vertical rod (502), the upper end of the vertical rod (502) is hinged to the lower end of the installation block (503), the outer surface of the vertical rod (502) is connected with the sleeve rod (505) in a welded mode, one end, away from the vertical rod (502), of the sleeve rod (505) is located inside the sleeve (504), and the connecting spring (506) is fixedly installed inside the sleeve (504).
3. The road finisher of claim 2, wherein: the longitudinal section shapes of the sleeve (504) and the sleeve rod (505) are arc-shaped, the sleeve rod (505) is in a sliding structure in the sleeve (504), and the sleeve rod (505) and the sleeve (504) form a telescopic structure.
4. The road finisher of claim 1, wherein: the longitudinal section of the leveling mechanism (6) is trapezoidal, the upper surface of the leveling mechanism (6) and the lower end of the mounting rod (9) form a sliding structure, and the upper end of the mounting rod (9) and the inside of the fixed cylinder (10) form a sliding telescopic structure.
5. The road finisher of claim 1, wherein: the cleaning brushes (11) are symmetrically arranged about a vertical central axis of the device body (1), the cross sections of the 2 groups of cleaning brushes (11) form a structure in a shape like a Chinese character 'ba', and the cleaning brushes (11) and the mounting plate (12) form a dismounting structure.
6. The road finisher of claim 1, wherein: the size of the lower end opening of the collecting cover (14) is larger than that of the upper end opening of the collecting cover (14), and the collecting cover (14), the connecting pipe (16) and the mounting piece (15) are in threaded connection.
7. The road finisher of claim 1, wherein: the diameter size of the lower end of the connecting pipe (16) is larger than that of the upper end of the connecting pipe (16), and the connecting pipe (16) and the fixed pipe (18) form a disassembly structure.
8. The road finisher of claim 1, wherein: the control valve (20) comprises a valve body (2001), a limiting plate (2002), a control piece (2003), a receiving barrel (2004) and a supporting rod (2005), the limiting plate (2002) is connected to the inner surface of the valve body (2001) in a welding mode, the control piece (2003) is arranged on the left side of the limiting plate (2002), the receiving barrel (2004) is installed at the left end of the control piece (2003), and the receiving barrel (2004) is connected with the inner surface of the valve body (2001) in a welding mode through the supporting rod (2005).
9. The road finisher of claim 8, wherein: the control piece (2003) is of a spherical structure, the outer surface of the control piece (2003) is attached to the inner surface of the limiting plate (2002), and the control piece (2003) and the receiving cylinder (2004) form a telescopic structure.
10. The road finisher of claim 1, wherein: the spray heads (29) are arranged on the control panel (28) at equal intervals, and the interior of the control panel (28) forms a communication structure with the water pump (26) through a water pipe (27).
