CN113425000A - Bra and preparation process thereof - Google Patents
Bra and preparation process thereof Download PDFInfo
- Publication number
- CN113425000A CN113425000A CN202010206204.6A CN202010206204A CN113425000A CN 113425000 A CN113425000 A CN 113425000A CN 202010206204 A CN202010206204 A CN 202010206204A CN 113425000 A CN113425000 A CN 113425000A
- Authority
- CN
- China
- Prior art keywords
- root
- cup
- bra
- bundle
- chicken heart
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
Images
Classifications
-
- A—HUMAN NECESSITIES
- A41—WEARING APPAREL
- A41C—CORSETS; BRASSIERES
- A41C3/00—Brassieres
- A41C3/10—Brassieres with stiffening or bust-forming inserts
-
- A—HUMAN NECESSITIES
- A41—WEARING APPAREL
- A41C—CORSETS; BRASSIERES
- A41C3/00—Brassieres
- A41C3/12—Component parts
- A41C3/14—Stiffening or bust-forming inserts
-
- A—HUMAN NECESSITIES
- A41—WEARING APPAREL
- A41C—CORSETS; BRASSIERES
- A41C5/00—Machines, appliances, or methods for manufacturing corsets or brassieres
Landscapes
- Engineering & Computer Science (AREA)
- Textile Engineering (AREA)
- Manufacturing & Machinery (AREA)
- Corsets Or Brassieres (AREA)
Abstract
本发明提供了一种文胸，所述文胸包括罩杯部以及与所述罩杯部连接的后比，所述罩杯部的下端设置鸡心下扒，所述文胸还包括下捆丈根部，所述下捆丈根部与所述鸡心下扒连接，所述下捆丈根部也与所述后比连接，所述下捆丈根部包括第一下捆丈根和第二下捆丈根，所述第一下捆丈根与所述第二下捆丈根相连接；本发明所述的文胸，在鸡心下扒和后比上设置下捆丈根部，使文胸有较好的支撑和定型功能；将鸡心下扒设置为一体，代替传统的鸡心和下扒，在承托胸部时，受力面积增大，整个鸡心下扒位受力均匀，大大减轻了鸡心位和下扒位的压迫感，起到了优良的保健作用；文胸的制备工艺简单，制造成本低，有利于提升文胸产品的整体质量。
The invention provides a bra, the bra comprises a cup part and a back ratio connected with the cup part, the lower end of the cup part is provided with a chicken heart bottom grill, the bra further comprises a bottom bundle root part, the bottom bundle The root portion is connected with the bottom of the chicken heart, and the root portion of the lower bundle is also connected with the described rear ratio. The binding root is connected with the second lower binding root; in the bra of the present invention, the lower binding root is set at the bottom of the chicken heart, and the lower binding root is set on the back, so that the bra has better supporting and shaping functions; The grill is set as a whole, replacing the traditional chicken heart and lower grill. When supporting the chest, the force area is increased, and the entire chicken heart lower grill is evenly stressed, which greatly reduces the pressure on the chicken heart and the lower grill. The preparation process of the bra is simple and the manufacturing cost is low, which is beneficial to improve the overall quality of the bra product.
Description
Technical Field
The invention relates to the technical field of clothes, in particular to female underwear, and particularly relates to a bra and a preparation process thereof.
Background
At present, the thin cup brassiere of no steel ring receives women consumers's favor because of characteristics such as its soft, the comfortable and easy to wear of feeling, but its thin soft cup, to the big cup consumer that the chest is fuller, the support of chest and design function are still not enough, influence the travelling comfort and the stability of dress.
In the current market, the cups of thin cups are mainly of two types: one is a sandwich cup and the other is a thin molded cup (containing a single layer molding) with a thickness of less than 1 cm.
Traditional brassiere is tied down and is measured the root narrower, and it is the main auxiliary material of women's underwear products such as brassiere to tie down and measure the root, though there is the function of fixed brassiere, but because of its lifting surface is little, following defect can exist for most products: firstly, local tightness and strangeness are easy to generate; secondly, the supporting force and the stability are poor, and particularly, the bra can walk and slide when a consumer with a plump chest wears the bra; thirdly, the lower bundle of the roots has the phenomena of rolling and outward turning; fourthly, the cup body is easy to be stressed unevenly and deformed. In addition, the arrangement of the binding bowl of the cup is easy to generate tight and tight feeling when a user wears the cup.
Therefore, to solve the above problems, it is an urgent technical problem to be solved by those skilled in the art to provide a bra which is comfortable and has better supporting and shaping functions and a preparation process thereof.
Disclosure of Invention
The invention solves the problem that the supporting and shaping functions of the bra without the steel ring and the thin cup are insufficient, which affects the comfort and the stability of the bra.
In order to solve the above problems, the technical solution of the present invention is realized as follows:
the invention provides a bra, which comprises cup parts and a heel piece connected with the cup parts, wherein the lower ends of the cup parts are provided with a heart lower part raking connection, the bra further comprises a lower bundle raising root part, the lower bundle raising root part is connected with the heart lower part raking connection, the lower bundle raising root part is also connected with the heel piece, the lower bundle raising root part comprises a first lower bundle raising root and a second lower bundle raising root, and the first lower bundle raising root is connected with the second lower bundle raising root. According to the bra, the heart lower scratchers are integrated to replace the traditional heart and lower scratchers, so that the stress area is increased when the chest is supported, the stress of the whole heart lower scratcher is uniform, the oppression feeling of the heart and the lower scratcher is greatly reduced, and an excellent health-care effect is achieved; the under-hearts of the chickens are arranged into a whole, so that the heart position of the chickens is greatly lowered, the deep V effect is prolonged, and the under-hearts of the chickens look more sexual after being worn; the lower bale is arranged under the heart and behind the heart, the root part of the lower bale is close to the skin, and the bra is stressed linearly, so that the bra has better supporting and shaping functions.
Further, the cup portion includes a first cup and a second cup, the first cup being connected to the second cup. First cup is connected with the second cup, has improved the stability of brassiere, makes to gather together the effect more obvious.
Further, the cup part is connected to the heel brace through a lateral rib, the first lower rope is disposed on the under-core rabble, and the second lower rope is disposed on the lateral rib and the heel brace. Due to the arrangement of the side bones, proud flesh at the armpit and the back can be effectively wrapped, so that the bra has better supporting and shaping functions; the root is measured to the first bale of accessible heart under take off, the side bone and the back is compared and the root is measured to the second bale and is played the effect of strengthening, avoids the bale to measure the root and appear curling, the problem of turning up.
Further, the first lower bundle husband root is arranged at a position close to the lower end of the under-hearted kick, and the second lower bundle husband root is arranged at a position close to the lower ends of the lateral bone and the back heel. The root is measured to the first bale of accessible heart under take off, the side bone and the back is compared and the root is measured to the second bale and is played the effect of strengthening, avoids the bale to measure the root and appear curling, the problem of turning up.
Furthermore, the first lower bale root and the second lower bale root are both in a continuous strip-shaped structure. First bundle is measured the root with the root is all to be continuous strip structure under the second bundle for first bundle is measured the root with the root is measured to the second bundle is measured the straight line atress, and then makes the lower bundle of brassiere measure the root and have better support and accuse type function to the chest.
Further, the width of the root of the lower bundle is A, and A is more than or equal to 14mm and less than 35 mm; the root of the lower bundle of husband is made of one or more of random cutting, satin and woven belts. The width of root is measured to the bale down sets up to more than or equal to 14mm and is less than 35mm, makes the lower bale of brassiere measure the area of stress increase of root, has disperseed the lower bale and has measured the root and to the constraint power of enclosing under the chest, and it is more comfortable to wear, simultaneously, makes the cup more stable, non-deformable. The material of the root of the lower-bundle husband is one or more of cutting, coloring and weaving tape at will, so that the root of the lower-bundle husband is softer, the moisture absorption is strong, allergic skin is not stimulated, and the lower-bundle husband is more comfortable to wear.
Further, the cup parts are located at an upper side of the under-bale root, the under-bale root being unconnected to the cup parts in an area where the under-bale root and the cup parts are relatively overlapped, so that an interlayer for containing a part of chest fat is formed between the under-bale root and the cup parts. The interlayer is used for containing part of chest fat, so that the supporting and shaping functions of the bra on the chest are enhanced on one hand, and on the other hand, when the chest fat is supported by the interlayer, the root of the lower bag is attached to the skin of a human body, so that the friction between the chest fat and the human body can be improved, the separation function is effectively realized, the breasts are not closely attached to the trunk of the human body any more, and the bra is prevented from being sultry and airtight; moreover, the chest fat is coated by the lower-bundle husband root, so that the bra is stable in shape, comfortable to wear and attractive in lines.
A method of making a brassiere for use in making any of the above brassieres, said method of making comprising the steps of:
s1, sewing the first cup and the second cup into a whole;
s2, sewing the lower end of the cup part on the upper end of the chicken heart lower scratcher;
and S3, sewing the heel, the belly, the heel, the lateral bone and the cup part into a whole by a method of cutting off the heel of the lower husband or sewing one heel of the lower husband.
The preparation method of the bra is simple, the process is mature, and the bra is convenient for large-scale production.
Further, the method for disconnecting the root of the lower bundle comprises the following steps:
s31, sewing a herringbone to a first lower bundle of the husband root on a chicken heart lower scratcher in the cup of the cup part;
s32, sewing the rear part with the lateral bone and binding the cup parts;
and S33, connecting the heel and lateral bone of the second lower bundle of husband with the heel and lateral bone by using a herringbone or laminating process.
Further, the method for the lower bundle to have a root which has been already finished comprises the following steps:
s31, sewing the rear part with the lateral bone and binding the cup parts;
s32, sewing a herringbone to a first lower bundle of the husband root on a chicken heart lower scratcher in the cup of the cup part;
and S33, connecting the heel and lateral bone of the second lower bundle of husband with the heel and lateral bone by using a herringbone or laminating process.
Compared with the prior art, the bra disclosed by the invention has the following beneficial effects:
1) according to the bra disclosed by the invention, the lower-bundle husband root is arranged under the chicken heart and behind the chicken heart, and the lower-bundle husband root is close-fitting and stressed linearly, so that the bra has better supporting and shaping functions, and the wearing stability is further improved.
2) According to the bra, the heart lower scratchers are integrated to replace the traditional heart and lower scratchers, so that the stress area is increased when the bra supports the chest, the stress of the whole heart lower scratcher is uniform, the oppression of the heart and the lower scratcher is greatly reduced, and an excellent health-care effect is achieved.
3) According to the bra disclosed by the invention, the chicken heart lower part is arranged into a whole, so that the chicken heart position is greatly lowered, the deep V effect is prolonged, and the bra looks more sexy.
4) The bra disclosed by the invention is simple in preparation process and low in manufacturing cost, is beneficial to improving the overall quality of bra products and market competitiveness, and has good product market prospects.
Drawings
The accompanying drawings, which are incorporated in and constitute a part of this specification, illustrate an embodiment of the invention and, together with the description, serve to explain the invention and not to limit the invention. In the drawings:
FIG. 1 is a schematic structural view of a prior art brassiere;

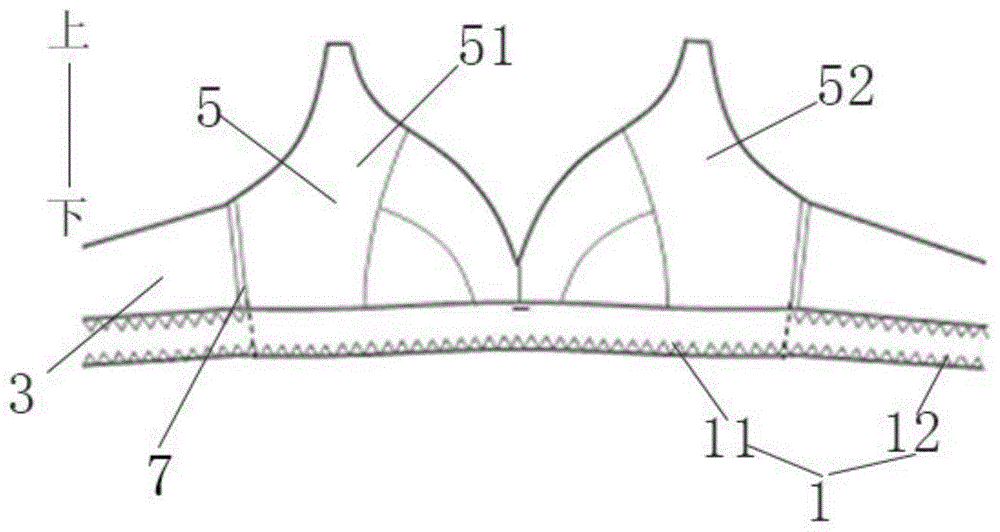

FIG. 2 is a schematic view of a cup interior construction of a brassiere according to an embodiment of the present invention;
FIG. 3 is a schematic structural view of another cup of a brassiere according to an embodiment of the present invention;
FIG. 4 is a schematic view of a bottom portion of a lower torso of a brassiere according to another embodiment of the present invention;
FIG. 5 is a schematic view of another embodiment of a lower torso portion of a brassiere according to the present invention;
FIG. 6 is a schematic interior cup construction of a brassiere according to another embodiment of the present invention;
FIG. 7 is a schematic structural view of another cup of a brassiere according to another embodiment of the present invention.
Description of reference numerals:
1-lower bundle husband root, 11-first lower bundle husband root, 12-second lower bundle husband root, 2-chicken heart, 3-posterior ratio, 4-chicken heart lower part, 5-cup part, 51-first cup, 52-second cup, 6-bowl binding strip, and 7-lateral bone.
Detailed Description
In order to make the technical means, objectives and functions of the present invention easy to understand, embodiments of the present invention will be described in detail with reference to the specific drawings.
It should be noted that all terms used in the present invention for directional and positional indication, such as: the terms "upper", "lower", "left", "right", "front", "rear", "vertical", "horizontal", "inner", "outer", "top", "lower", "lateral", "longitudinal", "center", and the like are used only for explaining the relative positional relationship, the connection condition, and the like between the respective members in a certain state, and are only for convenience of describing the present invention, and do not require that the present invention must be constructed and operated in a certain orientation, and thus, should not be construed as limiting the present invention. In addition, the descriptions related to "first", "second", etc. in the present invention are for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated.
In the description herein, references to the description of the term "one embodiment," "some embodiments," "an illustrative embodiment," "an example," "a specific example," or "some examples" or the like mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The present invention will be described in detail below with reference to the embodiments with reference to the attached drawings.
Fig. 1 is a schematic structural view of a brassiere according to the prior art, and as shown in fig. 1, a conventional brassiere includes cup portions 5 and a rear portion 3 connected to the cup portions 5, wherein a cup binding strip 6 is provided at an edge of the cup portions 5, the two cup portions are not connected to each other, and a heart 2 is provided between the two cup portions.
In the current market, the cups of thin cups are mainly of two types: one is a sandwich cup and the other is a thin molded cup (containing a single layer molding) with a thickness of less than 1 cm.
Example 1
A brassiere, as shown in fig. 2-3, said brassiere includes cup portion 5 and with the heel of cup portion 5 connection than 3, the lower extreme of cup portion 5 sets up under the chicken's heart take off 4, said brassiere still includes the lower bundle and builds root 1, the lower bundle is built root 1 and is connected under the chicken's heart take off 4, the lower bundle is built root 1 and is also connected with the heel than 3, the lower bundle is built root 1 and is included first lower bundle and builds root 11 and second lower bundle and build root 12, first lower bundle is built root 11 and is connected with second lower bundle is built root 12. According to the bra, the heart lower scratchers are integrated to replace the traditional heart and lower scratchers, so that the stress area is increased when the bra supports the chest, the stress of the whole heart lower scratcher is uniform, the oppression of the heart and the lower scratcher is greatly reduced, and an excellent health-care effect is achieved; the under-hearts of the chickens are arranged into a whole, so that the heart position of the chickens is greatly lowered, the deep V effect is prolonged, and the under-hearts of the chickens look more sexual after being worn; the lower bale is arranged under the heart and behind the heart, the root part of the lower bale is close to the skin, and the bra is stressed linearly, so that the bra has better supporting and shaping functions.
Specifically, the cup portion 5 includes a first cup 51 and a second cup 52, and the first cup 51 is connected to the second cup 52. First cup is connected with the second cup, has improved the stability of brassiere, makes to gather together the effect more obvious.
Specifically, the cup part 5 is connected to the rear portion 3 through a lateral rib 7, the first lower band heel 11 is disposed on the under-core rabble 4, and the second lower band heel 12 is disposed on the lateral rib 7 and the rear portion 3. Due to the arrangement of the side bones, proud flesh at the armpit and the back can be effectively wrapped, so that the bra has better supporting and shaping functions; the root is measured to the first bale of accessible heart under take off, the side bone and the back is compared and the root is measured to the second bale and is played the effect of strengthening, avoids the bale to measure the root and appear curling, the problem of turning up.
More specifically, as shown in fig. 2, both ends of the first lower rope 11 are connected to the lateral ribs 7.
More specifically, the first under-bale husband root 11 is disposed at a position close to the lower end of the under-hearted kick 4, and the second under-bale husband root 12 is disposed at a position close to the lower ends of the lateral rib 7 and the back collar 3. The root is measured to the first bale of accessible heart under take off, the side bone and the back is compared and the root is measured to the second bale and is played the effect of strengthening, avoids the bale to measure the root and appear curling, the problem of turning up.
More specifically, the first lower rope 11 and the second lower rope 12 are both in a continuous strip-like structure. First bundle is measured the root with the root is all continuous strip under the second for first bundle is measured the root and is the sharp atress under the second, and then makes the lower bundle of brassiere measure the root and have better support and accuse type function to the chest.
More specifically, the material of the root 1 of the lower bundle adopts one or more of random cutting, satin and woven tape. The material of the root of the lower-bundle husband is one or more of cutting, coloring and weaving tape at will, so that the root of the lower-bundle husband is softer, the moisture absorption is strong, allergic skin is not stimulated, and the lower-bundle husband is more comfortable to wear.
In this embodiment, the material of the root 1 of the lower bale is cut at will. The fabric is cut at will, the fabric has high elasticity with four-side effect, and the edge part is provided with a self-locking edge.
More specifically, as shown in fig. 2, the cup parts 5 are located at the upper side of the lower-bundle root portion 1, and the lower-bundle root portion 1 is not connected to the cup parts 5 in the region where the lower-bundle root portion 1 and the cup parts 5 are relatively overlapped, so that an interlayer for containing a part of chest fat is formed between the lower-bundle root portion 1 and the cup parts 5. The interlayer is used for containing part of chest fat, so that the supporting and shaping functions of the bra on the chest are enhanced on one hand, and on the other hand, when the chest fat is supported by the interlayer, the root of the lower bag is attached to the skin of a human body, so that the friction between the chest fat and the human body can be improved, the separation function is effectively realized, the breasts are not closely attached to the trunk of the human body any more, and the bra is prevented from being sultry and airtight; moreover, the chest fat is coated by the lower-bundle husband root, so that the bra is stable in shape, comfortable to wear and attractive in lines.
Specifically, as shown in fig. 3, the cup part 5 is located on the upper side of the under-core lifter 4, and the lower edge of the cup part 5 is connected to the upper edge of the under-core lifter 4. The lower side edge of the cup part is connected with the upper side edge of the chicken heart lower scratcher, so that the supporting and shaping functions of the bra on the breast are enhanced.
More specifically, the width of the root 1 of the lower bale is A, and A is more than or equal to 14mm and less than 35 mm. The width of root is measured to the bale down sets up to more than or equal to 14mm and is less than 35mm, makes the lower bale of brassiere measure the area of stress increase of root, has disperseed the lower bale and has measured the root and to the constraint power of enclosing under the chest, and it is more comfortable to wear, simultaneously, makes the cup more stable, non-deformable.
More specifically, as shown in fig. 2, in the present embodiment, the widths of the first and second joke roots 11 and 12 are set to be equal, the width of the first joke root 11 is set to be 34mm, and the width of the second joke root 12 is also set to be 34 mm.
More specifically, in this embodiment, the cups of the cup portions are cotton-padded cups. The cup of the cup part is a cotton clip cup, which increases the softness and the supporting force of the cup and shows more body when being worn.
Example 2
Specifically, unlike embodiment 1, as shown in fig. 4, in this embodiment, the widths of the first and second lower- bale roots 11 and 12 are set to be unequal, and the width of the first lower-bale root 11 is greater than the width of the second lower-bale root 12. The width of the first lower bundle of the husband root is larger than that of the second lower bundle of the husband root, so that the supporting and controlling functions of the cup part and the under-core raking on the chest are enhanced.
More specifically, the width of the first lower rope 11 is set to 34mm, and the width of the second lower rope 12 is set to 14 mm.
In this embodiment, the material of the root 1 of the lower bale is a satin. The satin fabric is bright and rich in color and attractive and elegant; but also is soft and smooth and comfortable to wear. More specifically, the material of the root 1 of the lower bale is double folded satin material.
Example 3
Specifically, unlike embodiment 1, as shown in fig. 5, in this embodiment, the widths of the first and second lower- bale roots 11 and 12 are set to be unequal, and the width of the first lower-bale root 11 is smaller than the width of the second lower-bale root 12. The width of the first lower bundle of the roots is smaller than that of the second lower bundle of the roots, so that proud flesh of the armpit and the back can be effectively wrapped, and the supporting and controlling functions of the rear heel and the side bone are enhanced.
More specifically, the width of the first lower rope 11 is set to 20mm, and the width of the second lower rope 12 is set to 30 mm.
In this embodiment, the material of the lower rope portion 1 is woven tape. The fabric of the mesh belt is soft, has strong moisture absorption, does not irritate allergic skin, and is more comfortable to wear. More specifically, the material of the root 1 of the lower bundle is a woven belt with an opening.
Example 4
Specifically, unlike example 1, in this example, the cups of the cup portions are thin molded cups (including single layer molding) having a thickness of 1cm or less, as shown in fig. 6 and 7. The cups of the cup parts are thin molded cups (containing single layer molding) with the thickness within 1cm, so that the air permeability of the bra is improved.
In this embodiment, the material of the root 1 of the lower bale is a color cube and a woven tape.
Example 5
A preparation process of a bra is used for preparing the bra, and the preparation method comprises the following steps:
s1, sewing the first cup 51 and the second cup 52 into a whole;
s2, sewing the lower end of the cup part 5 to the upper end of the chicken heart lower part 4;
s3, sewing the root 1, the under-core raking 4, the back heel 3, the side ribs 7 and the cup part 5 into a whole by a method of cutting off the root of the lower bale or passing one root of the lower bale.
The bra disclosed by the invention is simple in preparation process and low in manufacturing cost, is beneficial to improving the overall quality of bra products and market competitiveness, and has good product market prospects.
In this embodiment, the heel portion 1, the under-corn 4, the heel 3, the lateral ribs 7 and the cup portion 5 are integrally sewn by cutting off the heel portion.
Specifically, the method for disconnecting the root of the lower bundle comprises the following steps:
s31, sewing a first lower bale of the husband root 11 on the chicken heart lower scratcher 4 in the cup part 5 by using a herringbone sewing machine;
s32, sewing the posterior aspect ratio 3 with the lateral bone 7, and binding the posterior aspect ratio with the cup part 5;
s33, connecting the second lower tie of the husband root 12 with the posterior aspect 3 and the lateral side 7 by using a herringbone or fitting process.
Example 6
Specifically, unlike embodiment 5, in this embodiment, the lower bundle husband root 1, the under-hearts 4, the heel 3, the lateral ribs 7, and the cup 5 are sewn together by a herringbone sewing method.
Specifically, the method for the next bundle of roots to have passed comprises the following steps:
s31, sewing the posterior aspect ratio 3 with the lateral bone 7, and binding the posterior aspect ratio with the cup part 5;
s32, sewing a first lower bale of the husband root 11 on the lower part 4 of the chicken heart in the cup part 5 by using a herringbone sewing machine;
s33, connecting the second lower tie of the husband root 12 with the posterior aspect 3 and the lateral side 7 by using a herringbone or fitting process.
Although the present invention is disclosed above, the present invention is not limited thereto. Various changes and modifications may be effected therein by one skilled in the art without departing from the spirit and scope of the invention as defined in the appended claims.
