Abstract
本发明涉及一种具有空间调节功能的公共艺术品展示装置，包括底座，底座两侧垂直且对称设置有支架，两个支架之间设置有升降台以及用于调节升降台高度位置的升降装置，两个支架相对一侧由上至下开设有T型槽，升降台包括平台、T型升降杆以及用于连接两个T型升降杆的连接杆，T型槽与T型升降杆相适配且两个T型升降杆分别对应滑接在两个T型槽内，升降装置固设在底座上且位于连接杆下方的中部。本发明升降台的两个T型升降杆滑接在支架的T型槽内，通过升降装置带动升降台进行上下高度位置的移动，升降装置可以由参观者根据自身观赏最佳高度自行调节，也可有艺术品展厅的工作人员进行调节，大大提高参观者的观赏体验，进而带动展厅的经济效益。
The invention relates to a public artwork display device with a space adjustment function, comprising a base, two sides of the base are vertically and symmetrically arranged with brackets, and a lifting platform and a lifting device for adjusting the height position of the lifting platform are arranged between the two brackets, The opposite side of the two brackets is provided with a T-shaped slot from top to bottom. The lifting platform includes a platform, a T-shaped lifting rod and a connecting rod for connecting the two T-shaped lifting rods. The T-shaped slot is adapted to the T-shaped lifting rod. And the two T-shaped lifting rods are respectively slidably connected in the two T-shaped grooves, and the lifting device is fixed on the base and located in the middle part below the connecting rod. The two T-shaped lifting rods of the lifting platform of the present invention are slidably connected in the T-shaped grooves of the bracket, and the lifting platform is driven to move up and down by the lifting device. It can be adjusted by the staff of the art exhibition hall, which greatly improves the viewing experience of the visitors, and then drives the economic benefits of the exhibition hall.
Description
Technical Field
The invention relates to the technical field of artwork display, in particular to a public artwork display device with a space adjusting function.
Background
Artwork is a crystal of an artist's intellectual labor achievement. The value of the artwork is reflected on a mental level rather than a material level, and the use value of the artwork is greatly influenced by subjective factors.
The artwork is generally placed in an artwork display device for people to enjoy, and the artwork display device is used in modern cities. The structure is single fixed structure, and the high position can not be adjusted, and the angle that people of different heights viewed and admire is different, gives other people the visual effect of straight tube and also can be different, and the sight of work of art also can discount greatly, and the position that the work of art was put is too high or low excessively, also is not convenient for people to the shooting of work of art, influences the economic benefits in exhibition room.
Disclosure of Invention
In order to solve the defects in the prior art, the invention provides the public artwork display device with the space adjusting function, wherein the lifting device is used for adjusting the height position of the lifting table, so that the height position of the artwork can be adjusted, the viewing experience of most visitors is met, and the economic benefit of an exhibition hall is further driven.
In order to achieve the purpose, the invention is realized by the following technical scheme: a public artwork display device with a space adjusting function comprises a base, wherein supports are vertically and symmetrically arranged on two sides of the base, a lifting table and a lifting device used for adjusting the height position of the lifting table are arranged between the two supports, T-shaped grooves are formed in one opposite sides of the two supports from top to bottom, the lifting table comprises a platform used for placing artworks, T-shaped lifting rods fixedly arranged on two sides below the platform and connecting rods used for connecting the two T-shaped lifting rods, the platform is located above the supports, the T-shaped grooves are matched with the T-shaped lifting rods, and the two T-shaped lifting rods are correspondingly and slidably connected in the two T-shaped grooves respectively; an angle adjusting part is arranged on the platform and comprises an angle adjusting plate and an L-shaped adjusting rod for supporting the angle adjusting plate, and one side of the angle adjusting plate is hinged with the platform; the lifting device is fixedly arranged on the base and positioned in the middle of the lower part of the connecting rod.
Preferably, rectangular channels are formed in two sides of the T-shaped lifting rod, idler wheels are rotatably arranged in the rectangular channels respectively, the diameter of each idler wheel is larger than the depth of each rectangular channel, and each idler wheel is located between the T-shaped channel and the corresponding rectangular channel of the T-shaped lifting rod.
Preferably, the lifting platform further comprises a guide mechanism, the guide mechanism is arranged between the platform and the support, the guide mechanism comprises guide rods vertically and fixedly arranged at four corners of the lower end of the platform, four circular grooves matched with the guide rods are formed in the upper end of the support, and the guide rods are slidably connected in the circular grooves.
Preferably, the lower end face of the angle adjusting plate is provided with a sliding groove, the upper end face of the platform is provided with an installation elongated slot, the sliding groove is matched with the installation elongated slot and used for enabling the upper end of the adjusting rod to move transversely in the sliding groove, and the lower end of the adjusting rod is fixed in the installation elongated slot through a bolt.
Preferably, semicircular lugs are fixedly arranged in the installation long groove at equal intervals in the transverse direction, a semicircular groove matched with the semicircular lugs is formed in the lower end of the adjusting rod, the semicircular lugs are clamped in the semicircular groove, threaded holes are correspondingly formed in the semicircular lugs and the lower end of the adjusting rod respectively, a bolt is connected with the threaded holes in a threaded manner, and the bolt is propped against the bottom surface of the installation long groove.
Preferably, the guide rod is sleeved with a damping spring, the outer diameter of the damping spring is larger than the inner diameter of the circular groove, and the damping spring is positioned between the platform and the support.
Preferably, the cross-section of the connecting rod is V-shaped.
Preferably, the lifting device is an electro-hydraulic push rod.
Preferably, the roller comprises a roller shaft, and two ends of the roller shaft are rotatably connected in the rectangular grooves through bearings.
Compared with the prior art, the invention has the beneficial effects that: two T-shaped lifting rods of the lifting platform are connected in a sliding mode in the T-shaped grooves of the support, the lifting platform is driven by the lifting device to move up and down in height position, the lifting device can be adjusted by a visitor according to the optimal self-viewing height, and can also be adjusted by workers in an artwork exhibition room, so that the viewing experience of the visitor is greatly improved, and the economic benefit of the exhibition room is further driven;
the rollers are arranged on the two sides of the T-shaped lifting rod, so that the sliding smoothness of the T-shaped lifting rod in the T-shaped groove is improved, the friction force between the T-shaped lifting rod and the T-shaped groove is reduced, and the sliding noise of the T-shaped lifting rod in the T-shaped groove is further reduced;
the guide mechanism is used for improving the stability of the platform when reciprocating, and the guide bar outside cover of guide mechanism is equipped with damping spring, and the push rod of electronic hydraulic ram is withdrawed, and the platform moves down along with the push rod of electronic hydraulic ram by the dead weight, and damping spring plays the effect of shock attenuation buffering to the platform that moves down.
Drawings

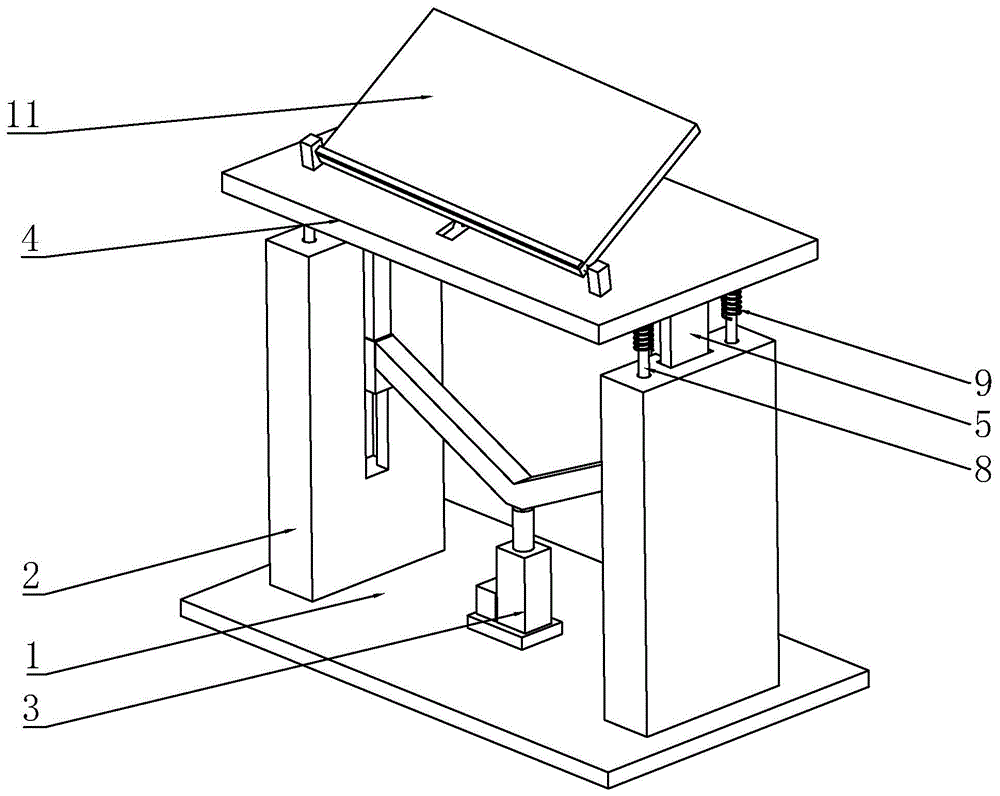

FIG. 1 is a schematic diagram of a first three-dimensional structure of the present invention;
FIG. 2 is a front view of the present invention;
FIG. 3 is a cross-sectional view taken along line D-D of a front view of the present invention;
FIG. 4 is a schematic view of the T-shaped lifting rod and connecting rod structure of the present invention;
FIG. 5 is an enlarged schematic view of the invention at A in FIG. 4;
FIG. 6 is a schematic view of a stent structure according to the present invention;
FIG. 7 is a schematic diagram of a second three-dimensional structure according to the present invention;
FIG. 8 is an enlarged view of the structure of FIG. 7B;
fig. 9 is a schematic view of the structure of the adjusting rod of the present invention.
Reference numerals shown in the drawings: 1. a base; 2. a support; 201. a T-shaped groove; 202. a circular groove; 3. a lifting device; 4. a platform; 401. installing a long groove; 5. a T-shaped lifting rod; 501. a rectangular groove; 6. a connecting rod; 7. a roller; 701. a roller shaft; 8. a guide bar; 9. a damping spring; 10. a bearing; 11. an angle adjusting plate; 1101. a chute; 12. a semicircular bump; 1201. a threaded hole; 13. adjusting a rod; 1301. a semicircular groove; 14. and (4) bolts.
Detailed Description
The invention is further described below by combining with a specific embodiment, as shown in fig. 1 to 9, a public artwork display device with a space adjusting function comprises a base 1, wherein supports 2 are vertically and symmetrically arranged on two sides of the base 1, a lifting platform and a lifting device 3 for adjusting the height position of the lifting platform are arranged between the two supports 2, the lifting device 3 is an electric hydraulic push rod, T-shaped grooves 201 are formed in opposite sides of the two supports 2 from top to bottom, the lifting platform comprises a platform 4, T-shaped lifting rods 5 fixedly arranged on two sides below the platform 4 and a connecting rod 6 for connecting the two T-shaped lifting rods 5, and the cross section of the connecting rod 6 is in a V shape. Be provided with angle modulation portion on the platform, angle modulation portion includes angle modulation board 11 and is used for supporting angle modulation board 11 "L" type shape's regulation pole 13, and one side of angle modulation board 11 is articulated with platform 4, and angle modulation board 11 is articulated with platform 4 and is prior art, and angle modulation board 11 can overturn from top to bottom at certain angular range around the articulated shaft for adjust the high position that angle modulation board kept away from pin joint one side, do not do here and describe repeatedly.
The elevating platform further comprises a guide mechanism, the guide mechanism is arranged between the platform 4 and the support 2, the guide mechanism comprises guide rods 8 which are vertically and fixedly arranged at four corners of the lower end of the platform 4, four circular grooves 202 matched with the guide rods 8 are formed in the upper end of the support 2, and the guide rods 8 are connected in the circular grooves 202 in a sliding mode.
The lower end face of the angle adjusting plate 11 is provided with a sliding groove 1101, the upper end face of the platform 4 is provided with a long mounting groove 401, the sliding groove 1101 is matched with the long mounting groove 401, the sliding groove 1101 is used for enabling the upper end of the adjusting rod 13 to move transversely in the sliding groove 1101, and the lower end of the adjusting rod 13 is fixed in the long mounting groove 401 through a bolt 14.
8 outside covers of guide bar are equipped with damping spring 9, damping spring 9's external diameter is greater than the internal diameter of circular recess 202, damping spring 9 is located between platform 4 and the support 2, guiding mechanism is used for improving the stability when platform 4 reciprocates, 8 outside covers of guiding mechanism's guide bar are equipped with damping spring 9, electronic hydraulic rod's push rod is withdrawed, platform 4 moves down by the dead weight along with electronic hydraulic rod's push rod, damping spring 9 plays the effect of shock attenuation buffering to the platform 4 that moves down.
The electric hydraulic push rod drives the lifting table to move up and down in height position, the push rod of the electric hydraulic push rod extends out to push the connecting rod 6 upwards to move upwards, and then the T-shaped lifting rod 5, the guide rod 8 and the platform 4 move upwards to improve the height position of the artwork; the push rod of the electric hydraulic push rod is withdrawn, the T-shaped lifting rod 5, the guide rod 8 and the platform 4 move downwards, the platform 4 is lowered to a certain height, and the damping spring 9 of the guide rod 8 is compressed and deformed to play a damping and buffering role on the platform 4.
It should be understood that these examples are for illustrative purposes only and are not intended to limit the scope of the present invention. Further, it should be understood that various changes or modifications of the present invention may be made by those skilled in the art after reading the teaching of the present invention, and these equivalents also fall within the scope of the present application.
Claims (9)
1. The utility model provides a public work of art display device with space adjustment function which characterized in that: the lifting device comprises a base (1), wherein supports (2) are vertically and symmetrically arranged on two sides of the base (1), a lifting table and a lifting device (3) used for adjusting the height position of the lifting table are arranged between the two supports (2), and a T-shaped groove (201) is formed in one side, opposite to the two supports (2), of each support from top to bottom;
the lifting table comprises a platform (4) for placing artworks, T-shaped lifting rods (5) fixedly arranged on two sides below the platform (4) and connecting rods (6) for connecting the two T-shaped lifting rods (5), the platform (4) is positioned above the support (2), the T-shaped grooves (201) are matched with the T-shaped lifting rods (5), and the two T-shaped lifting rods (5) are respectively and correspondingly connected in the two T-shaped grooves (201) in a sliding mode;
an angle adjusting part is arranged on the platform (4), the angle adjusting part comprises an angle adjusting plate and an L-shaped adjusting rod (13) for supporting the angle adjusting plate, and one side of the angle adjusting plate is hinged with the platform;
the lifting device (3) is fixedly arranged on the base (1) and is positioned in the middle of the lower portion of the connecting rod (6).
2. A public artwork displaying device with space adjusting function as claimed in claim 1, wherein: rectangular channel (501) have been seted up to the both sides of T type lifter (5), it is provided with gyro wheel (7) to rotate respectively in rectangular channel (501), the diameter of gyro wheel (7) is greater than the degree of depth of rectangular channel (501), gyro wheel (7) are located between T type groove (201) and rectangular channel (501) of T type lifter (5).
3. A public artwork displaying device with space adjusting function as claimed in claim 1, wherein: the lifting platform further comprises a guide mechanism, the guide mechanism is arranged between the platform (4) and the support (2), the guide mechanism comprises guide rods (8) which are vertically and fixedly arranged at four corners of the lower end of the platform (4), four circular grooves (202) matched with the guide rods (8) are formed in the upper end of the support (2), and the guide rods (8) are connected in the circular grooves (202) in a sliding mode.
4. A public artwork displaying device with space adjusting function as claimed in claim 1, wherein: the lower end face of the angle adjusting plate (11) is provided with a sliding groove (1101), the upper end face of the platform (4) is provided with a mounting long groove (401), the sliding groove (1101) is matched with the mounting long groove (401) and used for enabling the upper end of the adjusting rod (13) to move transversely in the sliding groove (1101), and the lower end of the adjusting rod (13) is fixed in the mounting long groove (401) through a bolt (14).
5. A public artwork displaying device with space adjusting function according to claim 4, wherein: semicircular lugs (12) are fixedly arranged in the installation long groove (401) at equal intervals in the transverse direction, a semicircular groove (1301) matched with the semicircular lugs (12) is formed in the lower end of the adjusting rod (13), the semicircular lugs (12) are clamped in the semicircular groove (1301), threaded holes (1201) are correspondingly formed in the lower ends of the semicircular lugs (12) and the adjusting rod (13) respectively, a bolt (14) is connected to the threaded holes (1201) in an internal thread mode, and the bolt (14) jacks the bottom surface of the installation long groove (401).
6. A public artwork displaying device with space adjusting function as claimed in claim 3, wherein: the shock absorption spring (9) is sleeved on the outer side of the guide rod (8), the outer diameter of the shock absorption spring (9) is larger than the inner diameter of the circular groove (202), and the shock absorption spring (9) is located between the platform (4) and the support (2).
7. A public artwork displaying device with space adjusting function according to claim 6, wherein: the cross section of the connecting rod (6) is V-shaped.
8. A public artwork displaying device with space adjusting function as claimed in claim 1, wherein: the lifting device (3) is an electric hydraulic push rod.
9. A public artwork displaying device with space adjusting function as claimed in claim 2, wherein: the roller (7) comprises a roller shaft (701), and two ends of the roller shaft (701) are rotatably connected in the rectangular groove (501) through bearings (10).
