Abstract

The invention is suitable for the technical field of feeding equipment, and provides a multifunctional feeder, which comprises a mounting bracket and a placing rack arranged on the mounting bracket, and also comprises: the crushing mechanism is arranged on the placing frame and is used for crushing materials in a reciprocating impact mode; the cleaning mechanism is arranged on the mounting bracket and used for washing cleaning materials; according to the invention, the material to be conveyed can be preliminarily crushed by the crushing mechanism, then the material is subjected to vibration screening by the screening component in the cleaning mechanism, and the material after pre-crushing can be cleaned by matching with the showering component, meanwhile, the showering component can realize water circulation, so that resources are saved, the material can be conveyed by the conveying mechanism, and the problem of single function of most of the existing feeders is effectively solved.

Description

Multifunctional feeder
Technical Field
The invention belongs to the technical field of feeding equipment, and particularly relates to a multifunctional feeder.
Background
The feeding equipment is an auxiliary equipment in the mechanized storage and transportation system of the manufacturing enterprise, and the main function of the feeding equipment is to continuously and uniformly feed processed or unprocessed materials from each equipment (a hopper, a storage bin and the like) to a receiving equipment or a transportation machine. The feeder for mine is used to feed material from storage bin or other material storing equipment to material receiving equipment homogeneously or quantitatively, and is one essential equipment for automatic flow operation.
The feeder consists of a rotatable disc, a material guide sleeve, a scraper and the like. The materials in the storage bin are stacked on the disc inlaid with the wear-resistant lining plate through the material guide sleeve, the disc rotates, and the materials are scraped out by the scraper plate for feeding.
Most of the existing feeders have single function, can only be used for conveying materials, and cannot perform operations such as crushing, washing and the like on the materials.
Disclosure of Invention
The embodiment of the invention aims to provide a multifunctional feeder and aims to solve the problem
Figure DEST_PATH_IMAGE002
。
The embodiments of the present invention are implemented such that,

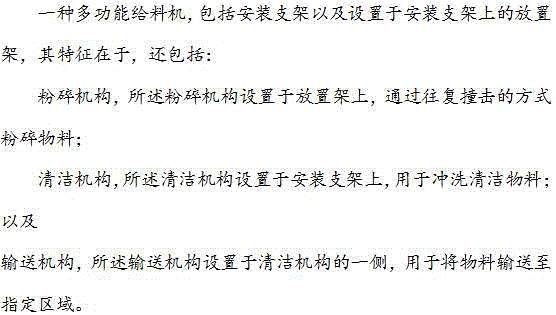

Figure DEST_PATH_IMAGE004
further technical scheme, rubbing crusher constructs including smashing the case, smash and be provided with the feed inlet on the case, smash incasement portion and be provided with crushing unit, smash the material that gets into crushing incasement portion through crushing unit.
Further technical scheme, crushing unit includes first motor, and the output of first motor is connected with first drive shaft, and the cover is equipped with and rotates the sleeve in the first drive shaft, it is provided with a plurality of stirring pieces that are used for stirring the material to rotate telescopic lateral wall, it is provided with a plurality of fixed blocks to rotate sleeve one side, stirs material and fixed block striking through stirring the piece on rotating the sleeve.
Further technical scheme, crushing unit includes first motor, and the output of first motor is connected with first drive shaft, and the cover is equipped with and rotates the sleeve in the first drive shaft, it is provided with a plurality of stirring pieces that are used for stirring the material to rotate telescopic lateral wall, it is provided with a plurality of fixed blocks to rotate sleeve one side, stirs material and fixed block striking through stirring the piece on rotating the sleeve.
In a further aspect, the cleaning mechanism comprises:
the spraying component is arranged on the mounting bracket and is used for cleaning the material treated by the crushing mechanism;
and the screening component is arranged on one side of the showering component far away from the crushing mechanism and used for carrying out vibration screening on the crushed materials.
A further technical scheme, the vibrations subassembly is including setting up the second motor on the installing support, the output of second motor is connected with the second transmission shaft, second transmission shaft cover is equipped with the dwang, and the dwang rotates and is connected with the vibrations pole, one side of second motor is provided with the vibrations board, just the vibrations board leads to the connecting rod to be connected with the installing support rotation, and the one end that the vibrations board is close to the installing support is provided with the connecting block, just the connecting block rotates with the vibrations pole to be linked, and the vibrations board is kept away from one side of installing support and is installed the screening board.
According to a further technical scheme, the flushing mechanism comprises a water collecting tank arranged on the mounting support, the water collecting tank is connected with a water conveying pipe, one end, close to the screening plate, of the water conveying pipe is connected with a plurality of spray heads, a water pump is connected onto the water conveying pipe, a cavity is formed in the screening plate, one end, far away from the water pump, of the screening plate is connected with a water collecting pipe, and the water collecting pipe is connected with the water collecting tank.
Further technical scheme, conveying mechanism sets up in one side of screening board, conveying mechanism includes two driving rollers of being connected through mounting panel and installing support, two be connected with the conveyer belt between the driving roller, and one the driving roller is connected with the third motor.
According to the multifunctional feeder provided by the embodiment of the invention, the material to be conveyed can be primarily crushed through the crushing mechanism, the material is subjected to vibration screening through the screening component in the cleaning mechanism, the pre-crushed material can be cleaned by matching with the showering component, the showering component can realize water circulation, resources are saved, and the material can be conveyed through the conveying mechanism, so that the problems that most of the conventional feeders are single in function and only can be used for conveying the material are effectively solved.
Drawings
Fig. 1 is a schematic structural diagram of a multifunctional feeder provided in an embodiment of the present invention;
fig. 2 is a schematic structural diagram of an area a in the multifunctional feeder provided by the embodiment of the invention;
fig. 3 is a schematic structural diagram of a region B in the multifunctional feeder according to the embodiment of the present invention.
In the drawings: mounting a bracket 1; a crushing box 2; a feed inlet 3; a first motor 4; a first drive shaft 5; a toggle block 6; a fixed block 7; rotating the sleeve 8; a placing frame 9; a second electric machine 10; a second transmission shaft 11; turning the lever 12; a vibration rod 13; a connecting block 14; a connecting rod 15; a vibration plate 16; a screening plate 17; a water collection tank 18; a water delivery pipe 19; a water pump 20; a head 21; a water collection pipe 22; a third motor 23; a driving roller 24; a conveyor belt 25.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more apparent, the present invention is described in further detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.
Specific implementations of the present invention are described in detail below with reference to specific embodiments.
As shown in fig. 1, a multifunctional feeder provided for an embodiment of the present invention includes a mounting bracket 1 and a placing rack 9 disposed on the mounting bracket 1, and further includes:
the crushing mechanism is arranged on the placing rack 9 and is used for crushing materials in a reciprocating impact mode;
the cleaning mechanism is arranged on the mounting bracket 1 and used for washing cleaning materials; and
and the conveying mechanism is arranged on one side of the cleaning mechanism and is used for conveying the material to a specified area.
In the embodiment of the invention, the material to be conveyed can be primarily crushed by the crushing mechanism, then the material is subjected to vibration screening by the screening component in the cleaning mechanism, and the pre-crushed material can be cleaned by matching with the shower component, meanwhile, the shower component can realize water circulation, resources are saved, and then the material can be conveyed by the conveying mechanism.
As shown in fig. 1 and 3, as a preferred embodiment of the present invention, the crushing mechanism includes a crushing box 2, a feeding port 3 is provided on the crushing box 2, and a crushing assembly is provided inside the crushing box 2, through which the material entering the inside of the crushing box 2 is crushed.
In the embodiment of the invention, when the material crushing device is used, materials are put into the crushing box 2 from the feeding hole 3, and then the crushing assembly continuously stirs and impacts the materials, so that the purpose of crushing the materials is realized.
As shown in fig. 3, as a preferred embodiment of the present invention, the crushing assembly includes a first motor 4, an output end of the first motor 4 is connected to a first driving shaft 5, a rotating sleeve 8 is sleeved on the first driving shaft 5, a plurality of shifting blocks 6 for shifting materials are arranged on a side wall of the rotating sleeve 8, a plurality of fixed blocks 7 are arranged on one side of the rotating sleeve 8, and the materials are shifted by the shifting blocks 6 on the rotating sleeve 8 to collide with the fixed blocks 7.
In the embodiment of the invention, the first motor 4 drives the first driving shaft 5 to rotate, the first driving shaft 5 drives the rotating sleeve 8 to synchronously move, the rotating sleeve 8 drives the stirring block 6 to rotate, so that the stirring block 6 stirs materials falling from the feeding hole 3 onto the fixed block 7, the materials are repeatedly stirred onto the fixed block 7 through the plurality of fixed blocks 7, and the materials are crushed through multiple times of impact, so that the use effect is good.
As shown in fig. 1 to 2, as a preferred embodiment of the present invention, the cleaning mechanism includes:
the showering component is arranged on the mounting bracket 1 and is used for cleaning the material processed by the crushing mechanism;
and the screening component is arranged on one side of the showering component far away from the crushing mechanism and used for carrying out vibration screening on the crushed materials.
In the embodiment of the invention, the material is screened by the screening mechanism, and the material falling on the screening assembly is sprayed by matching with the spraying assembly, so that the effect of cleaning the material is achieved.
As shown in fig. 2, as a preferred embodiment of the present invention, the vibration assembly includes a second motor 10 disposed on the mounting bracket 1, an output end of the second motor 10 is connected to a second transmission shaft 11, the second transmission shaft 11 is sleeved with a rotation rod 12, the rotation rod 12 is rotatably connected to a vibration rod 13, a vibration plate 16 is disposed on one side of the second motor 10, the vibration plate 16 is rotatably connected to the mounting bracket 1 through a connection rod 15, a connection block 14 is disposed at one end of the vibration plate 16 close to the mounting bracket 1, the connection block 14 is rotatably connected to the vibration rod 13, and a screening plate 17 is disposed on one side of the vibration plate 16 away from the mounting bracket 1.
In the embodiment of the invention, the second motor 10 drives the second transmission shaft 11 to rotate, the second transmission shaft 11 drives the rotating rod 12 sleeved on the second transmission shaft to rotate, the rotating rod 12 drives the vibration rod 13 to reciprocate, the vibration rod 13 is matched with the connecting block 14 arranged on the vibration plate 16 to drive the vibration plate 16 to move, meanwhile, the connecting rod 15 is matched to realize reciprocating vibration of the vibration plate 16, and then the vibration plate 16 drives the screening plate 17 to synchronously move, so that the materials are screened in a vibrating manner.
As shown in fig. 1, as a preferred embodiment of the present invention, the shower mechanism includes a water collection tank 18 disposed on the mounting bracket 1, the water collection tank 18 is connected with a water pipe 19, one end of the water pipe 19 close to the screening plate 17 is connected with a plurality of nozzles 21, the water pipe 19 is connected with a water pump 20, a cavity is disposed inside the screening plate 17, one end of the screening plate 17 far from the water pump 20 is connected with a water collection pipe 22, and the water collection pipe 22 is connected with the water collection tank 18
In the embodiment of the invention, when the water-saving washing machine is used, water in the water collecting tank 18 is pumped out through the water conveying pipe 19 by the water pump 20, and is conveyed to the spray head 21 through the water conveying pipe 19, so that washing of materials on the screening plate 17 is realized, the end face of the screening plate 17 close to one side of the crushing mechanism is obliquely arranged, and one end close to the conveying mechanism is lower, so that the materials can automatically slide onto the conveying mechanism, meanwhile, a plurality of water discharging holes are formed in the end face of the screening plate 17 close to one side of the crushing mechanism, so that the water sprayed out of the spray head 21 can be finally discharged into the screening plate 17 and is recycled into the water collecting tank 18 through the water collecting pipe 22, and secondary utilization of water resources is realized.
As shown in fig. 1, as a preferred embodiment of the present invention, the conveying mechanism is disposed at one side of the sieving plate 17, the conveying mechanism includes two driving rollers 24 connected to the mounting bracket 1 through a mounting plate, a conveying belt 25 is connected between the two driving rollers 24, and a third motor 23 is connected to one of the driving rollers 24.
In the embodiment of the invention, the third motor 23 drives one driving roller 24 to rotate, and the two driving rollers 24 are linked by driving a belt mechanism or a chain wheel and chain mechanism, so that the conveying belt 25 is driven to move, and the conveying of materials is realized.
The above description is only for the purpose of illustrating the preferred embodiments of the present invention and is not to be construed as limiting the invention, and any modifications, equivalents and improvements made within the spirit and principle of the present invention are intended to be included within the scope of the present invention.

Claims (7)

1. The utility model provides a multifunctional feeder, includes the installing support and sets up the rack on the installing support, its characterized in that still includes:
the crushing mechanism is arranged on the placing frame and is used for crushing materials in a reciprocating impact mode;
the cleaning mechanism is arranged on the mounting bracket and used for washing cleaning materials; and
and the conveying mechanism is arranged on one side of the cleaning mechanism and is used for conveying the material to a specified area.
2. A multifunctional feeder according to claim 1, characterised in that the crushing mechanism includes a crushing box, the crushing box is provided with a feed inlet, a crushing assembly is arranged inside the crushing box, and the material entering the crushing box is crushed by the crushing assembly.
3. A multifunctional feeder according to claim 2, characterised in that the crushing assembly includes a first motor, the output of which is connected with a first drive shaft, a rotating sleeve is sleeved on the first drive shaft, the side wall of the rotating sleeve is provided with a plurality of stirring blocks for stirring the material, one side of the rotating sleeve is provided with a plurality of fixed blocks, and the material is stirred by the stirring blocks on the rotating sleeve to impact with the fixed blocks.
4. A multi-function feeder according to claim 1, wherein the cleaning mechanism includes:
the spraying component is arranged on the mounting bracket and is used for cleaning the material treated by the crushing mechanism;
and the screening component is arranged on one side of the showering component far away from the crushing mechanism and used for carrying out vibration screening on the crushed materials.
5. A multifunctional feeder according to claim 4, characterized in that the vibration assembly includes a second motor arranged on the mounting bracket, the output end of the second motor is connected with a second transmission shaft, the second transmission shaft sleeve is provided with a rotating rod, the rotating rod is connected with a vibration rod in a rotating manner, one side of the second motor is provided with a vibration plate, the vibration plate is connected with the mounting bracket in a rotating manner, one end of the vibration plate close to the mounting bracket is provided with a connecting block, the connecting block is connected with the vibration rod in a rotating manner, and one side of the vibration plate far away from the mounting bracket is provided with a screening plate.
6. A multifunctional feeder according to claim 5, characterised in that the showering mechanism includes a header tank disposed on the mounting bracket, the header tank is connected with a water delivery pipe, one end of the water delivery pipe close to the screening plate is connected with a plurality of nozzles, the water delivery pipe is connected with a water pump, a cavity is disposed inside the screening plate, one end of the screening plate far from the water pump is connected with a header pipe, and the header pipe is connected with the header tank.
7. A multifunctional feeder according to claim 5, characterised in that the conveying mechanism is arranged at one side of the screening plate, the conveying mechanism comprises two driving rollers connected with the mounting bracket through a mounting plate, a conveying belt is connected between the two driving rollers, and one driving roller is connected with a third motor.
