Abstract

The invention provides a pain relief device for traditional Chinese medicine gynecology, which relates to the technical field of pain relief devices, including a table body and a relieving massage instrument. The bottom of the table body is symmetrically and fixedly connected with two support plates, and the top of the outer surface of the table body is close to the edge. An adjustable back support device is provided at the place, the outer surfaces of the two support plates are provided with convenient moving devices, the outer surfaces of the table body are symmetrically provided with position adjustment structures on both sides, and the outer surface of one of the support plates is provided with a position adjustment structure. One side is provided with a removable trash can device. In the present invention, through the interaction of the components, the patient only needs to operate the operating handle and the first operating block at the head of the bed to hold up his back without the assistance of others, thereby reducing the labor intensity of the nursing staff. Moreover, the massage device can be moved, so that the device can be transported to the position of the patient, and the patient does not need to be sent to the device, thereby avoiding the aggravation of the patient's condition during transportation, and improving the safety of the device.

Description

Traditional Chinese Medicine Gynecology Pain Relief Device

technical field

The invention relates to the technical field of pain relief devices, in particular to a pain relief device for traditional Chinese medicine gynecology.

Background technique

Common pain in gynecology occurs in pregnant women, often accompanied by more or less pain during pregnancy. When pregnant women are about four months pregnant, their uterus enlarges and the round ligament of the uterus is stretched. Many pregnant women will feel some abdominal pain. This kind of pain , most of which are located on one or both sides of the lower abdomen and uterus, with referred pain, dull pain or dull pain. When walking a long way or changing position, the pain will become more obvious, and with the growth of pregnancy, pregnant women's shoulder and neck and The bearing capacity of the waist increases, and it is also prone to local pain. In the treatment of non-gonococcal vaginitis and cervicitis in women, it is also common for women to suffer from pain in the affected area, which will affect women's daily living conditions. Traditional Chinese medicine now generally adopts traditional massage to relieve pain in women.

The Chinese patent with the patent number of CN109173069B discloses a gynecological microwave therapeutic apparatus for relieving the pain of a patient, which includes a microwave therapeutic apparatus body and a box body. The top of the support plate is fixedly connected with an electric telescopic rod, the top of the push rod of the electric telescopic rod is fixedly connected with a first connecting plate, the top of the first connecting plate is provided with a groove, and the inner surface of the groove is connected to the microwave. The external surface of a therapeutic apparatus body is fixedly connected, and relates to the technical field of medical aids. The gynecological microwave therapeutic apparatus for relieving the pain of patients can store the microwave therapeutic apparatus body into the box for protection, and at the same time utilize the first spring to stabilize the first connecting plate, so as to ensure the stable rise of the microwave therapeutic apparatus body and solve the problem of Therefore, the existing microwave therapeutic apparatus is placed in the treatment room and has no casing for protection, which may inadvertently damage the microwave therapeutic apparatus and affect the service life of the microwave therapeutic apparatus.

The Chinese patent with the patent number of CN210384373U discloses a medical gynecological pregnant woman's pain massage and nursing device, including a first bed frame and a massage pad, the left end of the first bed frame is horizontally connected with a second bed frame, and the second bed frame The left end of the mattress is horizontally arranged with a third bed frame, mattresses are installed on the upper ends of the first bed frame, the second bed frame and the third bed frame, and a massage pillow is fixed on the left side of the upper surface of the mattress, and the bed An airbag cushion is arranged in the middle of the upper surface of the cushion, and the front of the airbag cushion is connected with a trachea, a micro air pump is installed below the air pipe, and the micro air pump is fixed on the front of the second bed frame, and the massage cushion is arranged on the micro air pump The right side of the massage pad is evenly and equally spaced with insulating heating zones. The medical gynecological pregnant woman's pain massage nursing device has good moisture absorption and ventilation effects, can be folded, can massage shoulders, neck, waist and abdomen at the same time, and perform hot compress while massaging, which is beneficial to enhance the massage nursing effect of the whole device.

However, in actual use, the microwave instruments used to treat pregnant women are often fixed in a certain position, so that the sick women need to use other means of transportation such as wheelchairs to transfer them to the instrument. The pain of the sick woman is getting stronger, and the massage device with the bed body can only make the patient lie down. When the patient needs to eat, the lying down state is very inconvenient, and it is necessary to put pillows and other objects on the patient's back. Leaning its body requires assistance from others, increasing the burden on the nursing staff.

SUMMARY OF THE INVENTION

The purpose of the present invention is to propose a pain relief device for gynecology in traditional Chinese medicine in order to solve the shortcomings existing in the prior art.

In order to achieve the above purpose, the present invention adopts the following technical scheme: a pain relief device for traditional Chinese medicine gynecology, including a table body and a relieving massage instrument, the bottom of the table body is symmetrically and fixedly connected with two support plates, and the outer surface of the table body is fixedly connected with two support plates. An adjustable back support device is provided at the top near the edge, convenient moving devices are provided on the outer surfaces of the two support plates, and position adjustment structures are symmetrically arranged on both sides of the outer surface of the table body, and one of the support plates A detachable trash can device is provided on one side of the outer surface of the table, and the adjustable back support device includes a first rectangular groove, which is opened at the top of the outer surface of the table body near the edge, and the first rectangular groove One end of the first round rod inside the first rectangular groove is fixedly connected with a first threaded rod, and one end of the first round rod outside the first rectangular groove is fixed A first round block is connected, an operating handle is fixedly connected to one side of the outer surface of the first round block, and one end of the first threaded rod away from the first round rod is rotatably connected to the inner surface of the first rectangular groove, the said A fixed round block is fixedly connected at the interface between the first threaded rod and the first round rod, and the outer surface of the fixed round block is fixedly connected with a backing plate through the connecting block; The side is provided with a second rectangular groove, the size and shape of the inner wall of the second rectangular groove are adapted to the size and shape of the outer surface of the connecting block, and the outer surface of the first threaded rod is threadedly connected with a moving block; A side of the inner surface of the rectangular groove away from the first round rod is provided with a second threaded rod, the second threaded rod penetrates the table body and is threadedly connected with the inner wall of the table body, and the second threaded rod is located outside the table body One end of the threaded rod is fixedly connected with a first operating block, and the outer surface of the first operating block is fixedly connected with an anti-skid block; one end of the second threaded rod inside the first rectangular groove is fixedly connected with a locking block, and the moving block One side of the outer surface of the device is provided with a clamping hole, and the size and shape of the inner wall of the clamping hole are adapted to the size and shape of the outer surface of the clamping block.

As a preferred embodiment, the convenient moving device includes a third rectangular slot, the third rectangular slot is opened on one side of the outer surface of the support plate, and the inner surface of the third rectangular slot is rotatably connected to the center near the center. The first gear, the inner surface of the third rectangular slot is located on both sides of the first gear and is symmetrically connected with the second gear, the outer surface of the first gear is meshed with the outer surfaces of the two second gears, so A second operating block is fixedly connected to one side of the outer surface of the first gear.

As a preferred embodiment, fourth rectangular grooves are symmetrically opened on both sides of the inner surface of the third rectangular groove, and the inner walls of the two fourth rectangular grooves are slidably connected with first sliding blocks, and the two One side of the first sliding block is fixedly connected with a rack block, and one side of the outer surfaces of the two rack blocks is meshed and connected with the outer surfaces of the two second gears respectively.

As a preferred embodiment, rectangular holes are formed on the outer surface of the rack block, circular holes are symmetrically formed at both ends of the rectangular hole, and the inner surface of the third rectangular groove is slidably connected with a second circular hole. One end of the second round rod is fixedly connected with a third round rod, one side of the third round rod is fixedly connected with a third operating block, and the outer surface of the second round rod slides with the inner wall of the rectangular hole connection, the size and shape of the outer surface of the third round rod are adapted to the size and shape of the inner wall of the round hole, the bottom of the support plate is provided with a receiving groove near the edge, and the bottom of the rack block is fixedly connected with A fourth round rod, the fourth round rod penetrates the third rectangular groove and extends into the receiving groove, and the bottom end of the fourth round rod is fixedly connected with a roller.

As a preferred embodiment, the position adjustment structure includes two fifth rectangular grooves, the two fifth rectangular grooves are symmetrically opened on both sides of the outer surface of the table body, and the inner wall of the fifth rectangular groove is on both sides A fifth round rod is fixedly connected therebetween, the outer surface of the fifth round rod is slidably connected with a second slider, the outer surface of the second slider is slidably connected with the inner wall of the fifth rectangular groove, the second One side of the outer surface of the slider is fixedly connected with a U-shaped frame, the relief massage instrument is arranged on the top of the U-shaped frame, the outer surface of the table body is located below the fifth rectangular groove and is fixedly connected with a horizontal plate, the horizontal The outer surface of the plate is provided with holes and grooves.

As a preferred embodiment, the bottom of the second slider is provided with a circular groove, the inner wall of the circular groove is fixedly connected with a sixth round rod, and the end of the sixth round rod away from the circular groove is fixed A seventh round rod is connected, the size and shape of the outer surface of the seventh round rod are matched with the size and shape of the inner wall of the hole groove, the outer surface of the sixth round rod is sleeved with a first spring, and the first spring is sleeved on the outer surface of the sixth round rod. Two ends of a spring are respectively fixedly connected with one end of the seventh round rod and one side of the circular groove.

As a preferred embodiment, the detachable trash can device includes a mounting plate and a trash can body, one side of the outer surface of the mounting plate is fixedly connected to one side of the outer surface of the support plate, and the bottom of the trash can body is fixedly connected. A sliding plate is fixedly connected, the outer surface of the sliding plate is slidably connected with the inner wall of the mounting plate, a positioning rod is provided through one side of the mounting plate, and one end of the outer surface of the positioning rod is fixedly connected with a stopper, the The outer surface of the positioning rod is sleeved with a second spring, and the two ends of the second spring are respectively fixedly connected with the side of the outer surface of the block close to the positioning rod and the side of the outer surface of the mounting plate close to the positioning rod. One side of the outer surface of the sliding plate is provided with a positioning hole, and the size and shape of the inner wall of the positioning hole are adapted to the size and shape of the outer surface of the positioning rod.

Compared with the prior art, the advantages and positive effects of the present invention are,

1. In the present invention, when the patient needs to eat on the massage bed, he cannot eat in a lying state, otherwise it is easy to cause respiratory tract choking and endanger life. At this moment, the patient needs to be supported on his back, and this process is often impossible for the patient to complete independently and needs nursing care. The staff assists to complete the work, which increases the work intensity of the nursing staff. When the patient's back needs to be lifted, the patient does not need to move the body at this time, but directly turns the operating handle located at the head of the bed. The rotation of the first round rod, the rotation of the first round rod will drive the rotation of the first threaded rod, and then the rotation of the fixed round block, the rotation of the fixed round block will make the back support plate rotate, and the rotation of the first threaded rod will make the moving block rotate in the first round. When the outer surface of a threaded rod moves, the rotation of the back support plate can adjust the specific angular position. When it rotates to an appropriate position, the first operating block is rotated at this time, so that the first operating block drives the second threaded rod to rotate, so that the second threaded rod rotates. The rod drives the blocking block to move in the direction of the moving block. When the blocking block is stuck into the blocking hole, the moving block will not be displaced in the reverse direction when the patient leans against the rotating plate, so that the reverse rotation will not occur, and the movement will not be reversed. In terms of fixation, the entire device can adjust the interaction of various components inside the back support device, so that the patient only needs to operate the operating handle and the first operating block at the head of the bed to hold up his back without the assistance of others, reducing the need for patients. labor intensity of nursing staff.

2. In the present invention, it is better to move the massage device to the position of the patient when the patient cannot be moved or the pain of the patient is aggravated during the moving process. When the massage device needs to be moved, the second operation is rotated The second operating block drives the first gear to rotate. Since the two second gears are symmetrically located on both sides of the first gear, when the first gear rotates, it will drive the two second gears to rotate in the same direction, while pulling the first gear outward. Three operating blocks, so that the third operating block gives a force to the third round rod, so that the third round rod drives the second round rod to slide, and then separates the third round rod from the round hole. At this time, the second round rod can be in the rectangular hole. The inner wall slides, so that the rack block meshed with the second gear moves vertically. The movement of the rack block will drive the first slider to slide inside the fourth rectangular slot, and at the same time, the movement of the rack block will drive the fourth round rod to move, and then Slide the roller out of the storage slot, and press the third operating block inward at this time, so that the third operating block drives the third round rod into the round hole to complete the fixation. At this time, the roller can be used to move, and the whole device can be moved conveniently. The interaction of the components in the device enables the massage device to move, so that the device can be transported to the location of the patient without the need to send the patient to the device, avoiding the aggravation of the patient's condition during transportation, and improving the safety of the device.

3. In the present invention, the position of the massage instrument is often fixed with the bed body. When different parts need to be massaged, the patient often needs to move the position, which may lead to aggravation of the disease during the moving process. When the seventh round rod is pressed upward, the seventh round rod drives the sixth round rod to slide on the inner wall of the circular groove, and the sliding of the seventh round rod will compress the first spring. When the seventh round rod is separated from the hole and groove, push the U-shaped frame, so that the U-shaped frame drives the second slider to slide on the inner wall of the fifth rectangular slot. When adjusted to a suitable position, under the reaction force of the first spring, the seventh round rod will be stuck into the hole slot to complete the adjustment. The whole device can adjust the position of the massage instrument through the interaction of the various components of the position adjustment structure, so that the patient does not need to change the body position for adaptation, and it is very convenient to avoid the aggravation of the disease caused by the adjustment of the body position.

4, in the present invention, pain may cause the patient's resistance to decline, and then the situation of vomiting and dizziness occurs, when vomiting, the trash can of the hospital is often not at the bedside or easily dumped by force when vomiting, when the patient vomits, this time You can vomit at the trash can body fixed at the head of the bed. When the nursing staff needs to dispose of the dirt in the trash can, the block is pulled outward at this time, so that the block drives the positioning rod to move, and the movement of the positioning rod will make the second The spring is deformed. When the positioning rod is separated from the positioning hole, the trash can body is pulled outward, so that the trash can body drives the sliding plate to slide on the inner wall of the mounting plate. When the sliding plate is separated from the mounting plate, the disassembly is completed. The interaction of various components in the trash can device enables the trash can body to be fixed on the bed body, which is convenient for the patient to use without tipping over, which is very convenient.

Description of drawings

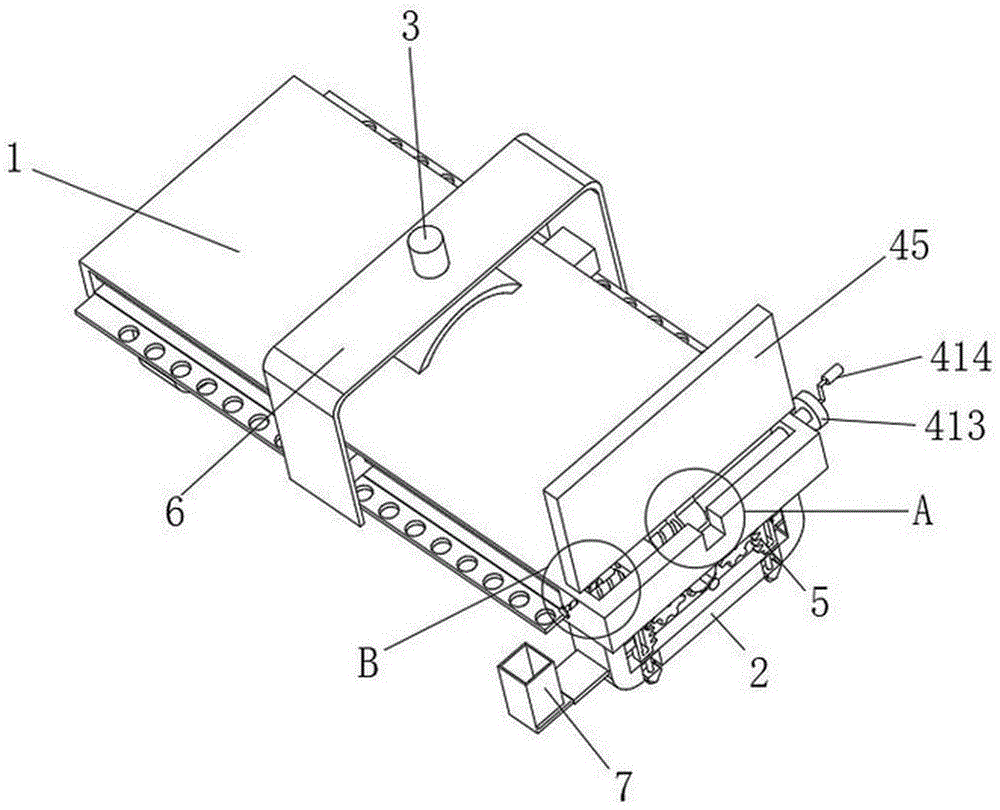

1 is a perspective view of a pain relief device for traditional Chinese medicine gynecology proposed by the present invention;

Fig. 2 is the side view of the pain relief device proposed by the present invention for traditional Chinese medicine gynecology;

Fig. 3 is the rear view of the pain relief device proposed by the present invention for traditional Chinese medicine gynecology;

Fig. 4 is the bottom view of the pain relief device for Chinese medicine gynecology proposed by the present invention;

5 is a side view of a pain relief device for traditional Chinese medicine gynecology proposed by the present invention;

6 is a schematic structural diagram of a part of the structure in FIG. 2 of the Chinese medicine gynecological pain relief device proposed by the present invention;

Fig. 7 is the structural schematic diagram of the partial structure in Fig. 5 that the present invention proposes traditional Chinese medicine gynecology pain relief device;

Fig. 8 is the structural schematic diagram of the place A in Fig. 1 that the present invention proposes traditional Chinese medicine gynecology pain relief device;

Fig. 9 is the structural schematic diagram of the place B in Fig. 1 that the present invention proposes traditional Chinese medicine gynecology pain relief device;

Fig. 10 is the structural schematic diagram of the place C in Fig. 6 that the present invention proposes traditional Chinese medicine gynecology pain relief device;

Fig. 11 is the structural schematic diagram of D in Fig. 4 that the present invention proposes traditional Chinese medicine gynecology pain relief device;

FIG. 12 is a schematic structural diagram of the position E in FIG. 7 of the TCM gynecological pain relief device proposed by the present invention.

illustration:

1. Table body; 2. Support plate; 3. Relieving massage instrument; 4. Adjustable back support device; 5. Convenient moving device; 6. Position adjustment structure; 7. Removable trash can device; 41. The first rectangular slot 42, the first round rod; 43, the first threaded rod; 44, the fixed round block; 45, the back support plate; 46, the second rectangular slot; block; 410, the first operating block; 411, the anti-skid block; 412, the card position hole; 413, the first round block; 414, the operating handle; 51, the third rectangular slot; 52, the first gear; 53, the second gear 54, the second operating block; 55, the fourth rectangular slot; 56, the first slider; 57, the rack block; 58, the rectangular hole; 59, the round hole; Rod; 512, the third operating block; 513, the receiving slot; 514, the fourth round rod; 515, the roller; 61, the fifth rectangular slot; 62, the fifth round rod; 63, the second slider; 64, the U shape Rack; 65, horizontal plate; 66, hole slot; 67, circular slot; 68, sixth round rod; 69, seventh round rod; 610, first spring; 71, mounting plate; 72, trash can body; 73 74, the positioning rod; 75, the block; 76, the second spring; 77, the positioning hole.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Example 1

As shown in Figures 1-12, the present invention provides a technical solution: a pain relief device for traditional Chinese medicine gynecology, including a table body 1 and a relieving massage instrument 3, the bottom of the table body 1 is symmetrically and fixedly connected with two support plates 2, and the table body The top of the outer surface of 1 is provided with an adjustable back support device 4 near the edge, the outer surfaces of the two support plates 2 are provided with convenient moving devices 5, and the two sides of the outer surface of the table body 1 are symmetrically provided with position adjustment structures 6, wherein One side of the outer surface of a support plate 2 is provided with a detachable trash can device 7, and the adjustable back support device 4 includes a first rectangular slot 41, and the first rectangular slot 41 is opened at the top of the outer surface of the table body 1 near the edge. One side of the inner surface of a rectangular groove 41 is provided with a first round rod 42 , and one end of the first round rod 42 located inside the first rectangular groove 41 is fixedly connected with a first threaded rod 43 , and the first round rod 42 is located in the first rectangular groove 41 . An outer end of the groove 41 is fixedly connected with a first round block 413 , an operating handle 414 is fixedly connected to one side of the outer surface of the first round block 413 , and one end of the first threaded rod 43 away from the first round rod 42 is connected to the first rectangular groove 41 The inner surface of the first threaded rod 43 and the first round rod 42 are fixedly connected with a fixed round block 44, and the outer surface of the fixed round block 44 is fixedly connected with a backing plate 45 through the connecting block. The surface is located on the side of the first rectangular groove 41 with a second rectangular groove 46. The size and shape of the inner wall of the second rectangular groove 46 are adapted to the size and shape of the outer surface of the connecting block. The outer surface of the first threaded rod 43 is threaded. A moving block 47 is connected, and the inner surface of the first rectangular groove 41 is provided with a second threaded rod 48 on the side away from the first round rod 42 , and the second threaded rod 48 penetrates through the table body 1 and is threadedly connected with the inner wall of the table body 1 One end of the second threaded rod 48 located outside the table body 1 is fixedly connected with the first operating block 410 , the outer surface of the first operating block 410 is fixedly connected with an anti-skid block 411 , and the second threaded rod 48 is located inside the first rectangular groove 41 . One end is fixedly connected with a blocking block 49 , and one side of the outer surface of the moving block 47 is provided with a blocking hole 412 .

In this embodiment, when the patient needs to eat on the massage bed, he cannot eat in a lying state, otherwise it is easy to cause respiratory choking and endanger life. At this time, the patient needs to be supported on his back. This process is often impossible for the patient to complete independently and needs nursing care. The staff assists to complete the work, which increases the work intensity of the nursing staff. When the patient's back needs to be lifted, the patient does not need to move the body at this time, and directly rotates the operating handle 414 located at the head of the bed. The rotation of the operating handle 414 will drive the first circle. The block 413 and the first round rod 42 rotate, the rotation of the first round rod 42 will drive the first threaded rod 43 to rotate, and then the fixed round block 44 can be rotated, and the rotation of the fixed round block 44 will cause the back plate 45 to rotate, and at the same time the first threaded rod 43 can be rotated. The rotation of the threaded rod 43 will make the movement block 47 move on the outer surface of the first threaded rod 43, and the rotation of the back support plate 45 can adjust the specific angular position. An operating block 410 drives the second threaded rod 48 to rotate, so that the second threaded rod 48 drives the blocking block 49 to move in the direction of the moving block 47 . When the blocking block 49 is stuck into the blocking hole 412 , the moving block 47 There will be no reverse displacement when the patient leans against the rotating plate, and thus no reverse rotation will occur, which plays a fixed role. The operation handle 414 and the first operation block 410 can hold up one's back without the assistance of others, which reduces the labor intensity of the nursing staff.

Example 2

As shown in FIG. 2 and FIG. 6 , the convenient mobile device 5 includes a third rectangular slot 51 . The third rectangular slot 51 is opened on one side of the outer surface of the support plate 2 , and the inner surface of the third rectangular slot 51 is rotatably connected to the center near the center. The inner surfaces of the first gear 52 and the third rectangular groove 51 are located on both sides of the first gear 52 symmetrically and rotationally connected to the second gear 53 , and the outer surfaces of the first gear 52 are meshed with the outer surfaces of the two second gears 53 respectively. One side of the outer surface of the first gear 52 is fixedly connected with the second operation block 54, the inner surface of the third rectangular groove 51 is symmetrically opened with a fourth rectangular groove 55 on both sides, and the inner walls of the two fourth rectangular grooves 55 are slidably connected There is a first slider 56 , one side of the two first sliders 56 is fixedly connected with a rack block 57 , and one side of the outer surface of the two rack blocks 57 is meshed with the outer surfaces of the two second gears 53 respectively. , the outer surface of the rack block 57 is provided with a rectangular hole 58, the two ends of the rectangular hole 58 are symmetrically provided with circular holes 59, the inner surface of the third rectangular slot 51 is slidably connected with a second round rod 510, the second round rod 510 One end of the third round rod 511 is fixedly connected with the third round rod 511, one side of the third round rod 511 is fixedly connected with the third operation block 512, the outer surface of the second round rod 510 is slidably connected with the inner wall of the rectangular hole 58, and the third round rod 511 The size and shape of the outer surface of the support plate 2 are adapted to the size and shape of the inner wall of the circular hole 59, the bottom of the support plate 2 is provided with a receiving slot 513 near the edge, and the bottom of the rack block 57 is fixedly connected with a fourth round rod 514. The round rod 514 penetrates the third rectangular groove 51 and extends into the receiving groove 513 , and a roller 515 is fixedly connected to the bottom end of the fourth round rod 514 .

In this embodiment, it is better to move the massage device to the position of the patient when the patient cannot be moved or the pain of the patient is aggravated during the movement. When the massage device needs to be moved, the second operation is performed block 54, so that the second operation block 54 drives the first gear 52 to rotate. Since the two second gears 53 are symmetrically located on both sides of the first gear 52, the rotation of the first gear 52 will drive the two second gears 53 in the same direction Rotate and pull the third operation block 512 outward at the same time, so that the third operation block 512 gives a force to the third round rod 511, so that the third round rod 511 drives the second round rod 510 to slide, and then makes the third round rod 511 and the round rod 511 slide. The holes 59 are separated. At this time, the second round rod 510 can slide on the inner wall of the rectangular hole 58, so that the rack block 57 meshed with the second gear 53 can move vertically, and the movement of the rack block 57 will drive the first slider 56 to move vertically. The fourth rectangular slot 55 slides inside, and at the same time, the movement of the rack block 57 will drive the fourth round rod 514 to move, and then the roller 515 slides out from the receiving slot 513. At this time, the third operation block 512 is pressed inward, so that the third operation block 512 drives the third round rod 511 to be inserted into the round hole 59 to complete the fixing. At this time, the roller 515 can be used to move the whole device. The interaction of the various components in the convenient moving device 5 enables the massage device to move, and then the device can be transported. When reaching the location of the patient, the patient does not need to be sent to the device, thereby avoiding the aggravation of the patient's condition during transportation, and improving the safety of the device.

Example 3

As shown in FIG. 3 and FIG. 4 , the position adjustment structure 6 includes two fifth rectangular grooves 61 . The two fifth rectangular grooves 61 are symmetrically opened on both sides of the outer surface of the table body 1 , and the inner wall of the fifth rectangular groove 61 is on both sides. A fifth round rod 62 is fixedly connected therebetween, the outer surface of the fifth round rod 62 is slidably connected with a second slider 63, the outer surface of the second slider 63 is slidably connected with the inner wall of the fifth rectangular groove 61, and the second slider One side of the outer surface of the block 63 is fixedly connected with a U-shaped frame 64, the relieving massage instrument 3 is arranged on the top of the U-shaped frame 64, and the outer surface of the table body 1 is located below the fifth rectangular groove 61 is fixedly connected with a horizontal plate 65. The outer surface of the plate 65 is provided with a hole groove 66, the bottom of the second slider 63 is provided with a circular groove 67, the inner wall of the circular groove 67 is fixedly connected with a sixth round rod 68, and the sixth round rod 68 is away from the circular groove 67. One end is fixedly connected with a seventh round rod 69, the size and shape of the outer surface of the seventh round rod 69 are matched with the size and shape of the inner wall of the hole groove 66, and the outer surface of the sixth round rod 68 is sleeved with a first spring 610 , the two ends of the first spring 610 are respectively fixedly connected with one end of the seventh round rod 69 and one side of the circular groove 67 .

In this embodiment, the position of the massage instrument is often fixed with the bed body. When different parts need to be massaged, the patient often needs to move the position, which may lead to aggravation of the disease during the moving process. When the seventh round rod 69 is pressed upward, the seventh round rod 69 drives the sixth round rod 68 to slide on the inner wall of the circular groove 67, and the sliding of the seventh round rod 69 will compress the first spring 610. When the groove 66 is separated, the U-shaped frame 64 is pushed at this time, so that the U-shaped frame 64 drives the second slider 63 to slide on the inner wall of the fifth rectangular groove 61. When adjusted to an appropriate position, under the reaction force of the first spring 610, The seventh round rod 69 will be snapped into the hole groove 66 to complete the adjustment. The entire device can be adjusted through the interaction of the various components of the position adjustment structure 6, so that the position of the massage instrument can be adjusted, and the patient does not need to change his body position to adapt, avoiding the need for adjustment. The position causes the condition to worsen, which is very convenient.

Example 4

As shown in FIGS. 5 and 7 , the detachable trash can device 7 includes a mounting plate 71 and a trash can body 72. One side of the outer surface of the mounting plate 71 is fixedly connected to one side of the outer surface of the support plate 2, and the side of the trash can body 72 is fixedly connected. A sliding plate 73 is fixedly connected to the bottom, the outer surface of the sliding plate 73 is slidably connected to the inner wall of the mounting plate 71, a positioning rod 74 is provided through one side of the mounting plate 71, and a stopper 75 is fixedly connected to one end of the outer surface of the positioning rod 74, The outer surface of the positioning rod 74 is sleeved with a second spring 76, and the two ends of the second spring 76 are respectively connected with the outer surface of the stopper 75 on the side close to the positioning rod 74 and the outer surface of the mounting plate 71 on the side close to the positioning rod 74. For fixed connection, a positioning hole 77 is opened on one side of the outer surface of the sliding plate 73 .

In this embodiment, the pain may cause the patient's resistance to decrease, and then the situation of vomiting and dizziness occurs. When vomiting, the trash can of the hospital is often not at the bedside or easily dumped by force when vomiting. When the patient is vomiting, at this time It is possible to vomit against the trash can body 72 fixed at the head of the bed. When the nursing staff needs to dispose of the dirt in the trash can body 72, the stopper 75 is pulled outward at this time, so that the stopper 75 drives the positioning rod 74 to move, The movement of the positioning rod 74 will cause the deformation of the second spring 76. When the positioning rod 74 is separated from the positioning hole 77, the trash can body 72 is pulled outward, so that the trash can body 72 drives the sliding plate 73 to slide on the inner wall of the mounting plate 71. When the plate 73 is separated from the mounting plate 71, the disassembly is completed, and the whole device is through the interaction of the various components in the detachable trash can device 7, so that the trash can body 72 can be fixed on the bed body, which is convenient for the patient to use, and will not fall over, which is very convenient. .

The working principle of this embodiment:

As shown in Fig. 1-12, when the patient's back needs to be held up, the patient does not need to move the body, but directly rotates the operating handle 414 located at the head of the bed. The rotation of the operating handle 414 will drive the first circular block 413 and the first circular block 414. The rotation of the rod 42, the rotation of the first round rod 42 will drive the rotation of the first threaded rod 43, which in turn can make the fixed round block 44 rotate, the rotation of the fixed round block 44 will make the back plate 45 rotate, and the rotation of the first threaded rod 43 will make The moving block 47 moves on the outer surface of the first threaded rod 43, and the back support plate 45 can be rotated to adjust the specific angular position. When it is rotated to an appropriate position, the first operating block 410 is rotated at this time, so that the first operating block 410 drives the first operating block 410. The second threaded rod 48 rotates, so that the second threaded rod 48 drives the blocking block 49 to move in the direction of the moving block 47. When the blocking block 49 is stuck into the blocking hole 412, the moving block 47 will not rotate when the patient leans against it. Reverse displacement occurs when the plate is placed, so that reverse rotation will not occur, which plays a fixed role. When the massage device needs to be moved, the second operation block 54 is rotated at this time, so that the second operation block 54 drives the first gear 52 to rotate. , since the two second gears 53 are symmetrically located on both sides of the first gear 52, when the first gear 52 rotates, it will drive the two second gears 53 to rotate in the same direction, and at the same time pull the third operation block 512 outward, so that the third The operation block 512 gives a force to the third round rod 511, so that the third round rod 511 drives the second round rod 510 to slide, and then separates the third round rod 511 from the round hole 59. At this time, the second round rod 510 can be inserted into the rectangular hole. The inner wall of 58 slides, thereby making the rack block 57 meshed with the second gear 53 to move vertically, the movement of the rack block 57 will drive the first slider 56 to slide inside the fourth rectangular slot 55, and the movement of the rack block 57 will drive the The fourth round rod 514 moves, and then the roller 515 is slid out of the receiving slot 513. At this time, the third operating block 512 is pressed inward, so that the third operating block 512 drives the third round rod 511 to be inserted into the round hole 59 to complete the fixing. At this time, the roller 515 can be used to move. When it is necessary to massage the designated position, press the seventh round rod 69 upward at this time, so that the seventh round rod 69 drives the sixth round rod 68 to slide on the inner wall of the circular groove 67. The sliding of the seven round rod 69 will compress the first spring 610 . When the seventh round rod 69 is separated from the hole groove 66 , the U-shaped frame 64 is pushed at this time, so that the U-shaped frame 64 drives the second slider 63 in the fifth rectangular groove 61 . The inner wall slides, and when adjusted to an appropriate position, under the reaction force of the first spring 610, the seventh round rod 69 will be stuck in the hole groove 66 to complete the adjustment. When the patient vomits, it can be fixed on the head of the bed facing The trash can body 72 is vomited. When the nursing staff needs to dispose of the dirt in the trash can body 72, the stopper 75 is pulled outward at this time, so that the stopper 75 drives the positioning rod 74 to move, and the movement of the positioning rod 74 will make the second The spring 76 is deformed, and when the positioning rod 74 is separated from the positioning hole 77 , the trash can body 72 is pulled outward, so that the trash can body 72 drives the sliding plate 73 in the mounting plate 71 The wall slides, and the disassembly is completed when the sliding plate 73 is separated from the mounting plate 71 .

The above are only preferred embodiments of the present invention, and are not intended to limit the present invention in other forms. Any person skilled in the art may use the technical content disclosed above to make changes or modifications to equivalent changes. The embodiments are applied to other fields, but any simple modifications, equivalent changes and modifications made to the above embodiments according to the technical essence of the present invention still belong to the protection scope of the technical solutions of the present invention without departing from the content of the technical solutions of the present invention.

Claims (7)

1. Traditional Chinese medicine gynecology pain relief device, comprising platform body (1) and relieving massage instrument (3), it is characterized in that: the bottom of described platform body (1) is symmetrically and fixedly connected with two support plates (2), the The top of the outer surface of the table body (1) is provided with an adjustable back support device (4) near the edge, the outer surfaces of the two support plates (2) are provided with convenient moving devices (5), and the table body ( 1) Both sides of the outer surface of the outer surface are symmetrically provided with a position adjustment structure (6), and one side of the outer surface of one of the support plates (2) is provided with a removable trash can device (7), and the adjustable back support device ( 4) Including a first rectangular groove (41), the first rectangular groove (41) is opened at the top of the outer surface of the table body (1) near the edge, and one side of the inner surface of the first rectangular groove (41) runs through A first round rod (42) is provided, one end of the first round rod (42) located inside the first rectangular groove (41) is fixedly connected with a first threaded rod (43), and the first round rod (42) One end located outside the first rectangular groove (41) is fixedly connected with a first round block (413), and an operating handle (414) is fixedly connected to one side of the outer surface of the first round block (413), and the first thread One end of the rod (43) away from the first round rod (42) is rotatably connected with the inner surface of the first rectangular groove (41), and the first threaded rod (43) is fixedly connected to the interface of the first round rod (42) with a A fixed round block (44), the outer surface of the fixed round block (44) is fixedly connected with a backing plate (45) through the connecting block; the outer surface of the table body (1) is located in the first rectangular groove (41) One side is provided with a second rectangular groove (46), the size and shape of the inner wall of the second rectangular groove (46) are adapted to the size and shape of the outer surface of the connecting block, and the outer surface of the first threaded rod (43) A moving block (47) is threadedly connected to the surface; a second threaded rod (48) is provided through the inner surface of the first rectangular groove (41) away from the first round rod (42), and the second threaded rod (48) penetrates through the table body (1) and is threadedly connected with the inner wall of the table body (1), and a first operating block (410) is fixedly connected to one end of the second threaded rod (48) located outside the table body (1), An anti-skid block (411) is fixedly connected to the outer surface of the first operating block (410); a locking block (49) is fixedly connected to one end of the second threaded rod (48) inside the first rectangular groove (41) , the outer surface of the moving block (47) is provided with a clamping hole (412), and the size and shape of the inner wall of the clamping hole (412) are compatible with the size and shape of the outer surface of the clamping block (49). match. 2. The traditional Chinese medicine gynecological pain relief device according to claim 1, characterized in that: the convenient moving device (5) comprises a third rectangular groove (51), and the third rectangular groove (51) is provided on the support plate On the outer surface side of (2), a first gear (52) is rotatably connected to the inner surface of the third rectangular groove (51) near the center, and the inner surface of the third rectangular groove (51) is located on the first gear The two sides of the (52) are symmetrically rotatably connected with second gears (53), the outer surfaces of the first gears (52) are meshed with the outer surfaces of the two second gears (53) respectively, and the first gears (52) A second operation block (54) is fixedly connected to one side of the outer surface of 52). 3. The traditional Chinese medicine gynecological pain relief device according to claim 2, wherein the inner surface of the third rectangular groove (51) is symmetrically provided with a fourth rectangular groove (55) on both sides, and two of the third rectangular grooves (51) are symmetrically provided with a fourth rectangular groove (55). First sliding blocks (56) are slidably connected to the inner walls of the four rectangular grooves (55), and rack blocks (57) are fixedly connected to one side of the two first sliding blocks (56). One side of the outer surface of the bar block (57) is respectively engaged with the outer surfaces of the two second gears (53). 4. The traditional Chinese medicine gynecological pain relief device according to claim 3, characterized in that: the outer surface of the rack block (57) is provided with a rectangular hole (58), and the two ends of the rectangular hole (58) are A circular hole (59) is symmetrically opened, the inner surface of the third rectangular groove (51) is slidably connected with a second round rod (510), and one end of the second round rod (510) is fixedly connected with a third round rod (511), a third operating block (512) is fixedly connected to one side of the third round rod (511), and the outer surface of the second round rod (510) is slidably connected to the inner wall of the rectangular hole (58), The size and shape of the outer surface of the third round rod (511) are adapted to the size and shape of the inner wall of the round hole (59), and a receiving groove (513) is opened at the bottom of the support plate (2) near the edge, A fourth round rod (514) is fixedly connected to the bottom of the rack block (57), the fourth round rod (514) penetrates the third rectangular groove (51) and extends into the receiving groove (513), and the fourth round rod (514) penetrates the third rectangular groove (51) and extends into the receiving groove (513). A roller (515) is fixedly connected to the bottom end of the round rod (514). 5. The traditional Chinese medicine gynecological pain relief device according to claim 1, wherein the position adjustment structure (6) comprises two fifth rectangular grooves (61), two fifth rectangular grooves (61) Symmetrically opened on both sides of the outer surface of the platform body (1), a fifth round rod (62) is fixedly connected between the two sides of the inner wall of the fifth rectangular groove (61), and the fifth round rod (62) is The outer surface is slidably connected with a second sliding block (63), the outer surface of the second sliding block (63) is slidably connected with the inner wall of the fifth rectangular groove (61), and the outer surface of the second sliding block (63) A U-shaped frame (64) is fixedly connected on one side, and the relieving massage instrument (3) is arranged on the top of the U-shaped frame (64), and the outer surface of the table body (1) is located at the bottom of the fifth rectangular groove (61). A horizontal plate (65) is fixedly connected below, and the outer surface of the horizontal plate (65) is provided with a hole groove (66). 6. The traditional Chinese medicine gynecological pain relief device according to claim 5, wherein a circular groove (67) is formed at the bottom of the second slider (63), and the inner wall of the circular groove (67) is provided with a circular groove (67). A sixth round rod (68) is fixedly connected, and a seventh round rod (69) is fixedly connected with one end of the sixth round rod (68) away from the circular groove (67). The size and shape of the outer surface are adapted to the size and shape of the inner wall of the hole groove (66), and the outer surface of the sixth round rod (68) is sleeved with a first spring (610), and the first spring (610) The two ends of the rod are respectively fixedly connected with one end of the seventh round rod (69) and one side of the circular groove (67). 7. The traditional Chinese medicine gynecological pain relief device according to claim 1, wherein the detachable trash can device (7) comprises a mounting plate (71) and a trash can body (72), and the mounting plate (71) ) is fixedly connected with the outer surface side of the support plate (2), the bottom of the trash can body (72) is fixedly connected with a sliding plate (73), and the outer surface of the sliding plate (73) is connected with The inner wall of the mounting plate (71) is slidably connected, one side of the mounting plate (71) is provided with a positioning rod (74), and one end of the outer surface of the positioning rod (74) is fixedly connected with a stopper (75), so The outer surface of the positioning rod (74) is sleeved with a second spring (76), and the two ends of the second spring (76) are respectively close to the side of the positioning rod (74) and the outer surface of the stopper (75). The outer surface of the mounting plate (71) is fixedly connected to one side of the positioning rod (74), and a positioning hole (77) is formed on the outer surface of the sliding plate (73). and shape to match the size and shape of the outer surface of the positioning rod (74).
