CN113288459A - Quantitative respirator is used in pulmonary nodule location

Info

Publication number: CN113288459A
Application number: CN202110768007.8A
Authority: CN
Inventors: 张昊; 孙滕; 刘修成; 刘欣龙
Original assignee: Affiliated Hospital of Xuzhou Medical University
Current assignee: Affiliated Hospital of Xuzhou Medical University
Priority date: 2021-07-07
Filing date: 2021-07-07
Publication date: 2021-08-24

Abstract

The invention discloses a quantitative respirator for locating pulmonary nodules, which is characterized by comprising a sleeve, a piston, a spring and a suction pipe, the piston is sealed and slid in the sleeve, and the suction cavity is formed in the sleeve, and the spring is fixed It is installed between the piston and the casing, and it makes the piston abut on the upper end plate of the casing, the suction pipe is fixedly installed on the casing, and it communicates with the suction chamber. Compared with the prior art, the present invention has a The advantage is that the patient can inhale a certain amount of air through the inspiratory tube, so that the expansion of the patient's lung can be maintained constant, and the position of the pulmonary nodule relative to the lung capsule is fixed, thereby improving the efficiency and accuracy of pulmonary nodule positioning and achieving accurate Efficient pulmonary nodule resection or ablation surgery.

Description

Quantitative respirator is used in pulmonary nodule location

Technical Field

The invention relates to a device for locating pulmonary nodules, in particular to a quantitative respirator for locating pulmonary nodules.

Background

With the popularization of pulmonary CT examination, more and more pulmonary nodule patients are discovered in time, and for such patients, surgical resection or thermal ablation after precise lung nodule positioning is usually required, and the lung nodule positioning is generally performed under CT guidance before operation.

However, since the lung nodules are located at different positions due to different degrees of expansion of the lung caused by the change of the breathing phase of the patient, the positioning accuracy is poor and the efficiency is low, so that the improvement is needed.

Disclosure of Invention

The invention provides a quantitative respirator for locating pulmonary nodules, which can solve the technical problems that: the amount of air inhaled by the patient is not precisely controlled, resulting in a constantly changing location of the nodule.

In order to solve the technical problems, the technical scheme adopted by the invention is as follows: the piston slides in the sleeve in a sealing manner, an air suction cavity is formed in the sleeve, the spring is fixedly installed between the piston and the sleeve, the piston is abutted against an upper end plate of the sleeve, and the air suction pipe is fixedly installed on the sleeve and is communicated with the air suction cavity.

An expiration pipe is fixedly installed at one end, far away from the inspiration cavity, of the inspiration pipe, and an expiration one-way valve is fixedly installed on the expiration pipe.

And one end of the air suction pipe close to the air suction cavity is fixedly provided with an air suction one-way valve, the air suction cavity is fixedly provided with an air supply valve, and the air supply valve is linked with the air expiration one-way valve.

The breathing pipe and the expiration pipe are both threaded hoses.

And an air nozzle is fixedly arranged at the end part of one end of the air suction pipe, which is far away from the air suction cavity.

And the upper end plate of the sleeve is provided with a plurality of ventilation holes.

After adopting the structure, compared with the prior art, the invention has the advantages that: the utility model provides a lung nodule is quantitative respirator for location has included sleeve pipe, piston, spring, breathing pipe etc. through the cooperation of sleeve pipe, piston etc. makes the patient inhale quantitative air through the breathing pipe to the inflation degree that makes the patient lung maintains invariably, and the relative lung tunica adventitia of lung nodule position is fixed, and then promotes the efficiency and the accuracy that the lung nodule was fixed a position, realizes accurate efficient lung nodule excision or melts the operation.

Drawings

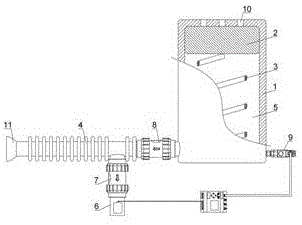

Fig. 1 is a schematic structural view of a quantitative respirator for locating pulmonary nodules according to the present invention.

As shown in the figure: 1. the device comprises a sleeve, 2, a piston, 3, a spring, 4, an air suction pipe, 5, an air suction cavity, 6, an air exhaust pipe, 7, an air exhaust one-way valve, 8, an air suction one-way valve, 9, an air supply valve, 10, a ventilation hole, 11 and an air nozzle.

Detailed Description

The following description is only a preferred embodiment of the present invention, and does not limit the scope of the present invention, and the present invention is further described with reference to the accompanying drawings and embodiments.

Example, see figure 1:

a quantitative respirator for locating pulmonary nodules comprises a sleeve 1, a piston 2, a spring 3 and an air suction pipe 4.

The sleeve 1 is a cylinder structure, a lower end opening of the sleeve is sealed and covered with a lower end plate, an upper end opening of the sleeve is covered with an upper end plate, the upper end plate is provided with a plurality of ventilation holes 10, the upper end plate is used for limiting the piston 2, and the ventilation holes 10 are used for circulating air at the upper end of the piston 2 and air outside the sleeve 1.

The piston 2 is a cylinder structure, the outer circumferential surface of the piston is matched with the inner wall of the sleeve 1, the piston 2 slides in the sleeve 1 in a sealing mode, an air suction cavity 5 is formed in the sleeve 1, the air suction cavity 5 is a sealed cavity, and if air in the air suction cavity is reduced, the piston 2 moves downwards under the action of air pressure.

The spring 3 is positioned in the air suction cavity 5 and is fixedly arranged between the piston 2 and the sleeve 1, and the piston 2 is abutted against the upper end plate of the sleeve 1 under the pushing of the spring 3, so that the supplement of air in the air suction cavity 5 is realized, and the fixed air quantity in the air suction cavity 5 is ensured.

Breathing pipe 4 fixed mounting is on sleeve pipe 1, and its and the chamber 5 intercommunication of breathing in, and the one end tip fixed mounting who keeps away from the chamber 5 of breathing in on breathing pipe 4 has air cock 11, can be convenient for breathing in of breathing pipe 4 through air cock 11, avoids appearing the gas leakage problem.

An air suction one-way valve 8 is fixedly installed at one end, close to the air suction cavity 5, of the air suction pipe 4, the conduction direction of the air suction one-way valve 8 faces the air suction pipe 4 from the air suction cavity 5, and the air suction one-way valve 8 can prevent air in the air suction pipe 4 from entering the air suction cavity 5.

An expiration pipe 6 is fixedly installed at one end, far away from the inspiration cavity 5, of the inspiration pipe 4, an expiration one-way valve 7 is fixedly installed on the expiration pipe 6, the conduction direction of the expiration one-way valve 7 faces the expiration pipe 6 from the inspiration pipe 4, and the expiration one-way valve 7 can prevent air in the expiration pipe 6 from entering the inspiration pipe 4.

When a patient exhales through the inhalation tube 4, exhaled air is exhausted through the exhalation tube 6, and when the patient inhales through the inhalation tube 4, air in the inhalation cavity 5 is inhaled by the patient, so that a fixed air volume is inhaled into the lung of the patient.

An air compensating valve 9 is fixedly installed on the air suction cavity 5, the air compensating valve 9 adopts an electric switch valve, the input end of the electric switch valve is connected with the output end of the PLC, a flow switch is fixedly installed at one end, far away from the air suction pipe 4, of the air exhaust pipe 6, and the output end of the flow switch is connected with the input end of the PLC, so that linkage of the air compensating valve 9 and the air exhaust one-way valve 7 is realized.

The flow switch converts an air flow signal in the expiration pipe 6 into an electric signal and sends the electric signal to the PLC controller, the PLC controller sends an opening signal to the air compensating valve 9 to open and close the air compensating valve 9 in a delayed mode, so that air compensation in the inspiration cavity 5 is realized under the action of the spring 3, and when no air is exhausted from the expiration pipe 6, the air compensating valve 9 is closed to ensure that the air completely comes from the inspiration cavity 5 when a patient inhales through the inspiration pipe 4.

The breathing pipe 4 and the expiration pipe 6 are threaded hoses, so that the positions can be flexibly adjusted, and the use is more convenient.

When specifically using, the patient exhales through 4 efforts of breathing pipe, arrange to the greatest extent until lung air, then breathe in hard through breathing pipe 4, then stop when inhaling immobility, can carry out the radio frequency ablation operation this moment can, wherein, the patient exhales the back, the volume of chamber 5 of breathing in reaches the biggest under spring 3's effect, the patient breathes in the back, the volume of chamber 5 of breathing in reaches the minimum, and spring 3 is compressed completely, this kind of mode can guarantee that the patient inhales quantitative air, the inflation degree that makes the patient lung maintains invariable, the position fixation of the relative lung tunica adventitia of pulmonary nodule, and then promote efficiency and the accuracy that the pulmonary nodule was fixed a position, realize accurate efficient pulmonary nodule excision or melt the operation.

The present invention and its embodiments have been described above, and the description is not intended to be limiting, and the drawings are only one embodiment of the present invention, and the actual structure is not limited thereto. In summary, those skilled in the art should appreciate that they can readily use the disclosed conception and specific embodiments as a basis for designing or modifying other structures for carrying out the same purposes of the present invention without departing from the spirit and scope of the invention as defined by the appended claims.

Claims

1. A quantitative respirator for pulmonary nodule positioning, characterized in that it comprises a sleeve (1), a piston (2), a spring (3) and an air suction pipe (4), and the piston (2) is sealed and slid on the Inside the sleeve (1), and it forms a suction chamber (5) in the sleeve (1), the spring (3) is fixedly installed on the piston (2) and the sleeve (1) ), and it makes the piston (2) abut the upper end plate of the sleeve (1), the suction pipe (4) is fixedly installed on the sleeve (1), and its communicate with the suction chamber (5).

2. A quantitative respirator for locating pulmonary nodules according to claim 1, characterized in that: an end of the inhalation pipe (4) away from the inhalation cavity (5) is fixedly installed with an expiratory pipe (6), an exhalation check valve (7) is fixedly installed on the exhalation pipe (6).

3. A quantitative respirator for locating pulmonary nodules according to claim 2, characterized in that: one end of the inhalation pipe (4) close to the inhalation cavity (5) is fixedly installed with an inhalation unit. A direction valve (8), an air supplement valve (9) is fixedly installed on the inhalation chamber (5), and the air supplement valve (9) is linked with the exhalation check valve (7).

4 . The quantitative respirator for pulmonary nodule positioning according to claim 3 , wherein the inhalation pipe ( 4 ) and the exhalation pipe ( 6 ) are both threaded hoses. 5 .

5. A quantitative respirator for locating pulmonary nodules according to claim 1, characterized in that: one end of the inhalation pipe (4) away from the inhalation cavity (5) is fixedly installed with air Mouth (11).

6. A quantitative respirator for locating pulmonary nodules according to any one of claims 1-5, characterized in that: the upper end plate of the sleeve (1) is provided with several ventilation holes (10). ).
