Abstract
The invention discloses an MBR (membrane bioreactor) process for treating nitrate wastewater, which relates to the technical field of sewage treatment and comprises a water inlet adjusting tank, an MBR reaction tank and a clean water tank. The invention combines the membrane bioreactor with the denitrification technology for the first time, and enables the environmental factors to be more suitable for the growth and enrichment of denitrifying bacteria by optimizing the temperature, the pH value, the carbon-nitrogen ratio and the dissolved oxygen concentration. The nitrogen stripping device is used for aeration, so that the dissolved oxygen is reduced, simultaneously, the substance mixing is enhanced, the functional activity of denitrifying bacteria is fully exerted, a better effect can be obtained in the treatment of nitrate wastewater, particularly high-concentration nitrate wastewater, and the nitrogen stripping device has stronger impact resistance, and provides a new idea for the treatment of high-concentration nitrate. In addition, the membrane bioreactor for treating nitrate wastewater and the application method thereof have the advantages of simple operation, small occupied area and cost saving, and particularly have higher practical value under the condition that the site resources of sewage plants are limited.
Description
Technical Field
The invention belongs to the field of water treatment technology application, and particularly relates to an MBR (membrane bioreactor) process for treating nitrate wastewater, which is mainly used for deeply removing nitrate nitrogen and nitrite nitrogen in wastewater by improving the growth environment of microorganisms in a reactor and improving the degradation capability of the microorganisms.
Background
The social economy develops rapidly, and the environmental pollution problem is more and more outstanding simultaneously, and traditional denitrification device has the power consumption height, operates complicacy, handles that the load is low, handles nitrate nitrogen concentration low, area is big, the range of application is little, the process flow is long, the operation flow is complicated scheduling problem. Therefore, a new denitrification apparatus is urgently required to solve the above problems.
MBR is a novel high-efficiency water treatment technology combining an activated sludge process and a membrane separation technology. The method can realize effective separation of Hydraulic Retention Time (HRT) and Sludge Retention Time (SRT), is beneficial to enriching active microorganisms with long proliferation period, and has good effluent quality. By combining the denitrification technology with the MBR process, the enrichment of denitrifying bacteria can be realized by controlling the environmental conditions. In the operation process of the MBR, the concentration of dissolved oxygen is an important influence factor for realizing denitrification of the MBR. Denitrifying bacteria generally grow under the anoxic condition, and researches show that the denitrifying bacteria can be inhibited from degrading nitrate by the dissolved oxygen concentration in the biomembrane reactor which is higher than 0.5 mg/L. In the traditional method, an anoxic environment is created by stirring, but the water body still contains high dissolved oxygen concentration, so that the enrichment of denitrifying bacteria is influenced, and the nitrogen removal is incomplete.
The invention provides an MBR process for treating nitrate wastewater, which utilizes nitrogen to blow off to solve the influence of dissolved oxygen on denitrifying bacteria, utilizes a nitrogen recovery device to collect nitrogen, saves cost, and simultaneously adds filler in a reactor, thereby not only delaying the pollution problem of an MBR membrane, but also enriching a high-concentration denitrifying bacteria community to achieve the purpose of deep and efficient denitrification.
Disclosure of Invention
In view of the above problems of conventional denitrification, the present invention provides an MBR process for treating nitrate-containing wastewater in combination with the above background art.
The technical scheme of the invention is as follows:
the invention integrates MBR process for treating nitrate wastewater into integrated equipment, which comprises three parts, namely a water inlet adjusting tank, an MBR reaction tank and a clean water tank, wherein the three parts respectively have the following functions:
the water inlet adjusting tank comprises phosphorus, caustic soda dosing pumps, an aeration head, a pH meter and organic wastewater (supplementing carbon sources). Wherein the adding amount of phosphorus and caustic soda is controlled by a peristaltic pump. And the water inlet adjusting tank provides inlet water for the MBR reaction tank.
The MBR reaction tank comprises an MBR hollow fiber composite membrane, an aeration pipe, a water inlet pipe, a pH meter, a dissolved oxygen meter, anaerobic activated sludge, an aeration head and a nitrogen recovery device. The inside center of reactor is located to MBR hollow fiber complex film, and the aeration pipe evenly sets up the bottom in the reactor body, and the interval of adjacent aeration pipe is 20 cm, and the aeration pipe initiating terminal is connected nitrogen gas and is blown off the device, gives the reactor aeration with the nitrogen gas that the purity is 99.99%, is used for getting rid of the dissolved oxygen in the water on the one hand, and on the other hand is used for the mixture of the interior material of reactor. And the pH meter and the dissolved oxygen meter are continuously monitored on line, so that the optimal growth environment required by denitrifying bacteria in the reactor is ensured. The anaerobic sludge is activated sludge in an anoxic tank of a chemical sewage treatment plant, and the sludge concentration is not less than 8500 mg/L. The nitrogen recovery device is used for recovering nitrogen lost in the aeration process, and the recovered nitrogen is used for aeration of the regulating tank and the MBR reaction tank, so that the utilization rate of the nitrogen is further improved. The running temperature of the MBR reaction tank is 25-30 ℃, the pH value is 7.0-7.5, the carbon-nitrogen ratio is 5:1-4:1, the filling rate of the filler is 1/5-1/4, the dissolved oxygen is 0.0-0.5 mg/L, and the wastewater is purified in the MBR reaction tank.
The clean water tank comprises a water outlet pipe, an electromagnetic valve and a backwashing pump. The purified wastewater enters a clean water tank through an MBR membrane. And the backwashing pump is used for cleaning the MBR membrane in the reaction tank at regular time. The backwashing interval time is 1 h and the backwashing time is 2 min.
The invention is characterized in that: the MBR process is combined with the denitrification technology, the defects of high energy consumption, low treatment load, large occupied area and the like in the nitrate wastewater treatment by the traditional process (A/O) are overcome, and the environmental factors are more suitable for growth and enrichment of denitrifying bacteria by optimizing the temperature, the pH value, the carbon-nitrogen ratio and the dissolved oxygen concentration. The invention further improves the aeration mode, solves the problem that the traditional stirring method is not thorough in removing dissolved oxygen in water, uses the nitrogen stripping device for aeration, enhances the substance mixing while reducing the concentration of the dissolved oxygen, fully exerts the functional activity of denitrifying bacteria, and can obtain better effect in the treatment of nitrate wastewater, particularly high concentration. The denitrifying bacteria enriched by the reactor have stronger impact resistance, and a new idea is provided for treating high-concentration nitrate wastewater. The invention is provided with the nitrogen recovery device, improves the utilization rate of nitrogen, reduces the cost and has stronger practical value.
Drawings
FIG. 1 is a schematic diagram of MBR process for treating high-nitrate wastewater
Reference numerals
1-high concentration nitrate wastewater; 2-organic waste water; 3-nutrient solution; 4-a peristaltic pump; 5-pH meter; 6-a submersible sewage pump; 7-an aerator; 8-an electromagnetic valve; 9-a water inlet flow meter; 10-an electromagnetic valve; 11-a regulating valve; 12-nitrogen recovery unit; 13-a regulating valve; 14-a pH meter; 15-dissolved oxygen instrument; 16-an aerator; 17-a filler; 18-MBR membrane; 19-an aerator pipe; 20-a nitrogen stripping device; 21-a self-priming pump; 22-a solenoid valve; 23-water outlet flow meter; 24-backwash pump; 25-a solenoid valve; 26-a regulating reservoir; 27-MBR reaction tank; 28-clean water pool; 29-PLC automatic control system.
Detailed Description
The invention is further illustrated by way of example in the following figures:
FIG. 1 is a schematic diagram of MBR process for treating high-nitrate wastewater
The reaction apparatus was set up as shown in fig. 1, and the MBR operating process flow was described as follows:
high-concentration nitrate wastewater and organic wastewater respectively enter an adjusting tank 26 through a water inlet pipe 1 and a water inlet pipe 2, nutrient solution 3 is quantitatively added into the adjusting tank 26 through a peristaltic pump 4, and a pH meter 5 is used for monitoring the pH value in the adjusting tank 26 in real time; the adjusting tank 26 discharges water through the submersible pump 6, the water reaches the MBR reaction tank 27 through the electromagnetic valve 8 and the water inlet electromagnetic flowmeter 9, and the pH meter 14 and the dissolved oxygen meter 15 monitor the pH value and the dissolved oxygen concentration in the MBR reaction tank 27 in real time; the nitrogen stripping device 20 conveys nitrogen to the bottom of the MBR reaction tank 27 through the aeration pipe 19, in order to further improve the utilization rate of the nitrogen, excessive nitrogen in the MBR reaction tank enters the nitrogen recovery device 12 through the electromagnetic valve 10 for recovery and purification, the purified nitrogen enters the regulating tank 26 and the MBR reaction tank 27 through the gas flow regulating valve 11 and the regulating valve 13 respectively, and finally nitrogen is uniformly released through the aeration head 7 and the aeration head 16; the MBR reaction tank 27 contains filler and is used for enriching high-concentration denitrifying flora, so that the treatment effect is better. The sewage is subjected to mud-water separation through the MBR membrane 18, the sludge is left in the MBR reaction tank 27, the treated sewage flows through the electromagnetic valve 22 and the water outlet flow meter 23 through the suction pump 21 and enters the clean water tank 28, part of the sewage which is treated by the clean water tank 28 and reaches the standard is periodically backwashed for the MBR membrane 18 through the backwash pump 24, and the rest sewage is discharged into a municipal sewage pipe network. The operation of the whole system is controlled by a PLC.
Example 1
The MBR process for treating high-concentration nitrate wastewater disclosed by the invention is used for treating adipic acid wastewater of a certain chemical plant. The equalizing basin is the plastic drum of the high 1 m of diameter 80 cm, the MBR reaction tank is high 2 m, long 2 m, the carbon steel cuboid of wide 1.2 m, MBR hollow fiber membrane is placed inside the reactor, nitrogen gas blows off the device and sets up on MBR reaction tank next door, carry to the reaction tank bottom through the aeration pipe, nitrogen gas recovery unit installs at MBR reaction tank top, collect purified nitrogen gas and pass through pipeline transport to equalizing basin and MBR reaction tank bottom, its effect is for letting sewage and the abundant mixing of nutrient solution on the one hand, the dissolved oxygen of aquatic in on the other hand discharge equalizing basin and the MBR reaction tank. The filling rate of the filler is 1/4, the sludge concentration in the MBR reaction tank is 10000 mg/L, the nitrate nitrogen concentration of the influent adipic acid is 1200 mg/L, the concentration of the effluent nitrate nitrogen is lower than 6 mg/L and the removal rate is higher than 99 percent after continuous detection for seven days, the continuous long-time operation is realized, the effluent quality is stable, and the monitoring data are shown in Table 1.

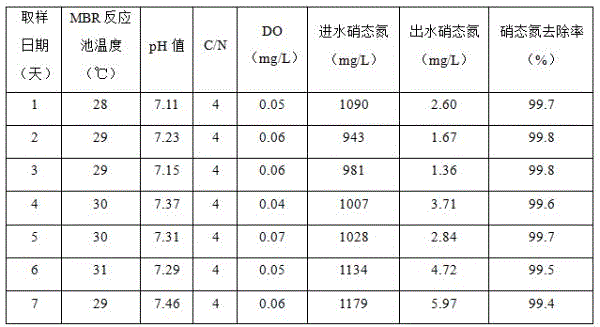

Table 1 monitoring data for example 1
Example 2
The MBR process for treating high-concentration nitrate wastewater disclosed by the invention is used for treating production wastewater of a petrochemical enterprise, the left side is a regulating tank, the cuboid which is 1.5 m long, 1 m wide and 1 m high and is welded is a cuboid, the middle part is an MBR reaction tank with the side length of 1.5 m, and the right side is an MBR water outlet tank. The inside MBR membrane that sets up of reactor, nitrogen gas blow off the device and set up on MBR reaction tank the right, and for MBR reaction tank aeration get rid of dissolved oxygen, nitrogen gas recovery unit installs on the MBR reaction tank the left side, and the nitrogen gas of collecting is arranged in getting rid of the dissolved oxygen in equalizing basin and the MBR reaction tank. The filling rate of the filler is 1/5, the sludge concentration in the MBR reaction tank is 8500 mg/L, the nitrate nitrogen concentration in the production wastewater is 700-plus-1000 mg/L, the MBR integrated device continuously operates for seven days to measure the nitrate nitrogen concentration index, the nitrate nitrogen concentration of the effluent is lower than 5.5 mg/L, the removal rate is higher than 99%, the MBR integrated device continuously operates stably for a long time, basically has no fault, the effluent quality is stable, and the monitoring data are shown in Table 2.

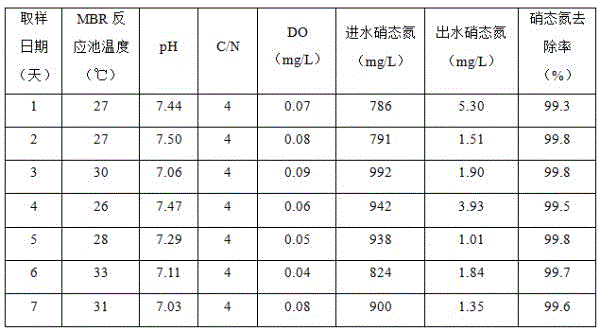

Table 2 monitoring data for example 2
As described above, although the present invention is illustrated by examples, it should not be construed as limiting the present invention. Various changes in form and details may be made therein without departing from the spirit and scope of the invention as defined by the appended claims.
Claims (5)
1. An MBR process for treating nitrate wastewater, which is characterized in that: integrating the process in an integrated apparatus comprising three parts: the high-concentration nitrate wastewater treatment system comprises a water inlet adjusting tank (26), an MBR reaction tank (27) and a clean water tank (28), wherein the high-concentration nitrate wastewater (1) enters the MBR reaction tank (27) after passing through the water inlet adjusting tank (26), and flows to the clean water tank (28) after being subjected to biochemical treatment in the MBR reaction tank;
the MBR reaction tank (27) comprises: MBR hollow fiber composite membrane (18), aeration pipe (19), pH meter (14), dissolved oxygen appearance (15), anaerobic activated sludge, nitrogen gas blow-off device (20), nitrogen gas recovery unit (12), filler (17).
2. The MBR process of claim 1, wherein: the MBR reaction tank (27) has the internal temperature of 25-30 ℃, the sludge concentration of not less than 8500 mg/L, the pH value of 7.0-7.5, the carbon-nitrogen ratio of 5:1-4:1, the filling rate of the filler of 1/5-1/4 and the dissolved oxygen concentration of 0.01-0.5 mg/L.
3. The MBR process of claim 1, wherein: and the nitrogen stripping device (20) is used for aerating the MBR reaction tank (27), so that the concentration of dissolved oxygen in the MBR reaction tank (27) is reduced, and the mixing of substances in the MBR reaction tank (27) is enhanced.
4. The MBR process of claim 1, wherein: and recovering and purifying the nitrogen in the MBR reaction tank (27) by using the nitrogen recovery device (12), and then using the nitrogen for aeration of the water inlet regulating tank (26) and the MBR reaction tank (27).
5. The MBR process of claim 1, wherein: the concentration of the high-concentration nitrate wastewater (1) is 700-1200 mg/L, and the concentration of the nitrate in the effluent is reduced to be below 6 mg/L.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202110612185.1A CN113264586A (en) | 2021-06-02 | 2021-06-02 | MBR (membrane bioreactor) process for treating nitrate wastewater |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202110612185.1A CN113264586A (en) | 2021-06-02 | 2021-06-02 | MBR (membrane bioreactor) process for treating nitrate wastewater |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN113264586A true CN113264586A (en) | 2021-08-17 |
Family
ID=77233928
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202110612185.1A Pending CN113264586A (en) | 2021-06-02 | 2021-06-02 | MBR (membrane bioreactor) process for treating nitrate wastewater |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN113264586A (en) |
Cited By (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| WO2023245897A1 (en) * | 2022-06-23 | 2023-12-28 | 广东邦普循环科技有限公司 | Backflow unit and sewage treatment system |
| GB2625178A (en) * | 2022-06-23 | 2024-06-12 | Hunan Brunp Recycling Tech Co Ltd | Backflow unit and sewage treatment system |
Citations (10)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US6743362B1 (en) * | 2002-06-17 | 2004-06-01 | Enviroquip Inc. | Sewage treatment process |
| CN103588296A (en) * | 2013-11-20 | 2014-02-19 | 乐金电子研发中心(上海)有限公司 | Method for treating sewage by using anaerobic membrane bioreactor to remove sulphur and nitrogen |
| CN106365304A (en) * | 2016-09-30 | 2017-02-01 | 南京大学 | Penicillin waste water biological enhancement treatment device and method |
| CN107986433A (en) * | 2017-12-15 | 2018-05-04 | 山东建筑大学 | A kind of porous aggregate cladded type MBR devices and sewage water treatment method |
| CN108862634A (en) * | 2018-08-16 | 2018-11-23 | 武汉紫光能控科技有限公司 | A kind of nitrification-facultative aerobic membrane bioreactor sewage disposal system |
| CN109574212A (en) * | 2018-12-18 | 2019-04-05 | 河北工程大学 | Based on MBR Activated sludge-biofilm high-efficiency biological denitrification coupled film pollution control device and method |
| WO2019169980A1 (en) * | 2018-03-09 | 2019-09-12 | 上海世浦泰膜科技有限公司 | Anaerobic ammonia oxidation-based sewage treatment process using mbr |
| CN210419440U (en) * | 2019-07-18 | 2020-04-28 | 山东双融环保工程有限公司 | A MBR Membrane Bioreactor Sewage Treatment System |
| CN211226814U (en) * | 2019-11-22 | 2020-08-11 | 北京翰祺环境技术有限公司 | Enhanced denitrification system |
| CN111646639A (en) * | 2020-05-25 | 2020-09-11 | 广东维清环境工程有限公司 | Breeding wastewater treatment process of pre-oxygenation-two-stage anaerobic membrane bioreactor |
-
2021
- 2021-06-02 CN CN202110612185.1A patent/CN113264586A/en active Pending
Patent Citations (10)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US6743362B1 (en) * | 2002-06-17 | 2004-06-01 | Enviroquip Inc. | Sewage treatment process |
| CN103588296A (en) * | 2013-11-20 | 2014-02-19 | 乐金电子研发中心(上海)有限公司 | Method for treating sewage by using anaerobic membrane bioreactor to remove sulphur and nitrogen |
| CN106365304A (en) * | 2016-09-30 | 2017-02-01 | 南京大学 | Penicillin waste water biological enhancement treatment device and method |
| CN107986433A (en) * | 2017-12-15 | 2018-05-04 | 山东建筑大学 | A kind of porous aggregate cladded type MBR devices and sewage water treatment method |
| WO2019169980A1 (en) * | 2018-03-09 | 2019-09-12 | 上海世浦泰膜科技有限公司 | Anaerobic ammonia oxidation-based sewage treatment process using mbr |
| CN108862634A (en) * | 2018-08-16 | 2018-11-23 | 武汉紫光能控科技有限公司 | A kind of nitrification-facultative aerobic membrane bioreactor sewage disposal system |
| CN109574212A (en) * | 2018-12-18 | 2019-04-05 | 河北工程大学 | Based on MBR Activated sludge-biofilm high-efficiency biological denitrification coupled film pollution control device and method |
| CN210419440U (en) * | 2019-07-18 | 2020-04-28 | 山东双融环保工程有限公司 | A MBR Membrane Bioreactor Sewage Treatment System |
| CN211226814U (en) * | 2019-11-22 | 2020-08-11 | 北京翰祺环境技术有限公司 | Enhanced denitrification system |
| CN111646639A (en) * | 2020-05-25 | 2020-09-11 | 广东维清环境工程有限公司 | Breeding wastewater treatment process of pre-oxygenation-two-stage anaerobic membrane bioreactor |
Cited By (3)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| WO2023245897A1 (en) * | 2022-06-23 | 2023-12-28 | 广东邦普循环科技有限公司 | Backflow unit and sewage treatment system |
| GB2625178A (en) * | 2022-06-23 | 2024-06-12 | Hunan Brunp Recycling Tech Co Ltd | Backflow unit and sewage treatment system |
| US12172914B2 (en) | 2022-06-23 | 2024-12-24 | Guangdong Brunp Recycling Technology Co., Ltd. | Reflux unit and sewage treatment system |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| AU2020100706A4 (en) | A membrane bioreactor system for rural decentralized wastewater | |
| CN102976566B (en) | System and method for treating high-concentration landfill leachate in aerobic composting site | |
| CN108503136B (en) | River channel treatment system | |
| CN102826710B (en) | Treatment process and treatment device of high-salinity high-ammonia nitrogen pharmaceutical sewage | |
| CN220335004U (en) | Lithium iron phosphate production wastewater treatment system | |
| CN110054361A (en) | A kind of electric field-enhanced MBR sewage treatment process | |
| CN105668943B (en) | For the multi-stage aeration biological filter tank of purification of water quality and its purification process | |
| CN208471815U (en) | A kind of high-concentration sewage treatment system of AO technique and Fenton system support | |
| CN220056588U (en) | Purification cyclic utilization system of eel breeding wastewater | |
| CN220502805U (en) | A bacterial-charcoal coupled enhanced saline domestic sewage treatment system | |
| CN201990579U (en) | Bilayer biology-sand filter | |
| CN206680346U (en) | A kind of waste water advanced removal of carbon and nitrogen processing unit | |
| CN113213714A (en) | Raw material medicine wastewater treatment process | |
| CN215886702U (en) | Sludge drying liquid treatment system | |
| CN115477388A (en) | Ammonium nitrate wastewater treatment device and method | |
| CN212713182U (en) | Multistage combined type chemical industry high difficulty waste water zero release processing system | |
| CN114702127A (en) | Circulating biological reaction membrane separation sewage treatment system capable of realizing multipoint water feeding | |
| CN222846579U (en) | Eel culture tail water denitrification and dephosphorization system | |
| CN209128261U (en) | A kind of landfill leachate treatment Zero discharging system | |
| CN216550033U (en) | Integrated black and odorous water body emergency treatment system | |
| CN118125615A (en) | A dual-effect biochemical reactor for pollution reduction and carbon reduction | |
| CN117699969A (en) | Method for treating brewery wastewater using Rhodopseudomonas coupled with ceramic membrane MBR | |
| CN114480244A (en) | Method and device for culturing and enriching cyanogen degrading flora and application | |
| CN208562064U (en) | It is a kind of composite anaerobic, anoxic, aerobic in the sewage disposal device in same unit cells | |
| CN113264587A (en) | Culture method of high-load efficient nitrifying bacteria |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination |
