Abstract
The invention discloses a heating resistor paste printing device which comprises a machine table, a screen printing device and a placing platform arranged below the screen printing device; the screen printing device comprises a screen printing screen plate, a first scraper, a first hydraulic device and a driving device for driving the screen printing screen plate to move back and forth; the first scraper and the ceramic pipe body to be printed are mutually extruded during operation; the first hydraulic device is positioned above the first scraper and connected with the first scraper; the placing platform is used for placing the ceramic pipe body and comprises a second hydraulic device, a platform body and two object carrying plates which are arranged in parallel; the platform body is arranged above the second hydraulic device and is connected with the second hydraulic device; the object carrying plate is arranged on the platform body, and the ceramic tube body to be printed is arranged on the object carrying plate and is simultaneously and rotatably connected with the two object carrying plates. When the invention works, the heating resistance paste can be uniformly printed on the tubular ceramic tube body, and the heating effect of the ceramic tube body is improved.
Description
Technical Field
The invention relates to the technical field of ceramic heating tube production equipment, in particular to a heating resistor paste printing device.
Background
At present, the electric heating devices applied to the electric heating appliances mainly comprise a metal wire heater and a ceramic heater. Ceramic heaters, such as ceramic heating tubes, are becoming more popular because of their high thermal efficiency, high thermal power and safety. The ceramic heat generating tube generally generates heat from a heat generating resistive material coated on the ceramic tube body. The existing screen printing device can well perform screen printing operation on a planar object, and is difficult to uniformly print heating resistance slurry on a ceramic tube body for the tubular ceramic tube body, so that the heating effect of the ceramic tube body is influenced.
It is seen that improvements and enhancements to the prior art are needed.
Disclosure of Invention
In view of the defects of the prior art, the invention aims to provide a heating resistor paste printing device, which aims to solve the problem that the heating resistor paste is difficult to be uniformly printed on a ceramic tube body by the conventional printing device, so that the heating effect of the ceramic tube body is influenced.
In order to achieve the purpose, the invention adopts the following technical scheme:
a heating resistor paste printing device comprises a machine table, a screen printing device arranged above the machine table and a placing platform arranged below the screen printing device; the screen printing device comprises a screen printing screen plate, a first scraper arranged above the screen printing screen plate, a first hydraulic device in transmission connection with the first scraper and a driving device for driving the screen printing screen plate to move back and forth; the placing platform comprises a platform body, a second hydraulic device in transmission connection with the platform body and two object carrying plates arranged on the platform body in parallel, wherein the two object carrying plates are used for supporting the ceramic pipe body to be printed.
In the heating resistor paste printing device, the upper end of the carrying plate is provided with a roller group which is in rolling connection with the ceramic pipe body to be printed; the roller group is composed of two rollers which are arranged oppositely, and the outer wall of the ceramic pipe body to be printed is in contact with the wheel surface of the roller.
In the heating resistor paste printing device, a rotating shaft connected with the ceramic pipe to be printed is erected above the platform body.
In the heating resistor paste printing device, the platform body is provided with a mounting seat for erecting a rotating shaft; the mounting seat comprises a seat body and a mounting plate vertically arranged on the seat body; the mounting panel is worn to locate by the pivot, and pivot and mounting panel rotate to be connected.
In the heating resistor paste printing device, a first guide plate is arranged on the front side of the machine table, and a first guide groove movably connected with the platform body is formed in the first guide plate.
In the heating resistor paste printing device, the screen printing device further comprises a bracket for mounting the screen printing screen plate; the support comprises two longitudinal rods and a cross rod connected with the two longitudinal rods; the two longitudinal rods are parallel to each other and are respectively connected with the left side and the right side of the screen printing screen plate; two parallel sliding base stations are symmetrically arranged on the machine table; the bracket also comprises two pushing pieces which are respectively and movably connected with the sliding base; the pushing piece is connected with the bottom of the cross rod; the number of the driving devices is 2, and the driving devices are respectively connected with the two pushing pieces.
In the heating resistor paste printing device, the pushing piece comprises a push rod and a first sliding block arranged at the bottom of the push rod; the sliding base station is provided with a sliding chute matched with the first sliding block; an output shaft of the driving device is connected with a screw rod; the screw rod is movably arranged on the sliding base platform and the first sliding block in a penetrating mode at the same time, and the screw rod is in threaded connection with the first sliding block located in the sliding groove.
In the heating resistance paste printing device, a probe used for sensing a pushing piece is arranged on the sliding base; the number of the probes is 2, and the probes are respectively arranged on the front side and the rear side of the pushing piece; the sliding groove is arranged between the two probes.
In the heating resistance paste printing device, a hanging column is arranged above the machine table and is connected with an installation platform for installing a first hydraulic device; the first scraper plate is arranged below the mounting platform and connected with the first hydraulic device.
In the heating resistance paste printing device, the screen printing device further comprises a second scraper blade which is arranged in parallel with the first scraper blade; the second scraper blade is arranged on the rear side of the first scraper blade, and the top of the second scraper blade is connected with a third hydraulic device.
Has the advantages that:
the invention provides a heating resistance paste printing device, wherein a placing platform for placing a ceramic tube body to be printed is arranged below a screen printing device, when the heating resistance paste is printed on the ceramic tube body, the screen printing device can horizontally move above the ceramic tube body, and a scraper blade is kept still in the horizontal direction and keeps a mutual extrusion state with the ceramic tube body, so that the ceramic tube body positioned on the placing platform can be pulled to rotate in the moving process of the screen printing device, the heating resistance paste is uniformly printed on the tubular ceramic tube body, and the heating effect of the ceramic tube body is improved.
Drawings
Fig. 1 is a first schematic structural diagram of a heating resistor paste printing apparatus according to the present invention.
Fig. 2 is a schematic structural diagram of a second heating resistor paste printing apparatus provided in the present invention.
Fig. 3 is an enlarged view of a portion a in fig. 2.
Fig. 4 is an enlarged view of a portion B in fig. 2.
Fig. 5 is a schematic structural diagram of a heating resistor paste printing apparatus according to a third embodiment of the present invention.
Fig. 6 is an enlarged view of a portion C in fig. 5.
Fig. 7 is a first structural schematic diagram of the placing platform.
Fig. 8 is an enlarged view of a portion D in fig. 7.
Fig. 9 is a schematic structural diagram of the placing platform.
Fig. 10 is an enlarged view of a portion E in fig. 9.

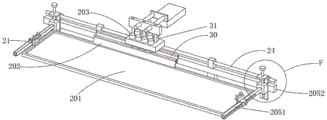

Fig. 11 is a schematic structural diagram of the screen printing device.
Fig. 12 is an enlarged view of portion F of fig. 11.
Fig. 13 is a schematic structural view of the stent.
Fig. 14 is a schematic structural view of the clamping mechanism.
Description of the main element symbols:
1-a machine platform;
2-a screen printing device; 201-screen printing of a screen plate; 202-a first squeegee; 203-a first hydraulic device; 204-a drive device; 205-a scaffold; 2051-longitudinal bar; 2052-Cross bars; 2053-push rod; 2054-first slider;
3-placing a platform; 301-second hydraulic means; 302-a platform body; 303-carrying plate;
4-a roller; 5-wing plate; 6-a rotating shaft; 7-a sleeve; 8-a clamping groove;
9-a mounting seat; 91-seat body; 92-a mounting plate;
a 10-T shaped support table; 11-a support beam; 12-supporting vertical rods; 13-a hood; 14-a first guide plate; 15-a first guide groove; 16-a second slide; 17-a sliding base; 18-a chute; 19-a screw rod; 20-a probe;
21-a clamping mechanism; 211-upper splint; 212-lower clamping plate; 213-a connecting plate; 214-a slider; 2141-a cover; 2142-third slide; 215-a fixation bar;
22-a second guide groove; 23-a first guide bar; 24-a second guide bar;
25-a moving mechanism; 251-a connecting handle; 252-a second guide plate; 253-connecting block;
26-a fourth slider; 27-a third guide groove; 28-hanging columns; 29-mounting a platform; 30-a second scraper; 31-a third hydraulic device; 32-control means.
Detailed Description
The invention provides a printing device for heating resistance paste, which is further described in detail below by referring to the accompanying drawings and examples in order to make the purpose, technical scheme and effect of the invention clearer and clearer. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.
Referring to fig. 1 and 5, the present invention provides a printing apparatus for heating resistor paste, which includes a processing unit (not shown in the drawings of the specification), a machine table 1, a screen printing apparatus 2, and a placing platform 3 disposed below the screen printing apparatus 2; the screen printing device 2 is arranged above the machine table 1, and the screen printing device 2 comprises a screen printing screen plate 201, a first scraper 202, a first hydraulic device 203 and a driving device 204 for driving the screen printing screen plate 201 to move back and forth; the first scraper 202 is arranged above the screen printing screen 201, and the first scraper 202 and the ceramic pipe body to be printed are mutually extruded during operation; the first hydraulic device 203 is positioned above the first scraper blade 202 and connected with the first scraper blade 202; the placing platform 3 is used for placing the ceramic tube body, and the placing platform 3 comprises a plurality of second hydraulic devices 301, a platform body 302 and two object carrying plates 303 arranged in parallel; the platform body 302 is arranged above the second hydraulic device 301 and connected with the second hydraulic device 301; the object carrying plate 303 is arranged on the platform body 302, and the ceramic tube body to be printed is arranged on the object carrying plate 303 and is simultaneously and rotatably connected with the two object carrying plates 303.
Wherein, silk screen printing device 2 is used for printing the resistance thick liquids that generate heat to the ceramic tube body on the place the platform 3. When printing operation is performed, heating resistor paste is loaded on the silk screen of the silk screen 201; meanwhile, the first hydraulic device 203 operates to drive the first scraper 202 to move downward, so that the first scraper 202 presses the screen downward and the ceramic tube body and the first scraper 202 are pressed against each other, so that the heating resistor paste on the screen passes through the screen and is printed on the ceramic tube body.
Specifically, in practical applications, a manufacturer may select a device for lifting an object, such as a cylinder or a jack, as the first hydraulic device 203 and the second hydraulic device 301. Further, after the ceramic tube to be printed is placed on the object carrying plate 303, the second hydraulic device 301 works to move the platform body 302 upward to drive the ceramic tube to move upward and contact with the screen, so as to perform the printing operation after the screen printing device 2 works.
The working of the invention is further explained below:
before printing the heating resistor paste on the ceramic tube, an operator places the ceramic tube to be printed on the object carrying plate 303. After the ceramic tube is placed on the placing platform 3, the second hydraulic device 301 pushes the platform body 302 upward, so that the ceramic tube contacts with the lower surface of the screen. After the ceramic tube body is in contact with the lower surface of the screen, the first hydraulic device 203 operates to move the first scraper 202 downward, so that the first scraper 202 presses the screen, and the first scraper 202 and the ceramic tube body are pressed against each other. After the operation is completed, the driving device 204 drives the screen printing plate 201 to move the screen printing plate 201 forward, and the first scraper 202 and the ceramic tube body are extruded with each other all the time in the process that the screen printing plate 201 moves forward, so that the silk screen can pull the ceramic tube body on the object carrying plate 303 to rotate the ceramic tube body on the object carrying plate 303 in the moving process of the screen printing plate 201, and thus the outer wall of the ceramic tube body can be uniformly printed with heating resistance paste. Compared with the prior art, the screen printing device 2 can horizontally move above the ceramic tube body when the printing operation is carried out, and the scraper plate is kept still in the horizontal direction, so that the ceramic tube body positioned on the placing platform 3 can rotate in the moving process of the screen printing device 2, thereby enabling heating resistance paste to be uniformly printed on the tubular ceramic tube body and improving the heating effect of the ceramic tube body.
Referring to fig. 1 and 5 and fig. 7 to 10, in another embodiment, a roller set connected to the ceramic tube to be printed in a rolling manner is disposed at an upper end of the carrying plate 303; the roller group consists of two rollers 4 which are oppositely arranged. More specifically, the roller group is located the top of carrying thing board 303, and the top of each year thing board 303 all is equipped with the pterygoid lamina 5 that is used for installing gyro wheel 4 simultaneously. During the mounting operation, the roller 4 is positioned between the wings 5 arranged in parallel and connected to the wings 5.
When the printing operation is performed, the outer wall of the ceramic pipe body to be printed is in contact with the wheel surface of the roller 4. This embodiment can make silk screen 201 at the in-process that removes, and the ceramic body is rotatory smoothly on year thing board 303 through setting up the roller train with ceramic body roll connection.
Referring to fig. 7 and 9, in another embodiment, a rotating shaft 6 fixedly connected to the ceramic tube to be printed is disposed above the platform body 302. After the ceramic pipe body was placed on carrying thing board 303, the one end and the 6 fixed connection of pivot of ceramic pipe body, therefore the ceramic pipe body is rotatory on carrying thing board 303 after, and pivot 6 can drive the ceramic pipe body together rotatory, and erect in the ceramic pipe body that the pivot 6 of platform top can the pairing rotation and play limiting displacement, avoid the ceramic pipe body to break away from carrying thing board 303 at rotatory in-process, influence the printing operation and go on smoothly.
Referring to fig. 9 and 10, further, a sleeve 7 for fixing the ceramic tube is disposed at one end of the rotating shaft 6 connected to the ceramic tube. More specifically, a clamping groove 8 for clamping the end part of the ceramic tube body is arranged in the sleeve 7. After the ceramic tube body to be printed is placed on the object carrying plate 303, one end of the ceramic tube body is clamped into the clamping groove 8, so that the ceramic tube body is fixedly connected with the rotating shaft 6.
Further, the platform body 302 is provided with a mounting seat 9 for erecting the rotating shaft 6; the mounting base 9 includes a base 91 and a mounting plate 92 vertically disposed on the base 91. More specifically, the number of the mounting seats 9 is 2, and the two mounting seats 9 are disposed on the platform body 302 in parallel. During actual installation, the rotating shaft 6 is rotatably connected to the mounting plates 92 on the two mounting seats 9, and one end of the rotating shaft 6 connected to the ceramic tube body penetrates through the mounting plate 92. The present embodiment can improve the structural stability and load-carrying capacity of the rotating shaft 6 by providing a plurality of mounting seats 9 for erecting the rotating shaft 6.
Further, a T-shaped support table 10 is arranged on the platform body 302, and a support beam 11 is fixedly arranged above the T-shaped support table 10; the loading plate 303 and the mounting seat 9 are both arranged on the supporting beam 11. In addition, two supporting upright posts 12 are fixedly arranged at the bottom of the supporting beam 11, the lower ends of the supporting upright posts 12 downwardly penetrate through the T-shaped supporting platform 10, and bolts for fixing the supporting upright posts 12 on the T-shaped supporting platform are sleeved on the supporting upright posts 12. Before performing the printing operation, the operator can move the support beam 11 up and down. The operation personnel are at the in-process that removes supporting beam 11, and support pole setting 12 can wear to locate T type brace table 10 by the activity, treats to make supporting beam 11 highly obtain the adjustment back relative to platform body 302, and the operation personnel can be with the help of the mode of bolt fastening, make the lower extreme of supporting pole setting 12 be fixed in on T type brace table 10. In this embodiment, the T-shaped supporting platform 10 and the supporting beam 11 movably connected to the T-shaped supporting platform 10 are disposed on the platform body 302, so that the loading height of the loading plate 303 relative to the platform body 302 can be adjusted according to actual operation requirements. When the working stroke of the second hydraulic device 301 is small, the loading height of the loading plate 303 relative to the platform body 302 can be increased; when the working stroke of the second hydraulic device 301 is larger, the loading height of the loading plate 303 relative to the platform body 302 can be reduced.
Referring to fig. 1, in another embodiment, the placement platform 3 further includes a hood 13 disposed around the plurality of second hydraulic devices 301, and the hood 13 is disposed to improve the safety of the work. Further, when the platform body 302 is located at the lowest position and is not lifted by the second hydraulic device 301, the platform body 302 comes into contact with the top of the hood 13.
Referring to fig. 5 and 6, in another embodiment, a first guide plate 14 is disposed on a front side of the machine platform 1, and a first guide groove 15 movably connected to the platform body 302 is disposed on the first guide plate 14. Further, the platform body 302 is provided with a second slider 16 engaged with the first guide groove 15. When the second hydraulic device 301 drives the platform body 302 to move up and down, the platform body 302 can move up and down along the first guide slot 15, so as to improve the stability of the moving process of the platform body 302.
Referring to fig. 2, 3, 11 and 13, in another embodiment, the screen printing device 2 further includes a bracket 205 for mounting the screen printing plate 201; the stand 205 comprises two longitudinal bars 2051 and a cross bar 2052 connected to the two longitudinal bars 2051; the two longitudinal rods 2051 are parallel to each other, and the two longitudinal rods 2051 are respectively connected with the left side and the right side of the screen printing plate 201; two parallel sliding base platforms 17 are symmetrically arranged on the machine platform 1; the bracket 205 further comprises two pushing members movably connected with the sliding base 17; the two pushers are parallel to each other and connected to the bottom of the cross bar 2052; the number of the driving devices 204 is 2, and the driving devices 204 are respectively connected with the two pushing members. When printing operation is performed, the two pushing members can slide back and forth along the sliding base 17 under the action of the driving device 204, so that the movement of the bracket 205 and the screen printing plate 201 is realized.
Further, the pushing member comprises a push rod 2053 and a first slide block 2054 arranged at the bottom of the push rod 2053; a sliding groove 18 matched with the first sliding block 2054 is arranged on the sliding base 17; in this embodiment, the driving device 204 may be a servo motor, and an output shaft of the servo motor is connected to the lead screw 19 through a coupling; the screw rod 19 is movably arranged through the sliding base 17 and the first slide block 2054, and the screw rod 19 is in threaded connection with the first slide block 2054 in the sliding groove 18. Specifically, when the servo motor is operated, the screw rod 19 can be rotated by the motor. Since the screw rod 19 is in threaded connection with the first slide block 2054 in the slide groove 18, when the screw rod 19 rotates, the first slide block 2054 slides in the slide groove 18 relative to the screw rod 19, thereby realizing the sliding of the pushing piece.
Further, in the above embodiment, the driving device may also be an air cylinder, a piston rod of the air cylinder movably penetrates through the sliding base, and the piston rod of the air cylinder is connected with the first sliding block located in the sliding groove. During actual operation, the first sliding block slides in the sliding groove through the extension and contraction of the piston rod of the air cylinder.
Further, a probe 20 for sensing a pushing member is arranged on the sliding base 17; the number of the probes 20 is 2, and the probes 20 are respectively arranged at the front side and the rear side of the pushing piece; the chute 18 is disposed between two probes 20. Specifically, the probe 20 is used for sensing a pushing member, when the pushing member slides to a sensing area of the probe 20, the probe 20 feeds back a sensing signal to the processing unit, and the processing unit controls the driving device 204 to stop working, so that the screen printing plate 201 stops moving.
More specifically, after the printing of the ceramic tube is completed, the pushing member moves backward to the sensing area of the rear probe 20 under the action of the driving device 204; when the ceramic tube to be printed is to be printed, the operator turns on the driving device 204, and the pushing member moves forward from the sensing area of the rear probe 20 to the sensing area of the front probe 20 under the action of the driving device 204. In the process that the pushing piece pushes the screen printing plate 201 from back to front, the ceramic tube body to be printed just rotates for a circle, so that the heating resistor slurry can be completely printed on the outer wall of the ceramic tube body.
Referring to fig. 11 to 14, further, a clamping mechanism 21 for fixing the screen printing plate 201 is disposed on the vertical rod 2051; the clamping mechanism 21 is movably connected with the vertical rod 2051, and the clamping mechanism 21 comprises an upper clamping plate 211, a lower clamping plate 212, a connecting plate 213 for connecting the upper clamping plate 211 and the lower clamping plate 212, a sliding piece 214 movably connected with the vertical rod 2051, and a plurality of fixing rods 215 vertically penetrating through the upper clamping plate 211; the upper clamping plate 211 and the lower clamping plate 212 are parallel to each other; the connecting plate 213 is fixedly connected with the slider 214. In addition, a second guide groove 22 is formed in one side of the vertical rod 2051, which faces away from the connecting plate 213, and a first guide rod 23 is fixed in the second guide groove 22; the sliding piece 214 comprises a sleeve body 2141 movably sleeved on the longitudinal rod 2051 and a third sliding block 2142 arranged in the sleeve body 2141 and connected with the inner wall of the sleeve body 2141; the third sliding block 2142 is sleeved on the first guide rod 23.
Before mounting the screen plate 201, the worker adjusts the position of the chucking mechanism 21 on the vertical rod 2051 by means of the slider 214 which is movable back and forth along the first guide rod 23. When the width of the screen printing plate 201 is larger, the clamping mechanisms 21 on the two sides of the screen printing plate 201 can be moved to the position ahead of the longitudinal rod 2051; when the width of the screen printing plate 201 is smaller, the clamping mechanism 21 can be moved to the position behind the longitudinal rod 2051, so that the mounted screen printing plate 201 always has good balance stability.
More specifically, when the screen printing plate 201 is installed, the bottom of the frame of the screen printing plate 201 is located on the lower clamping plates 212 of the clamping mechanisms 21 on both sides; then, the worker pushes the fixing rod 215 downward to press the lower end of the fixing rod 215 against the top of the screen frame, thereby completing the installation of the screen printing plate 201.
Further, a second guide rod 24 parallel to the cross rod 2052 is fixedly arranged above the cross rod 2052; the second guide rod 24 is movably connected with two moving mechanisms 25 respectively connected with the two longitudinal rods 2051; the moving mechanism 25 comprises a connecting handle 251 movably sleeved on the second guide rod 24, a second guide plate 252 connected with the connecting handle 251, and a connecting block 253 movably connected with the second guide plate 252; the connecting block 253 is connected with the vertical rod 2051. More specifically, the connecting block 253 is provided with a fourth sliding block 26, and the second guide plate 252 is vertically provided with a third guide groove 27 matched with the fourth sliding block 26.
When installing the screen printing plate 201, an operator can move the connecting handle 251 to adjust the position of the moving mechanism 25 after the connecting handle 251 moves along the second guide rod 24, so as to meet the installation requirements of the screen printing plates 201 with different lengths. In addition, during actual installation, the fourth slider 26 can drive the connecting block 253 to move up and down along the second guide plate 252, so that the height of the vertical frame and the height of the screen printing screen 201 can be adjusted, and different printing operation requirements can be met.
Referring to fig. 1, fig. 2 and fig. 4, in another embodiment, a suspension column 28 is disposed above the machine platform 1, and the suspension column 28 is connected to an installation platform 29 for installing a plurality of first hydraulic devices 203; the first scraper 202 is disposed below the mounting platform 29 and is connected to a first hydraulic device 203. When a printing operation is performed on a ceramic pipe to be printed, the first scraper 202 is pushed downward by the first hydraulic device 203 to be pressed against the ceramic pipe.
Referring to fig. 2 and 4, in another embodiment, the screen printing apparatus 2 further includes a second squeegee 30 disposed parallel to the first squeegee 202; the second scraper 30 is arranged at the rear side of the first scraper 202, and the top of the second scraper 30 is connected with a third hydraulic device 31. In this embodiment, the third hydraulic device 31 is identical to the first hydraulic device 203 and the second hydraulic device 301, and may be a device for lifting or lowering an object, such as a cylinder or a jack.
During the actual printing operation, the first squeegee 202 and the ceramic pipe are kept pressed against each other. Since the screen plate 201 moves forward during printing, the heating resistor paste not printed on the screen is pushed to the rear end of the screen by the first squeegee 202. In this embodiment, when the ceramic tube is printed and the screen printing plate 201 moves backward, the second scraper 30 is pushed downward to contact with the upper surface of the screen under the action of the third hydraulic device 31, and the first scraper 202 is lifted upward by the first hydraulic device 203, so that the second scraper 30 can push the unprinted thermal resistance paste back to the lower side of the first scraper 202 during the backward movement of the screen printing plate 201, and it is ensured that enough thermal resistance paste is printed on the ceramic tube by the first scraper 202 during the printing operation.
Referring to fig. 1, in another embodiment, the heating resistor paste printing apparatus further includes a control device 32 disposed on the front side of the machine 1; the processing unit is arranged in the control device 32; the control device 32 is provided with a control panel. The operator can control the drive device 204, the first hydraulic device 203, the second hydraulic device 301, and the third hydraulic device 31 via the control panel.
In summary, the invention provides a printing device for heating resistor paste, wherein a placing platform for placing a ceramic tube to be printed is arranged below a screen printing device, when the ceramic tube is printed with the heating resistor paste, the screen printing device can move horizontally above the ceramic tube, and a scraper blade is kept stationary in the horizontal direction and keeps a mutual extrusion state with the ceramic tube, so that the ceramic tube on the placing platform can be pulled to rotate in the moving process of the screen printing device, thereby enabling the heating resistor paste to be uniformly printed on the tubular ceramic tube, and improving the heating effect of the ceramic tube.
It should be understood that equivalents and modifications of the technical solution and inventive concept thereof may occur to those skilled in the art, and all such modifications and alterations should fall within the scope of the appended claims.
Claims (10)
1. A heating resistor paste printing device is characterized by comprising a machine table, a screen printing device arranged above the machine table and a placing platform arranged below the screen printing device; the screen printing device comprises a screen printing screen plate, a first scraper arranged above the screen printing screen plate, a first hydraulic device in transmission connection with the first scraper and a driving device for driving the screen printing screen plate to move back and forth; the placing platform comprises a platform body, a second hydraulic device in transmission connection with the platform body and two object carrying plates arranged on the platform body in parallel, wherein the two object carrying plates are used for supporting the ceramic pipe body to be printed.
2. A heating resistor paste printing apparatus as claimed in claim 1, wherein the upper end of the loading plate is provided with a roller set in rolling connection with the ceramic tube to be printed; the roller group is composed of two rollers which are arranged oppositely, and the outer wall of the ceramic pipe body to be printed is in contact with the wheel surface of the roller.
3. A heating resistor paste printing apparatus as claimed in claim 1, wherein a rotary shaft connected to a ceramic pipe to be printed is erected above the platform body.
4. The heating resistor paste printing apparatus as claimed in claim 3, wherein the platform body is provided with a mounting seat for mounting a rotating shaft; the mounting seat comprises a seat body and a mounting plate vertically arranged on the seat body; the mounting panel is worn to locate by the pivot, and pivot and mounting panel rotate to be connected.
5. The heating resistor paste printing device according to claim 1, wherein a first guide plate is provided on a front side of the machine table, and a first guide groove movably connected to the platform body is provided on the first guide plate.
6. The heating resistor paste printing apparatus as claimed in claim 1, wherein the screen printing apparatus further comprises a bracket for mounting the screen printing plate; the support comprises two longitudinal rods and a cross rod connected with the two longitudinal rods; the two longitudinal rods are parallel to each other and are respectively connected with the left side and the right side of the screen printing screen plate; two parallel sliding base stations are symmetrically arranged on the machine table; the bracket also comprises two pushing pieces which are respectively and movably connected with the sliding base; the pushing piece is connected with the bottom of the cross rod; the number of the driving devices is 2, and the driving devices are respectively connected with the two pushing pieces.
7. The heating resistor paste printing apparatus as claimed in claim 6, wherein said pushing member includes a push rod and a first slider disposed at a bottom of the push rod; the sliding base station is provided with a sliding chute matched with the first sliding block; an output shaft of the driving device is connected with a screw rod; the screw rod is movably arranged on the sliding base platform and the first sliding block in a penetrating mode at the same time, and the screw rod is in threaded connection with the first sliding block located in the sliding groove.
8. The heating resistor paste printing apparatus as claimed in claim 7, wherein said sliding base is provided with a probe for sensing a pushing member; the number of the probes is 2, and the probes are respectively arranged on the front side and the rear side of the pushing piece; the sliding groove is arranged between the two probes.
9. The heating resistor paste printing device according to claim 1, wherein a suspension column is arranged above the machine table, and the suspension column is connected with an installation platform for installing a first hydraulic device; the first scraper plate is arranged below the mounting platform and connected with the first hydraulic device.
10. A heat-generating resistor paste printing apparatus according to claim 1 or 9, wherein said screen printing apparatus further comprises a second squeegee disposed in parallel with said first squeegee; the second scraper blade is arranged on the rear side of the first scraper blade, and the top of the second scraper blade is connected with a third hydraulic device.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202110629517.7A CN113246593A (en) | 2021-06-07 | 2021-06-07 | Heating resistor paste printing device |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202110629517.7A CN113246593A (en) | 2021-06-07 | 2021-06-07 | Heating resistor paste printing device |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN113246593A true CN113246593A (en) | 2021-08-13 |
Family
ID=77186619
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202110629517.7A Pending CN113246593A (en) | 2021-06-07 | 2021-06-07 | Heating resistor paste printing device |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN113246593A (en) |
Cited By (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN114230376A (en) * | 2022-01-11 | 2022-03-25 | 成都成维精密机械制造有限公司 | Composite process, tool block and device for uniformly coating composite brazing filler metal on ceramic surface |
| CN117261418A (en) * | 2023-11-01 | 2023-12-22 | 杭州永磁集团振泽磁业有限公司 | Printing device and printing method |
Citations (6)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US20110297019A1 (en) * | 2009-07-13 | 2011-12-08 | Panasonic Corporation | Screen printing apparatus and screen printing method |
| CN110143046A (en) * | 2019-07-05 | 2019-08-20 | 成都市德工智动科技有限公司 | A kind of special-shaped glass bottle screen printer |
| CN110435291A (en) * | 2019-08-28 | 2019-11-12 | 安徽迎驾贡酒股份有限公司 | A kind of bottle silk-screen positioning all-in-one machine |
| CN210759719U (en) * | 2019-04-29 | 2020-06-16 | 浙江金兰塑胶科技有限公司 | A printing device on a cosmetic bottle printing machine |
| CN211591720U (en) * | 2019-12-23 | 2020-09-29 | 崇州市蜀玻科学仪器有限责任公司 | Over-and-under type silk screen printing machine for beaker |
| CN112721409A (en) * | 2020-12-02 | 2021-04-30 | 广州市申发机电有限公司 | Printing device of fan-shaped screen printing machine and printing machine |
-
2021
- 2021-06-07 CN CN202110629517.7A patent/CN113246593A/en active Pending
Patent Citations (6)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US20110297019A1 (en) * | 2009-07-13 | 2011-12-08 | Panasonic Corporation | Screen printing apparatus and screen printing method |
| CN210759719U (en) * | 2019-04-29 | 2020-06-16 | 浙江金兰塑胶科技有限公司 | A printing device on a cosmetic bottle printing machine |
| CN110143046A (en) * | 2019-07-05 | 2019-08-20 | 成都市德工智动科技有限公司 | A kind of special-shaped glass bottle screen printer |
| CN110435291A (en) * | 2019-08-28 | 2019-11-12 | 安徽迎驾贡酒股份有限公司 | A kind of bottle silk-screen positioning all-in-one machine |
| CN211591720U (en) * | 2019-12-23 | 2020-09-29 | 崇州市蜀玻科学仪器有限责任公司 | Over-and-under type silk screen printing machine for beaker |
| CN112721409A (en) * | 2020-12-02 | 2021-04-30 | 广州市申发机电有限公司 | Printing device of fan-shaped screen printing machine and printing machine |
Cited By (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN114230376A (en) * | 2022-01-11 | 2022-03-25 | 成都成维精密机械制造有限公司 | Composite process, tool block and device for uniformly coating composite brazing filler metal on ceramic surface |
| CN117261418A (en) * | 2023-11-01 | 2023-12-22 | 杭州永磁集团振泽磁业有限公司 | Printing device and printing method |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN109014536B (en) | Automatic assembly device and method for welded steel bar truss floor support plate | |
| CN109570287A (en) | A kind of plate automatic bending process equipment | |
| CN108582973B (en) | A turntable machine that integrates silk screen printing, pad printing and hot stamping | |
| CN113246593A (en) | Heating resistor paste printing device | |
| CN107717094A (en) | A kind of plate shearing machine that can prevent thin plate material detrusion | |
| CN114425907B (en) | Silk screen printing machine | |
| CN112792600A (en) | an automatic cutting machine | |
| CN211764106U (en) | Silk screen printing machine is used in processing of silica gel toy | |
| CN111790782A (en) | Intelligent bending machine | |
| CN204769981U (en) | Tool and mould plate straightener | |
| CN119870210B (en) | Galvanized strip steel plate type straightener and method thereof | |
| CN114178350A (en) | Aluminum profile straightening machine with inclination detection mechanism and operation method | |
| CN105458453B (en) | Network frame plate welder | |
| CN220533324U (en) | A welding device for titanium alloy thin plates | |
| CN216073961U (en) | Dedicated heating device of steel billet production | |
| CN105127328B (en) | Automatic needle bending machine for tube welded with columnar needles | |
| CN213673089U (en) | Large-scale central siphon stepping mechanism | |
| CN204506083U (en) | An automated silk screen printing equipment for textile fabrics | |
| CN114407511A (en) | Full-automatic screen printing ink printing machine | |
| CN216501652U (en) | Straightener is used in roller production | |
| CN114904942A (en) | Bending machine | |
| CN220278625U (en) | Tie bar welding device | |
| JP4027010B2 (en) | Universal rolling mill top horizontal roll cooling device | |
| CN222403702U (en) | A cutting machine with anti-collision function | |
| CN211613915U (en) | Flange production is with device of curling |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| RJ01 | Rejection of invention patent application after publication | ||
| RJ01 | Rejection of invention patent application after publication |
Application publication date: 20210813 |
