CN113243727A

CN113243727A - Intelligent heat-preservation ceramic cup

Info

Publication number: CN113243727A
Application number: CN202110694697.7A
Authority: CN
Inventors: 苏志强
Original assignee: Fujian Jiaxin Boyuan Electronic Technology Co ltd
Current assignee: Fujian Jiaxin Boyuan Electronic Technology Co ltd
Priority date: 2021-06-23
Filing date: 2021-06-23
Publication date: 2021-08-13

Abstract

The invention provides an intelligent thermal insulation ceramic cup, which includes a double-layer hollow ceramic cup body. The ceramic cup body includes an inner wall and an outer wall. Between the inner wall and the outer wall is a heating cavity. The heating cavity is provided with a heating device and a temperature detection device. A USB socket is arranged on the top, and the USB socket is electrically connected with the heating device and the temperature detection device. The invention adopts the warm ceramic cup, which is safe and environmentally friendly. The warm ceramic cup is a double-layer hollow structure, which is heated by an internal heating device, so that both the inner wall and the outer wall can maintain a certain temperature. It feels cold, and the human body is comfortable. On the other hand, the unfinished drink in the cup can be kept at a certain temperature, so as to prevent the drink from being cold and unable to drink. The present invention monitors the temperature in real time through the temperature detection device, performs constant temperature control through the heating device, displays the current temperature through the display screen, and sets the heating temperature through the temperature adjustment button.

Description

Intelligent heat-preservation ceramic cup

Technical Field

The invention relates to the field of water cups, in particular to an intelligent heat-preservation ceramic cup.

Background

The ceramic cup is widely used in daily life because the ceramic material is safe and sanitary, non-toxic and harmless, but the existing ceramic cup has single function, does not have a heat preservation function and does not have a hand warming function. Particularly in cold winter, the ceramic cup is very cold, the hands are very cold when the ceramic cup is held, and hot water, tea water, coffee and the like filled in the ceramic cup are also very easy to cool and cannot enter the mouth, but the water, the tea water and the coffee which are not drunk can only be poured out, so that serious waste is caused, and great inconvenience is brought to consumers. Therefore, a new ceramic cup needs to be designed to solve the above problems.

Disclosure of Invention

The invention provides an intelligent heat-preservation ceramic cup, which overcomes the defects that the ceramic cup in the prior art has a single function, does not have a heat preservation function and does not have a hand warming function.

The technical scheme of the invention is realized as follows:

the utility model provides an intelligence heat preservation ceramic cup, includes double-deck hollow ceramic cup, and the ceramic cup includes inner wall and outer wall, is heating chamber between inner wall and the outer wall, heats the intracavity and is provided with heating device and temperature-detecting device, is provided with USB socket on the outer wall, USB socket and heating device and temperature-detecting device electric connection.

Further, still include power intelligence control line, power intelligence control line includes the electric wire, the one end of electric wire is connected with the power plug, the other end of electric wire be connected with USB socket complex USB plug, be connected with the controller on the electric wire, the controller is used for converting the electric current of power plug input into heating device required electric current and converting temperature detection device's signal into digital signal, be provided with the display screen that is used for showing the temperature on the controller, a temperature regulation button for adjusting heating temperature and the switch button that is used for switch.

Further, the heating device is an electric heating wire.

Further, the temperature detection device is a temperature sensor.

Further, a cushion pad is fixedly arranged at the bottom of the ceramic cup body.

Further, the buffer pad is a silica gel pad.

Further, the ceramic cup body is provided with an installation opening communicated with the heating cavity, and the USB socket is fixed on the installation opening through the installation seat.

Further, the power supply plug is a two-core power plug, a three-core power plug, a USB plug or a vehicle charging plug.

The invention has the beneficial effects that:

1. the warm ceramic cup is safe and environment-friendly, is of a double-layer hollow structure, and is heated by the internal heating device, so that the inner wall and the outer wall of the warm ceramic cup are kept at a certain temperature, on one hand, the warm ceramic cup can not feel cold when being held on the outer wall, the human body is comfortable, on the other hand, the drinks which are not drunk in the warm ceramic cup can be kept at a certain temperature, and the drinks are prevented from being cooled and being incapable of being drunk.

2. The temperature detection device is used for monitoring the temperature in real time, the heating device is used for constant temperature control, the display screen is used for displaying the current temperature, and the temperature adjustment key is used for setting the heating temperature.

3. The ceramic cup has the constant temperature control function under the condition that the product cost is not greatly increased, has a compact structure and rich function expansion, and provides great convenience for consumers.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to the drawings without creative efforts.

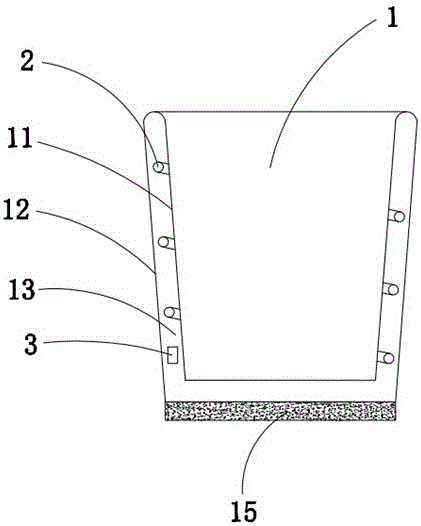

FIG. 1 is a schematic cross-sectional view of the present invention;

FIG. 2 is a schematic front view of the present invention;

fig. 3 is a schematic structural diagram of an intelligent control line of a power supply in the invention.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-3, an intelligent heat-insulating ceramic cup comprises a double-layer hollow ceramic cup body 1, wherein the ceramic cup body 1 comprises an inner wall 11 and an outer wall 12, a heating cavity 13 is arranged between the inner wall 11 and the outer wall 12, a heating device 2 and a temperature detection device 3 are arranged in the heating cavity 13, a USB socket 4 is arranged on the outer wall 12, and the USB socket 4 is electrically connected with the heating device 2 and the temperature detection device 3.

As a further embodiment, the intelligent power control line 5 is further included, the intelligent power control line 5 includes an electric wire 51, one end of the electric wire 51 is connected with a power supply plug 52, the other end of the electric wire 51 is connected with a USB plug 53 matched with the USB socket 4, the electric wire 51 is connected with a controller 54, the controller 54 is used for converting the current input by the power supply plug 52 into the current required by the heating device 2 and converting the signal of the temperature detection device 3 into a digital signal, the controller 54 is provided with a display screen 55 for displaying the temperature, a temperature adjustment key 56 for adjusting the heating temperature and a switch key 57 for a power switch, and the temperature adjustment key 56 includes a temperature increase key and a temperature decrease key.

As a further embodiment, the heating device 2 is an electric heating wire, the ceramic cup body 1 is provided with an installation opening 14 communicated with the heating cavity 13, and the USB socket 4 is fixed on the installation opening 14 through an installation seat 41. Because the electric heating wire is flexible, the electric heating wire can be conveniently inserted into the heating cavity 13 through the mounting opening 14, and can be spirally arranged in the heating cavity 13 when being obliquely inserted, and a user can also adopt other heating devices as long as the electric heating wire can be inserted into the heating cavity 13 and can play a heating role. When the electric heating wire works, the air in the heating cavity 13 is heated, then the heated air is transferred to the inner wall 11 and the outer wall 12, the ceramic heat-conducting properties of different material compositions are different, and therefore the size of the electric heating wire needs to be correspondingly selected according to the material compositions of the ceramic and the size of the ceramic cup body 1.

As a further example, the temperature detection device 3 is a temperature sensor.

As a further example, a cushion 15 is fixedly arranged at the bottom of the ceramic cup 1. The buffer pad 15 is a silica gel pad, and can also be made of other materials such as rubber, and the like, so long as the buffer pad has a buffer effect.

As a further example, the power supply plug 52 is a two-pin power plug, a three-pin power plug, a USB plug, or a car charging plug for plugging into a cigarette lighter socket of an automobile.

The warm ceramic cup 1 is safe and environment-friendly, the warm ceramic cup 1 is of a double-layer hollow structure, the inner wall 11 and the outer wall 12 are both kept at a certain temperature by heating through the internal heating device 2, on one hand, people can not feel cold when holding the warm ceramic cup on the outer wall, the comfort of human bodies is good, on the other hand, drinks which are not drunk in the cup can be kept at a certain temperature, and the drinks are prevented from being cooled and being incapable of being drunk. The invention monitors the temperature in real time through the temperature detection device 3, controls the constant temperature through the heating device 2, displays the current temperature through the display screen 55, and sets the heating temperature through the temperature adjusting key 56. The ceramic cup has the constant temperature control function under the condition that the product cost is not greatly increased, has a compact structure and rich function expansion, and provides great convenience for consumers.

The above description is only for the purpose of illustrating the preferred embodiments of the present invention and is not to be construed as limiting the invention, and any modifications, equivalents, improvements and the like that fall within the spirit and principle of the present invention are intended to be included therein.

Claims

1. The utility model provides an intelligence heat preservation ceramic cup which characterized in that: including double-deck hollow ceramic cup, the ceramic cup includes inner wall and outer wall, is the heating chamber between inner wall and the outer wall, heats the intracavity and is provided with heating device and temperature-detecting device, is provided with USB socket on the outer wall, USB socket and heating device and temperature-detecting device electric connection.

2. The intelligent insulating ceramic cup according to claim 1, wherein: still include power intelligence control line, power intelligence control line includes the electric wire, the one end of electric wire is connected with the power supply plug, the other end of electric wire be connected with USB socket complex USB plug, be connected with the controller on the electric wire, the controller is used for converting the electric current of power supply plug input into the required electric current of heating device and converting temperature-detecting device's signal into digital signal, be provided with the display screen that is used for showing the temperature on the controller, a temperature regulation button for adjusting heating temperature and the switch button that is used for switch.

3. The intelligent insulating ceramic cup according to claim 1, wherein: the heating device is an electric heating wire.

4. The intelligent insulating ceramic cup according to claim 1, wherein: the temperature detection device is a temperature sensor.

5. The intelligent insulating ceramic cup according to claim 1, wherein: and a buffer pad is fixedly arranged at the bottom of the ceramic cup body.

6. The intelligent insulating ceramic cup according to claim 5, wherein: the buffer pad is a silica gel pad.

7. The intelligent insulating ceramic cup according to claim 1, wherein: the ceramic cup body is provided with a mounting hole communicated with the heating cavity, and the USB socket is fixed on the mounting hole through a mounting seat.

8. The intelligent insulating ceramic cup according to claim 1, wherein: the power supply plug is a two-core power plug, a three-core power plug, a USB plug or a vehicle charging plug.
