Abstract
本申请实施例公开了一种烹饪提醒方法及装置，涉及智能厨电领域，用于实现在烹饪过程中对用户的实时主动提醒。该方法包括：获取用户选择的菜谱，该菜谱用于记载至少一个烹饪程序；根据菜谱，获取提醒信息以及提醒信息对应的提醒时机，提醒信息用于提示用户在烹饪过程中的注意事项，提醒时机用于指示播报提醒信息时对应的目标烹饪程序的目标状态，目标烹饪程序属于至少一个烹饪程序；在烹饪设备运行目标烹饪程序达到目标状态时，播报提醒信息。
The embodiments of the present application disclose a cooking reminder method and device, which relate to the field of intelligent kitchen appliances and are used to realize real-time active reminders to users during the cooking process. The method includes: acquiring a recipe selected by a user, where the recipe is used to record at least one cooking program; and acquiring reminder information and a reminder timing corresponding to the reminder information according to the recipe, where the reminder information is used to remind the user of precautions during the cooking process, and the reminder timing It is used to indicate the target state of the corresponding target cooking program when the reminder information is broadcast, and the target cooking program belongs to at least one cooking program; when the cooking device runs the target cooking program and reaches the target state, the reminder information is broadcast.
Description
Technical Field
The application relates to the field of intelligent kitchen electricity, in particular to a cooking reminding method and device.
Background
Along with the improvement of living standard and the change brought by consumption upgrade, intelligence, science and technology and artificial intelligence are developing at a high speed, the value and the living attitude of consumers are greatly changed, the life of people tends to be more and more intelligent, and smart homes gradually enter the life of people. The intelligent cooking equipment is an important component of the intelligent home, and a plurality of cooking equipment such as an oven, a range hood, an integrated stove, a cooking machine and the like can cook food automatically according to a menu, so that the cooking process of a user is simplified.
However, the current cooking devices have a low level of intelligence and cannot bring a good cooking experience to users.
Disclosure of Invention
The embodiment of the application provides a cooking reminding method and device, which are used for realizing automatic real-time reminding in a cooking process and improving the intelligent level of cooking equipment.
In a first aspect, the present application provides a cooking reminding method, including: acquiring a menu selected by a user, wherein the menu is used for recording at least one cooking program; acquiring reminding information related to a menu and reminding time corresponding to the reminding information, wherein the reminding information is used for reminding a user of a notice in a cooking process, the reminding time is used for indicating a target state of a corresponding target cooking program when the reminding information is broadcasted, and the target cooking program belongs to at least one cooking program; and when the target cooking program operated by the cooking equipment reaches the target state, the reminding information is broadcasted.
Based on the technical scheme, the cooking equipment can realize intelligent reminding in the cooking process based on the menu selected by the user. Wherein, cooking equipment can be according to current culinary art state, satisfying under the circumstances of reminding the opportunity, report relevant warning information automatically to make the user can know current culinary art state, in time carry out relevant supplementary culinary art operation, can cook out the dish that accords with the expectation based on the menu with the assurance cooking equipment.
In some embodiments, the reminding information includes a first reminding information for indicating an operation that the user needs to perform and/or a second reminding information for notifying the user that the target cooking program reaches the target state.
In some embodiments, the target state is a first state indicating that the target cooking program is not executed, a second state indicating that the target cooking program is started to be executed, a third state indicating that the target cooking program is about to be executed, or a fourth state indicating that the target cooking program is executed.
In some embodiments, the obtaining, by the cooking device, the reminder information related to the recipe and the reminder time corresponding to the reminder information includes: the cooking equipment receives a first message from the server, wherein the first message comprises reminding information and reminding time corresponding to the reminding information.
In some embodiments, the method further comprises: acquiring a recipe, wherein the recipe is used for recording K cooking steps, and K is a positive integer; classifying K cooking steps, and determining N first cooking steps and M second cooking steps, wherein the first cooking steps are used for recording operations executed by a user in the cooking process, the second cooking steps are used for recording cooking programs executed by cooking equipment, M and N are positive integers, and M + N is K; and for each first cooking step, determining first reminding information and reminding time corresponding to the first cooking step. In the scheme, the cooking equipment can automatically recognize the time and content of voice real-time active reminding directly according to the related information of the obtained new menu, so that the voice real-time active reminding is realized in the automatic cooking process, and the requirement of a user on the diversity of the menu can be met.
In a second aspect, a cooking reminder device is provided, comprising: an acquisition unit for acquiring a recipe selected by a user, the recipe being used for recording at least one cooking program; the acquisition unit is also used for acquiring reminding information related to the menu and reminding time corresponding to the reminding information, the reminding information is used for prompting the attention of a user in the cooking process, the reminding time is used for indicating the target state of a corresponding target cooking program when the reminding information is broadcasted, and the target cooking program belongs to at least one cooking program; and the broadcasting unit is used for broadcasting the reminding information when the target cooking program operated by the cooking equipment reaches the target state.
In some embodiments, the reminding information includes a first reminding information for indicating an operation that the user needs to perform and/or a second reminding information for notifying the user that the target cooking program reaches the target state.
In some embodiments, the target state is a first state indicating that the target cooking program is not executed, a second state indicating that the target cooking program starts to be executed, a third state indicating that the target cooking program is about to be executed, or a fourth state indicating that the target cooking program has been executed.
In some embodiments, the obtaining unit is specifically configured to obtain a first message from a server, where the first message includes the reminder information and a reminder opportunity corresponding to the reminder information.
In some embodiments, the apparatus further comprises a processing unit: the recipe is also used for recording K cooking steps, wherein K is a positive integer; the processing unit is used for classifying K cooking steps and determining N first cooking steps and M second cooking steps, wherein the first cooking steps are used for recording the operation executed by a user in the cooking process, the second cooking steps are used for recording the cooking program executed by the cooking equipment, M and N are positive integers, and M + N is K; for each first cooking step, the processing unit is further configured to determine first reminding information and reminding time corresponding to the first cooking step.
In a third aspect, a cooking reminder device is provided, which includes: at least one processor; at least one reservoir; the at least one memory stores computer instructions that, when executed by the cooking reminder, cause the cooking reminder to perform any one of the cooking reminder methods provided in the first aspect.
In a fourth aspect, a computer-readable storage medium is provided, in which computer instructions are stored, and when the computer instructions are executed on a cooking apparatus, the cooking apparatus is caused to execute the cooking reminding method according to any one of the first aspect.
In a fifth aspect, there is provided a computer program product comprising computer instructions which, when run on a computer, cause the computer to perform any one of the methods provided by the first aspect.
Drawings
Fig. 1 is a schematic diagram of a cooking system according to an embodiment of the present disclosure;
fig. 2 is a schematic view of another cooking system provided in an embodiment of the present application;
fig. 3 is a flowchart of a cooking reminding method according to an embodiment of the present application;
fig. 4 is a schematic view of a display interface of a terminal device according to an embodiment of the present application;
fig. 5 is a schematic view of a display interface of a cooking apparatus according to an embodiment of the present disclosure;
fig. 6 is a schematic view of a display interface of another cooking apparatus according to an embodiment of the present disclosure;
fig. 7 is a schematic view of a display interface of another cooking apparatus according to an embodiment of the present disclosure;
fig. 8 is a schematic display interface diagram of another terminal device according to an embodiment of the present application;
fig. 9 is a flowchart of another cooking reminding method provided in the embodiment of the present application;
fig. 10 is a schematic composition diagram of a reminder device according to an embodiment of the present application;
fig. 11 is a schematic structural diagram of a reminder device according to an embodiment of the present application.
Detailed Description
In the description of this application, "/" means "or" unless otherwise stated, for example, A/B may mean A or B. "and/or" herein is merely an association describing an associated object, and means that there may be three relationships, e.g., a and/or B, which may mean: a exists alone, A and B exist simultaneously, and B exists alone.
Further, "at least one" means one or more, "a plurality" means two or more. The terms "first", "second", and the like do not necessarily limit the number and execution order, and the terms "first", "second", and the like do not necessarily limit the difference.
In this application, the words "exemplary" or "such as" are used to mean serving as an example, instance, or illustration. Any embodiment or design described herein as "exemplary" or "e.g.," is not necessarily to be construed as preferred or advantageous over other embodiments or designs. Rather, use of the word "exemplary" or "such as" is intended to present concepts related in a concrete fashion.
As described in the background art, the current cooking devices have a relatively low level of intelligence, and the cooking devices cannot remind the user of corresponding cautions at appropriate time during the cooking process, so as to let the user know when and how to assist in completing the cooking. This may cause the cooking apparatus to cook dishes according to the recipe to be unexpected, resulting in a poor cooking experience for the user.
In order to solve the technical problems, the application provides a cooking reminding method and device. The method comprises the following steps: the cooking equipment acquires corresponding reminding information and reminding time based on the menu selected by the user; under the condition that the reminding time is met, the cooking equipment automatically broadcasts reminding information so that a user can know the current items needing to be noticed. For example, the cooking device may broadcast the operation that the user needs to perform, such as pickling the food, or placing the food in an oven. Alternatively, the cooking appliance may report the current state of the cooking appliance, e.g., the cooking appliance has warmed up to 230 ℃.
Therefore, the reminding information can be automatically broadcasted by the cooking equipment in the cooking process, so that the user can assist in finishing the cooking of the menu, and dishes which accord with the expectation can be cooked by the cooking equipment based on the menu.
Optionally, fig. 1 shows a system to which the method provided in the present application is applied. As shown in fig. 1, the system may include a server 11 and a cooking appliance 12.
Wherein, the server 11 can establish a connection with the cooking device 12 in a wireless manner or a wired manner. The server 11 has data processing capabilities and data storage capabilities. Specifically, the server 11 may be configured to store the recipe information, analyze the recipe information, and determine the reminding information related to the recipe and the reminding time corresponding to the reminding information. Further, the server 11 may be configured to provide a message to the cooking appliance 12, the message including the reminder information and the reminder opportunity.
The cooking device 12 is a device for cooking, such as an electric cooker, a stew, an electric pan, an oven, a microwave oven, a cooking robot, and the like. The cooking device 12 is used for executing a cooking program in a recipe to automatically cook food, and can also be used for automatically broadcasting reminding information based on reminding information and reminding time related to the recipe under the condition that the reminding time is met.
Alternatively, fig. 2 shows another system to which the method provided in the present application is applied. As shown in fig. 2, the system may include a server 11, a cooking appliance 12, and a terminal device 13. The cooking device 12 and the terminal device 13 are connected to the server 11. Alternatively, the cooking device 12 may also be directly connected to the terminal device 13.
The terminal device 13 may be any terminal such as a mobile phone, a tablet Computer, a notebook Computer, a wearable device, an Augmented Reality (AR) device, a Virtual Reality (VR) device, an Ultra-mobile Personal Computer (UMPC), a Personal Digital Assistant (PDA), and a Personal Computer (PC). In the embodiment of the present application, an application program for controlling the cooking device 11 may be installed on the terminal device 13, so that a user may control the cooking device based on the application program. The terminal device 13 may instruct the cooking device 12 to obtain menu information selected by the user according to the selection operation of the user; the terminal equipment 13 can also generate a corresponding homemade menu according to the information input by the user; further, the terminal device 13 may upload the homemade menu to the server for use by the cooking device 12.
The embodiments provided in the present application will be described in detail below with reference to the accompanying drawings.
As shown in fig. 3, an embodiment of the present application provides a cooking reminding method, including the following steps:
s101, the cooking equipment acquires a menu selected by a user.
Wherein the recipe is used to document at least one cooking program. It is to be understood that the cooking apparatus may cook dishes recorded in the recipe by performing at least one cooking procedure recorded in the recipe.
Optionally, the cooking program includes information such as an operating mode and an operating duration of the cooking device.
Optionally, the recipe may be used to record information such as a recipe identifier and each cooking step in the cooking process, in addition to the cooking program. Optionally, the menu identifier may include a name of the menu, a number of the menu, and the like, which is not limited in this respect.
Illustratively, table 1 shows a recipe for a roast steak.
TABLE 1
Optionally, the recipe may be a preset recipe in the cooking device; alternatively, the recipe may be a recipe developed and operated by a manufacturer of the cooking apparatus; or, the recipe is a recipe self-made by the user.
For example, after the cooking device establishes a connection relationship with the terminal device, the terminal device displays a recipe input interface, which may be as shown in fig. 4. The user inputs the title, the food material information, the cooking steps, the cooking program and other contents of the self-made menu in the menu input interface, so that the terminal equipment can acquire the related information of the menu. When the terminal device detects that the user input is completed, for example, the user clicks the confirmation button 41 in fig. 4, the terminal device will save the menu homemade by the user. Furthermore, the terminal equipment can also upload the menu self-made by the user to the server.
For example, the cooking appliance may display a recipe input interface, which may be as shown in (a) of fig. 5. The user inputs the title, the food material information, the cooking steps, the cooking program and other contents of the self-made menu in the menu input interface, so that the cooking equipment can acquire the related information of the menu. After that, the user performs a recipe making completion confirmation operation on the cooking device, for example, the user clicks the confirmation button 51 in (a) in fig. 5, the cooking device displays a menu making completion prompt interface as shown in (b) in fig. 5, and at this time, the cooking device stores the recipe made by the user. Further, the cooking device may also upload a recipe homemade by the user to the server.
Optionally, the obtaining of the menu selected by the user by the cooking device may be implemented by:
the method comprises the following steps that firstly, selection operation of a user is detected by cooking equipment; in response to the selection operation, the cooking apparatus determines a menu selected by the user.
For example, in the on state of the cooking apparatus, the selection operation of the user may be an operation of inputting a voice instruction by the user, and the voice instruction may be voice information including a name of a recipe, such as "make roast beef steak", "make braised pork with brown sauce", and the like. Alternatively, the cooking apparatus may display a recipe selection interface, as shown in fig. 6, which displays a cover map of red-cooked pork and a recipe name of "red-cooked pork" and a cover map of tomato-fried eggs and a recipe name of "tomato-fried eggs", or as shown in fig. 7, which displays recipe names of bread, grilled fish, steak, and the like; the selection operation of the user can be a click operation on a cover map or a name of a target dish, for example, on a menu selection interface as shown in fig. 6, the user can select the dish red-cooked pork by clicking the cover map of the red-cooked pork.
Optionally, in response to the selection operation, the cooking device determines the menu selected by the user, which may be specifically implemented as: the cooking equipment acquires a menu identifier of a menu selected by a user based on the selection operation; and then, the cooking equipment acquires the menu corresponding to the menu identification from a database, a server or the Internet of the cooking equipment by taking the menu identification as a retrieval key word.
The second implementation mode is that the terminal equipment detects the selection operation of the user; in response to the selection operation, the terminal device sends a first message to the cooking device, wherein the first message may comprise a menu or a menu identification selected by the user. Thus, the cooking apparatus can acquire the menu selected by the user according to the first message.
It should be understood that in case the first message only comprises a recipe identification, the cooking device may retrieve the corresponding recipe from its own database, server or internet according to the recipe identification.
Illustratively, the selection operation of the user detected by the terminal device may be an operation of inputting a voice instruction for the user; alternatively, the terminal device may display a menu display interface as shown in fig. 8, on which related information of a menu that the cooking device can automatically cook, such as a menu cover map and a menu logo, is displayed. Further, the menu display interface shown in fig. 8 may further include a text input box 81, and the user may input a menu identifier in the text input box 81, so that the terminal device may display information related to a menu corresponding to the menu identifier input by the user on the menu display interface. The selection operation by the user may be a click operation on a cover map or a name of a target dish on the menu display interface as shown in fig. 8.
The terminal device detects the selection operation of the user; responding to the selection operation, the terminal device sends a second message to the server, wherein the second message can comprise a menu or a menu identifier selected by the user; and the server acquires the menu selected by the user according to the second message, and sends the menu selected by the user to the cooking equipment, so that the cooking equipment acquires the menu selected by the user.
S102, the cooking equipment obtains reminding information related to the menu and reminding time corresponding to the reminding information according to the menu selected by the user.
In the embodiment of the application, the reminding information can be one or more than one menu. Each reminding information corresponds to a reminding time.
The reminding information is used for reminding a user of the attention matters in the cooking process. And the reminding time is used for indicating the target state of the corresponding target cooking program when the reminding information is broadcasted. The target cooking program belongs to one of at least one cooking program recorded in the recipe.
Optionally, the target state is a first state, a second state, a third state, or a fourth state, where the first state is used to indicate that the target cooking program is not executed, the second state is used to indicate that the target cooking program starts to be executed, the third state is used to indicate that the target cooking program is about to be executed, and the fourth state is used to indicate that the target cooking program is executed.
Optionally, the reminder information includes the first reminder information and/or the second reminder information.
The first reminding information is used for indicating the operation which needs to be executed by the user. For example, in the recipe of the above-mentioned dish grilled beefsteak, the first reminder message is "please sprinkle black pepper and rosemary on the surface of the beefsteak and wrap the beefsteak with a preservative film for pickling", and "please put the pickled beefsteak into an oven" to guide the user to assist in completing the cooking of the grilled beefsteak.
The second reminding information is used for informing the user that the target cooking program reaches the target state. For example, taking the recipe of the above-mentioned dish-baked beefsteak as an example, the second reminding message may be "the oven has started to warm up" when the oven starts to execute the cooking program "preheat 230 ℃"; or when the oven is preheated to 200 ℃, the second reminding information is that the oven is about to be preheated; alternatively, in a case where the oven performs the completion cooking program "preheat 230 ℃" such that the temperature of the oven reaches 230 ℃, the second reminder message may be "oven has been preheated complete".
Optionally, the cooking device or the server may be provided with preset state reminding information. Furthermore, the cooking device or the server may obtain second reminding information from preset state reminding information, where the state reminding information is used to indicate an operation state of a basic cooking program of the cooking device. Taking an oven as an example, the oven specifically includes basic cooking procedures such as preheating, upper heating, lower heating, upper and lower heating, fan circulation or low-temperature fermentation, for example, the state reminding information during upper heating may be "the oven starts to heat up", "the oven heats up to be completed", or "the oven heats up to be completed"; the state reminding information when the fan circulates can be 'the fan is turned on by the oven' or 'the fan is turned off by the oven'.
In one possible implementation, the cooking device obtains the reminding information from the server.
Optionally, the cooking device receives a third message from the server, where the third message includes the reminding information and a reminding time corresponding to the reminding information.
Optionally, when the operating state of the cooking apparatus is changed, the cooking apparatus sends state information to the server, where the state information is used to indicate a current operating state of the cooking apparatus for operating the target cooking program. And the server receives the state information, and when the state information reaches a target state, the server sends a fourth message to the cooking equipment, wherein the fourth message comprises the reminding information. It should be understood that the time when the fourth message is received may be considered as the reminding time corresponding to the reminding information included in the fourth message.
In another possible implementation manner, the cooking device may process the recipe in advance, and determine and store the reminding information and the reminding time related to the recipe. And then, under the condition that the cooking equipment starts to cook according to the menu, the cooking equipment acquires the reminding information and the reminding time related to the menu from the local database.
Optionally, the cooking device may further obtain an importance degree corresponding to the reminding information. Wherein, the importance degree of the reminding information is related to the strength of the reminding means adopted by the cooking equipment. For example, the size of the sound played by the reminder may be related to the importance of the reminder. That is, the more important the reminder information is, the larger the playing sound of the reminder information is.
S103, when the target cooking program operated by the cooking equipment reaches a target state, the cooking equipment broadcasts the reminding information.
As a possible implementation manner, when the cooking device runs the target cooking program to reach the target state, the cooking device may broadcast the reminding information through a built-in or external voice playing device.
Optionally, the priority of the second reminding information may be higher than the priority of the first reminding information. Therefore, if the reminding time corresponding to the second reminding information is the same as the reminding time corresponding to the first reminding information, the cooking equipment can broadcast the second reminding information firstly and then broadcast the first reminding information.
Optionally, the plurality of reminder information may be stored in the form of a queue. It should be understood that a queue is a data structure that allows only insert operations at the end of the queue, and dequeue operations at the head. Generally, one end of incoming data is called "tail", one end of outgoing data is called "head", the process of data element queuing is called "enqueuing", and the process of dequeuing is called "dequeuing". The data in and out of the queue follows the principle of "first-in first-out", i.e. the data elements of the most first-in queue are also the most first-out queue.
Optionally, the priority of the reminder information may be embodied by the order of the reminder information storage queues. For example, for the first reminding information and the second reminding information corresponding to the same reminding time, the second reminding information can be stored in the queue, and then the first reminding information is stored in the queue, so that under the condition that the reminding time is met, the cooking equipment can firstly take out the second reminding information from the queue for broadcasting, and then take out the first reminding information for broadcasting.
For example, taking the cooking process of the above-mentioned beefsteak, when the cooking device starts to execute the cooking procedure 1, the voice broadcast message is "the oven starts to warm up", and "please sprinkle black pepper and rosemary on the beefsteak surface and wrap the beefsteak with a preservative film for pickling". The cooking equipment reports that the oven starts to be preheated firstly, and then reports that the black pepper and the rosemary are scattered on the surface of the steak, and the beef steak is wrapped by the preservative film for pickling.
Optionally, in the process of broadcasting the reminding information, the cooking device may further display text content related to the reminding information, or flash the indicator light to further remind the user.
Optionally, when the target cooking program operated by the cooking device reaches the target state, the cooking device sends state information to the server, where the state information is used to instruct the cooking device to operate the target cooking program to reach the target state. Therefore, the server can send the state information to the terminal equipment, and the terminal equipment can broadcast the corresponding reminding information according to the state information. Or, the server may determine corresponding reminding information according to the state information, and send the reminding information to the terminal device, so that the terminal device broadcasts the reminding information.
Based on the embodiment shown in fig. 3, the cooking device can realize intelligent reminding in the cooking process based on the menu selected by the user. Wherein, cooking equipment can be according to current culinary art state, satisfying under the circumstances of reminding the opportunity, report relevant warning information automatically to make the user can know current culinary art state, in time carry out relevant supplementary culinary art operation, can cook out the dish that accords with the expectation based on the menu with the assurance cooking equipment.
As an alternative embodiment, as shown in fig. 9, an embodiment of the present application further provides a menu processing method, including the following steps:
s201, the menu processing device acquires a menu.
Wherein, the menu processing device is applied to a cooking device or a server.
The recipe is used to record K cooking steps, K being a positive integer.
S202, the menu processing device classifies the K cooking steps and determines N first cooking steps and M second cooking steps.
The first cooking step is used for recording the operation performed by a user in the cooking process. The second cooking step is used for recording a cooking program executed by the cooking equipment. M and N are positive integers, and M + N is equal to K.
Exemplarily, taking the recipe of the grilled beefsteak shown in table 1 as an example, the first cooking step of the 5 cooking steps recorded in the recipe includes 2, namely, "preheating in an oven while spreading black pepper and rosemary on the beefsteak surface, wrapping the beefsteak with a preservative film for pickling" and "placing the pickled beefsteak in the oven after preheating is completed"; the number of the second cooking steps is 3, namely 'the oven is preheated to 230 ℃', 'the oven is arranged to heat up and down at 230 ℃ for 2 minutes', 'the oven is arranged to heat up at the upper part, and the fan is started at the same time at 160 ℃ for 5 minutes'.
Table 2 shows the classification results of the cooking steps described in the recipe of the beef steak shown in table 1, where "setOvenFlag" in table 2 identifies the type of the cooking step, setOvenFlag is 0 indicates that the corresponding cooking step is the first cooking step, and setOvenFlag is 1 indicates that the corresponding cooking step is the second cooking step.
TABLE 2
Optionally, step S202 may adopt any one of the following implementation manners:
in the first implementation manner, it is assumed that the recipe records M cooking programs, and the recipe processing device classifies the K cooking steps according to the cooking programs, determines M second cooking steps, and further determines N first cooking steps.
Illustratively, for any one of K cooking steps, the recipe processing means determines a similarity between the cooking step and the cooking program; and if the similarity between the cooking step and the cooking program is greater than a preset threshold value, the menu processing device determines the cooking step as a second cooking step. After determining the M second cooking steps, the recipe processing means may take the remaining N cooking steps as the first cooking step.
In the second implementation mode, the menu processing device can construct a classification model in advance; thereafter, the recipe processing means may classify the K cooking steps according to the classification model, and determine N first cooking steps and M second cooking steps.
It should be understood that the construction of the classification model can refer to the prior art and is not described herein in detail.
In a third implementation manner, for each cooking step in the K cooking steps, the recipe processing device may determine whether the cooking step belongs to the first cooking step or the second cooking step according to a matching condition of the word included in the cooking step and the preset key word.
For example, if the cooking step includes a first preset keyword, determining that the cooking step is the first cooking step; and/or if the cooking step comprises a second preset keyword, determining that the cooking step is the second cooking step.
For example, the first preset keyword may include pickling, putting in, and cleaning; the second preset keywords may include frying, stir-frying, cooking, frying, boiling, stewing, and heating.
S203, for each first cooking step, the menu processing device determines first reminding information and reminding time corresponding to the first cooking step.
As a possible implementation manner, the recipe processing device may generate corresponding first reminding information according to the first cooking step. And the menu processing device determines the cooking program and the cooking state matched with the first cooking step, so as to determine the corresponding reminding time.
For example, the recipe processing means may use all or a part of the text information of the first cooking step as the first reminder information. For example, the first cooking step is "while preheating in an oven, spreading black pepper and rosemary on the surface of the steak, and wrapping the steak with a preservative film for pickling", the first reminding message may be "please spread black pepper and rosemary on the surface of the steak, and wrap the steak with the preservative film for pickling", or the first reminding message may be "while preheating in an oven, spreading black pepper and rosemary on the surface of the steak, and wrap the steak with the preservative film for pickling".
For example, the recipe processing device first identifies words and time-like phrases regarding the operation mode of the cooking apparatus in the first cooking step. Further, the recipe processing means may determine a cooking program and a state that match the first cooking step, based on the word regarding the operation mode of the cooking apparatus in the first cooking step and the time-like phrase.
This is illustrated below with reference to the beef steak recipe shown in table 1.
For example, the first cooking step is "oven preheat while the beefsteak surface is sprinkled with black pepper and rosemary, and is wrapped with a preservative film for pickling", and the recipe processing means can recognize that the word concerning the operation mode of the cooking apparatus therein is "oven preheat" and the time-like word is "simultaneous". Further, the recipe processing means may determine that the first cooking step matches the cooking program "preheat 230 ℃" and the matched state is the second state.
For another example, the first cooking step is "after preheating is completed, the pickled beefsteak is put into an oven", and the recipe processing means can recognize that the word regarding the operation mode of the cooking apparatus therein is "preheating" and the time-like word is "after completion". Further, the recipe processing means may determine that the cooking program matched with the first cooking step is "preheat 230 ℃", and the matched state is the fourth state.
Optionally, the recipe processing device may further generate second reminding information related to the cooking program according to the cooking program recorded in the recipe, and determine a reminding time corresponding to the second reminding information. For example, taking the cooking program as "preheat 230 ℃", the recipe processing device may generate the second prompting message as "the oven has been preheated to 230 ℃", and the corresponding prompting time is when the oven is preheated to 230 ℃. Further, the recipe processing device may further generate another second prompting message that the oven has been preheated to 150 ℃, and the corresponding prompting time is when the oven is preheated to 150 ℃, so that the user can know the preheating condition of the oven in time.
It should be understood that for different states of a cooking program, corresponding second reminding messages can be configured, so that a user can know the condition of the oven executing the cooking program in time.
Based on the embodiment shown in fig. 9, the recipe processing device can automatically identify the time and content of the voice active prompt according to the recipe selected by the user, so that the cooking device can automatically broadcast the prompt information in the cooking process. Therefore, the user does not need to manually set related reminding according to the menu information, the cooking equipment can provide intelligent reminding for the user in the cooking process according to the menu, and the use experience of the user is improved.
The above description has presented the scheme provided herein primarily from a methodological perspective. It is understood that each node, for example, a terminal device, for implementing the above functions, includes a corresponding hardware structure and/or software module for performing each function. Those of skill in the art will readily appreciate that the present invention can be implemented in hardware or a combination of hardware and computer software, in conjunction with the exemplary algorithm steps described in connection with the embodiments disclosed herein. Whether a function is performed as hardware or computer software drives hardware depends upon the particular application and design constraints imposed on the solution. Skilled artisans may implement the described functionality in varying ways for each particular application, but such implementation decisions should not be interpreted as causing a departure from the scope of the present invention.
The present application may perform the division of the functional modules on the terminal device according to the above method example, for example, each functional module may be divided corresponding to each function, or two or more functions may be integrated into one processing module. The integrated module can be realized in a hardware mode, and can also be realized in a software functional module mode. It should be noted that, the division of the modules in the present application is schematic, and is only a logical function division, and there may be another division manner in actual implementation.

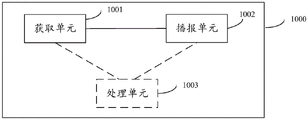

Fig. 10 shows a schematic composition diagram of a cooking reminding device according to an embodiment of the present application. As shown in fig. 10, the reminder device 1000 includes an acquisition unit 1001 and a broadcast unit 1002. Optionally, the reminding apparatus may further include a processing unit 1003.
An obtaining unit 1001 is configured to obtain a recipe selected by a user, where the recipe is used for recording at least one cooking program.
The obtaining unit 1001 is further configured to obtain reminder information related to the recipe and reminder timing corresponding to the reminder information, where the reminder information is used to prompt a user about a notice in a cooking process, and the reminder timing is used to indicate a target state of a target cooking program corresponding to the reminder information when the reminder information is broadcasted, and the target cooking program belongs to at least one cooking program;
and the broadcasting unit 1002 is used for broadcasting the reminding information when the target cooking program operated by the cooking equipment reaches the target state.
In some embodiments, the reminding information includes a first reminding information for indicating an operation that the user needs to perform and/or a second reminding information for notifying the user that the target cooking program reaches the target state.
In some embodiments, the target state is a first state indicating that the target cooking program is not executed, a second state indicating that the target cooking program starts to be executed, a third state indicating that the target cooking program is about to be executed, or a fourth state indicating that the target cooking program is executed.
In some embodiments, the obtaining unit 1001 is specifically configured to obtain a first message from a server, where the first message includes the reminder information and a reminder opportunity corresponding to the reminder information.
In some embodiments, the apparatus further comprises a processing unit 1003. The recipe is also used to document K cooking steps, K being a positive integer. The processing unit 1003 is configured to classify the K cooking steps, and determine N first cooking steps and M second cooking steps, where the first cooking step is used to record an operation performed by a user in a cooking process, the second cooking step is used to record a cooking program performed by a cooking device, M and N are positive integers, and M + N is K. For each first cooking step, the processing unit 1003 is further configured to determine first reminding information and reminding time corresponding to the first cooking step.
The respective units in fig. 10, if implemented in the form of software functional modules and sold or used as separate products, may be stored in a computer-readable storage medium. Based on such understanding, the technical solutions of the embodiments of the present application may be essentially implemented or make a contribution to the prior art, or all or part of the technical solutions may be implemented in the form of a software product stored in a storage medium, and including several instructions for causing a computer device (which may be a personal computer, a server, a network device, or the like) or a processor (processor) to execute all or part of the steps of the methods described in the embodiments of the present application. A storage medium storing a computer software product comprising: various media capable of storing program codes, such as a usb disk, a removable hard disk, a read-only memory (ROM), a Random Access Memory (RAM), a magnetic disk, or an optical disk.
As shown in fig. 11, the cooking reminder device 2000 includes a transceiver 2001, a processor 2002, a voice player 2003, and a memory 2005. The transceiver 2001, processor 2002, voice player 2003 and memory 2005 are connected by a bus 2004.
The transceiver 2001 may be used to communicate with other devices or communication networks (e.g., ethernet, Radio Access Network (RAN), Wireless Local Area Networks (WLAN), etc.).
The processor 2002 may be a Central Processing Unit (CPU), a general purpose processor Network (NP), a Digital Signal Processor (DSP), a microprocessor, a microcontroller, a Programmable Logic Device (PLD), or any combination thereof. The processor 2002 may also be any other device with processing capabilities such as a circuit, a device, or a software module. The processor 2002 may also include multiple CPUs, and the processor 2001 may be a single-core (single-CPU) processor or a multi-core (multi-CPU) processor. A processor herein may refer to one or more devices, circuits, or processing cores that process data (e.g., computer program instructions).
The voice player 2003, which may include a speaker, is used to output audio signals. The voice player 2003 may be any transducer device capable of converting an electrical signal to an acoustic signal, among other things.
The bus 2004 may be a Peripheral Component Interconnect (PCI) bus, an Extended Industry Standard Architecture (EISA) bus, or the like. The bus 2004 is divided into an address bus, a data bus, a control bus, and the like. For ease of illustration, only one thick line is shown in FIG. 11, but this is not intended to represent only one bus or type of bus.
The memory 2005 may be, but is not limited to, a read-only memory (ROM) or other type of static storage device that can store static information and instructions, a Random Access Memory (RAM) or other type of dynamic storage device that can store information and instructions, an electrically erasable programmable read-only memory (EEPROM), a compact disc read-only memory (CD-ROM) or other optical disc storage, optical disc storage (including compact disc, laser disc, optical disc, digital versatile disc, blu-ray disc, etc.), magnetic disk storage media or other magnetic storage devices, or any other medium that can be used to carry or store desired program code in the form of instructions or data structures and that can be accessed by a computer.
Embodiments of the present application also provide a computer-readable storage medium, which includes computer-executable instructions, which, when executed on a computer, cause the computer to perform any one of the methods described above.
Embodiments of the present application also provide a computer program product comprising computer program instructions, which when executed on a computer, cause the computer to perform any of the above methods.
An embodiment of the present application further provides a chip, including: a processing circuit and a transceiver pin, the processing circuit being coupled to the memory via the transceiver pin, the processing circuit causing any of the methods provided by the above embodiments to be performed when the processing circuit executes a computer program or computer-executable instructions in the memory.
In the above embodiments, the implementation may be wholly or partially realized by software, hardware, firmware, or any combination thereof. When implemented using a software program, may be implemented in whole or in part in the form of a computer program product. The computer program product includes one or more computer-executable instructions. The processes or functions described in accordance with the embodiments of the present application occur, in whole or in part, when computer-executable instructions are loaded and executed on a computer. The computer may be a general purpose computer, a special purpose computer, a network of computers, or other programmable device. The computer executable instructions may be stored on a computer readable storage medium or transmitted from one computer readable storage medium to another, for example, the computer executable instructions may be transmitted from one website, computer, server, or data center to another website, computer, server, or data center via wire (e.g., coaxial cable, fiber optic, Digital Subscriber Line (DSL)) or wireless (e.g., infrared, wireless, microwave, etc.). Computer-readable storage media can be any available media that can be accessed by a computer or can comprise one or more data storage devices, such as servers, data centers, and the like, that can be integrated with the media. The usable medium may be a magnetic medium (e.g., floppy disk, hard disk, magnetic tape), an optical medium (e.g., DVD), or a semiconductor medium (e.g., Solid State Disk (SSD)), among others.
While the present application has been described in connection with various embodiments, other variations to the disclosed embodiments can be understood and effected by those skilled in the art in practicing the claimed application, from a review of the drawings, the disclosure, and the appended claims. In the claims, the word "comprising" does not exclude other elements or steps, and the word "a" or "an" does not exclude a plurality. A single processor or other unit may fulfill the functions of several items recited in the claims. The mere fact that certain measures are recited in mutually different dependent claims does not indicate that a combination of these measures cannot be used to advantage.
Although the present application has been described in conjunction with specific features and embodiments thereof, it will be evident that various modifications and combinations can be made thereto without departing from the spirit and scope of the application. Accordingly, the specification and figures are merely exemplary of the present application as defined in the appended claims and are intended to cover any and all modifications, variations, combinations, or equivalents within the scope of the present application. It will be apparent to those skilled in the art that various changes and modifications may be made in the present application without departing from the spirit and scope of the application. Thus, if such modifications and variations of the present application fall within the scope of the claims of the present application and their equivalents, the present application is intended to include such modifications and variations as well.
Claims (12)
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202110585635.2A CN113238508A (en) | 2021-05-27 | 2021-05-27 | Cooking reminding method and device |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202110585635.2A CN113238508A (en) | 2021-05-27 | 2021-05-27 | Cooking reminding method and device |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN113238508A true CN113238508A (en) | 2021-08-10 |
Family
ID=77139185
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202110585635.2A Pending CN113238508A (en) | 2021-05-27 | 2021-05-27 | Cooking reminding method and device |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN113238508A (en) |
Cited By (7)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN113741259A (en) * | 2021-08-25 | 2021-12-03 | 海信家电集团股份有限公司 | A cooker and its control method |
| CN113848745A (en) * | 2021-10-20 | 2021-12-28 | 海信家电集团股份有限公司 | Menu generation method and device |
| CN116172411A (en) * | 2022-10-28 | 2023-05-30 | 浙江苏泊尔家电制造有限公司 | A prompting method, device, medium and equipment for cooking equipment |
| CN116584827A (en) * | 2023-05-05 | 2023-08-15 | 广东牧人王电器有限公司 | A multifunctional kitchen machine and its control method |
| CN117045096A (en) * | 2023-08-12 | 2023-11-14 | 广东牧人王电器有限公司 | Control method and system for intelligent chef machine |
| CN117873353A (en) * | 2023-12-29 | 2024-04-12 | 深圳市发掘科技有限公司 | Electronic menu generation display method and device, computer equipment and storage medium |
| WO2025225055A1 (en) * | 2024-04-26 | 2025-10-30 | リンナイ株式会社 | Heating cooking support system |
Citations (7)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US20160098465A1 (en) * | 2014-10-07 | 2016-04-07 | National Tsing Hua University | Method, apparatus and computer program product for presenting cooking schedule |
| CN105676699A (en) * | 2016-02-25 | 2016-06-15 | 北京小米移动软件有限公司 | Method and apparatus for prompting cooking state |
| CN107300193A (en) * | 2017-06-30 | 2017-10-27 | 广东美的厨房电器制造有限公司 | Cook end reminding method, device, intelligent terminal and cooking equipment |
| CN109873848A (en) * | 2017-12-04 | 2019-06-11 | 佛山市顺德区美的电热电器制造有限公司 | A kind of based reminding method, server, system and computer readable storage medium |
| CN111580430A (en) * | 2020-05-07 | 2020-08-25 | 广州视源电子科技股份有限公司 | Control method and device of cooking equipment, cooking equipment and cooking system |
| CN111667671A (en) * | 2019-03-08 | 2020-09-15 | 佛山市顺德区美的电热电器制造有限公司 | Method for reminding cooking and related equipment and storage device |
| CN112507175A (en) * | 2020-12-29 | 2021-03-16 | 珠海优特智厨科技有限公司 | Electronic menu operation method and device, storage medium and electronic device |
-
2021
- 2021-05-27 CN CN202110585635.2A patent/CN113238508A/en active Pending
Patent Citations (7)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US20160098465A1 (en) * | 2014-10-07 | 2016-04-07 | National Tsing Hua University | Method, apparatus and computer program product for presenting cooking schedule |
| CN105676699A (en) * | 2016-02-25 | 2016-06-15 | 北京小米移动软件有限公司 | Method and apparatus for prompting cooking state |
| CN107300193A (en) * | 2017-06-30 | 2017-10-27 | 广东美的厨房电器制造有限公司 | Cook end reminding method, device, intelligent terminal and cooking equipment |
| CN109873848A (en) * | 2017-12-04 | 2019-06-11 | 佛山市顺德区美的电热电器制造有限公司 | A kind of based reminding method, server, system and computer readable storage medium |
| CN111667671A (en) * | 2019-03-08 | 2020-09-15 | 佛山市顺德区美的电热电器制造有限公司 | Method for reminding cooking and related equipment and storage device |
| CN111580430A (en) * | 2020-05-07 | 2020-08-25 | 广州视源电子科技股份有限公司 | Control method and device of cooking equipment, cooking equipment and cooking system |
| CN112507175A (en) * | 2020-12-29 | 2021-03-16 | 珠海优特智厨科技有限公司 | Electronic menu operation method and device, storage medium and electronic device |
Cited By (8)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN113741259A (en) * | 2021-08-25 | 2021-12-03 | 海信家电集团股份有限公司 | A cooker and its control method |
| CN113848745A (en) * | 2021-10-20 | 2021-12-28 | 海信家电集团股份有限公司 | Menu generation method and device |
| CN113848745B (en) * | 2021-10-20 | 2024-08-23 | 海信家电集团股份有限公司 | Menu generation method and device |
| CN116172411A (en) * | 2022-10-28 | 2023-05-30 | 浙江苏泊尔家电制造有限公司 | A prompting method, device, medium and equipment for cooking equipment |
| CN116584827A (en) * | 2023-05-05 | 2023-08-15 | 广东牧人王电器有限公司 | A multifunctional kitchen machine and its control method |
| CN117045096A (en) * | 2023-08-12 | 2023-11-14 | 广东牧人王电器有限公司 | Control method and system for intelligent chef machine |
| CN117873353A (en) * | 2023-12-29 | 2024-04-12 | 深圳市发掘科技有限公司 | Electronic menu generation display method and device, computer equipment and storage medium |
| WO2025225055A1 (en) * | 2024-04-26 | 2025-10-30 | リンナイ株式会社 | Heating cooking support system |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN113238508A (en) | Cooking reminding method and device | |
| CN104461501B (en) | Cloud intelligent cooking method, cloud intelligent cooking equipment and cloud server | |
| CN104473556B (en) | The control method and device and cooking equipment of cooking equipment | |
| CN110706131A (en) | Method and device for creating electronic menu, electronic equipment and storage medium | |
| CN111352355A (en) | Cooking method, apparatus, system and medium | |
| CN113485481B (en) | A temperature control method and device | |
| CN114354002B (en) | Method, device, electronic device and medium for prompting the return of wireless temperature measuring probe | |
| CN108334606A (en) | Voice interactive method, device and server for smart home | |
| CN113475943B (en) | Menu execution method and device | |
| CN108255086A (en) | A kind of household electric appliance control method and device | |
| CN206378716U (en) | Kitchen house keeper robot | |
| CN110716472A (en) | Method and device for creating electronic menu, electronic equipment and storage medium | |
| CN112394149B (en) | Methods and devices for food maturity detection prompts, kitchen appliances | |
| CN109086367A (en) | Function option recommendation method and device for intelligent cooking appliance | |
| CN116484083A (en) | Method and device for displaying dish information, storage medium and electronic device | |
| CN113985745B (en) | Menu configuration and execution method and device | |
| CN110851475A (en) | Method and device for making menu and computer readable storage medium | |
| CN111444435A (en) | Dish searching method and device, intelligent cooking equipment and storage medium | |
| CN110706130A (en) | Menu generation method and menu creation equipment | |
| CN113467316A (en) | Menu generation and execution method and device | |
| CN113359569A (en) | Menu processing method and device | |
| CN106557039B (en) | A kind of information recommendation method and electronic equipment | |
| CN111476453B (en) | Method, device, terminal and computer readable medium for determining cooking sequence | |
| CN113848745B (en) | Menu generation method and device | |
| CN115599890B (en) | Product recommendation method and related device |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| RJ01 | Rejection of invention patent application after publication |
Application publication date: 20210810 |
|
| RJ01 | Rejection of invention patent application after publication |
