Abstract

An electronic device comprising a housing module, a circuit board, a removable module and a lever mechanism, the removable module is detachably mounted on the housing module and can slide relative to the housing module to Make an electrical connector of the withdrawable module dock and engage with a mating electrical connector of the circuit board, the lever mechanism includes a lever partially located between the shell module and the withdrawable module and an abutting piece fixed on the shell module, when the lever is operated to pivot the lever relative to the withdrawable module, the lever is in contact with the abutting piece The removable module is driven to slide, so that the electrical connector of the removable module and the docking electrical connector of the circuit board are disengaged from each other.

Description

Electronic device for withdrawing withdrawable module by leverage and a lever mechanism

technical field

The invention relates to an electronic device capable of withdrawing from a withdrawable module and its withdrawing mechanism, in particular to an electronic device capable of withdrawing from a withdrawable module by utilizing leverage and its related lever mechanism.

Background technique

In order to meet different usage needs and application fields, modular design has gradually become the mainstream trend of electronic devices. Existing modular electronic devices usually include organic casings and removable modules installed on the casings, among which removable hard disks are the most common , The removable module is usually provided with a handle for the user to grab. When the user wants to replace the removable hard disk, he can apply force to the handle to overcome the relative electrical connection between the electrical connector of the removable module and the connected circuit board. The combined plugging force of the connectors drives the removable module out of the casing. However, when the combined plugging force between the two electrical connectors is too large, the user often cannot easily withdraw the removable module. In addition, although some modular electronic devices are equipped with an ejection mechanism for ejecting the removable module, the structure is relatively complicated and affects the appearance and internal space configuration, which is not conducive to the overall appearance design and the miniaturization and thinning of the electronic device. , so there is still a need for improvement.

Contents of the invention

Therefore, an object of the present invention is to provide an electronic device for withdrawing from a removable module by utilizing leverage and a related lever mechanism to solve the above problems.

To achieve the above object, the present invention discloses an electronic device that utilizes leverage to withdraw from a withdrawable module, which includes a housing module, at least one circuit board, at least one withdrawable module, and at least one lever mechanism, and the at least one circuit board Installed on the shell module, the at least one removable module is detachably mounted on the shell module and can slide relative to the shell module to an installation position along a first direction, so that the An electrical connector of at least one withdrawable module and a mating electrical connector of the at least one circuit board are docked and engaged with each other, and the at least one lever mechanism is used to drive the at least one withdrawable module relative to the housing The module slides in a second direction opposite to the first direction, the at least one lever mechanism includes a lever member and a propping member, and the lever member includes an operating part, an abutting part and a pivoting part , the operating part is exposed on a front side of the at least one removable module, the abutting part is located between the at least one removable module and the shell module, and the pivot part is fixedly connected to the The operation part and the abutment part are located between the operation part and the abutment part, and the pivot part is pivotally arranged on a side adjacent to the front side of the at least one removable module , the abutting member is fixed on the housing module and is located at the place corresponding to the abutting portion so as to contact and fit with the abutting portion, when the operating portion of the lever member is operated so that the lever member is relatively When the at least one withdrawable module pivots along a first pivoting direction, the abutting portion contacts and cooperates with the abutting member to drive the at least one withdrawable module to slide along the second direction to a The disengagement position is such that the electrical connector of the at least one withdrawable module and the mating electrical connector of the at least one circuit board are disengaged from each other.

According to one embodiment of the present invention, the at least one lever mechanism further includes a side plate, the side plate is arranged on the side of the at least one withdrawable module, and the lever is pivotally connected to the on the side panels.

According to one embodiment of the present invention, the at least one lever mechanism further includes an elastic member, the two ends of the elastic member are respectively connected to the lever member and the side plate member, so that After a predetermined angle is rotated in a pivoting direction, an elastic force is provided to drive the lever to continue rotating in the first pivoting direction.

According to one embodiment of the present invention, the electronic device further includes at least one guide, which is fixed on the housing module and located corresponding to the side panel, and the side panel is connected to the at least one guide. Slidingly fitted to guide the at least one removable module to slide relative to the housing module along the first direction or the second direction.

According to one embodiment of the present invention, the electronic device further includes at least one guide, which is fixed on the housing module and located corresponding to the side panel, and the side panel is connected to the at least one guide. Slidingly fitted to guide the at least one removable module to slide relative to the housing module along the first direction or the second direction.

According to one embodiment of the present invention, the lever is pivotally connected to the at least one removable module.

According to one embodiment of the present invention, the at least one lever mechanism further includes an elastic member, and the two ends of the elastic member are respectively connected to the lever member and the at least one withdrawable module, so that the lever member can move along the After the first pivoting direction is rotated by a predetermined angle, an elastic force is provided to drive the lever to continue rotating along the first pivoting direction.

According to one embodiment of the present invention, the operation part, the contact part and the pivot part are integrally formed.

According to one embodiment of the present invention, the linear distance between the pivotal portion and the abutting portion is smaller than the linear distance between the pivotal portion and the operating portion.

To achieve the above object, the present invention further discloses a lever mechanism for a withdrawable module, wherein the withdrawable module is detachably installed on a housing module and can be moved along a first Sliding in one direction to an installation position, so that an electrical connector of the withdrawable module and a mating electrical connector of a circuit board installed on the shell module are docked and engaged with each other, and the lever mechanism includes a A lever member and an abutting member, the lever member includes an operating part, an abutting part and a pivot part, the operating part is exposed on a front side of the removable module, the abutting part is located at the Between the removable module and the shell module, the pivot joint is fixedly connected to the operation part and the abutment part and is located between the operation part and the abutment part, and the pivot joint The part is pivotally arranged on one side adjacent to the front side of the withdrawable module, and the abutting part is fixed on the shell module and is located at a place corresponding to the abutting part so as to contact and fit with the abutting part , when the operating portion of the lever member is operated to make the lever member pivot along a first pivoting direction relative to the withdrawable module, the abutting portion contacts and cooperates with the abutting member to drive the removable module to slide relative to the shell module to a disengaged position along a second direction opposite to the first direction, so that the electrical connector of the removable module is connected to the circuit board The mating electrical connectors are disengaged from each other.

To sum up, the present invention utilizes a lever member partially exposed on the front side of the withdrawable module and partially located between the withdrawable module and the shell module to contact and cooperate with the abutting member, thereby driving the electrical connector of the withdrawable module and The docking electrical connectors of the circuit board are disengaged from each other. During the above operation process, since the resistance arm (the linear distance between the pivotal part and the abutting part) is smaller than the power arm (the linear distance between the pivotal part and the operating part) ), and the elastic member can provide elastic force to drive the lever member to continue to rotate along the first pivoting direction after the user drives the lever member to rotate a predetermined angle along the first pivoting direction, so the present invention has the advantages of simple operation and labor-saving. In addition, the structure of the present invention is simple so that it does not affect the appearance and internal space configuration and has a better overall appearance aesthetics, and contributes to the miniaturization and thinning of electronic devices. Furthermore, during the installation process of the withdrawable module, the user does not need to operate the lever, so the present invention has better usability.

Description of drawings

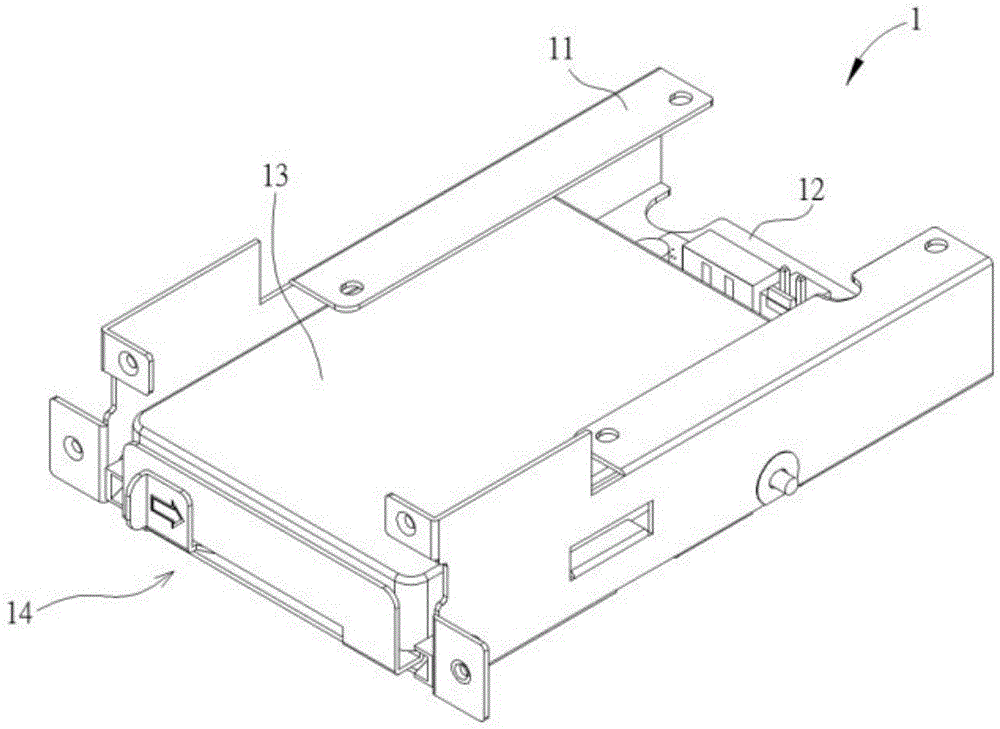

FIG. 1 is a schematic diagram of a partial appearance and structure of an electronic device according to an embodiment of the present invention.

FIG. 2 is a schematic diagram of a part of the internal structure of an electronic device according to an embodiment of the present invention.

3 to 5 are exploded views of some components of the electronic device according to the embodiment of the present invention at different viewing angles.

6 to 10 are schematic views of the electronic device in different states according to the embodiment of the present invention.

Wherein, the reference signs are explained as follows:

1: Electronic device

11: Shell module

12: Circuit board

121: docking electrical connector

13: Extractable module

131: electrical connector

132: front side

133: side

14: Lever mechanism

141: Lever

1411: Operation Department

1412: contact part

1413: pivot joint

142: abutting piece

143: side panel

1431: Gap

144: Elastic parts

145:Accommodating space

15: guide

P1: First pivot direction

P2: Second pivot direction

R1: the first direction

R2: Second direction

R3: the third direction

Detailed ways

The directional terms mentioned in the following embodiments, such as: up, down, left, right, front or back, etc., are only directions referring to the attached drawings. Accordingly, the directional terms are used to illustrate and not to limit the invention.

Please refer to FIG. 1 to FIG. 10. FIG. 1 is a schematic diagram of a partial appearance structure of an electronic device 1 according to an embodiment of the present invention. FIG. 2 is a schematic diagram of a partial internal structure of an electronic device 1 according to an embodiment of the present invention. An exploded view of some components of the electronic device 1 at different viewing angles. FIG. 6 to FIG. 10 are schematic diagrams of the electronic device 1 in different states according to the embodiment of the present invention. As shown in Figures 1 to 10, the electronic device 1 includes a housing module 11, a circuit board 12, a removable module 13 and a lever mechanism 14, wherein in order to clearly illustrate the structure and working principle of the present invention, Figures 2 to 10 9 only shows the frame of the shell module 11 for accommodating and/or carrying the circuit board 12 , the removable module 13 and the lever mechanism 14 . The electronic device 1 can be a computer device, such as an industrial computer or a networked host. The circuit board 12 is installed on the shell module 11 and includes a mating electrical connector 121. The withdrawable module 13 is detachably mounted on the shell module 11 and can slide relative to the shell module 11 along a first direction R1 to as shown in FIG. 6, so that an electrical connector 131 of the withdrawable module 13 and the mating electrical connector 121 of the circuit board 12 are butted and engaged with each other, or along a second direction R2 opposite to the first direction R1 Slide to a disengagement position as shown in FIG. 8 , so that the electrical connector 131 of the removable module 13 and the mating electrical connector 12 of the circuit board 12 are disengaged from each other.

The lever mechanism 14 is used for the user to operate to drive the removable module 13 to slide relative to the housing module 11 along the second direction R2, so as to exit the removable module 13 . The lever mechanism 14 includes a lever member 141 and a resisting member 142 , and the lever member 141 includes an operating portion 1411 , an abutting portion 1412 and a pivoting portion 1413 . The operating part 1411 is exposed on a front side 132 of the removable module 13. The operating part 1411 can be an L-shaped structure, wherein the protruding part of the L-shaped structure can be used as a force application place for the user; the abutting part 1412 is located at Between the removable module 13 and the shell module 11; the pivoting part 1413 is fixedly connected to the operating part 1411 and the abutting part 1412 and is located between the operating part 1411 and the abutting part 1412, and the pivoting part 1413 is pivotally arranged on the removable module A side 133 adjacent to the front side 132 of 13, in this embodiment, the side 133 of the removable module 13 is preferably the bottom side of the removable module 13; the abutting member 142 is fixed on the shell module 11 and It is located at the corresponding abutment portion 1412 so as to contact and cooperate with the abutment portion 1412 . When the operating part 1411 of the lever part 141 is operated to make the lever part 141 pivot along a first pivoting direction P1 relative to the withdrawable module 13, the abutting part 1412 can be contacted and matched with the abutting part 142 to drive the withdrawable module 13. The module 13 slides to the disengagement position along the second direction R2, so that the electrical connector 131 of the removable module 13 and the mating electrical connector 121 of the circuit board 12 are disengaged from each other. In this embodiment, preferably, the removable module 13 can be a removable hard disk, but the present invention is not limited thereto. In addition, the number of circuit boards, removable modules and lever mechanisms is not limited to this embodiment, which depends on actual needs. For example, in another embodiment, the electronic device may also include multiple circuit boards, Multiple removable modules and multiple lever mechanisms.

Specifically, as shown in Figures 2 to 5, in this embodiment, the operating portion 1411, the abutting portion 1412 and the pivoting portion 1413 can be integrally formed, and the lever mechanism 14 further includes a side plate 143, the side plate 143 is disposed on the side 133 of the withdrawable module 13 , and the lever 141 is pivotally connected to the side plate 143 . The side panel 143 is bent and extended from the side 133 of the removable module 13 toward the front side 132, and a notch 1431 can be formed near the bend. The front side 132 for user operation.

Moreover, the electronic device 1 further includes two guides 15, which are fixed on the bracket of the shell module 11 and located at the corresponding side plate 143, and the side plate 143 is slidingly matched with the two guides 15 to guide the removable module 13. Sliding relative to the housing module 11 along the first direction R1 or the second direction R2.

In addition, in this embodiment, in order to allow the user to operate the lever member 141 to make the electrical connector 131 of the withdrawable module 13 and the docking electrical connector 121 of the circuit board 12 disengage from each other, it is more labor-saving and convenient. The linear distance between 1413 and the abutting portion 1412 can be smaller than the linear distance between the pivoting portion 1413 and the operating portion 1411. This structural design is to use the resistance arm between the pivoting portion 1413 and the abutting portion 1412 to be smaller than the pivoting portion 1413 The lever principle of the power arm between the operation part 1411 achieves the effect of labor saving. Furthermore, the lever mechanism 14 may further include an elastic member 144, the two ends of the elastic member 144 are respectively connected to the lever member 141 and the side plate member 143, and the elastic member 144 is used to fix the position of the lever member 141 when the lever mechanism 14 has not been operated. In addition, the elastic member 144 can be used to provide an elastic force to drive the lever member 141 to continue to rotate along the first pivot direction P1 after the lever member 141 rotates a predetermined angle along the first pivot direction P1, that is to say, when After the user operates the lever member 141 to rotate along the first pivoting direction P1 so that its rotation angle exceeds the predetermined angle, the lever member 141 can be released, and the elastic member 144 drives the lever member 141 to continue to rotate along the first pivoting direction P1. The user does not need to continuously operate the lever member 141 to complete the entire rotation stroke, so it is more convenient and user-friendly to use. In this embodiment, the elastic member 144 can be a torsion spring.

The working steps of the present invention will be described in detail below. When the user wants to detach the removable module 13 from the shell module 11, he can push the operating part 1411 of the lever 141 along a third direction R3, so that the lever 141 is relatively When the withdrawable module 13 pivots along the first pivoting direction P1, when the lever member 141 pivots from the position shown in FIG. 6 to the position shown in FIG. 7 along the first pivoting direction P1, the abutting portion 1412 abut against the abutting piece 142 . Then when the lever member 141 continues to pivot along the first pivoting direction P1 from the position shown in FIG. 7 to the position shown in FIG. The pushing lever 141 , the side plate 143 and the withdrawable module 13 slide together toward the second direction R2 to disengage the electrical connector 131 of the withdrawable module 13 from the mating electrical connector 121 of the circuit board 12 . When the electronic device 1 is in the state shown in FIG. 8 , the electrical connector 131 of the withdrawable module 13 and the docking electrical connector 121 of the circuit board 12 are disengaged from each other, as long as the lever 141 continues to pivot along the first pivoting direction P1 Pivot away from the position shown in FIG. 8, so that the elastic force generated by the elastic member 144 can apply a moment along the first pivoting direction P1 to the lever member 141 (that is, the moment of the lever member 141 along the first pivoting direction P1 If the rotation angle exceeds the predetermined angle), the lever member 141 can be driven by the elastic member 144 to continue to rotate along the first pivoting direction P1 to the position shown in FIG. 9 . That is to say, the user only needs to operate the operating part 1411 to pivot the lever member 141 to a release position between the position shown in FIG. 8 and the position shown in FIG. 9 and then release the lever member 141, so that The lever member 141 can be driven by the elastic member 144 to pivot from the release position to the position shown in FIG. 9 .

It should be noted that when the electronic device 1 is in the state shown in FIG. into the accommodating space 145 to facilitate the pull-out operation of the removable module 13 so that the electronic device 1 is in the state shown in FIG. 10 .

On the other hand, when the user wants to install the removable module 13 inside the shell module 11, he can directly slide the removable module 13, the side panel 143 and the lever 141 into the shell module 11 along the first direction R1 (ie The electronic device 1 is switched from the state shown in FIG. 10 to the state shown in FIG. 9 ), so that the lever member 141 can be pushed by the force generated by the abutment portion 1412 in contact with the abutment member 142 to move along the direction opposite to the first The second pivoting direction P2 of a pivoting direction P1 pivots, so that the electronic device returns to the state shown in FIG. The mating electrical connectors 121 of the circuit board 12 are mated with each other. That is to say, during the installation of the removable module 13 , the user does not need to operate the lever 141 , so the present invention has better usability.

However, the present invention is not limited to this embodiment. For example, in another embodiment, the side panel can be omitted, that is, the lever can be directly pivoted to the withdrawable module and extend toward the front side of the withdrawable module to be exposed. on the front side of the withdrawable module. Or, in another embodiment, the elastic member for driving the lever member by elastic force can be omitted. Or, in another embodiment, the guide for guiding the sliding direction of the removable module can be omitted. In addition, the shapes of the lever member and the abutting member are not limited to those shown in the drawings of the above-mentioned embodiments, and it depends on design requirements. As long as the force generated by the contact and fit of the lever member and the abutting member can be used to directly or indirectly drive the withdrawable module to slide in the second direction, so that the electrical connector of the withdrawable module and the docking electrical connector of the circuit board are detached from the card. Combining mechanisms all belong to the scope of the present invention.

Compared with the prior art, the present invention utilizes a lever member partially exposed on the front side of the withdrawable module and partly located between the withdrawable module and the shell module to contact and cooperate with the abutting member, thereby driving the electrical connection of the withdrawable module The docking electrical connectors of the connector and the circuit board are disengaged from each other. During the above operation process, since the resistance arm (the linear distance between the pivotal part and the abutting part) is smaller than the power arm (the distance between the pivotal part and the operating part) linear distance), and the elastic member can provide elastic force to drive the lever member to continue to rotate along the first pivoting direction after the user drives the lever member to rotate a predetermined angle along the first pivoting direction, so the present invention has the advantages of simple operation and labor saving. In addition, the structure of the present invention is simple so that it does not affect the appearance and internal space configuration and has a better overall appearance aesthetics, and contributes to the miniaturization and thinning of electronic devices. Furthermore, during the installation process of the withdrawable module, the user does not need to operate the lever, so the present invention has better usability.

The above descriptions are only preferred embodiments of the present invention, and all equivalent changes and modifications made according to the claims of the present invention shall fall within the scope of protection of the present invention.

Claims (18)

1. An electronic device that utilizes leverage to withdraw from a removable module, characterized in that it comprises: a housing module; at least one circuit board installed on the housing module; At least one removable module is detachably mounted on the housing module and can slide relative to the housing module to a mounting position along a first direction, so that an electrical connection of the at least one removable module The connector and a mating electrical connector of the at least one circuit board are butted and engaged with each other; and At least one lever mechanism is used to drive the at least one removable module to slide relative to the housing module along a second direction opposite to the first direction, the at least one lever mechanism includes: A lever, which includes: an operation part exposed on a front side of the at least one removable module; an abutment portion located between the at least one removable module and the housing module; and A pivoting part, fixedly connected to the operating part and the abutting part and located between the operating part and the abutting part, and the pivoting part is pivotally arranged on the at least one removable module a side adjacent to said front side; a propping piece, fixed on the shell module and located corresponding to the abutting portion so as to contact and fit with the abutting portion; and An elastic member, one end of the elastic member is connected to the lever member, when the lever member rotates in a first pivot direction, the elastic member rotates in the first pivot direction, and the elastic member rotates in the first pivot direction providing an elastic force to drive the lever member to continue to rotate along the first pivoting direction after the lever member rotates a predetermined angle along the first pivoting direction; Wherein when the operating portion of the lever is operated to make the lever pivot relative to the at least one withdrawable module along the first pivoting direction, the abutting portion and the abutting contact fit with the at least one withdrawable module to drive the at least one withdrawable module to slide to a disengaged position along the second direction, so that the electrical connector of the at least one withdrawable module is mated with the at least one circuit board The electrical connectors are disengaged from each other. 2. The electronic device according to claim 1, wherein the at least one lever mechanism further comprises a side panel, the side panel is disposed on the side of the at least one removable module, The lever is pivotally connected to the side plate. 3. The electronic device according to claim 2, wherein the other end of the elastic member is connected to the side plate member. 4. The electronic device according to claim 3, further comprising at least one guide member fixed on the housing module and located corresponding to the side panel, the side panel and the side panel At least one guide is slidingly fitted to guide the at least one removable module to slide relative to the housing module along the first direction or the second direction. 5. The electronic device according to claim 2, further comprising at least one guide member, fixed on the housing module and located corresponding to the side panel, the side panel and the side panel At least one guide is slidingly fitted to guide the at least one removable module to slide relative to the housing module along the first direction or the second direction. 6. The electronic device according to claim 1, wherein the lever member is pivotally connected to the at least one removable module. 7. The electronic device according to claim 6, wherein the other end of the elastic member is connected to the at least one removable module. 8 . The electronic device according to claim 1 , wherein the operating portion, the abutting portion and the pivoting portion are integrally formed. 9. The electronic device according to any one of claims 1 to 8, wherein the linear distance between the pivotal portion and the abutting portion is smaller than the distance between the pivotal portion and the operating portion the straight-line distance between. 10. A lever mechanism for a withdrawable module, wherein the withdrawable module is detachably mounted on a housing module and can slide relative to the housing module along a first direction to An installation position, so that an electrical connector of the withdrawable module and a mating electrical connector of a circuit board installed on the shell module are docked and engaged with each other, and the lever mechanism includes: A lever, which includes: an operation part exposed on a front side of the removable module; an abutting portion located between the removable module and the housing module; and A pivoting part, fixedly connected to the operating part and the abutting part and located between the operating part and the abutting part, and the pivoting part is pivotally arranged on the corresponding side of the removable module a side adjacent to said front side; a propping piece, fixed on the shell module and located corresponding to the abutting portion so as to contact and fit with the abutting portion; and An elastic member, one end of the elastic member is connected to the lever member, when the lever member rotates in a first pivot direction, the elastic member rotates in the first pivot direction, and the elastic member rotates in the first pivot direction providing an elastic force to drive the lever member to continue to rotate along the first pivoting direction after the lever member rotates a predetermined angle along the first pivoting direction; Wherein when the operating portion of the lever member is operated so that the lever member pivots in the first pivoting direction relative to the withdrawable module, the abutting portion contacts the abutting member cooperate to drive the removable module to slide relative to the housing module to a disengaged position in a second direction opposite to the first direction, so that the electrical connector of the removable module is connected to the circuit The mating electrical connectors of the board are disengaged from each other. 11. The lever mechanism according to claim 10, wherein the lever mechanism further comprises a side plate, the side plate is arranged on the side of the withdrawable module, and the lever It is pivotally connected to the side panel. 12. The lever mechanism according to claim 11, wherein the other end of the elastic member is connected to the side plate member. 13. The lever mechanism according to claim 12, wherein the side plate is slidingly fitted with at least one guide of an electronic device including the lever mechanism to guide the removable module relative to the The housing module slides along the first direction or the second direction. 14. The lever mechanism according to claim 11, wherein the side plate is slidingly fitted with at least one guide of an electronic device including the lever mechanism to guide the removable module relative to the The housing module slides along the first direction or the second direction. 15. The lever mechanism according to claim 10, wherein the lever member is pivotally connected to the withdrawable module. 16. The lever mechanism according to claim 15, wherein the other end of the elastic member is connected to the removable module. 17. The lever mechanism according to claim 10, wherein the operating part, the contact part and the pivot part are integrally formed. 18. The lever mechanism according to any one of claims 10 to 17, wherein the linear distance between the pivotal part and the abutting part is smaller than the distance between the pivotal part and the operating part the straight-line distance between.
