Abstract
本发明公开了一种高效节能搭建墙体用模块化铝型材框架构件系统，型材主体，型材主体具有a、b、c、d四个面，型材主体一侧设置有连接卡槽，连接卡槽一侧开设有卡槽，卡槽一侧设置有连接定位槽，连接卡槽一侧设置有凹槽，凹槽内壁开设有连接孔，连接孔一侧设置有穿过孔，型材主体为铝合金材料材质制成，连接卡槽数量设置有两组，两组连接卡槽设置在同一面上并对称开设在凹槽两侧；该一种高效节能搭建墙体用模块化铝型材框架构件系统通过设置卡槽、凹槽、连接卡槽、连接孔、连接定位槽，T型螺栓槽，可以达到经济环保，安装与拆卸简单快捷，结构稳固，可循环使用，易储存、运输，满足各类会展展台需求。
The invention discloses a modular aluminum profile frame member system for high-efficiency and energy-saving building of walls. The profile body has four sides a, b, c and d. One side of the profile body is provided with a connection slot, which is connected to the slot. One side is provided with a card slot, one side of the card slot is provided with a connection positioning groove, one side of the connection card slot is provided with a groove, the inner wall of the groove is provided with a connecting hole, one side of the connecting hole is provided with a through hole, and the main body of the profile is made of aluminum alloy It is made of material and material, and the number of connection card slots is set in two groups, and the two groups of connection card slots are arranged on the same surface and symmetrically opened on both sides of the groove; the modular aluminum profile frame member system for building a wall with high efficiency and energy saving is adopted. Set up card slot, groove, connection card slot, connection hole, connection positioning slot, T-bolt slot, can achieve economical and environmental protection, simple and fast installation and disassembly, stable structure, recyclable, easy to store, transport, meet all kinds of exhibitions Booth requirements.
Description
Technical Field
The invention relates to the technical field of exhibitions, in particular to a modular aluminum profile frame component system for efficiently and energy-saving building of a wall.
Background
In the manufacturing process of the wooden exhibition stand, the wooden plywood is fixed on the exhibition frame (framework) made of the keel frame, the whole body is soft, the splicing among wooden walls is reinforced by M3.5T 50 wallboard screws, the installation is time-consuming, the disassembly is troublesome, and the reutilization property is low. The method enters the exhibition stand construction, and the construction period is generally 2-3 days, and is usually 2 days. In the building process, the surface of the exhibition stand is made of PVC corrugated sheet materials, and the PVC corrugated sheet materials are easy to scratch in transportation and troublesome in repair and are easy to foam when meeting large temperature difference. The surface of the exhibition stand is coated, so that the coating is not easy to transport; in addition, the wooden keel is soft, so that the plywood is easy to peel during transportation, and the paint falls off; therefore, the polishing and brushing are generally carried out during construction, the polishing dust is large, the respiratory system of the human body is extremely easy to be damaged, and the polishing and brushing device is not suitable for being used in large-scale exhibitions or shopping malls and hotels; and when meeting weather change, because be wooden fossil fragments, easily crack even drop. The fireproof plate is used on the surface of the exhibition stand, the fireproof plate needs to be adhered to the plywood by using all-purpose glue, the adhering requirement is high, time is consumed, and labor is consumed; in addition, the fireproof plate is brittle in material, easy to damage during transportation, high in manufacturing cost, incapable of being repaired in a building place after being damaged, and incapable of being reused and recycled; because the adhesive is stuck by universal glue, the pungent smell can be released, and the body discomfort can be caused. Furthermore, the baking finish has high cost and is basically used for few parts of the exhibition stand, such as a display cabinet, a display rack, a bar counter and the like.
Disclosure of Invention
The invention aims to provide a modular aluminum profile frame component system for efficiently and energy-saving building of a wall, aiming at overcoming the defects of the prior art, and solving the problems of serious board waste, high requirement on manufacturing skills, long period, slow installation progress, complex disassembly, pollution, environmental pollution, non-recycling, instable installation structure and the like of the traditional wooden exhibition stand.
In order to achieve the purpose, the invention provides the following technical scheme: the utility model provides an energy-efficient modular aluminum profile frame component system for putting up wall, includes the section bar main part, the section bar main part has four faces of a, b, c, d, section bar main part one side is provided with connecting groove, connecting groove has seted up the draw-in groove on one side, draw-in groove one side is provided with the connection constant head tank, connecting groove one side is provided with the recess, the connecting hole has been seted up to the recess inner wall, connecting hole one side is provided with and passes the hole.
According to the preferable technical scheme, the section main body is made of an aluminum alloy material, the surface of the section main body is subjected to anti-oxidation treatment, reinforcing ribs are arranged in the section main body and are arranged in three groups, the reinforcing ribs are arranged at equal intervals, and the reinforcing ribs are made of hard alloy.
As a preferred technical scheme, the number of the connecting clamping grooves is two, and the two groups of the connecting clamping grooves are arranged on the same surface and symmetrically arranged on two sides of the groove.
According to the preferred technical scheme, the number of the clamping grooves is two, the clamping grooves are located on the same surface, the two groups of clamping grooves are symmetrically arranged on two sides of the groove, the depth of each clamping groove is larger than that of the groove, a plurality of clamping teeth are arranged on one side, far away from the groove, of the inside of each clamping groove, and the clamping teeth are linearly arranged at equal intervals.
As a preferable technical scheme of the invention, two groups of connecting positioning grooves are formed in number, and the two groups of connecting positioning grooves are distributed on the surface a and the surface c opposite to the surface a.
As a preferable technical scheme of the invention, the number of the grooves is two, the inner walls of the two groups of grooves are provided with connecting holes and through holes, the connecting holes and the through holes are arranged on the same central line, and the connecting holes and the through holes are alternately arranged at equal intervals.
As a preferable technical scheme of the invention, one side of the connecting positioning groove is provided with a T-shaped bolt groove, two sides of the T-shaped bolt groove are provided with bulges, the T-shaped bolt groove is matched with the T-shaped bolt in size, and the connecting positioning groove is fixedly connected with other sectional materials through the T-shaped bolt.
Compared with the prior art, the invention provides a modular aluminum profile frame component system for efficiently and energy-saving building of a wall, which has the following beneficial effects:
according to the modular aluminum profile frame component system for the efficient energy-saving built wall, the profile main body is made of the aluminum alloy material, the surface of the profile main body is subjected to anti-oxidation treatment, and the reinforcing ribs are arranged inside the profile main body, so that the strength and deformation resistance of the profile are improved, the corrosion resistance is improved, and the service life of the profile is prolonged; the two groups of connecting clamping grooves are arranged on the same surface and symmetrically arranged on two sides of the groove, and other reinforcing members or supporting members can be conveniently installed on the connecting clamping grooves, so that the installation portability of the section bar is improved; the two groups of clamping grooves are symmetrically arranged at two sides of the groove, the depth of each clamping groove is greater than that of the groove, clamping teeth are arranged on one side, away from the groove, in the clamping grooves and are linearly arranged at equal intervals, the two groups of clamping grooves are conveniently used for clamping the decorative strip, and the decorative strip is further fixed by the clamping teeth, so that the stability is improved; the inner walls of the two groups of grooves are provided with connecting holes and penetrating holes, the connecting holes and the penetrating holes are arranged on the same central line, the connecting holes are convenient for mounting the head parts and nuts of bolts for connecting the two sectional materials, and the penetrating holes are convenient for electric wires to pass through; connect constant head tank one side and be provided with T type bolt groove, T type bolt groove both sides are provided with the arch, T type bolt groove and T type bolt's size looks adaptation, and T type bolt groove passes through T type bolt and other section bar fixed connection, and the convenience is connected with other section bars, and effectively prevents that T type bolt is not hard up through the protruding stability that sets up in T type bolt groove, improvement connection.
Drawings

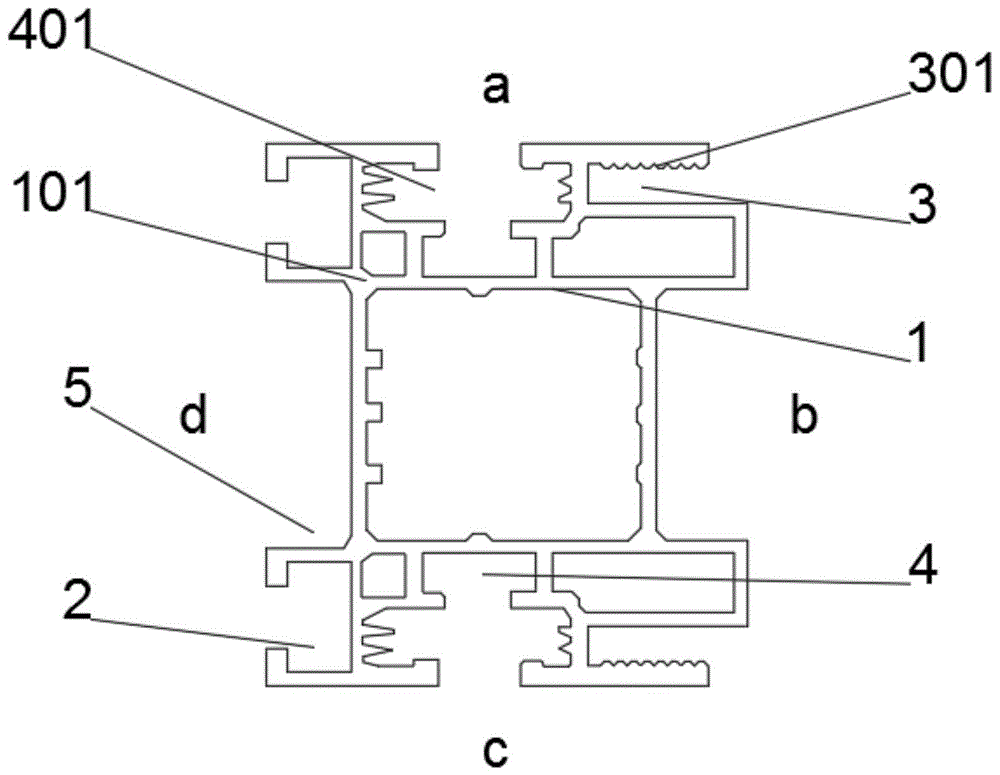

FIG. 1 is a schematic cross-sectional view of a profile body according to the present invention;
FIG. 2 is a schematic view of the structure of FIG. 1a according to the present invention;
FIG. 3 is a schematic view of the structure of FIG. 1b according to the present invention;
FIG. 4 is a schematic structural view of FIG. 1c in accordance with the present invention;
FIG. 5 is a schematic view of the structure of FIG. 1d according to the present invention
FIG. 6 is a schematic perspective view of the present invention shown in FIG. 1 (with the side a and the side b visible).
FIG. 7 is a schematic perspective view (with the c-plane and the d-plane visible) of FIG. 1 according to the present invention.
In the figure: 1. a profile body; 101. reinforcing ribs; 2. a connecting clamping groove; 3. a card slot; 4. connecting the positioning groove; 401. a T-bolt slot; 5. a groove; 301. clamping teeth; 6. connecting holes; 7. through the aperture.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-7, in this embodiment: the utility model provides an energy-efficient modular aluminum profile frame component system for putting up wall, includes section bar main part 1, and section bar main part 1 has four faces a, b, c, d, and 1 one side of section bar main part is provided with connecting groove 2, and draw-in groove 3 has been seted up to connecting groove 2 one side, and 3 one sides of draw-in groove are provided with connect constant head tank 4, and 2 one sides of connecting groove are provided with recess 5, and connecting hole 6 has been seted up to 5 inner walls of recess, and connecting hole 6 one side is provided with and passes hole 7.
In the embodiment, the profile main body 1 is made of an aluminum alloy material, the surface of the profile main body 1 is subjected to anti-oxidation treatment, the reinforcing ribs 101 are arranged in the profile main body 1, the reinforcing ribs 101 are arranged in three groups, the reinforcing ribs 101 are arranged at equal intervals, and the reinforcing ribs 101 are made of hard alloy, so that the strength and the corrosion resistance of the profile are improved, and the service life of the profile is prolonged; two groups of connecting clamping grooves 2 are arranged in quantity, the two groups of connecting clamping grooves 2 are arranged on the same surface and symmetrically arranged on two sides of the groove 5, and the connecting clamping grooves 2 are arranged to facilitate installation of other reinforcing members or supporting members, so that the installation portability of the section bar is improved; two clamping grooves 3 are arranged in number and are located on the same surface, two groups of clamping grooves 3 are symmetrically arranged on two sides of the groove 5, the depth of each clamping groove 3 is larger than that of the groove 5, a clamping tooth 301 is arranged on one side, far away from the groove 5, in each clamping groove 3, a plurality of clamping teeth 301 are arranged, the clamping teeth 301 are arranged in an equidistant and linear mode, the two groups of clamping grooves 3 are conveniently used for clamping decorative strips, the clamping teeth 301 are used for further fixing the decorative strips, sliding is prevented, and stability is improved; two groups of connecting positioning grooves 4 are formed in quantity, the two groups of connecting positioning grooves 4 are distributed on the surface a and the surface c opposite to the surface a, and the connecting positioning grooves 4 are arranged to facilitate the positioning connection of the section in the vertical direction and facilitate the case and disassembly of the section main body 1; the two groups of grooves 5 are arranged in number, connecting holes 6 and through holes 7 are formed in the inner walls of the two groups of grooves 5, the connecting holes 6 and the through holes 7 are arranged on the same central line, the connecting holes 6 and the through holes 7 are arranged at equal intervals alternately, so that the connecting holes 6 are arranged to facilitate installation of heads and nuts of bolts for connecting the two sectional materials, and the electric wires can pass through the through holes 7; connect 4 one sides of constant head tank to be provided with T type bolt groove 401, T type bolt groove 401 both sides are provided with the arch, the size looks adaptation of T type bolt groove 401 and T type bolt, T type bolt groove 401 is through T type bolt and other section bar fixed connection, connect constant head tank 4 convenience and be connected with other section bars, and effectively prevent that T type bolt is not hard up through the raising that sets up in T type bolt groove 401, improve the stability of connecting.
The working principle and the using process of the invention are as follows: when the connecting clamping groove is used, the section main body 1 is connected with other sections, two groups of connecting clamping grooves 2 are arranged in quantity, the two groups of connecting clamping grooves 2 are arranged on the same surface and symmetrically arranged on two sides of the groove 5, the connecting clamping grooves 2 are convenient for installing other reinforcing members or supporting members, and the portability of section installation is improved; two clamping grooves 3 are arranged in number and are located on the same surface, two groups of clamping grooves 3 are symmetrically arranged on two sides of the groove 5, the depth of each clamping groove 3 is larger than that of the groove 5, a clamping tooth 301 is arranged on one side, far away from the groove 5, in each clamping groove 3, a plurality of clamping teeth 301 are arranged, the clamping teeth 301 are arranged in an equidistant and linear mode, the two groups of clamping grooves 3 are conveniently used for clamping decorative strips, and the clamping teeth 301 are used for further fixing the decorative strips, so that the stability is improved; two groups of connecting positioning grooves 4 are formed in quantity, the two groups of connecting positioning grooves 4 are distributed on the surface a and the surface c opposite to the surface a, the connecting positioning grooves 4 are convenient for positioning connection of the section bar in the vertical direction, and the case and the disassembly of the section bar main body 1 are convenient; the two groups of grooves 5 are arranged in number, connecting holes 6 and through holes 7 are formed in the inner walls of the two groups of grooves 5, the connecting holes 6 and the through holes 7 are arranged on the same central line, the connecting holes 6 and the through holes 7 are arranged at equal intervals alternately, the connecting holes 6 are convenient to mount and sink into the heads and nuts of bolts for connecting the two sectional materials, and the electric wires can conveniently pass through the through holes 7; connect 4 one sides of constant head tank to be provided with T type bolt groove 401, T type bolt groove 401 both sides are provided with the arch, the size looks adaptation of T type bolt groove 401 and T type bolt, T type bolt groove 401 is through T type bolt and other section bar fixed connection, connect constant head tank 4 convenience and be connected with other section bars, and effectively prevent that T type bolt is not hard up through the raising that sets up in T type bolt groove 401, improve the stability of connecting.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that changes may be made in the embodiments and/or equivalents thereof without departing from the spirit and scope of the invention. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
