Abstract

The invention discloses an outdoor power distribution cabinet which is convenient for the loading, unloading and maintenance of monitoring components. The table and the load-bearing base are respectively provided with an upper opening cavity and a lower opening cavity, and the upper opening cavity is respectively slidably sleeved with an integrally connected handle and a limit pin, the limit pin is fixedly sleeved with a spring. The invention uses the splicing bottom plate to set up a transparent inner protective plate, and uses the inner protective plate to set up an anti-pressure cover plate supported by two springs; by opening the air inlets in sequence, low-temperature cold air can be continuously supplied into the power distribution cabinet to speed up the power distribution. The high-temperature hot air in the cabinet is discharged to the outside; by setting the limit cover plate elastically installed by three springs on the inner protective plate, and by slanting the drainage groove in the limit cover plate, the water depth difference in the drainage groove is used to accelerate the limit The left and right movement of the cover plate can be used to cool the power distribution cabinet with running water.

Description

An outdoor power distribution cabinet that is convenient for loading, unloading and maintenance of monitoring components

technical field

The invention relates to the technical field of application protection of power distribution cabinets, in particular to an outdoor power distribution cabinet that facilitates the assembly, disassembly and maintenance of monitoring components.

Background technique

Because of the development of the times, the way of production and life has undergone great changes, especially the use of new energy has made automation equipment have a wider range of applications, but under the existing technical conditions, the operation of various automation equipment is inseparable Open power resource support. Moreover, due to actual needs, the application environment and conditions of various equipment are more complicated, especially the transportation of power resources has been difficult to solve completely. At present, the long-distance transportation of electric energy is generally achieved by configuring power distribution cabinets. The power distribution cabinets are divided into power distribution cabinets, lighting distribution cabinets, and metering cabinets, and are the final equipment of the power distribution system. The power distribution cabinet is the general name of the motor control center. The power distribution cabinet is used in the occasions where the load is relatively scattered and there are few circuits; the motor control center is used in the occasions where the load is concentrated and there are many circuits. They distribute the electric energy of a certain circuit of the upper-level power distribution equipment to the nearby loads to provide protection, monitoring and control for the loads.

At present, power distribution cabinets can be divided into two categories: indoor type and outdoor type. Outdoor type power distribution cabinets must face a more complex natural environment because they are exposed, which puts higher demands on their own hardware conditions. Requirements, in order to overcome the impact of high temperature weather on substation equipment, remove grid operation obstacles in a timely manner, ensure the safe operation of the grid in high temperature seasons, and at the same time prevent the substation from being completely shut down due to factors such as high temperature and heavy load, and prevent main equipment such as transformers and GIS transformers from being struck by lightning , overheating, overload, etc. caused equipment damage accidents, so regular maintenance must be carried out on the power distribution cabinet, while the traditional power distribution cabinet is mostly made of hard metal materials, and in order to strengthen the protection of electrical appliances, usually use The one-piece fixed and sealed structure leads to a huge workload and difficult operation in the later maintenance work. It is necessary to repeatedly disassemble and assemble the overall structure of the power distribution cabinet, which is not only time-consuming and laborious, but also easy to reduce due to tedious work. Shorten the service life of the distribution cabinet, thus affecting the transmission and application of electric energy.

Contents of the invention

The purpose of the present invention is to solve the problem in the prior art that it is difficult to carry out convenient maintenance and maintenance operations on outdoor power distribution cabinets, and propose an outdoor power distribution cabinet that is convenient for loading, unloading and maintenance of monitoring components.

In order to achieve the above object, the present invention adopts the following technical solutions:

An outdoor power distribution cabinet that is convenient for loading, unloading, and maintenance of monitoring components, including four load-bearing bases that are offset end to end. Splicing bottom plates are welded on the four load-bearing bases, and a mounting platform is arranged above the load-bearing bases. The installation The platform and the load-bearing abutment are respectively provided with an upper opening and a lower opening, and the upper opening is respectively slidingly sleeved with an integrally connected handle and a limit pin, and the upper fixed sleeve of the limit pin is provided with a spring;

A card slot is opened in the spliced bottom plate, and an inner protective plate is fixedly set in the card slot, two springs are welded on the inner protective plate, and a backing plate slidingly sleeved on the inner protective plate is fixedly connected to the second spring , the inner protective plate is movably fitted with an anti-pressure cover plate, and the outer end of the anti-pressure cover plate is bolt-connected with a connection card seat, and the pin shaft on the installation platform is installed with an outer protective plate suitable for the connection card seat;

The inner protective plate is movably connected with a limited cover plate, and the lower end of the limited cover plate is provided with a guide groove for slidingly covering the inner protective plate, and one end of the guide groove is welded with three springs fixedly connected with the inner protective plate. The top of the limit cover plate is provided with a drainage groove with one side opening, the moisture-proof pad with openings is movably installed on the inner protective plate, and a heat-dispelling fan is fixedly installed on the load-bearing abutment, and the load-bearing abutment and the inner protective plate Both are provided with air inlets, and the inner protective plate and the limit cover are respectively provided with air outlets and heat exhaust holes.

Preferably, the upper opening and the lower opening correspond up and down, the one spring is fixedly sleeved at the upper end position of the limit pin located in the upper opening, and the limit pin extends to the lower end sleeve outside the upper opening Set in the matching lower opening mouth.

Preferably, the load-bearing abutment and the spliced bottom plate are provided with corresponding screw holes, and the inner protective plate is fixedly set in the slot through the bolts in the screw holes.

Preferably, the pressure-proof cover plate is movable against the backing plate, a locking through hole is opened in the connecting bracket, and the outer protective plate is fixed in the connecting bracket through a locking screw in the locking through hole.

Preferably, the position-limiting cover is horizontally located above the pressure-proof cover, and the drainage groove is opened obliquely.

Preferably, a chute for slidingly covering the moisture-proof pad is opened in the inner protective plate, and the heat-dispelling fan is located directly below the moisture-proof pad.

Preferably, the two air inlets are located below the moisture-proof pad and correspond horizontally to the heat-dispelling fan, and the air outlet is located above the moisture-proof pad.

Preferably, the heat exhaust hole is located below the limiting cover plate.

Compared with the prior art, the present invention has the following advantages:

1. The present invention utilizes the splicing bottom plate on the load-bearing base to set a transparent inner protective plate, and uses the inner protective plate to set an anti-pressure cover plate elastically supported by two springs to form the inner protective structure of the power distribution cabinet; The installation platform connected above the platform uses the installation platform and the pressure-proof cover to set a transparent outer protective plate, so that the power distribution cabinet can be easily disassembled and assembled through the inner protective plate and the outer protective plate, and all-round observation and monitoring can be realized. .

2. The present invention utilizes the splicing bottom plate to install a heat-dispelling fan located under the moisture-proof pad. By sequentially opening air inlets, air outlets and heat exhaust holes, it can continuously provide low-temperature cold air to the power distribution cabinet to accelerate the high temperature in the power distribution cabinet. The hot air is discharged outside; by setting the limit cover plate elastically installed by three springs on the inner protective plate, by setting the drainage groove in the limit cover plate obliquely, the left and right movement of the limit cover plate is accelerated by using the water depth difference in the drain groove Move it to use running water to cool the power distribution cabinet.

To sum up, the present invention utilizes splicing bottom plates to set transparent inner protective plates, and utilizes inner protective plates to set anti-pressure cover plates elastically supported by two springs to form the inner protective structure of the power distribution cabinet; The connected installation platform uses the installation platform and the anti-pressure cover to set a transparent outer protective plate, so that the power distribution cabinet can be easily disassembled and assembled through the inner protective plate and the outer protective plate, and all-round observation and monitoring can be realized; through The air inlet, air outlet and heat exhaust holes are set up in sequence, which can continuously provide low-temperature cold air to the power distribution cabinet to accelerate the discharge of high-temperature hot air in the power distribution cabinet; The limit cover plate is inclined to open a drainage groove in the limit cover plate, and the left and right movement of the limit cover plate is accelerated by using the depth difference of accumulated water in the drainage groove, so as to realize cold compress on the power distribution cabinet by running water.

Description of drawings

Fig. 1 is a schematic structural diagram of an outdoor power distribution cabinet that is convenient for loading, unloading and maintenance of monitoring components proposed by the present invention;

Fig. 2 is a cross-sectional view of an outdoor power distribution cabinet that is convenient for loading, unloading and maintenance of monitoring components proposed by the present invention;

Fig. 3 is an enlarged schematic diagram of the structure of part A of an outdoor power distribution cabinet that is convenient for loading, unloading and maintenance of monitoring components proposed by the present invention;

Fig. 4 is an enlarged schematic diagram of the structure of part B of an outdoor power distribution cabinet proposed by the present invention, which is convenient for loading, unloading and maintenance of monitoring components;

Fig. 5 is a schematic diagram of the distribution of the load-bearing abutment and the installation platform of an outdoor power distribution cabinet that is convenient for loading, unloading and maintenance of monitoring components proposed by the present invention;

Fig. 6 is a schematic diagram of the distribution of the inner protective plate and the moisture-proof pad of an outdoor power distribution cabinet that is convenient for loading, unloading and maintenance of monitoring components proposed by the present invention;

Fig. 7 is a schematic diagram of the connection between the anti-pressure cover plate and the connecting card seat of an outdoor power distribution cabinet that is convenient for loading, unloading and maintenance of monitoring components proposed by the present invention;

Fig. 8 is a schematic structural diagram of a limit cover plate of an outdoor power distribution cabinet that facilitates the installation, disassembly and maintenance of monitoring components proposed by the present invention.

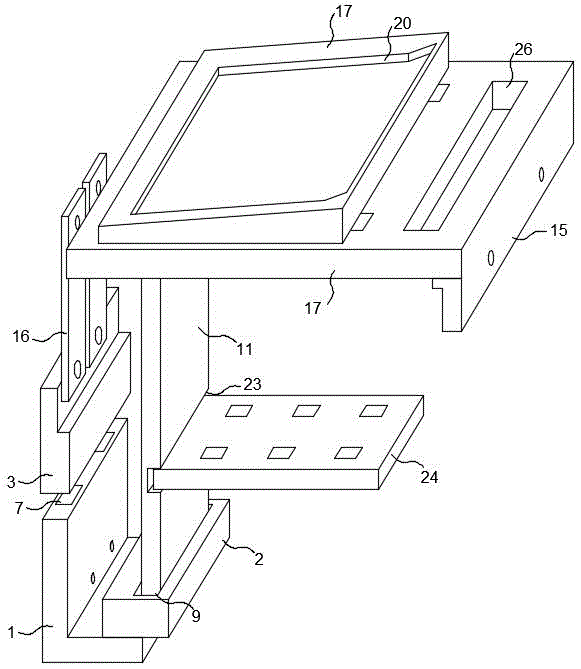

In the figure: 1 load-bearing abutment, 2 splicing bottom plate, 3 installation platform, 4 upper opening, 5 handle, 6 limit pin, 7 lower opening, 8-spring, 9 card slot, 10 screw hole, 11 inner protection Plate, 12 second spring, 13 backing plate, 14 pressure-proof cover plate, 15 connecting deck, 16 outer protective plate, 17 limit cover plate, 18 guide groove, 19 three springs, 20 drainage groove, 21 air inlet, 22 drive Heat fan, 23 chute, 24 moisture-proof pad, 25 air outlet, 26 heat row holes.

Detailed ways

The following will clearly and completely describe the technical solutions in the embodiments of the present invention with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only some, not all, embodiments of the present invention.

Referring to Figure 1-8, an outdoor power distribution cabinet that is convenient for loading, unloading and maintenance of monitoring components includes four load-bearing abutments 1 that are offset at the end, and splicing bottom plates 2 are welded on the four load-bearing abutments 1. For details, refer to the accompanying drawing 1 of the specification -2 It can be seen that when the four splicing base plates 2 are spliced horizontally, the bottom structure of the power distribution cabinet can be realized. The load-bearing base 1 is an L-shaped cross-sectional structure, and an installation platform 3 is provided above the load-bearing The load-bearing base 1 is respectively provided with an upper opening 4 and a lower opening 7, and the side of the upper opening 4 is opened to facilitate the operation of the handle 5, and the upper opening 4 is respectively slidingly sleeved with an integrally connected handle 5 With the limit pin 6, a spring 8 is fixedly sleeved on the limit pin 6;

A card slot 9 is opened in the splicing bottom plate 2, and the card slot 9 is opened horizontally, and an inner protective plate 11 is fixedly set in the card slot 9, and two springs 12 are welded on the inner protective plate 11, and a sliding sleeve is fixedly connected to the second spring 12 Set on the backing plate 13 on the inner protective plate 11, the inner protective plate 11 is movable with an anti-pressure cover plate 14, and the outer end bolts of the anti-pressure cover plate 14 are connected with a connecting card seat 15, and the pin shaft on the mounting table 3 is installed with a The outer protective plate 16 adapted to the connection deck 15 is deflected by 0°-90° through the outer protective plate 16 to realize the opening and closing of the outer layer of the power distribution cabinet;

It should be noted that both the inner protective plate 11 and the outer protective plate 16 are made of light-transmitting materials, so as to facilitate observation of electrical appliances in the power distribution cabinet.

The limit cover 17 is movably connected to the inner protective plate 11, and the lower end of the limit cover 17 is provided with a guide groove 18 slidingly sleeved with the inner protective plate 11. The guide groove 18 is opened horizontally, and one end of the guide groove 18 is welded with an inner protective cover. The three springs 19 fixedly connected to the plate 11 can make the limit cover 17 swing left and right under the joint action of rainwater gravity and the three springs 19, so as to accelerate the drainage of rainwater. The water tank 20 and the inner protective plate 11 are movably equipped with a moisture-proof pad 24 with openings. Specifically referring to the accompanying drawing 1 of the specification, it can be seen that the moisture-proof pad 24 offers through holes to facilitate the delivery of low-temperature cold air to the power distribution cabinet, and the load-bearing base 1 A heat-dispelling fan 22 is fixedly installed on it. Specifically referring to the accompanying drawing 2 of the specification, it can be seen that the load-bearing base 1 and the inner protective plate 11 are provided with air inlets 21, and the inner protective plate 11 and the limit cover 17 are respectively provided with outlets. The tuyere 25 and the heat exhaust hole 26 reduce the ambient temperature by accelerating the movement of the hot and cold air in the power distribution cabinet, thereby ensuring the low temperature condition of the electrical appliances.

The upper opening 4 corresponds to the lower opening 7 up and down, a spring 8 is fixedly sleeved on the upper end position of the limit pin 6 located in the upper opening 4, and the limit pin 6 extends to the lower end outside the upper opening 4 Set in the matching lower opening 7, the detachable connection between the mounting table 3 and the load-bearing base 1 can be realized.

Corresponding screw holes 10 are provided in the load-bearing base 1 and the splicing bottom plate 2, and the inner protective plate 11 is fixedly set in the slot 9 through the bolts in the screw holes 10, so as to facilitate the fixed installation of the inner protective plate 11.

The anti-pressure cover plate 14 is movable against the backing plate 13, and a locking through hole is provided in the connecting card seat 15, and the outer protective plate 16 is fixed in the connecting card seat 15 through the locking screw in the locking through hole, and the outer protective plate 16 is fixed in the connecting card seat 15 by controlling the external The protection plate 16 rotates to realize the opening and closing of the outer layer of the power distribution cabinet.

The limiting cover 17 is horizontally located above the pressure-proof cover 14, and the drainage groove 20 is opened obliquely. It should be noted that when rainwater collects at the low position of the drainage groove 20 of the limiting cover 17, the limiting cover 17 can Orientation movement, and under the tension of the three springs 19, the limit cover 17 can be moved horizontally, thereby accelerating the drainage of rainwater, realizing cold compress of rainwater, and reducing the high temperature pressure of the power distribution cabinet.

In the inner protective plate 11, there is a chute 23 with a sliding sleeve and a moisture-proof pad 24, and the heat-dispelling fan 22 is located directly below the moisture-proof pad 24. By controlling the operation of the heat-dispelling fan 22, the external low-temperature cold air can be accelerated to enter the power distribution cabinet. At the same time, the high-temperature hot air is extruded, so that the high-temperature hot air is discharged outside, thereby reducing the ambient temperature in the power distribution cabinet.

The two air inlets 21 are located below the moisture-proof pad 24 and correspond horizontally to the heat-dispelling fan 22 , and the air outlet 25 is located above the moisture-proof pad 24 .

The heat exhaust hole 26 is located below the limit cover plate 17. It should be noted that the heat exhaust hole 26 can be shielded at a high position by the limit cover plate 17, which not only facilitates the discharge of high-temperature hot air, but also prevents rainwater from passing through the heat exhaust hole. 26 into the distribution cabinet.

The present invention can illustrate its functional principle through the following modes of operation:

The four load-bearing abutments 1 are spliced end to end, so that the four spliced bottom plates 1 are aligned and spliced, and then the heat-dispelling fan 22 is fixedly installed;

Fix the inner protective plate 11 in the four card slots 9, tighten the bolts through the screw holes 10 in the load-bearing base 1 and the spliced bottom plate 2 to tighten and fix the inner protective plate 11, and install the moisture-proof pad through the chute 23 twenty four;

Install and deploy relevant electrical appliances through the moisture-proof pad 24;

Set the anti-gland plate 14 on the four inner protective plates 11, so that the anti-gland plate 14 and the backing plate 13 are offset, and the two springs 12 provide support for the backing plate 13 and the anti-pressure cover plate 14;

Place the installation platform 3 on the load-bearing base 1, and under the tension of a spring 8, the limit pin 6 is extended to the lower opening 7 to realize the installation and connection of the installation platform 3 on the load-bearing base 1;

Rotate the two outer protective plates 16 on the installation platform 3, so that the upper ends of the outer protective plates 16 are in contact with the connecting bracket 15, and the outer protective plates 16 are locked and fixed by tightening the screws in the locking holes;

The limit cover plate 17 is set on the inner protective plate 11, so that the limit cover plate 17 is connected with the three springs through the guide groove 18.

First of all, through the transparent outer protective plate 16 and inner protective plate 11, the relevant electrical appliances in the power distribution cabinet can be observed in all directions;

Secondly, by controlling the heat-dispelling fan 22 to open, the low-temperature cold air is input into the power distribution cabinet through the air inlet 21, and the low-temperature cold wind blows the high-temperature electrical appliances through the moisture-proof pad 24, so that the high-temperature hot air in the power distribution cabinet passes through the air outlet 25 and The heat exhaust hole 26 is discharged outward;

Finally, when the rainwater collects in the drainage groove 20 of the limiting cover 17, because the drainage groove 20 is inclined, the limiting cover 17 moves outward due to the weight of the rainwater, so as to accelerate the drainage of rainwater, and during the drainage process, the power distribution Cabinet for cooling.

The above is only a preferred embodiment of the present invention, but the scope of protection of the present invention is not limited thereto, any person familiar with the technical field within the technical scope disclosed in the present invention, according to the technical solution of the present invention Any equivalent replacement or change of the inventive concepts thereof shall fall within the protection scope of the present invention.

Claims (7)

1. An outdoor power distribution cabinet that is convenient for loading, unloading and maintenance of monitoring components, including four end-to-end load-bearing abutments (1), characterized in that splicing bottom plates (2) are welded on the four load-bearing abutments (1) ), and an installation platform (3) is provided above the load-bearing base (1), and an upper opening (4) and a lower opening (7) are respectively provided in the installation platform (3) and the load-bearing base (1), And the sliding sleeves in the upper opening (4) are respectively provided with integrally connected handles (5) and limit pins (6), and the upper fixed sleeve of the limit pins (6) is provided with a spring (8); A card slot (9) is opened in the spliced bottom plate (2), and an inner protective plate (11) is fixedly set in the card slot (9), and two springs (12) are welded on the inner protective plate (11), And two springs (12) are fixedly connected with a backing plate (13) that is slidably sleeved on the inner protective plate (11), and an anti-pressure cover plate (14) is movable on the inner protective plate (11). The outer end bolts of the gland plate (14) are connected with a connection holder (15), and the pin shaft on the installation platform (3) is equipped with an outer protective plate (16) that is compatible with the connection holder (15); The limit cover (17) is movably connected to the inner protective plate (11), and the lower end of the limit cover (17) is provided with a guide groove (18) for slidingly covering the inner protective plate (11), and the guide groove (18) Three springs (19) fixedly connected to the inner protective plate (11) are welded at one end, and the upper end of the limit cover plate (17) is provided with a drainage groove (20) with one side opening, and the inner protective plate ( 11) Moisture-proof pads (24) with openings are installed on the top, and a heat-dispelling fan (22) is fixedly installed on the load-bearing base (1), and the load-bearing base (1) and the inner protective plate (11) An air inlet (21) is provided, and an air outlet (25) and a heat exhaust hole (26) are respectively provided in the inner protective plate (11) and the limit cover (17); The upper opening (4) corresponds to the lower opening (7) up and down, and the spring (8) is fixedly sleeved on the upper end position of the limit pin (6) in the upper opening (4), and the limit The lower end of the positioning pin (6) extending outside the upper opening (4) is sheathed in the matching lower opening (7). 2. An outdoor power distribution cabinet that is convenient for loading, unloading and maintenance of monitoring components according to claim 1, characterized in that, corresponding screw holes (10 ), and the inner protective plate (11) is set in the slot (9) through the bolts in the screw holes (10). 3. An outdoor power distribution cabinet that is convenient for loading, unloading and maintenance of monitoring components according to claim 1, characterized in that, the pressure-proof cover plate (14) is movable against the backing plate (13), and the connecting bracket ( 15) is provided with a locking through hole, and the outer protective plate (16) is fixed in the connecting bracket (15) through the locking screw in the locking through hole. 4. An outdoor power distribution cabinet that is convenient for loading, unloading and maintenance of monitoring components according to claim 1, characterized in that the limit cover (17) is horizontally located above the anti-pressure cover (14), and the drainage groove (20) Inclined opening. 5. An outdoor power distribution cabinet that is convenient for loading, unloading and maintenance of monitoring components according to claim 1, characterized in that a chute (23) with a sliding sleeve and a moisture-proof pad (24) is opened in the inner protective plate (11) ), and the heat-dispelling fan (22) is located directly below the moisture-proof pad (24). 6. An outdoor power distribution cabinet that is convenient for loading, unloading and maintenance of monitoring components according to claim 1, characterized in that the two air inlets (21) are located below the moisture-proof pad (24), and are connected to the heat-dispelling fan ( 22) Corresponding horizontally, the air outlet (25) is located above the moisture-proof pad (24). 7. The outdoor power distribution cabinet that is convenient for loading, unloading and maintenance of monitoring components according to claim 1, characterized in that, the heat exhaust hole (26) is located below the limit cover plate (17).
