CN113145531A - Automatic cleaning, disinfecting and blow-drying device for agricultural products - Google Patents

Automatic cleaning, disinfecting and blow-drying device for agricultural products Download PDF

Info

Publication number
CN113145531A
CN113145531A CN202110002111.6A CN202110002111A CN113145531A CN 113145531 A CN113145531 A CN 113145531A CN 202110002111 A CN202110002111 A CN 202110002111A CN 113145531 A CN113145531 A CN 113145531A
Authority
CN
China
Prior art keywords
wall
box
box body
fixedly connected
disinfecting
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Pending
Application number
CN202110002111.6A
Other languages
Chinese (zh)
Inventor
殷占杨
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Jiangsu Lianxin Yunling Industrial Development Co ltd
Original Assignee
Jiangsu Lianxin Yunling Industrial Development Co ltd
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Jiangsu Lianxin Yunling Industrial Development Co ltd filed Critical Jiangsu Lianxin Yunling Industrial Development Co ltd
Priority to CN202110002111.6A priority Critical patent/CN113145531A/en
Publication of CN113145531A publication Critical patent/CN113145531A/en
Pending legal-status Critical Current

Links

Classifications

    • BPERFORMING OPERATIONS; TRANSPORTING
    • B08CLEANING
    • B08BCLEANING IN GENERAL; PREVENTION OF FOULING IN GENERAL
    • B08B3/00Cleaning by methods involving the use or presence of liquid or steam
    • B08B3/02Cleaning by the force of jets or sprays
    • B08B3/022Cleaning travelling work
    • AHUMAN NECESSITIES
    • A61MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61LMETHODS OR APPARATUS FOR STERILISING MATERIALS OR OBJECTS IN GENERAL; DISINFECTION, STERILISATION, OR DEODORISATION OF AIR; CHEMICAL ASPECTS OF BANDAGES, DRESSINGS, ABSORBENT PADS, OR SURGICAL ARTICLES; MATERIALS FOR BANDAGES, DRESSINGS, ABSORBENT PADS, OR SURGICAL ARTICLES
    • A61L2/00Methods or apparatus for disinfecting or sterilising materials or objects other than foodstuffs or contact lenses; Accessories therefor
    • A61L2/02Methods or apparatus for disinfecting or sterilising materials or objects other than foodstuffs or contact lenses; Accessories therefor using physical phenomena
    • A61L2/08Radiation
    • A61L2/10Ultra-violet radiation
    • BPERFORMING OPERATIONS; TRANSPORTING
    • B08CLEANING
    • B08BCLEANING IN GENERAL; PREVENTION OF FOULING IN GENERAL
    • B08B13/00Accessories or details of general applicability for machines or apparatus for cleaning
    • BPERFORMING OPERATIONS; TRANSPORTING
    • B08CLEANING
    • B08BCLEANING IN GENERAL; PREVENTION OF FOULING IN GENERAL
    • B08B3/00Cleaning by methods involving the use or presence of liquid or steam
    • B08B3/04Cleaning involving contact with liquid
    • B08B3/06Cleaning involving contact with liquid using perforated drums in which the article or material is placed
    • FMECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F26DRYING
    • F26BDRYING SOLID MATERIALS OR OBJECTS BY REMOVING LIQUID THEREFROM
    • F26B21/00Arrangements or duct systems, e.g. in combination with pallet boxes, for supplying and controlling air or gases for drying solid materials or objects
    • F26B21/001Drying-air generating units, e.g. movable, independent of drying enclosure
    • FMECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F26DRYING
    • F26BDRYING SOLID MATERIALS OR OBJECTS BY REMOVING LIQUID THEREFROM
    • F26B21/00Arrangements or duct systems, e.g. in combination with pallet boxes, for supplying and controlling air or gases for drying solid materials or objects
    • F26B21/004Nozzle assemblies; Air knives; Air distributors; Blow boxes

Abstract

The invention discloses an automatic cleaning, disinfecting and blow-drying device for agricultural products, which comprises a box body, wherein a rotary drum is rotatably connected in the box body, the left end of the rotary drum is provided with a feed hopper, the right end of the rotary drum is provided with a discharge outlet, the rotary drum is in driving connection with a motor fixedly connected to the top of the box body, the inner wall of the box body is provided with a plurality of spray heads, the bottom of the box body is provided with a drain pipe, the inner wall of the box body is provided with a plurality of air blowing heads, the inner wall of the box body is also provided with a group of waterproof ultraviolet lamps, and the spray heads, the air blowing heads and the waterproof ultraviolet lamps are uniformly distributed on the inner wall of the box body. The invention has the advantages of simple structure, high automation degree, high working efficiency and integration of cleaning, disinfection and blow-drying.

Description

Automatic cleaning, disinfecting and blow-drying device for agricultural products
Technical Field
The invention relates to the technical field of agricultural product processing equipment, in particular to an automatic cleaning, disinfecting and blow-drying device for agricultural products.
Background
The preservation and processing of agricultural products are the continuation of agricultural production, are the 'two-generation economy' in the agricultural reproduction process, and the developed areas place the postpartum storage and processing at the primary position of agriculture, except for the high added value brought by preservation and processing, the loss of the existing fruits and vegetables is only reduced, and the near-billion-yuan benefits can be brought to the society. Even after WTO is added in China, the fruit and vegetable products are one of the most large agricultural products expected to be put into the international market, so that the favorable condition and the rare opportunity should be caught.
However, most of agricultural product cleaning and disinfecting in the prior art have low mechanization degree, low processing efficiency, high labor cost and high labor intensity. Therefore, there is a need for a new automatic cleaning, disinfecting and drying device for agricultural products to overcome the drawbacks of the prior art.
Disclosure of Invention
The invention aims to provide an automatic cleaning, disinfecting and blow-drying device for agricultural products, which aims to solve the problems in the background technology.
In order to achieve the purpose, the invention provides the following technical scheme:
the utility model provides an automatic cleaning, disinfecting and device that weathers of agricultural product, the power distribution box comprises a box body, it has the rotary drum to rotate in the box to connect, the left end of rotary drum is provided with the feeder hopper, and the right-hand member is provided with the bin outlet, the rotary drum is connected with the motor drive at the box top with fixed connection, be provided with a plurality of shower heads on the box inner wall, the bottom of box is provided with the drain pipe, be provided with a plurality of blowing heads on the inner wall of box, the inner wall of box still is provided with a set of waterproof ultraviolet lamp, shower head, blowing head and waterproof ultraviolet lamp evenly distributed on the inner wall of box.
The improved water spraying device is characterized in that a group of annular water supply pipes are fixedly connected to the inner wall of the box body, the spray heads are distributed on the annular water supply pipes at equal intervals, a water supply pump is fixedly connected to the top of the outer wall of the box body, and the water supply pump is connected with the annular water supply pipes through a pipeline.
The air blowing device is characterized in that a group of annular air supply pipes are fixedly connected to the inner wall of the box body, the air blowing heads are distributed on the annular air supply pipes at equal intervals, and an electric heating fan is fixedly connected to the bottom of the outer wall of the box body and is connected with the annular air supply pipes through a pipeline.
The output shaft of the motor is fixedly connected with a driving gear, the outer circumferential wall of the rotary drum is provided with a gear ring, the left side wall of the box body is rotatably connected with a transmission gear, the driving gear is meshed with the transmission gear, and the transmission gear is meshed with the gear ring.
A group of rollers is arranged on the inner wall of the box body, and the rotary drum is rotatably arranged on the inner side of the group of rollers.
The right-hand member fixedly connected with right supporting leg of bottom half, right supporting leg is articulated mutually with the bottom plate, the left end fixedly connected with left supporting leg of bottom half, the bottom fixedly connected with connecting seat of left supporting leg, the connecting seat passes through the bolt and can dismantle with the bottom plate and be connected.
The electric power tool box is characterized in that an electric push rod is fixedly connected to the bottom plate, a connecting plate is fixedly connected to the bottom of the box body, and the tail end of a telescopic rod of the electric push rod is connected with the connecting plate in a sliding mode.
The inner wall of the rotary drum is fixedly connected with a group of barrier strips.
Compared with the prior art, the invention has the beneficial effects that: when the agricultural product cleaning and drying device works, the agricultural products are placed in the rotary drum, the spray head sprays water to clean the agricultural products, the blowing head dries the agricultural products after cleaning, the waterproof ultraviolet lamp sterilizes the agricultural products, the motor drives the rotary drum to rotate to turn over the agricultural products, and effects and efficiency of cleaning, drying and sterilization are improved. The left supporting leg can be separated from the bottom plate, and the separated electric push rod drives the box body and the left end of the rotary drum to be lifted, so that discharging is facilitated. The barrier strip increases the effect that the rotary drum drives the agricultural product to turn over. The invention has the advantages of simple structure, high automation degree, high working efficiency and integration of cleaning, disinfection and blow-drying.
Drawings

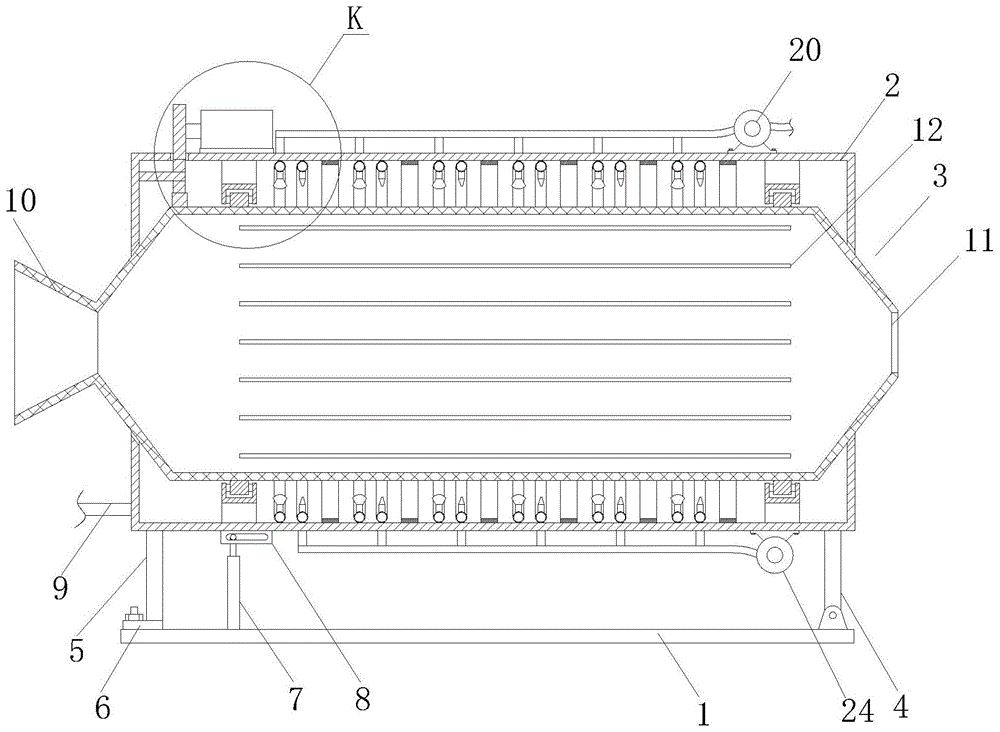

FIG. 1 is a schematic structural view of an automatic cleaning, disinfecting and drying device for agricultural products;
fig. 2 is a partially enlarged view of fig. 1 at K.
In the figure: 1-bottom plate, 2-box, 3-drum, 4-right support leg, 5-left support leg, 6-connecting seat, 7-electric push rod, 8-connecting plate, 9-water discharge pipe, 10-feed hopper, 11-discharge outlet, 12-barrier strip, 13-roller, 14-motor, 15-driving gear, 16-transmission gear, 17-gear ring, 18-shower head, 19-annular water supply pipe, 20-water supply pump, 21-waterproof ultraviolet lamp, 22-blowing head, 23-annular air supply pipe and 24-electric heating fan.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-2, the present invention provides a technical solution:
the utility model provides an automatic cleaning, disinfecting and device that weathers of agricultural product, includes box 2, it is connected with rotary drum 3 to rotate in the box 2, the left end of rotary drum 3 is provided with feeder hopper 10, and the right-hand member is provided with bin outlet 11, rotary drum 3 is connected with the 14 drives of motor of fixed connection at 2 tops of box, be provided with a plurality of shower heads 18 on the 2 inner walls of box, the bottom of box 2 is provided with drain pipe 9, be provided with a plurality of blowing heads 22 on the inner wall of box 2, the inner wall of box 2 still is provided with a set of waterproof ultraviolet lamp 21, shower head 18, blowing head 22 and waterproof ultraviolet lamp 21 evenly distributed on the inner wall of box 2.
During operation, agricultural product is from placing in rotary drum 3, and shower head 18 water spray washs agricultural product, and the blowing head 22 is dried to agricultural product after wasing, and waterproof ultraviolet lamp 21 carries out the disinfection and sterilization to agricultural product, and motor 14 drive rotary drum 3 rotates and makes the agricultural product turn-over, promotes effect and efficiency of washing, stoving and disinfection and sterilization.
Preferably, a group of annular water supply pipes 19 is fixedly connected to the inner wall of the box body 2, the shower heads 18 are equidistantly distributed on the annular water supply pipes 19, a water supply pump 20 is fixedly connected to the top of the outer wall of the box body 2, and the water supply pump 20 is connected to the annular water supply pipes 19 through a pipeline.
The annular water supply pipe 19 is arranged and the spray headers 18 are distributed at equal intervals, so that the cleaning effect is improved.
Preferably, a group of annular air supply pipes 23 are fixedly connected to the inner wall of the box body 2, the blowing heads 22 are equidistantly distributed on the annular air supply pipes 23, an electric air heater 24 is fixedly connected to the bottom of the outer wall of the box body 2, and the electric air heater 24 is connected with the annular air supply pipes 23 through a pipeline.
The setting of annular blast pipe 23 and the equidistance of blowing head 22 distribute, have promoted the stoving effect.
Preferably, a driving gear 15 is fixedly connected to an output shaft of the motor 14, a gear ring 17 is disposed on an outer circumferential wall of the drum 3, a transmission gear 16 is rotatably connected to a left side wall of the casing 2, the driving gear 15 is engaged with the transmission gear 16, and the transmission gear 16 is engaged with the gear ring 17.
The motor 14 drives the drum 3 to rotate through gear transmission.
Preferably, a set of rollers 13 is provided on the inner wall of the box 2, and the drum 3 is rotatably provided inside the set of rollers 13.
Preferably, the right end fixedly connected with right supporting leg 4 of box 2 bottom, right supporting leg 4 is articulated mutually with bottom plate 1, the left end fixedly connected with left supporting leg 5 of box 2 bottom, the bottom fixedly connected with connecting seat 6 of left supporting leg 5, connecting seat 6 passes through the bolt and can dismantle with bottom plate 1 and be connected.
Preferably, the bottom plate 1 is fixedly connected with an electric push rod 7, the bottom of the box body 2 is fixedly connected with a connecting plate 8, and the tail end of a telescopic rod of the electric push rod 7 is slidably connected with the connecting plate 8.
Left side supporting leg 4 can separate with bottom plate 1, and the left end lifting of separation back electric putter 7 drive box 2 and rotary drum 3 is conveniently unloaded.
Preferably, a set of bars 12 is fixedly connected to the inner wall of the drum 3.
The barrier strip 12 increases the effect of the tumbler 3 driving the agricultural products to turn over.
The working principle of the invention is as follows: during operation, agricultural product is from placing in rotary drum 3, and 18 water sprays of shower head wash agricultural product, and the blowing head 22 is dried to agricultural product after wasing, and waterproof ultraviolet lamp 21 disinfects agricultural product, and motor 14 drive rotary drum 3 rotates and makes the agricultural product turn-over, promotes effect and efficiency of washing, stoving and disinfection. The annular water supply pipe 19 is arranged and the spray headers 18 are distributed at equal intervals, so that the cleaning effect is improved. The annular air supply pipes 23 are arranged and the air blowing heads 22 are distributed at equal intervals, so that the drying effect is improved. The motor 14 drives the drum 3 to rotate through gear transmission. Left side supporting leg 4 can separate with bottom plate 1, and the left end lifting of separation back electric putter 7 drive box 2 and rotary drum 3 is conveniently unloaded. The baffle strips 12 increase the effect that the rotary drum 3 drives the agricultural products to turn over.
It will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description of the embodiments is for clarity only, and those skilled in the art should make the description as a whole, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.

Claims (8)

1. The utility model provides an automatic cleaning, disinfecting and blow-drying device for agricultural products, includes box (2), its characterized in that: the utility model discloses a solar energy water heater, including box (2), rotary joint has rotary drum (3) in box (2), the left end of rotary drum (3) is provided with feeder hopper (10), and the right-hand member is provided with bin outlet (11), rotary drum (3) are connected with motor (14) drive at box (2) top with fixed connection, be provided with a plurality of shower heads (18) on box (2) inner wall, the bottom of box (2) is provided with drain pipe (9), be provided with a plurality of blowing head (22) on the inner wall of box (2), the inner wall of box (2) still is provided with a set of waterproof ultraviolet lamp (21), shower head (18), blowing head (22) and waterproof ultraviolet lamp (21) evenly distributed on the inner wall of box (2).
2. An automatic cleaning, disinfecting and drying device for agricultural products as claimed in claim 1, wherein: the improved water spraying device is characterized in that a group of annular water supply pipes (19) are fixedly connected to the inner wall of the box body (2), the spray heads (18) are distributed on the annular water supply pipes (19) at equal intervals, a water supply pump (20) is fixedly connected to the top of the outer wall of the box body (2), and the water supply pump (20) is connected with the annular water supply pipes (19) through a pipeline.
3. An automatic cleaning, disinfecting and drying device for agricultural products as claimed in claim 2, wherein: the air blowing device is characterized in that a group of annular air supply pipes (23) are fixedly connected to the inner wall of the box body (2), the air blowing heads (22) are distributed on the annular air supply pipes (23) at equal intervals, electric heating fans (24) are fixedly connected to the bottom of the outer wall of the box body (2), and the electric heating fans (24) are connected with the annular air supply pipes (23) through pipelines.
4. An automatic cleaning, disinfecting and drying device for agricultural products as claimed in claim 3, wherein: the output shaft of the motor (14) is fixedly connected with a driving gear (15), the circumferential outer wall of the rotary drum (3) is provided with a gear ring (17), the left side wall of the box body (2) is rotatably connected with a transmission gear (16), the driving gear (15) is meshed with the transmission gear (16), and the transmission gear (16) is meshed with the gear ring (17).
5. An automatic cleaning, disinfecting and drying device for agricultural products as claimed in claim 4, wherein: a group of rollers (13) is arranged on the inner wall of the box body (2), and the rotary drum (3) is rotatably arranged on the inner side of the group of rollers (13).
6. An automatic cleaning, disinfecting and drying device for agricultural products as claimed in claim 5, wherein: the box is characterized in that a right supporting leg (4) is fixedly connected to the right end of the bottom of the box body (2), the right supporting leg (4) is hinged to the bottom plate (1), a left supporting leg (5) is fixedly connected to the left end of the bottom of the box body (2), a connecting seat (6) is fixedly connected to the bottom of the left supporting leg (5), and the connecting seat (6) is detachably connected with the bottom plate (1) through bolts.
7. An automatic cleaning, disinfecting and drying device for agricultural products as claimed in claim 6, wherein: fixedly connected with electric putter (7) on bottom plate (1), the bottom fixedly connected with connecting plate (8) of box (2), electric putter's (7) telescopic link end and connecting plate (8) sliding connection.
8. An apparatus for automatically cleaning, disinfecting and drying agricultural products according to claim 7, wherein: the inner wall of the rotary drum (3) is fixedly connected with a group of barrier strips (12).
