Abstract
The invention aims to provide processing equipment for antibacterial clothing cloth, which can blow the antibacterial clothing cloth flat and stretch, so that the spraying process of antibacterial liquid is better performed, and the production quality is effectively improved. It includes the frame, be provided with the blowing roller according to the preface from a left side to the right side in the frame, blow flat draw gear, spray set, drying device and wind-up roll, blow flat draw gear includes the air pump, the trachea, supporting component, go up guide plate and lower guide plate, lower guide plate level is fixed in the frame, it sets up the top at lower guide plate to go up the guide plate slope, go up guide plate and lower guide plate both sides all with frame fixed connection, it supplies the punishment in advance passageway that the cloth passed to constitute between guide plate and the lower guide plate, spray set includes spray tank, the shower head, the shower, a water pump, compress subassembly and knife coating subassembly, drying device is located one side in spray tank, drying device's exit end is provided with the wind-up roll.
Description
Technical Field
The invention relates to the technical field of cloth production equipment, in particular to processing equipment for antibacterial clothes and cloth.
Background
The non-woven fabric is one of clothes fabrics, most of common non-woven fabrics on the market are used for medical treatment or underwear and need to be in direct contact with human skin, so that the requirements on sanitation are high, and an antibacterial layer needs to be specially arranged during production.
However, the existing production equipment still has certain problems in the production process of the antibacterial clothing cloth: 1. wrinkles may occur in the process of conducting the cloth, so that the uniformity of spraying of the antibacterial liquid is affected, and the production quality is affected; 2. traditional antibiotic non-woven fabrics fabric's production facility can't add the in-process at antibiotic liquid and stretch the non-woven fabrics, makes antibiotic liquid be not convenient for get into the surface fabric of non-woven fabrics inside to influence production efficiency.
Disclosure of Invention
Therefore, the invention aims to provide the processing equipment for the antibacterial garment cloth, and the production equipment can blow the antibacterial garment cloth flat and stretch, so that the spraying process of antibacterial liquid is better performed, and the production quality is effectively improved.
In order to achieve the purpose, the invention provides the following technical scheme:
a processing device of antibacterial clothing cloth comprises a rack, a discharging roller, a blowing and stretching device, a spraying device, a drying device and a winding roller are sequentially arranged on the rack from left to right, the blowing and stretching device comprises an air pump, an air pipe, a supporting component, an upper guide plate and a lower guide plate, the lower guide plate is horizontally fixed on the rack, the upper guide plate is obliquely arranged above the lower guide plate, two sides of the upper guide plate and two sides of the lower guide plate are fixedly connected with the rack, a material passing channel for cloth to pass through is formed between the upper guide plate and the lower guide plate, an air blowing hole is formed in the upper guide plate and is connected with the air pipe, one end of the air pipe is connected with the air blowing hole, the other end of the air pipe is connected with an air outlet end of the air pump, the air pump is fixed at the upper end of the rack, the supporting component is arranged on the lower guide plate at a position corresponding to the air blowing hole at an interval, and a material pressing roller set is arranged at an outlet through which the material passing through, the pressing roller group comprises an upper pressing roller, a lower top roller and a driving motor, the upper pressing roller and the lower top roller are respectively rotatably arranged on the frame and are driven to rotate by the driving motor, cloth can be pressed by the upper pressing roller and the lower top roller, a spraying device is arranged on one side of the outlet end of the pressing roller group and comprises a spraying pond, a spraying head, a spraying pipe, a water pump, a cloth pressing component and a scraping and coating component, the spraying pond is fixed in the frame, the spraying head is fixed above the spraying pond, the spraying head is connected with the water pump through the spraying pipe, the cloth pressing component is fixed on the side wall of the spraying pond and can push the cloth to move downwards, the scraping and coating component is fixed on the rear side of the cloth pressing component and located on the upper portion of the spraying pond, the drying device is located on one side of the spraying pond, and the outlet end of the drying device is provided with a winding roller.
Compared with the prior art, the invention has the beneficial effects that:
the invention can ensure that the cloth can be fully stretched and does not generate wrinkles before being sprayed by the blowing-flattening stretching device, and then the cloth is shaped again by the pressing roller group so as to ensure that the cloth can be fully unfolded when the antibacterial liquid is sprayed, thereby ensuring the spraying and dip-dyeing effects of the antibacterial liquid, thereby ensuring the production quality and the quality of the antibacterial clothes cloth, particularly, when in work, the cloth is led out from the discharging roller, then passes through the blowing-flattening stretching device, the spraying device and the drying device and is finally wound on the winding roller, and in the process, the cloth is subjected to the steps of blowing flattening, stretching, shaping, spraying, infiltrating, blade coating, drying and the like and is finally wound, wherein when passing through the blowing-flattening stretching device, compressed gas in the air pump is sprayed from the air blowing hole through the air pipe and is blown to the cloth, and the cloth is blown and pressed on the supporting component, thereby flattening and stretching the cloth to finalize the design under the pressure of nip roll group, then draw the cloth and draw forth from the blowing roller gradually, can set up a driving motor again on the wind-up roll when actual production, thereby better carry out the rolling with the cloth, with the effect of guaranteeing the rolling.
As the improvement, be provided with the heat insulating board between spraying pond and the drying device, set up the feed inlet that supplies the cloth to pass on the heat insulating board, like this, can separate spraying pond and drying device, avoid spraying the moisture in the pond and exert an influence to drying device.
As an improvement, the drying device is an electric heating device, so that the efficiency is high, the drying effect is good, and the implementation is easy, such as a heating wire heater.
As the improvement, supporting component is the backup pad, has seted up a plurality of net holes in the backup pad, like this, can play the effect of support to the cloth, simultaneously, because the existence of net hole, the air can circulate.
As the improvement, many backing rolls of supporting component, the both ends of backing roll all with frame rotatable coupling, and each backing roll transversely sets up side by side, like this, can play the effect of support to the cloth, can play the effect of air reposition of redundant personnel simultaneously, the conduction of the cloth of more being convenient for in addition.
As an improvement, the cross section of the upper guide plate is arc-shaped, a horn-shaped material passing channel is formed between the upper guide plate and the lower guide plate, the large end of the material passing channel is a feeding hole, the small end of the material passing channel is a discharging hole, and the air blowing hole and the supporting component are arranged at the discharging hole of the material passing channel, so that the horn-shaped material passing channel is more convenient for inputting the material.
As an improvement, the rack is a rectangular frame, and the middle part of the frame is provided with a cross beam and a vertical beam.
As an improvement, the cloth guide device comprises a plurality of guide rollers which are rotatably arranged on a machine frame and are used for conducting the cloth, so that the cloth can be better conducted in each area.
As an improvement, the cloth pressing component comprises a positioning plate, a U-shaped mounting frame, a cloth pressing roller, a rectangular guide rod, a spring, a limiting block and a round guide rod, the positioning plate is fixed in the spray tank, the U-shaped mounting frame is positioned below the positioning plate, the cloth pressing roller is rotatably arranged at the lower end of the U-shaped mounting frame, a rectangular mounting hole is arranged in the middle of the positioning plate, the rectangular guide rod can be vertically and slidably mounted in the rectangular mounting hole, the lower end of the rectangular guide rod is connected with the top end of the U-shaped mounting frame, a limiting block is fixed at the upper end of the rectangular guide rod, the spring is sleeved on the rectangular guide rod, two ends of the spring are respectively abutted against the positioning plate and the U-shaped mounting frame, the round guide rods are respectively arranged at the left side and the right side of the rectangular guide rod, the cloth pressing roller can be guaranteed to always press the cloth under the acting force of the spring, so that the cloth is always positioned below the liquid level and keeps certain tension, and the cloth is better absorbed.
As the improvement, the scraping and coating assembly comprises a left mounting plate, a right mounting plate, two mounting rods connected with the mounting plates and bristles fixed on the mounting rods, wherein the bristles are respectively fixed on the inner sides of the mounting rods and respectively abut against the front and the back of the cloth, so that the antibacterial liquid on the cloth is absorbed more uniformly, and the liquid dropping is prevented.
Drawings

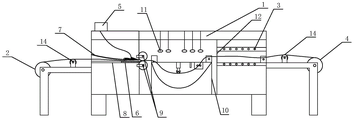

Fig. 1 is a schematic structural diagram of processing equipment for antibacterial clothing fabric.
Fig. 2 is a schematic structural view of the cloth pressing assembly of the present invention.
Fig. 3 is a schematic structural view of a nip roll set in the present invention.
Fig. 4 is a schematic structural view of an upper baffle of the present invention.
Shown in the figure, the device comprises a frame 1, a frame 2, a blowing roller 3, a drying device 4, a winding roller 5, an air pump 6, a support component 7, an upper guide plate 8, a lower guide plate 9, a nip roll group 10, a spray tank 11, a spray head 12, a heat insulation plate 13, an air blowing hole 14, a guide roller 15, a positioning plate 16, a U-shaped mounting frame 17, a cloth pressing roller 18, a rectangular guide rod 19, a spring 20, a circular guide rod 21, a mounting plate 22, a mounting rod 23 and bristles.
Detailed Description
The invention is described in further detail below:
with specific reference to fig. 1-4:
a processing device of antibacterial clothing cloth comprises a frame 1, a discharging roller 2, a blowing stretching device, a spraying device, a drying device 3 and a wind-up roller 4 are sequentially arranged on the frame 1 from left to right, the blowing stretching device comprises an air pump 5, an air pipe, a supporting component 6, an upper guide plate 7 and a lower guide plate 8, the lower guide plate 8 is horizontally fixed on the frame 1, the upper guide plate 7 is obliquely arranged above the lower guide plate 8, both sides of the upper guide plate 7 and the lower guide plate 8 are fixedly connected with the frame 1, a material passing channel for cloth to pass through is formed between the upper guide plate 7 and the lower guide plate 8, an air blowing hole 13 is arranged on the upper guide plate 7, the air blowing hole 13 is connected with the air pipe, one end of the air pipe is connected with the air blowing hole 13, the other end of the air pipe is connected with an air outlet end of the air pump 5, the air pump 5 is fixed at the upper end of the frame 1, the supporting component 6 is arranged on the lower guide plate 8 at an interval corresponding position with the air blowing hole 13, a pressing roller set 9 is arranged at an outlet where the passing material passes, the pressing roller set 9 comprises an upper pressing roller, a lower top roller and a driving motor, the upper pressing roller and the lower top roller are respectively and rotatably arranged on the frame 1, and is driven by a driving motor to rotate, the upper compression roller and the lower top roller can compress cloth, one side of the outlet end of the material pressing roller group 9 is provided with a spraying device, the spraying device comprises a spraying pool 10, a spraying head 11, a spraying pipe, a water pump, a cloth compressing component and a scraping and coating component, the spray tank 10 is fixed inside the frame 1, the spray head 11 is fixed above the spray tank 10, the spray head 11 is connected with a water pump through a spray pipe, the cloth pressing component is fixed on the side wall of the spray tank 10, and can push the cloth to move downwards, the scraping group price is fixed at the rear side of the cloth pressing component and is positioned at the upper part of the spray tank 10, the drying device 3 is positioned at one side of the spray tank 10, and the outlet end of the drying device 3 is provided with a winding roller 4. In the invention, through the arrangement of the blowing-flattening stretching device, the cloth can be ensured to be fully stretched and not to generate wrinkles before being sprayed, and then the cloth is shaped again through the pressing roller group 9, so that the cloth can be fully unfolded when antibacterial liquid is sprayed, so that the spraying and dip-dyeing effects of the antibacterial liquid are ensured, the production quality and the quality of the antibacterial clothes cloth are ensured, particularly, when in work, the cloth is led out from the discharging roller 2, then passes through the blowing-flattening stretching device, the spraying device and the drying device 3 and is finally wound on the winding roller 4, and in the process, the cloth is blown flat, stretched, shaped, sprayed, infiltrated, knife-coated, dried and the like, and is finally wound, wherein when passing through the blowing-flattening stretching device, compressed gas in the air pump 5 is sprayed from the air blowing holes 13 through the air pipe and blown to the cloth, and the cloth is blown and pressed on the supporting component 6, thereby flattening and stretching the cloth to finalize the design under the pressure of nip roll group 9, then draw the cloth and draw forth from blowing roller 2 gradually, can set up a driving motor again on wind-up roll 4 when actual production, thereby better carry out the rolling with the cloth, with the effect of guaranteeing the rolling.
In this embodiment, a heat insulation plate 12 is arranged between the spray tank 10 and the drying device 3, and a feed inlet for cloth to pass through is formed in the heat insulation plate 12, so that the spray tank 10 and the drying device 3 can be separated, and the moisture in the spray tank 10 is prevented from affecting the drying device 3.
In this embodiment, the drying device 3 is an electric heating device, so that the efficiency is high, the drying effect is good, and the implementation is easy, for example, a heating wire heater.
In this embodiment, supporting component 6 is the backup pad, has seted up a plurality of net holes in the backup pad, like this, can play the effect of support to the cloth, simultaneously, because the existence in net hole, the air can circulate.
In this embodiment, 6 many backing rolls of supporting component, the both ends of backing roll all with frame 1 rotatable coupling, and each backing roll transversely sets up side by side, like this, can play the effect of support to the cloth, can play the effect of air reposition of redundant personnel simultaneously, the conduction of the cloth of more being convenient for in addition.
In this embodiment, the cross section of the upper guide plate 7 is arc-shaped, a horn-shaped material passing channel is formed between the upper guide plate 7 and the lower guide plate 8, the large end of the material passing channel is a material inlet, the small end of the material passing channel is a material outlet, and the air blowing hole 13 and the supporting component 6 are arranged at the material outlet of the material passing channel, so that the horn-shaped material passing channel is more convenient for inputting the cloth.
In this embodiment, the frame 1 is a rectangular frame, and a cross beam and a vertical beam are arranged in the middle of the frame.
In this embodiment, the cloth guiding device comprises a plurality of guiding rollers 14 rotatably arranged on the frame 1 for guiding the cloth, so that the cloth can be better guided in each area.
In the embodiment, the cloth pressing component comprises a positioning plate 15, a U-shaped mounting frame 16, a cloth pressing roller 17, a rectangular guide rod 18, a spring 19, a limiting block and a circular guide rod 20, the positioning plate 15 is fixed in the spray pond 10, the U-shaped mounting frame 16 is positioned below the positioning plate 15, the cloth pressing roller 17 is rotatably mounted at the lower end of the U-shaped mounting frame 16, a rectangular mounting hole is formed in the middle of the positioning plate 15, the rectangular guide rod 18 can be vertically and slidably mounted in the rectangular mounting hole, the lower end of the rectangular guide rod 18 is connected with the top end of the U-shaped mounting frame 16, the limiting block is fixed at the upper end of the rectangular guide rod 18, the spring 19 is sleeved on the rectangular guide rod 18, two ends of the spring 19 respectively abut against the positioning plate 15 and the U-shaped mounting frame 16, the circular guide rods 20 are respectively arranged at the left side and the right side of the rectangular guide rod 18, so that the cloth pressing roller 17 can be guaranteed to always press cloth under the acting force of the spring 19, the cloth is always under the liquid level and keeps a certain tension, so that the cloth can be better absorbed.
In this embodiment, the blade coating assembly includes two left and right mounting panels 21, two mounting bars 22 connected with the mounting panels 21 and bristles 23 fixed on the mounting bars 22, the bristles 23 are respectively fixed on the inner sides of the mounting bars 22 and respectively abut against the front and back sides of the cloth, so that the antibacterial liquid on the cloth is absorbed more uniformly, and meanwhile, the dropping liquid is prevented.
In this embodiment, the blowing holes 13 are arranged and distributed in a splayed shape, and the diameters of the blowing holes 13 are gradually reduced from inside to outside, so that the wind force blown out from the blowing holes 13 is increased along with the reduction of the diameters, and the cloth is stretched outwards.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (10)
1. A processing device of antibacterial clothing cloth comprises a frame, a discharging roller, a blowing stretching device, a spraying device, a drying device and a winding roller are sequentially arranged on the frame from left to right, and is characterized in that the blowing stretching device comprises an air pump, an air pipe, a supporting component, an upper guide plate and a lower guide plate, the lower guide plate is horizontally fixed on the frame, the upper guide plate is obliquely arranged above the lower guide plate, both sides of the upper guide plate and the lower guide plate are fixedly connected with the frame, a material passing channel for the cloth to pass through is formed between the upper guide plate and the lower guide plate, an air blowing hole is formed in the upper guide plate, the air pipe is connected with the air blowing hole, one end of the air pipe is connected with the air blowing hole, the other end of the air pipe is connected with an air outlet end of the air pump, the air pump is fixed at the upper end of the frame, the supporting component is arranged on the lower guide plate at a position corresponding to the air blowing hole at an interval, and a material pressing roller set is arranged at an outlet through which the material passing through, the pressing roller group comprises an upper pressing roller, a lower top roller and a driving motor, the upper pressing roller and the lower top roller are respectively rotatably arranged on the frame and are driven to rotate by the driving motor, cloth can be pressed by the upper pressing roller and the lower top roller, a spraying device is arranged on one side of the outlet end of the pressing roller group and comprises a spraying pond, a spraying head, a spraying pipe, a water pump, a cloth pressing component and a scraping and coating component, the spraying pond is fixed in the frame, the spraying head is fixed above the spraying pond, the spraying head is connected with the water pump through the spraying pipe, the cloth pressing component is fixed on the side wall of the spraying pond and can push the cloth to move downwards, the scraping and coating component is fixed on the rear side of the cloth pressing component and located on the upper portion of the spraying pond, the drying device is located on one side of the spraying pond, and the outlet end of the drying device is provided with a winding roller.
2. The processing equipment of the antibacterial clothing fabric according to claim 1, characterized in that a heat insulation plate is arranged between the spraying tank and the drying device, and a feed inlet through which the fabric passes is formed in the heat insulation plate.
3. The processing equipment of the antibacterial garment fabric according to claim 1, wherein the drying device is an electric heating device.
4. The processing equipment of the antibacterial garment fabric according to claim 1, wherein the supporting component is a supporting plate, and a plurality of grid holes are formed in the supporting plate.
5. The processing equipment of the antibacterial garment material according to claim 1, wherein the supporting assembly comprises a plurality of supporting rollers, two ends of each supporting roller are rotatably connected with the rack, and the supporting rollers are transversely arranged in parallel.
6. The processing equipment of the antibacterial clothing fabric according to claim 1, wherein the cross section of the upper guide plate is arc-shaped, a horn-shaped material passing channel is formed between the upper guide plate and the lower guide plate, the large end of the material passing channel is a feeding hole, the small end of the material passing channel is a discharging hole, and the air blowing hole and the supporting component are arranged at the discharging hole of the material passing channel.
7. The processing equipment of the antibacterial clothing fabric according to claim 1, wherein the rack is a rectangular frame, and a cross beam and a vertical beam are arranged in the middle of the frame.
8. The processing equipment of the antibacterial garment fabric according to claim 1, further comprising a plurality of material guide rollers which are rotatably arranged on the frame and used for conducting the fabric.
9. The processing equipment of antibiotic clothing cloth of claim 1, characterized in that, the compress subassembly includes locating plate, U type mounting bracket, compress roller, rectangle guide bar, spring, stopper and circular guide bar, and the locating plate is fixed in the spray tank, and U type mounting bracket is located the below of locating plate, and the lower extreme at U type mounting bracket is seted up in the rotatable installation of compress roller, at the middle part of locating plate rectangle mounting bracket, the rectangle guide bar slidable mounting is in the rectangle mounting hole from top to bottom, and the lower extreme of rectangle guide bar is connected with the top of U type mounting bracket, and the upper end is fixed with the stopper, the spring housing is on the rectangle guide bar, and the both ends of spring respectively lean on with locating plate and U type mounting bracket counterbalance, and circular guide bar sets up respectively in the left and right sides of rectangle guide bar.
10. The processing equipment of the antibacterial garment fabric according to claim 1, wherein the scraping and coating assembly comprises a left mounting plate, a right mounting plate, two mounting rods connected with the mounting plates, and bristles fixed on the mounting rods, wherein the bristles are respectively fixed on the inner sides of the mounting rods and respectively abut against the front side and the back side of the fabric.
