Abstract

The present disclosure provides a display device, comprising: a frame including a frame body and a first protrusion extending from the inner wall of the frame body; and a flat back case fixed on the inner side of the frame body and the first protrusion being away from the light emitting surface side.

Description

Display device

Technical Field

The present disclosure relates to the field of display technologies, and in particular, to a display device.

Background

At present, even an ultrathin liquid crystal television still has a large gap with a wall after being hung on the wall, so that the ultrathin effect of the liquid crystal television is greatly reduced. In addition, the back of the liquid crystal television is easy to accumulate dust, and the cleaning is very inconvenient.

Disclosure of Invention

According to an embodiment of the present disclosure, there is provided a display device including:

the frame comprises a frame body and a first bulge extending out of the inner wall of the frame body; and

the plane back shell is fixed on the inner side of the frame body and one side, far away from the light emitting surface, of the first bulge.

In some embodiments, the planar back shell is bonded to the surface of the first protrusion away from the light emitting surface.

In some embodiments, the bezel further includes a second protrusion extending from the inner wall of the bezel body, the second protrusion includes a first step portion and a second step portion, the first step portion is closer to the bezel body than the second step portion, and a step surface of the first step portion parallel to the light emitting surface is closer to the light emitting surface than a step surface of the second step portion parallel to the light emitting surface; the display device further includes: the optical structure layer is positioned on one side, close to the light-emitting surface, of the second step part and positioned on the inner side of the first step part, and the liquid crystal panel is positioned on one side, close to the light-emitting surface, of the first step part and positioned on the inner side of the frame body.

In some embodiments, a first clamping slot is formed on one side of the first step part, which is close to the light emitting surface, and a second clamping slot is formed on one side of the second step part, which is close to the light emitting surface; the display device further comprises a positioning elastic sheet, the positioning elastic sheet comprises a first clamping plate part, a second clamping plate part and a connecting plate part, the first clamping plate part is clamped with the first clamping slot, the second clamping plate part is clamped with the second clamping slot, and the second clamping plate part is provided with a strip-shaped jack extending parallel to the light emitting surface; the edge of the optical structure layer is provided with a lug, and the lug is inserted into the strip-shaped insertion hole.

In some embodiments, the first step portion has a step surface parallel to the light emitting surface and a sunken groove for accommodating the connecting plate portion, and the depth of the sunken groove is not less than the thickness of the connecting plate portion.

In some embodiments, the bezel includes a top side portion, a ground side support ledge portion, a left side portion and a right side portion, the top side portion being removably coupled to the left side portion and the right side portion, respectively, and the ground side support ledge portion being removably coupled to the left side portion and the right side portion, respectively.

In some embodiments, the display device further comprises: the logic circuit board and the source circuit board are fixed on one side, close to the light-emitting surface, of the ground support frame part, and at least part of the logic circuit board and the source circuit board are overlapped in a direction perpendicular to the light-emitting surface.

In some embodiments, the display device further comprises: and the pair of base mounting brackets are respectively fixed at the left end and the right end of the ground side support frame part and are provided with mounting sockets with openings facing the ground side.

In some embodiments, the bezel is a metal bezel and the planar backshell is a tempered glass backplate.

In some embodiments, the display device further comprises: the wall hanging plate is fixedly connected with a wall and is provided with a plurality of hanging holes; and the hanging pieces are fixed on one side, away from the light emergent surface, of the plane back shell, and can be hung in the hanging holes in the corresponding positions of the wall hanging plates.

In some embodiments, the hanging member is a bolt; the hanging hole comprises a first part and a second part which are combined, the aperture of the first part is larger than the nut diameter of the bolt, the second part is closer to the ground side of the display device than the first part, and the aperture of the second part is larger than the screw diameter of the bolt and smaller than the nut diameter of the bolt.

In some embodiments, the display device comprises a television or a painted screen.

Drawings

The accompanying drawings, which are incorporated in and constitute a part of this specification, illustrate embodiments of the disclosure and together with the description, serve to explain the principles of the disclosure.

The present disclosure may be more clearly understood from the following detailed description, taken with reference to the accompanying drawings, in which:

fig. 1 is a side view of a related art liquid crystal television;

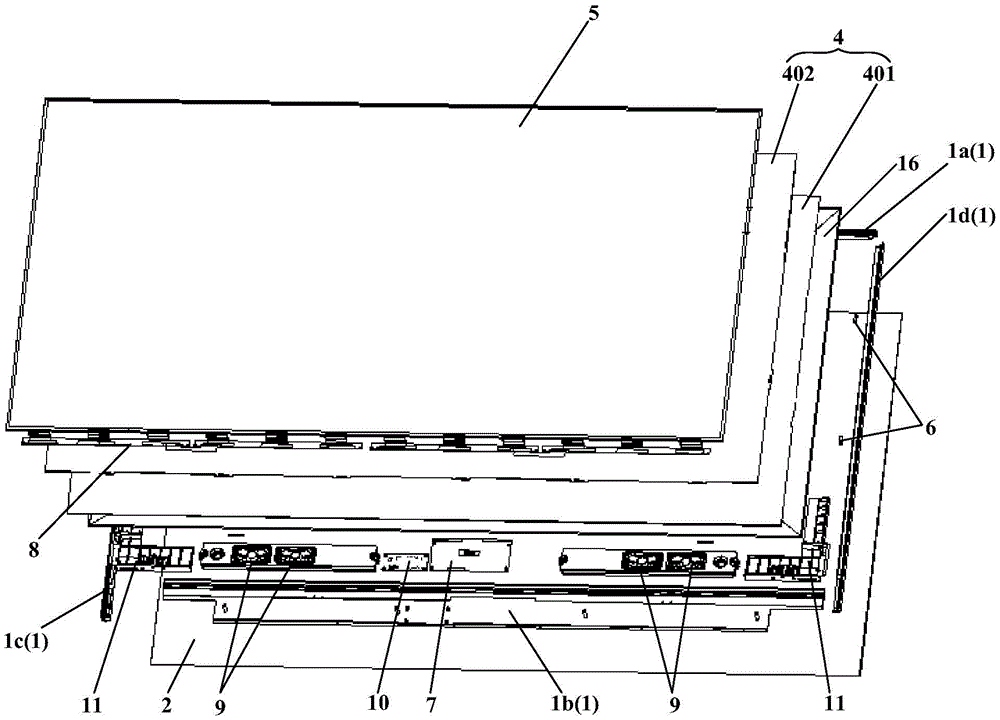

fig. 2a is an exploded view of a display device according to an embodiment of the present disclosure;

FIG. 2b is a front view of a display device of one embodiment of the present disclosure with the internal structure seen in perspective from the ground side;

FIG. 3 is a schematic sectional view taken along line A-A of FIG. 2 b;

FIG. 4 is an enlarged view at P of FIG. 3;

FIG. 5 is a schematic cross-sectional view of an assembly of a positioning spring and a bezel in an embodiment of the present disclosure;

FIG. 6 is a front view of a diffuser plate according to one embodiment of the present disclosure;

fig. 7 is a front view of a display device according to an embodiment of the present disclosure;

FIG. 8 is a side view of a display device according to one embodiment of the present disclosure mounted on a wall;

FIG. 9 is a front view of a wall cladding in one embodiment of the present disclosure;

FIG. 10 is a schematic view of the hanging member and the hanging panel according to an embodiment of the present disclosure.

It should be understood that the dimensions of the various parts shown in the figures are not necessarily drawn to scale. Further, the same or similar reference numerals denote the same or similar components.

Detailed Description

Various exemplary embodiments of the present disclosure will now be described in detail with reference to the accompanying drawings. The description of the exemplary embodiments is merely illustrative and is in no way intended to limit the disclosure, its application, or uses. The present disclosure may be embodied in many different forms and is not limited to the embodiments described herein. These embodiments are provided so that this disclosure will be thorough and complete, and will fully convey the scope of the disclosure to those skilled in the art. It should be noted that: the relative arrangement of parts and steps, the composition of materials, numerical expressions and numerical values set forth in these embodiments are to be construed as merely illustrative, and not as limitative, unless specifically stated otherwise.

The use of "first," "second," and similar terms in this disclosure is not intended to indicate any order, quantity, or importance, but rather are used to distinguish one element from another. The word "comprising" or "comprises", and the like, means that the element preceding the word covers the element listed after the word, and does not exclude the possibility that other elements are also covered. "upper", "lower", and the like are used merely to indicate relative positional relationships, and when the absolute position of the object being described is changed, the relative positional relationships may also be changed accordingly.

In the present disclosure, when a specific component is described as being located between a first component and a second component, there may or may not be intervening components between the specific component and the first component or the second component. When it is described that a specific component is connected to other components, the specific component may be directly connected to the other components without having an intervening component, or may be directly connected to the other components without having an intervening component.

All terms (including technical or scientific terms) used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this disclosure belongs unless specifically defined otherwise. It will be further understood that terms, such as those defined in commonly used dictionaries, should be interpreted as having a meaning that is consistent with their meaning in the context of the relevant art and will not be interpreted in an idealized or overly formal sense unless expressly so defined herein.

Techniques, methods, and apparatus known to those of ordinary skill in the relevant art may not be discussed in detail but are intended to be part of the specification where appropriate.

Fig. 1 is a side view of a related art liquid crystal television. As can be seen from the figure, the back of the liquid crystal television 01 has a convex portion 011. The protruding portion 011 causes a large gap between the lcd tv 01 and a wall after being hung on the wall, which not only affects the installation effect, but also easily causes dust deposition on the back of the lcd tv 01.

To solve the above technical problem, an embodiment of the present disclosure provides a display device particularly suitable for wall-mounted installation.

In the present disclosure, for a display device whose screen is perpendicular or almost perpendicular to a horizontal plane in a use state, a side on which an image is displayed is defined as a light exit surface, a side closer to the ground is defined as a "ground side", a side farther from the ground is defined as a "sky side", a side on the left hand side of a viewer is defined as a "left side", and a side on the right hand side of the viewer is defined as a "left side".

As shown in fig. 2a and 3, a display device according to an embodiment of the present disclosure includes: the frame comprises a frame 1 and a plane back shell 2, wherein the frame 1 comprises a frame body 101 and a first bulge 102 extending from the inner wall of the frame body 101; the planar back shell 2 is fixed to the inner side of the frame body 101 and a side of the first protrusion 102 away from the light emitting surface 3.

Wherein, the frame 1 can adopt a metal frame, such as an aluminum frame. The plane back shell 2 can adopt a toughened glass back plate or a stainless steel back plate. As shown in fig. 2a, in one embodiment, the frame 1 includes a top side portion 1a, a bottom side support frame portion 1b, a left side portion 1c and a right side portion 1d, and the top side portion 1a is detachably connected to the left side portion 1c and the right side portion 1d, for example, by screws, and the bottom side support frame portion 1b is detachably connected to the left side portion 1c and the right side portion 1d, for example, by screws. Due to the design, the metal frame can be conveniently manufactured, and the manufacturing cost can be reduced.

As shown in fig. 2a and fig. 3, in order to realize the basic display function, the display device further includes a lamp set 15, a reflective sheet 16, a diffuser plate 401, an optical film 402, a liquid crystal panel 5, a front frame 17, and the like, in addition to the bezel 1 and the planar back case 2. As shown in fig. 3, the planar back shell 2 is fixedly connected to a side of the frame 1 away from the light-emitting surface 3, the front frame 17 is fixedly connected to a side of the frame 1 close to the light-emitting surface 3, and the planar back shell 2, the frame 1 and the front frame 17 form an accommodating cavity for supporting and spatially positioning the lamp set 15, the reflector 16, the diffuser 401, the optical film 402 and the liquid crystal panel 5 accommodated therein.

As shown in fig. 3, in the receiving cavity formed by the planar back case 2, the bezel 1 and the front frame 17, the lamp set 15, the reflective sheet 16, the diffusion plate 401, the optical film 402, and the liquid crystal panel 5 are sequentially disposed in a direction away from the planar back case 2, wherein the optical film 402 may be one sheet or a plurality of sheets stacked. The Light group 15 may be a Light Emitting Diode (LED) Light group, such as an LED Light bar or an LED Light panel including a plurality of LED chips 151. The reflection sheet 16 has a hole 161 at a position opposite to the LED chip 151. After the lamp assembly 15 is assembled with the reflector 16, the LED chips 151 pass through the holes 161 formed in the reflector 16, and the emitted light is directly emitted to the diffuser 401. The diffusion plate 401 optically diffuses and homogenizes light. The light passing through the diffusion plate 401 is then brightened and atomized by the optical film 402 to achieve higher brightness and uniformity, thereby providing a higher quality backlight for the liquid crystal panel 5.

The display device of the embodiment of the disclosure can be installed on a wall or directly placed on a table top through the base. Because the back shell is in a plane shape and is embedded in the inner side of the frame, the appearance of the display device is thinner. As shown in fig. 8, when the wall-mounted display device 100 is mounted on a wall, the display device is almost attached to the wall, and dust is not easily deposited on the back surface of the display device, resulting in a better mounting effect.

In the embodiment of the present disclosure, the fixing manner of the planar back shell and the frame is not limited. For example, the planar back shell may be fixedly connected to a side of the frame away from the light exit surface by a countersunk screw. In the embodiment shown in fig. 3, the first protrusion 102 is plate-shaped, and the planar back shell 2 is bonded to the surface of the first protrusion 102 away from the light emitting surface 3. Thus, the number of screw holes in the flat back case 2 can be reduced, thereby making the back surface of the display device more beautiful.

As shown in fig. 3 and 4, in this embodiment of the disclosure, the bezel 1 further includes a second protrusion 103 extending from an inner wall of the bezel body 101, the second protrusion 103 includes a first step 1031 and a second step 1032, the first step 1031 is closer to the bezel body 101 than the second step 1032, and a step surface of the first step 1031 parallel to the light emitting surface 3 is closer to the light emitting surface 3 than a step surface of the second step 1032 parallel to the light emitting surface 3; the optical structure layer 4 of the display device is located on the side of the second step portion 1032 close to the light emitting surface 3 and located inside the first step portion 1031, and the liquid crystal panel 5 of the display device is located on the side of the first step portion 1031 close to the light emitting surface 3 and located inside the bezel body 101. The optical structure layer 4 includes a diffusion plate 401 and at least one optical film 402 sequentially arranged in a direction away from the planar back case 2, where the optical film 402 is, for example, a prism sheet or a diffusion sheet.

The liquid crystal panel 5 is positioned in space by the first stepped portion 1031, the bezel body 101, and the front frame 17. The optical structure layer 4 also needs to be spatially positioned before assembling the liquid crystal panel 5. As shown in fig. 4, fig. 5 and fig. 6, a first clamping slot 1033 is formed at a side of the first step portion 1031 close to the light emitting surface 3, and a second clamping slot 1034 is formed at a side of the second step portion 1032 close to the light emitting surface 3; the display device further comprises a positioning elastic sheet 6, the positioning elastic sheet 6 comprises a first clamping plate portion 601, a second clamping plate portion 602 and a connecting plate portion 603, the first clamping plate portion 601 is clamped with the first clamping slot 1033, the second clamping plate portion 602 is clamped with the second clamping slot 1034, and the second clamping plate portion 602 is provided with a strip-shaped jack 604 extending parallel to the light emitting surface 3; the edges of the diffuser plate 401 and the optical film 402 have bosses 4011, and the bosses 4011 are inserted into the strip-shaped receptacles 604.

In the embodiment of the present disclosure, each positioning elastic piece 6 is engaged with one first card slot 1033 and one second card slot 1034. As shown in fig. 6, the diffuser plate 401 has four lugs 4011 at the edge, two on the left and right, and asymmetrically distributed, so as to prevent reverse assembly. The optical film 402 is similar in structure to the diffuser plate 401 and has a distribution of lugs corresponding to the diffuser plate 401. As shown in fig. 4, the lugs of the diffuser plate 401 and the optical film 402 located at the same position are inserted into the strip-shaped insertion hole of one positioning elastic sheet 6. As shown in fig. 3 and 4, due to the asymmetrical design of the left and right lugs of the diffusion plate 401 and the optical film layer 402, the first and

second clamping slots

1033 and 1034 are not seen in the cross section of the left first stepped portion 1031 and the second stepped portion 1031, and the first and

second clamping slots

1033 and 1034 are seen in the cross section of the right first stepped portion 1031 and the second stepped portion 1031.

As shown in fig. 5, the first clamping plate portion 601 and the second clamping plate portion 602 have a protruding hook 605 on the side away from each other, and a hook groove is correspondingly disposed in the first clamping slot 1033 and the second clamping slot 1034, respectively, so that the positioning elastic sheet is mounted on the frame by the cooperation of the hook 605 and the clamping groove.

Before assembling the diffuser plate 401, the positioning elastic sheet 6 is first assembled with the frame 1, then the lug 4011 of the diffuser plate 401 is inserted into the strip-shaped insertion hole 604 of the positioning elastic sheet 6, and the diffuser plate 401 is placed on the step surface of the second step portion 1032 parallel to the light emitting surface 3. The optical film 402 is then assembled in a similar manner. After the optical structure layer 4 (i.e., the diffusion plate 401 and each optical film 402) is assembled, the optical structure layer is positioned in the space by the first stepped portion 1031, the second stepped portion 1032 and the positioning elastic sheet 6.

The positioning elastic sheet 6 can be a metal positioning elastic sheet or a plastic positioning elastic sheet. The number and the specific arrangement position of the positioning elastic sheets 6 are not limited, and the corresponding design can be carried out according to the specification and the size of the display device. For example, in one embodiment, the number of the positioning elastic pieces is 4, wherein 2 positioning elastic pieces are arranged on the left side part of the frame, and the other 2 positioning elastic pieces are arranged on the right side part of the frame.

As shown in fig. 5, the step surface of the first step portion 1031 parallel to the light emitting surface 3 has a sinking groove 1021 for accommodating the connecting plate portion 603, and the depth of the sinking groove 1021 is not less than the thickness of the connecting plate portion 603. Thus, the connecting plate portion 603 does not protrude from the step surface of the first step portion 1031 parallel to the light exit surface 3, and damage to the liquid crystal panel 5 can be reduced.

As shown in fig. 2a and 2b, in an embodiment of the present disclosure, a logic circuit board 7(T-CON board) and a SOURCE circuit board 8(SOURCE board) are fixed on the ground-side support frame portion 1b of the bezel 1 on a side close to the light exit surface. The source circuit board 8 and the liquid crystal panel 5 are connected by a flexible circuit board and folded toward the back side of the reflection sheet 16 after assembly. In the embodiment of the present disclosure, the logic circuit board 7 and the source circuit board 8 are at least partially overlapped in a direction perpendicular to the light exit surface 3. Thus, the occupied area of the logic circuit board 7 and the source circuit board 8 on the ground-side support shelf portion 1b can be reduced, and the layout design of the electronic components on the ground-side support shelf portion 1b can be optimized.

In addition, a horn 9 and a transition outlet plate 10 are fixed to the ground support frame portion 1b on a side close to the light exit surface. The speaker 9 is not overlapped with the circuit boards such as the logic circuit board 7, the source circuit board 8 and the switching outlet board 10 in the direction perpendicular to the light emitting surface. The number of the loudspeakers 9 can be multiple, and the loudspeakers can be symmetrically arranged relative to the longitudinal central axis of the display device, so that the sound production effect is improved.

In one embodiment, a pair of base mounting brackets 11 are further fixed to both left and right ends of the ground support frame portion 1 b. The pair of base mounting brackets 11 have mounting sockets that open to the ground side. The pair of base mounting brackets 11 are hidden inside the display device, and the wall-mounted mounting effect of the display device cannot be influenced. When the display device does not need to be wall-mounted, but is desired to be placed directly on a table top via a base, a matching base (not shown) is inserted into the mounting sockets of the pair of base mounting brackets 11. The user of the display equipment can flexibly select the installation mode of the display device according to the actual situation.

As shown in fig. 7, in an embodiment of the present disclosure, the display device 100 further includes an external host 12, and the external host 12 integrates a main board 121, at least one operation key 122, and at least one interface 123. By placing the main board 121, the operation keys 122 and the interface 123 in an external host 12, the structural design of the display device main body can be simplified, and the display device main body has a smaller thickness and a slimmer appearance. The external host 12 may be connected to the display device main body by a wire through a cable, or wirelessly connected to the display device main body by a wireless method such as bluetooth. The external host 12 can be placed on a table top and can flexibly move within a certain range, so that the convenience of use is improved.

As shown in fig. 8, 9 and 10, in one embodiment of the present disclosure, the display device 100 is used for wall-mounted installation, and further includes: the wall hanging plate 13 is fixedly connected with a wall, and the wall hanging plate 13 is provided with a plurality of hanging holes 131; and a plurality of hanging pieces 14 fixed on one side of the plane back shell far away from the light-emitting surface, wherein the hanging pieces 14 can be hung in a plurality of hanging holes 131 at corresponding positions of the wall hanging plate 13.

As shown in fig. 9 and 10, the hanging member 14 may be a bolt, the hanging hole 131 includes a first portion 131a and a second portion 131b which are combined, the first portion 131a has a hole diameter larger than the diameter of the nut 141 of the bolt, the second portion 131b is closer to the ground side of the display device than the first portion 131a, and the second portion 131b has a hole diameter larger than the diameter of the shank 142 of the bolt and smaller than the diameter of the nut 141 of the bolt.

When the display device is installed on a wall, firstly, the wall hanging plate 13 is fixed on the wall through an expansion bolt; then, the display device is lifted up, and bolts each serving as a hanging member 14 on the back side of the display device are inserted into the first portions 131a of the hanging holes 131; after releasing the hand slowly, the bolt falls into the second portion 131b of the hanging hole 131 by gravity, thereby preventing the bolt from being released from the hanging hole 131. The installation mode is not only simple, but also reliable and safe. When the display device needs to be detached from the wall, the display device is lifted, the bolt enters the first portion 131a of the hanging hole 131, and the display device is taken out.

In the above embodiments of the present disclosure, the specific type of the display device is not limited, and may be, for example, a television, a screen, or the like. Display device can the hanging installation or directly place on the mesa through the base, and when adopting the hanging mounting means, display device can almost with the wall laminating, the back is also difficult for the deposition, the installation effect preferred.

Thus, various embodiments of the present disclosure have been described in detail. Some details that are well known in the art have not been described in order to avoid obscuring the concepts of the present disclosure. It will be fully apparent to those skilled in the art from the foregoing description how to practice the presently disclosed embodiments.

Although some specific embodiments of the present disclosure have been described in detail by way of example, it should be understood by those skilled in the art that the foregoing examples are for purposes of illustration only and are not intended to limit the scope of the present disclosure. It will be understood by those skilled in the art that various changes may be made in the above embodiments or equivalents may be substituted for elements thereof without departing from the scope and spirit of the present disclosure. The scope of the present disclosure is defined by the appended claims.

Claims

A display device, comprising:

the frame comprises a frame body and a first bulge extending out of the inner wall of the frame body; and

the plane back shell is fixed on the inner side of the frame body and one side, far away from the light emitting surface, of the first bulge.
The display device according to claim 1, wherein:

the plane back shell is bonded with the surface of the first bulge, which is far away from the light-emitting surface.
The display device according to claim 1, wherein:

the frame further comprises a second protrusion extending from the inner wall of the frame body, the second protrusion comprises a first step part and a second step part, the first step part is closer to the frame body than the second step part, and a step surface of the first step part, which is parallel to the light emitting surface, is closer to the light emitting surface than a step surface of the second step part, which is parallel to the light emitting surface;

the display device further includes: the optical structure layer is positioned on one side, close to the light-emitting surface, of the second step part and positioned on the inner side of the first step part, and the liquid crystal panel is positioned on one side, close to the light-emitting surface, of the first step part and positioned on the inner side of the frame body.
The display device according to claim 3, wherein:

one side of the first step part, which is close to the light emitting surface, is provided with a first clamping slot, and one side of the second step part, which is close to the light emitting surface, is provided with a second clamping slot;

the display device further comprises a positioning elastic sheet, the positioning elastic sheet comprises a first clamping plate part, a second clamping plate part and a connecting plate part, the first clamping plate part is clamped with the first clamping slot, the second clamping plate part is clamped with the second clamping slot, and the second clamping plate part is provided with a strip-shaped jack extending parallel to the light emitting surface;

the edge of the optical structure layer is provided with a lug, and the lug is inserted into the strip-shaped insertion hole.
The display device according to claim 4, wherein:

the first step portion is parallel to the step surface of the light emitting surface and is provided with a sinking groove used for accommodating the connecting plate portion, and the depth of the sinking groove is not smaller than the thickness of the connecting plate portion.
The display device according to claim 1, wherein:

the frame includes day side portion, ground side support frame portion, left side portion and right side portion, the day side portion with left side portion with the right side portion can dismantle respectively and be connected, ground side support frame portion with left side portion with the right side portion can dismantle respectively and be connected.
The display device according to claim 6, further comprising:

the logic circuit board and the source circuit board are fixed on one side, close to the light-emitting surface, of the ground support frame part, and at least part of the logic circuit board and the source circuit board are overlapped in a direction perpendicular to the light-emitting surface.
The display device according to claim 6, further comprising:

and the pair of base mounting brackets are respectively fixed at the left end and the right end of the ground side support frame part and are provided with mounting sockets with openings facing the ground side.
The display device according to claim 1, wherein:

the frame is a metal frame, and the plane dorsal scale is a toughened glass backboard.
The display device according to claim 1, further comprising:

the wall hanging plate is fixedly connected with a wall and is provided with a plurality of hanging holes; and

the hanging pieces are fixed on one side, away from the light emitting surface, of the plane back shell, and can be hung in a plurality of hanging holes in corresponding positions of the wall hanging plate.
The display device according to claim 10, wherein:

the hanging piece is a bolt;

the hanging hole comprises a first part and a second part which are combined, the aperture of the first part is larger than the nut diameter of the bolt, the second part is closer to the ground side of the display device than the first part, and the aperture of the second part is larger than the screw diameter of the bolt and smaller than the nut diameter of the bolt.
A display device according to any one of claims 1-11, wherein the display device comprises a television set or a painted screen.
