Abstract

本发明公开了一种穿着舒适的三角裤型卫生用品，包括吸收主体以及连接吸收主体前后两端的腰围，吸收主体在长度方向上的宽度由前端至后端不断增加，吸收主体在长度方向上中部的宽度大于其前端的宽度，吸收主体展平后，腰围展平且位于吸收主体的顶部，腰围在厚度方向上的投影与吸收主体的投影相重合，穿着后，吸收主体的前端两侧向内侧倾斜，腰围的前端下侧朝中部向上倾斜，上侧与水平面持平，避开鼠蹊部与腿部之间的位置，从而减少吸收主体与运动位置之间产生的相对摩擦，提高使用者穿着的舒适感，此外，在底层无纺布与覆盖层无纺布之间设置有兜底橡筋，可使吸收体更加紧贴排泄口，使得产品更贴身舒适，不易前后漏液，加强卫生防护。

Figure 202110506670

The invention discloses a brief-type sanitary product comfortable to wear, comprising an absorbing body and a waistline connecting the front and rear ends of the absorbing body. The width of the absorbing body in the longitudinal direction increases continuously from the front end to the rear end; The width of the absorbent body is greater than the width of its front end. After the absorbent body is flattened, the waistline is flattened and located on the top of the absorbent body. The projection of the waistline in the thickness direction coincides with the projection of the absorbent body. After wearing, the front side of the absorbent body is turned to the inside Inclined, the lower side of the front end of the waistline is inclined upward toward the middle, and the upper side is level with the horizontal plane, avoiding the position between the groin and the leg, thereby reducing the relative friction between the absorption body and the movement position, and improving the wearing comfort of the user In addition, there is a bottom elastic band between the bottom layer non-woven fabric and the cover layer non-woven fabric, which can make the absorber more close to the excretion opening, making the product more comfortable, not easy to leak liquid front and rear, and strengthening sanitation protection.

Figure 202110506670

Description

Briefs type sanitary article comfortable to wear
Technical Field
The invention relates to a sanitary article, in particular to a briefs type sanitary article which is comfortable to wear.
Background
The existing briefs type sanitary article consists of an absorption main body and a waistline, the absorption main body is of a structure with a narrow middle and wide ends in the length direction after being flattened, one end of the absorption main body plays a role of wrapping buttocks, and the other end of the absorption main body is adaptive to the shape of a groin part, so that the two sides of the absorption main body are easy to contact with the two sides of the groin part, namely the position between the groin part and the leg part is contacted, and the positions of the two sides of the absorption main body can rub against the two sides of the groin part for a long time when the user wears the absorption main body for a long time; in addition, the existing pants-type sanitary article has simple structure and poor side leakage prevention effect.
Disclosure of Invention
In order to overcome the defects of the prior art, the invention provides a briefs type sanitary product which is comfortable to wear.
The technical scheme adopted by the invention for solving the technical problems is as follows:
the utility model provides a wear comfortable briefs type health supplies, includes the absorption main part and connects the waistline at both ends around the absorption main part, the absorption main part has length direction, width direction and thickness direction, the absorption main part is in the width in length direction is by front end to rear end constantly increase, the absorption main part is in the width at length direction upper middle part is greater than the width of its front end, after the absorption main part is flattened, the waistline is flat and is located the top of absorption main part, the waistline is in the projection in thickness direction with the projection of absorption main part coincides mutually.
The absorption main body is provided with a bottom layer non-woven fabric, a covering layer non-woven fabric and an absorber in sequence from bottom to top in the thickness direction.
At least three pocket bottom rubber bands are arranged between the bottom layer non-woven fabric and the covering layer non-woven fabric in the length direction, and the pocket bottom rubber bands are located on the lower side of the absorber.
Leg surrounding rubber bands are arranged between the bottom layer non-woven fabric and the covering layer non-woven fabric, and the leg surrounding rubber bands are arranged along the edges of the two sides of the bottom layer non-woven fabric in the length direction.
The absorbing body comprises absorption core, water conservancy diversion layer, top layer non-woven fabrics, the water conservancy diversion layer sets up the top surface of absorbing the core, the top layer non-woven fabrics is in the width direction is fitted with a contraceptive ring around the package and is covered absorb core and water conservancy diversion layer, the absorbing body is in the ascending both sides cladding of length direction has the side leakage non-woven fabrics of preventing.
The downside of preventing the edge leakage non-woven fabrics is equipped with the downside and bordures, the downside bordures the cladding in the bottom surface edge of absorber, and be whole bonding between the two, the upside of preventing the edge leakage non-woven fabrics is equipped with the upside and bordures, the upside bordures the cladding in the top surface edge of absorber, and bond at both ends between the two, make the upside of preventing the edge leakage non-woven fabrics bordure can to the width direction stretches out, thereby prevent the edge leakage non-woven fabrics with form between the absorber and hold the cavity.
The upper side wrapping edge is provided with a three-dimensional enclosure rubber band in the length direction, and the upper side wrapping edge wraps the three-dimensional enclosure rubber band.
And core body rubber bands are arranged on the surface layer non-woven fabric corresponding to the edges of the two sides of the top surface of the absorption core body in the length direction.
And the top surface of the surface layer non-woven fabric is provided with reinforced non-woven fabrics at positions corresponding to two ends of the absorber in the length direction.
The waistline includes outer waist circumference non-woven fabrics and interior waist circumference non-woven fabrics, the waistline is flat back of exhibition, the inboard of waistline is equipped with the waistline rubber band, and the outside is equipped with the elasticity membrane, waistline rubber band and elasticity membrane all are located between outer waist circumference non-woven fabrics and the interior waist circumference non-woven fabrics.
The invention has the beneficial effects that: the width of the front end of the absorption body is smaller than that of the rear end of the absorption body, the width of the front end of the waistline is smaller than that of the rear end of the waistline, so that the width of the absorption body is gradually widened from the front end to the rear end, the width of the waistline is gradually widened from the front end to the rear end, after the novel multifunctional combined absorption body is worn, two sides of the front end of the absorption body incline inwards, the lower side of the front end of the waistline inclines upwards towards the middle part, and the position between a mouse style part and legs is avoided, so that the relative friction between the absorption body and a sports position is reduced, and the.
Drawings
The invention is further illustrated with reference to the following figures and examples.

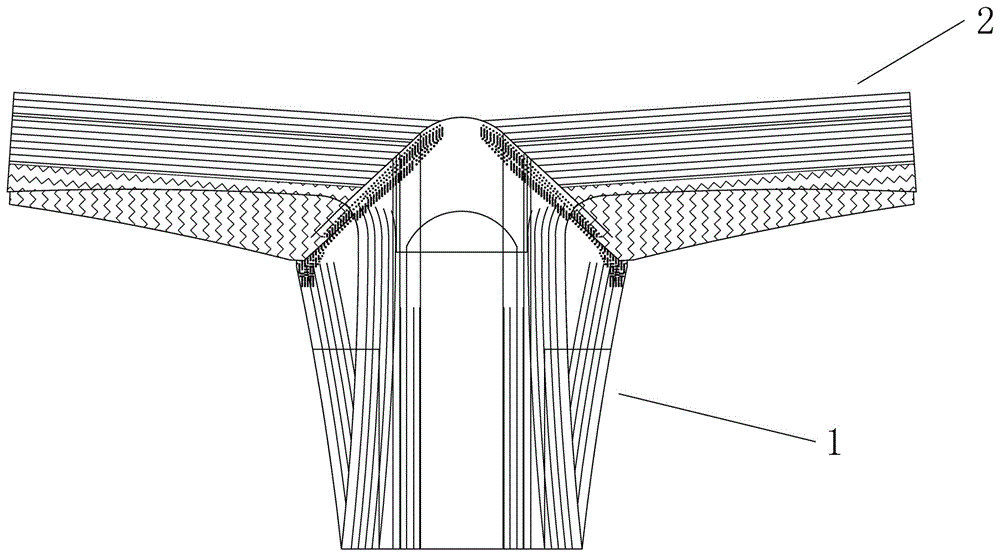

Fig. 1 is a schematic structural view of the present invention.
Fig. 2 is a schematic view of the structure of the absorption body after it has been laid flat.
Fig. 3 is a schematic view of the waist-girth after being flattened.
Fig. 4 is a schematic cross-sectional view of the invention after flattening.
Figure 5 is a schematic cross-sectional view of an absorption body.
Fig. 6 is a schematic cross-sectional view after waist girth is flattened.
Figure 7 is a schematic cross-sectional view of an absorbent core.
Description of the reference numerals
1 absorption body
2 waist circumference
3 bottom layer non-woven fabric
4-layer non-woven fabric
5 absorbent core
6 diversion layer
7 surface layer non-woven fabric
8 side leakage prevention non-woven fabric
9 pocket bottom rubber band
10 leg rubber band
11 core rubber band
12 stereo protective rubber band
13 reinforced nonwoven fabric
14 outer waist circumference non-woven fabric
15 inner waist non-woven fabric
16 waistline rubber band
17 elastic film
L longitudinal direction
W width direction
T thickness direction.
Detailed Description
Referring to fig. 1 to 7, a briefs-type sanitary article comfortable to wear includes an absorption body 1 and a waistline 2 connecting front and rear ends of the absorption body 1, the absorption body 1 has a length direction L, a width direction W and a thickness direction T, the width of the absorption body 1 in the length direction L continuously increases from the front end to the rear end, the width of the absorption body 1 in the middle of the length direction L is greater than the width of the front end, after the absorption body 1 is flattened, the waistline 2 is flattened and positioned on the top of the absorption body 1, the projection of the waistline 2 in the thickness direction T coincides with the projection of the absorption body 1, in this embodiment, the absorption body 1 has a bilateral symmetry structure in the length direction L, the waistline 2 is divided into a left waistline and a right waistline, and is respectively connected to two sides of the end of the absorption body 1, left side waistline and right waistline set up for the symmetry equally, after the exhibition is flat left side waistline and right waistline and absorption main part 1 coincidence make thereby left side waistline and right waistline lean on the edge in the outside to produce the width change gradually, and after the dress, the inboard slope of front end both sides of absorption main part, the front end downside of waistline middle part upslope, the upside keeps level with the horizontal plane, avoids the position between formula portion and the shank, thereby reduces the relative friction that produces between absorption main part and the motion position, improves the comfort that the user wore.
The absorption main part 1 is in thickness direction T is equipped with bottom non-woven fabrics 3, overburden non-woven fabrics 4, absorber by supreme down in proper order, and in this embodiment, bottom non-woven fabrics 3 correspond the position of absorber is equipped with the PE membrane, 3 cladding of bottom non-woven fabrics the PE membrane, adopt between bottom non-woven fabrics 3 and the PE membrane to spout gluey the connection in succession, the hem of bottom non-woven fabrics 3 adopts to spout gluey the connection in succession equally.
The leg is enclosed the rubber band 10 with be equipped with between the overburden non-woven fabrics 4, just the leg encloses the rubber band 10 and is in length direction L goes up along the both sides edge setting of bottom non-woven fabrics 3 adopts leg to enclose rubber band 10 and can tighten up the shank opening, makes the absorption main part paste skin more closely, in this embodiment, adopt between bottom non-woven fabrics 3 and the absorber to spout in succession and glue and be connected, the interval between the leg encloses rubber band 10 is 5mm, and the stretch magnification scope is 2-3, preferred 2.1.
The absorber consists of an absorption core body 5, a flow guide layer 6 and a surface layer non-woven fabric 7, the flow guide layer 6 is arranged on the top surface of the absorption core body 5, the surface layer non-woven fabric 7 is wound and covered on the absorption core body 5 and the flow guide layer 6 in the width direction W, the absorbent body is coated with side leakage-proof non-woven fabrics 8 at two sides in the length direction L, the side leakage-proof non-woven fabrics 8 can prevent liquid from leaking from two sides of the absorbent core body 5, the side leakage-proof function is improved, in the embodiment, the lower toilet paper is wrapped outside the absorbent core 5, the upper and lower sides of the absorbent core 5 are connected with the lower toilet paper by continuous glue spraying, the absorption core body 5 and the diversion layer 6 are fixed by continuously spraying glue, the surface layer non-woven fabric 7 is covered on the top surface of the absorption body downwards, and the surface layer non-woven fabric 7 and the upper side and the lower side of the absorption body are connected by continuously spraying glue.
Prevent that the downside of edge leakage non-woven fabrics 8 is equipped with the downside and bordures, the downside is bordured the cladding and is in the bottom surface edge of absorber, and for whole bonding between the two, adopt to spout in succession and glue the connection, the upside of preventing edge leakage non-woven fabrics 8 is equipped with the upside and bordures, the upside is bordured the cladding and is in the top surface edge of absorber, and bond at both ends between the two, adopt to spout in succession to glue the connection, make the upside of preventing edge leakage non-woven fabrics 8 bordure can to width direction W stretches out, thereby prevent edge leakage non-woven fabrics 8 with it holds the cavity to form between the absorber, because absorb in time and the liquid that spills inadequately can concentrate hold in the cavity to progressively absorb, further improve the function.
The upside is bordured length direction L is equipped with three-dimensional enclosure rubber band 12, the upside is bordured the cladding three-dimensional enclosure rubber band 12, increases the deflection of preventing the edge leakage non-woven fabrics 8, prevents that the deformation of preventing the edge leakage non-woven fabrics 8 leads to liquid to spill, in this embodiment, three-dimensional enclosure rubber band 12 adopts and is interrupted the frictioning to fix on preventing the edge leakage non-woven fabrics 8, the interval between the three-dimensional enclosure rubber band 12 is 5mm, and the stretch ratio scope is 2.2-3.2, preferred 2.2.
The surface layer non-woven fabric 7 is provided with core body rubber bands 11 corresponding to the edges of the two sides of the top surface of the absorption core body 5 in the length direction L, the stiffness of the surface layer non-woven fabric 7 and the absorption core body 5 is increased, the surface layer non-woven fabric 7 and the absorption core body 5 are protruded to have a stereoscopic impression, in the embodiment, the core body rubber bands 11 are fixed on the surface layer non-woven fabric 7 by adopting interrupted frictioning, the core body rubber bands 11 are independently arranged, and the stretching multiplying power range is 2-3, preferably 2.0.
The top surface of the surface layer non-woven fabric 7 is provided with reinforced non-woven fabrics 13 at positions corresponding to the two ends of the absorber in the length direction L, and the reinforced non-woven fabrics 13 are used for preventing liquid at the front end and the rear end of the absorption core body 5 from leaking out.
The waistline 2 comprises an outer waistline non-woven fabric 14 and an inner waistline non-woven fabric 15, after the waistline 2 is flattened, a waistline rubber band 16 is arranged on the inner side of the waistline 2, an elastic film 17 is arranged on the outer side of the waistline 2, the waistline rubber band 16 and the elastic film 17 are both located between the outer waistline non-woven fabric 14 and the inner waistline non-woven fabric 15, the elastic force of the waistline is enough and is more suitable for skin, loosening and falling are prevented, the elastic film 17 can reduce the generation of tightening marks, and the wearing comfort is improved.
Bottom non-woven fabrics 3 with between the overburden non-woven fabrics 4 be provided with at least three pocket bottom rubber bands 9 on the length direction L, pocket bottom rubber band 9 is located the downside of absorber can make the absorber hug closely the escape orifice more for the product is more comfortable next to the shin, and the weeping around being difficult for strengthens the sanitary protection.
The above embodiments do not limit the scope of the present invention, and those skilled in the art can make equivalent modifications and variations without departing from the overall concept of the present invention.

Claims (10)

1.一种穿着舒适的三角裤型卫生用品，包括吸收主体（1）以及连接所述吸收主体（1）前后两端的腰围（2），所述吸收主体（1）具有长度方向、宽度方向和厚度方向，其特征在于所述吸收主体（1）在所述长度方向上的宽度由前端至后端不断增加，所述吸收主体（1）在所述长度方向上中部的宽度大于其前端的宽度，所述吸收主体（1）展平后，所述腰围（2）展平且位于所述吸收主体（1）的顶部，所述腰围（2）在所述厚度方向上的投影与所述吸收主体（1）的投影相重合。1. A brief-type sanitary product that is comfortable to wear, comprising an absorbing body (1) and a waistline (2) connecting the front and rear ends of the absorbing body (1), the absorbing body (1) having a length direction, a width direction and The thickness direction is characterized in that the width of the absorption body (1) in the longitudinal direction increases continuously from the front end to the rear end, and the width of the middle part of the absorption body (1) in the longitudinal direction is greater than the width of the front end of the absorption body (1). , after the absorption body (1) is flattened, the waistline (2) is flattened and located at the top of the absorption body (1), and the projection of the waistline (2) in the thickness direction is the same as the absorption The projections of the subject (1) coincide. 2.根据权利要求1所述的穿着舒适的三角裤型卫生用品，其特征在于所述吸收主体（1）在所述厚度方向由下至上依次设有底层无纺布（3）、覆盖层无纺布（4）、吸收体。2. The comfortable briefs-type sanitary product according to claim 1, characterized in that the absorbent body (1) is sequentially provided with a bottom non-woven fabric (3) in the thickness direction from bottom to top, and a cover layer without Textile (4), absorber. 3.根据权利要求2所述的穿着舒适的三角裤型卫生用品，其特征在于所述底层无纺布（3）与所述覆盖层无纺布（4）之间在所述长度方向上设置有至少三根兜底橡筋（9），所述兜底橡筋（9）位于所述吸收体的下侧。3. The comfortable briefs-type sanitary product according to claim 2, characterized in that the bottom layer non-woven fabric (3) and the cover layer non-woven fabric (4) are arranged in the longitudinal direction There are at least three bottom pocket elastics (9), and the bottom pocket elastics (9) are located on the lower side of the absorbent body. 4.根据权利要求2所述的穿着舒适的三角裤型卫生用品，其特征在于所述底层无纺布（3）与所述覆盖层无纺布（4）之间设有腿围橡筋（10），且所述腿围橡筋（10）在所述长度方向上沿所述底层无纺布（3）的两侧边缘设置。4. The comfortable briefs-type sanitary product according to claim 2, characterized in that a leg-circumference elastic band ( 10), and the leg circumference elastic band (10) is arranged along the edge of both sides of the bottom non-woven fabric (3) in the longitudinal direction. 5.根据权利要求2所述的穿着舒适的三角裤型卫生用品，其特征在于所述吸收体由吸收芯体（5）、导流层（6）、表层无纺布（7）组成，所述导流层（6）设置在所述吸收芯体（5）的顶面，所述表层无纺布（7）在所述宽度方向上环绕包覆所述吸收芯体（5）和导流层（6），所述吸收体在所述长度方向上的两侧包覆有防侧漏无纺布（8）。5. The comfortable briefs-type sanitary product according to claim 2, characterized in that the absorbent body is composed of an absorbent core (5), a flow guiding layer (6), and a nonwoven surface layer (7), and the The air guide layer (6) is arranged on the top surface of the absorbent core (5), and the surface layer non-woven fabric (7) wraps around the absorbent core (5) and the air guide in the width direction Layer (6), both sides of the absorber in the longitudinal direction are covered with non-woven fabrics (8) for preventing side leakage. 6.根据权利要求4所述的穿着舒适的三角裤型卫生用品，其特征在于所述防侧漏无纺布（8）的下侧设有下侧包边，所述下侧包边包覆在所述吸收体的底面边缘，且两者之间为整体粘合，所述防侧漏无纺布（8）的上侧设有上侧包边，所述上侧包边包覆在所述吸收体的顶面边缘，且两者之间在两端粘合，使所述防侧漏无纺布（8）的上侧包边可向所述宽度方向伸出，从而所述防侧漏无纺布（8）与所述吸收体之间形成容纳凹腔。6. The comfortable briefs-type sanitary product according to claim 4, characterized in that the lower side of the anti-side leakage non-woven fabric (8) is provided with a lower side wrapping, and the lower side wrapping wraps On the edge of the bottom surface of the absorber, and the two are integrally bonded, the upper side of the anti-side leakage non-woven fabric (8) is provided with an upper side wrapping, and the upper side wrapping is wrapped around the The top surface edge of the absorbent body, and the two sides are bonded at both ends, so that the upper side wrapping of the side leakage prevention non-woven fabric (8) can protrude in the width direction, so that the side leakage prevention non-woven fabric (8) can be A receiving cavity is formed between the leaky non-woven fabric (8) and the absorber. 7.根据权利要求5所述的穿着舒适的三角裤型卫生用品，其特征在于所述上侧包边在所述长度方向设有立体护围橡筋（12），所述上侧包边包覆所述立体护围橡筋（12）。7. The comfortable briefs-type sanitary product according to claim 5, characterized in that the upper side wrapping is provided with a three-dimensional protective elastic band (12) in the longitudinal direction, and the upper side wrapping wraps Cover the three-dimensional protective elastic band (12). 8.根据权利要求4所述的穿着舒适的三角裤型卫生用品，其特征在于所述表层无纺布（7）在所述长度方向上对应所述吸收芯体（5）的顶面两侧边缘设有芯体橡筋（11）。8. The comfortable briefs-type sanitary product according to claim 4, characterized in that the surface layer non-woven fabric (7) corresponds to both sides of the top surface of the absorbent core (5) in the longitudinal direction The edge is provided with a core elastic band (11). 9.根据权利要求4所述的穿着舒适的三角裤型卫生用品，其特征在于所述表层无纺布（7）的顶面在所述长度方向上对应所述吸收体两端的位置设有加强无纺布（13）。9 . The comfortable briefs-type sanitary product according to claim 4 , wherein the top surface of the surface layer non-woven fabric ( 7 ) is provided with reinforcements at the positions corresponding to both ends of the absorber in the longitudinal direction. 10 . Nonwoven (13). 10.根据权利要求1所述的穿着舒适的三角裤型卫生用品，其特征在于所述腰围（2）包括外腰围无纺布（14）和内腰围无纺布（15），所述腰围（2）展平后，所述腰围（2）的内侧设有腰围橡筋（16），外侧设有弹力膜（17），所述腰围橡筋（16）和弹力膜（17）均位于所述外腰围无纺布（14）和内腰围无纺布（15）之间。10. The comfortable briefs-type sanitary product according to claim 1, characterized in that the waistline (2) comprises an outer waistline nonwoven fabric (14) and an inner waistline nonwoven fabric (15), and the waistline ( 2) After being flattened, a waist elastic band (16) is arranged on the inner side of the waist (2), and an elastic film (17) is arranged on the outer side, and both the waist elastic band (16) and the elastic film (17) are located in the Between the outer waist non-woven fabric (14) and the inner waist non-woven fabric (15).
