Abstract
The invention discloses a near infrared ray massage physiotherapy instrument capable of transmitting light waves with specific wave bands, relates to the technical field of physiotherapy instruments, and provides the following technical scheme aiming at the problems that the smaller the connecting area of a magic tape hair surface and a magic tape hook surface in the prior art is, the small connecting strength is, the low treatment efficiency is and the poor effect is caused. The invention can improve the connection strength under the condition that the connection area of the magic tape hair surface and the magic tape hook surface is small, and the temperature guide plate is contacted with the back of a patient, thereby expanding the treatment range and improving the treatment effect.
Description
Technical Field
The invention relates to the technical field of physiotherapy instruments, in particular to a near infrared massage physiotherapy instrument capable of transmitting light waves of a specific waveband.
Background
The infrared therapeutic apparatus is an important tool indispensable in nursing work. The infrared ray can penetrate through the clothes to act on the treatment part. Can penetrate through the skin to directly generate heat effect on muscles, subcutaneous tissues and the like. Accelerating blood circulation, increasing metabolism, reducing pain, increasing muscle relaxation, and generating massage effect. The infrared ray is mainly used for treating diseases because the infrared ray can mobilize the disease resistance of the human body from different levels.
The existing near infrared ray massage physiotherapy instrument which penetrates through light waves with specific wave bands generally covers a patient through magic tape, and has the following defects:
1. although the adjustable hook-and-loop fastener can be adjusted according to the dimension of a patient, the adjustable range is limited, if the waist is larger, the connecting area between the hook-and-loop fastener rough surface and the hook-and-loop fastener hook surface is smaller, so that the connecting strength is small;
2. the patient generally is the aching pain of wholeness after taking exercise using physiotherapy equipment, and traditional physiotherapy equipment can only carry out massage treatment to the aching pain part relative with infrared ray physiotherapy lamp, treats the opposite side after the treatment, and is inefficient, the effect is poor.
Therefore, we propose a near infrared massage physiotherapy instrument which transmits light waves with specific wave bands to solve the above problems.
Disclosure of Invention
The invention aims to solve the problems of small connection area, low connection strength, low treatment efficiency and poor effect of a magic tape hair surface and a magic tape hook surface in the prior art, and provides a near infrared ray massage physiotherapy instrument which can transmit light waves with specific wave bands.
In order to achieve the purpose, the invention adopts the following technical scheme:
a near infrared ray massage physiotherapy instrument transmitting light waves with specific wave bands comprises a physiotherapy instrument outer shell, a pair of transversely arranged refrigeration elements and a plurality of longitudinally arranged infrared ray physiotherapy lamps are arranged on the physiotherapy instrument outer shell, a heating element is arranged between every two adjacent infrared ray physiotherapy lamps, the front side of the outer shell of the physiotherapy instrument is provided with an inner shell of the physiotherapy instrument, the inner shell of the physiotherapy instrument is provided with a through groove for holding an infrared physiotherapy lamp, a refrigeration cavity matched with the refrigeration element is also arranged on the inner shell of the physiotherapy instrument, one side of the refrigeration cavity is communicated with an air guide cavity, the other side of the air guide cavity is connected with a pipe connecting female head through a cold air pipe, the physiotherapy equipment shell body left and right sides symmetry is provided with the connecting band, is located the right side be provided with the cold air chamber in the connecting band, the fixed temperature guide plate that is equipped with that inlays of front side in cold air chamber, and the temperature guide plate front side is fixed with the non-woven fabrics.
Preferably, the front side of the connecting belt on the left side is provided with a hook and loop surface, and the rear side of the connecting belt on the right side is provided with a hook and loop surface matched with a hook and loop surface.
Preferably, the connecting belt on the right side is also symmetrically provided with pipe connecting sub heads for connecting the pipe connecting female heads.
Preferably, a plurality of heating elements, infrared ray physiotherapy lamp and two refrigeration components all external power supply.
Preferably, the refrigeration cavity is L-shaped, and the shape and the size of the refrigeration cavity are matched with those of the refrigeration element.
Preferably, the material of the temperature conducting plate comprises copper.
The invention has the beneficial effects that:
the treatment part is heated or cooled by the refrigerating element and the heating element, so that the discomfort of a patient is reduced, and the part of the patient needing treatment is treated by the infrared physiotherapy lamp.
2, the cold air pipe and the pipe connection female head are connected with the pipe connection male head, so that the connection strength can be improved under the condition that the connection area of the hook-and-loop fastener rough surface and the hook-and-loop fastener hook surface is small.
3, after the invention is connected with the pipe connecting sub-head through the cold air pipe and the pipe connecting female head, the cold air in the refrigerating cavity can be diffused into the cold air cavity and is contacted with the back of the patient through the temperature guide plate, thereby expanding the treatment range and improving the treatment effect.
Drawings

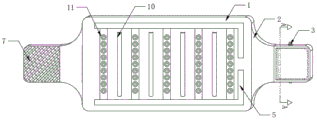

Fig. 1 is a schematic structural view of a near infrared massage physiotherapy instrument of the present invention transmitting light waves of a specific wavelength band.
Fig. 2 is a schematic structural view of an outer shell of a near infrared massage physiotherapy apparatus of the present invention.
Fig. 3 is a schematic structural view of an inner housing of a near infrared massage physiotherapy apparatus for transmitting light waves of a specific wavelength band according to the present invention.
Fig. 4 is a sectional view taken along the line a-a in fig. 2.
Reference numbers in the figures: 1 physiotherapy equipment shell body, 2 connecting bands, 3 union coupling son heads, 4 non-woven fabrics, 5 refrigeration component, 6 physiotherapy equipment inner casing, 7 magic subsides collude face, 8 cold air pipes, 9 union coupling female heads, 10 heating element, 11 infrared ray physiotherapy lamps, 21 cold air chamber, 22 lead warm board, 18, 61 logical groove, 63 refrigeration chamber, 64 heating chamber, 65 lead air chamber.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
Referring to fig. 1-4, a near infrared ray massage physiotherapy apparatus transmitting light waves of specific wavelength bands, comprising a physiotherapy apparatus outer casing 1, a pair of transversely arranged refrigeration components 5 and a plurality of longitudinally arranged infrared ray physiotherapy lamps 11 are arranged on the physiotherapy apparatus outer casing 1, a heating component 10 is arranged between two adjacent infrared ray physiotherapy lamps 11, a physiotherapy apparatus inner casing 6 is arranged at the front side of the physiotherapy apparatus outer casing 1, a through groove 61 for accommodating the infrared ray physiotherapy lamps 11 is arranged on the physiotherapy apparatus inner casing 6, a refrigeration cavity 63 matched with the refrigeration components 5 is also arranged on the physiotherapy apparatus inner casing 6, one side of the refrigeration cavity 63 is communicated with an air guide cavity 65, the other side of the air guide cavity 65 is connected with a pipe connection female head 9 through a cold air pipe 8, connecting belts 2 are symmetrically arranged at the left side and the right side of the physiotherapy apparatus outer casing 1, a cold air cavity 21 is arranged in the connecting belt 2 at the right side, a, the non-woven fabric 4 is fixed on the front side of the temperature guide plate 22.
In an optional embodiment, be located 2 front sides of left connecting band and be provided with magic subsides hook face 7, be located 2 rear sides of connecting band on right side and be provided with 7 assorted magic subsides hair side of hook face, 7 and the hair side assorted can be fixed to it of magic subsides hook face, still the symmetry is provided with the sub-head 3 of pipe connection who is used for connecting female head 9 of pipe connection on the connecting band 2 that is located the right side. The heating elements 10, the infrared physiotherapy lamp 11 and the two refrigerating elements 5 are externally connected with a power supply. Refrigeration chamber 63 is the L type, and refrigeration chamber 63 and 5 shape size phase-matchs of refrigerating element lead the material of warm plate 22 to include copper, through the setting of copper, make its cold effect of leading better to reach the effect that reduces patient's ache.
The working principle is as follows: the inner housing 6 of the physiotherapy instrument is wrapped at the part of a patient needing physiotherapy, the connecting belt 2 surrounds the patient, and the hook surface 7 of the magic tape is bonded with the hair surface of the magic tape, so that the inner housing 6 of the physiotherapy instrument is fixed with the outer housing 1 of the physiotherapy instrument, and meanwhile, the infrared physiotherapy lamp 11 is arranged and matched with external control equipment, so that the infrared physiotherapy lamp can emit light waves to treat the part needing physiotherapy;
secondly, the refrigeration element 5 and the heating element 10 are arranged, so that the refrigeration element can be preheated or cooled during working, and the use requirement of a patient is met;
because 2 cladding of connecting band are at patient's health position, make it be in the state of buckling, through being connected the back with female head of union coupling 9 and the sub-head 3 of union coupling, the bonding fixed strength of hook-and-loop fastener face 7 and hook-and-loop fastener hair side has been increased on the one hand, avoid alternate segregation between the connecting band 2, on the other hand, refrigerating element 5 makes the gas cooling of refrigeration chamber 63, air conditioning passes through air guide chamber 65, cold air pipe 8, female head of union coupling 9 and the sub-head 3 of union coupling get into cold air chamber 21 in, good heat conductivity through leading warm plate 22, make its rapid cooling, cool down the treatment to patient's back, make the human body can not produce rejection reaction to leading warm plate 22 through non-woven fabrics 4.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like, indicate orientations and positional relationships based on those shown in the drawings, and are used only for convenience of description and simplicity of description, and do not indicate or imply that the equipment or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be considered as limiting the present invention.
Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically defined otherwise.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and the technical solutions and the inventive concepts thereof according to the present invention should be equivalent or changed within the scope of the present invention.
Claims (6)
1. A near infrared ray massage physiotherapy instrument capable of transmitting light waves with specific wave bands is characterized by comprising a physiotherapy instrument outer shell (1), wherein a pair of transversely arranged refrigerating elements (5) and a plurality of longitudinally arranged infrared ray physiotherapy lamps (11) are arranged on the physiotherapy instrument outer shell (1), a heating element (10) is arranged between every two adjacent infrared ray physiotherapy lamps (11), a physiotherapy instrument inner shell (6) is arranged on the front side of the physiotherapy instrument outer shell (1), a through groove (61) for accommodating the infrared ray physiotherapy lamps (11) is formed in the physiotherapy instrument inner shell (6), a refrigerating cavity (63) matched with the refrigerating elements (5) is further formed in the physiotherapy instrument inner shell (6), an air guide cavity (65) is communicated with one side of the refrigerating cavity (63), and the other side of the air guide cavity (65) is connected with a pipe connection female head (9) through a cold air pipe (8), the physiotherapy equipment shell body (1) left and right sides symmetry is provided with connecting band (2), is located the right side be provided with cold air chamber (21) in connecting band (2), and the front side of cold air chamber (21) is fixed to be inlayed and is equipped with temperature guide plate (22), and temperature guide plate (22) front side is fixed with non-woven fabrics (4).
2. The near infrared ray massage physiotherapy instrument transmitting light waves with specific wavelength bands as claimed in claim 1, wherein a hook and loop fastener surface (7) is provided on the front side of the left connecting band (2), and a hook and loop fastener surface matching with the hook and loop fastener surface (7) is provided on the rear side of the right connecting band (2).
3. The near infrared ray massage physiotherapy instrument transmitting light waves of a specific wavelength band as claimed in claim 2, wherein the connecting band (2) on the right side is further symmetrically provided with tube connecting sub-heads (3) for connecting the tube connecting female head (9).
4. The near infrared ray massage physiotherapy apparatus transmitting light waves of specific wavelength band as claimed in claim 1, wherein a plurality of said heating elements (10) and infrared ray physiotherapy lamps (11) and two refrigerating elements (5) are externally connected to a power supply.
5. The near infrared ray massage physiotherapy instrument transmitting light waves with specific wavelength bands as claimed in claim 1, wherein the refrigerating chamber (63) is L-shaped, and the refrigerating chamber (63) is matched with the refrigerating element (5) in shape and size.
6. The near infrared ray massage physiotherapy apparatus for transmitting light waves of a specific wavelength band as claimed in claim 1, wherein the material of the temperature guide plate (22) comprises copper.
